HYAFF 11-Based Autologous Dermal and Epidermal Grafts in the Treatment of Noninfected Diabetic Plantar and Dorsal Foot Ulcers: A prospective, multicenter, controlled, randomized clinical trial

This was an open, stratified, randomized, and controlled multicenter study recruiting patients with diabetic foot ulcers from six centers in Italy. The ethics committee of each center reviewed and approved the study protocol.

The main inclusion criteria were type 1 or type 2 diabetes, an ulcer ≥2 cm² on plantar surface or dorsum of the foot without signs of healing for 1 month, Wagner score 1–2, TcPO₂ ≥30 mmHg, and ankle brachial pressure index (ABPI) ≥0.5. The main exclusion criteria were ulcers with clinical infection, exposed bone, osteomyelitis diagnosed by radiography, inability to tolerate an off-loading cast, and poor-prognosis diseases. The study involved a screening visit in which eligible patients with either a dorsal or plantar ulcer were identified, enrolled, and randomized into one of two treatment groups. Written informed consent was obtained from all patients, and all baseline data and tests results were recorded. Randomization was done by telephone, and the randomization list was generated and held by the sponsor.

Patients in the treatment group (autologous grafting) were also subjected to HIV, hepatitis C virus, and HbsAg blood tests and a skin biopsy. Before the study and throughout the study period, all ulcers were subjected to an aggressive and extensive debridement to remove necrotic tissue and to control infection. In case of wound infection during the study period, an appropriate antibiotic therapy was prescribed.

The application of the standard dressing began at the screening visit for both treatment groups. After 15 days of run in (i.e., at visit 1) all patients with an ulcer area <1 cm² were excluded from the study. Patients with an ulcer area ≥1 cm² received either autologous fibroblasts on Hyalograft 3D (treatment group) or continued treatment with the nonadherent paraffin gauze (control group). All patients attended weekly visits for 11 weeks or until the ulcer healed, whichever came first. At each weekly visit a detailed description of the wound bed, an ulcer area tracing (performed using a transparent plastic grid, Op-Site; Smith & Nephew), and a photograph of the wound were recorded. The wound area was later calculated by computerized morphometric measurement. If clinical signs of infection were evident, a swab for bacteriological analysis was taken, and the microbiological results were recorded. Wound infection was treated with appropriate systemic antibiotics.

A skin biopsy (1–2 cm², 0.8 mm deep) was taken from each patient randomized to the treatment group and sent to the TissueTech Autograft laboratory (Fidia Advanced Biopolymers, Abano Terme, Italy) for fibroblast and keratinocyte cell culturing. Human fibroblasts and keratinocytes were isolated and propagated for subsequent passaging for ∼14 days. The cells were then seeded on two distinct biodegradable scaffolds composed entirely of a benzylic ester of hyaluronic acid; these were a three-dimensional nonwoven scaffold and a lamina containing laser-drilled microperforations to allow for migration of keratinocytes onto the wound bed, respectively. Starting on day 8 from seeding, the dermal grafts or the epidermal sheets were ready for transplantation (19–26). Patients in the treatment group received autologous fibroblasts on Hyalograft3D, which was grafted onto the debrided and cleansed wound and covered with nonadherent paraffin gauze and a secondary dressing made of sterile cotton pads and gauze. If a second graft was required, the wound was cleansed with physiologic solution and a second graft applied.

Approximately 7–10 days after Hyalograft3D grafting, the ulcer received autologous keratinocytes grown on Laserskin that was covered and dressed as before. If required, a second autologous keratinocyte graft was permitted. The graft and retaining nonadherent paraffin gauze had to be left on for ≥7 days before removal. The secondary dressing could be changed after 5 days from graft application or earlier if the wound was exuding heavily. Seven days after grafting, all patients in the treatment group, as instructed by the investigator, changed the nonadherent paraffin gauze every 2 days at home after cleaning the ulcer with physiologic solution.

Patients in the control group were treated with nonadherent paraffin gauze (Jelonet; Smith & Nephew) covered with a traditional absorbent secondary dressing of sterile cotton pads and gauze. Control group visits and dressing changes were scheduled as in the treatment group.

All patients with plantar ulcers in both groups received pressure relief of the affected limb(s) using a nonremovable fiberglass off-loading cast (28) with a window to permit ulcer inspection and conduct dressing changes.

All patients with dorsal ulcers in both treatment groups received therapeutic shoes (rigid sole and dorsal closure with Velcro) specifically designed to comfortably fit the dressed foot. For all patients in this study, the essentials of foot ulcer care, namely debridement, adequate pressure relief, and treatment of infection, were provided as required by current international guidelines (1).

The primary efficacy parameters (percentage of healed ulcers and time to closure, i.e., complete re-epithelialization without residual exudate or crusting) were evaluated by the investigators at every weekly visit. The secondary efficacy parameters included presence of fibrous slough and necrotic tissue, appearance of granulation tissue, maceration, presence and amount of exudate (graded as absent, slight, moderate, or copious), and presence of odor and infection. Pain intensity and frequency were recorded using a visual analog scale (range = 0–10).

The sample size was calculated at 78 subjects to detect any statistically significant differences in the rate of ulcer healing between the treatment and control groups. This was based on α = 0.05, β = 95%, and an estimated mean healing time of 30 days with 70% healing in the treatment group and 30% in the control group. Intention-to-treat analysis was performed on all patients who were randomized and included after the run-in period.

The difference in continuous variables was analyzed by Student’s t test and qualitative variables by Fisher’s exact test. The median time to closure was estimated by using the Kaplan-Meier life table approach (log-rank test). All analyses were performed two-tailed, with an α value of 0.05. The statistical analysis was conducted using SAS statistical software (SAS, Cary, NC). An additional meta-analysis of the studies of Apligraf, Dermagraft, and Regranex by Pollak et al. (13), Veves et al. (16), and Wieman et al. (17), respectively, and of our study was performed using the method of Der Simonian and Laird (29).

A total of 82 patients with foot ulcers were screened and randomized to one of the two study groups. Only 79 patients with ulcers were included in the intention-to-treat analysis of the study and were analyzed because during the run-in period, two ulcers were excluded due to an area <1 cm² and one because of severe acute ischemia of the foot. Of the plantar ulcers included in the run-in period, 72.5% remained ≥2 cm² and of the dorsal ulcers, 67.6% remained ≥2 cm². It was not felt that this healing rate influenced the study results.

Of the 79 ulcers analyzed, 36 were assigned to the control group (16 dorsal and 20 plantar) and 43 to the treatment group (21 dorsal and 22 plantar). Overall, 37 ulcers were dorsal and 42 were plantar. In the control group, 10 patients withdrew before completion of the study, 5 because of serious adverse events, 1 based on investigator decision, and 4 for protocol violations. In the treatment group, eight patients withdrew before completion of the study, three because of serious adverse events and five for protocol violations. Details of discontinued patients are presented in Table 1.

At baseline the two groups were similar in regard to clinical characteristics (Tables 2 and 3). At the end of the study (i.e., 11 weeks) complete wound healing was achieved in 65.3% of the treatment group ulcers versus 49.6% of the control group ulcers (P = 0.191, log-rank test). The Kaplan-Meier median time for complete ulcer healing was 57 and 77 days for the treatment and control groups, respectively.

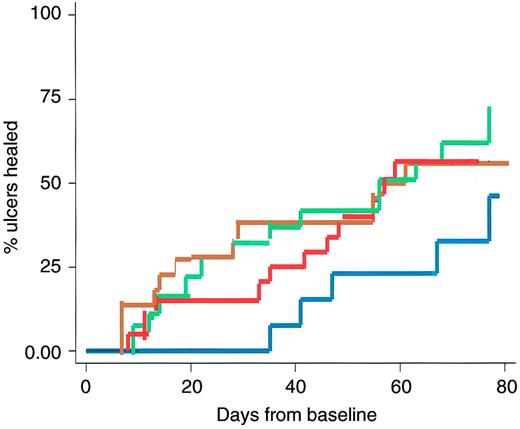

In the plantar ulcer subgroup, the number of ulcers healed at the final visit in the treatment group was 55% (12 of 22) versus 50% (10 of 20) in the control group (P = 1.00). The Kaplan-Meier median time to complete closure of plantar ulcers was 57 days for the treatment group and 58.5 days for the control group (Fig. 1).

In the dorsal ulcer subgroup, the number of ulcers healed at the end visit in the treatment group (14 of 21, 66.7%) was significantly higher when compared with the control group (5 of 16, 31.25%) (P = 0.049). The odds ratio for complete healing for a dorsal ulcer in the treatment group compared with the control group was 4.44 (95% CI 1.09–17.7, P = 0.037). The Kaplan-Meier mean time to complete closure in the dorsal ulcer population was 63 days for the treatment group and was not available for the control group because complete closure was not apparent at 77 days, the final scheduled visit (Fig. 1).

Of the 43 ulcers in the treatment group, 83.7% (n = 36) and 16.3% (n = 7) received one or two grafts of autologous fibroblasts on Hyalograft3D, respectively, and 95.4% (n = 41) and 4.6% (n = 2) received one or two grafts of autologous keratinocytes on Laserskin, respectively. Applications of first and subsequent grafts, as appropriate, were unremarkable.

In addition to the intention-to-treat analysis, a per-protocol analysis was conducted on the data available from those patients who completed the study to assess the robustness of the outcomes. Per-protocol analysis was done on the completed set comprising 61 ulcers, i.e., 26 ulcers in the control group and 35 in the treatment group (18 ulcers were not followed according to the protocol). Complete wound healing was achieved in 63.7% of the treatment group ulcers versus 50% of the control group ulcers (P = 0.332, log-rank test) with a median time for complete ulcer healing of 59 days for the treatment group and >77 days for the control group.

The four clinical studies that were included in the meta-analysis (Table 4) were considered for determining a pooled effect of the treatment (difference in wound healing proportion, WD = 0.1164, P = 0.002), with no statistical significance emerging from the heterogeneity χ² test (heterogeneity = 4.71 − degrees of freedom [df] = 4, P = 0.319). Thus, after observing the behavior of the two subgroups in our study, only the group with dorsal ulcers obtained any statistically significant benefit from the treatment.

Secondary efficacy parameters (presence of fibrous slough, necrotic tissue, granulation tissue, maceration, exudate, odor, infection, and pain symptomatology) were analyzed, and both groups showed an improvement in these parameters, the treatment group showed greater improvement than the control group as far as exudate presence. At the end of the study, exudate was absent in 86 and 69.4% of the treatment versus control groups, respectively, with a statistically significant difference in dorsal ulcers. It was absent in 31.3 versus 71.4% (visit 7, P = 0.036) and in 50 versus 90.5% (visit 12, P = 0.013) in the control and treatment groups, respectively. For those ulcers that did not heal during the study period, a mean percentage reduction in size from baseline was recorded for each treatment group. For plantar ulcers in this category, the mean reduction ± SD was −64.7 ± 34.7% and −61.1 ± 26.0% for the control and treatment groups, respectively (P = 0.823). For the dorsal ulcers that did not heal, the mean reduction was −32.9 ± 35.1% in the control group and −68.0 ± 37.3% in the treatment group (P = 0.072).

Twenty-two adverse events were reported from the 82 randomized patients (26.8%). These events were equally distributed between the two groups. Of these, 17 (10 in the control group and 7 in the treatment group) were classified as serious adverse events. The most frequent adverse events included wound infection, inflammation, and worsening of ischemia. Nine subjects (six in the control group and three in the treatment group) were withdrawn from the study because of serious adverse events. The grade of event was rated “severe” in eight cases (36.4%), “moderate” in six (36.4%), and “low” in eight (36.4%). No adverse event was determined to be related to any of the products used in the study. Due to the low number of adverse events, no statistical comparison was made.

This first, randomized, multicenter, controlled clinical study on autologous tissue-engineered products shows promising results for the treatment group. Statistically significant differences in the treatment outcomes were demonstrated for the dorsal ulcer subgroup. These conclusions are based on the intention-to-treat analysis; a per-protocol analysis was conducted (but not completely reported here) to assess the robustness of the results. Both analyses showed ostensibly similar outcomes. The safety and tolerability were excellent; no adverse event related to the study treatment occurred. The safety profile was, as such, closely comparable with that reported for other tissue-engineered treatments for diabetic foot ulcers.

The number of ulcers healed in the dorsal population of the treatment group was significantly higher when compared with that of the control group. Different results were obtained in the plantar ulcer group, in which the autologous grafts seemed not to sufficiently increase the healing rate compared with the standard dressing treatment. It must be emphasized that in this study the fiberglass off-loading cast was utilized as the pressure relief apparatus in the treatment of all plantar ulcers. The results of this study confirm that an effectively off-loaded plantar ulcer heals with either the use of a traditional wound dressing or an autologous graft. It is clear, therefore, that what is fundamental to the healing of plantar diabetic foot ulcers is not the type of dressing, but rather correct debridement and off-loading of pressure to the foot.

Recently, two randomized and controlled studies of Apligraf and Dermagraft (13,16) have evaluated the efficacy of allogenic dermal substitutes, and one controlled randomized study of Regranex (17) assessed the topical use of recombinant human platelet-derived growth factor-BB in comparison with a traditional wound dressing. The off-loading techniques used in these studies were crutches, wheelchairs, or footwear with cushioning insoles; it has been demonstrated that these off-loading techniques do not permit total off-loading of the ulcer (10). The only substantial differences between the plantar ulcers treated in these studies and those in our study are the pressure off-loading technique and the study duration, which was 12 weeks in the three studies and 11 weeks in our study. It is important to highlight that only in our study, in which a gold standard total off-loading was applied to plantar ulcers, no statistically significant difference was detected between the control and the treatment groups.

The results of this clinical study clearly show that the use of total off-loading is so important to the tissue repair process in plantar ulcers that the efficacy of fibroblasts on Hyalograft3D and keratinocytes on Laserskin cannot be differentiated from control techniques. However, considering the favorable results in the previously mentioned studies, in which allogenic dermal substitutes and platelet-derived growth factor gel were used for treatment of neuropathic plantar ulcers without off-loading casts, and on the basis of the significantly positive results obtained on dorsal ulcers treated with autologous grafting, the use of this autologous graft system should also be considered in the management of neuropathic plantar ulcers in patients for whom the use of a total off-loading cast is not recommended, provided that adequate measures to ensure pressure relief are taken.

This study was supported by a research grant from Fidia Advanced Biopolymers (Abano Terme, Italy).
