Patients with type 2 diabetes suffer twice the cardiovascular mortality of patients without the disease (1,2). In 1998, the American Diabetes Association (ADA) published guidelines for early detection of coronary heart disease (CHD) in asymptomatic patients with diabetes, with a specific focus on patients with multiple cardiovascular risk factors (3). Patients that fulfill any criteria are to be further risk stratified with stress testing. The criteria include 1) typical or atypical cardiac symptoms; 2) resting electrocardiograph suggestive of ischemia or infarction; 3) peripheral or carotid occlusive disease; 4) sedentary lifestyle, aged ≥35 years, and plans to begin a vigorous exercise program; and 5) more than two of the following risk factors in addition to diabetes: total cholesterol ≥240 mg/dl, LDL cholesterol ≥160 m/dl, or HDL cholesterol <35 mg/dl; blood pressure >140/90 mmHg; smoking; family history of premature coronary artery disease; or micro-/macroalbuminuria.

However, there are limited data available evaluating the performance of these guidelines in a clinical setting. We determined the proportion of patients in our clinic with type 2 diabetes that satisfied the ADA screening criteria and prevalence of CHD in these patients using stress testing and cardiac catheterization.

In 1999, records of patients (n = 2,226) in the Joslin Center at the University of Maryland Medical Center were reviewed. Patients that met ADA criteria had a notification placed in the chart. Decision to proceed to stress testing was made by the treating diabetologist. Charts were periodically reviewed until December 2003. Of 116 patients with stress tests, 94 (81%) had stress myocardial perfusion single-photon emission tomography, four subjects had pharmacologic stress echocardiography, and one subject had exercise electrocardiography. Type of stress testing was unavailable for 17 patients (14.7%). Coronary artery diameter reduction of ≥50 and ≥70% were used as cutoff points to denote angiographic evidence of moderate and high-degree stenoses, respectively, as defined in previous studies (15).

Statistical analysis

Continuous and categorical variables were compared between groups using Student’s t tests and χ2 tests. Logistic regression was used to determine independent clinical predictors of positive catheterization results. Statistical analysis was performed using SAS software (SAS Institute, Cary, NC).

A total of 1,053 patients had sufficient information to determine their risk factor profile. Few resting electrocardiograms were available and thus were not analyzed. No patients satisfied criterion 4. Six hundred and forty-nine (61.6%) patients met ADA criteria 3 or 5. Of patients who met these criteria, 116 (17.9%) had stress tests (Fig. 1). Patients who underwent stress testing were representative of all patients who qualified for stress testing in regards to age, race, duration of diabetes, and prevalence of risk factors. At the time of stress testing, 46 (39.7%) patients were receiving aspirin, 2 (1.7%) were receiving clopidogrel, 15 (12.9%) were receiving angiotensin receptor blockers, 66 (58.4%) were receiving ACE inhibitors, 30 (25.8%) were receiving β-blockers, 33 (28.4%) were receiving calcium channel blockers, and 62 (53.4%) were receiving statins.

Thirty-nine stress tests were abnormal (33.6%). Thirty-two patients with abnormal stress tests underwent catheterization. The remaining patients were lost to follow-up, had a fixed defect, had a normal repeat stress test, refused intervention, or died. Twenty-three of the catheterizations demonstrated CHD, and nine were normal. Ten patients had nonsignificant disease. Of nine patients with single- or two-vessel disease and >50 stenoses, two received percutaneous coronary intervention and seven received medical therapy. Four patients with multivessel disease and severe stenoses (>70%) underwent coronary artery bypass surgery (CABG). Of four patients receiving CABG, two had reduced left ventricular ejection fraction. At the time of CABG hospitalization, they reported long-standing exertional symptoms not recorded in the outpatient chart at the time of initial screening. Predictive value of a positive stress test for any degree of atherosclerosis was 61.5 and 33.3% for stenoses defined as ≥50%.

Patients with angiographically confirmed CHD had a higher prevalence of LDL >160 (39.1 vs. 16.3%, P = 0.02), family history of early CHD (21.7 vs. 7%, P < 0.05), and higher total number of risk factors than those who met ADA criteria but had normal stress or catheterization results. In multivariate analysis, family history (P = 0.02) and dyslipidemia (P = 0.04) were independently predictive of moderate to severe degree of CHD, but clustering of multiple risk factors were not (P = 0.66).

We evaluated the utility of the ADA screening guidelines for asymptomatic CHD in patients with type 2 diabetes. Our population is more representative of an urban American academic center than previous studies. Prevalence of perfusion defects in those screened with ADA criteria was 33.6%, similar to that of other studies of asymptomatic patients with type 2 diabetes (59). Prevalence of angiographically confirmed coronary artery disease was 20.7% for any degree of disease and 11.2% for moderate to severe disease. Moderate single- and two-vessel disease predominated. Incidence of myocardial infarction and cardiac death in patients with moderate disease is unknown, and appropriate interventions are currently under investigation. Identifying these patients does not change their management since guidelines recommend aggressive risk factor modification for all patients with diabetes.

Patients who underwent CABG were the only group whose risk of death was reduced as a result of screening (10,11). Careful questioning about exertional symptoms could have identified half of these patients in need of further cardiac evaluation based on symptoms alone. This discovery underscores the limitations of our study design, where information was obtained from chart review. This also highlights the realities of clinical practice, where anginal symptoms in patients with diabetes are difficult to elicit. Despite these limitations, the small numbers of patients that benefited from our screening suggest poor clinical utility of the current ADA guidelines.

The premise of the ADA guidelines was to target patients with diabetes and multiple cardiovascular risk factors. Our results do not show an independent relationship between the quantity of risk factors and incidence or degree of CHD. Other clinical predictors are needed to better define a population with increased incidence of severe CHD. Our study did not collect angiographic data on patients not meeting ADA criteria. Such information would be important in elucidating such predictors. Clearly, more research is needed to identify appropriate screening strategy for type 2 diabetic patients with asymptomatic CHD.

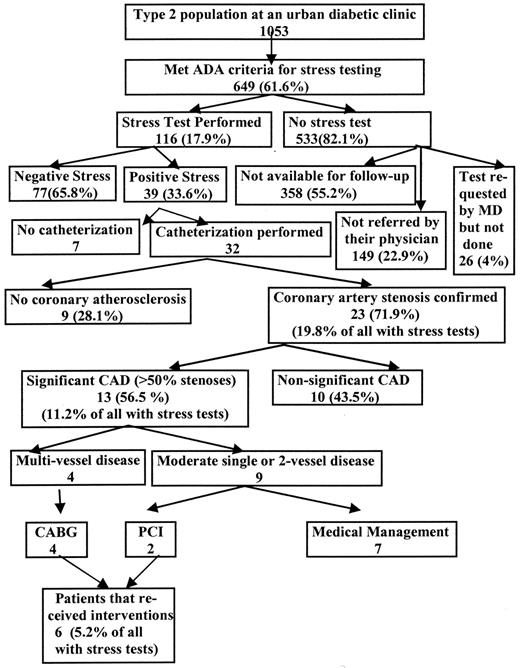

Figure 1—

Stage-wise screening results.

Figure 1—

Stage-wise screening results.

Close modal
Wilson PW: Diabetes mellitus and coronary heart disease.
MetabClinNorth Am
Stamler J, Vaccaro O, Neaton JD, Wentworth D: Diabetes, other risk factors, and 12-yr cardiovascular mortality for men screened in the Multiple Risk Factor Intervention Trial.
Diabetes Care
American Diabetes Association: Consensus development conference on the diagnosis of coronary heart disease in people with diabetes.
Diabetes Care
Kang X, Berman DS, Lewin H, Miranda R, Erel J, Friedman JD, Amanullah AM: Comparative ability of myocardial perfusion single-photon emission computed tomography to detect coronary artery disease in patients with and without diabetes mellitus.
Am Heart J
Janand-Delenne B, Savin B, Habib G, Bory M, Vague P, Lassmann-Vague V: Silent myocardial ischemia in patients with diabetes: who to screen.
Diabetes Care
Milan Study on Atherosclerosis and Diabetes (MiSAD) Group: Prevalence of unrecognized silent myocardial ischemia and its association with atherosclerotic risk factors in non insulin-dependent diabetes mellitus.
Am J Cardiol
Koistinen MJ: Prevalence of asymptomatic myocardial ischaemia in diabetic subjects.
Naka M, Hiramatsu K, Aizawa T, Momose A, Yoshizawa K, Shigematsu S, Ishihara F, Niwa A, Yamada T: Silent myocardial ischemia in patients with non-insulin dependent diabetes mellitus as judged by treadmill exercise testing and coronary angiography.
Am Heart J
Eagle KA, Guyton RA, Davidoff R, Ewy GA, Fonger J, Gardner TJ, Gott JP, Herrmann HC, Marlow RA, Nugent WC, O’Connor GT, Orszulak TA, Rieselbach RE, Winters WL, Yusuf S, Gibbons RJ, Alpert JS, Eagle KA, Garson A Jr, Gregoratos G, Russell RO, Smith SC Jr: ACC/AHA guidelines for coronary artery bypass graft surgery: a report of the American College of Cardiology/American Heart Association Task Force on Practice Guidelines (committee to revise the 1991 Guidelines for Coronary Artery Bypass Graft Surgery): American College of Cardiology/American Heart Association.
J Am Coll Cardiol
Nesto RW: Screening for asymptomatic coronary artery disease in diabetes.
Diabetes Care
Bypass Angioplasty Revascularization Investigation (BARI) Investigators: Comparison of coronary bypass surgery with angioplasty in patients with multivessel disease.
N Engl J Med

J.K. and R.N. contributed equally to this manuscript.

A table elsewhere in this issue shows conventional and Système International (SI) units and conversion factors for many substances.
