OBJECTIVE—To examine the relationship of retinal vascular caliber with diabetes, glycemia, and diabetic retinopathy.

RESEARCH DESIGN AND METHODS—Population-based study using data from the Multi-Ethnic Study of Atherosclerosis (MESA), comprising 5,976 individuals (whites, blacks, Hispanics, and Chinese) residing in six U.S. communities who were free of clinical cardiovascular disease at baseline. Retinal vascular caliber was measured from digital retinal photographs.

RESULTS—There were 4,585 individuals with normal fasting glucose (NFG), 499 with impaired fasting glucose (IFG), 165 with diabetes with retinopathy signs, and 727 with diabetes without retinopathy signs. After multivariate analysis, retinal arteriolar caliber increased from 143.8 μm in subjects with NFG to 144.5 μm in IFG and 146.1 μm in diabetes (P < 0.001 for trend). Retinal venular caliber increased from 214.4 μm in NFG to 216.7 μm in IFG and 218.0 μm in diabetes (P < 0.001 for trend). Retinal venular caliber was significantly larger with increasing levels of fasting glucose and A1C. In a subgroup analysis by ethnicity, the association between wider arteriolar caliber and diabetes was evident in whites only, whereas wider venular caliber and diabetes was evident in Hispanics and Chinese only. In people with diabetes, eyes with retinopathy had larger retinal venular but not arteriolar caliber.

CONCLUSIONS—Retinal arteriolar and venular calibers are larger in individuals with diabetes, but the pattern of associations appears to vary by ethnicity. Retinal venular caliber is additionally associated with retinopathy signs. These findings add further to the concept that variations in retinal vascular caliber may reflect early diabetic microvascular damage.

The retinal blood vessels are accessible to direct noninvasive visualization. There is increasing evidence that changes in retinal vascular caliber may be markers of early microvascular dysfunction associated with diabetes, pre-diabetes, and diabetes complications (1,2). However, although there have been a number of studies reporting various associations of retinal vascular caliber, the specific changes in arteriolar and venular caliber size with glycemic levels remain unclear. Early studies, for example, evaluated associations with the ratio of the retinal arteriolar to venular caliber (AV ratio), initially thought to reflect smaller arteriolar caliber. These studies showed that a smaller AV ratio was related to the development of type 2 diabetes (3,4). However, other studies subsequently found that these associations are driven by venular caliber, and one study demonstrated that larger retinal venular caliber was associated with the incidence of impaired fasting glucose and possibly diabetes (5). Associations of retinal arteriolar and venular caliber with diabetic microvascular complications, such as retinopathy, have also been inconsistent (6,7). Furthermore, it is now recognized that because arteriolar and venular calibers are highly correlated, statistical analysis of retinal vascular caliber should account for this correlation (8).

To address these issues, we assessed the associations of retinal arteriolar and venular caliber with the full spectrum of glycemic-related disorders and complications, ranging from impaired fasting glucose and clinically diagnosed diabetes to the presence of diabetic retinopathy in a multiethnic population-based cohort.

The Multi-Ethnic Study of Atherosclerosis (MESA) is a prospective cohort study of men and women aged 45–84 years comprising four racial/ethnic groups (whites, blacks, Hispanics, and Chinese). Participants have no history of clinical cardiovascular disease at baseline and are residents of six U.S. communities (9). Tenets of the Declaration of Helsinki were followed, and institutional review board approval was granted at each study site. Written informed consent was obtained from each participant.

At the first examination, there were 6,814 participants. Retinal photography was done at the second examination, which immediately followed the baseline examination, from August 2002 to January 2004 (10). At the second examination, 6,237 returned, 6,147 had retinal photographs for grading retinopathy, and 5,976 (97.3%) had photographs that were suitable for measurement of retinal vascular caliber.

Measurement of retinal vascular caliber

Retinal photography was performed using a standardized protocol (11). Both eyes of each participant were photographed using a 45-degree 6.3-megapixel digital nonmydriatic camera. Two photographic fields (optic disc and macula) were taken of each eye. Images were sent from the six field centers to the University of Wisconsin, Madison, for measurement of retinal vascular caliber and assessment of other retinal pathology.

Retinal vascular caliber was measured using a computer-based program by trained graders who were masked to participant characteristics, based on a detailed protocol (11). Photographs in the right eye were selected for measurement; the left eye was chosen if measurements could not be performed in the right eye. For each image, all arterioles and venules coursing through an area one-half to one-disc diameter from the optic disc margin were measured and summarized as the central retinal artery equivalent (CRAE) and central retinal vein equivalent (CRVE) (10,11). These equivalents are projected calibers for the central retinal vessels, measured away from the optic disc. Reproducibility of these measurements has been reported, with intra- and intergrader intraclass correlation coefficients ranging from 0.78 to 0.99 (10).

Definition of diabetic retinopathy

Diabetic retinopathy assessment has been previously published. For each eye, a retinopathy severity score was assigned based on modification of the Airlie House Classification system (12). Levels 14–20 were defined as minimal retinopathy, and levels >20 (levels 31–80) were defined as early to severe diabetic retinopathy. A person's retinopathy level was based on the scores in the right eye, as most of the retinal vascular caliber measurements were obtained from this eye. Six eyes with proliferative retinopathy were excluded from analysis because of previous laser treatment, which may have an effect on vascular calibers (6,7).

Assessment of diabetes

Diabetes was defined as fasting glucose ≥7.0 mmol/l (126 mg/dl) or use of insulin or oral hypoglycemic medication (13). No distinction was made between type 1 and type 2 diabetes. Impaired fasting glucose (IFG) was defined as a fasting glucose level of 6.1–6.9 mmol/l (110–125 mg/dl). All other participants were defined as having normal fasting glucose (NFG).

Assessment of other risk factors

A detailed questionnaire was used to obtain participant information, including past medical history, cigarette smoking, and alcohol consumption status (9). Hypertension was defined as systolic blood pressure ≥140 mmHg, diastolic blood pressure ≥90 mmHg, or current use of antihypertensive medications. Height and weight were measured to determine BMI. Fasting (>8 h) blood samples were drawn from participants, and aliquots were prepared for central analysis. The following were analyzed in this report: plasma total and HDL cholesterol, plasma triglycerides, serum glucose, A1C, and C-reactive protein (CRP). LDL cholesterol was calculated with the Friedewald equation.

Statistical analysis

Retinal vascular caliber (CRAE and CRVE) was normally distributed in the population. We used ANCOVA to estimate mean CRAE/CRVE for categories of NFG, IFG, and diabetes and used linear regression to determine the linear relationship of CRAE/CRVE with fasting glucose and A1C levels. We constructed the following models: model 1, adjusted for age, sex, race/ethnicity, and examination center, and model 2, adjusted for variables in model 1 plus systolic blood pressure, BMI, total cholesterol, triglycerides, current smoking, and CRP. In model 3, because CRAE and CRVE are highly correlated (correlation coefficient 0.52), we adjusted for variables in model 2 plus CRVE in models of CRAE (and vice versa). This approach accounts for potential confounding from fellow vascular caliber, which may share common genetic and other influences (8).

We also used ANCOVA to estimate mean CRAE/CRVE for categories of retinopathy (none, minimal, and early-severe) in individuals with diabetes, adjusting for age, race, sex, study center, systolic blood pressure, BMI, total cholesterol, triglycerides, current smoking, CRP, A1C, and duration of diabetes (model 4), and also for CRVE in models of CRAE, and vice versa (model 5). We repeated all analyses in the four racial/ethnic groups separately. All analyses were performed in SPSS version 12.0.1 (SPSS, Chicago, IL).

Selected characteristics for the study sample and for each of the four groups—NFG (n = 4,585), IFG (n = 499), and diabetes with (n = 165) and without (n = 727) retinopathy among participants who had retinal photographs (n = 5,976)—are shown in Table 1. Compared with NFG, individuals with IFG or diabetes were older, had greater BMI and proportion with hypertension, and higher triglycerides and CRP levels, but lower plasma total, LDL, and HDL cholesterol levels. Individuals with diabetic retinopathy had longer duration of diabetes, greater proportion on oral diabetic medication/insulin, higher serum fasting glucose levels, and systolic blood pressure in comparison with individuals with diabetes but without retinopathy.

In the entire sample, the mean CRAE was 144.1 ± 14.4 μm (mean ± SD) and CRVE was 214.0 ± 22.2 μm. The distribution of CRAE and CRVE by glycemic status is shown in Table 2. After controlling for age, sex, race, and study center, CRAE was significantly larger in individuals with diabetes compared with IFG and NFG (P = 0.009 for trend). This trend remained with further adjustment for variables in models 2 and 3. After adjusting for similar variables, CRVE was also significantly larger in individuals with IFG and diabetes compared with NFG (Table 2).

Figure 1 shows distribution of CRVE by levels of fasting plasma glucose and A1C in the whole cohort, adjusting for variables in model 3. Increasing levels of fasting glucose and A1C were associated with larger CRVE. Increasing levels of A1C were not associated with CRAE after adjustment for CRVE (data not shown).

After stratifying by ethnic groups, whites, Hispanics, and Chinese participants with diabetes had significantly larger CRAE than individuals with NFG (model 2, Table 2). However, the association remained significant only in whites in model 3 (after adjusting for CRVE) (P = 0.03 for race interaction). In contrast, the association between wider CRVE and diabetes was seen only in Hispanics and Chinese (P = 0.02 for race interaction).

Of 892 individuals with diabetes, there were 93 (10.4%) with minimal retinopathy and 72 (8.1%) with early-severe retinopathy (Table 3). There were six (0.7%) eyes with proliferative retinopathy that were excluded from analysis. Larger CRVE was associated with increasing severity level of retinopathy (P for trend 0.003, model 5). This association was largely similar across all four racial/ethnic groups but no longer statistically significant (except in blacks). CRAE was not independently associated with diabetic retinopathy. There was no association between CRVE and retinopathy in nondiabetic participants (data not shown).

Finally, we repeated the analyses excluding individuals with CRP >10 mg/dl (since these individuals may have an acute infection), with further adjustments for hypertension and diabetes treatment, and aspirin did not change the relationships between CRAE/CRVE and glycemic status/retinopathy (data not shown).

In this large population-based sample, we described the relationship of retinal arteriolar and venular caliber across the range of glycemic status from NFG, IFG, and diabetes to the presence of diabetic retinopathy. We also explored the racial/ethnic variations. We found that individuals with diabetes had larger retinal arterioles and venules than individuals with NFG. The association of wider arterioles and diabetes was seen in whites, whereas the association of wider venules and diabetes was more prominent in Hispanics and Chinese. Larger venular caliber, but not arteriolar caliber, was additionally associated with increasing levels of fasting glucose and hemoglobin A1C levels in individuals with and without diabetes. Among individuals with diabetes, larger venular caliber was associated with diabetic retinopathy.

The association of larger venular caliber with both diabetes and IFG is compatible with previous data from the Atherosclerosis Risk In Communities (ARIC) study, which showed that larger venular caliber was associated with IFG (14) and the Rotterdam Study, which demonstrated a prospective association between wider venular caliber and the incidence of IFG in participants <70 years of age (5). The independent association of larger venular caliber with retinopathy signs in individuals with diabetes is also consistent with clinical experience and with findings in the Wisconsin Epidemiological Study of Diabetic Retinopathy (WESDR) among both type 1 and type 2 diabetic subjects (6,7).

The lack of association between retinal arteriolar caliber with diabetic retinopathy in this study is also consistent with WESDR (6,7). The WESDR also reported no association between retinal arteriolar caliber and diabetic retinopathy among participants with type 2 diabetes (7) but showed that retinal arteriolar caliber may be smaller with increasing retinopathy severity among participants with type 1 diabetes (6). It is important to note that the findings of MESA may not be directly comparable to findings from WESDR. Individuals with diabetes in the current MESA population had mean age (65 vs. 67 years) and prevalence of hypertension (74 vs. 75%) similar to those of participants with type 2 diabetes in the WESDR, but the duration of diabetes was shorter in MESA than WESDR (5.5 vs. 12 years) (7), and the overall management of diabetes is likely to be different in the current MESA cohort compared with WESDR, which was conducted 20 years ago. Finally, in our statistical analysis, we accounted for the correlation between arterioles and venules.

We described new racial/ethnic variations; however, these variations should be interpreted cautiously because of reduced sample size in the subanalyses. The association between wider arterioles and diabetes was seen mainly in whites. This is consistent with previous data from predominantly white populations (15,16). In contrast, the association between wider venules and diabetes was only observed in nonwhites (Hispanic and Chinese). This finding has not been reported previously (15,16) and will need confirmation from other studies.

The finding of wider retinal arterioles with diabetes is supported by clinical studies on the effects of diabetes on retinal blood flow and vascular diameters (17,18). These studies postulate that in the diabetic retina, hyperglycemia and hypoxia initiate retinal vasodilation, leading to hyperperfusion. Hyperperfusion interferes with autoregulation, resulting in further vasodilation. However, we cannot offer explanations for the observed ethnic differences in this association.

The biological mechanisms underlying the associations of larger venular caliber with diabetes, IFG, and higher levels of A1C are as yet unknown. We speculate that this retinal vascular feature partly reflects processes related to inflammation and endothelial dysfunction (1). Consistent with this concept, larger retinal venular caliber has been found to be associated with raised systemic inflammatory markers in the Atherosclerosis Risk In Communities study and the Rotterdam and Beaver Dam Eye studies (1), including our previous analysis in MESA (10). However, associations were largely unchanged, even when we adjusted for CRP levels. The observed racial/ethnic differences could be analogous to previous reports of different atherosclerotic loading (19) or diabetes complications (20) in different racial/ethnic groups.

There are clearer pathophysiological mechanisms that may explain the relationship of larger venular caliber and diabetic retinopathy. Experimental studies have previously demonstrated that ocular inflammation is associated with larger retinal venules (21), partly reflecting increased nitrous oxide levels (22), and ocular inflammation is a clear pathogenic factor in the development and progression of diabetic retinopathy (23). Larger retinal venular caliber has also been shown to reflect increased blood flow associated with hyperglycemia (24) and retinal hypoxia (25) and may thus be the earliest vascular change of diabetic retinopathy. In contrast, we found no association between venular caliber and retinopathy in nondiabetic participants, which supports the concept that retinopathy signs in individuals without diabetes may be due to other mechanisms, such as hypertension (2).

The strengths of this study include a large population-based sample and the use of quantitative methods to measure retinal vascular caliber, as well as assessment of retinopathy by standardized grading protocols. Limitations of this study should also be noted. First, the cross-sectional nature of the study limits our ability to judge the temporal sequence of the associations reported. Second, we obtained 45-degree nonstereoscopic nonmydriatic photographs to grade diabetic retinopathy, which is less sensitive for detecting retinopathy, as graded from seven fields of stereoscopic fundus photographs (12); thus, we may have underestimated the proportion with diabetic retinopathy in the study population. Third, there is inevitable measurement error in retinal vascular caliber assessment. However, nondifferential error will tend to dilute associations toward the null. Furthermore, there are other factors that were not controlled that influenced retinal vascular caliber such as genetic and ocular factors (e.g., axial length). By adjusting for the other vessel, we are negating some effects of other “nonmeasurable ” factors.

In conclusion, we demonstrated subtle variations in retinal vascular caliber across the range of glycemic-related conditions. Our findings add further to the concept that glycemic status has a continuous effect on the vasculature. Although both larger retinal arteriolar and venular calibers were associated with diabetes, only larger retinal venular caliber was associated with IFG, with increasing levels of fasting glucose and A1C (across individuals with and without diabetes), and with increasing severity of diabetic retinopathy. These associations may vary by race/ethnicity. Variations in retinal vascular caliber are possible detectable markers for pre-diabetes, clinical diabetes, and early diabetic microvascular damage, and their measurements may provide additional clues to understanding the pathophysiology and consequences of impaired glucose metabolism.

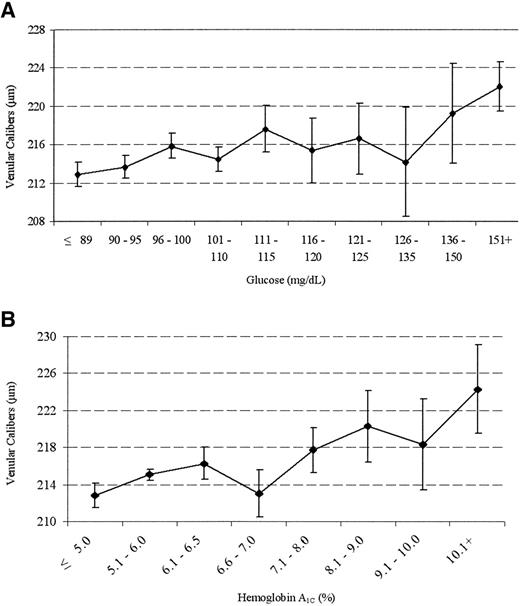

Figure 1—

Distribution of retinal venular caliber (μm) by fasting glucose (A) and A1C (B). Data are means (95% CI), adjusted for variables in model 3 (age, race, sex, study center, systolic blood pressure, BMI, total cholesterol, triglycerides, current smoking, CRP, and arteriolar caliber). The data are for the whole population—those with and without diabetes.

Figure 1—

Distribution of retinal venular caliber (μm) by fasting glucose (A) and A1C (B). Data are means (95% CI), adjusted for variables in model 3 (age, race, sex, study center, systolic blood pressure, BMI, total cholesterol, triglycerides, current smoking, CRP, and arteriolar caliber). The data are for the whole population—those with and without diabetes.

Close modal
Table 1—

Characteristics of participants in MESA

Glucose status (n = 5,976)
P*Diabetes (n = 892)
P
NFGIFGDiabetesNo retinopathyRetinopathy
 n = 4,585  n = 499  n = 892  n = 727 n = 165
Sex (male) 2,110 (46.0)  287 (57.5)  465 (52.1) <0.001 382 (52.3) 83 (51.6) 0.87
Alcohol consumption 2,476 (54.2)  270 (54.3)  328 (37.0) <0.001 271 (37.3) 57 (35.6) 0.70
Current cigarette smoker 553 (12.1)  43 (8.6)  97 (10.9) 0.06 86 (11.8) 11 (6.8) 0.07
Hypertension 1,947 (42.5)  300 (60.1)  654 (73.3) <0.001 524 (71.7) 130 (80.7) 0.02
Oral diabetic medication —  —  562 (64.8) — 449 (63.2) 113 (72.0) 0.04
Insulin —  —  97 (11.2) — 58 (8.2) 39 (24.8) <0.001
Age (years) 62.7 ± 10.1  63.9 ± 9.5  65.2 ± 9.2 <0.001 65.5 ± 9.2 63.8 ± 9.0 0.04
Diabetes duration (years) —  —  5.3 ± 7.7 — 4.2 ± 6.8 10.3 ± 9.6 <0.001
Serum glucose (mg/dl) 94.6 ± 8.3  115.4 ± 4.4  154.2 ± 54.3 <0.001 149.9 ± 50.4 173.7 ± 66.0 <0.001
Systolic blood pressure (mmHg) 122.4 ± 20.2  127.7 ± 21.3  130.5 ± 21.4 <0.001 129.7 ± 20.2 134.1 ± 25.9 0.02
Diastolic blood pressure (mmHg) 70.3 ± 10.0  72.1 ± 10.1  70.6 ± 10.4 0.001 70.8 ± 10.2 69.5 ± 11.2 0.13
BMI (kg/m227.7 ± 5.2  30.5 ± 5.6  30.9 ± 6.0 <0.001 30.8 ± 5.9 31.2 ± 6.4 0.46
Total cholesterol (mg/dl) 193.3 ± 34.9  191.4 ± 38.1  181.8 ± 37.3 <0.001 181.7 ± 36.4 182.5 ± 41.3 0.81
HDL cholesterol, mg/dl 53.3 ± 15.4  48.0 ± 13.4  46.5 ± 12.8 <0.001 46.5 ± 13.0 46.5 ± 11.8 0.98
LDL cholesterol (mg/dl) 115.3 ± 31.8  113.9 ± 33.6  105.0 ± 32.0 <0.001 104.5 ± 31.1 107.1 ± 35.9 0.35
Triglycerides (mg/dl) 124.8 ± 72.2  148.6 ± 90.2  158.4 ± 114.4 <0.001 160.0 ± 114.3 151.2 ± 114.7 0.38
CRP (mg/dl) 1.70 ± 3.18  2.31 ± 3.67  2.57 ± 4.67 <0.001 2.58 ± 3.26 2.53 ± 4.64 0.89
Glucose status (n = 5,976)
P*Diabetes (n = 892)
P
NFGIFGDiabetesNo retinopathyRetinopathy
 n = 4,585  n = 499  n = 892  n = 727 n = 165
Sex (male) 2,110 (46.0)  287 (57.5)  465 (52.1) <0.001 382 (52.3) 83 (51.6) 0.87
Alcohol consumption 2,476 (54.2)  270 (54.3)  328 (37.0) <0.001 271 (37.3) 57 (35.6) 0.70
Current cigarette smoker 553 (12.1)  43 (8.6)  97 (10.9) 0.06 86 (11.8) 11 (6.8) 0.07
Hypertension 1,947 (42.5)  300 (60.1)  654 (73.3) <0.001 524 (71.7) 130 (80.7) 0.02
Oral diabetic medication —  —  562 (64.8) — 449 (63.2) 113 (72.0) 0.04
Insulin —  —  97 (11.2) — 58 (8.2) 39 (24.8) <0.001
Age (years) 62.7 ± 10.1  63.9 ± 9.5  65.2 ± 9.2 <0.001 65.5 ± 9.2 63.8 ± 9.0 0.04
Diabetes duration (years) —  —  5.3 ± 7.7 — 4.2 ± 6.8 10.3 ± 9.6 <0.001
Serum glucose (mg/dl) 94.6 ± 8.3  115.4 ± 4.4  154.2 ± 54.3 <0.001 149.9 ± 50.4 173.7 ± 66.0 <0.001
Systolic blood pressure (mmHg) 122.4 ± 20.2  127.7 ± 21.3  130.5 ± 21.4 <0.001 129.7 ± 20.2 134.1 ± 25.9 0.02
Diastolic blood pressure (mmHg) 70.3 ± 10.0  72.1 ± 10.1  70.6 ± 10.4 0.001 70.8 ± 10.2 69.5 ± 11.2 0.13
BMI (kg/m227.7 ± 5.2  30.5 ± 5.6  30.9 ± 6.0 <0.001 30.8 ± 5.9 31.2 ± 6.4 0.46
Total cholesterol (mg/dl) 193.3 ± 34.9  191.4 ± 38.1  181.8 ± 37.3 <0.001 181.7 ± 36.4 182.5 ± 41.3 0.81
HDL cholesterol, mg/dl 53.3 ± 15.4  48.0 ± 13.4  46.5 ± 12.8 <0.001 46.5 ± 13.0 46.5 ± 11.8 0.98
LDL cholesterol (mg/dl) 115.3 ± 31.8  113.9 ± 33.6  105.0 ± 32.0 <0.001 104.5 ± 31.1 107.1 ± 35.9 0.35
Triglycerides (mg/dl) 124.8 ± 72.2  148.6 ± 90.2  158.4 ± 114.4 <0.001 160.0 ± 114.3 151.2 ± 114.7 0.38
CRP (mg/dl) 1.70 ± 3.18  2.31 ± 3.67  2.57 ± 4.67 <0.001 2.58 ± 3.26 2.53 ± 4.64 0.89

Data are n (%) or means ± SD and are shown as median and interquartile range.

*

P based on χ2 (categorical), ANOVA (quantitative and normal), or Kruskal-Wallis test (quantitative and skewed), comparing NFG, impaired fasting glucose (IFG), and diabetes.

P based on χ2 (categorical), ANOVA (quantitative and normal), or Kruskal-Wallis test (quantitative and skewed), comparing diabetes with and without retinopathy.

Results are shown as median and interquartile range.

Table 2—

Relationship of retinal arteriolar and venular caliber with fasting glucose status: all individuals and by racial/ethnic groups

Retinal vascular caliber (μm)
NFGIFGDiabetesP for trend
n 4,585 499 892
Retinal arteriolar caliber (CRAE)
    Model 1* 144.0 ± 0.24 143.9 ± 0.63 145.3 ± 0.48 0.009
    Model 2
All individuals 143.8 ± 0.24 144.5 ± 0.62 146.1 ± 0.48 <0.001
White 141.6 ± 0.35 144.3 ± 1.05 144.2 ± 1.02 0.02
Black 144.8 ± 0.44 144.6 ± 1.15 146.0 ± 0.80 0.19
Hispanic 139.7 ± 2.36 141.6 ± 2.65 142.2 ± 2.48 0.008
Chinese 144.5 ± 3.35 141.3 ± 3.83 148.2 ± 3.61 0.01
    Model 3§
All individuals 143.7 ± 0.20 143.6 ± 0.54 144.9 ± 0.42 0.008
White 141.8 ± 0.29 143.5 ± 0.87 144.3 ± 0.85 0.006
Black 144.9 ± 0.39 142.8 ± 1.01 145.4 ± 0.71 0.57
Hispanic 140.5 ± 2.10 141.7 ± 2.36 141.8 ± 2.212 0.13
Chinese 144.2 ± 2.86 141.9 ± 3.27 144.7 ± 3.09 0.70
Retinal venular caliber (CRVE)
    Model 1* 214.1 ± 0.35 217.1 ± 0.94 218.0 ± 0.72 <0.001
    Model 2
All individuals 214.4 ± 0.36 216.7 ± 0.95 218.0 ± 0.73 <0.001
White 206.0 ± 0.54 208.8 ± 1.58 206.5 ± 1.55 0.74
Black 221.4 ± 0.69 224.2 ± 1.81 224.0 ± 1.27 0.07
Hispanic 214.4 ± 3.66 217.1 ± 4.10 219.4 ± 3.85 0.001
Chinese 215.9 ± 4.75 213.6 ± 5.42 225.1 ± 5.11 <0.001
    Model 3§
All individuals 214.7 ± 0.31 216.5 ± 0.82 216.3 ± 0.63 0.02
White 206.9 ± 0.44 207.4 ± 1.31 205.2 ± 1.29 0.22
Black 221.8 ± 0.61 225.5 ± 1.59 223.3 ± 1.12 0.23
Hispanic 218.9 ± 3.28 220.3 ± 3.68 221.8 ± 3.44 0.03
Chinese 214.8 ± 4.05 214.9 ± 4.64 221.0 ± 4.37 0.001
Retinal vascular caliber (μm)
NFGIFGDiabetesP for trend
n 4,585 499 892
Retinal arteriolar caliber (CRAE)
    Model 1* 144.0 ± 0.24 143.9 ± 0.63 145.3 ± 0.48 0.009
    Model 2
All individuals 143.8 ± 0.24 144.5 ± 0.62 146.1 ± 0.48 <0.001
White 141.6 ± 0.35 144.3 ± 1.05 144.2 ± 1.02 0.02
Black 144.8 ± 0.44 144.6 ± 1.15 146.0 ± 0.80 0.19
Hispanic 139.7 ± 2.36 141.6 ± 2.65 142.2 ± 2.48 0.008
Chinese 144.5 ± 3.35 141.3 ± 3.83 148.2 ± 3.61 0.01
    Model 3§
All individuals 143.7 ± 0.20 143.6 ± 0.54 144.9 ± 0.42 0.008
White 141.8 ± 0.29 143.5 ± 0.87 144.3 ± 0.85 0.006
Black 144.9 ± 0.39 142.8 ± 1.01 145.4 ± 0.71 0.57
Hispanic 140.5 ± 2.10 141.7 ± 2.36 141.8 ± 2.212 0.13
Chinese 144.2 ± 2.86 141.9 ± 3.27 144.7 ± 3.09 0.70
Retinal venular caliber (CRVE)
    Model 1* 214.1 ± 0.35 217.1 ± 0.94 218.0 ± 0.72 <0.001
    Model 2
All individuals 214.4 ± 0.36 216.7 ± 0.95 218.0 ± 0.73 <0.001
White 206.0 ± 0.54 208.8 ± 1.58 206.5 ± 1.55 0.74
Black 221.4 ± 0.69 224.2 ± 1.81 224.0 ± 1.27 0.07
Hispanic 214.4 ± 3.66 217.1 ± 4.10 219.4 ± 3.85 0.001
Chinese 215.9 ± 4.75 213.6 ± 5.42 225.1 ± 5.11 <0.001
    Model 3§
All individuals 214.7 ± 0.31 216.5 ± 0.82 216.3 ± 0.63 0.02
White 206.9 ± 0.44 207.4 ± 1.31 205.2 ± 1.29 0.22
Black 221.8 ± 0.61 225.5 ± 1.59 223.3 ± 1.12 0.23
Hispanic 218.9 ± 3.28 220.3 ± 3.68 221.8 ± 3.44 0.03
Chinese 214.8 ± 4.05 214.9 ± 4.64 221.0 ± 4.37 0.001

Data are ANCOVA models showing mean ± SE of retinal arteriolar and venular caliber (in μm).

*

Model 1: Adjusted for age, race, sex, and study center.

Model 2: Adjusted for age, race (except for race-specific models), sex, study center, systolic blood pressure, BMI, total cholesterol, triglycerides, current smoking, and CRP. §Model 3: Adjusted for variables in model 2 and venular caliber (in models of arteriolar caliber) and arteriolar caliber (in models of venular caliber);

P < 0.05 comparing specific group with NFG group.

Table 3—

Relationship of retinal arteriolar and venular caliber with severity of retinopathy of participants with diabetes (right eyes only), all individuals, and by racial/ethnic groups

Retinal vascular caliber (μm)
No retinopathyMinimal retinopathyEarly-severe retinopathyP for trend
n (%) 727 (81.5) 93 (10.4) 72 (8.1)
Retinal arteriolar caliber (CRAE)
    Model 4*
All individuals 144.7 ± 0.59 145.8 ± 1.50 145.6 ± 1.79 0.65
White 143.9 ± 1.85 142.7 ± 3.60 136.7 ± 6.22 0.24
Black 146.5 ± 1.29 147.0 ± 2.74 146.0 ± 3.33 0.87
Hispanic 148.2 ± 1.55 153.5 ± 2.95 151.3 ± 3.00 0.28
Chinese 145.8 ± 2.81 142.7 ± 5.81 151.3 ± 5.54 0.35
    Model 5
All individuals 145.8 ± 0.74 146.4 ± 1.44 144.2 ± 1.69 0.34
White 143.1 ± 1.61 141.9 ± 3.12 134.1 ± 5.40 0.09
Black 145.6 ± 1.14 147.1 ± 2.39 142.0 ± 2.95 0.22
Hispanic 147.9 ± 1.38 150.6 ± 2.65 148.9 ± 2.69 0.70
Chinese 145.8 ± 2.40 139.5 ± 5.02 144.6 ± 4.90 0.82
Retinal venular caliber (CRVE)
    Model 4*
All individuals 221.8 ± 1.36 224.0 ± 2.66 231.2 ± 3.07 0.002
White 209.2 ± 3.17 209.4 ± 6.17 215.6 ± 10.7 0.54
Black 227.4 ± 2.13 223.6 ± 4.47 239.5 ± 5.34 0.02
Hispanic 222.5 ± 2.51 230.8 ± 4.84 229.1 ± 4.92 0.17
Chinese 221.5 ± 3.90 229.2 ± 8.10 237.9 ± 7.76 0.05
    Model 5
All individuals 220.6 ± 1.20 221.9 ± 2.34 228.6 ± 2.72 0.003
White 208.2 ± 2.74 209.4 ± 5.32 220.7 ± 9.23 0.16
Black 222.7 ± 3.92 226.4 ± 1.86 237.5 ± 4.77 0.02
Hispanic 221.7 ± 2.31 226.4 ± 4.43 226.3 ± 4.49 0.29
Chinese 220.5 ± 3.32 230.6 ± 6.90 233.1 ± 6.65 0.07
Retinal vascular caliber (μm)
No retinopathyMinimal retinopathyEarly-severe retinopathyP for trend
n (%) 727 (81.5) 93 (10.4) 72 (8.1)
Retinal arteriolar caliber (CRAE)
    Model 4*
All individuals 144.7 ± 0.59 145.8 ± 1.50 145.6 ± 1.79 0.65
White 143.9 ± 1.85 142.7 ± 3.60 136.7 ± 6.22 0.24
Black 146.5 ± 1.29 147.0 ± 2.74 146.0 ± 3.33 0.87
Hispanic 148.2 ± 1.55 153.5 ± 2.95 151.3 ± 3.00 0.28
Chinese 145.8 ± 2.81 142.7 ± 5.81 151.3 ± 5.54 0.35
    Model 5
All individuals 145.8 ± 0.74 146.4 ± 1.44 144.2 ± 1.69 0.34
White 143.1 ± 1.61 141.9 ± 3.12 134.1 ± 5.40 0.09
Black 145.6 ± 1.14 147.1 ± 2.39 142.0 ± 2.95 0.22
Hispanic 147.9 ± 1.38 150.6 ± 2.65 148.9 ± 2.69 0.70
Chinese 145.8 ± 2.40 139.5 ± 5.02 144.6 ± 4.90 0.82
Retinal venular caliber (CRVE)
    Model 4*
All individuals 221.8 ± 1.36 224.0 ± 2.66 231.2 ± 3.07 0.002
White 209.2 ± 3.17 209.4 ± 6.17 215.6 ± 10.7 0.54
Black 227.4 ± 2.13 223.6 ± 4.47 239.5 ± 5.34 0.02
Hispanic 222.5 ± 2.51 230.8 ± 4.84 229.1 ± 4.92 0.17
Chinese 221.5 ± 3.90 229.2 ± 8.10 237.9 ± 7.76 0.05
    Model 5
All individuals 220.6 ± 1.20 221.9 ± 2.34 228.6 ± 2.72 0.003
White 208.2 ± 2.74 209.4 ± 5.32 220.7 ± 9.23 0.16
Black 222.7 ± 3.92 226.4 ± 1.86 237.5 ± 4.77 0.02
Hispanic 221.7 ± 2.31 226.4 ± 4.43 226.3 ± 4.49 0.29
Chinese 220.5 ± 3.32 230.6 ± 6.90 233.1 ± 6.65 0.07

Data are ANCOVA models showing mean ± SE of retinal arteriolar and venular caliber (in μm).

*

Model 4: Adjusted for age, race (except for race-specific models), sex, study center, systolic blood pressure, BMI, total cholesterol, triglycerides, current smoking, CRP, A1C, and duration of diabetes.

Model 5: Adjusted for variables in model 4 plus venular caliber (in models of arteriolar caliber) and arteriolar caliber (in models of venular caliber).

This research was supported by grant N01-HC-95159 through grants N01-HC-95165 and N01-HC-95169 from the National Heart, Lung, and Blood Institute. Additional support was provided by National Institutes of Health Grant HL6997903 (to R.K. and T.Y.W.).

The authors thank the other investigators, the staff, and the participants of the MESA study for their valuable contributions. A full list of participating MESA investigators and institutions can be found at http://www.mesa-nhlbi.org.

1.
Nguyen TT, Wong TY: Retinal vascular manifestations of metabolic disorders.
Trends Endocrinol Metab
17
:
262
–268,
2006
2.
Nguyen TT, Wang JJ, Wong TY: Retinal vascular changes in pre-diabetes and pre-hypertension: new findings and their research and clinical implications.
Diabetes Care
30
:
2708
–2715,
2007
3.
Wong TY, Klein R, Sharrett AR, Schmidt MI, Pankow JS, Couper DJ, Klein BE, Hubbard LD, Duncan BB: Retinal arteriolar narrowing and risk of diabetes mellitus in middle-aged persons.
JAMA
287
:
2528
–2533,
2002
4.
Wong TY, Shankar A, Klein R, Klein BE, Hubbard LD: Retinal arteriolar narrowing, hypertension, and subsequent risk of diabetes mellitus.
Arch Intern Med
165
:
1060
–1065,
2005
5.
Ikram MK, Janssen JA, Roos AM, Rietveld I, Witteman JC, Breteler MM, Hofman A, van Duijn CM, de Jong PT: Retinal vessel diameters and risk of impaired fasting glucose or diabetes: the Rotterdam study.
Diabetes
55
:
506
–510,
2006
6.
Klein R, Klein BE, Moss SE, Wong TY, Hubbard L, Cruickshanks KJ, Palta M: Retinal vascular abnormalities in persons with type 1 diabetes: the Wisconsin Epidemiologic Study of Diabetic Retinopathy: XVIII.
Ophthalmology
110
:
2118
–2125,
2003
7.
Klein R, Klein BE, Moss SE, Wong TY, Sharrett AR: Retinal vascular caliber in persons with type 2 diabetes: the Wisconsin Epidemiological Study of Diabetic Retinopathy: XX.
Ophthalmology
113
:
1488
–1498,2006
8.
Liew G, Sharrett AR, Kronmal R, Klein R, Wong TY, Mitchell P, Kifley A, Wang JJ: Measurement of retinal vascular caliber: issues and alternatives to using the arteriole to venule ratio.
Invest Ophthalmol Vis Sci
48
:
52
–57,
2007
9.
Bild DE, Bluemke DA, Burke GL, Detrano R, Diez Roux AV, Folsom AR, Greenland P, Jacob DR, Jr, Kronmal R, Liu K, Nelson JC, O'Leary D, Saad MF, Shea S, Szklo M, Tracy RP: Multi-ethnic study of atherosclerosis: objectives and design.
Am J Epidemiol
156
:
871
–881,
2002
10.
Wong TY, Islam FM, Klein R, Klein BE, Cotch MF, Castro C, Sharrett AR, Shahar E: Retinal vascular caliber, cardiovascular risk factors, and inflammation: the multi-ethnic study of atherosclerosis (MESA).
Invest Ophthalmol Vis Sci
47
:
2341
–2350,
2006
11.
Wong TY, Knudtson MD, Klein R, Klein BE, Meuer SM, Hubbard LD: Computer-assisted measurement of retinal vessel diameters in the Beaver Dam Eye Study: methodology, correlation between eyes, and effect of refractive errors.
Ophthalmology
111
:
1183
–1190,
2004
12.
Diabetic Retinopathy Study Research Group: Design, methods, and baseline results: a modification of the Airlie House classification of diabetic retinopathy (DRS Report #7): prepared by the Diabetic Retinopathy.
Invest Ophthalmol Vis Sci
21
:
1b
–226b,
1981
13.
Expert Committee on the Diagnosis and Classification of Diabetes Mellitus: Report of the Expert Committee on the Diagnosis and Classification of Diabetes Mellitus.
Diabetes Care
20
:
1183
–1197,
1997
14.
Wong TY, Duncan BB, Golden SH, Klein R, Couper DJ, Klein BE, Hubbard LD, Sharrett AR, Schmidt MI: Associations between the metabolic syndrome and retinal microvascular signs: the Atherosclerosis Risk In Communities study.
Invest Ophthalmol Vis Sci
45
:
2949
–2954,
2004
15.
Kifley A, Wang JJ, Cugati S, Wong TY, Mitchell P: Retinal vascular caliber, diabetes, and retinopathy.
Am J Ophthalmol
143
:
1024
–1026,
2007
16.
Tikellis G, Wang JJ, Tapp R, Simpson R, Mitchell P, Zimmet PZ, Shaw J, Wong TY: The relationship of retinal vascular calibre to diabetes and retinopathy: the Australian Diabetes, Obesity and Lifestyle (AusDiab) study.
Diabetologia
50
:
2263
–2271,
2007
17.
Skovborg F, Nielsen AV, Lauritzen E, Hartkopp O: Diameters of the retinal vessels in diabetic and normal subjects.
Diabetes
18
:
292
–298,
1969
18.
Grunwald JE, Brucker AJ, Schwartz SS, Braunstein SN, Baker L, Petrig BL, Riva CE: Diabetic glycemic control and retinal blood flow.
Diabetes
39
:
602
–607,
1990
19.
Carnethon MR, Bertoni AG, Shea S, Greenland P, Ni H, Jacobs DR Jr, Saad M, Liu K: Racial/ethnic differences in subclinical atherosclerosis among adults with diabetes: the multiethnic study of atherosclerosis.
Diabetes Care
28
:
2768
–2770,
2005
20.
Karter AJ, Ferrara A, Liu JY, Moffet HH, Ackerson LM, Selby JV: Ethnic disparities in diabetic complications in an insured population.
JAMA
287
:
2519
–2527,
2002
21.
Kolodjaschna J, Berisha F, Lung S, Schaller G, Polska E, Jilma B, Wolzt M, Schmetterer L: LPS-induced microvascular leukocytosis can be assessed by blue-field entoptic phenomenon.
Am J Physiol Heart Circ Physiol
287
:
H691
–H694,
2004
22.
Chester AH, Borland JA, Buttery LD, Mitchell JA, Cunningham DA, Hafizi S, Hoare GS, Springall DR, Polak JM, Yacoub MH: Induction of nitric oxide synthase in human vascular smooth muscle: interactions between proinflammatory cytokines.
Cardiovasc Res
38
:
814
–821,
1998
23.
Joussen AM, Poulaki V, Le ML, Koizumi K, Esser C, Janicki H, Schraermeyer U, Kociok N, Fauser S, Kirchhof B, Kern TS, Adamis AP: A central role for inflammation in the pathogenesis of diabetic retinopathy.
FASEB J
18
:
1450
–1452,
2004
24.
Grunwald JE, Riva CE, Baine J, Brucker AJ: Total retinal volumetric blood flow rate in diabetic patients with poor glycemic control.
Invest Ophthalmol Vis Sci
33
:
356
–363,
1992
25.
Saldivar E, Cabrales P, Tsai AG, Intaglietta M: Microcirculatory changes during chronic adaptation to hypoxia.
Am J Physiol Heart Circ Physiol
285
:
H2064
–H2071,
2003

Published ahead of print at http://care.diabetesjournals.org on 10 December 2007. DOI: 10.2337/dc07-1528.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked “advertisement” in accordance with 18 U.S.C Section 1734 solely to indicate this fact.
