Urine Proteome Analysis May Allow Noninvasive Differential Diagnosis of Diabetic Nephropathy

We first recruited a group of 65 type 2 diabetic patients with a steady decline in glomerular filtration rate (GFR) and various degrees of urine albumin excretion rate, with biopsy-proven diabetic nephropathy and without any histological evidence of concomitant nondiabetic glomerular or vascular disease. Next, we enrolled a second group of 10 patients with diabetes and CKD other than diabetic nephropathy (5 with membranous glomerular nephropathy, 2 with IgA nephropathy, 2 with focal segmental glomerular sclerosis, and 1 with atheroembolic disease). Of note, patients with diabetic nephropathy came from three independent Divisions of Nephrology: University of Foggia (n = 32), Sant'Orsola Malpighi Hospital, University of Bologna (n = 5), and University of Modena and Reggio Emilia (n = 28). Next, we recruited 38 diabetic patients without any deterioration of estimated GFR (eGFR), 20 who were normoalbuminuric (NAD group) and 18 who were microalbuminuric (MICRO group). Finally, we enrolled 57 nondiabetic patients with CKD (nd-CKD), namely IgA nephropathy (n = 20), membranous nephropathy (n = 24) and benign nephroangiosclerosis (n = 13). Twenty healthy subjects were recruited as control group. The clinical and laboratory features of all the subjects studied are reported in supplementary Table A1 (available in an online appendix at http://care.diabetesjournals.org/cgi/content/full/dc10-0345/DC1).

eGFR was calculated using the Modified Diet in Renal Disease six-variable formula. Most patients examined showed fair blood pressure and glycemic control at the time of urine collection. In addition, most of them, with the exception of patients in NAD group, were taking ACE inhibitors and/or angiotensin II receptor antagonists as a part of their antihypertension treatment.

The study was approved by the local ethics committee, and informed written consent was obtained from all participating subjects. All investigations were conducted according to the principles expressed in the Declaration of Helsinki.

Paraffin-embedded renal specimens were used for conventional histological staining (hematoxylin-eosin, periodic acid-Schiff, silver methenamine, and Masson's trichrome). Immunofluorescence microscopy was performed on cryostat sections with the use of antisera against IgG, IgM, IgA, C3, C4, C1q, and fibrinogen. Diabetic nephropathy was diagnosed in the presence of nodular or diffuse glomerulosclerosis, glomerular hypertrophy, mesangial (diffuse or nodular) widening, glomerular capillary wall thickening, evidence of exudative lesions or fibrin caps (i.e., hyaline material heaped up on the inner side of the glomerular basement membrane), and the presence of microaneurysms of glomerular capillaries (13). Patients with concomitant evidence of nondiabetic glomerular disease or vascular disease were excluded from the analysis.

Urine samples were collected in the morning, after overnight fasting, and tested for standard parameters (including pH, glucose, blood content, and specific gravity) using Multistix reactive stripes (Bayer Diagnostics, Munich, Germany). Then they were centrifuged to remove cell debris, divided into aliquots with the addition of protease inhibitors, and stored at −80°C until analysis.

Urine samples were concentrated by 3-kDa cutoff Amicon filter devices (Millipore, Billerica, MA), and 10 μg of urine proteins, diluted (2:3, v/v) with a denaturing buffer solution (9 mol/l urea, 2% 3-[(3-cholamidopropyl)dimethylammonio]propanesulfonate [CHAPS], and 100 mmol/l dithiothreitol), were analyzed in duplicate using a CM10 ProteinChip (Bio-Rad, Hercules, CA) array, whose chemical surface binds proteins by cationic exchange. All experiments were performed according to the manufacturer's instructions. At the end of each experiment, the chips were read by a ProteinChip Reader (PCS-4000 Enterprise version; Bio-Rad) and, after acquisition, the spectra were analyzed by ProteinChip DataManager 3.5 software (Bio-Rad). Before each analysis, the software was externally calibrated by using a protein standard kit (ProteinChip OQ kit; Bio-Rad), and all of the spectra were normalized by means of total ion current. The analysis was performed in a range of 3,000 to 30,000 m/z, considering as real peaks those having a signal-to-noise and valley depth ratio >4. The reproducibility of the SELDI analysis was assessed by running one urine sample in quadruplicate and measuring the percent coefficient of variation in the number and intensity of mass peaks. According to our previously published data (14) and the manufacturer's instruction, percent coefficient of variation values for the number and intensity of peaks were about 8 and 23%, respectively (data not shown).

Urine samples were divided into a training set and a testing set to construct and validate the classification tree, respectively. The intensity (microamperes) of all the mass peaks in the training set was transferred to Biomarker Pattern Software (Bio-Rad) that identified a set of mass peaks whose intensity allowed us to classify each sample of the training set with the least error. The independent testing set was then scored using the classification tree to evaluate the classification power on a blinded dataset. The sensitivity was defined as the probability of predicting diabetic nephropathy, and the specificity was defined as the probability of predicting nd-CKD.

A logistic regression model was used to determine factors significantly related to the urinary proteomic signature. Significance <0.05 for simple logistic analysis was required for independent variables to be entered into a multivariate logistic model.

Two proteins of about 11,700 and 8,589 m/z, chosen among the most prominent predictors included in the classification tree, were isolated, identified by tandem mass spectrometry, and validated by enzyme-linked immunosorbent assay (ELISA) (β₂-microglobulin [β2MG]) and immunoprecipitation (ubiquitin), respectively (for details of methods, see supplementary data, available in an online appendix).

We first tested the ability of Biomarker Pattern Software to differentiate diabetic nephropathy from nd-CKD (Fig. 1,A). Initially, urine samples from 54 patients with diabetic nephropathy and 57 nondiabetic patients with nd-CKD were distributed into the training set (31 diabetic nephropathy and 41 nd-CKD) and the testing set (23 diabetic nephropathy and 16 nd-CKD). To minimize the influence of preanalytical biases on the classification approach, urine samples of patients with diabetic nephropathy collected in three distinct nephrology units were evenly distributed in both the training and the testing set. The best classification tree created in the training set was then applied to an independent blinded set (testing set) of urine samples to validate its discriminatory power. Diabetic nephropathy and nd-CKD were correctly classified with 78.2 and 87.5% sensitivity and specificity, respectively (Fig. 1,B). Eighteen mass peaks (8,586, 13,593, 13,687, 8,515, 8,665, 11,724, 8,423, 13,902, 13,780, 19,335, 6,320, 13,422, 4,115, 4,049, 4,024, 4,308, 4,370, and 3,086 m/z) were identified as the best predictors for the diagnosis of diabetic nephropathy. Moreover, receiver operator characteristic (ROC) analysis showed 80% accuracy in the diagnosis of diabetic nephropathy (Fig. 1,C). Next, we were interested in examining the discriminatory power of the classification tree toward diabetic patients with CKD other than diabetic nephropathy. To this purpose, the diabetic nephropathy urine signature was scored on a second independent testing set including 11 newly recruited patients with diabetic nephropathy and 10 diabetic patients with nd-CKD. The diabetic nephropathy classification tree correctly distinguished diabetic nephropathy from nd-CKD with 80% specificity, as further confirmed by ROC analysis (Fig. 1 B and C). The accuracy of the proteomic signature to discriminate diabetic nephropathy from nd-CKD was thus largely independent from the presence or the absence of diabetes in patients with nd-CKD.

To further explore the relationship between proteomic signature and histological diagnosis, we applied logistic regression analysis, selecting a wide range of clinical, laboratory, and demographic variables (age, sex, duration of diabetes, blood pressure levels, eGFR, daily proteinuria, use of renin-angiotensin system [RAS] blockers, and smoking) and setting the proteomic signature as the dependent nominal variable (absent/present). Simple logistic analysis showed that only smoking was significantly associated with the diabetic nephropathy signature. When smoking and histological diagnosis were entered into a multiple logistic model, only the latter independent variable retained the same coefficient, indicating the lack of a significant confounding effect of smoking (not shown).

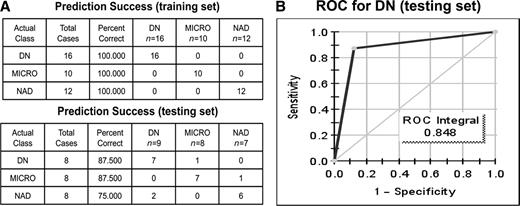

We examined the ability of CART analysis to discriminate among diabetic patients with normoalbuminuria, microalbuminuria, and diabetic nephropathy. Thirty-eight patients from all classes (16 with diabetic nephropathy, 10 with microalbuminuria, and 12 with normoalbuminuria) were used to constitute the training sample group, whereas the remaining 8 samples of each group were used as a testing set. We chose to limit the analysis to 24 randomly selected patients with diabetic nephropathy of 65 patients because a higher prevalence of diabetic nephropathy in the training set and mainly in the testing set could influence the results of the analysis. The intensity of all the protein peaks and the presence or absence of diabetic retinopathy were used to construct the classificatory model. Among the differently expressed mass peaks, those of 10,533, 7,919, 8,185, 9,072, 9,135, 3,396, 8,982, 22,735, 8,847, 22,245, 17,084, and 16,710 m/z were identified as the best predictors to set up the discriminatory tree. The cross-validation of the model on the training set showed 100% correct classification for all groups. When the classification tree was applied to the blinded testing set, seven of eight patients (87.5%) of the MICRO and diabetic nephropathy groups and six of eight patients (75%) of the NAD group were correctly classified (Fig. 2,A). The ROC curve for diabetic nephropathy showed a diagnostic power of 84% for the current analysis (Fig. 2 B).

Because many variables (sex, duration of diabetes, blood pressure levels, eGFR, daily proteinuria, use of RAS blockers, and smoking) differed among groups, we examined their impact on proteomic profile, set as a dependent polytomous variable, by logistic analysis. Nonetheless, none of the independent variables reached a significance <0.05 at simple logistic analysis.

We examined and identified two mass peaks (∼11,700 and 8,589 m/z) among the most prominent predictors included in the classification tree for diabetic nephropathy.

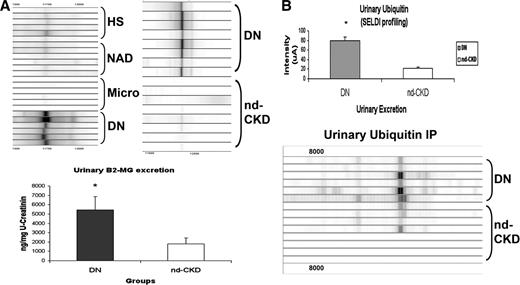

The ∼11,700 m/z peak was identified as β₂-microglobulin by matrix-assisted laser desorption ionization-TOF/tandem mass spectrometry (supplementary Figure A1, available in an online appendix). To explore the relationship between β2MG urinary excretion and diabetic nephropathy, we compared β2MG levels in the urine of diabetic patients with and without diabetic nephropathy (Fig. 3,A, top panel) by SELDI profiling and measured β2MG urinary excretion in patients with diabetic nephropathy and nd-CKD by ELISA (Fig. 3 A, bottom panel). β2MG urine excretion was considerably higher in diabetic patients with diabetic nephropathy compared with that for the NAD or MICRO groups or for patients with nd-CKD.

The 8,589 m/z peak was provisionally identified as ubiquitin on the basis of its molecular weight and of the available literature on putative biomarkers of diabetic nephropathy. To confirm the identification, a recombinant ubiquitin standard was loaded on a blank spot of the CM10 ProteinChip array, and its mass and shape were compared with those of the 8,589 m/z peak in the protein profiles of the patients (supplementary Figure A2, available in an online appendix). Further, we immunoprecipitated ubiquitin from the urine of six patients with diabetic nephropathy and eight patients with nd-CKD, and each immunoprecipitate was then analyzed by a CM10 ProteinChip array to confirm the increased excretion of ubiquitin in urine samples from patients with diabetic nephropathy (Fig. 3 B).

The data reported in the present work suggest that the analysis of urine protein profiles of type 2 diabetic patients, as generated by SELDI-TOF/MS with a CM10 ProteinChip, can be considered a reliable method to identify patients with diabetic nephropathy among diabetic patients and, more importantly, to distinguish biopsy-proven diabetic nephropathy from nd-CKD in both diabetic and nondiabetic patients.

Currently, microalbuminuria is the only noninvasive marker of early diabetic nephropathy. However, microalbuminuria may instead reflect the existence of endothelial damage, in the absence of specific renal lesions, or, on the contrary, be associated with advanced renal pathological changes. Furthermore, clinically overt nephropathy and/or albuminuria in diabetic patients does not necessarily imply the presence of diabetic glomerulosclerosis. In the largest histological study (393 renal biopsies) performed to date, other glomerulonephritides superimposed on diabetic glomerulosclerosis or glomerulonephritides without the presence of diabetic nephropathy occurred in up to 57% of patients (3). Moreover, patients with type 2 diabetes can progress to a significant degree of renal impairment even if they remain normoalbuminuric, and this occurrence may reflect renal parenchymal diseases other than classic diabetic glomerulosclerosis (15). Diabetic patients with nd-CKD have a different rate of GFR decline (16,17) and, more importantly, may be amenable to specific treatments. At present, however, there is not a strong predictor to differentiate diabetic nephropathy from nd-CKD by clinical or biochemical data. Given this background, novel biomarkers for earlier diagnosis of diabetes-related renal damage as well as for the proper identification of diabetic glomerulosclerosis are crucially required.

Over the last several years, only a few studies have adopted proteomic strategies focused on identifying one or more urine biomarkers that would allow either the early detection of diabetic nephropathy or its discrimination from other nd-CKD or the identification of normoalbuminuric type 2 diabetic patients prone to develop diabetic nephropathy (10,–12,18,19). All of them, however, identified diabetic nephropathy exclusively on a clinical basis (i.e., the presence of macroalbuminuria with or without a decline of eGFR), which may potentially lead to a misclassification in more than one-third of patients in the absence of histological verification (3). Moreover, most studies failed to apply supervised learning algorithms to validate the proposed signatures.

The main aim of the present study was to identify biopsy-proven diabetic nephropathy by urine proteomic fingerprint. We therefore started by comparing the urine proteome of 54 biopsy-proven diabetic nephropathy with that of 57 nondiabetic patients with proteinuria and CKD. CART analysis of the blinded testing set revealed 78.2 and 87.5% sensitivity and specificity, respectively, thus indicating that the urine proteome contains a set of key information useful to accurately distinguish biopsy-proven diabetic nephropathy from nd-CKD. Moreover, multivariate analysis allowed us to rule out the confounding effect of a number of potentially relevant covariates (see results). To corroborate the discriminatory power of the classification tree, we tested the urinary fingerprint of biopsy-proven diabetic nephropathy in a further group of 21 diabetic patients, 11 with diabetic nephropathy and 10 with nd-CKD. CART analysis identified patients with diabetic nephropathy with 80% accuracy, thus demonstrating the ability of the urine proteomic fingerprint to discriminate diabetic nephropathy from nd-CKD, both in the presence and in the absence of diabetes. However, we are aware that the small size of the dataset we explored limits the possibility of drawing any final conclusions.

We then applied SELDI protein profiling to the study of the urine proteome of the whole population of diabetic patients and analyzed urine profiles by both unsupervised and supervised learning methods. When SELDI spectra were analyzed by unsupervised methods, a list of mass peaks showed a significantly different expression among groups (data not shown), but none of these putative biomarkers was, by itself, sensitive and specific enough to allow a reliable discrimination among classes. To overcome the limitations of the univariate analysis, we analyzed SELDI spectra by supervised learning methods, which screened all mass peaks to build up an optimal classification tree. The classification tree correctly identified 87.5% of patients with microalbuminuria and biopsy-proven diabetic nephropathy and 75% of patients with normoalbuminuria in the blinded test set. The inclusion of a retinopathy score (present/absent) in the analysis did not improve the accuracy of the classification model (data not shown). Finally, by logistic analysis we ruled out the possibility that the urinary proteomic signature would be significantly influenced by a number of variables (sex, blood pressure levels, degree of deterioration of renal function, smoking, and RAS blocker therapy) differently distributed among groups.

We must recognize that albuminuria per se could not properly reflect the type and the degree of renal damage, and this fact might help explain some apparent misclassification within the groups lacking histological examination. If so, proteomic “signature” might unmask the existence of a clinically silent renal injury. Indeed, all patients with normoalbuminuria were checked again after a median of 1.8 years, but none of them had progressed toward microalbuminuria nor did they show a deterioration in eGFR. For these reasons, we were unable to correlate the initial misclassification of the two patients with normoalbuminuria with the progression of renal disease. We may infer that a longer follow-up is required to ascertain whether some of the protein peaks in the normoalbuminuria signature depicted here would serve as early predictive biomarkers of diabetic glomerulosclerosis in normoalbuminuric diabetes (11). Interestingly, all biopsy-proven diabetic nephropathy showed a conserved proteomic pattern, independent from the individual rate of urine albumin excretion, which supports the assumption that the albumin excretion rate does not necessarily reflect the type and degree of renal damage.

The identification of some of the proteins in the proteomic signature of diabetic nephropathy might provide insight into the mechanisms underlying the disease, besides serving as candidate biomarkers to diagnose diabetic nephropathy. Therefore, two proteins ∼8,589 and 11,700 m/z, chosen among the most prominent predictors included in the classification tree, were isolated and identified as ubiquitin and β2MG, respectively. Their increased excretion in the urine of patients with diabetic nephropathy compared with that in diabetic patients without diabetic nephropathy and with nd-CKD was confirmed by immunoprecipitation (ubiquitin) or ELISA (β2MG) and was found to be independent of the severity of daily proteinuria.

Our findings are consistent, at least in part, with those reported by Dihazi et al. (12). These authors found a significant excretion of β2MG in proteinuric diabetic patients and a selective excretion of ubiquitin ribosomal fusion protein in micro- and macroalbuminuric diabetic patients, who instead released very low amounts of the truncated form of ubiquitin. These partial discrepancies may be ascribed to the use of protease inhibitors in our study, which possibly prevented ubiquitin-specific degradation (12). Regardless, deranged excretion of ubiquitin is a novel and potentially interesting biomarker of diabetic nephropathy. At variance, increased levels of urine β2MG, a recognized marker of renal tubular damage, have long been described in diabetic patients with micro- and macrovascular complications and mainly in those with associated hypertension (20), as well as in diabetic patients with micro- or macroalbuminuria (12), but studies comparing β2MG release in patients with diabetic nephropathy versus those with nd-CKD are currently lacking.

In summary, we report that the standardization of urine analysis by SELDI-TOF/MS (14,21) and the elaboration of its complex datasets by means of supervised statistical methods allowed us to generate a robust multiparametric panel of mass peaks that was able to reliably discriminate biopsy-proven diabetic nephropathy from nd-CKD in both diabetic and nondiabetic patients. These findings, if confirmed in larger cohorts of diabetic patients, encourage the use of supervised learning approaches for the analysis of urine proteomic profiles to achieve a noninvasive differential diagnosis of renal lesions in diabetic patients, whereas the appraisal of their possible predictive power demands longitudinal studies. Finally, the selective release of high amounts of ubiquitin and β2MG in the urine of patients with diabetic nephropathy may suggest a role as candidate biomarkers and possible involvement in the pathophysiology of the disease.

The study was supported by the following grants: Ministry of Health (ex art 12 and 56; principal investigators L.G., M.C., and S.D.C.).

No potential conflicts of interest relevant to this article were reported.

M.P. designed the study, performed SELDI analysis and data interpretation, wrote the manuscript, and reviewed/edited the manuscript. S.D.P. designed the study, contributed to data interpretation, wrote the manuscript, and reviewed/edited the manuscript. R.M. recruited diabetic patients with nephropathy at the University of Modena and reviewed/edited the manuscript. O.L. recruited diabetic patients without nephropathy at the University of Foggia and analyzed clinical data. A.M.D.P. examined biopsy specimens collected at the University of Foggia. A.D.M. collected clinical data of diabetic patients with nephropathy recruited at the University of Foggia. M.T.R. identified β₂-microglobulin by mass spectrometry and reviewed/edited the manuscript. L.F. examined biopsy specimens collected at the University of Modena and Reggio Emilia. S.P. examined biopsy specimens collected at “Sant'Orsola Malpighi” Hospital, Bologna. S.D.C. recruited diabetic patients without nephropathy at “Casa Sollievo della Sofferenza” Hospital, San Giovanni Rotondo and reviewed/edited the manuscript. M.C. contributed to the study design and reviewed/edited the manuscript. L.G. designed the study, contributed to data interpretation, wrote the manuscript, and reviewed/edited the manuscript.

Parts of this study were presented in abstract form at the 5th annual conference of the Italian Proteomic Association, Florence, Italy, 9–12 June 2010.

We gratefully acknowledge Dr. Simona Magaldi, Dr. Valentina d'Onofrio, and Dr. Roberta Damiano (Research Center BioAgroMed, University of Foggia, Foggia, Italy) for their excellent technical support in sample collection, handling, and analysis; Dr. Vittorio Albertazzi (Nephrology Unit, University of Modena and Reggio Emilia, Reggio Emilia, Italy), Dr. Giada Cardinale and Dr. Ivan Raffaele Cincione (Endocrinology Unit, University of Foggia, Foggia, Italy) for their contribution to the collection of the clinical records of the patients enrolled; Prof. Elena Ranieri (Clinical Pathology Unit, University of Foggia, Foggia, Italy), and Prof. Antonio Santoro (Nephrology Unit, Sant'Orsola-Malpighi Hospital, Bologna, Italy) for their critical review of the present manuscript; and Chiara Di Giorgio (BioAgroMed, University of Foggia, Foggia, Italy) for the linguistic support as medical translator.
