Comparison of Radioimmunoprecipitation With Luciferase Immunoprecipitation for Autoantibodies to GAD65 and IA-2β

For the LIPS assay, full-length GAD65 or the intracellular portion of IA-2β (aa 662–1,033) (5) was cloned into the pREN2 vector downstream of the Renilla luciferase reporter, and extracts were prepared from transfected Cos1 cells as described (4,–6). For the RIP assay, GAD65 and IA-2β were cloned into pTNT and pGBKT7 vectors, respectively, and the [³⁵S] methionine–labeled proteins were produced by in vitro transcription/translation (7). Autoantibodies to GAD65 and IA-2β were detected by liquid-phase immunoprecipitation using 1.0 × 10⁷ light units (LU) of cell extracts in LIPS and ∼40,000 counts per minute (cpm) of radiolabeled protein for RIP.

Sera from 100 control and 49 type 1 diabetic patients were obtained from the 2007 Diabetes Antibody Standardization Program (DASP) (8) and used to measure autoantibodies to GAD65. In the 2007 serum exchange, sensitivity and specificity for autoantibodies to GAD65 were 82 and 96%, respectively. Control subjects from the DASP included some samples with high levels of islet autoantibodies, presumably because they were from subjects who were at high risk of developing type 1 diabetes. Neither the DASP patients with type 1 diabetes nor the control subjects are representative of the type 1 diabetic population or the general public. Additional sera from 200 age-matched nondiabetic control subjects and 200 type 1 diabetic subjects (Malmö Diabetes Study) (9) were used to validate the GAD65 findings and measure autoantibodies to IA-2β. A serum was positive if the precipitated cpm or LU exceeded the mean + 3 SD of the control subjects. MedCalc Software (Mariakerke, Belgium) was used for statistical analyses. Signal-to-noise ratios of autoantibodies for RIP and LIPS in the type 1 diabetic samples were determined as described (10).

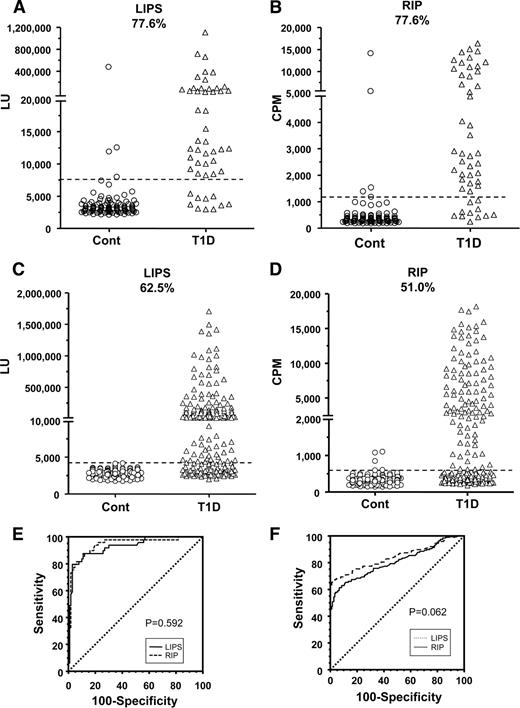

Anti-GAD65 autoantibodies determined by LIPS showed that only 3 of 100 nondiabetic control subjects were positive (Fig. 1,A). In contrast, 77.6% (38 of 49) of the sera from patients with type 1 diabetes were positive by LIPS with a specificity of 97%. In RIP, 5 of 100 nondiabetic control subjects were autoantibody positive, whereas 77.6% (38 of 49) of the sera from subjects with type 1 diabetes were autoantibody positive (Fig. 1,B), with a specificity of 95%. The coefficient of variation (CV) for duplicate samples was 13.5% for LIPS and 3.1% for RIP (supplemental Fig. 1A [available at http://care.diabetesjournals.org/cgi/content/full/dc09-1938/DC1). Comparison of the assays revealed a high coefficient of determination with an R² of 0.778 (supplemental Fig. 1C). Receiver-operating characteristic (ROC) analysis showed that the area under the curves for autoantibodies to GAD65 by LIPS and RIP were not statistically different (P = 0.592) (Fig. 1 E). Validation studies for GAD65 autoantibodies with 200 type 1 diabetic sera revealed 53.5% positivity by LIPS and 49.3% positivity by RIP (data not shown).

LIPS profiling of IA-2β autoantibodies revealed that none of the 200 nondiabetic control sera were positive (Fig. 1,C). In contrast, 62.5% (125 of 200) of type 1 diabetic subjects were autoantibody positive with a specificity of 100%. In RIP, 3 of 200 nondiabetic control sera were positive, whereas 51.0% (102 of 200) of the sera from subjects with type 1 diabetes were autoantibody positive (Fig. 1,D) with a 97.5% specificity. The CV for duplicate samples was 10.9% for LIPS and 6.8% for RIP (supplemental Fig. 1B). Comparison of the assays revealed a high coefficient of determination, with an R² of 0.904 (supplemental Fig. 1D). ROC analysis showed that the area under the curves for autoantibodies to IA-2β by LIPS and RIP were not statistically different (P = 0.062) (Fig. 1,F). However, the signal-to-noise ratio for detecting autoantibodies to GAD65 and IA-2β was higher as determined by LIPS than by RIP (Fig. 1 A–D and supplemental Fig. 1E and F).

In nondiabetic subjects, the presence of autoantibodies to more than one of the major diabetes-associated autoantigens is a better predictor of the development of clinical diabetes than the presence of any single autoantibody (3). Initially, autoantibodies directed against islet cells (ICAs) were detected by immunofluorescence. In recent years, the ICA technique has been replaced by the quantitative RIP assay. In the present report on autoantibodies to GAD65 and IA-2β and in our recent report on autoantibodies to IA-2 (4), we showed that the liquid-phase LIPS assay is equal in sensitivity and specificity to the liquid-phase RIP assay, in that the two assays have a high correlation coefficient and that, by ROC analysis, the areas under the curves are not statistically different.

Although further documentation is needed, our current study shows that the sensitivity for detecting autoantibodies to IA-2β by LIPS is not only equal to that of RIP but may be slightly higher (62.5 vs. 51.0%). Also, the signal-to-noise ratio is higher for LIPS compared with RIP, but the clinical significance of the very high autoantibody-positive sera detected in LIPS is not known at this time. Moreover, we have no concrete evidence that the LIPS assay is more reliable or sensitive than the RIP assay for discriminating borderline autoantibody-positive and -negative sera. It is the failure to reproducibly distinguish between positive and negative signals at the borderline that is responsible for much of the variation in routine autoantibody assays.

Although LIPS and RIP appear to be equal in sensitivity and specificity, LIPS has the advantage for a clinical laboratory of not requiring the use of radioisotopes, avoids the time and expense of in vitro transcription/translation, and offers the potential of detecting mammalian cell posttranslational modifications, which would not be found in a bacterial expression system or by in vitro transcription/translation. Use of a mixture of Renilla luciferase–tagged antigen with firefly luciferase–tagged antigen may also allow detection of autoantibodies to two different autoantigens at the same time.
