Noninvasive Assessment of Exercise-Related Intramyocellular Acetylcarnitine in Euglycemia and Hyperglycemia in Patients With Type 1 Diabetes Using ¹H Magnetic Resonance Spectroscopy: A randomized single-blind crossover study

This was a randomized single-blind crossover study (3). Seven physically active individuals with type 1 diabetes without relevant diabetes-associated complications were investigated (mean ± SEM age 33.5 ± 2.4 years, diabetes duration 20.1 ± 3.6 years, A1C 6.7 ± 0.2%, BMI 24.3 ± 0.4 kg/m², and Vo_2max 50.3 ± 4.5 ml · min⁻¹ · kg⁻¹). All were treated with continuous subcutaneous insulin infusion (insulin dose 0.61 ± 0.05 units · kg⁻¹ · day⁻¹). Participants performed 120 min of exercise at 55–60% of Vo_2max on two occasions in random order with glucose clamped at 5.4 ± 0.5 mmol/l (euglycemia) or 11.0 ± 0.3 mmol/l (hyperglycemia). Insulin infusion (7 mU · m⁻² · min⁻¹, range 5–8.2) was equal during both conditions (3). Muscle spectra were obtained with short echo time ¹H MRS from musculus vastus intermedius 81 ± 2 and 83 ± 2 min after exercise in euglycemia and hyperglycemia, respectively (NS). Acquisition parameters were clinical 1.5-T scanner (GE Medical Systems, Waukesha WI), localized volume of 11 × 12 × 18 mm³, point-resolved spectroscopy localization, repetition time 3 s, echo time 20 ms, two spectra of 128 acquisitions, and water presaturation. Spectra were analyzed using TDFDFit (7) with a fit strategy optimized for the acetylcarnitine-peak. Acetylcarnitine content is expressed in absolute arbitrary units (a.u.) relative to the water signal intensity. Parameters are expressed as means ± SEM (median and range where appropriate). All analyses were performed with Stata (version 10.0; StataCorp, College Station, TX).

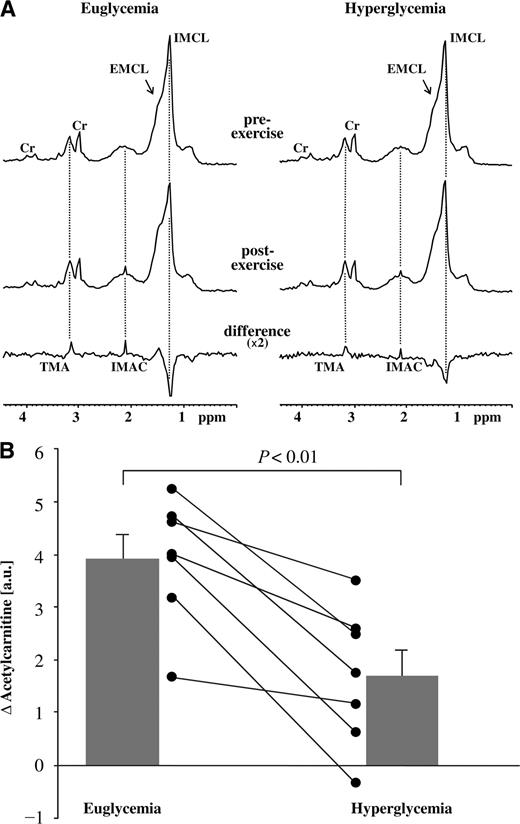

Figure 1,A displays the summed spectra before and after exercise and corresponding differences with the acetyl peak of IMAC at 2.13 ppm. Pre-exercise levels of IMAC did not differ significantly according to the glycemic levels (0.33 ± 0.21 and 0.73 ± 0.33 a.u. for euglycemia and hyperglycemia, respectively; NS). Postexercise levels of IMAC were significantly higher than pre-exercise values in euglycemia (4.30 ± 0.54 a.u.; P < 0.001) and in hyperglycemia (2.44 ± 0.53 a.u.; P = 0.01). In addition, postexercise levels differed significantly according to glycemia (P < 0.01). As shown in Fig. 1 B, this translated into a significantly higher increase of exercise-related levels of IMAC in euglycemia (3.97 ± 0.45 a.u.) compared with that in hyperglycemia (1.71 ± 0.50 a.u.; P < 0.01).

In the present study, levels of IMAC were assessed noninvasively in skeletal muscle of individuals with type 1 diabetes in euglycemia and hyperglycemia before and after moderate aerobic exercise. The principal finding was a significantly higher increase in IMAC in euglycemia than in hyperglycemia.

The effect of euglycemia and hyperglycemia on exercise-related substrate oxidation has also been assessed in healthy individuals (8), however, without determination of IMAC. Still, previous reports do not suggest genuinely different levels of acylated carnitine in patients with type 1 diabetes compared with nondiabetic control subjects (2). Conversely, a recent study in patients with type 1 diabetes investigated levels of IMAC during exercise in euglycemia but with differing insulin levels (9). The authors reported a similar increase in IMAC in euglycemia and hyperinsulinemia, implying that the flux through the pyruvate dehydrogenase complex (PDC) is independent of insulin concentrations (9). Taken together, these results indicate that in individuals with type 1 diabetes, levels of IMAC are influenced by the availability of energy substrates, in particular systemic glucose, whereas levels of insulin seem to have less influence. Of note, IMAC has been shown to increase after a few minutes of high-intensity exercise (10). This result has been hypothesized to be due to the production of acetyl-CoA exceeding its utilization by the Krebs cycle, the acetyl groups consequently being transferred to carnitine by carnitine acetyltransferase, which results in increases in IMAC as well as in free CoA (1). Although IMAC may thus reflect the imbalance of the fluxes through the PDC and the Krebs cycle in high-intensity exercise, its role during exercise at lower intensity or at rest is less clear. Interestingly, previous studies in healthy individuals (4) have suggested an association of IMAC with increased β-oxidation. Compatible with these findings, the present study revealed a higher contribution of net lipid oxidation to overall substrate oxidation in euglycemia than in hyperglycemia together with a tendency toward increased consumption of intramyocellular lipids in euglycemia (data published in ref. 3). Whether this association is due to a direct effect of substrate fluxes (e.g., increased glucose flux in hyperglycemia compared with euglycemia) on fuel metabolism or whether indirect regulation of key enzymes (PDC and carnitine palmitoyltransferase 1) were involved remains speculative because noninvasive determination of IMAC precluded further analysis of intramyocellular metabolic pathways in the present study.

The strength of the present analysis is its strictly controlled design with stable and identical insulin levels, systemic glucose being the sole variable that has been modified. The use of MRS allowed for a repetitive, noninvasive measurement of IMAC, although technical differences limit the direct comparability of IMAC levels in the present study with results from muscle biopsies. We acknowledge that our results are limited by the small sample size. However, all individuals in this study showed similar dynamics of IMAC according to glycemia. Because of the study design, magnetic resonance spectra could not be obtained directly after completion of the exercise. However, previous studies have shown that postexercise levels of IMAC are remarkably stable for similar time periods (6). The present study was performed in male individuals with type 1 diabetes exclusively, and the complex study design along with the limited resources did not allow us to include a control group of healthy individuals. Statements referring to a more general population thus clearly remain restrictive.

In summary, in individuals with well-controlled type 1 diabetes, an exercise-related increase in IMAC was detected in both glycemic conditions, but the effect was significantly higher in euglycemia than in hyperglycemia. These findings point to a role of IMAC as a marker of exercise-related fuel metabolism in skeletal muscle.

This study was supported by unrestricted grants from the Oetliker Foundation for Physiology; the Swiss Diabetes Foundation; Novo Nordisk, Switzerland; and the Swiss National Science Foundation (grants 3233B0-115212 and 320000-109522/1 to C.S., grant 320000-109522/1 to E.C., and grant PBBEP3-125600 to S.J.).

No other potential conflicts of interest relevant to this article were reported.

A.B. researched data and wrote the manuscript. R.K. and C.S. designed the study, researched data, and wrote the manuscript. S.J. researched data and performed statistical analysis. M.I. and J.-M.N. researched data. E.C. and C.B. researched data and contributed to the manuscript.

We are grateful to the study participants and for the assistance of Sabin Allemann, Institute for Social and Preventive Medicine Bern, Bern, Switzerland.
