To detect clinical correlates of cognitive abilities and white matter (WM) microstructural changes using diffusion tensor imaging (DTI) in young children with type 1 diabetes.
Children, ages 3 to <10 years, with type 1 diabetes (n = 22) and age- and sex-matched healthy control subjects (n = 14) completed neurocognitive testing and DTI scans.
Compared with healthy controls, children with type 1 diabetes had lower axial diffusivity (AD) values (P = 0.046) in the temporal and parietal lobe regions. There were no significant differences between groups in fractional anisotropy and radial diffusivity (RD). Within the diabetes group, there was a significant, positive correlation between time-weighted HbA1c and RD (P = 0.028). A higher, time-weighted HbA1c value was significantly correlated with lower overall intellectual functioning measured by the full-scale intelligence quotient (P = 0.03).
Children with type 1 diabetes had significantly different WM structure (as measured by AD) when compared with controls. In addition, WM structural differences (as measured by RD) were significantly correlated with their HbA1c values. Additional studies are needed to determine if WM microstructural differences in young children with type 1 diabetes predict future neurocognitive outcome.
Children diagnosed with the onset of type 1 diabetes before 5 years of age have impaired performance in memory, attention, visual-perceptual function, and fine motor speed/coordination (1,2). Young children with type 1 diabetes have the greatest excursions in blood glucose (BG) values (3) because of their irregular eating patterns and inability to recognize and report symptoms of hypoglycemia or hyperglycemia. Both hypoglycemia (4,5) and hyperglycemia (6,7) have been associated with neurocognitive effects and brain volume differences (8). Early childhood is a period of rapid and dynamic changes in the central nervous system, such as myelination, modification of synapses, and pruning. Therefore, during this time of potential increased vulnerability to central nervous system insults (9,10), increased occurrences of glycemic excursions may lead to neurocognitive deficits (11). Although there have been concerns regarding how type 1 diabetes and its treatment impact cognitive performance and brain structure, neither the extent of this impact nor the putative mechanisms have been elucidated.
The white matter (WM) of the brain consists mostly of myelinated neuronal axons responsible for signal transfer between neuronal cells. We previously reported (12) no significant differences in total gray matter (GM) and WM volumes between children (3–10 years of age) with type 1 diabetes and healthy controls. However, regional differences in brain structure or function that could lead to undesirable behavioral and cognitive outcome have not been adequately evaluated in this young age group.
Diffusion tensor imaging (DTI) is a noninvasive magnetic resonance imaging (MRI)–based method that uses the diffusion of water molecules in the brain to investigate WM structure. To date, DTI has been used for the investigation of WM structure in adults with type 1 diabetes, but not in children. Kodl et al. (13) investigated adults with long-standing type 1 diabetes and found microstructural abnormalities in several WM tracts, including the posterior corona radiate and optic radiations. Further, WM structural variations observed with DTI in adult subjects with type 1 diabetes were correlated with poorer performance on the Rey-Osterreith Complex Figure Drawing and Grooved Peg Board tests (13). Using the same sample, Franc et al. showed a correlation between the WM tracts previously found to have reduced fractional anisotropy (FA) and regions with reduced cortical thickness (14). Together, these findings suggest that long-standing type 1 diabetes causes widespread microstructural WM alterations in the posterior cerebrum.
With no published DTI studies in children with type 1 diabetes, it is not known if and when putative insults to developing WM structure occur. We hypothesized that WM structure would be different in young children with type 1 diabetes when compared with matched healthy control subjects.
RESEARCH DESIGN AND METHODS
Children between 3 and 10 years of age with type 1 diabetes for at least 6 months and healthy controls subjects were recruited. All procedures were approved by the institutional review board and all parents or guardians signed informed consents. Children over 7 years of age signed assents (clinicaltrials.gov Study NCT #00449891). Diabetes history, time-weighted average HbA1c (calculated using the trapezoid rule  for all HbA1c values from the time of diagnosis), cognitive testing, and MRI training were completed as previously described (12). Subjects completed the Wechsler Preschool and Primary Scale of Intelligence III (WPPSI-III) or Wechsler Intelligence Scale for Children IV (WISC-IV) based on their age. All subjects were included in the full-scale intelligence quotient (FSIQ) scores analysis, but the younger subjects were excluded from the WISC-IV score analyses. The time-weighted HbA1c value is used for all data analyses. BG values were between 80 and 250 mg/dL before the start of any neurocognitive testing or MRI scan. We specifically examined neurocognitive skills associated with WM function using tasks specifically designed for children, including subtests from the WISC-IV (block design digit span, picture concepts, vocabulary, letter-numbering sequencing, matrix reasoning, and comprehension) and the developmental neuropsychological assessment (NEPSY) (design copy, phonological processing, memory of faces, tower, auditory attention and response, speeded naming, arrows, delayed memory of faces, comprehension of instructions, imitating hand positions, and narrative memory).
Subjects underwent high-resolution structural MRI scans using a General Electric Signal 1.5 Tesla imaging system. Coronal three-dimensional volumetric spoiled grass gradient recalled series were acquired with the following scan parameters: repetition time (TR) 35 ms, echo time (TE) 6 ms, flip angle 45°, 1.5 mm thick, 0-mm gap, number of excitations 1, field of view (FOV) 24 cm, and a 256 × 192 matrix size for 124 contiguous slices (scan time: 14 min). Imaging parameters for the diffusion-weighted sequence were as follows: FOV, 24 cm; matrix size, 128 × 128; TR/TE 5,400/min; 43 axial-oblique slices; slice thickness, 3.2 mm/no skip. Diffusion gradient duration was δ = 32 ms and diffusion weighting was b = 850 s/mm2, and b = 0 as reference images. Diffusion was measured along 22 noncollinear directions. This protocol was repeated six times.
Diffusion-weighted scans preprocessing
Diffusion-weighted images were corrected for eddy current distortions and head motion using an affine transformation of Automated Image Registration (16). All individual images were visually inspected to eliminate slices with motion artifacts. We excluded six subjects (four with diabetes, two control subjects) from further analysis because of significant artifacts. The remaining images were averaged and the pixel intensities of the multiple diffusion-weighted images were then fitted to obtain the six elements of the symmetric diffusion tensor. Scalars such as fractional anisotropy (FA), axial diffusivity (AD), and radial diffusivity (RD) were calculated using DTIStudio (https://www.mristudio.org/). FA is a measure that reflects the degree of diffusion anisotropy within a voxel. Anisotropy within a given WM voxel is determined by fiber diameter and density, degree of myelination, extracellular diffusion, interaxonal spacing, and intravoxel fiber -tract coherence. AD is the diffusivity of water molecules along the main axis of diffusion within a voxel (vector with the largest eigenvalue), and RD is the mean of the diffusivities perpendicular to the vector with the largest eigenvalue. AD is thought to reflect fiber coherence, whereas RD is thought to represent fiber integrity and myelination (17,18).
Tract-based spatial statistics (TBSS) analysis
First, FA images from each subject were aligned into a common space using nonlinear and linear registrations. Subsequently, FA images were averaged to produce a group mean FA image. A skeletonization algorithm was applied to the group mean FA image to define a group template of the lines of maximum FA, thought to correspond to centers of WM tracts. FA values for each subject were then projected onto the group template skeleton. The FA skeleton was thresholded to FA ≥0.3. The original registration parameters of the FA were then applied to the AD and RD images. FA, AD, and RD data projected onto the skeleton were fed into voxel-wise cross-subject statistics (P < 0.05) using “randomise” (v. 2.1 in FSL4.1), a permutation program used for inference (thresholding) on statistic maps when the null distribution is not known (19). All analyses were corrected for multiple comparisons (family-wise error) and used threshold-free cluster enhancement (20) with default parameters.
Statistical analyses of behavioral and cognitive data were performed using SPSS software version 13 (SPSS Inc., Chicago, IL). Index and specific subtest scores were compared between diabetes and HC subjects using t tests. Among those with diabetes, linear correlations were performed between WISC-IV and NEPSY subtest scores and HbA1c and number of seizures All scores are reported as mean values and standard deviation. P values <0.05 were considered significant. We further analyzed correlations between cognitive data, time-weighted HbA1c, age at diagnosis, duration of illness, history of seizures, and WM structure (FA, AD, and RD) using TBSS.

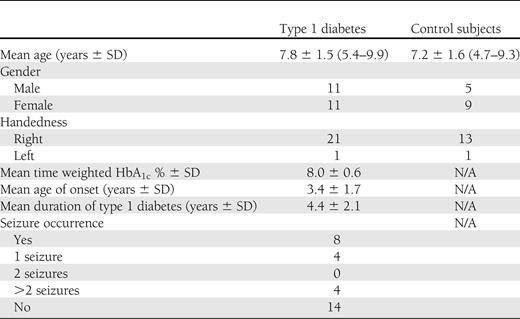

We approached 81 subjects with type 1 diabetes: 35 by e-mail or phone and 46 directly in the clinic. Likewise, 30 healthy control subjects, mostly siblings or friends of our subjects, were directly approached in person. Forty-five subjects (n = 27 diabetes, n = 18 healthy control subjects) completed the neurocognitive testing, and 42 (n = 26 diabetes, n = 16 healthy control subjects) of them completed DTI scans. Six subjects (n = 4 diabetes, n = 2 healthy control subjects) were excluded from further analysis because of significant image artifacts. The data presented in this manuscript are restricted to the subset of subjects who completed both the neurocognitive testing and the DTI scans (Table 1). One healthy control subject had an abnormal cisterna magna and was excluded.

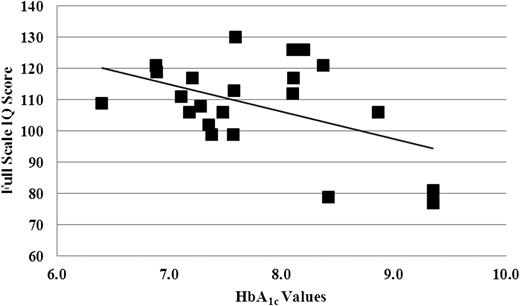

WPPSI-III and WISC-IV results were very similar (P = 0.38) for FSIQ score for subjects with diabetes (WPPSI-III 109 ± 4.2; WISC-IV 108.4 ± 14.7) and healthy control subjects (WPPSI-III 107 ± 11.0; WISC-IV 112.7 ± 13.5). There were no statistically significant differences in general cognitive ability in regard to executive function, processing speed, memory/attention, and motor domains between subjects with diabetes and healthy controls (all P values > 0.05). However, calculations of the effect size are approximately 0.30 (Cohen’s d), suggesting that there may be a modest difference between the two groups’ WISC scores. There were no significant between-group differences on NEPSY scores (all P values > 0.05). Within the diabetes group, higher HbA1c levels were correlated with lower overall intellectual functioning measured by FSIQ (R2 = 0.215, P = 0.03) (Fig. 1). There was a nearly statistically significant relationship between greater seizure occurrence and lower WISC-IV verbal comprehension index scores (R2 = 0.173, P = 0.054), as well as with HbA1c levels and WISC-IV digit span (R2 = 0.214, P = 0.053). Lastly, greater seizure number was predictive of lower WISC-IV processing speed index scores (R2 = 0.402, P < 0.01).
Compared with controls, children with diabetes had lower AD values (P = 0.046 covaried for age and gender) in the internal capsule, body of the corpus callosum (CC), right cingulate gyrus, right thalamus, right superior temporal gyrus, and posterior parietal lobe (Fig. 2). There were no significant differences between groups in FA and RD. Within the diabetes group, there was a statistically significant, positive correlation between time-weighted HbA1c and RD (P = 0.028) (Fig. 3). Specifically, this correlation was seen in the inferior fronto-occipital fasciculi, uncinate fasciculi, subgenual WM, anterior forceps, right internal capsule, superior middle and inferior temporal gyri, splenium of the CC, superior longitudinal fasciculi, and occipital WM. A negative correlation between HbA1c values and FA approached significance (P = 0.057) in the right internal capsule, the anterior forceps, inferior fronto-occipital fasciculi, and splenium of the CC.
DTI and neurocognitive correlations
Within-group analysis of those with type 1 diabetes detected a positive correlation between FA and WISC coding (P = 0.034) and digit span (P = 0.028) subtests, and positive correlations between FA and WISC FSIQ (P = 0.064) and FA and WISC (P = 0.058) processing speed approached significance. Higher FA values correlated with the subjects’ abilities to focus attention and quickly scan, discriminate between, and sequentially order visual information. There was a significant negative correlation between RD and WISC FSIQ (P = 0.022) and RD and NEPSY auditory attention score (P = 0.02). The negative correlation between RD and NEPSY attention/executive function approached statistical significance (P = 0.067). Lower RD values negatively correlated with overall IQ scores and attention-requiring tasks.
Neuroimaging techniques have been used to further our understanding of how medical diseases affect brain structure (21,22). In our study, we examined how type 1 diabetes affects WM microstructure in young children and the resultant effects on neurocognitive performance. Although there were no differences in cognitive test scores between the two groups, we did find that in those with diabetes, higher HbA1c levels were correlated with lower FSIQ scores. Also, we describe differences in WM microstructure between those with diabetes and controls, especially in the frontal and temporal regions, and that these differences were more apparent among those with higher HbA1c levels.
Neuroimaging studies in young children with type 1 diabetes have been limited to date (12,23,24), and understanding the impact of diabetes on neurodevelopment is still based largely on inferences drawn from adult neurocognitive and neuroimaging data (25). DTI provides a valuable tool to determine the relationship between WM connectivity and cognitive performance and allows additional, fine-grained investigation of WM microstructure. Based on adult studies, abnormal WM (lower FA) has been reported in four major brain regions and is thought to be responsible for neurocognitive deficits involving mental processing speed, attention, and executive functioning skills such as mental flexibility (13,26). However, it is unknown when these WM differences developed or whether they are directly attributed to the course of the diabetes.
Although we did not find significant differences in FA between those with diabetes and controls, this may be due to the young age of our participants, resulting in lack of diabetes-related complications and shorter duration of the disease. Despite this, we did see a negative correlation between HbA1c and FA; although this did not reach statistical significance, larger future studies may indicate a clearer connection. AD and RD are indices that complement FA in providing additional information and increased understanding about the underlying WM and neuronal integrity. In this study, children with type 1 diabetes had lower AD values, a measure associated with less axonal coherence (27,28). Within this group, there also was a significant, widespread positive correlation between HbA1c and RD, suggesting that higher BG values may affect fiber myelination or the permeability of axonal membranes (14).
Parents and providers fear hypoglycemia in young children at the expense of hyperglycemia (29) and accept chronically elevated BG values as reflected by the American Diabetes Association guidelines where there is a higher HbA1c target in young children (30). Hypoglycemia has been traditionally thought to be the cause of the neurocognitive deficits; however, two longitudinal pediatric studies show that history of severe hypoglycemia alone could not explain the neurocognitive differences from healthy controls (31,32). Although we found a near-significant relationship between history of seizure occurrence and selected neurocognitive measures, the parents’ reaction to the hypoglycemia, resulting in a period of chronic hyperglycemia, may be a confounding factor. Therefore, the discrepancy between the between-group analysis (which revealed significant differences in AD) and the within-group correlation of WM structure (as reflected by RD and HbA1c levels) could possibly be explained by other diabetes-related factors such as hyperglycemia, perhaps leading to increased nonenzymatic glycosylation.
Hyperglycemia has a number of proposed mechanisms to cause WM changes, including nonenzymatic glycosylation and activation of the sorbitol pathway. Myelin has lysine residues that are specifically susceptible to nonenzymatic glycosylation (33). In animal models of diabetes, advanced glycosylation end products and the receptor for advanced glycosylation end products are both increased in the hypothalamus (34) and associated with significant loss of WM (35). Activation of the sorbitol pathway has been seen in 1-month-old rats when subjected to chronic hyperglycemia, leading to reductions in dendritic branching and spine density, and subsequent significant increases in brain sorbitol and inositol, when compared with rats with hypoglycemia (36). Therefore, the effect of hyperglycemia in young children may be particularly relevant to WM microstructure and in the resulting neurocognitive implications.
A history of diabetic ketoacidosis (DKA) may be another cause of axonal injury and be reflected in changes in AD. The study from Ghetti et al. (37) of children between ages 7 and 16 years found that children with a history of type 1 diabetes and DKA perform poorly on tests of memory function compared with children with a history of type 1 diabetes but not DKA. The memory deficits seem to be specifically related to the hippocampus, a region of the brain that is particularly sensitive to episodes of hypoxia or ischemia. In our study, seven of the children with diabetes had presented with DKA at onset and no one experienced DKA after diagnosis. We did not observe a significant correlation between those who experienced DKA and FA or AD or RD, although our small number of subjects do not allow for valid inferences.
Between-group differences in AD and RD occurred most prominently in the temporal and parietal regions of the brain in our study. Positron emission tomography studies in healthy adults show that the temporal and frontal regions are most vulnerable to hypoglycemia and hyperglycemia (5,28). Young children with diabetes frequently experience glycemic variability (3), resulting in more fluctuations in brain glucose levels and impacting brain glucose metabolism. Therefore, it is not surprising to find that the most prominent areas of WM microstructural changes in children with type 1 diabetes also occur in these regions. Although the study did not find any particular neurocognitive variation that correlated with either the temporal or frontal lobe function at this time, it will be intriguing to see if the microstructural changes on DTI predict temporal and frontal lobe–related neurocognitive changes over time. Perhaps decreased episodes of glycemic variability in these regions prevent memory loss, improve attention span, or decrease the comorbidity of depression in children with diabetes as they age. It will also be important to elucidate if WM microstructural patterns predict adverse neurocognitive changes over time, and to develop clinical interventions to prevent such changes.
This study has several limitations, the main one being the small sample size. Both the small sample size and the high heterogeneity in performance on neurocognitive testing in this age group may have not allowed for detection of the cognitive differences. The study was not adequately powered to detect subtle or even moderate WM neurocognitive measures between those with type 1 diabetes and controls. Also, subjects in this study completed different Wechsler Intelligence Scales because of their ages. Although not ideal, there is still a strong correlation between the two Wechsler Intelligence Scales. The correlation between the two FSIQ scores (r = 0.89) (38) is nearly as high as the WISC-IV FSIQ test-retest correlation and WPPSI-III FSIQ test-retest correlations (r = 0.93 and r = 0.92, respectively [38,39]), suggesting they measure similar constructs. Finally, because of the age range of our sample, the subjects in the study are undergoing brain development at varying rates. However, the examination of WM microstructure variations in this age range is important and makes this study novel.
WM changes and neurocognitive differences reported in adults with long-term type 1 diabetes likely begin in childhood. An association between early age of onset of disease (generally before the age of 6 years) and neurocognitive deficits has been the most consistent finding in the pediatric literature (1,25). As Northam et al. (25) recently summarized, chronic hyperglycemia, occurrence of diabetic ketoacidosis, BG fluctuations, and hyper- or hypoinsulinism all may impact the neurodevelopment of young children with type 1 diabetes. We suggest that there are WM microstructure differences between young children with type 1 diabetes and healthy controls after a short duration of diabetes, and support larger, longitudinal studies to confirm these changes. Knowledge of when these changes begin will impact our understanding of diabetes and the brain, identify the mechanisms of neuronal injury, and modify management of diabetes to minimize the chances of injury. Traditionally, the management of type 1 diabetes in young children has been to avoid hypoglycemia; however, we may need to tolerate less hyperglycemia during childhood as well.
Clinical trial reg. no. NCT00449891, clinicaltrials.gov.
This work was completed with funding from the Kurtzig Fund and the Weisgerber Foundation. A.L.R was supported by Diabetes Research in Children Network (DirecNet) # 5 U10 HD041908-08.
No potential conflicts of interests relevant to this article were reported.
T.A. designed the study, collected and analyzed data, and wrote, reviewed, and edited the manuscript. N.B.-G. analyzed data and wrote, reviewed, and edited the manuscript. C.A. and D.M.W. reviewed and edited the manuscript. S.H., K.S., Y.P., and J.D. collected and assisted in the analysis of data. A.L.R. helped design the study, analyzed data, and reviewed and edited the manuscript. B.A.B. helped design the study and reviewed and edited the manuscript. T.A. is the guarantor of this work and as such had full access to all the data in the study and takes responsibility for the integrity of the data and the accuracy of the data analysis.
Parts of this study were presented as an oral presentation at the 71st Scientific Sessions of the American Diabetes Association, San Diego, California, 24–28 June 2011.
The authors thank the participants and their families for their time.
