Spatial Patterns of Structural Brain Changes in Type 2 Diabetic Patients and Their Longitudinal Progression With Intensive Control of Blood Glucose

Findings from many cross-sectional and longitudinal population studies have shown that diabetes is associated with higher prevalence of global cognitive impairment and an increased risk of dementia (1–4). The underlying mechanisms of the relationship between diabetes and cerebral disease are still unclear (5). However, brain imaging studies using MRI have provided important insights into structural correlates of cognitive dysfunction in people with type 2 diabetes pointing to a convincing evidence for an association between diabetes and structural brain abnormalities such as cerebral atrophy and lacunar infarcts (6–10).

Besides studying the possible physiological contribution of diabetes to late-age brain pathology, another important research topic, which has received much less attention, is the influence of diabetes disease management strategies on brain structure. The Memory in Diabetes (MIND) substudy, embedded within the Action to Control Cardiovascular Risk in Diabetes (ACCORD) trial (11,12), was designed to test the effects of early glycemic intervention on brain outcomes in older people with type 2 diabetes. Previously published baseline results from the ACCORD-MIND trial have shown that lower levels of baseline cognitive performance are associated with higher levels of HbA_1c and diabetes duration (13). However the primary MRI analyses of the trial showed that although people in a intensive glycemic treatment group had less longitudinal decline in total brain volume at 40 months compared with those receiving a standard treatment strategy (P = 0.0007), no significant differences were found in the cognitive outcomes between the two treatment groups (14). This difference in findings may reflect the effect of several factors with a basis ranging from methodological to biological. Previous analyses investigated relatively global measures of brain volume changes, and possibly these changes were relatively restricted to regions mediating cognitive functions other than those tested in the trial. Also possible is that treatment-related changes in brain volume loss precede cognitive changes and are therefore detected first.

The current study investigated whether there are spatially heterogeneous patterns of structural brain changes that vary by diabetes characteristics and by glycemic treatment strategy. Advanced computer-based imaging pattern analysis methods, including volume-preserving spatial normalization that allows for accurate quantification of very localized brain changes (regional analysis of volumes examined in normalized space [RAVENS]) (15–17) and a new voxel-based analysis framework (optimally-discriminative voxel-based analysis [ODVBA]) (18), were applied on longitudinal MRI data from 488 ACCORD-MIND participants to detect imaging patterns that highlight potential spatial differences in the relationship between images and subject groups.

Our general hypothesis is that specific areas of the brain are particularly more vulnerable to diabetes effects. In this report we investigate diabetes duration and HbA_1c levels, two main clinical variables relevant to diabetes and shown to be related to cognition (13). We also hypothesize that there are spatially specific patterns of longitudinal change that differ between the intensive and standard glycemic treatment arms and that those regions displaying longitudinal treatment effects will show similarities with those vulnerable to diabetes effects.

ACCORD, described in detail elsewhere (11), was a randomized, multicenter, double two-by-two factorial parallel-treatment trial that tested the effect of treatment strategies to control blood glucose, blood pressure, and blood lipid concentrations on cardiovascular disease events. Participants targeted by ACCORD were aged 45–79 years and had type 2 diabetes, high HbA_1c concentrations (>7.5% [>58 mmol/mol]), and a high risk for cardiovascular disease events suggested by significant atherosclerosis, albuminuria, left ventricular hypertrophy, or at least two additional risk factors for cardiovascular disease. Key exclusion criteria were frequent or recent serious hypoglycemic events, unwillingness to monitor glucose at home or inject insulin, BMI greater than 45 kg/m², serum creatinine level greater than 1.5 mg/dL (133 μmol/L), or other serious illness. The exclusion criteria were applied before randomization. All ACCORD participants were randomly assigned to receive intensive glycemic treatment targeting HbA_1c to less than 6.0% (42 mmol/mol) or standard glycemic treatment targeting HbA_1c to 7.0–7.9% (53–63 mmol/mol).

The ACCORD-MIND study design has been described elsewhere (12). From within the overall ACCORD study population, 2,977 participants who had been randomly assigned to treatment groups were recruited into the ACCORD-MIND. A cognitive test battery was administered to MIND participants at baseline and at 20 months and 40 months after randomization. The cognitive battery tested for verbal memory (Rey Auditory Learning Test [RAVLT], mean number of recalled words over five trials), processing speed (Digit Symbol Substitution Test [DSST], number of cells correctly filled in), and executive function (modified Stroop Test (STROOP), time to finish the interference challenge).

The MRI substudy participants have been previously described (14). A total of 614 participants had a successful baseline scan, from which 503 had a successful 40-month follow-up scan. After processing of image data, 15 participants were excluded from the analysis based on visual quality control (QC) due to insufficient quality of the final image maps. Reasons for missing and excluded scans were similarly distributed across treatment groups (Supplementary Table 1). The final sample included data from 488 ACCORD-MIND participants. The treatment groups had similar baseline characteristics and cardiovascular risk factors (Supplementary Table 2).

The standardized MRI scan protocol (12) included axial, coronal, and sagittal gradient echo scout views that served as localizers; a three-dimensional fast spoiled gradient-echo T1-weighted sequence (repetition time [TR], 21; flip angle, 30; echo time [TE], 8) to image brain structure, and a two-dimensional axial fast spin-echo (FSE) fluid-attenuated inversion recovery (TR, 8,000; inversion time, 2,000; TE, 100) and proton-density/T2-weighted (TR, 3,200; TE1, 27; TE2, 120) sequences to image pathology. Voxel size was 1.5 × 0.9 × 0.9 mm for the three-dimensional T1 sequence and 3.0 × 0.9 × 0.9 mm for the two-dimensional sequences. Scanners at the four MRI sites had identical field strength (1.5 Tesla) but were from three different manufacturers.

Monthly MRI QC was managed by the University of Pennsylvania Department of Radiology. The procedures followed the American College of Radiology’s (ACR) MRI QC Program, which is based on the analysis of data acquired from scanning an ACR–National Electrical Manufacturers Association QC phantom. Each field center was responsible for keeping its ACCORD scanners within ACR performance specifications and for sending monthly digital images to the MRI QC center for in-house review. According to ACR phantom analyses, MRI scanner performance was stable across the MRI sites and over the duration of the study. In vivo confirmation of scanner performance over time is reflected by the stability of subject intracranial volumes (ICV) over time (baseline mean ICV, 1,132.34 cm³; follow-up mean ICV, 1,132.32 cm³; P = 0.47 by paired t test).

The MRIs were first preprocessed using previously validated and published techniques (16). The preprocessing steps included 1) alignment to the anterior commissure–posterior commissure plane; 2) removal of extracranial material (skull-stripping) and cerebellum; 3) N3 bias correction (19); 4) tissue segmentation into gray matter (GM), white matter (WM), cerebrospinal fluid (CSF), and lateral ventricles (VN) (20); 5) nonlinear image warping (21) to a common brain atlas using a Montreal Neurological Institute template, as previously described (22); and 6) formation of regional volumetric maps, called RAVENS maps (15–17), using tissue-preserving image warping to enable comparative analysis of tissue volumes in the common template space.

RAVENS map intensity values quantify the regional distribution of GM, WM, and ventricular CSF, with one RAVENS map for each tissue type. In particular, RAVENS values in the template’s (stereotaxic) space are directly proportional to the volume of the respective structures in the original brain scan. Therefore, regional volumetric measurements and comparisons are performed by measurements and comparisons of the respective RAVENS maps. For example, patterns of relatively lower regional GM volume in the temporal lobe are quantified by patterns of RAVENS decrease in the temporal lobe in the template space. The RAVENS algorithm has been extensively validated and applied to a variety of studies (15,23).

The RAVENS maps were normalized by individual ICV to adjust for global between-person differences in intracranial size and down-sampled to 2 × 2 × 2 mm. Estimates of region-specific longitudinal volumetric change were obtained from the baseline and follow-up RAVENS maps by calculating the intensity difference at each voxel between the two time points. These rates of change are denoted as dRAVENS.

For the pattern analysis of the imaging data, we used the diabetes duration and HbA_1c levels at baseline as dependent variables for the cross-sectional analysis, and the glycemic intervention arm (i.e., standard or intensive treatment) as the dependent variable for the longitudinal analysis. To investigate regional patterns of brain change associated with longitudinal change in cognition, an additional analysis was done using cognitive test scores as dependent variables.

In our initial statistical analysis on baseline data using the standard voxel-based morphometry (VBM) approach, we identified trends for diabetes duration (e.g., regions with significance P < 0.01), but no regions showed significance after false discovery rate (FDR) correction (24) using a significance threshold of q ≤ 0.05. Accordingly, we applied a new voxel-based analysis methodology, ODVBA (18), taking into account the superiority of ODVBA to the classical VBM approach in sensitivity and spatial specificity, which has been demonstrated on both structural and functional MRI (25,26).

To leverage the strengths of ODVBA, which is a discriminative method, the values for diabetes duration and HbA_1c were dichotomized and used in the analysis as class variables by grouping the subjects with values lower than the 20th percentile and with values higher than the 80th percentile of each variable into the “low” and “high” groups, respectively (27). The low diabetes duration group included subjects with 0–4 years of diabetes (average 2.5 ± 1.3), compared with 15–40 years (average 21 ± 6.3) for the high diabetes duration group. Participants in the low HbA_1c group had HbA_1c values between 5.5% (37 mmol/mol) and 7.4% (57 mmol/mol), with an average 7.1% ± 0.3% (54 ± 3 mmol/mol), whereas the high HbA_1c group had values between 8.8% (73 mmol/mol) and 11.8% (105 mmol/mol), with an average 9.6% ± 0.7% (81 ± 8 mmol/mol).

In the cross-sectional analysis, ODVBA was applied on baseline imaging values of GM, WM, and VN RAVENS maps. Before applying ODVBA, RAVENS maps were corrected for age, sex, and systolic blood pressure by fitting a voxel-by-voxel generalized linear model to the RAVENS values against the covariates and by calculating the residual of the regression at each voxel. ODVBA constructed a voxel-by-voxel image of significance derived from the optimized spatial adaptive filtering applied to the data, which highlights potential spatial differences in the relationship between images and subject groups. Because many statistical tests (i.e., one on each individual voxel) were being conducted, the final maps were corrected for multiple comparisons using FDR correction. The clusters that exceeded a significance threshold of q ≤ 0.05 after correction for multiple comparisons are reported.

In the longitudinal analysis, ODVBA was applied on GM, WM, and VN dRAVENS maps, which capture longitudinal rate of regional change in tissue volume in a given subject’s brain at each voxel, for detecting imaging patterns of volume change associated with group differences between subjects in intensive and standard glycemic treatment arms. FDR-corrected values are reported at a significance level of q ≤ 0.05.

For the analysis of cognition, the longitudinal rate of change of each participant in each cognitive test was estimated by linear regression using baseline, 20-month, and 40-month test scores for DSST, RAVLT, and STROOP. The subjects were then stratified into “declining” and “nondeclining” cognition categories based on the 20th and 80th percentiles, similar to what was done for diabetes duration and HbA_1c. ODVBA was applied using GM, WM, and VN dRAVENS maps of participants in the two groups for each test.

Regional pattern analysis using ODVBA was applied on baseline GM, WM, and VN RAVENS maps, which were corrected for age, sex, and systolic blood pressure, to identify group differences between subject categories for low and high values of diabetes duration and HbA_1c.

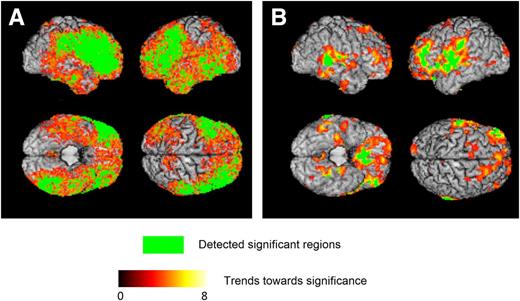

The baseline characteristics of participants with low and high diabetes duration are given in Table 1. Longer diabetes duration (more than 14 years), compared with relatively short duration of diabetes (less than 5 years), was correlated with a relatively lower regional GM volume, particularly in the frontal lobes, left temporal lobe, right parietal lobe, and limbic cortex. The specific regions that were affected were the middle frontal gyrus, precentral gyrus, and inferior frontal gyrus left and right; middle temporal gyrus, inferior temporal gyrus, and lateral occipitotemporal gyrus left; angular gyrus right; and parietal cingulate region right and left. The areas of significant group differences between GM RAVENS maps and short versus long diabetes duration after FDR correction (q < 0.05) are shown in Fig. 1A. A trend of positive association (P < 0.05) of lateral ventricular enlargement and diabetes duration was detected, but no voxels survived the FDR correction (Supplementary Fig. 1).

There was no statistically significant correlation of low versus high baseline HbA_1c levels to the GM, WM, and VN RAVENS maps.

The longitudinal analysis using ODVBA has been applied for identifying group differences in regional volume loss patterns between subjects in the intensive glycemic treatment arm and those in the standard treatment arm. Estimates of region-specific longitudinal volumetric change were obtained from the baseline and follow-up RAVENS maps by calculating the intensity difference at each voxel between the two time points.

Intensive treatment preserved GM volume more than the standard treatment (FDR-corrected q < 0.05) in certain cortical areas, specifically in the left and right superior temporal gyrus, left pre- and postcentral gyri, left and right medial front-orbital gyrus, and left and right frontal cingulate regions (Fig. 1B).

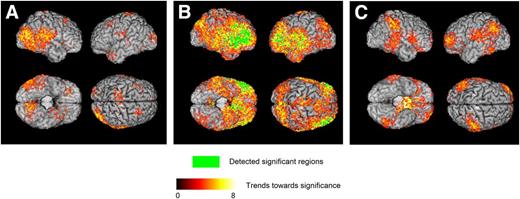

There was a partial overlap between the areas associated with treatment differences and those associated with diabetes duration. Importantly, the regions that showed longitudinal differences were mostly adjacent to regions displaying significant cross-sectional relationship with diabetes duration and tended to show just a trend at baseline.

Summary statistics of cognitive decline and nondecline categories for each cognitive test are given in Table 2. A positive association between higher GM volume loss in certain cortical areas of the brain and cognitive decline was detected for all three cognitive tests; however, after FDR correction, significant group differences were found only for RAVLT (Fig. 2). ODVBA detected trends in right occipitotemporal regions for DSST, a global cortical trend for RAVLT with significant effects on frontotemporal regions, and trends mostly in parietal regions for STROOP.

To the best of our knowledge, this is the first study to use pattern analysis methods to investigate the spatial specificity of patterns of brain volume loss in relation to diabetes duration and HbA_1c. Moreover, this is the first study to apply these methods to investigate the spatial patterns of treatment effects on brain structure in a large diabetes clinical trial and using state-of-the-art pattern analysis methodology.

We applied a new VBM approach, ODVBA (18), in this analysis. In classical VBM methods, Gaussian smoothing of images, which is applied to account for registration errors and to integrate imaging signals from a region, has also become a limitation of these methods, because it is often chosen empirically and lacks spatial adaptivity to the shape and spatial extent of the region of interest, such as a region of volume loss. In contrast, ODVBA, using machine-learning techniques on local image neighborhoods, determines the spatially adaptive smoothing kernel whose coefficients define the optimally discriminative direction between two groups (e.g., patients and control subjects). Information from all neighborhoods that contain a given voxel is then composed to produce the statistic for each voxel, and permutation tests are used to obtain a statistical parametric map of group differences. Experimental results on three sets of previously published data from studies in schizophrenia, mild cognitive impairment, and Alzheimer disease suggest that ODVBA is considerably more sensitive in detecting group differences and performs better than classical VBM methods in the spatial extent of detected area and agreement of anatomical boundary (25).

We found, at baseline, that participants with longer diabetes duration had significantly reduced GM volumes in a number of brain regions. The frontal and temporal lobes were particularly more vulnerable to diabetes effects. The cortical patterns of decreased GM volume showed similarities with previously reported regions in MRI studies comparing diabetic and normal participants (8,9,28–36). In a similar approach, Brundel et al. (9) detected region-specific group differences between healthy controls and patients using cortical area and volume and thickness values, imaging measures complementary to those we used in our analysis. Consistent with our findings, they concluded that the cortical atrophy in type 2 diabetic patients was not equally distributed across the entire brain but showed spatially specific patterns. Also, detected patterns for the change, particularly in cortical area and volume, largely overlapped with those found in our analysis, showing large effects in middle temporal and frontal areas. In contrast to our findings, this study reported smaller cortical thickness values for diabetic patients in the hippocampal region. However, the authors noted that separating GM and WM in the hippocampal region with their present technique is difficult, which may affect the reliability of the cortical thickness and volume measurements.

Previous studies also reported enlarged VNs in diabetic patients compared with healthy controls (37,38). Although we lost significance after FDR correction, our uncorrected significance values (P < 0.05) showed a trend of positive association of lateral VN enlargement and diabetes duration (Supplementary Fig. 1). Detected regions showed similarities to the uncorrected group differences presented by Lee et al. (37).

An important finding is that intensive glycemic treatment displays relative preservation of some but not all brain regions. The finding of a differential treatment effect is consistent with previous findings (14) that preservation of the brain volume was significantly better in the participants in the intensive treatment arm during the 40-month follow-up period compared with the participants in the standard arm. The current analyses go beyond the volumetric measures by providing information on how the volume loss is spatially distributed and, hence, provides more information on how the disease and the intervention interact to produce the outcomes. We found a heterogeneous pattern affecting specific brain regions to a greater degree than others. In particular, the strongest treatment effects were found in brain regions around the Sylvian fissure as well in the medial-frontal cortex. Interestingly, the regions displaying a differential treatment effect of reduced GM volume loss were adjacent to but almost nonoverlapping with those regions that displayed significant association with diabetes duration at baseline. Therefore, intensive treatment appears to slow the spatial spreading of GM volume loss from regions mostly affected by diabetes duration toward adjacent brain regions. Additional studies must be performed, potentially by using individualized longitudinal analyses, to better measure this apparent “slowing of spatial progression” effect on an individual patient basis.

Interestingly, the areas that were associated to change in cognition were different from those affected from the treatment, which may explain the previous finding that there were no significant differences in the cognitive outcomes between the two treatment groups (14). Nonetheless, areas detected for RAVLT, although showing a global cortical effect, have also shown partial overlap with areas affected from the treatment as well as with areas affected from diabetes duration. Verbal learning tests have been considered a useful tool for the early diagnosis of cognitive decline and Alzheimer disease (39,40). As such, these overlapping regions might be particularly important for investigating the relationship between diabetes, its treatment, and dementia.

An important limitation of structural MRI is the lack of molecular specificity. Thus, interpretation of the measured volume changes in GM is challenging. Neuropathological correlates of the macroscopic volumetric reduction are heterogeneous and can include not only neuronal loss but also cortical thinning, subcortical vascular pathology, WM rarefaction, or other reasons (9). Results from animal models (41,42) have presented the associations of diabetes with neuronal changes in specific brain regions, with the aim of understanding underlying mechanisms of structural brain changes. However, these mechanisms are still unclear, as findings propose the involvement of multiple factors in the development of diabetes related brain changes (43). Consequently, the etiology of potentially relatively higher vulnerability of certain brain regions to diabetes duration cannot be elucidated by the current study and might relate to the differences in the underlying neuronal types and their sensitivity to insulin, underlying effects of diabetes in brain tissue perfusion, or might be effects of insulin resistance and its potential effect on brain connections. A growing body of work during the past decade has demonstrated that insulin-sensitive glucose transporters are localized to the same regions supporting memory, suggesting that insulin and its metabolism may contribute to normal cognitive functioning and that insulin abnormalities may exacerbate cognitive impairments, such as those associated with type 2 diabetes and even Alzheimer disease. The regional differences identified here in the cross-sectional and longitudinal analyses are similar to some of those brain regions associated with cognitive health (44,45).

No brain region was found to display significant correlation with low versus high HbA_1c. That no brain region was significantly correlated with HbA_1c levels was against our initial expectations, which were based on the central diagnostic/disease management role of HbA_1c in diabetes and on earlier findings in the larger sample participating in the cognitive component of ACCORD-MIND (13). There, we found an association of increasing HbA_1c and reduced performance on the cognitive tests of speed, memory, and executive function. Because the MRI sample was smaller than the cognitive sample, we may not have had enough power to detect differences in a measure such as HbA_1c level, which only reflect blood glucose levels during the relatively short period of ∼3 months, whereas diabetes duration reflects the cumulative effect of the disease over years. However, we cannot rule out that other pathologic conditions associated with diabetes, such as hypertension, might have a relatively more deleterious effect on the brain than glucose levels. Finally, hypoglycemia might be associated with physiologic (e.g., perfusion) but not structural brain changes.

A limitation of this study is that the sample includes diabetic subjects only. Our findings on the relationship between diabetes duration and extent of brain volume loss are relatively conservative because they were obtained after correcting for age. Diabetes duration and age were somewhat correlated (r = 0.216), albeit not very strongly. The relationship between neurodegeneration and diabetes duration might therefore be even stronger. New studies, including nondiabetic control subjects, would be necessary to allow us to correct only for patterns of brain volume loss explained by normal aging and independently from diabetes duration.

Several factors might have contributed to the dissociation between the treatment effects on brain structure and on cognition (Launer et al. [14] found no treatment effects on cognition). Cognitive tests are known to be variable and subject to the learning effect; hence, imaging measurements, especially the pattern analysis adopted in this study, might be able to detect more subtle effects. Moreover, brain changes are likely to precede cognitive changes, which would further explain this dissociation. However, our results suggest a spatially heterogeneous effect of diabetes duration, as well as of its treatment, thereby pointing the way to future refinement of cognitive tests to tease out functions mediated by those brain regions that are more vulnerable to diabetes and more responsive to treatment.

Funding. ACCORD-MIND was funded through an intra-agency agreement between the National Institute on Aging (NIA) and the National Heart, Lung, and Blood Institute (NHLBI) (AG-0002) and the NIA Intramural Research Program. ACCORD was funded by NHLBI (N01-HC-95178, N01-HC-95179, N01-HC-95180, N01-HC-95181, N01-HC-95182, N01-HC-95183, and N01-HC-95184). The image analysis was funded by National Institute of Biomedical Imaging and Bioengineering 5R01-EB-009234.

Duality of Interest. No potential conflicts of interest relevant to this article were reported.

Author Contributions. G.E. wrote the manuscript. G.E., H.B., T.Z., and C.D. designed the imaging experiments and data analysis. H.B. and T.Z. performed the imaging experiments and data analysis. J.L., M.E.M., and J.D.W. were involved in quality control and data analysis. M.E.M., L.J.L., and R.N.B. designed the study. C.D. supervised the image analysis. All of the authors revised the manuscript. G.E. is the guarantor of this work and, as such, had full access to all the data in the study and takes responsibility for the integrity of the data and the accuracy of the data analysis.
