Advanced Glycation End Products, Oxidation Products, and Incident Cardiovascular Events in Patients With Type 2 Diabetes Free

Cardiovascular diseases (CVD) are the major cause of mortality in patients with type 2 diabetes (T2D). Despite a well-established role for chronic hyperglycemia in CVD risk (1), intensive glycemic control for up to 6 years at best modestly reduces the development of CVD in people with longstanding T2D (2–4). These incongruent results raise the possibility that vascular changes resulting from years of chronic hyperglycemia might lessen the effect of intensive glucose lowering in these studies.

Advanced glycation end products (AGE) and related oxidative end products (OP) are reactive intermediates of chronic hyperglycemia with proteins, lipids, and nucleic acids, resulting in long-lasting modification of these substrates (5–7). The formation of AGE and OP is intertwined; increased AGE may lead to oxidative stress (8) and, vice versa, reactive oxygen species (ROS) may facilitate AGE formation (9). Both AGE and OP are increased in diabetes and have been thought to induce, in part, the cardiovascular complications of diabetes (6,7)

In line with in vitro and preclinical evidence linking AGE and OP to atherosclerosis and CVD (reviewed by Shah and Brownlee [5]), several clinical and epidemiological studies indicate an association between various AGE and CVD events (10–19). We recently found a significant association between several plasma AGE and OP and progression of carotid intima media thickness and calcified coronary atherosclerosis in patients with T2D participating in the Veterans Affairs Diabetes Trial (VADT) (20).

In this study we demonstrate that plasma levels of AGE and OP were also associated with the risk of clinical CVD events in these same VADT participants, and we confirm these findings in a nested case-control cohort of the Action to Control Cardiovascular Risk in Diabetes (ACCORD) lipid trial (21).

The samples and the data for this study came from the baseline visits from two independent studies of intensive glucose lowering in patients with T2D. The main cohort was a subset of 445 participants of the VADT (4), which was previously used to study the long-term effects (after VADT) of glucose-lowering therapy on measures of carotid and coronary atherosclerosis (22). The primary CVD outcome for the current study was the first occurrence of any one of a composite of nonfatal macrovascular events, including myocardial infarction; stroke; new or worsening congestive heart failure; surgical intervention for cardiac, cerebrovascular, or peripheral vascular disease; inoperable coronary artery disease; and amputation for ischemic gangrene (4). The confirmatory cohort was a nested case-control subgroup of 271 participants (135 cases, 136 controls) from the ACCORD lipid trial (21). The primary outcome (cases) in the ACCORD trial was the first occurrence of nonfatal myocardial infarction or nonfatal stroke or death from cardiovascular causes (3). Cases and controls were matched by age, sex, race/ethnicity, and study treatment. All participants provided written informed consent to participate in the VADT and ACCORD studies, both of which are registered at clinicaltrials.gov (identifiers NCT00032487 and NCT00000620, respectively).

As described previously (20,23), five dicarbonyl-derived AGE—Nɛ-carboxymethyl lysine (CML), Nɛ-carboxyethyl lysine (CEL), glyoxal hydroimidazolone (G-H1), methylglyoxal hydroimidazolone (MG-H1), and 3-deoxyglucosone hydroimidazolone (3DG-H1)—and two OP, methionine sulfoxide (MetSO) and 2-aminoadipic acid (2-AAA), were measured by liquid chromatography (LC)–mass spectrometry (MS) using internal stable heavy isotope substituted standards (PreventAGE Healthcare Technology). Analysis was performed in a blinded fashion on the plasma filtrate following centrifugation through 10,000 cutoff Amicon filters. This fraction contains free AGE and OP, as well as peptides of various sizes, and the analytical method measured the free products. An Agilent model 6490 Triple Quadrupole MS system with a 1290 Rapid Resolution LC system was used to detect analytes. All AGE and OP were separated and analyzed in a single run using a single Waters X-select HSS T3 column (2.5 μm, 2.1 × 150 mm) with a mobile phase gradient of methanol and water with 0.20% heptafluorobutyric acid. Total analysis time ran 19 min. Interassay coefficients of variation varied from 3.6% (2-AAA) to 9.6% (G-H1).

Statistical analyses were performed with the SAS statistical package version 9.4 (SAS Institute, Cary, NC). Data were log₁₀ transformed if they were not normally distributed. P values <0.05 were considered statistically significant. Between-group differences were assessed with the Student t test for continuous variables and the χ² test for categorical outcomes. Univariate associations between the continuous variables were assessed by Spearman correlation. Mixed-model ANCOVA was used to test the differences between the groups after adjusting for subject-specific random effects and fixed effects of potential confounders. Risk of incident cardiovascular events in the VADT was analyzed by Cox proportional hazards models adjusted for treatment assignment. Additional adjustments were made for age, race/ethnicity, sex, prior CVD event, kidney function, treatment assignment, and diabetes duration. Combinations of AGE and OP predicting CVD events were selected by stepwise Cox regression, with P < 0.2 for entry into and P < 0.1 for retention in the model. Cumulative probability curves constructed using the Kaplan–Meier method compared subjects at low and high risk, as defined by selected median AGE and OP or their combinations.

The clinical and demographic characteristics within each subset of participants were comparable with those of the full VADT and ACCORD lipid cohorts, respectively; they comprised predominantly white, overweight or obese men with a median 10-year history of diabetes and suboptimal glycemic control (Supplementary Table 1). In both subset cohorts, all AGE and 2-AAA negatively correlated with kidney function, and several of them positively correlated with age. All AGE and 2-AAA positively correlated with diabetes duration but not with hemoglobin A_1c (Table 1). Those with a history of CVD events before enrolling in the VADT had significantly higher 2-AAA (mean ± SD 1,699 ± 639 vs. 1,484 ± 551 nmol/L; P = 0.0002), GH-1 (10.4 ± 4 vs. 9.5 ± 3 nmol/L; P = 0.003), MG-H1 (214 ± 166 vs. 179 ± 135 nmol/L; P = 0.01), 3DG-H1 (379 ± 182 vs. 348 ± 177 nmol/L; P < 0.05), and CEL (88 ± 51 vs. 81 ± 37 nmol/L; P = 0.03) (Fig. 1A). However, only the significant difference in 2-AAA levels persisted after adjusting for age, race/ethnicity, sex, diabetes duration, and kidney function (P = 0.0002).

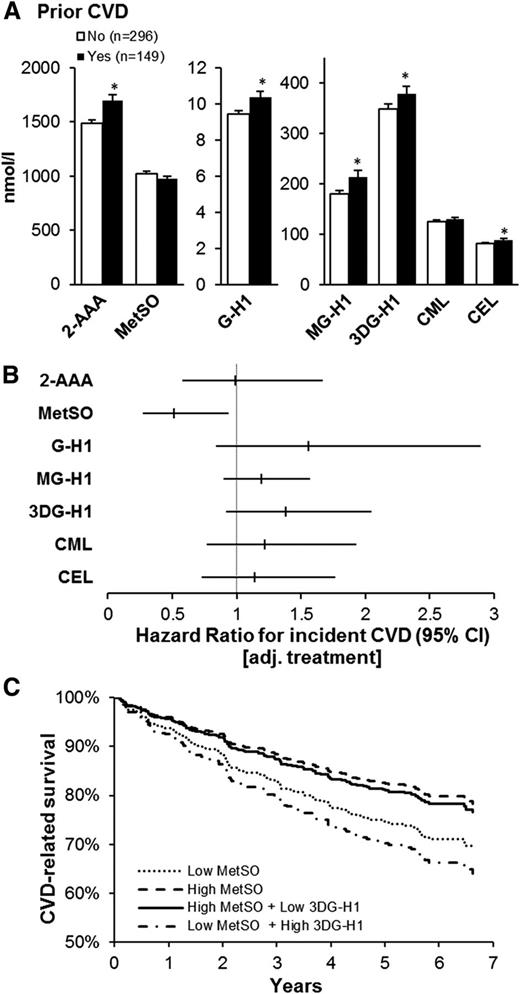

During the VADT, a total of 107 patients within this cohort subset developed a CVD event after a median of 2.3 years (range 0.1–6.6 years). These patients with incident CVD events were older, more likely to be non-Hispanic white, and had a history of a previous CVD event and a longer diabetes duration (Table 2). Higher plasma MetSO concentrations were associated with a lower risk of incident CVD events (Fig. 1B), and this association was independent of age, race/ethnicity, sex, prior CVD event, kidney function, treatment assignment, and diabetes duration (hazard ratio [HR] 0.53 [95% CI 0.28–0.99]; P = 0.047). Although a trend was seen for increased CVD risk for several AGE in the treatment-adjusted models, these did not reach statistical significance (Fig. 1B). In stepwise modeling evaluating all AGE and OP, however, both 3DG-H1 (HR 1.51 [95% CI 1.003–2.27]; P < 0.05) and MetSO (HR 0.45 [95% CI 0.27–0.85]; P = 0.01) were associated with incident CVD. The combination of both low MetSO and high 3DG-H1 further increased the risk for CVD beyond low MetSO alone (Fig. 1C). This combination remained a significant predictor of CVD after adjusting for age, race/ethnicity, sex, prior CVD event, kidney function, treatment assignment, and diabetes duration (HR 1.70 [95% CI 1.12–2.57]; P = 0.01).

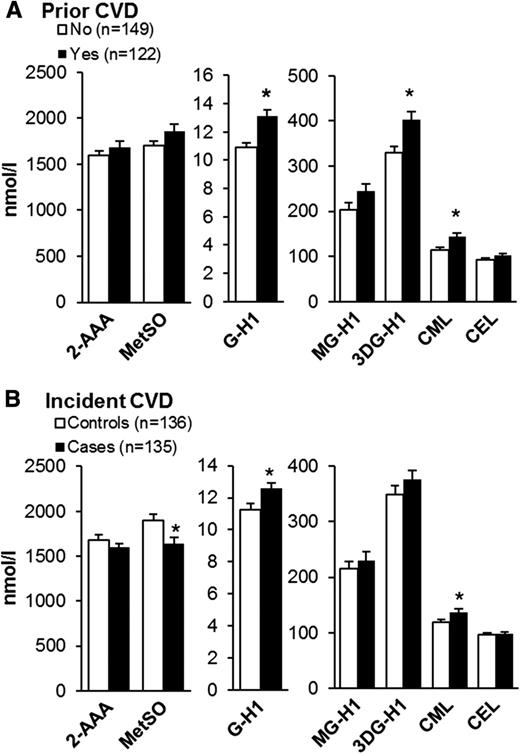

In the ACCORD study, those with prior CVD had higher G-H1 (mean ± SD 13 ± 4 vs. 11 ± 4 nmol/L; P < 0.0001), 3DG-H1 (402 ± 205 vs. 330 ± 165 nmol/L; P = 0.002), and CML (144 ± 72 vs. 115 ± 63 nmol/L; P = 0.0004) (Fig. 2A,); however, only the higher G-H1 remained significant (P = 0.007) after adjusting for age, race/ethnicity, sex, diabetes duration, and kidney function. History of CVD was also more common in those with incident CVD (i.e., cases; median time to an event 3 years [range 1–7 years]) than in controls (Table 2). Incident CVD cases had lower MetSO (1,637 ± 802 vs. 1,901 ± 801 nmol/L; P = 0.007) and higher G-H1 (13 ± 4 vs. 11 ± 4 nmol/L) and CML (137 ± 79 vs. 119 ± 56 nmol/L) (P = 0.04 both) (Fig. 2B); however, only the difference in MetSO remained significant after adjustment for CVD history (P = 0.002).

We found that higher levels of MetSO in both the VADT and ACCORD subset cohorts remained strongly associated with reduced incident CVD events in middle-aged and older patients with a relatively long history of T2D. Several other AGE and OP were also associated with prevalent and incident CVD. Although most AGE associations did not remain significant after adjusting for major risk factors or history of CVD, higher concentrations of 3DG-H1 in combination with lower MetSO levels further enhanced risk for incident CVD in the VADT.

Thus, in two separate cohorts, we observed the novel finding that a significant association exists between lower MetSO and incident CVD. Consistent with these results, a recent preliminary report of type 1 diabetes from the Epidemiology of Diabetes Interventions and Complications (EDIC)/Diabetes Control and Complications Trial (DCCT) cohort showed an inverse association between plasma MetSO and incident CVD (24). Because MetSO is formed by ROS-mediated oxidation of methionine residues of multiple proteins, its inverse association with CVD events seems to contradict the notion of a deleterious effect of oxidative stress on cardiovascular health (5). However, methionine residues on protein molecules have been proposed to constitute an important antioxidant defense mechanism, as a variety of oxidants react readily with methionine to form the less reactive methionine sulfoxide (25). Surface-exposed methionine residues provide an efficient scavenger system and protect other functionally essential residues from oxidative damage. Furthermore, MetSO can be reduced back to methionine by the enzyme methionine sulfoxide reductase, providing a catalytic amplification of the antioxidant potential of each methionine residue (26). Our findings can be interpreted as showing that those with lower MetSO levels have less effective protection against oxidative stress through this pathway, resulting in greater oxidative damage to vascular cells. MetSO formation can also be an important autoregulatory component in cell signaling. For example, methionine sulfoxidation of calcium-calmodulin has been identified to contribute to downregulation of cellular metabolism and ATP utilization and, as a consequence, reduced ROS generation under stress conditions (27).

As a result of their potential to accumulate in tissue over the long term and the ability to initiate and promote vascular damage (28), AGE and select OP are considered important contributors to the development of microvascular and macrovascular complications in T2D (5). In support of this concept, several studies showed increases in various AGE or glycoxidation products in T2D and CVD (10–14). In this analysis using LC-MS in two different cohorts, plasma levels of multiple free AGE and OP adducts were indeed increased in individuals with preexisting CVD; however, these differences seemed to be largely explained by standard CVD risk factors and demographic characteristics. In fact, only 2-AAA in the VADT and G-H1 in the ACCORD cohorts remained significantly higher in those with prevalent CVD after adjusting for these potential confounders. Our results show some similarity to a previous report by Hanssen et al. (10), who detected associations between several AGE and prevalent CVD in individuals with normal glucose metabolism, impaired glucose metabolism, or T2D, although none of these were independent of traditional CVD risk factors.

Consistent with several previous longitudinal studies that have reported associations between plasma AGE and incident CVD (15,18,19,29), we found a nonsignificant trend for an increased risk for CVD for most AGE in the VADT. 3DG-H1 did become a significant predictor of CVD events after inclusion with MetSO in a combined model. This supports the concept that AGE may contribute to CVD; we previously observed a significant positive association between several AGE and OP and long-term progression of atherosclerosis, defined by vascular calcification or carotid intima media thickness, in this same VADT subcohort (20). In the ACCORD subcohort, G-H1 and CML were higher in those who developed incident CVD; however, this increase was partially explained by preexisting CVD. It is possible that median follow-up times of 5.6 and 4.3 years, respectively, may be too short to detect a stronger association between higher AGE and OP and clinical CVD outcomes. In fact, the follow-up time in a previous study demonstrating a significant association between plasma AGE and incident CVD events was nearly 10 years (29).

Weak associations of plasma AGE with clinical markers of glycemic control, as observed in this study, have been noted previously in patients without diabetes (30). This is not surprising, as the majority of free AGE in the circulation originate from long-lived tissue and cellular stores in the body (31) and thus are not readily influenced by ambient glucose control. Consistent with the prolonged accumulation of these products with persistent hyperglycemia and oxidative stress, plasma concentrations of several AGE and OP were directly associated with duration of diabetes. The poor association between AGE and OP with hemoglobin A_1c also emphasizes the minor effect of short- to moderate-term glycemia changes on these adducts in the setting of advanced T2D. This may also partly explain the modest protective effect of intensive glucose lowering in patients with advanced T2D observed during both the VADT and ACCORD trial (3,4).

Our study has several potential limitations. Despite a moderate number of CVD events in both study subsets, our cohorts may not have had adequate statistical power to detect small effects of some AGE and OP. In addition, because the original VADT subcohort used in this analysis was designed to examine long-term atherosclerosis changes, it did not include individuals who died during the VADT (20). This may have modified the CVD risk associated with AGE and OP. Because age and renal function are important determinants of death and were associated with higher AGE concentrations, which are in turn associated with all-cause and CVD mortality (15,18), excluding these individuals may have underestimated the association of AGE with CVD. We believe it is important that we found similar associations of CVD with AGE and MetSO in the confirmatory ACCORD subcohort that included CVD death within its primary outcome. Further studies of the full VADT and ACCORD cohorts and their ongoing long-term observational follow-up studies will clarify these issues. Although lower glomerular filtration rate was associated with higher levels of most AGE and 2-AAA in our study, consistent with prior reports (32,33), its association with MetSO was weak and does not account for relationships between MetSO and incident CVD. Although it does not lessen the importance of the associations between AGE and CVD, in this study we could not account for dietary AGE as a source of free AGE in plasma (34,35). However, dietary AGE modestly increase free AGE in plasma, mostly during the postprandial period, and they are cleared relatively quickly via the kidneys (34,36). Thus their contribution to plasma levels was likely small after an overnight fast in our study subjects with preserved kidney function. Finally, the VADT cohort comprised largely white men; thus our results cannot be generalized to the entire population. Of note, however, some previous studies suggest the possibility of a stronger association of selected AGE and incident CVD in women compared with men (15,19).

In conclusion, our results indicate that lower levels of MetSO and higher levels of select AGE are associated with incident cardiovascular events over 3–7 years of follow-up in patients with long-standing T2D. This may help explain the limited benefit of intensive glucose-lowering therapy in these moderate-duration studies.

Acknowledgments. The authors thank the VADT study participants and study staff and the investigators at the Phoenix, San Diego, Long Beach, Hines, Pittsburgh, Tucson, and Miami VA Medical Centers for participating in this study. The authors also acknowledge the contributions of the Hines VA Cooperative Studies Program Coordinating Center.

Funding. This work was supported by the Veterans Affairs Cooperative Studies Program, Department of Veterans Affairs Office of Research and Development. Additional support was received from the National Institutes of Health (R01-HL110418 [to H.G.] and R01-067690 and 5R01-094775 [to P.D.R.]), the American Diabetes Association (to P.D.R.), and the National Institute of Diabetes and Digestive and Kidney Diseases (Small Business Innovation Research grant 4R44-DK101226-01A1 [to P.J.B.]). B.D.C. is supported by a National Heart Foundation Future Leader Fellowship (no. 100864).

Duality of Interest. S.H. and P.J.B. are employed by PreventAGE Healthcare, where the assays of AGE and OP were performed. No other potential conflicts of interest relevant to this article were reported.

Author Contributions. J.K., A.S., and P.D.R. conceived and designed the study, analyzed and interpreted the data, and wrote the manuscript. S.H. and P.J.B. measured AGE and OP values. G.B. advised on statistical analysis methods and acquired the data. B.D.C. reviewed and edited the manuscript. H.G. designed the study and reviewed the manuscript. P.D.R. was the principal investigator. All authors reviewed and edited the manuscript, approved the final version, and are accountable for all aspects of the work. J.K. and P.D.R. are the guarantors of this work and, as such, had full access to all the data in the study and take responsibility for the integrity of the data and the accuracy of the data analysis.

Prior Presentation. Part of this study was presented in abstract form for a late-breaking poster presentation at the 76th Scientific Sessions of the American Diabetes Association, New Orleans, LA, 10–14 June 2016.
