Home Use of Day-and-Night Hybrid Closed-Loop Insulin Delivery in Very Young Children: A Multicenter, 3-Week, Randomized Trial

Despite advances in the management of type 1 diabetes and supporting technologies, the majority of children with type 1 diabetes are unable to achieve recommended treatment targets (1,2). Closed-loop systems (3) delivering insulin in glucose-responsive fashion may provide benefits compared with existing treatment modalities including improved glycemic control and reduced burden of hypoglycemia (4,5). Hybrid closed-loop systems are characterized by automated insulin delivery apart from when user manages insulin boluses at mealtime.

Rapid progress has been made in testing closed-loop delivery systems during unrestricted living in randomized clinical trials across a broad range of people with type 1 diabetes (6–10). However, investigations in preschool children have been confined to short study durations, round-the-clock supervision, and inpatient or diabetes camp settings (11–13). Performance of closed-loop systems in young children, including preschool children, in unsupervised home settings is unknown.

In preschool children, insulin infusion rates <0.1 units/h may be required compared with higher rates of 1.0 units/h and above in adolescents and young adults. Modern insulin pumps allow adjustments of basal rates but are limited by minimum increments of 0.01–0.05 units/h (14), inherent inaccuracies at low infusion rates (15), and temporal silent occlusions (16). Diluting insulin is applied in pediatric diabetes centers to mitigate against these factors, but compelling evidence to support the use of diluted insulin is missing. Anecdotal reports suggest that the use of diluted insulin in young children may be beneficial to decrease glycemic variability, reduce occurrence of unexplained hyperglycemia, and reduce infusion set failures (17). Diluting insulin as a strategy for delivering low basal infusion rates is in line with the latest clinical practice consensus guidelines provided by the International Society of Pediatric and Adolescent Diabetes in 2018 (18). Results from an overnight research facility closed-loop study suggested that the use of diluted insulin in very young children may lead to reduced hypoglycemia and reduced glucose variability as well as less variable insulin absorption (11,19).

The objective of the present multicenter randomized trial was to assess the feasibility and safety of closed-loop insulin delivery in home settings in children with type 1 diabetes aged 1–7 years. We hypothesized that the use of diluted insulin in a population with low insulin requirements will improve glucose control and reduce the risk of hypoglycemia. In a crossover randomized study design, closed-loop was applied over two 21-day periods comparing hybrid closed-loop with diluted insulin (U20) and hybrid closed-loop with standard strength insulin (U100).

Inclusion criteria included type 1 diabetes as defined by the World Health Organization for at least 6 months, age between 1 and 7 years (inclusive), insulin pump therapy for at least 3 months, and glycated hemoglobin ≤11% (≤97 mmol/mol). Key exclusion criteria included total daily insulin dose ≥2.0 units/kg/day and more than two incidents of severe hypoglycemia within 6 months prior to enrollment.

We identified eligible children from pediatric diabetes clinics at Addenbrooke’s Hospital (Cambridge, U.K.), Medical University of Vienna, Leeds Children’s Hospital, Centre Hospitalier de Luxembourg, University of Leipzig, Medical University of Innsbruck, and Medical University of Graz.

The study adopted an open-label, multicenter, multinational, randomized, two-period crossover design contrasting hybrid closed-loop glucose control using diluted insulin (U20) and hybrid closed-loop using standard insulin strength (U100) during unrestricted living. Two intervention periods lasted 3 weeks, with each separated by 1–4 weeks of washout. The order of the two interventions was random. Training on study insulin pump and continuous glucose monitoring took place over a 2- to 4-week run-in period.

At enrollment, capillary blood samples were taken for analysis of glycated hemoglobin. At the start of the run-in phase, participants and their parents/guardians received training regarding the use of the study pump (a modified 640G insulin pump, for investigational use only; Medtronic, Northridge, CA) and the study real-time continuous glucose monitoring (Enlite 3 Glucose Sensor; Medtronic). Participants and their parents/guardians used the study pump’s standard bolus calculator for all meals throughout the study.

At the end of the run-in period, compliance in the use of study pump and continuous glucose monitoring was assessed. Participants with at least 8 days’ worth of continuous glucose monitoring data during the last 14 days of the run-in period were randomly assigned to receive either 3 weeks of hybrid closed-loop insulin delivery with standard insulin aspart (U100; Novo Nordisk, Bagsvaerd, Denmark) followed by hybrid closed-loop insulin delivery with diluted insulin aspart (U20; Novo Nordisk) or vice versa. Permuted block randomization was applied, and assignment was unblinded owing to the nature of the design. During the washout period, participants could continue using the study insulin pump and real-time continuous glucose monitoring system.

On the 1st day of the first closed-loop period, participants and their parents/guardians attended the clinical research facility. This 1- to 2-h visit included training on initiation and discontinuation of the closed-loop system, switching between closed-loop and usual pump therapy, the meal bolus procedure, and the use of study devices during periods of increased physical activity. Competency in using the closed-loop system by the parents/guardians was assessed. Following discharge, participants continued the study intervention for the next 21 days in free-living settings in their home and nursery/kindergarten or school environment. Participants were not remotely monitored or supervised. The participants were free to consume meals of their choice, and no restrictions were imposed on traveling or physical activity. We encouraged parents/guardians to continue closed-loop use during periods of increased physical activity and organized sports and to announce these periods to the algorithm.

At the start of the closed-loop period with use of diluted insulin, closed-loop training covered the use of diluted insulin. Prior to start of closed-loop with diluted insulin, pump settings were adapted accordingly and reviewed by two members of the research team. Carers at nursery/kindergarten or school also receive closed-loop training by the study team as required.

Parents/guardians were advised to calibrate the continuous glucose monitoring device according to the manufacturer’s instructions; they were free to decide on alarm settings for the continuous glucose monitoring device. All parents/guardians were provided with a 24-h telephone helpline to contact the local study team in the event of study-related issues.

Dilution of insulin aspart to U20 (20 units/mL) was performed by qualified members of study teams using Insulin Diluting Medium for NovoRapid (insulin aspart) and Levemir (insulin detemir) (Novo Nordisk). A 1:5 dilution ratio was used across all study participants.

The FlorenceM closed-loop system (Supplementary Fig. 1) used a model predictive control algorithm (version 0.3.46; University of Cambridge, Cambridge, U.K.) residing on a smartphone (Galaxy S4; Samsung, Seoul, South Korea). Every 10 min, the control algorithm calculated an insulin infusion rate that was set on the study pump. The control algorithm was initialized using preprogrammed basal insulin delivery downloaded from the study pump. Information about participant’s weight and total daily insulin dose was entered at setup. The treat-to-target control algorithm aimed to achieve glucose levels between 5.8 and 7.3 mmol/L depending on the accuracy of model-based glucose predictions.

The threshold suspend feature on the modified 640G pump was turned on during closed-loop operation and allowed insulin delivery to be suspended when the smartphone was not in range or not operational. Further safety mitigations during closed-loop can be found in Supplementary Data.

Prior to study initialization, approval was received from independent research ethics committees in the U.K., Luxembourg, Germany, and Austria and regulatory authorities in the U.K. (Medicines and Healthcare Products Regulatory Agency), Luxembourg (Ministry of Health), Germany (Federal Institute for Drugs and Medical Devices), and Austria (Austrian Agency for Health and Food Safety).

Parents/guardians of participants signed informed consent before study-related activities were initiated. Whenever possible and in line with recommendations by local ethics committees, assent of study participants was obtained in addition to the consent of the parents/guardians or legal representatives.

Glycated hemoglobin at recruitment for characterization of the study population was measured locally using an International Federation of Clinical Chemistry and Laboratory Medicine (IFCC)-aligned method and following NGSP standards.

The primary end point was the proportion of time when glucose was in the target range between 3.9 and 10.0 mmol/L during the 21-day study periods as recorded by continuous glucose monitoring. Secondary end points included mean sensor glucose concentrations; glucose variability measured by the SD and the coefficient of variation; time spent at glucose levels <3.9, <3.5, <2.8, >10.0, and >16.7 mmol/L; and insulin delivery (total, basal, and bolus amounts). Hypoglycemia burden was additionally assessed by calculating the glucose sensor area under the curve <3.5 mmol/L. Secondary end points were calculated over the whole study periods, and a subset of secondary end points (time in the target range, time <3.5 mmol/L, mean glucose, SD of glucose, and total insulin amount), to limit the number of comparisons, during daytime and nighttime periods; daytime was classified as between 6:00 a.m. and 9:59 p.m. and nighttime between 10:00 p.m. and 5:59 a.m.

Based on our overnight closed-loop study in young children (11) and an estimate of an 10-percentage-point improvement in time in target with diluted insulin using an SD of 13 percentage points for the paired difference between study periods, 20 subjects were required to achieve the desired 90% power and an α-level of 0.05 (two-tailed t test); 24 participants were planned to be randomized to allow for dropouts.

The statistical analysis plan was agreed upon by investigators in advance. All analyses were carried out on an intention-to-treat basis. We analyzed end points from participants with at least 24 h of sensor glucose data in one study period. Analysis of those with at least 24 h of glucose sensor data in both study periods was also carried out (prespecified analysis plan). The respective values obtained during the 21-day randomized interventions were compared using a linear mixed model adjusting for period as a fixed effect and site as a random effect. Rank normal transformation analyses were used for highly skewed end points. End points were presented as mean ± SD for normally distributed values or as median (interquartile range [IQR]) for nonnormally distributed values. Outcomes were calculated using gstat software, version 2.2.4 (University of Cambridge), and statistical analyses carried out using SAS software, version 9.4 (SAS Institute). A 5% significance level was used to declare statistical significance. All P values are two sided.

From August 2017 to February 2018, 24 subjects were enrolled and randomized (15 males of median age 5 years [IQR 3–6] and mean ± SD diabetes duration 3.1 ± 1.7 years, glycated hemoglobin 7.4 ± 0.7% [57 ± 8 mmol/mol], and total daily insulin 13.2 ± 4.8 units/day) (Table 1). The flow of participants through the trial is shown in Supplementary Fig. 2. Of 24 randomized participants, 23 completed the trial. One participant withdrew from the study during washout as a result of recurrent technical issues with the closed-loop system (i.e., sensor calibration and device communication issues).

Primary and secondary end points calculated using data from all randomized subjects are presented in Table 2. The primary end point, the proportion of time sensor glucose was in the target glucose range between 3.9 and 10.0 mmol/L, was not different between interventions (72 ± 8% vs. 70 ± 7% for closed-loop with diluted insulin vs. closed-loop with standard insulin, respectively; P = 0.16), with a mean adjusted difference of 2 percentage points in favor of diluted insulin (95% CI −1 to 4). Fig. 1 shows 24-h sensor glucose profiles. End points calculated using data from randomized subjects with a minimum of 24 h of sensor data in both treatment periods (n = 23 for both periods) were similar (Supplementary Table 1).

There was no difference in mean glucose levels (8.0 ± 0.8 vs. 8.2 ± 0.6 mmol/L for closed-loop with diluted insulin vs. closed-loop with standard insulin, respectively; P = 0.14) or glucose variability (Table 2) between study interventions. The proportion of time when sensor glucose was <3.9 mmol/L did not differ (4.5 ± 1.7% vs. 4.7 ± 1.4%; P = 0.47). The percentages of time spent with sensor readings <3.5 mmol/L and <2.8 mmol/L were low and not different between interventions (Table 2). The relative burden of hypoglycemia as measured by the area under the curve when sensor glucose was <3.5 mmol/L was not different (P = 0.71).

Total daily insulin delivery did not differ between interventions (17.3 ± 5.6 vs. 18.9 ± 6.9 units/day for closed-loop with diluted insulin vs. closed-loop with standard insulin; P = 0.07). There was no difference in basal insulin delivery (P = 0.76). However, a modest but statistically significant reduction of bolus insulin delivery during closed-loop with diluted insulin was observed (10.4 ± 3.5 vs. 11.8 ± 4.2 units/day; P = 0.006), presumably due to slightly lower glucose levels during closed-loop with diluted insulin resulting in a reduced amount of insulin delivered as correction boluses. Basal–to–bolus insulin ratios were not different between interventions (P = 0.10).

Glucose sensor use and closed-loop application were high. During closed-loop with diluted insulin, closed-loop was used for a median of 86% (IQR 84–91) of the time, and participants wore glucose sensor for 94% (91–95) of the time. During closed-loop with standard strength insulin, these values were 88% (82–91) and 95% (92–97), respectively.

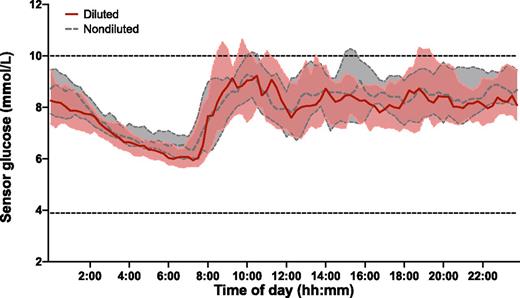

Secondary end points calculated for daytime and nighttime are shown in Table 3. Tight glucose control was particularly prominent during the nighttime (Fig. 1 and Table 3). There was no evidence that the effect of treatment depended on time of day (Table 3).

No severe hypoglycemia or diabetic ketoacidosis events were reported during the entire study. One participant was hospitalized during washout owing to a lower respiratory tract infection. Six other adverse events were reported, of which three occurred during run-in, one during washout, and two during closed-loop with standard strength insulin (Supplementary Table 1). None of the events were deemed related to study devices or study procedures. All participants recovered fully without clinical sequelae.

To our knowledge, this is the first and longest randomized controlled trial investigating day-and-night application of closed-loop insulin delivery in very young children with type 1 diabetes during unrestricted living. Our findings document that hybrid closed-loop insulin delivery in a relatively well-controlled population is feasible and safe in managing glucose control. No benefits associated with the use of diluted insulin were observed.

Results of the current study are consistent with observations in older children (6), adolescents (6,7), adults (6,9), and pregnant women (20) about safety and efficacy of closed-loop therapy using Cambridge model predictive control. This confirms the robustness of our model predictive algorithm and supports the application of our closed-loop systems across a broad range of people with type 1 diabetes including preschool children.

Studies of outpatient closed-loop use in toddlers and preschoolers with type 1 diabetes are sparse. Hybrid insulin delivery using a modular model predictive control approach in children aged 5–9 years was investigated in diabetes camp settings under close supervision documenting reduced nocturnal hypoglycemia compared with sensor-augmented insulin pump therapy (12). This was offset by increased mean glucose levels during closed-loop use. DeBoer et al. (13) evaluated 68-h use of a hybrid closed-loop system in 12 children aged 5–8 years followed as an outpatient admission compared with home care. Closed-loop resulted in increased time with glucose levels in the target range and lower mean glucose levels without increasing the risk of hypoglycemia. These two trials were short, participants were supervised, and toddlers and preschoolers were excluded.

The rationale for the use of diluted insulin in the current study was to enhance accuracy of insulin delivery. Our assumption was that these benefits may manifest markedly in those with lower total daily dose, but we observed no relationship between the total daily insulin amount and the difference in time when glucose was in the target range when we compared diluted insulin with standard strength insulin closed-loop use (Supplementary Fig. 3). We enrolled participants with total daily insulin dose ranging from 4.3 to 26.6 units, but only two participants had a total insulin dose <10.0 units/day during closed-loop interventions (Supplementary Fig. 3).

Overnight glucose control is a major concern for parents and caregivers of young children with type 1 diabetes. More than 50% of severe hypoglycemic episodes occur during sleep in children and adolescents (21). Fear of hypoglycemia is a major cause of stress and anxiety for families and caregivers (22) and is also a major barrier to therapy intensification (21) and optimal glucose control (23). With >80% of time with sensor readings in the target range overnight, mean overnight glucose levels close to 7.0 mmol/L, and very low rates of hypoglycemia, our closed-loop system performed particularly well overnight (Fig. 1 and Table 3). A trend similar to that in the current study was observed in our previous trials in older populations (6,9,24). Because of this favorable nocturnal performance, hybrid closed-loop systems may be particularly appealing to families and caregivers of young children with type 1 diabetes.

We used a prototype modular closed-loop system with the size of devices as well as connectivity issues potentially limiting its utility. Nevertheless, sensor glucose wear was high, at a median 94–95% of the time, and, similarly, closed-loop use was high, at a median 86–88% of the time, demonstrating high compliance and potential interest among parents/guardians of young children and feasibility of closed-loop use in nurseries, kindergartens, and playgroups.

The strengths of our study include the multicenter, multinational, crossover, randomized design that had the benefit of each participant acting as his/her own control. The study was performed without remote monitoring or close supervision, thereby assessing real-world use and supporting generalizability of study findings. We did not restrict participants’ dietary intake, physical activity, or geographical movements. Limitations include a relatively short duration of follow-up; a relatively small number of participants, particularly participants with total daily dose <10 units/day; nonstandardized sensor alarm settings; and a lack of a control group to assess efficacy compared with standard clinical practice. We aim to address some of these issues in a follow-up study.

In conclusion, hybrid closed-loop insulin delivery using the model predictive control approach is feasible and safe in young children with type 1 diabetes during unrestricted living. Insulin dilution does not appear to be of additional benefit with use of hybrid closed-loop insulin delivery.
