Relationships Between the Cumulative Incidences of Long-term Complications in Type 1 Diabetes: The DCCT/EDIC Study

Despite improvements in treatment and health management, individuals with type 1 diabetes (T1D) remain at higher risk of microvascular complications and cardiovascular disease (CVD) compared with those without diabetes (1–5). Mortality rates have also been higher among individuals with T1D compared with those without diabetes (2,6,7), with varying estimates of relative risk in more recent analyses (8–10).

With its thorough evaluation of microvascular and cardiovascular complications, and mortality over >30 years of follow-up, the Diabetes Control and Complications Trial (DCCT) and its observational follow-up study, the Epidemiology of Diabetes Interventions and Complications (EDIC), provides a unique opportunity to investigate the incidence and co-occurrence of these long-term complications in individuals with T1D. Herein, we describe the relationships between the cumulative incidences of long-term complications in T1D and evaluate whether any observed associations are independent of age, duration of diabetes, and glycemia.

The methods of the DCCT/EDIC study have been previously described (11,12). Briefly, the DCCT enrolled 1,441 participants with T1D who were randomly assigned to receive either intensive therapy (n = 711) aimed at achieving glycemic levels as close to the nondiabetic range as safely possible, or conventional therapy (n = 730) aimed at preventing symptoms of hypo- and hyperglycemia with no predefined glycemic targets. Participants were enrolled either into the primary prevention cohort (diabetes duration of 1–5 years, no retinopathy, based on stereoscopic fundus photography, and albuminuria <40 mg/24 h at baseline; n = 726) or the secondary intervention cohort (duration of T1D of 1–15 years, minimal to moderate nonproliferative retinopathy, and albuminuria <200 mg/24 h at baseline; n = 715). In 1993, after a mean follow-up of 6.5 years, the DCCT ended, and all participants were taught intensive therapy and referred to their health care providers for ongoing diabetes care. In 1994, the observational follow-up study, EDIC, enrolled 96% of the surviving DCCT cohort. Ninety-four percent of survivors still actively participate in the study after >25 years since the start of EDIC. In the present analyses, we used all available data in the full cohort (n = 1,441) over the combined DCCT/EDIC follow-up period up to 30 April 2018.

HbA_1c was measured quarterly during DCCT and annually during EDIC using high-performance liquid chromatography. To account for the different measurement frequencies during DCCT and EDIC, the models used the mean updated DCCT/EDIC HbA_1c, which is a time-dependent exposure calculated by weighting each value by the time interval between measurements (13).

Serum creatinine was measured annually and used in combination with age, sex, and race to calculate estimated glomerular filtration rate (eGFR), which we calculated with the Chronic Kidney Disease Epidemiology Collaboration equation. End-stage renal disease (ESRD) was defined as the initiation of maintenance dialysis or kidney transplantation assessed yearly by questionnaire and adjudicated centrally. Reduced eGFR was defined as an eGFR <60 mL/min/1.73 m² on at least one occasion or progression to ESRD (14).

Standardized stereoscopic, seven-field fundus photographs were obtained every 6 months during DCCT and every fourth year (staggered from the start of the EDIC follow-up period) during EDIC. In addition, photographs were obtained in the full cohort at EDIC years 4 and 10. The photographs were graded centrally using the final Early Treatment of Diabetic Retinopathy Study severity grading scale. Graders were masked to treatment assignment and other risk factors. Proliferative diabetic retinopathy (PDR) was defined as neovascularization observed on fundus photograph grading or evidence of scatter photocoagulation. Clinically significant macular edema (CSME) was defined on the basis of fundus photography grading or the presence of focal photocoagulation scars (15,16). Lower extremity amputations at any level, including single toe, were identified as present or absent during the annual physical examination beginning in October 2005 (EDIC year 12).

Annual medical histories and electrocardiograms were used to ascertain CVD events, and documentation from external medical records was sought for verification. These events were adjudicated by a within-study Mortality and Morbidity Review Committee masked to original DCCT treatment group assignment and glycemic levels as measured by HbA_1c. The composite CVD outcome was defined as time to the first occurrence of CVD death, nonfatal myocardial infarction, nonfatal stroke, subclinical myocardial infarction on electrocardiogram (i.e., silent myocardial infarction), angina confirmed by ischemic changes with exercise tolerance testing or by clinically significant obstruction documented on coronary angiography, revascularization (with angioplasty or coronary artery bypass), or congestive heart failure (paroxysmal nocturnal dyspnea, orthopnea, or marked limitation of physical activity caused by heart disease) (17).

Deaths were reported to the Data Coordinating Center and external documentation provided (if available) for adjudication by the Mortality and Morbidity Review Committee (18). The primary mortality outcome was defined as all-cause mortality.

The marginal cumulative incidence of each complication (e.g., the cumulative incidence of CVD) was estimated using the Kaplan-Meier estimator, whereas the joint cumulative incidence of multiple complications (e.g., the cumulative incidence of both PDR and CSME) was estimated using the Dabrowska estimator available in library(mhazard) in R (19–21).

Two metrics (conditional probabilities) describe the relationships between the incidences of complications (see Supplementary Material for details). Using PDR and CSME as examples, we estimated the probability of developing PDR prior to a specific time point (e.g., ≤15 years after randomization) separately for individuals with and without CSME up to that time point. In addition, we estimated the 5-year cumulative incidence of a complication separately on the basis of the presence or absence of another complication. For example, for a participant who is free of both PDR and CSME at 15 years from enrollment, we estimated the probability of developing PDR within 5 years (i.e., by year 20 = 15 + 5). Likewise, for a participant who is free of PDR but with CSME present at year 15, we estimated the probability of developing PDR within 5 years (i.e., by year 20 = 15 + 5).

The pairwise associations between complications were then assessed using separate Cox proportional hazards (PH) models for the risk of one of the complications as a function of the other complication included as a time-varying covariate capturing its status (present or absent) over time. For example, the association between reduced eGFR and the subsequent risk of CVD was assessed using reduced eGFR status as a time-varying covariate in a Cox PH model for the risk of CVD. The models were unadjusted and minimally adjusted for age, duration of T1D, and mean updated HbA_1c.

Data collected for the DCCT/EDIC study through 30 June 2017 are available to the public through the National Institute of Diabetes and Digestive and Kidney Disease Central Repository (https://repository.niddk.nih.gov/studies/edic/). Data collected in the current cycle (July 2017–June 2022) will be available within 2 years after the end of the funding cycle.

Briefly, at baseline, 53% of the participants were men, median age was 27 years, median duration of T1D was ∼4 years, and median HbA_1c value was 8.7%. Supplementary Table 1 presents the baseline characteristics of the participants separately by outcome status over the entire DCCT/EDIC follow-up.

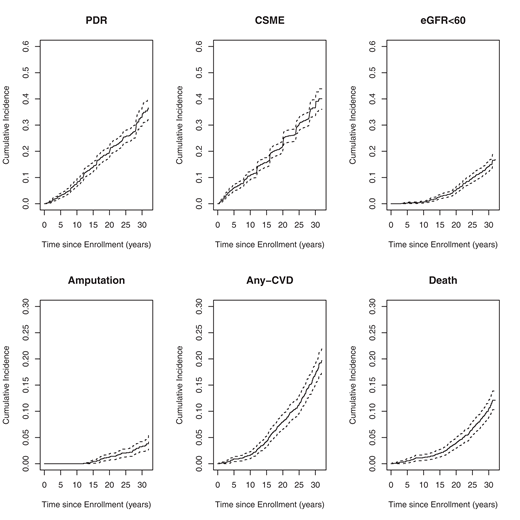

The 30-year cumulative incidence of PDR and CSME was 33.4% and 36.6%, respectively; reduced eGFR was 14.1%; amputation was 3.2%; CVD was 17.1%; mortality was 10.4% (Fig. 1). The highest numbers of documented events were for CSME (n = 448; rate is 14.2 events per 1,000 individuals at risk for 1 year) and PDR (n = 394; rate is 12 events per 1,000 individuals at risk for 1 year), and the lowest number of events was for amputations (n = 47; rate is 1.1 events per 1,000 individuals at risk for 1 year) (Table 1). There were 639 participants (44%) who did not experience any of the 6 long-term complications during follow-up; 367 participants developed 1 complication, 247 participants developed 2 complications, 110 participants developed 3 complications, 59 participants developed 4 complications, 14 participants developed 5 complications, and 5 participants developed all 6 complications.

The marginal and joint cumulative incidences of complications are presented in Supplementary Table 2. By 30 years from DCCT baseline, 33.4% of the participants experienced PDR and 36.6% experienced CSME, with 23.9% of the participants experiencing both PDR and CSME. The cumulative incidence for reduced eGFR was 14.1% by year 30, with 8.9% of the participants experiencing both reduced eGFR and CSME, and 8.4% experiencing both reduced eGFR and PDR. Only 3.2% of the participants had an amputation by year 30, with 2.2% and 2.3% of the participants having also experienced PDR and CSME, respectively. By year 30, 17.1% of the participants had a CVD event, with 8.8% and 5.0% also experiencing CSME and reduced eGFR, respectively. Cumulative incidence of mortality at year 30 was 10.4%, with 5.0% and 4.2% also experiencing CSME and CVD, respectively.

By year 30, there were large differences in the cumulative incidence of PDR between participants with and without prior CSME (65.5% vs. 14.9%), prior reduced eGFR (58.8% vs. 29.2%), and prior amputation (68.2% vs. 32.1%) (Table 1). Similar patterns were observed for CSME. For reduced eGFR, the cumulative incidence at year 30 was 25% vs. 8.8% among participants with versus without prior PDR, 47.9% vs. 13% among participants with versus without prior amputation, and 30.2% vs. 10.9% among participants with versus without prior CVD. For CVD, the cumulative incidence at year 30 was 36.6% vs. 13.9% among participants with versus without prior reduced eGFR, and 49.9% vs. 15.9% among participants with versus without prior amputation. For mortality, the cumulative incidence at year 30 was 21.5% vs. 8.5% among participants with versus without prior reduced eGFR, 35.1% vs. 8.3% among participants with versus without prior amputation, and 24.6 vs. 7.5% among participants with versus without prior CVD.

Table 2 describes the 5-year risk (%) of a complication from a specific time point (e.g., 15 years from randomization) for an individual with versus without another complication present at that time point (i.e., year 15). Presence of CSME was an important predictor of subsequent 5-year risk of PDR; for example, at year 25, the probability of developing PDR in the next 5 years (i.e., between years 25 and 30 of follow-up) was 21.4% for a participant with CSME present at year 25, and only 8.2% for a participant without CSME at year 25. Presence of PDR and a prior amputation were predictive of future 5-year risk of CSME. Note that prior reduced eGFR and amputations were more predictive of 5-year risk of CVD than either of the eye outcomes. Prior amputations and prior CVD were predictive of 5-year risk of mortality.

In Table 3, we report the associations between each complication and the subsequent risk of the other complications, using separate Cox PH models, first unadjusted and then minimally adjusted for age, duration of T1D, and mean updated HbA_1c. In the unadjusted analyses, presence of a complication was associated with higher subsequent risk of other complications, with the exception of CVD for the subsequent risk of PDR, and reduced eGFR, amputation, and CVD for the subsequent risk of CSME. Adjusted for age, duration of T1D, and mean updated HbA_1c, the presence versus absence of PDR remained associated with higher risk of CSME (hazard ratio [HR] 1.88; P < 0.0001), reduced eGFR (HR 1.41; P = 0.0434), and CVD (HR 1.43; P = 0.0182); presence versus absence of CSME was associated with higher risk of PDR (HR 3.94; P < 0.0001), reduced eGFR (HR 1.49; P = 0.0092), and CVD (HR 1.35; P = 0.0309); presence versus absence of reduced eGFR was associated with higher risk of CVD (HR 2.09; P = 0.0001) and death (HR 3.40; P < 0.0001); presence versus absence of amputation(s) was associated with higher risk of death (HR 2.97; P = 0.0001); presence versus absence of CVD was associated with higher risk of reduced eGFR (HR 1.59; P = 0.0188) and death (HR 1.95; P = 0.0009). A sensitivity analysis using models further adjusted for DCCT baseline cohort assignment (primary prevention versus secondary intervention) revealed similar results (data not shown). An additional sensitivity analysis that excluded the CVD deaths without a prior (nonfatal) CVD event (n = 20) from the analyses investigating the association between CVD and mortality yielded virtually identical results (data not shown).

Our analyses of this well-characterized cohort of individuals with T1D followed for >30 years demonstrate strong correlations among long-term microvascular and cardiovascular complications, including mortality. Noteworthy is that many of these associations (e.g., PDR with CSME; PDR, CSME, and CVD with reduced eGFR; PDR, CSME, and reduced eGFR with CVD; and reduced eGFR, amputations, and CVD with mortality) were independent of age, duration of diabetes, and glycemic exposure. These results suggest there is within-individual susceptibility to develop micro- and macrovascular complications and mortality independent of glycemic exposure.

Many of these relationships have been individually demonstrated in previous studies. The increased risk of kidney disease in participants with diabetic retinopathy was shown previously in the DCCT/EDIC study (22), in the Wisconsin Epidemiologic Study of Diabetic Retinopathy (WESDR) (23,24), and several other studies (25–27) of both type 1 and type 2 diabetes. Likewise, retinopathy has also been associated with increased CVD and mortality risk in WESDR (28) and other studies (29–31). Finally, increased CVD and mortality risk among those with kidney disease has been well established (32,33) and subsequently has been verified in the DCCT/EDIC (34) and several other studies (35–38).

In contrast to these previous studies, herein we describe the relationships among complications not only on the relative risk scale (i.e., using Cox PH models) but also on the absolute risk scale. More specifically, we report cumulative incidence and 5-year risk of complications separately on the basis of the status (presence or absence) of a different complication.

Strengths of our study include the detailed phenotyping of our participants over a prolonged period of time. At baseline, the participants were in the early stages of disease progression, with none of the participants in the primary cohort (n = 726) having any complications, and the participants in the secondary cohort (n = 715) only having very early microvascular disease present (e.g., 28% with very mild to moderate nonproliferative retinopathy, and 22% and 2% with albumin excretion rate >30 mg/24 h and >100 mg/24 h, respectively). Furthermore, the outcomes chosen for this study were advanced long-term complications. Although we used eGFR <60 mL/min/1.73 m² and/or progression to ESRD, prior studies often used the development of microalbuminuria or macroalbuminuria as kidney outcomes. However, we previously showed that such development often reverses over time rather than progresses (34).

Our study has limitations as well. The low number of participants with amputations in our cohort (n = 47) may have limited our ability to detect its associations with the other complications. Likewise, we were underpowered to assess associations with individual CVD events (e.g., stroke or myocardial infarction) or with cause-specific mortality (e.g., cardiovascular mortality).

In summary, we have demonstrated strong correlations among advanced long-term microvascular and cardiovascular complications, including mortality. The unifying modifiable factor underlying the development of both microvascular and macrovascular complications is glycemic control (16,18,22,39). Previously, we also demonstrated that the earlier better glycemic control is achieved after diagnosis, the lower the risk of long-term microvascular and cardiovascular outcomes (40). However, age, duration of diabetes, and glycemia do not completely explain the joint incidence of these complications. This suggests there is within-individual susceptibility to both microvascular and macrovascular complications. More studies are needed to define the causes of this individual susceptibility to complications. Possibilities include genetic, clinical, and behavior factors, as well as social or environmental exposures. The results do suggest that surveillance for additional complications should be intensified in patients with existing microvascular and cardiovascular complications.
