Epidermal growth factor receptor (EGF-R) signaling is essential for proper fetal development and growth of pancreatic islets, and there is also evidence for its involvement in β-cell signal transduction in the adult. To study the functional roles of EGF-R in β-cell physiology in postnatal life, we have generated transgenic mice that carry a mutated EGF-R under the pancreatic duodenal homeobox-1 promoter (E1-DN mice). The transgene was expressed in islet β- and δ-cells but not in α-cells, as expected, and it resulted in an ∼40% reduction in pancreatic EGF-R, extracellular signal–related kinase, and Akt phosphorylation. Homozygous E1-DN mice were overtly diabetic after the age of 2 weeks. The hyperglycemia was more pronounced in male than in female mice. The relative β-cell surface area of E1-DN mice was highly reduced at the age of 2 months, while α-cell surface area was not changed. This defect was essentially postnatal, since the differences in β-cell area of newborn mice were much smaller. An apparent explanation for this is impaired postnatal β-cell proliferation; the normal surge of β-cell proliferation during 2 weeks after birth was totally abolished in the transgenic mice. Heterozygous E1-DN mice were glucose intolerant in intraperitoneal glucose tests. This was associated with a reduced insulin response. However, downregulation of EGF-R signaling had no influence on the insulinotropic effect of glucagon-like peptide-1 analog exendin-4. In summary, our results show that even a modest attenuation of EGF-R signaling leads to a severe defect in postnatal growth of the β-cells, which leads to the development of diabetes.

The pancreatic β-cell is the key player of the glucoregulatory machinery. It senses changes in blood glucose levels and immediately adjusts the release of insulin accordingly. Gene targeting experiments have revealed transcriptional networks required for β-cell differentiation (1,2). Achievement and maintenance of the correct β-cell mass is a crucial issue that is controlled at all stages of development. In the embryonic pancreas, this is controlled by an interplay between growth factors, such as fibroblast growth factor-10 (3), provided by the mesenchyme, and notch signaling between the epithelial cells to regulate the expression of the proendocrine transcription factor neurogenin-3 (4,5). Epidermal growth factor receptor (EGF-R) stimulation also promotes embryonic pancreatic epithelial proliferation and suppresses endocrine differentiation (6). The last days of gestation and the first postnatal weeks in the mouse are characterized by a dramatic growth and remodeling of the pancreatic islets. The β-cell mass increases by fourfold within 2 weeks, and this period is crucial for the determination of the functional β-cell mass for the remaining lifetime (7,8). The same is true in humans, where the major β-cell expansion occurs during the last third of gestation. The growth factors that are responsible in vivo for the control of this critical phase of β-cell expansion are poorly understood.

EGF-R is a tyrosine kinase receptor (9) belonging to the erbB gene family (EGF-R/erbB1, neu/erbB2, erbB3, and erbB4) (10,11). Binding of EGF family growth factors leads to EGF-R autophosphorylation and activation of downstream extracellular signal–related protein kinase (ERK) and phosphatidylinositol 3-kinase signaling pathways. EGF-R has been associated with cell proliferation and differentiation and is implicated in the development of organs undergoing branching morphogenesis. All erbBs are expressed in the developing pancreas in an overlapping manner (12,13). We previously have shown, using an EGF-R–deficient mouse model, that EGF-R signaling is essential for proper pancreatic development (14). In the absence of EGF-R, the nascent islet cells have a migration defect and the development of β-cells occurs at a later stage in EGF-R−/− mice than in wild-type littermates. Moreover, we showed that ligands of the EGF-R/erbB-1 and erbB-4 receptors regulate the lineage determination of islet cells during pancreatic development. Particularily, betacellulin (BTC), acting through EGF-R/erbB-1, is important for the differentiation of β-cells (12).

The EGF-R−/− mice do not survive beyond the perinatal period. To further clarify the role of EGF-R signaling in postnatal growth and function of the β-cells, we have generated transgenic mice that express kinase-negative EGF-R under the pancreatic duodenal homeobox-1 (pdx-1) promoter. Using this mouse model, we show that an intact EGF-R signaling pathway is required for the development of a sufficient and functional β-cell mass and that even a partial inactivation of EGF-R function in the β-cells leads to diabetes.

Generation of pdx-1–EGF-R dominant-negative mice (E1-DN).

The E1-DN transgene (Fig. 2A) consists of the mouse pdx-1 promoter (a kind gift from Dr. Pedro Herrera, University of Geneva), followed by a rabbit β-globin second intron (15), the human kinase–deficient EGF-R cDNA (CD533; Schlessinger) with a myc-tag (GEQKLISEEDLN), and a growth hormone polyA-tail (16). The EGF-R deletion mutant previously has been shown to function effectively as a dominant-negative manner in mice (17). The transgene was injected into pronuclei, and eventually two transgenic mouse lines were obtained. The transgenic animals were genotyped by Southern blot or dot blot analysis (16). The study protocol was approved by the animal ethics committee of the University of Helsinki. Wild-type controls were derived from nonrelated litters to exclude the effect of intrauterine hyperglycemia.

Blood glucose measurements and in vivo testing of glucose tolerance, insulin secretion, and insulin sensitivity.

Random blood glucose values were measured from wild-type (n = 4–8), E1-DN heterozygous (n = 6–30), and E1-DN homozygous (n = 15–60) mice at various ages from tail veins using a OneTouch Ultra glucometer (Lifescan). The intraperitoneal glucose tolerance test was done on 3- to 8-month-old mice (n = 12 for the transgenic and n = 12 for the control group) by intraperitoneally injecting glucose (1 mg/g body wt). Blood samples were collected at 0, 30, 60, and 120 min, and glucose (OneTouch) and insulin (Ultrasensitive Mouse Insulin ELISA; Mercodia, Uppsala, Sweden) concentrations were measured. Exendin-4 (100 ng/mouse; Bachem) was intraperitoneally injected immediately before glucose loading on the contralateral side. To exclude differences in insulin tolerance, 0.75 IU/g insulin was intraperitoneally injected to wild-type and E1-DN mice (twice for n = 3 for both groups) and blood glucose measured at 0, 15, 30, and 60 min. All in vivo experiments were done on homozygous or heterozygous male mice, as males had the most pronounced phenotype. The results are expressed as the mean of different experiments ± SE.

Histological and morphometrical analysis.

Newborn and 2- to 8-month-old E1-DN transgenic and wild-type mice were killed by cervical dislocation, and the pancreata were dissected, weighed, and fixed overnight in 4% paraformaldehyde or Bouin’s fixative. The tissues were processed into paraffin using routine procedures. For morphometrical analysis, the pancreata were serially sectioned through, and five 3 μm sections per every 100 μm were collected, deparaffinized, stained with insulin or glucagon antibodies, counterstained with hematoxylin, and morphometrically analyzed directly under light microscope using Image-Pro Plus 4.5 (version 0.19) software as previously described (14).

Total pancreatic insulin content.

Pancreata were weighed and then homogenized in acid ethanol (75% ethanol, 23.5% distilled water, and 1.5% concentrated HCl) at 10 ml/g of tissue. After overnight incubation at 4°C, the suspensions were centrifuged at 2,000g for 10 min and the supernatants were collected and analyzed for insulin content using RIA (DPC, Los Angeles, CA).


Paraffin sections from wild-type and E1-DN transgenic mice were stained as described (12) with the following antibodies: amylin (mouse anti-human; Labvision, Fremont, CA), insulin (guinea pig anti-swine; DakoCytomation, Glostrup, Denmark), glucagon (rabbit anti-human; DakoCytomation), somatostatin (rabbit anti-human; DakoCytomation), PP (rabbit anti-human; DakoCytomation), EGF-R (E3138 [Sigma] and no. 100-401-149 [Rockland] for both mouse and human EGF-R and Ab-10 [Neomarkers, Fremont, CA] for human EGF-R), phospho-specific EGF-R (P845-EGF-R; Biosources), pdx-1 (kind gift from Dr. Christopher Wright, Vanderbuilt University, Nashville, TN), myc (9E10.3 mouse anti-human; Neomarkers/Labvision), and GLUT-2 (no. sc-7580, goat anti-human; Santa Cruz Biotechnology, Santa Cruz, CA). The immunoreactions were visualized under either light or fluorescence microscope and digitally photographed.

Cell proliferation and apoptosis.

Paraformaldehyde-fixed pancreatic sections from newborn, postnatal day 7 (D7), and day 14 (D14) wild-type and E1-DN pancreata were double stained with antibodies to insulin (DakoCytomation) and either Ki67 (Novocastra, Newcastle upon Tyne, U.K.) or cleaved caspase 3 (Cell Signaling). Briefly, paraffin sections were microwave treated in 10 mmol/l citrate or in 1 mmol/l EDTA for 15 min. Nonspecific binding was blocked by preincubation in 4% normal donkey serum followed by incubation of primary antibodies overnight at 4°C. As secondary antibodies we used, TRITC (tetramethylrhodamine isothiocyanate) donkey anti–guinea pig and FITC (fluorescein isothiocyanate) donkey anti-rabbit (Jackson Immunoresearch).

Immunoprecipitation and Western analysis.

Pancreata, livers, or isolated islets were homogenized in lysis buffer (25 mmol/l HEPES, pH 7.4, 1% Triton X-100, 10% glyserol, 0.5 mmol/l EGTA, 10 mg/ml approtinin, 10 mg/ml leupeptin, 1 mmol/l phenylmethylsulfonyl fluoride, and 2 mmol/l Na-orthovanadate) and protein concentration determined by the Bio-Rad DC Protein Assay (Bio-Rad). Lysates (50 μg protein) were run into 10% SDS-PAGE and analyzed by Western analysis with antibodies to EGF-R, phospho–EGF-R, myc, phosphor-ERK (Promega), phospho-Akt (no. 9271; Cell Signaling), and tubulin (no. T5168; Sigma) as described (12).

In vivo phosphorylation assay.

Wild-type and E1-DN transgenic mice (2–4 months old) were intraperitoneally injected with recombinant EGF (1–10 μg/g body wt; R&D Systems) and killed after 10 min. The pancreata were dissected, split in half, and either snap frozen in liquid nitrogen for EGF-R phosphorylation analyses by Western analysis or fixed in 4% paraformaldehyde for immunohistochemistry. Liver was used a positive control tissue for EGF-induced phosphorylation (18).

Islet isolation and in vitro insulin release.

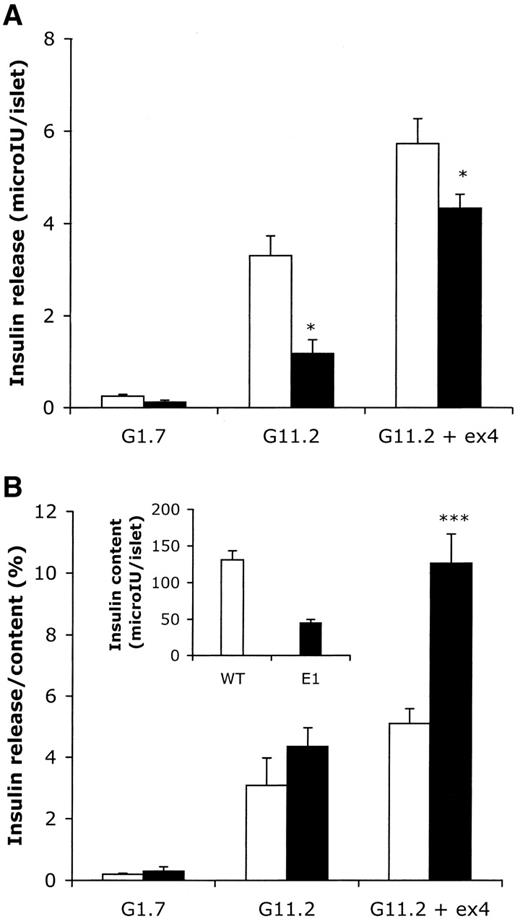

Islets from 3- to 6-month-old wild-type and E1-DN transgenic mice were isolated by standard collagenase digestion (Collagenase P; Roche Diagnostics, Mannheim, Germany) and subsequently handpicked under a stereomicroscope. After an overnight culture in RPMI-1640 (Life Technologies) medium with 10% FCS, the islets were first preincubated for 60 min at 37°C in Krebs-Ringer bicarbonate buffer with 1.7 mmol/l glucose. Groups of 5–10 islets per well were then incubated in a 24-well plate in 300 μl of the low glucose (1.7 mmol/l) Krebs-Ringer bicarbonate buffer for the 1st h and in 11.2 mmol/l glucose with or without 10 nmol/l exendin-4 for the 2nd h. Insulin was measured from the supernatants by radioimmunoassay (DPC, Los Angeles, CA). Intracellular insulin content of the islets was measured after sonication in 300 μl distilled deionized water and overnight extraction in acid ethanol.


RNA from wild-type and E1-DN islets was isolated using the NucleoSpinRNAII kit according to the manufacturer’s instructions (Macherey-Nagel, Dureer, Germany). Reverse transcription and PCR were done as previously described (12). The upstream primer was the same for both mouse EGF-R and the transgene (5′-cca gtg tgc cca cta cat tg-3′), while the downstream primers were separate (for mouse EGF-R 5′-ctg ggt gtg aga ggt tcc ac-3′ and for the E1-DN transgene myc-specific 5′-cct cgg ata tca gct tct gc-3′). These primers created a 351-bp fragment for the mouse EGF-R and a 304-bp fragment for the E1-DN transgene.

Statistical analysis.

All data are expressed as means ± SE, unless otherwise indicated. Significance of the differences between two groups was tested with Student’s unpaired t test. Differences between more than two groups were tested using the one-way ANOVA and Fisher’s least significant differences test. P < 0.05 was used as the limit for statistical significance.

Expression of EGF-R in mouse pancreas.

We previously have shown that targeted inactivation of EGF-R leads to streak-like islets and a poorly branched pancreas. Normally, EGF-R is strongly expressed in mouse islets at all postnatal ages (Fig. 1A and B for newborn and 3-month-old islets). Without EGF stimulation, EGF-R is phosphorylated only at a low level as shown by immunostaining with anti–P845-EGF-R (Fig. 1C). However, after a subcutaneous EGF injection, phosphorylated EGF-R is abundantly expressed in the islets (Fig. 1D) and only weakly in exocrine pancreas.

Generation of pdx-1–EGF-R dominant-negative (E1-DN) mice.

The pdx-1 promoter was used to drive the expression of a kinase-negative human EGF-R into developing β- and δ-cells (Fig. 2A). For transgene expression studies, a myc-tag was added to the cytoplasmic tail of the receptor. The E1-DN transgenic mice were generated through pronucleus injections and routine transgenic animal techniques. Two founder lines were bred and analyzed for transgene expression and phenotype. Heterozygotes and homozygotes were identified by Southern and dot blot analysis and by PCR. As shown, the E1-DN mRNA is readily detectable from transgenic islets (Fig. 2B). The effect of the transgene on the endogenous EGF-R signaling was studied by injecting wild-type and E1-DN mice with EGF (1–10 μg/g body wt i.p.). In the homozygous E1-DN mice, autophosphorylation of the pancreatic EGF-R was 37% of the wild-type level (Fig. 1C), and phosphorylation of the downstream signaling components ERK1/2 and Akt were 43% of the level seen in the wild-type pancreata (Fig. 2C). As expected, the hepatic EGF-R of the E1-DN animals was phosphorylated similarly to that in the wild-type mice. Cellular location of the E1-DN protein was studied by immunohistochemistry using transgene-specific antibodies (anti-myc and anti-human EGF-R, which does not cross-react with mouse EGF-R). As shown (Fig. 2D), the E1-DN β- and also some δ-cells displayed a strong membranous and also a cytoplasmic staining pattern for the transgene, whereas α-cells did not express the transgene. There was some variability in the intensity of the transgene-specific immunoractivity between individual β-cells. The expression pattern remained similar at all ages studied (newborn and 2- and 8-month-old mice; data not shown). To conclude, the kinase-negative EGF-R is expressed in the β- and δ-cells and inhibits endogenous EGF-R function.

E1-DN mice are hyperglycemic.

The transgenic E1-DN mice were fertile, and their weights did not differ from the wild-type animals at any time point (data not shown). However, although normoglycemic at birth, they were increasingly hyperglycemic since the age of 7 days (Fig. 3). Homozygous E1-DN mice were overtly diabetic from the age of 2 weeks. The mean fed blood glucose of male mice peaked at 27 mmol/l at the age of 1 month. After the peak, it later stabilized at ∼15 mmol/l but remained significantly elevated compared with wild-type mice (at 8 months: 13.5 vs. 8.4 mmol/l, P < 0.01). Female homozygous mice consistently were less hyperglycemic than the homozygous males, but they also remained clearly diabetic. Also, heterozygous male mice were constantly slightly hyperglycemic (mean random blood glucose 11.1 vs. 8.8 mmol/l in male 1- to 6-month-old heterozygous versus wild-type mice; P < 0.05). These results suggest a clear gene-dose effect and sexual dimorphism on the glucoregulatory role for EGF-R signaling in the β-cell.

The age-related gradual decrease in blood glucose levels seen in all E1-DN mice was not due to a loss of transgene expression, because the islets of the 7- to 8-month-old transgenic animals were still strongly transgene positive when stained for hEGF-R or c-Myc immunoreactivity (data not shown). Nor did it appear to be due to increased insulin sensitivity, since there were no differences in the hypoglycemic responses of wild-type and E1-DN animals in an insulin tolerance test (data not shown).

Islet structure, β-cell proliferation, and apoptosis.

Reduced β-cell mass would be a logical explanation for the development of hyperglycemia in the E1-DN mice. To study this, newborn and 2-month-old pancreata were dissected, weighed, and fixed in paraformaldehyde and processed through routine histology. The weight of the pancreas per body weight did not differ between the wild-type and E1-DN mice (1.33 ± 0.069% vs. 1.37 ± 0.060%, respectively), allowing the use of relative insulin positive area as a reliable reflection of total pancreatic β-cell mass in morphometric analysis (see below). However, the pattern of insulin immunoreactivity was dramatically abnormal in the E1-DN mice. In homozygous mice, the islets were clearly smaller and this was due to a marked loss of insulin-positive cells (Fig. 4). In the heterozygous mice, the islets were somewhat larger, but instead of the homogenous insulin staining seen in wild-type islets, there was a large variation in the staining intensity, and many of the centrally located cells lacked insulin immunoreactivity (Fig. 4B–D). Another β-cell–specific protein, amylin, showed a similar expression pattern at all ages studied (Fig. 4E–H). The relative β-cell surface area (Fig. 5A) of the E1-DN mice was highly reduced at the age of 2 months (wild type 0.63%, heterozygous 0.20%, homozygous 0.09% of the whole pancreatic area; P < 0.001). The E1-DN pancreata also contained less insulin (E1-DN heterozygous 196 ± 20 μIU/mg tissue vs. wild type 408 ± 20 μIU/mg tissue), corresponding to the results of the morphometric analysis. There was no change in the relative surface area of glucagon-positive α-cells correlating with the specificity of the pdx-1 promoter (Fig. 5B). The reduced β-cell mass was mainly due to a reduction of this cell type in each islet because there was only a marginal decrease in the number of islets per pancreatic area (Fig. 5C). The β-cell mass defect clearly developed primarily during the early postnatal expansion phase (Fig. 5D). In the newborn mice, the relative β-cell surface area was reduced by 52% but at 3 months by 86% compared with wild-type littermates. Thereafter, the difference remained fairly constant. Expression of the β-cell glucose transporter GLUT-2 was studied immunohistochemically at 3- and 12-month-old wild-type and E1-DN mice. In the wild-type islets, GLUT-2 immunoreactivity was specifically located at the islet cell membrane. In sharp contrast, only faint and diffuse cytoplasmic immunoreactivity was seen in the transgenic islets at both time points, although some membrane-bound GLUT-2 staining was occasionally visible in the older animals (Fig. 6).

Proliferation of β-cells was studied by insulin/Ki67 double immunohistochemistry during the first 2 postnatal weeks (Fig. 7A). The labeling index of E1-DN β-cells was already reduced in the newborn mice by ∼50% (P < 0.05). At postnatal day 7 (D7), the proliferation rate had increased in the wild-type mice but decreased in the E1-DN mice (wild-type 7.44%, homozygous 2.41%; P < 0.001). At postnatal day 14, the proliferation of wild-type β-cells had decreased to 4.6%, while the proliferation of E1-DN β-cells remained at a low level (2.6%; P < 0.05). Apoptosis was studied by immunostaining newborn and 1- and 2-week-old pancreata for active (i.e., cleaved) caspase-3 and double staining for insulin. Interestingly, the number of apoptotic cells was lower in the postnatal E1-DN homozygous pancreata compared with wild-type pancreata when studied at the whole-pancreas level (Fig. 7B; P < 0.05). However, no difference could be detected in the rate of β-cell–specific apoptosis (0.50% in the wild-type vs. 0.47% in the E1-DN pancreata).

β-Cell function.

An intraperitoneal glucose tolerance test was used to study insulin secretion in vivo. Before the test, the mice fasted for 16 h. As can be seen from Fig. 8A, the E1-DN animals were hyperglycemic throughout the test, while the wild-type mice returned to normoglycemia by 2 h. The increase of circulating insulin in response to the glucose challenge was blunted and delayed in the E1-DN mice (Fig. 8B). Interestingly, the fasting insulin level of the E1-DN heterozygous mice was within the range of wild-type mice and significantly higher than in the E1-DN homozygous animals. However, the immediate insulin response was absent also in the E1-DN heterozygous mice, and only a delayed, low-magnitude response between 60 and 120 min was detected.

Glucagon-like peptide-1 (Glp-1) has been shown to exert some of its biological functions through transactivation of EGF-R (19,20). To test whether this holds true for the insulinotropic effect of Glp-1, an intraperitoneal glucose tolerance test was also performed with the Glp-1 analog exendin-4 in the wild-type and E1-DN heterozygous mice. As seen in Fig. 8C, exendin-4 effectively improved the glucose tolerance in both the wild-type and E1-DN mice. The E1-DN heterozygous mice were able to respond to exendin-4 by increasing the insulin secretion (Fig. 8D) and obtained normoglycemia at the end of the glucose tolerance test. Finally, we studied the insulin release in islets isolated from wild-type and E1-DN heterozygous mice. Islets of homozygous mice could not be studied because they could not be isolated in sufficient numbers. As shown in Fig. 9, the insulin content and the absolute amounts of insulin released were significantly lower in the transgenic than wild-type islets. However, insulin release in response to stimulation by either glucose or glucose plus exendin-4 was well preserved in the transgenic islets. When related to the cellular insulin content, the E1-DN islets even released more insulin than control islets (Fig. 9B). Transgene expression was verified also in the isolated islets by immunostaining of human EGF-R. A uniform expression pattern was seen, thus excluding the possibility that only nontransgenic islet cells would have been selected in the isolation process. Also, GLUT-2 expression was similarly decreased in the isolated E1-DN islets as in the intact tissue (data not shown).

The present study shows that intact EGF receptor signaling in the pancreatic islet cells is essential for the achievement and maintenance of a sufficient β-cell mass and that defects in this pathway lead to diabetes. Based on our results, this appears to be mainly due to decreased β-cell proliferation and, to a lesser extent, depends on an early defect in β-cell neogenesis. We have previously shown that in the EGF-R–deficient mouse (EGF-R−/−), fetal differentiation of β-cells is delayed (14). In the E1-DN mice, there is a partial tissue-specific defect in EGF-R signaling that does not lead to the severe neonatal islet phenotype seen in EGF-R−/− mice but leads to a 50% defect in the number of β-cells at the time of birth. However, the major effect is postnatal because at the age of 2 months the defect is >85%. This can clearly be explained by the lack of a postnatal surge in β-cell proliferation. Hyperglycemia develops within the first 2 weeks, consistent with the failure in β-cell mass expansion.

It is notable that the expression of GLUT-2 was clearly impaired in the transgenic islets. A similar finding was reported in transgenic mice with β-cell–targeted dominant negative fibroblast growth factor-R1 expression (21). However, this may not be of major functional importance, since there is no inherent defect in the capacity of E1-DN islets to release insulin in response to glucose in vitro. It thus seems likely that the hyperglycemia and low insulin secretion observed in vivo are principally caused by the reduced β-cell mass, resulting in a maximally stressed situation for the insufficient number of β-cells.

Intriguingly, there was a consistent gradual improvement of hyperglycemia in all animals after the age of 1 month. Yet, transgene expression remained stable, and there was no obvious recovery of the β-cell mass. What could be the explanation for this? It is known that the number of β-cells per body weight decreases with age in rats (22). Thus, it is conceivable that young rodents require more insulin for the rapid postnatal growth and metabolic changes associated with sexual maturation than later in life. This increased insulin requirement is normally met by the rapid expansion of β-cell mass. Since this does not occur in the E1-DN mice, diabetes develops. In later life, the discrepancy between insulin need and production gradually becomes less obvious and the animals present with a milder hyperglycemia. The insulin deficiency remained relative, since there was no difference in the body weight and no obvious effect on the lifespan of the transgenic diabetic animals. The E1-DN mice are overtly hyperglycemic but still viable and can thus be used as an excellent animal model to study long-term consequences of hyperglycemia, such as diabetic nephropathy and retinopathy.

The proportions of apoptotic islet cells were similar in young transgenic and wild-type mice. It can be speculated that we failed to observe an increase in β-cell apoptosis in the transgenic mice because of incorrect timing and the short duration of apoptosis in vivo. It is, however, intriguing that there were significantly fewer apoptotic cells in the exocrine compartment of the transgenic mice than in controls. Whether this could be linked with a compensatory mechanism aiming to restore the decreased β-cell mass remains speculative and requires further studies. Nevertheless, several lines of evidence suggest that pancreatic acinar cells may transdifferentiate into β-cells (23,24) and that this process requires EGF-R signaling (25,26).

Recent data have emphasized the role of β-cell proliferation, rather than neogenesis from precursors, as the major mechanism responsible for the control of postnatal β-cell mass (27,28). During late gestation and early postnatal period many organs, including pancreas, undergo massive cell proliferation. In mouse, this results in a fourfold increase in β-cell mass before weaning (28). Experiments with mice deficient in cyclin D2 have clearly demonstrated that this increase is mainly depending on proliferation. Mice deficient in cyclin D2 are born with a normal β-cell mass but are not able to expand their β-cell mass during second postnatal week and develop glucose intolerance (28). The postnatal pancreatic β-cell appears to be a unique cell type in its dependence on cyclin D2. The phenotype of cyclin D2−/− mice closely resembles that of the E1-DN mice. It is likely that the proliferation defect of our mice is directly linked with cell cycle regulation. EGF-R signaling has been shown to lead to activation of cyclin D/cdk4, subsequent Rb phosphorylation, and G1/S transition (29). Unpublished data from our laboratory suggest that an inhibitor of cdk4, p18 (INK4c), is upregulated and cyclin D2 downregulated in the E1-DN islets. Further studies are needed to verify a possible link between EGF-R and cyclin D2 via the p18 pathway.

Targeted inactivation of EGF superfamily members (i.e., EGF, heparin-binding EGF, transforming growth factor-α, amphiregulin, and BTC) in mouse models has shown that they have specific roles in cell proliferation and pattern formation of all germ layers (3033). Yet, the resulting phenotypes are mild when compared with EGF-R−/− mice, suggesting excessive redundancy to ensure sufficient EGF-R activation. Accordingly, no single EGF-like growth factor seems to be vital for normal development. Even though BTC is strongly expressed in the pancreas and known to stimulate β-cell proliferation and differentiation (12,34), BTC−/− mice appear to have normal pancreatic differentiation and blood glucose levels (33). Recently, hormones and peptides other than those that are members of the EGF superfamily have been shown to be able to active EGF-R through metalloprotease-mediated ligand shedding (35). Glp-1 is one of these, and it is of particular interest in β-cell biology. It acts through its G-protein coupled receptor and stimulates insulin gene expression, secretion, and β-cell proliferation and inhibits β-cell apoptosis (36). The proliferative effect of Glp-1 has been shown to involve transactivation of EGF-R and phosphatidylinositol 3-kinase signaling (19,20). Our results show that expression of a kinase-negative EGF-R in the islets impairs the activation of the downstream mitogen-activated protein kinase and phosphatidylinositol 3-kinase signaling pathways, as evidenced by reduced phosphorylation of ERK and Akt. It is thus possible that endogenous Glp-1 cannot efficiently stimulate β-cell proliferation, and this could partly explain the observed loss of postnatal β-cell expansion. Nevertheless, this was not tested in the current study. However, the potentiating effect of the Glp-1 analog exendin-4 on glucose-stimulated insulin secretion was intact in the E1-DN mice both in vivo and in vitro. This suggests that EGF-R signaling is not involved in the direct insulinotropic effects of Glp-1.

To conclude, our studies show that intact EGF-R signaling is crucial for the achievement of an adequate β-cell mass. It is likely that attenuation of EGF-R in the islets perturbs the actions of a number of growth factors required for both β-cell proliferation and neogenesis.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked “advertisement” in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.

These studies were supported by a partnership grant for type 1 diabetes research in Finland (to T.O.) by the Juvenile Diabetes Research Foundation, The Academy of Finland, and the Sigrid Jusélius Foundation. Further grant support was obtained from the Finnish Medical Foundation and the Diabetes Research Foundation (to P.M.).

We thank Kari Sarkkinen for the valuable help with photography.

Wilson ME, Scheel D, German MS: Gene expression cascades in pancreatic development.
Mech Dev
Jensen J: Gene regulatory factors in pancreatic development.
Dev Dyn
Bhushan A, Itoh N, Kato S, Thiery JP, Czernichow P, Bellusci S, Scharfmann R: Fgf10 is essential for maintaining the proliferative capacity of epithelial progenitor cells during early pancreatic organogenesis.
Apelqvist A, Li H, Sommer L, Beatus P, Anderson DJ, Honjo T, Hrabe de Angelis M, Lendahl U, Edlund H: Notch signalling controls pancreatic cell differentiation.
Jensen J, Heller RS, Funder-Nielsen T, Pedersen EE, Lindsell C, Weinmaster G, Madsen OD, Serup P: Independent development of pancreatic α- and β-cells from neurogenin3-expressing precursors: a role for the notch pathway in repression of premature differentiation.
Cras-Meneur C, Elghazi L, Czernichow P, Scharfmann R: Epidermal growth factor increases undifferentiated pancreatic embryonic cells in vitro: a balance between proliferation and differentiation.
Finegood DT, Scaglia L, Bonner-Weir S: Dynamics of β-cell mass in the growing rat pancreas: estimation with a simple mathematical model.
Bouwens L, Rooman I: Regulation of pancreatic beta-cell mass.
Physiol Rev
Schlessinger J, Ullrich A: Growth factor signaling by receptor tyrosine kinases.
Kraus MH, Issing W, Miki T, Popescu NC, Aaronson SA: Isolation and characterization of ERBB3, a third member of the ERBB/epidermal growth factor receptor family: evidence for overexpression in a subset of human mammary tumors.
Proc Natl Acad Sci U S A
Plowman GD, Culouscou J-M, Whitney GS, Green JM, Carlton GW, Foy L, Neubauer MG, Shoyab M: Ligand-specific activation of HER4/p180erbB4, a fourth member of the epidermal growth factor receptor family.
Proc Natl Acad Sci U S A
Huotari MA, Miettinen PJ, Palgi J, Koivisto T, Ustinov J, Harari D, Yarden Y, Otonkoski T: ErbB signaling regulates lineage determination of developing pancreatic islet cells in embryonic organ culture.
Kritzik MR, Krahl T, Good A, Gu D, Lai C, Fox H, Sarvetnick N: Expression of ErbB receptors during pancreatic islet development and regrowth.
J Endocrinol
Miettinen PJ, Huotari M, Koivisto T, Ustinov J, Palgi J, Rasilainen S, Lehtonen E, Keski-Oja J, Otonkoski T: Impaired migration and delayed differentiation of pancreatic islet cells in mice lacking EGF-receptors.
O’Hare K, Benoist C, Breathnach R: Transformation of mouse fibroblasts to methotrexate resistance by a recombinant plasmid expressing a prokaryotic dihydrofolate reductase.
Proc Natl Acad Sci U S A
Erlebacher A, Filvaroff EH, Gitelman SE, Derynck R: Toward a molecular understanding of skeletal development.
Murillas R, Larcher F, Conti CJ, Santos M, Ullrich A, Jorcano JL: Expression of a dominant negative mutant of epidermal growth factor receptor in the epidermis of transgenic mice elicits striking alterations in hair follicle development and skin structure.
Donaldson RW, Cohen S: Epidermal growth factor stimulates tyrosine phophorylation in the neonatal mouse: association of a Mr 55,000 substrate with the receptor.
Proc Natl Acad Sci U S A
Buteau J, Foisy S, Joly E, Prentki M: Glucagon-like peptide 1 induces pancreatic β-cell proliferation via transactivation of the epidermal growth factor receptor.
MacDonald PE, Wang X, Xia F, El-kholy W, Targonsky ED, Tsushima RG, Wheeler MB: Antagonism of rat beta-cell voltage-dependent K+ currents by exendin 4 requires dual activation of the cAMP/protein kinase A and phosphatidylinositol 3-kinase signaling pathways.
J Biol Chem
Hart AW, Baeza N, Apelqvist A, Edlund H: Attenuation of FGF signalling in mouse beta-cells leads to diabetes.
Wang RN, Bouwens L, Kloppel G: Beta-cell growth in adolescent and adult rats treated with streptozotocin during the neonatal period.
Song KH, Ko SH, Ahn YB, Yoo SJ, Chin HM, Kaneto H, Yoon KH, Cha BY, Lee KW, Son HY: In vitro transdifferentiation of adult pancreatic acinar cells into insulin-expressing cells.
Biochem Biophys Res Commun
Baeyens L, De Breuck S, Lardon J, Mfopou JK, Rooman I, Bouwens L: In vitro generation of insulin-producing beta cells from adult exocrine pancreatic cells.
Minami K, Okuno M, Miyawaki K, Okumachi A, Ishizaki K, Oyama K, Kawaguchi M, Ishizuka N, Iwanaga T, Seino S: Lineage tracing and characterization of insulin-secreting cells generated from adult pancreatic acinar cells.
Proc Natl Acad Sci U S A
Means AL, Meszoely IM, Suzuki K, Miyamoto Y, Rustgi AK, Coffey RJ Jr, Wright CV, Stoffers DA, Leach SD: Pancreatic epithelial plasticity mediated by acinar cell transdifferentiation and generation of nestin-positive intermediates.
Dor Y, Brown J, Martinez OI, Melton DA: Adult pancreatic beta-cells are formed by self-duplication rather than stem-cell differentiation.
Georgia S, Bhushan A: Beta cell replication is the primary mechanism for maintaining postnatal beta cell mass.
J Clin Invest
Guo J, Sheng G, Warner BW: Epidermal growth factor-induced rapid retinoblastoma phosphorylation at Ser780 and Ser795 is mediated by ERK1/2 in small intestine epithelial cells.
J Biol Chem
Luetteke NC, Qiu TH, Peiffer RL, Oliver P, Smithies O, Lee DC: TGFα deficiency results in hair follicle and eye abnormalities in targeted and waved-1 mice.
Luetteke NC, Qiu TH, Fenton SE, Troyer KL, Riedel RF, Chang A, Lee DC: Targeted inactivation of the EGF and amphiregulin genes reveals distinct roles for EGF receptor ligands in mouse mammary gland development.
Troyer KL, Luetteke NC, Saxon ML, Qiu TH, Xian CJ, Lee DC: Growth retardation, duodenal lesions, and aberrant ileum architecture in triple null mice lacking EGF, amphiregulin, and TGF-alpha.
Jackson LF, Qiu TH, Sunnarborg SW, Chang A, Zhang C, Patterson C, Lee DC: Defective valvulogenesis in HB-EGF and TACE-null mice is associated with aberrant BMP signaling.
Yamamoto K, Miyagawa J, Waguri M, Sasada R, Igarashi K, Li M, Nammo T, Moriwaki M, Imagawa A, Yamagata K, Nakajima H, Namba M, Tochino Y, Hanafusa T, Matsuzawa Y: Recombinant human betacellulin promotes the neogenesis of β-cells and ameliorates glucose intolerance in mice with diabetes induced by selective alloxan perfusion.
Lee DC, Sunnarborg SW, Hinkle CL, Myers TJ, Stevenson MY, Russell WE, Castner BJ, Gerhart MJ, Paxton RJ, Black RA, Chang A, Jackson LF: TACE/ADAM17 processing of EGFR ligands indicates a role as a physiological convertase.
Ann N Y Acad Sci
Brubaker PL, Drucker DJ: Minireview: glucagon-like peptides regulate cell proliferation and apoptosis in the pancreas, gut, and central nervous system.
