Embryos exposed to high glucose exhibit aberrant maturational and cytoarchitectural cellular changes, implicating cellular organelle stress in diabetic embryopathy. c-Jun-N-terminal kinase 1/2 (JNK1/2) activation is a causal event in maternal diabetes–induced neural tube defects (NTD). However, the relationship between JNK1/2 activation and endoplasmic reticulum (ER) stress in diabetic embryopathy has never been explored. We found that maternal diabetes significantly increased ER stress markers and induced swollen/enlarged ER lumens in embryonic neuroepithelial cells during neurulation. Deletion of either jnk1 or jnk2 gene diminished hyperglycemia-increased ER stress markers and ER chaperone gene expression. In embryos cultured under high-glucose conditions (20 mmol/L), the use of 4-phenylbutyric acid (4-PBA), an ER chemical chaperone, diminished ER stress markers and abolished the activation of JNK1/2 and its downstream transcription factors, caspase 3 and caspase 8, and Sox1 neural progenitor apoptosis. Consequently, both 1 and 2 mmol/L 4-PBA significantly ameliorated high glucose–induced NTD. We conclude that hyperglycemia induces ER stress, which is responsible for the proapoptotic JNK1/2 pathway activation, apoptosis, and NTD induction. Suppressing JNK1/2 activation by either jnk1 or jnk2 gene deletion prevents ER stress. Thus, our study reveals a reciprocal causation of ER stress and JNK1/2 in mediating the teratogenicity of maternal diabetes.

Pre-existing maternal diabetes significantly induces congenital malformations, such as neural tube defects (NTD) and cardiovascular defects (1,2). Ample experimental evidence provides support that hyperglycemia-induced oxidative stress and apoptosis in target tissues, such as the developing neural tube and the embryonic vasculature, are responsible for the induction of embryonic malformations (36). Both transcription (7,8) and nontranscription mechanisms (9,10) are proposed in diabetic embryopathy. However, the cellular events downstream from maternal diabetes leading to apoptosis are still murky. A previous ultracellular study using electronic microscopy (EM) has demonstrated aberrant maturational and cytoarchitectural changes associated with malformations in cultured embryos exposed to high glucose (11), implicating that cellular organelle stress may be involved in the induction of diabetic embryopathy. Endoplasmic reticulum (ER) stress has recently emerged as a key factor in the pathogenesis of several diabetes complications. Diabetic embryopathy is a severe complication of poorly controlled maternal diabetes in pregnancy. It thus prompts us to examine the role of ER stress in diabetic embryopathy.

The ER is a critical organelle responsible for newly synthesized proteins to be properly folded and modified into their correct three-dimensional structures. This ER function is carried out by a pool of ER-resident molecular chaperone proteins, such as binding immunoglobulin protein (BiP) and calnexin. Accumulation of misfolded and/or aggregated proteins perturbs ER function, resulting in ER stress and the induction of cell apoptosis (12). ER stress activates the unfolded protein response (UPR), which increases the expression of ER chaperones and suppresses new protein synthesis (13). Elevated levels of ER chaperones serve as indices of ER stress. The UPR is triggered by the activation of kinases inositol-requiring protein-1 α (IRE1α) (14) and protein kinase RNA-like ER kinase (PERK) (15). Activated IRE1α splices X-box binding protein (XBP1) mRNA and thus converts XBP1 into a potent transcriptional activator that induces many UPR-responsive genes (16). Prolonged activation of IRE1α and subsequently enhanced expression of C/EBP-homologous protein (CHOP) mediate apoptosis during ER stress (12). PERK increases the expression of proapoptotic CHOP through phosphorylation of eukaryotic initiation factor 2α (eIF2α) (17). Because hyperglycemia-induced apoptosis in target tissues causes embryonic malformations (1820), we propose that ER stress–induced apoptosis plays a critical role in the induction of diabetic embryopathy.

The proapoptotic cellular stress kinase c-Jun-N-terminal kinase 1/2 (JNK1/2) is activated in embryos exposed to maternal hyperglycemia and mediates the proapoptotic effects of hyperglycemia (6). We have previously demonstrated using JNK2 knockout mice that targeted deletion of jnk2 gene significantly ameliorates hyperglycemia-induced neural tube defects (NTD) (21), supporting the causative role of JNK2 activation in diabetic embryopathy. ER stress induced by accumulation of misfolded proteins in the ER luminal compartment also activates JNK1/2 (22). Specifically, the protein kinase IRE1α couples the ER stress to JNK1/2 activation (22). However, it is unknown whether JNK1/2 activation is sufficient to lead to ER stress. Using our unique mouse model of diabetic embryopathy, which is associated with both JNK1/2 activation and ER stress, we will test the reciprocal relationship between ER stress and JNK1/2 activation in the context of hyperglycemia-induced NTD.

In the current study, using two complementary models, the in vivo maternal diabetes–induced embryopathy model and the in vitro whole-embryo culture high glucose–induced embryopathy model, we found that ER stress and its associated UPR were robustly present in embryos exposed to hyperglycemia, and treatment with the chemical chaperone 4-phenylbutyric acid (4-PBA), ameliorated ER stress and apoptosis and thus prevented high glucose–induced NTD. Suppressing JNK1/2 activation via jnk1 or jnk2 gene deletion abolished hyperglycemia-induced ER stress. Thus, JNK1/2 activation and ER stress are both interdependent and causative events in diabetic embryopathy.

Animals and reagents.

C57BL/6J mice, JNK1 heterozygous (jnk1+/−), and JNK2 knockout (JNK2KO) mice in C57BL/6J background were purchased from The Jackson Laboratory (Bar Harbor, ME). Streptozotocin (STZ) from Sigma-Aldrich (St. Louis, MO) was dissolved in sterile 0.1 mol/L citrate buffer (pH 4.5). Sustained-release insulin pellets were purchased from Linplant (Linshin, Canada). Plasma insulin levels were assessed by the Rat/Mouse Insulin ELISA kit (Millipore, Billerica, MA; catalog number EZRMI-13 K).

Mouse models of diabetic embryopathy.

The procedures for animal use were approved by the Institutional Animal Care and Use Committee. For decades, we (21,23,24) and others (7,2527) have used an internationally accepted rodent model of STZ-induced diabetes in research of diabetic embryopathy. Ten-week old female wild-type (WT), JNK2KO mice, and jnk1+/− mice were intravenously injected daily with 75 mg/kg STZ over 2 days to induce diabetes. Blood glucose levels were monitored daily by tail vein puncture and using the FreeStyle Blood Glucose Monitoring System (TheraSense; Abbot, Alameda, CA).

Diabetes was defined as 12-h fasting blood glucose levels ≥250 mg/dL, which normally occurred at 3–5 days after STZ injections. Based on a published report (28), male and female mice were paired at 3:00 p.m., and day 0.5 (E0.5) of pregnancy was established by the presence of the vaginal plug in the next morning (8:00 a.m.). On day 5.5 of pregnancy (E5.5), insulin pellets were removed to permit frank hyperglycemia (>250 mg/dL glucose level), so that the developing embryos would be exposed to a hyperglycemic environment during the critical period of closure of the neural tube (neurulation) (E8.0–10.5). Therefore, our mouse model of diabetic embryopathy specifically impacts neurulation and the period of induction of NTD. Based on our extensive studies (18,21,2931), insulin treatment from E0.5–5.5 is essential for successful embryonic implantation and thus prevents early embryonic lethality (resorption) caused by hyperglycemic exposure at early embryonic stages (≤E5.5). WT, nondiabetic female mice with vehicle injections and sham operation of insulin pellet implants served as nondiabetic controls. On E8.75 (2:00 p.m. at E8.5), mice were killed, and conceptuses were dissected out of the uteri for analysis. Data on NTD incidences from jnk2 gene-deleted embryos were not collected, because they have been published elsewhere (21). We have extensively characterized our models in the C57BL/6J background by including surgical (anesthesia) controls and insulin-treated diabetic controls (6,21). The half-life of STZ is only 30 min, and STZ was injected 1 to 2 weeks before pregnancies were established. No residue of toxic effect of STZ on embryonic development in our model was observed in diabetic mice with continuous insulin treatment (6). In our studies, sham operation simulating removal of insulin pellets does not increase the incidence of NTD in nondiabetic mice (6). Consistent with our findings, two independent publications from other groups demonstrate the same finding in the C57BL/6J strain that maternal hyperglycemia induces >22% NTD (26,27).

Western blotting.

Western blotting was performed as previously described (21). Briefly, E8.75 embryos from different experimental groups were sonicated in 80 µL ice-cold lysis buffer (20 mmol/L tris[hydroxymethyl]aminomethane-HCl [pH 7.5], 150 mmol/L NaCl, 1 mmol/L ethylenediaminetetraacetic acid, 10 mmol/L NaF, 2 mmol/L Na-orthovanadate, 1 mmol/L phenylmethylsulfonyl fluoride, and 1% Triton X-100) containing a protease inhibitor cocktail (Sigma-Aldrich). Equal amounts of protein and the Precision Plus Protein Standards (Bio-Rad) were resolved by SDS-PAGE gels (12% gel for caspase 3 and 8 and 10% gel for all other proteins) and transferred onto Immobilon-P or Immobilon-PSQ (for cleaved caspase) membranes (Millipore). To prevent nonspecific bindings, all membranes were incubated with 5% nonfat milk in PBS (pH 7.0) for 45 min and then were incubated for 18 h at 4°C with the following primary antibodies at 1:1,000 to 1:2,000 dilutions in 5% nonfat milk: BiP, calnexin, phosphorylated (p-)eIF2α, p-PERK, CHOP, p-JNK1/2, JNK2, JNK1, p–Elk-1 (Ser383), p–c-Jun (Ser63), p-activating transcription factor (ATF) 2 (Thr71), and p-Foxo3a (Thr32) (Cell Signaling Technology, Beverly, MA); anticaspase 3 (Chemicon International, Billerica, MA); and rat anticaspase 8 (mouse specific) (Alexis Biochemicals, San Diego, CA), which detects both procaspase 8 and cleaved caspase 8. Membranes were exposed to goat anti-rabbit or anti-mouse (Jackson ImmunoResearch Laboratories, West Grove, PA) secondary antibodies. To ensure that equivalent amounts of protein were loaded among samples, membranes were stripped and probed with a mouse antibody against β-actin (Abcam, Cambridge, MA). Signals were detected using an Amersham ECL Advance Detection Kit (GE Healthcare, Piscataway, NJ) or a Supersignal West Pico Chemiliminescent Substrate (Thermo Scientific), and chemiluminescence emitted from the bands was directly captured using a UVP Bioimage EC3 system (UVP, Upland, CA). Densitometric analysis of chemiluminescence signals was performed by VisionWorks LS software (UVP). All experiments were repeated three times with the use of independently prepared tissue lysates.

Detection of XBP1 mRNA splicing.

mRNA was reverse-transcribed to cDNA, which was used for PCR. The PCR primers were: forward, 5′-AAACAGAGTAGCAGCGCAGACTGC-3′ and reverse, 5′-TCCTTCTGGGTAGACCTCTGGGAG-3′. If no XBP1 mRNA splicing occurred, one band at 205 bp was produced. Two bands, 205 and 179 bp (a main band), were present in PCR products when XBP1 mRNA was spliced.

Whole-embryo culture.

The procedure of whole-embryo culture has been previously described elsewhere (21,32). C57BL/6J mice were paired overnight. The next morning was designated embryonic day E0.5 if a vaginal plug was present. Mouse embryos at E8.5 were dissected out of the uteri in PBS (Invitrogen, La Jolla, CA). The parietal yolk sac was removed using a pair of fine forceps, and the visceral yolk sac was left intact. Embryos (four per bottle) were cultured in 4 mL rat serum at 38°C in 30 revolutions/min rotation in the roller bottle system. The culture bottles were gassed with 5% O2/5% CO2/90% N2 for the first 24 h and 10% O2/5% CO2/85% N2 for the last 12 h. Embryos were cultured for 12 h (for Western blots) or 36 h (for NTD examination) under 5 mmol/L glucose, a value close to the blood glucose level of nondiabetic mice, or 20 mmol/L glucose, which is equivalent to the blood glucose level of diabetic mice, in the presence or absence of 1 or 2 mmol/L 4-PBA (Sigma-Aldrich). The range of 4-PBA concentrations in cell-culture studies is from 0.5–20 mmol/L (33). We started our whole-embryo culture experiments using 1 and 2 mmol/L 4-PBA and found that 2 mmol 4-PBA completely inhibited high glucose–induced NTD. Therefore, we used 2 mmol/L 4-PBA in our subsequent mechanistic studies. Because treatment of diabetic mice with 4-PBA results in normalization of hyperglycemia (33), in vivo 4-PBA administration is not suitable for assessing the direct effect of 4-PBA on maternal diabetes–induced NTD. At the end of 36-h culture, embryos were dissected from the yolk sac and examined under a Leica MZ16F stereomicroscope (Leica Microsystems, Bannockburn, IL) to identify embryonic malformations. Images of embryos were captured by a DFC420 5 MPix digital camera with software (Leica Microsystems). Normal embryos were classified as possessing a completely closed neural tube and no evidence of other malformations. Malformed embryos were classified as showing evidence of failed closure of the neural tube or NTD. The open neural tube structures of NTD embryos were verified by histological sections. Because embryos were only exposed to high glucose during a period of neurulation, NTD were the only structural defects detected in this study. Other malformations such as cardiac abnormalities, which were developed at the late embryonic stage (E15.5), were not within the scope of our study.

EM.

Abnormal ER structures were examined by transmission EM, which was done in our EM core facility. Thick sections (1 μm) were cut and visualized at ×100 and ×200 original magnifications to identify the neuroepithelia of E8.75 embryos. Thin sections (80 nm) of identified neuroepithelia were cut and viewed with an electron microscope (Jeol JEM-1200EX; Jeol, Tokyo, Japan) under high-power resolution (10,000, 12,000, and 25,000) for identification of abnormal ER structures.

Real-time PCR.

Total RNA was isolated from E8.75 embryos using an RNeasy Mini Kit (Qiagen, Valencia, CA). Real-time PCR for BiP (HSPA5), calnexin, eukaryotic translation initiation factor 2α kinase 3 (eIF2ak3), eIF2a ribosome biogenesis regulator homolog (S. cerevisiae) (eIF2as1), protein disulfide isomerase family A, member 3 (PDIA3), IRE1α (ern1), and β-actin were performed using ABI TaqMan Gene Expression Assays (Applied Biosystems, Foster City, CA). RNA was reverse transcribed by using the high-capacity cDNA archive kit (Applied Biosystems). Real-time PCR and subsequent calculations were performed by the StepOnePlus Real-time PCR system (Applied Biosystems), which detected the signal emitted from fluorogenic probes during PCR.

Determining numbers of apoptotic cells using transferase-mediated dUTP nick-end labeling assay.

The transferase-mediated dUTP nick-end labeling (TUNEL) assay was performed using the In Situ Cell Death Detection kit (Millipore). Five-micrometer serial coronal sections through the anterior neural tube were fixed with 4% paraformaldehyde in PBS and incubated with TUNEL reaction agents with or without Sox1 immunostaining. TUNEL-positive cells in the neural tube area of each section were counted. Based on the counting of total cell nuclei, the sizes of the neural tube areas of each section were relatively constant. Thus, apoptotic cell numbers were expressed as total TUNEL-positive cells per neural tube area. TUNEL assays were performed without the observer knowing the experimental groups.

Statistics.

Data are presented as means ± SE. One-way ANOVA was performed using SigmaStat 3.5 software, and a Tukey test was used to estimate the significance. Statistical significance was accepted at P < 0.05. Significant difference between groups in malformation incidences was analyzed by χ2 test.

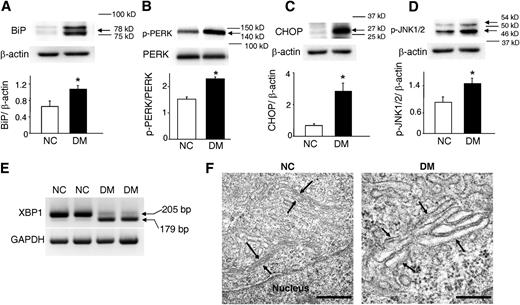

Maternal diabetes induces ER stress associated with JNK1/2 activation in embryonic tissues during embryonic neurulation.

To determine whether maternal diabetes induces ER stress, levels of ER stress markers, BiP, p-PERK, and CHOP were analyzed in E8.75 embryos, a critical time point of neurulation, from nondiabetic and diabetic dams. Levels of BiP, p-PERK, CHOP, and p-JNK1/2 were significantly higher in embryos from diabetic dams than those from nondiabetic dams (Fig. 1A–D). XBP1 mRNA splicing, another ER stress indicator, was analyzed in RNA samples by PCR. Embryos exposed to maternal diabetes exhibited robust splicing manifested with two bands at 205 and 179 bp of the PCR products, whereas embryos from nondiabetic dams showed no XBP1 splicing with only one band (205 bp) of the PCR products (Fig. 1E). Because the main goal of our study was to analyze embryos during neurulation and examine NTD as the ultimate outcome, we determined whether maternal diabetes-induced ER stress mainly occurred in cells of the developing neuroepithelium. EM was employed to examine the swollen/enlarged ER lumens, which are direct morphological evidence of ER stress. Swollen/enlarged ER lumens were consistently present in neuroepithelial cells in E8.75 embryos exposed to maternal diabetes (Fig. 1F). In contrast, neuroepithelial cells in five embryos from five nondiabetic dams did not show any abnormal ER lumen structure (Fig. 1F). In our model, insulin pellets effectively restored serum insulin levels and euglycemia in diabetic mice (Supplementary Table 1). Because of the relatively short duration of our experiments, diabetes did not significantly affect body weight (Supplementary Table 2).

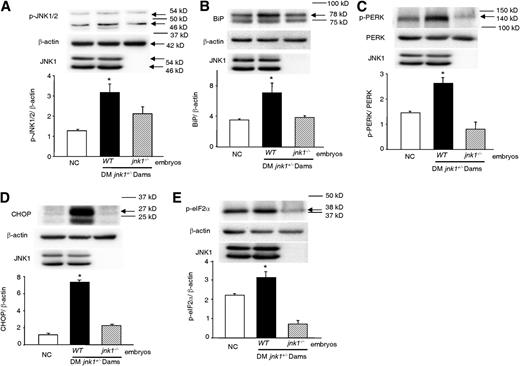

Deletion of jnk1 or jnk2 gene abolishes maternal hyperglycemia-induced ER stress.

Because either jnk1 or jnk2 gene deletion significantly reduce maternal diabetes-induced JNK1/2 activation (Figs. 2A and 3A), E8.75 jnk1−/− embryos from jnk1+/− mothers mated with jnk1+/− males, and jnk2−/− embryos from JNK2KO mice were used to determine the causal role of JNK1/2 activation in ER stress. We found that jnk1−/− embryos exposed to hyperglycemia had significantly lower levels of ER stress markers, BiP, p-PERK, CHOP, and p-eIF2α, than those in WT embryos from the same group of diabetic jnk1+/− mothers (Fig. 2B–E). Similarly, jnk2−/− embryos from diabetic JNK2KO mice had similar levels of ER stress markers, calnexin, BiP, CHOP, and p-eIF2α, as those in embryos of nondiabetic WT dams, which were significantly lower than those in embryos from diabetic WT mice (Fig. 3A–D). Moreover, hyperglycemia-induced XBP1 splicing was diminished in jnk1−/− and jnk2−/− embryos (Fig. 3E).

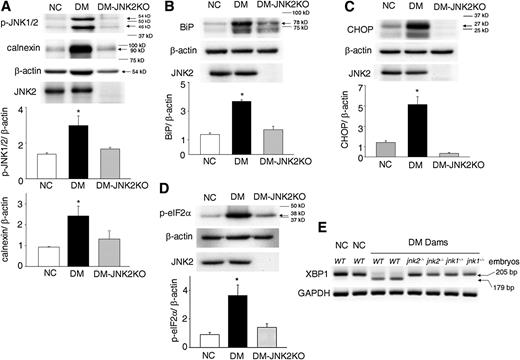

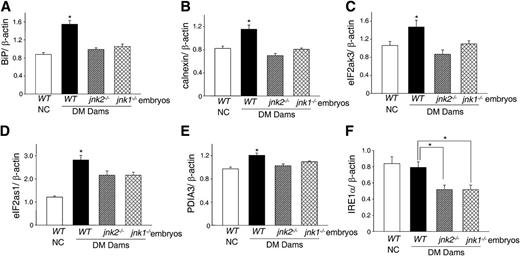

jnk1 or jnk2 gene deletion reverses maternal hyperglycemia-increased ER chaperone gene expression.

ER stress increases an array of ER chaperone gene expression. To determine whether JNK1/2 deficiency caused by jnk1 or jnk2 gene abrogates maternal diabetes-induced ER chaperone gene expression, mRNA levels of six ER chaperone genes were determined. Maternal diabetes significantly increased the expression of BiP, calnexin, eIF2ak3, eIF2as1, and PDIA3 (Fig. 4A–E). Deletion of either jnk1 or jnk2 gene inhibited maternal diabetes-increased expression of BiP, calnexin, eIF2ak3, eIF2as1, and PDIA3 to the levels in the nondiabetic WT group (Fig. 4A–E). Maternal diabetes did not increase IRE1α expression (Fig. 4F). However, either jnk1 or jnk2 gene deletion was even able to reduce IRE1α expression (Fig. 4F).

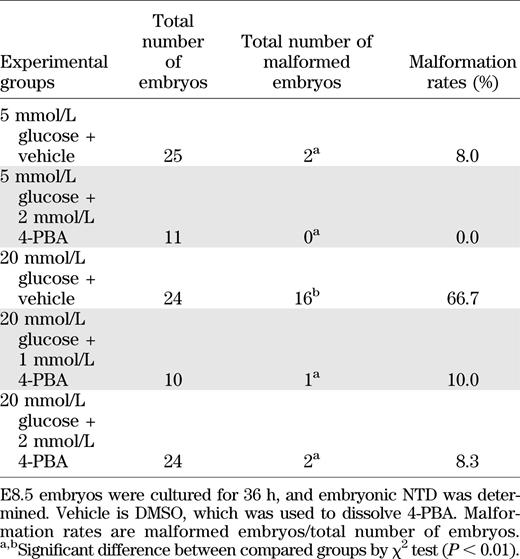

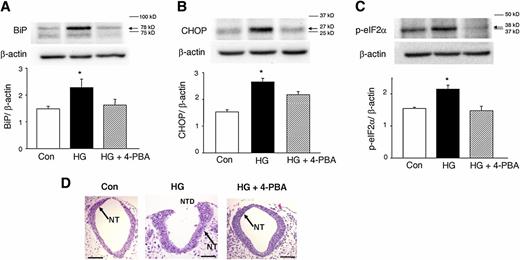

ER chemical chaperone, 4-PBA, effectively blocks hyperglycemia-induced ER stress and resultant NTD.

Because the ER chemical chaperone, 4-PBA, has been shown to block ER stress in other systems, we used 4-PBA to determine whether it could block high glucose-induced ER stress in cultured embryos. Treatment of cultured embryos with 2 mmol/L 4-PBA suppressed high glucose-increased ER stress markers, BiP, CHOP, and p-eIF2α (Fig. 5A–C). To determine whether ER stress is a causal event leading to NTD, NTD was assessed in cultured embryos with or without 1 mmol/L or 2 mmol/L 4-PBA. The NTD rate in high glucose group was 66.7%, which was significantly higher than those in the 5 mmol/L glucose group (8.0%), the high glucose plus 1 mmol/L 4-PBA group (10.0%), and the high glucose plus 2 mmol/L 4-PBA group (8.3%) (Table 1 and Fig. 5D). The NTD rates in the high glucose plus 1 mmol/L 4-PBA group and the high glucose plus 2 mmol/L 4-PBA group were not significantly different than that in the 5 mmol/L glucose group (Table 1 and Fig. 5D). 4-PBA treatment even reduced NTD rates under 5 mmol/L glucose conditions (Table 1).

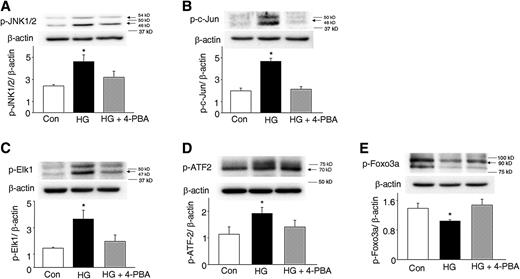

Suppressing ER stress by 4-PBA abrogates hyperglycemia-induced JNK1/2 activation and its downstream signaling.

To determine whether 4-PBA treatment suppresses the JNK1/2 pathway, we assessed phosphorylated levels of JNK1/2 and its downstream effectors in cultured embryos treated with 2 mmol/L 4-PBA. 4-PBA treatment completely blocked high glucose-induced phosphorylation of JNK1/2, c-Jun, Elk1, and ATF-2 (Fig. 6A–D). Foxo3a activation depends on its dephosphorylation. High glucose induced Foxo3a dephosphorylation whereas 4-PBA treatment abrogated high glucose-induced Foxo3a dephosphorylation (Fig. 6E).

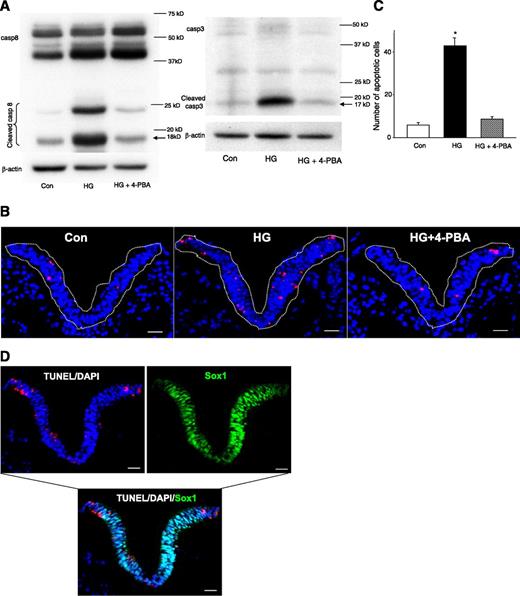

4-PBA abolishes hyperglycemia-induced caspase activation and apoptosis in the neuroepithelium.

Because JNK1/2 activation leads to caspase activation and apoptosis and 4-PBA suppresses JNK1/2 activation, we assessed the effect of 4-PBA on high glucose-induced caspase activation and neuroepithelial cell apoptosis. High glucose induced robust cleavage of caspase 3 and 8 (Fig. 7A). 4-PBA treatment abolished high glucose-induced caspase 3 and 8 cleavage (Fig. 7A). There were significant higher numbers of apoptotic neuroepithelial cells in embryos exposed to high glucose than cells under 5 mmol/L glucose conditions and high glucose plus 4-PBA conditions (Fig. 7B and C). Apoptotic cell numbers in the 5 mmol/L glucose group and the high glucose plus 4-PBA group were comparable (Fig. 7B and C). High glucose-induced apoptotic cells were Sox1 positive neural progenitors (Fig. 7D).

We have demonstrated in this series of experiments the reciprocal causative relationship between JNK1/2 activation and ER stress in diabetic embryopathy. Using the ER stress chemical inhibitor, 4-PBA, we determined that high glucose in vitro-induced ER stress mediates the teratogenicity of hyperglycemia through induction of caspase activation and apoptosis. Deletion of either jnk1 or jnk2 gene abrogates maternal diabetes-induced ER chaperone gene expression and consequent ER stress. Therefore, the current study provides mechanistic evidence for the interdependent relationship between JNK1/2 activation and ER stress and for the potential use of ER stress chemical inhibitors, such as 4-PBA, to prevent maternal diabetes-induced embryonic malformations.

Our previous study (11) using EM demonstrated aberrant maturational and cytoarchitectural changes in embryonic cells exposed to high glucose. However, this previous study did not specify which cellular organelle is impacted by high glucose. By assessing total cellular levels of ER stress markers and examining swollen/enlarged ER by EM, the current study clearly reveals that ERs in neuroepithelial cells of the developing neural tube are adversely impacted by maternal diabetes. Three pathways—the IRE1–XBP-1 pathway, the PERK–eIF2α pathway, and the ATF-6–CHOP pathway—collectively constitute the ER-specific UPR (13). The key intermediates of these three pathways can be used as indices of ER stress. Our study demonstrates increased expression of BiP, CHOP, XBP1 splicing, PERK, and eIF2α phosphorylation, supporting the conclusion that hyperglycemia-induced ER stress activates all three UPR responses. Activation of these UPR pathways, particularly the activation of IRE1–XBP1 and CHOP, triggers apoptosis in cells under pathophysiologic conditions (12). These ER stress–induced apoptotic effects are in line with the central apoptotic mechanism in the induction of diabetic embryopathy (5,6). Indeed, our subsequent studies show that ER stress inhibitor, 4-PBA, blocks apoptosis in cells of the developing neural tube and thus ameliorates high glucose–induced NTD.

ER stress induces an array of proapoptotic signaling, which centers on JNK1/2 activation (22,34). We show that both ER stress and JNK1/2 activation are present in diabetic embryopathy. Because 4-PBA has been shown to attenuate diabetes-induced ER stress (33), in the current study, it was used to test whether amelioration of ER stress can block high glucose–induced proapoptotic signaling. 4-PBA treatment blocks high glucose–induced activation of JNK1/2 and its downstream effectors. These findings strongly support that ER stress is directly linked to or enhances the activation of the proapoptotic JNK1/2 pathway, which leads to caspase activation and apoptosis in diabetic embryopathy.

ER stress also induces oxidative stress (35), which may directly mediate the proapoptotic effect of high glucose on neuroepithelial cells. It is known that oxidative stress increases the expression of Bax (36), a proapoptotic Bcl-2 family member, and suppresses the expression of the antiapoptotic protein, Bcl-2 (37). Oxidative stress plays a central role in the pathogenesis of diabetic embryopathy, which also leads to Bax upregulation and Bcl-2 downregulation (38). Thus, it is possible that high glucose–induced ER stress results in oxidative stress, which, in turn, causes neuroepithelial cell apoptosis via altering the expression of Bcl-2 family members.

Previous studies have demonstrated that high glucose in vitro can rapidly activate JNK1/2 (6,31). In addition, deletion of either jnk1 or jnk2 (21) significantly reduces maternal diabetes–induced NTD. These findings, which suggest that JNK1/2 activation may occur before cells undergo ER stress, prompted us to examine whether JNK1/2 activation causes ER stress. JNK1/2 deficiency caused by either jnk1 or jnk2 gene deletion abrogates maternal diabetes–increased ER stress markers and ER chaperone gene expression, supporting the conclusion that JNK1/2 activation triggers the UPR response and subsequently induces ER stress.

Our study presents for the first time strong evidence that JNK1/2 activation leads to ER stress. In future studies, it will be of interest to delineate the mechanisms underlying JNK1/2-induced ER stress. Factors that disrupt ER function and thus induce ER stress include accumulation of protein aggregates, oxidative stress, and alterations in calcium stores in the ER lumen (34). Because JNK1/2 activation can directly increase reactive oxygen species production (39), JNK1/2 may trigger ER stress via oxidative stress. JNK1/2 activation also contributes to the formation of intracellular protein aggregates (40), which may result in ER stress. JNK1/2 activates Bid (41), a proapoptotic Bcl-2 family member, which controls ER calcium homeostasis (42). Therefore, it is possible that JNK1/2 induces ER stress by disrupting ER calcium homeostasis. The mechanisms underlying JNK1/2-induced ER stress are likely multifactorial.

JNK1+/− and JNK2−/− mice are viable, normal in size, do not display any gross physical or behavioral abnormalities, and display normal embryonic development (43). Indeed, embryos from either nondiabetic JNK1+/− or nondiabetic JNK2−/− dams are morphologically indistinct from those from nondiabetic WT mice (21,43,44). We have successfully established the causal link between JNK1/2 activation and ER stress by using jnk2−/− and jnk1+/− mice. Using a jnk1+/− and jnk1+/− mating scheme to produce JNK1-null embryos avoids any potential maternal influences due to gene deletion. However, any potential maternal influence due to jnk2 gene deletion in diabetic embryopathy is negligible because diabetic JNK2KO dams have similar high glucose levels as those in diabetic WT mice (21). A recent published report (26) also used homozygous knockout mating in diabetes-induced NTD. Therefore, the JNK2 homozygous mating scheme is a suitable approach in our study.

Either jnk1 or jnk2 gene deletion blocks maternal diabetes–induced ER chaperone gene expression and consequent ER stress. Mitigating ER stress by 4-PBA treatment, in turn, blocks JNK1/2 activation, its downstream apoptotic signaling, and NTD. Our study establishes the reciprocal and interdependent link between the two causative events, JNK1/2 activation and ER stress, in diabetic embryopathy.

This study is supported by National Institutes of Health grants R01-DK-083243 and R01-DK-083770.

No potential conflicts of interest relevant to this article were reported.

X.L. and C.X researched data and approved the final version of the manuscript. P.Y. conceived the project, designed the experiments, researched data, and wrote and approved the final version of the manuscript. P.Y. is the guarantor of this work and, as such, had full access to all the data in the study and takes responsibility for the integrity of the data and the accuracy of the data analysis.

The authors thank Dr. E. Albert Reece at the University of Maryland School of Medicine for editing the manuscript and Ms. Hua Li at the University of Maryland School of Medicine for technical support.

1.
Becerra
JE
,
Khoury
MJ
,
Cordero
JF
,
Erickson
JD
.
Diabetes mellitus during pregnancy and the risks for specific birth defects: a population-based case-control study
.
Pediatrics
1990
;
85
:
1
9
[PubMed]
2.
Correa
A
,
Gilboa
SM
,
Besser
LM
, et al
.
Diabetes mellitus and birth defects
.
Am J Obstet Gynecol
2008
;
199
:
237
.e1–9
3.
Yang
X
,
Borg
LA
,
Eriksson
UJ
.
Altered metabolism and superoxide generation in neural tissue of rat embryos exposed to high glucose
.
Am J Physiol
1997
;
272
:
E173
E180
[PubMed]
4.
Phelan
SA
,
Ito
M
,
Loeken
MR
.
Neural tube defects in embryos of diabetic mice: role of the Pax-3 gene and apoptosis
.
Diabetes
1997
;
46
:
1189
1197
[PubMed]
5.
Gäreskog
M
,
Cederberg
J
,
Eriksson
UJ
,
Wentzel
P
.
Maternal diabetes in vivo and high glucose concentration in vitro increases apoptosis in rat embryos
.
Reprod Toxicol
2007
;
23
:
63
74
[PubMed]
6.
Yang
P
,
Zhao
Z
,
Reece
EA
.
Activation of oxidative stress signaling that is implicated in apoptosis with a mouse model of diabetic embryopathy
.
Am J Obstet Gynecol
2008
;
198
:
130
.e1–7
7.
Salbaum
JM
,
Kappen
C
.
Neural tube defect genes and maternal diabetes during pregnancy
.
Birth Defects Res A Clin Mol Teratol
2010
;
88
:
601
611
[PubMed]
8.
Pavlinkova
G
,
Salbaum
JM
,
Kappen
C
.
Maternal diabetes alters transcriptional programs in the developing embryo
.
BMC Genomics
2009
;
10
:
274
[PubMed]
9.
Wentzel
P
,
Gäreskog
M
,
Eriksson
UJ
.
Decreased cardiac glutathione peroxidase levels and enhanced mandibular apoptosis in malformed embryos of diabetic rats
.
Diabetes
2008
;
57
:
3344
3352
[PubMed]
10.
Yang
X
,
Borg
LA
,
Eriksson
UJ
.
Altered mitochondrial morphology of rat embryos in diabetic pregnancy
.
Anat Rec
1995
;
241
:
255
267
[PubMed]
11.
Reece
EA
,
Pinter
E
,
Leranth
CZ
, et al
.
Ultrastructural analysis of malformations of the embryonic neural axis induced by in vitro hyperglycemic conditions
.
Teratology
1985
;
32
:
363
373
[PubMed]
12.
Szegezdi
E
,
Logue
SE
,
Gorman
AM
,
Samali
A
.
Mediators of endoplasmic reticulum stress-induced apoptosis
.
EMBO Rep
2006
;
7
:
880
885
[PubMed]
13.
Ron
D
,
Walter
P
.
Signal integration in the endoplasmic reticulum unfolded protein response
.
Nat Rev Mol Cell Biol
2007
;
8
:
519
529
[PubMed]
14.
Ron
D
,
Hubbard
SR
.
How IRE1 reacts to ER stress
.
Cell
2008
;
132
:
24
26
[PubMed]
15.
Harding
HP
,
Zhang
Y
,
Ron
D
.
Protein translation and folding are coupled by an endoplasmic-reticulum-resident kinase
.
Nature
1999
;
397
:
271
274
[PubMed]
16.
Lee
K
,
Tirasophon
W
,
Shen
X
, et al
.
IRE1-mediated unconventional mRNA splicing and S2P-mediated ATF6 cleavage merge to regulate XBP1 in signaling the unfolded protein response
.
Genes Dev
2002
;
16
:
452
466
[PubMed]
17.
Zinszner
H
,
Kuroda
M
,
Wang
X
, et al
.
CHOP is implicated in programmed cell death in response to impaired function of the endoplasmic reticulum
.
Genes Dev
1998
;
12
:
982
995
[PubMed]
18.
Reece
EA
,
Ma
XD
,
Zhao
Z
,
Wu
YK
,
Dhanasekaran
D
.
Aberrant patterns of cellular communication in diabetes-induced embryopathy in rats: II, apoptotic pathways
.
Am J Obstet Gynecol
2005
;
192
:
967
972
[PubMed]
19.
Forsberg
H
,
Eriksson
UJ
,
Welsh
N
.
Apoptosis in embryos of diabetic rats
.
Pharmacol Toxicol
1998
;
83
:
104
111
[PubMed]
20.
Sun
F
,
Kawasaki
E
,
Akazawa
S
, et al
.
Apoptosis and its pathway in early post-implantation embryos of diabetic rats
.
Diabetes Res Clin Pract
2005
;
67
:
110
118
[PubMed]
21.
Yang
P
,
Zhao
Z
,
Reece
EA
.
Involvement of c-Jun N-terminal kinases activation in diabetic embryopathy
.
Biochem Biophys Res Commun
2007
;
357
:
749
754
[PubMed]
22.
Urano
F
,
Wang
X
,
Bertolotti
A
, et al
.
Coupling of stress in the ER to activation of JNK protein kinases by transmembrane protein kinase IRE1
.
Science
2000
;
287
:
664
666
[PubMed]
23.
Hagay
ZJ
,
Weiss
Y
,
Zusman
I
, et al
.
Prevention of diabetes-associated embryopathy by overexpression of the free radical scavenger copper zinc superoxide dismutase in transgenic mouse embryos
.
Am J Obstet Gynecol
1995
;
173
:
1036
1041
[PubMed]
24.
Yang
P
,
Reece
EA
.
Role of HIF-1alpha in maternal hyperglycemia-induced embryonic vasculopathy
.
Am J Obstet Gynecol
2011
;
204
:
332
.e1–7
25.
Eriksson
UJ
,
Dahlström
E
,
Hellerström
C
.
Diabetes in pregnancy. Skeletal malformations in the offspring of diabetic rats after intermittent withdrawal of insulin in early gestation
.
Diabetes
1983
;
32
:
1141
1145
[PubMed]
26.
Sugimura
Y
,
Murase
T
,
Oyama
K
, et al
.
Prevention of neural tube defects by loss of function of inducible nitric oxide synthase in fetuses of a mouse model of streptozotocin-induced diabetes
.
Diabetologia
2009
;
52
:
962
971
[PubMed]
27.
Kamimoto
Y
,
Sugiyama
T
,
Kihira
T
, et al
.
Transgenic mice overproducing human thioredoxin-1, an antioxidative and anti-apoptotic protein, prevents diabetic embryopathy
.
Diabetologia
2010
;
53
:
2046
2055
[PubMed]
28.
Massa
V
,
Savery
D
,
Ybot-Gonzalez
P
, et al
.
Apoptosis is not required for mammalian neural tube closure
.
Proc Natl Acad Sci USA
2009
;
106
:
8233
8238
[PubMed]
29.
Reece
EA
,
Ji
I
,
Wu
YK
,
Zhao
Z
.
Characterization of differential gene expression profiles in diabetic embryopathy using DNA microarray analysis
.
Am J Obstet Gynecol
2006
;
195
:
1075
1080
[PubMed]
30.
Reece
EA
,
Wu
YK
.
Prevention of diabetic embryopathy in offspring of diabetic rats with use of a cocktail of deficient substrates and an antioxidant
.
Am J Obstet Gynecol
1997
;
176
:
790
797
; discussion 797–798
[PubMed]
31.
Yang
P
,
Zhao
Z
,
Reece
EA
.
Blockade of c-Jun N-terminal kinase activation abrogates hyperglycemia-induced yolk sac vasculopathy in vitro
.
Am J Obstet Gynecol
2008
;
198
:
321
.e1–7
32.
Yang
P
,
Li
H
.
Epigallocatechin-3-gallate ameliorates hyperglycemia-induced embryonic vasculopathy and malformation by inhibition of Foxo3a activation
.
Am J Obstet Gynecol
2010
;
203
:
75
.e1–6
33.
Ozcan
U
,
Yilmaz
E
,
Ozcan
L
, et al
.
Chemical chaperones reduce ER stress and restore glucose homeostasis in a mouse model of type 2 diabetes
.
Science
2006
;
313
:
1137
1140
[PubMed]
34.
Tabas
I
,
Ron
D
.
Integrating the mechanisms of apoptosis induced by endoplasmic reticulum stress
.
Nat Cell Biol
2011
;
13
:
184
190
[PubMed]
35.
Kim
HR
,
Lee
GH
,
Cho
EY
,
Chae
SW
,
Ahn
T
,
Chae
HJ
.
Bax inhibitor 1 regulates ER-stress-induced ROS accumulation through the regulation of cytochrome P450 2E1
.
J Cell Sci
2009
;
122
:
1126
1133
[PubMed]
36.
Naderi
J
,
Hung
M
,
Pandey
S
.
Oxidative stress-induced apoptosis in dividing fibroblasts involves activation of p38 MAP kinase and over-expression of Bax: resistance of quiescent cells to oxidative stress
.
Apoptosis
2003
;
8
:
91
100
[PubMed]
37.
Pugazhenthi
S
,
Nesterova
A
,
Jambal
P
, et al
.
Oxidative stress-mediated down-regulation of bcl-2 promoter in hippocampal neurons
.
J Neurochem
2003
;
84
:
982
996
[PubMed]
38.
Gäreskog
M
,
Eriksson
UJ
,
Wentzel
P
.
Combined supplementation of folic acid and vitamin E diminishes diabetes-induced embryotoxicity in rats
.
Birth Defects Res A Clin Mol Teratol
2006
;
76
:
483
490
[PubMed]
39.
Ventura
JJ
,
Cogswell
P
,
Flavell
RA
,
Baldwin
AS
 Jr
,
Davis
RJ
.
JNK potentiates TNF-stimulated necrosis by increasing the production of cytotoxic reactive oxygen species
.
Genes Dev
2004
;
18
:
2905
2915
[PubMed]
40.
Cowan
KJ
,
Diamond
MI
,
Welch
WJ
.
Polyglutamine protein aggregation and toxicity are linked to the cellular stress response
.
Hum Mol Genet
2003
;
12
:
1377
1391
[PubMed]
41.
Deng
Y
,
Ren
X
,
Yang
L
,
Lin
Y
,
Wu
X
.
A JNK-dependent pathway is required for TNFalpha-induced apoptosis
.
Cell
2003
;
115
:
61
70
[PubMed]
42.
Ni
HM
,
Baty
CJ
,
Li
N
, et al
.
Bid agonist regulates murine hepatocyte proliferation by controlling endoplasmic reticulum calcium homeostasis
.
Hepatology
2010
;
52
:
338
348
[PubMed]
43.
Kuan
CY
,
Yang
DD
,
Samanta Roy
DR
,
Davis
RJ
,
Rakic
P
,
Flavell
RA
.
The Jnk1 and Jnk2 protein kinases are required for regional specific apoptosis during early brain development
.
Neuron
1999
;
22
:
667
676
[PubMed]
44.
Li
X
,
Weng
H
,
Xu
C
,
Reece
EA
,
Yang
P
.
Oxidative stress-induced JNK1/2 activation triggers pro-apoptotic signaling and apoptosis that leads to diabetic embryopathy
.
Diabetes
2012
;
61
:
2084
2092
Readers may use this article as long as the work is properly cited, the use is educational and not for profit, and the work is not altered. See http://creativecommons.org/licenses/by-nc-nd/3.0/ for details.

Supplementary data
