Spinal Disinhibition in Experimental and Clinical Painful Diabetic Neuropathy

Approximately 30% of patients with diabetes develop painful neuropathy (1). The efficacy of current therapies is highly variable (2,3), potentially reflecting diverse pain generator sites (4,5) and etiological mechanisms (6) in patients with diabetes with neuropathic pain. Phenotyping patients based on their symptom complex and putative mechanisms may enable more accurate prediction of treatment response (7). Although standard neurophysiology and quantitative sensory testing can differentiate patients with diabetes with and without neuropathy (8), recent Initiative on Methods, Measurement, and Pain Assessment in Clinical Trials (IMMPACT) recommendations have emphasized a need for more detailed phenotyping of patients with painful neuropathy in order to improve both clinical care and success rates for putative analgesic drugs in clinical trials (9).

Rate-dependent depression (RDD), a measure of change in amplitude of the Hoffman (H) reflex over consecutive stimulations, can be recorded from electromyograms during standard electrophysiological procedures. RDD is impaired after disinhibition of spinal sensory processing caused by spinal cord injury in both awake humans (10,11) and anesthetized animals (12,13). In rats, RDD is driven by γ-aminobutyric acid (GABA) acting though GABA type A (GABA_A) receptors and is attenuated when GABA_A receptor–mediated inhibitory function is disrupted (14). We recently demonstrated that loss of RDD separated rats demonstrating impaired spinal GABAergic inhibitory function from rats with normal spinal GABAergic function, despite both showing a similar neuropathic pain phenotype (15). Measuring RDD may therefore allow assessment of the relative contribution of spinal inhibitory dysfunction and segregation of peripherally from spinally generated pain. While it is becoming apparent that only a minor fraction of patients with diabetes who experience pain exhibit the “irritable nociceptor” phenotype (5), it is not known whether RDD, and by implication spinal inhibitory systems, are impaired in any or all patients with painful diabetic neuropathy.

We investigated the pathogenic basis of RDD attenuation in diabetic rats and determined that modulation of RDD predicts the therapeutic efficacy of duloxetine, which alleviates neuropathic pain by enhancing spinal inhibitory systems (16,17). We also translated our experimental findings by assessing whether RDD and small-fiber pathology could segregate patients with painful compared with painless diabetic neuropathy.

Studies were performed using adult female Sprague-Dawley or adult male Zucker Diabetic Fatty (ZDF) rats. Rats were housed two to three per cage with free access to food (Harlan 5001 diet) and water and maintained in an American Association for the Accreditation of Laboratory Animal Care–approved vivarium. Studies were performed according to protocols approved by the Institutional Animal Care and Use Committee of the University of California, San Diego. Insulin-deficient diabetes was induced after an overnight fast by injection of 50 mg/kg i.p. streptozotocin (STZ) (Sigma-Aldrich, St. Louis, MO), freshly dissolved in 0.9% sterile saline. Hyperglycemia was confirmed using a glucose meter (OneTouch Ultra; LifeScan, Milpitas, CA) from blood obtained by tail prick 4 days after STZ injection, and blood and cerebrospinal fluid were collected at study conclusion.

Peripheral nerve function was assessed by measuring sciatic motor and sensory nerve conduction velocity and paw thermal and tactile response thresholds as previously described in detail (18).

Under isoflurane anesthesia, one hind limb was secured and a transcutaneous needle electrode inserted at the ankle for tibial nerve stimulation. Two recording electrodes were inserted into hind paw interosseous muscles. Stimulus generation and recording of M and H waves from the resulting electromyogram were performed using a Powerlab 4/30 connected to a computer running Scope software (AD Instruments, Colorado Springs, CO). Tibial nerve stimulation used bursts of 5 × 200 μs duration square waves with 40-μs interpulse intervals. Each burst was repeated at 1 Hz stimulation frequency, which, in normal rats, causes an ∼40% decrease in H-wave amplitude between the first and subsequent bursts (15). Stimulation intensity was increased by 0.125-V increments until the stimulus that produced the maximum H-wave amplitude (H_max) was found. RDD was calculated as percentage change in H-wave amplitude evoked by the second (H2) compared with the first (H1) stimulation burst. In rats, H2 is representative of all subsequent responses (14).

3-O-methyl-glucose (3-OMG) (Sigma-Aldrich) was injected at 5 mmol/kg i.p. 1–2 min before STZ administration. Dose and timing were chosen to prevent hyperglycemia despite systemic presence of STZ (19). Continuous insulin treatment to prevent prolonged hyperglycemia was initiated in STZ-injected rats immediately after onset of hyperglycemia by subdermal implantation of insulin pellets that release 2 IU/24 h (Linshin Canada Inc.). Blood glucose levels were assessed weekly and additional pellets supplemented as necessary. The effects of short-term insulin treatment were assessed by implanting one subcutaneous insulin pellet or providing twice-daily subcutaneous insulin injections (4 IU, Humulin; Eli Lilly, Indianapolis, IN) to diabetic rats that were otherwise untreated for the previous 8 weeks. Blood glucose was assessed daily in the insulin pellet group and at 30-min intervals after acute insulin injection.

The 5-hydroxytryptamine type 2A/C (5-HT_2A/C) receptor agonist 1-(2,5-dimethoxy-4-iodophenyl)-2-aminopropane hydrochloride (DOI) (20 µg; Sigma-Aldrich) was dissolved in water. Cymbalta (Eli Lilly, Indianapolis, IN) was used as a source of duloxetine hydrochloride (20 µg) and dissolved in saline. The 5-HT_2A/1D receptor antagonist ketanserin (20 µg; Sigma-Aldrich) and selective 5-HT_2A receptor antagonist pruvanserin (EMD 281014, provided by G. Bartoszyk, Merck KGaA, Darmstadt, Germany) were dissolved in saline. Drug formulations and doses were selected from previous studies (17).

Spinal cords were obtained by hydraulic extrusion after decapitation of anesthetized rats. The lumbar enlargement was dissected on ice into dorsal and ventral portions that were collected into ice-cold homogenization buffer (50 mmol/L Tris-HCl, pH 7.4; 150 mmol/L NaCl; 1 mmol/L EDTA; 0.5% Triton X; and protease inhibitor cocktail) and homogenized before centrifugation (14,000g). Protein (7–15 µg) was prepared by incubation for 30 min in Laemmli sample buffer at 37°C before separation on 4–12% SDS-PAGE Bis-Tris gels (Novex; Invitrogen, Carlsbad, CA) and immunoblotted on nitrocellulose. Membranes were incubated with KCC2 (1:2,000; Millipore) and actin (1:2,000; Sigma-Aldrich) antibodies. Quantification of immunoreactivity was performed by densitometric analysis. For each animal, band intensities were normalized by calculating the ratio of intensity of the band of interest to the intensity of the actin (loading control) band. Normalized data were expressed as a percentage of group mean of values obtained for nondiabetic rats run on the same gel.

Studies were approved by National Research Ethics Service Committee North West–Greater Manchester (09/H1006/38). All participants provided written informed consent. Study conduct adhered to the tenets of the declaration of Helsinki.

Twenty-seven patients with type 1 diabetes and 15 age-matched control subjects were recruited. Participants underwent the following assessments: Neuropathy Disability Score (NDS), Neuropathy Symptom Profile (NSP), vibration perception threshold (VPT), and thermal perception thresholds; sural sensory amplitude (SSamp) and conduction velocity (SSCV); and peroneal motor amplitude (PMamp) and conduction velocity (PMCV). For intraepidermal nerve fiber density (IENFD) assessment, 3-mm punch skin biopsy specimens were obtained from the dorsum of the foot and a bright-field immunohistochemistry protocol was used according to published guidelines (20). Linear IENFD (number of fibers/mm) was established in at least four sections of 50-μm thickness according to published counting rules (21). Corneal nerve fiber density (CNFD), nerve branch density (CNBD), and nerve fiber length (CNFL) were quantified according to established techniques (22).

A modified Toronto Diabetic Neuropathy Expert Group (8) recommendation was followed to define neuropathy, incorporating small-fiber neuropathy measures (2 SDs outside normal range for CNFD or IENFD) if PMCV was normal. Patients were stratified into painful (visual analog score [VAS] >3 of 10) (n = 13) and painless (VAS ≤3 of 10) (n = 14) groups.

For H-reflex studies, a standardized protocol was adopted in which participants sat comfortably in a quiet room semirecumbent at 45° and facing forward with eyes open. Monophasic 1-ms duration square wave pulses were delivered using surface silver-silver chloride electrodes to the tibial nerve in the popliteal fossa (11). Surface 9-mm diameter silver-silver chloride recording electrodes were placed on the long axis of the soleus. Peak-peak H_max was determined by incrementing stimulation current by 1 mA at 0.3 Hz. Only patients with an H_max of >400 µV were included, with five patients excluded because of absent or low voltage waveforms—four without and one with a pain VAS >3. For RDD, trains of three stimuli were delivered at 0.3, 0.5, 1, 3, and 5 Hz. Stimulation order was randomized with a minimum of 10 s allowed between each run. Submaximal stimulation producing an H-reflex 50–75% of H_max was used. Consecutive H-reflex recordings within trains were termed H1–H3, respectively. RDD, defined as H3-to-H1 amplitude ratio, was calculated for each stimulation frequency (11), as H2 did not identify the maximal change from H1 (A.G.M., unpublished observations).

Statistical analyses were performed with Prism statistical software (GraphPad Software, Inc., La Jolla, CA). Parametric data were analyzed using unpaired two-tailed t test, one-way ANOVA followed by Tukey or Dunnett post hoc test for multiple comparisons, or two-way ANOVA followed by Bonferroni post hoc test as indicated. Nonparametric data were analyzed using the Kruskal-Wallis test followed by Dunn post hoc test for multiple comparisons as indicated. Pairwise comparisons were made using the Mann-Whitney U test (post hoc Bonferroni-corrected P < 0.05). Correlations were performed using Spearman rank test and expressed as a coefficient (r) with significance level.

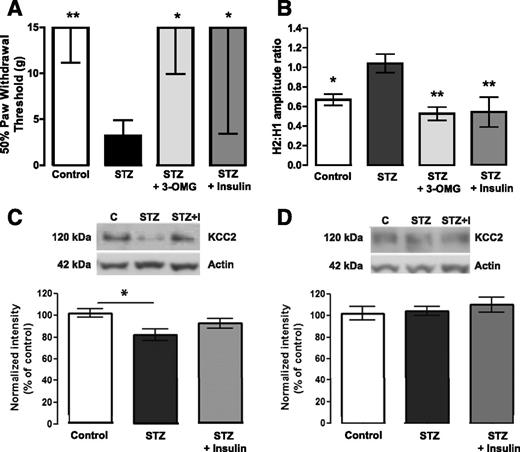

STZ-injected rats showed weight loss, hyperglycemia, increased HbA_1c, and elevated cerebrospinal fluid glucose at the end of the study (Table 1). Continuous insulin therapy and 3-OMG pretreatment, to impede pancreatic β-cell STZ uptake and subsequent apoptosis (23), both prevented all systemic physiological consequences of STZ injection. STZ diabetic rats showed expected indices of loss-of-function neuropathy such as slowing of nerve conduction velocity and thermal hypoalgesia (Table 1) while concurrently exhibiting tactile allodynia and impaired RDD (Fig. 1A–B). Pretreatment with 3-OMG or prolonged insulin treatment prevented all manifestations of neuropathy. STZ diabetes also caused a selective reduction of spinal KCC2 protein expression in the dorsal (P < 0.05 vs. control) (Fig. 1C), but not ventral (Fig. 1D), horn that was prevented by insulin supplementation.

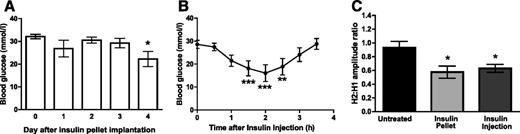

STZ diabetic rats that were untreated for 8 weeks subsequently received either a subcutaneous insulin pellet releasing 2 IU insulin/day or 4 IU insulin injected at 12-h intervals. Diabetic rats that received an insulin pellet did not show a significant reduction in blood glucose levels until the 4th day after implantation (Fig. 2A), and values remained higher than in controls (Table 1). In contrast, insulin acutely reduced blood glucose within 2 h, although animals remained hyperglycemic (Fig. 2B). The effect of insulin resolved within 3.5 h so that rats receiving insulin injections were exposed to two short periods of diminished hyperglycemia per day. RDD, measured on day 4 after initiation of both treatment regimes, and 12 h after the last insulin injection, was significantly improved in both insulin treatment groups (P < 0.05) (Fig. 2C) compared with untreated diabetic rats and was equivalent to that of control animals (Fig. 1B). Loss of RDD can be reversed by short-term insulin replacement, which dissociates correction of RDD deficits from immediate restoration of normoglycemia.

ZDF rats, a model of type 2 diabetes, developed hyperglycemia (20.2 ± 2.2 mmol/L) by 8 weeks of age that persisted until the end of the study and was accompanied by indices of neuropathy that matched those of STZ diabetic rats (Table 1). RDD was not significantly different from lean control rats at 8 weeks of age but was significantly impaired at 20 and 32 weeks (P < 0.05), paralleling onset of tactile allodynia (Supplementary Fig. 1).

Tactile allodynia in STZ diabetic rats is reversed by the serotonin-norepinephrin reuptake inhibitor duloxetine and the 5-HT_2A/C receptor agonist DOI in a 5-HT_2A receptor–dependent fashion (17). We investigated whether the antiallodynic effects of these agents could be predicted by their effects on RDD deficits. STZ diabetic rats had significantly impaired RDD compared with controls (P < 0.001) (Fig. 3A). Intrathecal administration of either duloxetine (20 μg) or DOI (20 μg) significantly (P < 0.05) restored RDD within 5 min of administration with similar relative efficacy and in agreement with the previously reported magnitude of effect on tactile allodynia (17).

The 5-HT_2A/D receptor antagonist ketanserin (20 μg intrathecal [IT]) or 5-HT_2A receptor antagonist pruvanserin (20 μg IT), administered 5 min after duloxetine or DOI, reversed the restoration of RDD within 10 min, whereas this persisted in vehicle-treated animals (Fig. 3B), confirming that 5-HT_2A receptor activation mediated the restoration of RDD.

To explore the translational potential of these findings, we investigated RDD in subjects with type 1 diabetes and painful or painless diabetic neuropathy and healthy control subjects. Clinical characteristics are summarized in Table 2. Diabetes duration and HbA_1c were comparable between patients with painful and painless neuropathy. Of the 13 patients with painful diabetic neuropathy, two took duloxetine, one pregabalin, one gabapentin, one amitriptyline, and one duloxetine and pregabalin in combination (Fig. 5A). Both the NSP (P < 0.0001) and NDS (P < 0.01) were significantly higher in patients with diabetes, irrespective of pain status, compared with control subjects. NSP was significantly higher in patients with diabetes with painful compared with painless neuropathy. Patients with diabetes with painful and painless diabetic neuropathy had a reduction in PMCV (P < 0.0001), SSCV (P < 0.0001), PMamp (P < 0.0001), and SSamp (P < 0.01) and increased VPT (P < 0.001) and cold (P < 0.01) and warm (P < 0.01) perception thresholds compared with control subjects. Structural measures of small-fiber neuropathy including IENFD (P < 0.01), CNFD (P < 0.0001), CNBD (P < 0.001), and CNFL (P < 0.001) were significantly reduced in both groups of patients with diabetes. CNFD was significantly lower in patients with painful compared with painless diabetic neuropathy (P < 0.05), but there was no significant difference for other small- or large-fiber parameters.

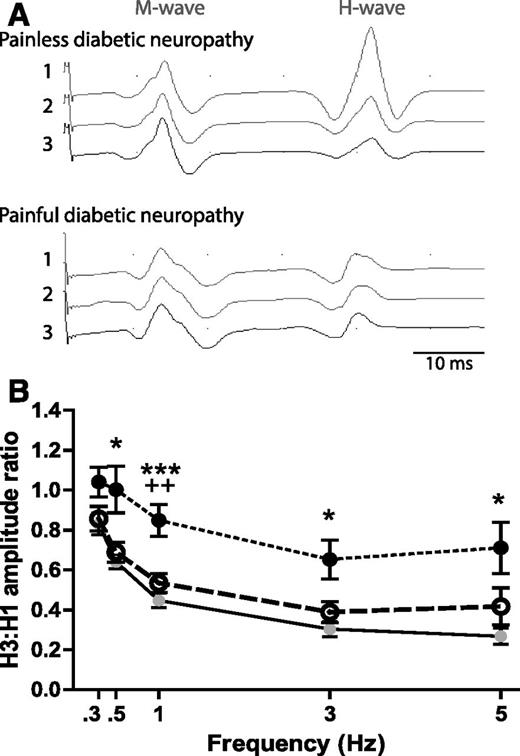

Representative H-reflex waveforms collected at 1-Hz stimulation in subjects with and without painful neuropathy are presented in Fig. 4A. RDD increased progressively in all groups with increasing stimulation frequency but was significantly attenuated in patients with painful diabetic neuropathy compared with control subjects at frequencies of 0.5 Hz (P < 0.05), 1 Hz (P < 0.001), 3 Hz (P < 0.05), and 5.0 Hz (P < 0.05) (Fig. 4B) and at 1 Hz in patients with painful compared with those with painless diabetic neuropathy (P < 0.01). The magnitude of RDD in individual patients with painful diabetic neuropathy showed considerable variance (Fig. 5A), but there was a significant correlation between RDD and VAS score at 1 Hz (r_s = 0.688; P = 0.01). RDD magnitude at 1 and 3 Hz significantly correlated with NSP but showed no significant correlation with physiological or structural measures of small- or large-fiber neuropathy (Table 3).

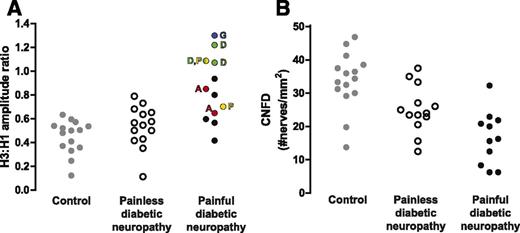

CNFD was reduced in patients with diabetes both painless (P < 0.05) and painful (P < 0.001) diabetic neuropathy compared with control subjects and further reduced in patients with painful compared with painless diabetic neuropathy (P < 0.05) (Table 2 and Fig. 5B). Measures of corneal innervation showed no significant correlation with pain VAS within the painful neuropathy group (CNFD, r_s= −0.134, NS; CNFL, r_s = −0.370, NS; CNBD, r_s = −0.217, NS) although across the diabetic neuropathy cohort pain VAS showed a significant negative correlation with CNFD (r_s = −0.567; P = 0.004) and CNFL (r_s = −0.404; P = 0.04).

We previously reported loss of RDD in a rat model of type 1 diabetes (14) and identified the contribution of spinal disinhibition to neuropathic pain states (15). The present preclinical studies show that RDD deficits in STZ-injected rats are not due to STZ neurotoxicity. Firstly, RDD deficits did not occur in STZ-injected rats pretreated with 3-OMG, a nontoxic, nonmetabolizable glucose derivative that protects pancreatic β-cells from destruction by STZ (23). Secondly, impaired RDD was absent in STZ-injected rats given extended insulin treatment from the onset of hyperglycemia. Thirdly, RDD deficits also developed in the ZDF rat model of type 2 diabetes. As both models of diabetes mirrored the neuropathy phenotype of many patients with diabetes by exhibiting concurrent conduction slowing and thermal hypoalgesia, these findings strengthen the potential clinical relevance of RDD as a biomarker for spinal disinhibition in patients with either type 1 or type 2 diabetes.

The efficacy of extended insulin replacement in preventing RDD deficits in STZ diabetic rats cannot distinguish between hypoinsulinemia or hyperglycemia as the primary pathogenic mechanism. We therefore compared treatment using a subcutaneous insulin pellet to generate a continuous mild reduction of hyperglycemia with insulin injections that produced acute and transient reductions of hyperglycemia. Both regimens resulted in restoration of RDD, disassociating impaired RDD from ambient hyperglycemia. There is increasing awareness that insulin has direct effects on the nervous system. Insulin receptors are present in primary sensory neurons and at nociceptor termination sites in the spinal cord dorsal horn (24,25). In diabetic rodents, local insulin administration to the periphery (26,27) or spinal cord (28) ameliorated indices of neuropathy and neuropathic pain (29) without impacting systemic hyperglycemia. Systemically delivered insulin also crosses the blood-brain barrier to activate central nervous system insulin receptors (30). The trophic effect of insulin extends to patients with diabetes, as continuous subcutaneous insulin infusion improved corneal nerve density without altering HbA_1c (31). The onset of impaired RDD in ZDF rats, a model of type 2 diabetes, could potentially argue against a pathogenic role of insulin deficiency per se. However, RDD appeared only at an age where both insulinopenia and insulin resistance are features of the model (32,33). Insulin resistance has also been reported in peripheral nerves of type 2 diabetic rodents (34). As the time course of impaired RDD coincided with that of tactile allodynia, impaired RDD appears to be a biomarker of neuropathic pain in models of both type 1 and type 2 diabetes.

For further testing of the association between RDD and neuropathic pain, the effects of the 5-HT_2A/C receptor agonist DOI and the serotonin-norepinephrine reuptake inhibitor duloxetine were evaluated in relation to RDD in diabetic rats. Both agents alleviate neuropathic pain in diabetic rats in a 5-HT_2A/C–dependent fashion (17), and reversal of its effects on RDD by ketanserin and pruvanserin indicate actions mediated through 5-HT_2A–binding sites. Duloxetine is recommended for painful diabetic neuropathy but has moderate overall efficacy and good effect in only a subgroup of patients (2). Interestingly, patients with diabetes with painful neuropathy and less efficient conditioned pain modulation, suggestive of spinal disinhibition, show greater therapeutic responses to duloxetine (35). The rapid restoration of allodynia and RDD by both drugs suggests that RDD could be useful for identification of therapies that selectively target neuropathic pain arising from spinal disinhibition and allows identification of patients most likely to respond to therapies targeting this axis.

The pertinence of our preclinical studies to humans is supported by observations that RDD is conserved across species, including humans (36,37). Indeed, the H-reflex in normal anesthetized rats shows a frequency dependence that is remarkably similar in magnitude to that observed in awake humans (15,38,39), while deficits caused in rats by the metabolic injury of diabetes are notably similar to those seen in anesthetized rats and awake humans after physical spinal cord injury (10,11,13,15,38). To test the potential for clinical translation of RDD as a biomarker for the pain generator site, we compared RDD in patients with painful and painless diabetic neuropathy with that of control subjects. While initial H-wave amplitude was reduced in both groups of patients with diabetes, RDD was impaired only in patients with painful diabetic neuropathy. This impairment was unrelated to the severity of neuropathy, as there was no significant correlation between RDD and measures of large- or small-fiber dysfunction. However, patients with higher pain scores had greater RDD attenuation, suggesting that spinal inhibitory dysfunction coexists with, and may contribute to, the pain phenotype in a subgroup of subjects with painful diabetic neuropathy.

Although RDD directly measures muscle depolarization in response to motor output from the spinal cord, it is modulated by spinal inhibitory systems (12,14) and therefore can provide information about spinal processing of sensory inputs. Use of other electrophysiological testing paradigms, such as evaluation of the nociceptive flexion reflex, a nociceptor-specific reflex elicited in response to stimulation of Aδ and C fibers, could provide additional information about how spinal processing is altered during painful diabetic neuropathy. Indeed, a recent study suggests that painful diabetic neuropathy is associated with enhanced nociceptive flexion reflex (40), but it is unclear whether this is due to increased peripheral sensitivity or altered spinal reflex processing. Future studies should address whether an enhanced nociceptive flexion reflex is associated with impaired RDD or an independent phenomenon.

Several of the patients with painful neuropathy were already taking the antineuropathic pain medications duloxetine, pregabalin, or amitriptyline, and we could not therefore undertake a systematic quantification of their effects on clinical pain and RDD. However, three of four patients with the most impaired RDD were taking duloxetine, whereas patients on amitriptyline or pregabalin tended to have RDD values within the range observed in patients with painless diabetic neuropathy and control subjects. Both amitriptyline and duloxetine increase serotonin and norepinephrine levels, which enhance descending inhibition (41). However, amitriptyline also inhibits 5-HT_2A receptors (42) and therefore may not be able to reverse spinal disinhibition due to impaired GABA_A receptor–mediated inhibition arising from decreased spinal KCC2 (43). We speculate that patients with impaired RDD indicative of impaired spinal inhibition may find duloxetine to be an efficacious treatment for their neuropathic pain. Further studies investigating the predictive value of RDD for the response to neuropathic pain treatment with specific agents will be important to test the premise that therapeutic responses may be significantly improved by accurately phenotyping patients and tailoring therapy that is mechanistically appropriate. A parallel approach focusing on peripherally driven pain has been tested in two randomized placebo controlled studies in which the best response to treatment with oxcarbazepine (44) and lignocaine 5% patch (45) was achieved in patients with an irritable nociceptor phenotype and preserved small-fiber function. Ultimately a battery of tests designed to identify peripheral and central pain generator sites may be optimal to identify therapy for achieving optimal efficacy.

In addition to RDD impairment, patients with diabetes with painful neuropathy also had a significant reduction in CNFD, confirming our previous findings (46) and in keeping with accruing data showing greater small-fiber pathology (47,48) and autonomic deficits (49) in patients with painful diabetic neuropathy. However, there was no significant correlation between corneal innervation and RDD status, suggesting that these pathologies may be independent of each other. This raises the intriguing possibility that these distinct biomarkers could be used together to refine our understanding of the underlying pathophysiology of pain in individual patients.

The present discovery study represents a first attempt to translate RDD analysis from experimental animals to patients with diabetes with neuropathic pain, albeit in a cross-sectional study with a relatively small sample size. There is clearly a need for larger cross-sectional and longitudinal studies to define the normative range for RDD in humans and to develop criteria to define abnormal RDD that can be applied to individual subjects for phenotyping purposes. Some patients with severe neuropathy have unobtainable tibial H-reflexes, potentially limiting the utility of RDD to those with mild to moderate neuropathy. Nevertheless, impaired RDD and a reduction in CNFD could together provide a means to more accurately phenotype patients with painful diabetic neuropathy. Such phenotyping could allow a more stratified approach to designing clinical trials of drugs in subjects with painful diabetic neuropathy and ultimately a more personalized therapeutic approach, based on site of pain generation and mechanism of drug action.
