The simultaneous assessment of quantitative indexes of insulin secretion and action in a single individual is important when quantifying their relative role in the evolution of glucose tolerance in different physiopathological states. Available methods quantify these indexes in relatively nonphysiological conditions, e.g., during glucose clamps or intravenous glucose tolerance tests. Here, we present a method based on a physiological test applicable to large-scale genetic and epidemiologic studies—the oral glucose tolerance test (OGTT). Plasma C-peptide, insulin, and glucose data from a frequently sampled OGTT with 22 samples throughout 300 min (FSOGTT300-22) were analyzed in 11 subjects with various degrees of glucose tolerance. In each individual, two indexes of pancreatic sensitivity to glucose (Φs [109 min-1] and Φd [109]) and the insulin sensitivity index (SI) (105 dl/kg per min per pmol/l) were estimated by using the minimal model of C-peptide secretion and kinetics originally proposed for intravenous graded glucose infusion and the minimal model approach recently proposed for meal/OGTTs. The indexes obtained from FSOGTT300-22 were used as a reference for internal validation of OGTT protocols with reduced sampling schedules. Our results show that 11 samples in a 300-min period (OGTT300-11) is the test of choice because the indexes it provides (Φs = 36 ± 3 [means ± SE]; Φd = 710 ± 111; SI = 10.2 ± 2.4) show excellent correlation and are not statistically different from those of FSOGTT300-22s = 33 ± 3; Φd = 715 ± 120; SI = 10.1 ± 2.3). In conclusion, OGTT300-11, interpreted with C-peptide and glucose minimal models, provides a quantitative description of β-cell function and insulin sensitivity in a single individual while preserving the important clinical classification of glucose tolerance provided by the standard 120-min OGTT.

The simultaneous assessment of β-cell function and insulin sensitivity in a single individual is of primary importance when quantifying their relative role in the evolution of glucose tolerance in different physiopathological states. Two methods are available for this purpose: the clamp technique, which uses a euglycemic-hyperinsulinemic and a hyperglycemic-euinsulinemic clamp in the same individual (1), and the intravenous glucose tolerance test (IVGTT) interpreted by the minimal models of glucose disposal (2) and C-peptide kinetics and secretion (3). Both these approaches give accurate and precise estimates of insulin sensitivity and β-cell function in a single individual, but plasma glucose, C-peptide, and insulin concentrations achieved during these studies are relatively nonphysiological. Recently, the need to quantify β-cell function and insulin sensitivity under more normal life conditions has encouraged many investigators to use more physiological protocols, including meal-like studies (4), graded up and down glucose infusions (5), meals (6,7), and oral glucose tolerance tests (OGTTs) (8,9). However, an approach to measure indexes of β-cell function and insulin action in a single individual based on a physiological test such as the OGTT is not available. The ability to derive in a single individual important information such as the clinical classification of oral glucose tolerance while simultaneously quantifying his or her β-cell function and insulin sensitivity could provide a unique tool potentially applicable to large-scale genetic and epidemiologic studies.

Therefore, the aim of the present study was to investigate whether indexes of β-cell function and insulin sensitivity could be simultaneously assessed in a single individual from OGTT data by extending to the OGTT the up and down C-peptide minimal model (5) and the insulin sensitivity formula recently derived for a meal (7). The database consisted of a frequently sampled 300-min OGTT performed on 11 subjects with various degrees of glucose tolerance. Indexes of insulin sensitivity and β-cell function based on OGTTs with reduced number of samples were also calculated and compared with those derived from the frequently sampled OGTT to arrive at a robust clinical protocol.

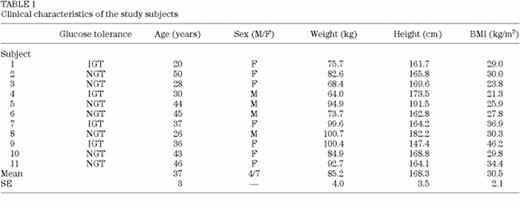

Subjects. Studies were performed on 11 nondiabetic subjects (4 men and 7 women); 7 had normal glucose tolerance (NGT), and 4 had impaired glucose tolerance (IGT). Mean age was 37 ± 3 years (means ± SE) (range 20-50), and BMI was 30.5 ± 2.1 kg/m2 (range 21.3-46.2) (Table 1). Glucose tolerance was determined by using the American Diabetes Association Expert Committee criteria (10). All subjects had a normal screening blood count and chemistries and took no medications known to affect insulin secretion or action. All protocols were approved by the Institutional Review Board of The University of Chicago. Written informed consent was obtained from each subject.

Protocol. All studies were performed in the Clinical Research Center at the University of Chicago starting at 0800 in the morning after an overnight fast. Intravenous catheters were placed into antecubital veins. The blood sampling arm was heated to obtain arterialized venous samples. At time 0, subjects ingested a 75-g glucose load. Blood samples were collected at -15, 0, 10, 20, 30, 45, 60, 75, 90, 105, 120, 135, 150, 165, 180, 195, 210, 225, 240, 255, 270, 285, and 300 min for measurement of glucose, insulin, and C-peptide concentrations. This complete protocol, consisting of 22 blood samples taken in a 300-min period after glucose ingestion, will be referred to as frequently sampled OGTT (FSOGTT300-22).

OGTT protocols with reduced data sets were also considered (Fig. 1): 1) sampling schedule similar to the one commonly adopted for a standard OGTT, with samples at 0, 30, 60, 90, 120, 150, 180, 240, and 300 min (9 samples throughout 300 min) referred to as OGTT300-9; 2) same as 1) with two additional samples at 10 and 20 min (OGTT300-11); 3) same as 2) but without the 300-min sample, thus shortening the duration of the test from 5 to 4 h (OGTT240-10).

FIG. 1.

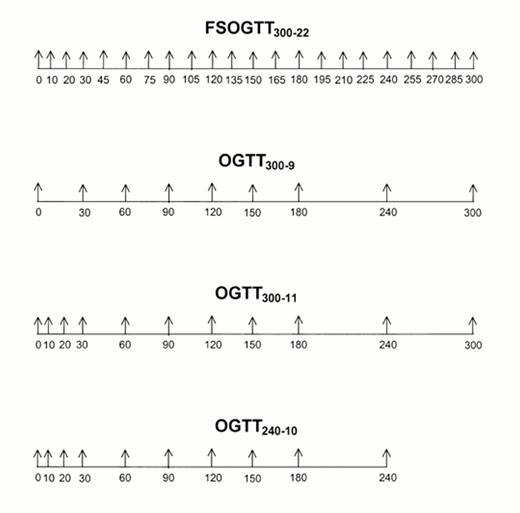

The original FSOGTT300-22 sampling schedule and its reduced versions.

FIG. 1.

The original FSOGTT300-22 sampling schedule and its reduced versions.

Assay. Plasma glucose was measured immediately using a glucose analyzer (YSI Model 2300 STAT; Yellow Springs Instruments, Yellow Springs, OH). The coefficient of variation (CV) of this method was <2%. Serum insulin was assayed by a double-antibody technique (11) with a lower limit of sensitivity of 20 pmol/l and an average intra-assay CV of 6%. The cross-reactivity of proinsulin in the radioimmunoassay for insulin was ∼40%. Plasma C-peptide was measured as previously described (12). The lower limit of sensitivity of the assay was 0.02 nmol/l and the intra-assay CV averaged 6%.

β-Cell function. The minimal model of C-peptide secretion and kinetics originally applied to intravenous glucose graded infusion data (5) has been applied to assess β-cell secretion during an oral glucose perturbation.

C-peptide kinetics are described by using the well-known two-compartment model originally proposed by Eaton et al. (13):

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION1"></INLINE-FIG>\ \]
\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION2"></INLINE-FIG>\ \]

where the overdot indicates time derivative; CP1 and CP2 (nmol/l) are C-peptide concentrations above basal in the accessible and peripheral compartments, respectively; kij (min-1) are C-peptide kinetic parameters; and SR (pmol · l-1 · min-1) is the pancreatic secretion above basal, entering the accessible compartment, normalized by the volume of distribution of compartment 1.

Pancreatic secretion SR has been described as the sum of two components controlled respectively by glucose concentration (static glucose control [SRs]) and by its rate of increase (dynamic glucose control [SRd]):

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION3"></INLINE-FIG>\ \]

SRs is assumed to be equal to the provision of new insulin to the β-cells (Y) (pmol·l-1·min-1):

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION4"></INLINE-FIG>\ \]

which is controlled by glucose according to the following:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION5"></INLINE-FIG>\ \]

It is worth noting that SRs is not linearly related to glucose concentration but tends, with a time constant 1/α (min), toward a steady-state value linearly related through the parameter β to glucose concentration G above a threshold level h (mmol/l).

SRd, on the other hand, represents the secretion of insulin stored in the β-cells in a promptly releasable form (labile insulin) and is proportional to the rate of increase of glucose:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION6"></INLINE-FIG>\ \]

where:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION7"></INLINE-FIG>\ \]

According to Eqs. 6 and 7, the dynamic control is at its maximum when glucose increases just above its basal value Gb, then it decreases linearly with glucose concentration and vanishes when glucose concentration exceeds the threshold level Gt, which is able to promote the secretion of all stored insulin. If parameter Gt assumes an elevated value, k(G) approximates the constant Kd.

Indexes. The model allows the estimation of two indexes of β-cell function: the static and the dynamic sensitivity to glucose. In addition, a single global index of β-cell sensitivity to glucose, which suitably combines both the static and the dynamic control indexes, can be calculated.

Static. The static sensitivity (Φs [109 min-1]) is a measure of the effect of glucose on β-cell secretion and is the ratio between SR and glucose concentrations (above the threshold level h) at steady state:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION8"></INLINE-FIG>\ \]

Dynamic. The dynamic sensitivity (Φd [109]) is a measure of the stimulatory effect of the rate at which glucose increases upon the secretion of stored insulin. It is defined as the amount of insulin (per unit of C-peptide distribution volume) released in response to the maximum glucose concentration Gmax achieved during the experiment, normalized by the glucose increase GmaxGb:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION9"></INLINE-FIG>\ \]

If parameter Gt assumes an elevated value, Φd approximates the constant Kd·Global. In addition to Φs and Φd, which give a detailed portrait of β-cell function, it is also useful to define and derive a single global index of β-cell sensitivity to glucose (Φ [109 min-1]), which suitably combines both the static (Φs) and the dynamic (Φd) control indexes. This is particularly advantageous in calculating the so-called disposition index, i.e., β-cell function × insulin sensitivity (see below).

The global index of β-cell sensitivity to glucose is defined as the average increase above basal of pancreatic secretion (Eq. 3) over the average glucose stimulus above the threshold level h:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION10"></INLINE-FIG>\ \]

Φ (see APPENDIX) can be calculated from model parameter h, model indexes Φs and Φd, and the area under the curve of G above the threshold level h:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION11"></INLINE-FIG>\ \]

Φ has been derived from the model, but it can also be calculated by a virtually model-independent formula (see APPENDIX):

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION12"></INLINE-FIG>\ \]

Insulin secretion rate. The model also provides the profile of the insulin secretion rate (ISR [pmol/min]) during the OGTT:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION13"></INLINE-FIG>\ \]

where SRb (pmol·min-1·l-1) is insulin secretion in the basal state, and V1 (liters) is the distribution volume of the accessible compartment.

Insulin sensitivity. To calculate insulin sensitivity, we have applied to the OGTT the formula for a meal recently proposed by Caumo et al. (7). As detailed in this study, insulin sensitivity index (SI [105 dl/kg per min per pmol/l]) can be calculated with an area under the curve formula:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION14"></INLINE-FIG>\ \]

where G is plasma glucose concentration; ΔG and ΔI are glucose and insulin concentrations above basal, respectively; AUC denotes the area under the curve calculated from time 0 to t → ∞; GE is glucose effectiveness (dl · kg-1 · min-1); DOGTT is the dose of ingested glucose per unit of body weight (mg/kg); and f is the fraction of ingested glucose that actually appears in the systemic circulation. When glucose falls below basal, a slightly different formula needs to be used (we refer to Eq. 7 in Caumo et al. (7) for details). Calculation of SI requires insertion of values for GE and f. Here we used the values proposed by Caumo et al.: GE = 0.024 dl · kg-1 · min-1 and f = 0.8.

Disposition index. The so-called disposition index (DI), i.e., β-cell function × insulin sensitivity (14,15), is a parsimonious and effective way to express β-cell function in relation to the degree of insulin resistance. To this end, it is convenient to use the single global β-cell function index Φ. The DI is thus defined as follows:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATION15"></INLINE-FIG>\ \]

Numerical identification. All C-peptide model parameters are a priori uniquely identifiable. However, numerical identification of the model requires the knowledge of C-peptide kinetics. Standard kinetic parameters were calculated by using the method proposed by Van Cauter et al. (16).

C-peptide model secretory parameters were estimated, together with a measure of their precision, by nonlinear least squares (17,18) using SAAM II software (19). When α was elevated and estimated with poor precision, the Bayesian approach implemented in SAAM II was used. Measurement error of C-peptide concentration has been assumed to be independent and gaussian, with zero mean with a constant but unknown variance. Glucose concentration, linearly interpolated between data, and its time derivative have been assumed as error-free model inputs. Area under the curve in the global index and insulin sensitivity formulas was calculated using the trapezoidal rule.

To evaluate the precision of SI, Monte Carlo methods (20) have been applied to Eq. 14 (or, when appropriate, to Eq. 7 from Caumo et al. [7]), taking into account both measurement errors of glucose and insulin concentrations (assumed to be independent and gaussian, with zero mean and a constant CV of 2 and 6%, respectively) and population variability of f and glucose effectiveness (assumed to be gaussian with a CV of 10 and 25%, respectively [7]).

Statistical analyses. Results are given as means ± SE. The statistical significance of differences between the same parameters calculated from different sampling schedules has been calculated using the Wilcoxon's signed-rank test. Linear regression and Spearman rank correlation analyses were used to examine the relationship between parameters. Significance was declared at P < 0.05.

FSOGTT300-22. Mean plasma glucose, C-peptide, and insulin concentrations during the FSOGTT300-22 are shown in Fig. 2. The C-peptide minimal model well describes experimental data, as shown by the weighted residual plot (Fig. 3). Average β-cell sensitivity indexes were as follows: Φd = 715 ± 120 and Φs = 33 ± 3 (means ± SE). They were estimated with good precision for all subjects with an average CV of 25 ± 4 and 9 ± 1%, respectively. The ISR profile was also reconstructed and is shown in Fig. 4. Average SI was 10.1 ± 2.3, and its precision averaged 12 ± 1%.

FIG. 2.

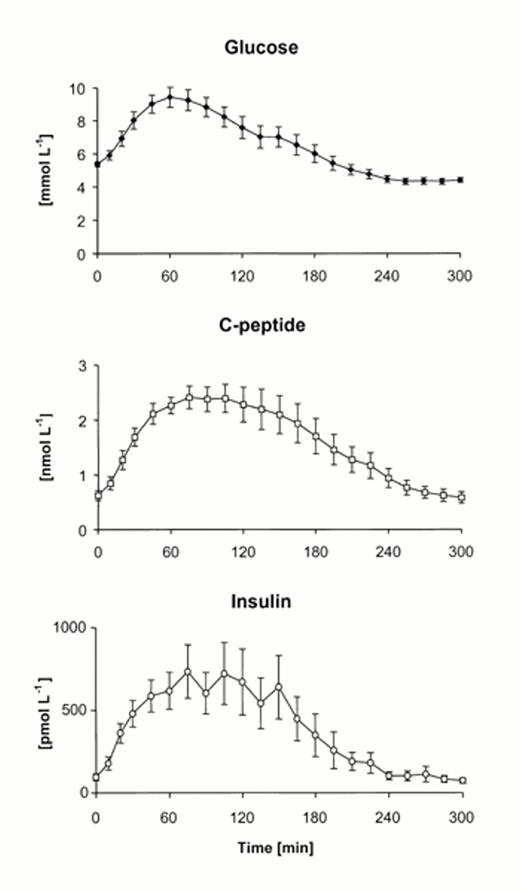

Average (mean ± SE, n = 11) concentration of plasma glucose, C-peptide, and insulin obtained during the 75-g FSOGTT300-22.

FIG. 2.

Average (mean ± SE, n = 11) concentration of plasma glucose, C-peptide, and insulin obtained during the 75-g FSOGTT300-22.

FIG. 3.

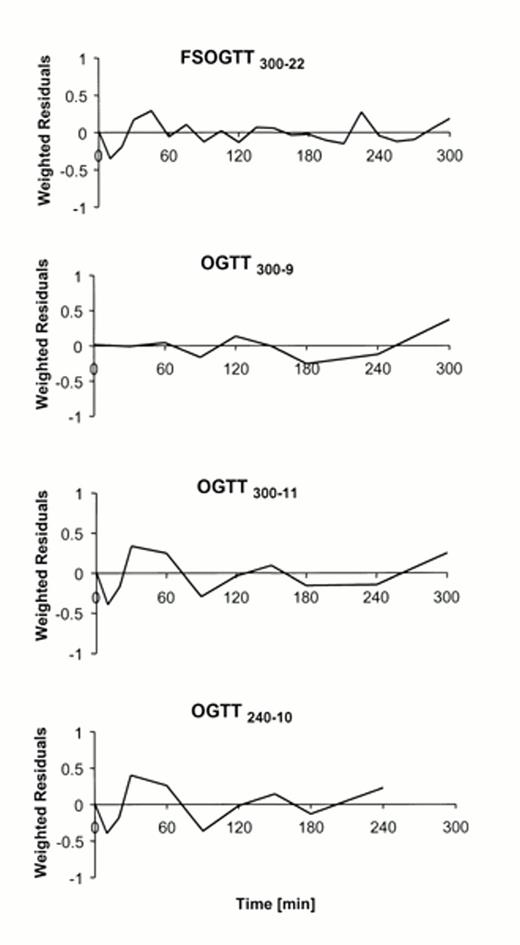

Average weighted residuals of the C-peptide minimal model.

FIG. 3.

Average weighted residuals of the C-peptide minimal model.

FIG. 4.

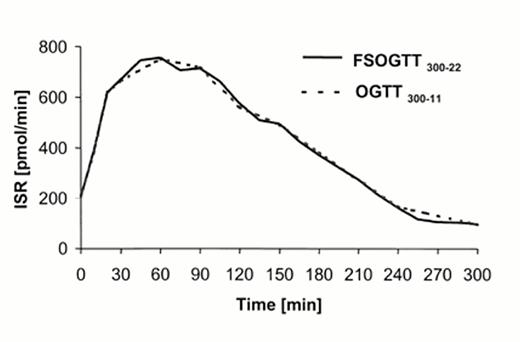

Mean β-cell secretion during FSOGTT300-22 and OGTT300-11.

FIG. 4.

Mean β-cell secretion during FSOGTT300-22 and OGTT300-11.

OGTT300-9. The C-peptide minimal model is obviously able to fit the reduced data set (Fig. 3), but Φd values (1,114 ± 224, CV 44 ± 9%) were statistically different from those estimated by using the FSOGTT300-22 (Fig. 5) and were not correlated with them (Fig. 6). The early portion of the ISR profiles (not shown) was not superimposable to that calculated using the FSOGTT300-22. These results indicate that OGTT300-9 does not accurately describe the early portion of the data, where the dynamic control of glucose is active. The values of Φs (35 ± 4, CV 15 ± 4%) and SI (10.1 ± 2.4, CV 13 ± 1%), on the other hand, did not significantly change (Figs. 5 and 6).

FIG. 5.

Effect of reduced sampling schedules on indexes Φd, Φs, and SI compared with the same indexes obtained from the FSOGTT300-22. *Comparison to FSOGTT300-22: P < 0.05.

FIG. 5.

Effect of reduced sampling schedules on indexes Φd, Φs, and SI compared with the same indexes obtained from the FSOGTT300-22. *Comparison to FSOGTT300-22: P < 0.05.

FIG. 6.

Regression plots and Spearman rank coefficient of correlation (ρs) between the indexes Φd, Φs, and SI obtained from the FSOGTT300-22 and the same indexes obtained from the OGTT300-9, OGTT300-11, and OGTT240-10, respectively.

FIG. 6.

Regression plots and Spearman rank coefficient of correlation (ρs) between the indexes Φd, Φs, and SI obtained from the FSOGTT300-22 and the same indexes obtained from the OGTT300-9, OGTT300-11, and OGTT240-10, respectively.

OGTT300-11. All the indexes, including Φd, were not different from and were well correlated with those obtained from the FSOGTT300-22d = 710 ± 111, CV 39 ± 5%; Φs = 36 ± 3, CV 13 ± 3%; SI = 10.2 ± 2.4, CV 13 ± 1%) (Figs. 5 and 6). Individual values of Φd, Φs, and SI are summarized in Table 2, together with their precision. The average ISR profiles estimated using the two protocols were also very similar (Fig. 4), thus indicating that the more accurate description of the early portion of the experiment by OGTT300-11 with respect to OGTT300-9 is essential to obtain results similar to those of the FSOGTT300-22. The weighted residual plot of the C-peptide minimal model is shown in Fig. 3.

OGTT240-10. β-Cell sensitivity indexes Φd (710 ± 126, CV 40 ± 7%), Φs (35 ± 3, CV 12 ± 1%), and SI (8.9 ± 2.1, CV 15 ± 1%) were well correlated with those obtained during the FSOGTT300-22 (Fig. 6). However, Φd and Φs did not significantly change, whereas SI was statistically different from values calculated during the FSOGTT300-22 (Fig. 5), thus indicating the importance of the 300-min sample for an accurate estimation of insulin sensitivity. The weighted residual plot of the C-peptide minimal model is shown in Fig. 3.

In this study, minimal model indexes of β-cell function and insulin sensitivity have been proposed and successfully assessed during an 11-sample 300-min OGTT in individuals with various degrees of glucose tolerance. While maintaining the possibility of estimating indexes in the single individual, the OGTT300-11 offers a number of additional advantages with respect to available approaches based on the clamp or IVGTT techniques: the oral perturbation reproduces a physiological condition, and the test is easy to perform, with potential application to large scale genetic and epidemiologic studies. These features make it an appealing tool because it may exhibit a larger statistical power than population-oriented indexes such as those proposed by Matthews et al. (21) and Matsuda and DeFronzo (22).

Minimal models, through a parsimonious description of glucose/C-peptide and glucose/insulin relationships, provide reliable indexes of β-cell function and insulin sensitivity. More precisely, β-cell sensitivity indexes have been calculated by extending to the OGTT data the C-peptide minimal model recently developed for intravenous glucose graded up and down infusion (5). The model assumptions are particularly favorable to an OGTT protocol, i.e., a situation where C-peptide and glucose concentrations show slow dynamics compared with the IVGTT, where excursions are rapid and large. The model has already been successfully used to assess β-cell function during physiological tests in normal subjects (5) and in individuals with various degrees of glucose tolerance (23). It incorporates the assumption that glucose stimulates pancreatic insulin secretion by exerting both a static (dependent on glucose concentration) and a dynamic (dependent on glucose rate of change) control. The model provides the insulin secretion profile and indexes of β-cell function: the static Φs, the dynamic Φd, and the global Φ sensitivity to glucose.

SI has been calculated by using a formula recently proposed for a meal glucose tolerance test (7). The approach associates a parsimonious parametric representation of splanchnic glucose absorption with the minimal model description of glucose disposal. This method has been validated by comparing its SI estimates to those provided by an insulin-modified IVGTT performed on the same group of 10 normal subjects. The significant correlation between the two SI indexes (ρs = 0.89, P < 0.01) indicates that a reliable measure of insulin sensitivity can be derived from either an oral test or an IVGTT.

To derive reliable estimates of β-cell function and insulin sensitivity during an OGTT, a rich database was initially used, with 22 samples taken in a 300-min OGTT (FSOGTT300-22). Then, because our objective was to propose a protocol sufficiently simple but still robust, we examined reduced sampling schedule OGTTs by using the indexes obtained from the FSOGTT300-22 as a reference for internal validation. The results indicate that 11 samples in a 300-min OGTT (OGTT300-11) are sufficient to obtain results similar to those from the FSOGTT300-22, since the two sets of indexes show high correlation (Fig. 6) and are not statistically different (Fig. 5). Also, the ISR profiles are virtually superimposable (Fig. 4). A 300-min experiment is necessary to obtain such results because the values estimated for SI during a shorter experiment (OGTT240-10) are slightly lower than those estimated during a 300-min experiment (FSOGTT300-22, OGTT300-9, and OGTT300-11). The accurate description of the early portion of the C-peptide and glucose curves, provided by the 10, 20, 30 min samples after the oral glucose ingestion, is also necessary to obtain reliable estimates of the index Φd.

OGTT minimal model indexes: NGT versus IGT. The standard 120-min OGTT, with blood samples usually drawn at 0, 30, 60, 90, and 120 min, provides the important clinical classification of glucose tolerance (10). The OGTT300-11 we propose here includes the standard samples, thus still allowing one to perform the standard classification of glucose tolerance but also enabling one to estimate indexes of β-cell function and insulin sensitivity, which help to better characterize glucose tolerance in a single individual. From our data, when OGTT300-11 indexes in NGT subjects (n = 7) were compared with those obtained in IGT subjects (n = 4), no difference was found in the pancreatic sensitivity indexes (NGT: Φd = 728 ± 124, Φs = 37 ± 4, Φ = 48 ± 6; IGT: Φd = 678 ± 241, Φs = 34 ± 6, Φ = 42 ± 9), but a statistically significant difference was found in both the SI (NGT 14.0 ± 2.7, IGT 3.4 ± 1.0) and the DI (NGT 678 ± 178, IGT 160 ± 80).

These results confirm that subjects with IGT are characterized by an inadequate insulin secretory response for the degree of insulin resistance (24) or, in other words, that IGT is characterized by a relative, rather than absolute, insulin deficiency.

OGTT versus intravenous glucose infusions. Pancreatic indexes Φs and Φd estimated from OGTT300-11 were also compared with the same indexes estimated during either IVGTT or graded up and down glucose infusions. The IVGTT counterparts of Φd and Φs are respectively the first- and second-phase sensitivity indexes Φ1 and Φ2. The values obtained during an insulin-modified IVGTT (300 mg/kg) in normal subjects (n = 15) were Φ2 = 10.9 ± 1.4 and Φ1 = 191 ± 29 (25); β-cell indexes obtained during graded up and down glucose infusions (0, 4, 8, 16, 8, 4, and 0 mg·kg-1·min-1) in nondiabetic subjects (n = 8) were Φs = 18.8 ± 1.8 and Φd = 222 ± 30 (5). Both Φs and Φd are threefold higher during OGTT than during intravenous tests. This can probably be ascribed to the presence of the well-known insulin-stimulating gastrointestinal hormones known as the incretin effect, which are secreted in response to oral but not intravenous glucose administration (26). It will be of interest in future studies to compare β-cell indexes and SI obtained from OGTTs with values obtained in the same subjects during intravenous glucose infusions—possibly during a graded up and down glucose infusion, which better simulates an OGTT. Preliminary results are available on only six of the eleven subjects studied here (four with NGT and two with IGT) who underwent both an OGTT and a graded up and down glucose infusion. The results confirmed our expectations. Indexes of β-cell function (Φd and Φs) were markedly higher during the oral perturbation (OGTT: Φd = 677 ± 154, Φs = 39 ± 5; up and down: Φd = 105 ± 43, Φs = 17 ± 3, P < 0.05). The OGTT SI was higher than the graded up and down SI (OGTT SI = 13.1 ± 3.6; up and down SI = 8.8 ± 2.3, P < 0.05) and showed a high correlation with it (ρs = 0.83)—a trend already observed during meal tolerance tests (7).

Importance of the dynamic control of glucose on insulin secretion. Indexes of β-cell function have been recently proposed in the literature based on modeling analyses of glucose and C-peptide data during a meal (6) and a 120-min OGTT (9). Both models assume a control of glucose, but not of its rate of change, on insulin secretion. This is a gross simplification because the importance of dynamic control of glucose on insulin secretion (active when glucose concentration increases) has been shown both in previous studies where graded up and down glucose infusion data were analyzed (5) and in the present study. If a model similar to the OGTT minimal model but not accounting for the dynamic glucose control is used to analyze the data, systematic deviations occur in the early portion of the OGTT (Fig. 7).

FIG. 7.

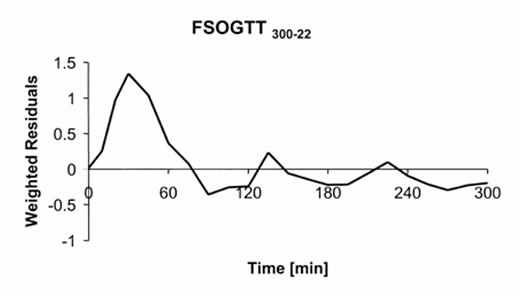

Inadequacy of a C-peptide model that simply assumes a static glucose control on insulin secretion. Mean weighted residuals show a systematic deviation in the first 60 min.

FIG. 7.

Inadequacy of a C-peptide model that simply assumes a static glucose control on insulin secretion. Mean weighted residuals show a systematic deviation in the first 60 min.

The approach proposed by Cretti et al. (9) is simplistic but particularly appealing because it only requires five samples throughout 120 min. To compare our approach with that proposed by Cretti et al., we applied the latter to our data by adopting the sampling schedule proposed in (9), i.e., 0, 30, 60, 90, and 120 min. Model fit and residual plots showed a systematic underestimation of the data between 15 and 75 min, thus indicating that the model proposed by Cretti et al. is too simplistic to describe OGTT data. The apparent glucose threshold θ (9) assumed values (often ∼0) far from basal glucose, and β-cell sensitivity σ (9) was different when compared with the minimal model counterpart (Φs). This may reflect the fact that σ incorporates both the static and the dynamic glucose controls, whereas Φs describes the static glucose control only but is more likely the consequence of numerical compensations due to differences in the estimates of threshold θ in the Cretti et al. model (often ∼0) and h in our model (always ∼Gb). In conclusion, care must be exercised in adopting simplistic but appealing methods because structural errors can lead to compensations among parameters and consequently to inaccurate β-cell portraits. We think that the protocol and the methods proposed here, which enable one to obtain a precise description of both β-cell function and insulin action in a single individual, are a good compromise between model/protocol simplicity and accuracy.

In conclusion, by extending to the OGTT the recently developed C-peptide minimal model during intravenous glucose graded up and down infusion (5) and by applying to the OGTT the minimal model formula recently proposed for a meal glucose tolerance test (7), we have shown that it is possible to simultaneously assess individual parameters of β-cell function and insulin sensitivity from an 11-sample 300-min OGTT. Of note is that OGTT300-11 preserves the important clinical classification of glucose tolerance provided by a standard 120-min OGTT. The detailed description of β-cell function and insulin action thus available in a single individual, together with the ease of execution of the protocol, should make this approach a powerful tool for measuring changes in insulin secretion and action that would also be applicable to large-scale genetic and epidemiologic studies. The present study is the first attempt to simultaneously assess insulin sensitivity and β-cell function in the single individual during an OGTT and shows encouraging results in subjects with various degrees of glucose tolerance. However, this study is definitely unfinished and further work needs to be performed to define the domain of validity of this approach throughout the whole range of glucose tolerance, including patients with diabetes.

The purpose of this section is to derive the global index of β-cell sensitivity to glucose, Φ.

Model dependent formula. Pancreatic secretion SR is the sum of a static (SRs) and a dynamic (SRd) component (Eq. 3). SRs is described in Eqs. 4 and 5. The integral from time 0 to ∞ of SRs can thus be calculated by integrating Eq. 5:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA1"></INLINE-FIG>\ \]

Because Y(∞) = Y(0), i.e., the system returns for t → ∞ to the basal steady state, the expression for

\[\ {{\int}_{0}^{{\infty}}}Y(t)\mathrm{dt}\ \]

and thus for

\[\ {{\int}_{0}^{{\infty}}}\mathrm{SR}_{\mathrm{s}}(t)\mathrm{dt}\ \]

becomes the following:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA2"></INLINE-FIG>\ \]

SRd is described in Eqs. 6 and 7. The integral from time 0 to ∞ of SRd can thus be calculated by integrating Eq. 6:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA3"></INLINE-FIG>\ \]

then

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA4"></INLINE-FIG>\ \]

By using the definition of Φd (Eq. 9), the integral from time 0 to ∞ of SRd can be expressed as follows:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA5"></INLINE-FIG>\ \]

It is thus possible to calculate the global index of β-cell sensitivity to glucose as follows:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA6"></INLINE-FIG>\ \]

Model independent formula. By integrating Eqs. 1 and 2 from 0 to ∞:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA7"></INLINE-FIG>\ \]
\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA8"></INLINE-FIG>\ \]

Because CP1(∞) = CP1(0) and CP2(∞) = CP2(0), i.e., the system returns for t → ∞ to the basal steady state, the following holds:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA9"></INLINE-FIG>\ \]
\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA10"></INLINE-FIG>\ \]

By substituting Eq. A10 in Eq. A9, Eq. A9 becomes:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA11"></INLINE-FIG>\ \]

Finally, by substituting Eq. A11 in Eq. 10, Φ is given by:

\[\ <INLINE-FIG><LINK\ LOCATOR="EQUATIONA12"></INLINE-FIG>\ \]

CV, coefficient of variation; DI, disposition index; FSOGTT300-22, frequently sampled OGTT with 22 samples throughout 300 min; IGT, impaired glucose tolerance; ISR, insulin secretion rate; IVGTT, intravenous glucose tolerance test; NGT, normal glucose tolerance; OGTT, oral glucose tolerance test; SI, insulin sensitivity index.

These studies were supported in part by U.S. National Institutes of Health Grants DK-02742, DK-31842, and DK-20595 and General Clinical Research Center Grant M01 RR00055.

The authors are indebted to Jacqueline Imperial, RN, at the Clinical Research Center at the University of Chicago for her expert care of the subjects who participated in the study. They also wish to thank Dr. Andrea Caumo for his constructive and helpful advice in the development of the manuscript.
