Type 1 diabetes is an autoimmune disease resulting from the selective destruction of insulin-producing β-cells. Cytokines may contribute to pancreatic β-cell death in type 1 diabetes. β-cell exposure to interleukin (IL)-1β induces functional impairment, whereas β-cell culture for 6–9 days in the presence of IL-1β and interferon (INF)-γ leads to apoptosis. To clarify the mechanisms involved in these effects of cytokines, we studied the general pattern of cytokine-induced gene expression in β-cells. Primary rat β-cells were fluorescence-activated cell sorter–purified and exposed for 6 or 24 h to control condition, IL-1β + INF-γ, or IL-1β alone (24 h only). Gene expression profile was analyzed in duplicate by oligonucleotide arrays. Nearly 3,000 transcripts were detected in controls and cytokine-treated β-cells. Of these, 96 and 147 displayed changes in expression after 6 and 24 h, respectively, of exposure to IL-1β + INF-γ, whereas 105 transcripts were modified after a 24-h exposure to IL-1β. The cytokine-responsive genes were clustered according to their biological functions. The major clusters observed were metabolism, signal transduction, transcription factors, protein synthesis/processing, hormones, and related receptors. These modifications in gene expression may explain some of the cytokine effects in β-cells, such as decreased protein biosynthesis and insulin release. In addition, there was induction of diverse cytokines and chemokines; this suggests that β-cells may contribute to mononuclear cell homing during insulitis. Several of the cytokine-induced genes are potentially regulated by the transcription factor NF-κB. Clarification of the function of the identified cytokine-induced gene patterns may unveil some of the mechanisms involved in β-cell damage and repair in type 1 diabetes.

Type 1 diabetes is an autoimmune disease characterized by the destruction of insulin-producing β-cells in the pancreatic islets of Langherhans (1). In both human and rodent models of type 1 diabetes, the clinical disease is preceded by a progressive mononuclear cell invasion of the islets (insulitis), which persists for several weeks/months before significant β-cell destruction occurs (2,3). In the course of insulitis, activated macrophages and T-cells secrete soluble mediators such as cytokines, oxygen free radicals, and nitric oxide, which probably all contribute to β-cell dysfunction and death (4,5,6). Studies in autoimmune diabetes-prone NOD mice and Biobreeding rats indicate that β-cell destructive insulitis is associated with increased expression of proinflammatory type 1 cytokines, such as interleukin (IL)-1β, tumor necrosis factor (TNF)-α, and interferon (INF)-γ (4,5,6).

Apoptosis is the main form of β-cell death in NOD mice (7), and there are indications that β-cells also die by apoptosis in the early stages of human type 1 diabetes (8,9). Under in vitro conditions, exposure of human, rat, or mouse purified β-cells to IL-1β, in combination with INF-γ and/or TNF-α, induces severe functional suppression and death by apoptosis (10,11,12,13,14). The prolonged time (6–9 days) required for triggering apoptosis in rodent and human β-cells suggests that de novo gene expression is involved in this process. The identity of the cytokine-affected genes leading to β-cell apoptosis or contributing to β-cell defense/repair remains to be clarified.

Using the “candidate gene” approach (15) and differential display by reverse transcriptase–polymerase chain reaction (RT-PCR) (16), we and other groups (17) have described ∼27 genes modified by IL-1β and/or INF-γ. Whereas some of these genes, such as the inducible form of nitric oxide synthase (iNOS) (5), caspase-1 (18), cyclooxygenase (COX)-2 (19), and macrophage chemoattractant protein (MCP)-1 (16), are potentially related to insulitis and β-cell damage, others, such as magnanese superoxide dismutase (MnSOD) (20), heme oxygenase (HO)-1 (21), heat shock protein (hsp)-70 (22), and A20 (23), are probably part of β-cell defense mechanisms. Unfortunately, none of these proteins seems to be the decisive factor for cytokine-induced apoptosis. It is thus conceivable that β-cell fate after immune-mediated damage will depend on an intricate pattern of dozens of genes up- or downregulated parallel and/or sequentially and not on single genes. Identification of a complex pattern of gene expression is now feasible by the use of high-density oligonucleotide probe arrays (24,25,26).

To identify early and late genes involved in cytokine-induced β-cell dysfunction and death or in defense/repair, we presently carried out expression profile of fluorescence-activated cell sorter (FACS)–purified rat β-cells exposed for 6 and 24 h to a combination of IL-1β + INF-γ or IL-1β alone (24 h). Whereas IL-1β + INF-γ leads to β-cell apoptosis (10,11,12,13,14), IL-1β alone induces β-cell functional suppression but not cell death (27,28).

Islet cell isolation and culture and nitrite measurement.

Pancreatic islets were isolated from male Wistar rats 10 weeks of age by collagenase digestion, and islet β-cells were purified by autofluorescence-activated cell sorting (29) (FACStar, Becton-Dickinson, Sunnyvale, CA). β-cell preparations were cultured at 37°C as aggregates in suspension in Ham’s F10 medium (Gibco Brl-Life Technologies, Paisley, U.K.), as previously described (30). For the microarray analysis, purified rat β-cells were precultured in Ham’s medium for 16 h and then exposed to the following conditions: control for 6 h (no cytokines added), IL-1β + INF-γ for 6 h, control for 24 h, IL-1β + INF-γ for 24 h, and IL-1β for 24 h. The number of experimental conditions tested (5) was adapted to the number of microarrays present in the Affymetrix package (5). For the RT-PCR confirmation experiments, four groups were studied (control, IL-1β, INF-γ, and IL-1β + INF-γ conditions), and all groups were studied at both 6 and 24 h. IL-1β (tested at 50 U/ml, 38 U/ng) was a kind gift from Dr. C.W. Reinolds from the National Cancer Institute, Bethesda, MD, and INF-γ (tested at 1,000 U/ml, 10 U/ng) was purchased from Holland Biotechnology, Leiden, the Netherlands. The choice of cytokine concentration and the time of exposure was based on our previous data (10,13,14,16) and aimed to identify genes that are either directly induced by the cytokine(s) and/or result from β-cell responses to cellular stress (mostly after 24 h). After a 24-h exposure to INF-γ + IL-1β, most β-cells are still viable, but ∼10% of the β-cell population is already committed to undergo apoptosis. However, the morphological changes of cell death (concomitant to nonspecific changes in gene expression) are only apparent after a subsequent 48- to 72-h culture (A.K.C. and D.L.E., data not shown). Culture media from the cells used for the microarray analysis were collected after 24 h for nitrite determination (nitrite is a stable product of NO oxidation), as previously described (31).

Microarray analysis.

For the microarray analysis, samples of control and cytokine-treated cells were harvested, and total RNA was isolated using RNeasy kit (Qiagen). Because it was difficult to obtain a sufficient number of rat β-cells in a single occasion, and in order to decrease eventual biases due to biological variation, the cells were pooled from six separated experiments, using 2.5 × 105 cells per group in each experiment. Ten micrograms total RNA were obtained from each pooled experimental group, and the RNA was converted into double-stranded cDNA using a cDNA synthesis kit (Superscript Choice; Gibco, Gaithersburg, MD) with a special oligo(dT)24 primer containing a T7 RNA promoter site added 3′ of the poly-T tract. Biotinylated cRNAs were generated from purified cDNAs using the Bioarray high-yield RNA transcript labeling kit (Enzo Diagnostics, Farmingdale, NY). The cRNA sample was purified with the RNeasy kit (Qiagen), and 20 μg of each cRNA sample was prepared and hybridized as previously described (32). Analysis of differential expression was performed by GeneChip software (version 3.3). Normalization was performed by global scaling, with the arrays scaled to an average intensity of 150. Duplicate hybridizations using separate sets of chips were performed for all conditions. Cytokine-induced differences in gene expression were considered present when the fold-change was ≥3.0 in both experiments. In case genes were previously described as modified by cytokines by other techniques or present in more than one experimental condition (with values >3 in at least one condition), we considered changes ≥2.0 sufficient for inclusion in Table 1. Note that the GeneChip software allocates an arbitrary value of 20 for genes below detection limit. This is done to allow calculation of the gene expression in the experimental group as the fold variation compared with the reference group. Thus, in cases in which the reference genes were undetectable and the allocated fold-variation was between 3 and 10, we indicated the values as >3.0 or <–3.0. If the allocated variation was >10, we indicated it as >10 or <–10.0 (Table 1). Genes were classified on different functional clusters (Table 1) based on the putative biological function of the encoded protein, as determined by database searches on PubMed, gene cards from the Weizmann Institute of Science (http://bioinfo.weizmann.ac.il/bioinfo.html), and a previously published classification scheme for cellular functions (33).

Note that our β-cell preparations have a purity of ∼95%, but also contain 1–4% of α-cells, δ-cells, and PP-cells (29). We observed the presence of both glucagon, somatostastin, peptide YY, and prepropancreatic polypeptide mRNAs among the genes detected by the present analysis (data not shown). Thus, it cannot be excluded that a minor proportion of the presently observed changes in gene expression occurred in these other cell types.

mRNA isolation and RT-PCR.

RT-PCR using specific primers was performed to confirm the differential expression of 17 mRNAs detected with the microarray analysis. The selection of RT-PCR instead of Northern blot analysis was motivated by the limited availability of primary β-cells. mRNA isolation and RT-PCR were performed as previously described (16). The number of cycles was selected to allow linear amplification of the cDNA under study. For semiquantitative PCR, the housekeeping gene glyceraldehyde 3-phosphate dehydrogenase (GAPDH) was used as control. We have previously shown (34) and confirmed in these experiments (data not shown) that IL-1β and INF-γ do not affect GAPDH mRNA expression in insulin-producing cells. The primers sequences and their respective PCR fragment lengths were as follows: GAPDH F 5′-TCCCTCAAGATTGTCAGCAA-3′, R 5′-AGATCCACAAACGGATACATT-3′ (308 bp); iNOS F 5′-GACTGCACAGAATGTTCCAG-3′, R 5′-TGGCCAGATGTTCCTCTATT-3′ (308 bp); thyrotropin-releasing hormone F 5′-CCTAACTGGTATCCCTGAAT-3′, R 5′-TGAGAACCAGGAATCCAGAA-3′ (392 bp); Isl-1 F 5′-TTTGGACGAAAGCTGTACCTG-3′, R 5′-TGGATGCAAGGGACTGAGAG-5′ (304 bp); mob-1 F 5′-TGAGTCTGAGTGGGACTCAA-3′, R 5′-CCTTGCTGCTGGAGTTACTT-3′ (452 bp); growth arrest and DNA damage (GADD)-153: F 5′-CTTTGAGACAGTGTCCAGCT-3′, R 5′-TTCAGCAAGCTGTGCCACTT-3′ (377 bp); lactate dehydrogenase B F 5′-ACTCCGTGACAGCCAATTCT-3′, R 5′-AGCATGGATTCGATGAGGTC-3′ (543 bp); gastric inhibitory peptide (GIP) receptor F 5′-ATGTGCCTGGAGATGAGGTC-3′, R 5′-ACCTGCATTCCTCTCACTGG-3′ (541 bp); GLUT1 F 5′-AACCTGTTGGCCTTTGTGTC-3′, R 5′-ATCTGCCGACCCTCTTCTTT-3′ (454 bp); IL-15-F5′-AAAGAGGAGGCGTTCTGGAT-3′, R 5′-GCTGTTTGCAAGGTAGAGCA-3′(452 bp); prolactin receptor (PRL) F 5′-CAAATGGGAAGCAGTTCCTC-3′, R 5′-CCACTGCCCAGACCATAATC-3′ (448 bp); growth hormone (GH) receptor F 5′-ATGAGCCCGATATGGTCAAC-3′, R 5′-TGGTACGTCCAGAATCGTCA-3′ (547 bp); Janus protein tyrosine kinase-2 (JAK-2) F 5′-CTGCAGGACAACACTGGAGA-3′, R 5′-GGGACTTTCACCTGGTTCCT-3′ (441 bp); nuclear factor (NF)-κB-p105 F 5′-TCATCCACCTTCATGCTCAG-3′, R 5′-GCCAACGAGATGTTGTCGTA-3′ (447 bp); C/EBPδ F 5′-GAGACTCCGAACGACCGATA-3′, R 5′-GTCAGAGCTGGTGCCTCTTT-3′ (310 bp); osteoprotegerin F 5′-CGCATCTTGATGGAGAGCTT-3′, R CATTTCAAGAGCCGGAGAAG-3′ (402 bp); macrophage inflammatory protein (MIP)-3α F 5′-TGAGAATGGCCTGCAAGCAT-3′, R 5′-TCCATTGGACAAGACCACTG-3′ (425 bp); and fractalkine F 5′-CAATCTGGATCTAGCCTCTG-3′, R 5′-AGTCGGGACAGGAGTGATA63′ (379 bp). The abundance of the PCR products of interest was expressed in pixel intensities (optical density [OD]), normalized using the maximum signal in each amplification as 10, and divided for the abundance of the GAPDH signal amplified in parallel from the same cDNA sample. The data are presented as a percentage of the respective controls. When control values were below detection limits, the data were presented as their normalized pixel intensities.

Statistical analysis.

Data are presented as means ± SE, and comparisons between groups were performed by Student’s paired t test.

To identify early and late cytokine-induced genes in pancreatic β-cells, these cells were exposed to the following treatments: control condition for 6 h, IL-1β + INF-γ for 6 h, control condition for 24 h, IL-1β + INF-γ for 24 h, and IL-1β for 24 h. After a 24-h culture, there was no detectable nitrite production by the control (non–cytokine-exposed) β-cells. On the other hand, IL-1β–treated cells released (mean ± SE) 7.0 ± 1.1 pmol nitrite · 10–3 cells · 24 h–1, whereas cells exposed to IL-1β + INF-γ released 13.6 ± 1.5 pmol nitrite · 10–3 cells · 24 h–1 (n = 6; P < 0.001 vs. cells exposed to IL-1β alone). These results are similar to our previous observations (5,35) and confirm that both IL-1β and INF-γ were biologically active.

Cells from the six separate experiments described above were pooled for RNA extraction, and the resulting biotinylated cRNAs were hybridized in duplicate to the Affymetrix rat U34-A oligonucleotide array containing ∼8,000 probes (77% known genes and 23% expression sequence tags [ESTs]). Approximately 3,000 genes or ESTs were scored as present in each of the five conditions (2,700– 3,300). The cytokine-modified known genes are shown in Table 1.

Scatter plot analysis comparing expression levels in control and cytokine-exposed β-cells at both 6 and 24 h showed a large number of cytokine-responsive genes (data not shown). After a 6-h exposure of β-cells to IL-1β + INF-γ, 96 known genes were differentially expressed (Table 1). Exposure of β-cells to the same combination of cytokines for 24 h modified the expression of 147 known genes (Table 1). IL-1β alone induced the differential expression of 105 known genes (Table 1).

To validate the microarray results, we initially compared the data with the available information on cytokine-induced gene expression (15,17). Approximately 27 genes and/or proteins have been previously described as modified by IL-1β and/or INF-γ in whole islets or β-cells using a time schedule similar to the one presently used (e.g., 6- and 24-h exposure to cytokines). Of these 27 genes, 22 were detected in the present analysis (80%). These genes are insulin (decreased), iNOS (increased), arginase (decreased), argininosuccinate synthase (AS) (increased), ornithine decarboxilase (increased), hsp-70 (increased), MnSOD (increased), HO-1 (increased), intracellular adhesion molecule (ICAM)-1 (increased), glucokinase (decreased), GLUT2 (decreased), prohormone convertase-1 (decreased), GAD65 (decreased), MCP-1 (increased), cytokine-induced neutrophyl chemoattractant (CINC)-1 (increased), CINC-3 (increased), major histocompatibility complex (MHC) class I (increased), interferon regulatory factor (IRF)-1 (increased), c-jun (increased), adenine nucleotide translocator-1 (increased), COX-2 (increased), and phospholipase-D1 (decreased). Of the five genes not detected in the present analysis, as modified by cytokines, two genes (pancreatic duodenal homeobox-1 [Pdx-1] and serine protease inhibitor-3) were not present in the array, whereas three genes were present in the array but were either considered as below detection limit (Fas and caspase-1), or were detected but considered “no change” after cytokine exposure (prohormone convertase-2).

To further validate the results of the microarray analysis, we selected 17 genes for confirmation by RT-PCR (Fig. 1). Induction of iNOS, a well-known effect of cytokines in β-cells (15), was used as a positive control. As previously described (15), IL-1β and IL-1β + INF-γ induced a high iNOS expression after 6 h, with a subsequent decline after 24 h of continuous exposure to the cytokines (Fig. 1). All 17 genes considered “changed” by the microarray analysis were confirmed by the RT-PCR as modified by cytokines. The RT-PCR analysis and the comparisons with genes and proteins previously described as modified by cytokines (see above) confirm that microarray analysis, performed in duplicate using pooled cells from several experiments, is a reliable method to detect massive variations in β-cell mRNA expression. Similar conclusions were found in a recent study in which microarray analysis was performed to determine glucose regulation of secretory and metabolic pathway genes in MIN6 insulin-producing cells (36). Note that microarrays are a relatively new technique; the present study, for instance, is the first in which this method is applied for characterization of gene expression in primary β-cells. Ideally, all genes described as modified by the microarray analysis should be confirmed by additional techniques, such as RT-PCR or Northern blot. Thus, the presently described modifications in mRNA expression, which were not confirmed by RT-PCR, should be viewed with caution.

The cytokine-responsive genes were clustered according to the putative biological function of their encoded proteins, as indicated in Table 1. The most frequent changes were observed in β-cell metabolism, with 19, 20, and 20% of all differentially expressed genes induced, respectively, by IL-1β + INF-γ for 6 h, IL-1β + INF-γ for 24 h, and IL-1β alone for 24 h. IL-1β + INF-γ induced an early suppression of β-cell metabolism, with a decrease in ∼80% of the 18 modified genes after 6 h exposure (Table 1, item 1.0). This suppression was maintained at 24 h, with nearly 70% of the metabolism-related genes inhibited by IL-1β + INF-γ or IL-1β alone. These alterations occurred in genes related to the metabolism of carbohydrates, amino acids (others than arginine), lipids, and ATP production.

Among the carbohydrate-related genes, it is noteworthy that cytokines decreased the expression of mRNAs for GLUT2 and glucokinase, whereas they increased expression of GLUT1 (Table 1, item 1.1). IL-1β–induced decreases in GLUT2 have been previously shown at the protein level (37), whereas the present microarray results on GLUT1 were confirmed by RT-PCR (Fig. 1). GLUT2-null knockout mice are hypoinsulinemic and hyperglycemic, but they regain normal insulin secretion and glycemia after transgenic expression of GLUT1 in β-cells (38). Thus, the presently observed upregulation of GLUT1 in cytokine-treated β-cells may represent an adaptive/compensatory mechanism for the decrease in GLUT2 expression. This compensatory response seems to be effective, i.e., rat islets exposed to IL-1β or IL-1β + TNF-α preserve normal glucose utilization but have defective glucose oxidation (39), probably caused by NO-induced aconitase blocking (40).

After a 24-h exposure to IL-1β or IL-1β + INF-γ, there were modifications in the expression of three key genes related to arginine metabolism and nitric oxide formation (Table 1, item 1.2). Thus, there was a parallel induction of iNOS and AS expression at 6 and 24 h, whereas arginase was inhibited. iNOS uses arginine as substrate for NO production, generating citrulline as a byproduct. Citrulline can be recycled into arginine by AS activity (41,42). This and the concomitant inhibition of arginase, an enzyme responsible for arginine degradation (43), will allow a continued arginine supply for NO production by the β-cells.

One of the well-known effects of cytokines in β-cells is inhibition of insulin mRNA expression (confirmed in the present array analysis), total protein and pro-insulin biosynthesis, and decreased insulin release (4,5,44). We presently observed downregulation after both 6- and 24-h exposures to cytokines of several genes related to protein synthesis, modification, and secretion (Table 1, item 2.0), which may at least partly explain the above described decrease in protein synthesis. Moreover, we observed modifications in the expression of two transcription factors, C/EBPβ (increased) and Isl-1 (decreased) (Table 1, item 9.0), which may contribute to decreased insulin mRNA expression. Thus, upregulation of C/EBPβ after β-cell exposure to high glucose was shown to inhibit insulin promoter activity (45), whereas downregulation of Isl-1 (Table 1, Fig. 1), a transcription factor involved in β-cell development and possibly in insulin gene transcription (46), may have a negative effect on insulin mRNA expression.

Cytokine-induced inhibition of insulin release in rat islets is related to decreased glucose oxidation and ATP production (44), but decreased insulin secretion in mouse and human islets is dissociated from inhibition of glucose metabolism (22,47). This suggests that part of the inhibitory effects of cytokines is affected at two distal steps of the insulin release process: ionic fluxes (48) and granule exocytosis (49). In line with this possibility, there were modifications in the expression of several genes encoding for ionic channels (Table 1, item 3.0). Moreover, we detected inhibitory effects of cytokines on the expression of mRNA for soluble NFS attachment protein (SNAP)-25 (mean decrease of –2.9 by IL-1β + INF-γ for 6 h, data not shown), vesicle-associated membrane protein (VAMP)-2, and rab3A (Table 1, item 2.0). These proteins are potential regulators of trafficking, docking, and fusion of secretory vesicles (50). Morphological and biochemical studies demonstrated the presence of VAMP-2 in insulin and in γ-aminobutiric acid (GABA) secretory vesicles of β-cells (51), and cleavage of both VAMP-2 and SNAP-25 by tetanus or botulinum neurotoxins block insulin exocytosis in β-cells (52,53). The rab small G protein family consists of nearly 30 members implicated in intracellular vesicle trafficking (54). Rab 3A is associated with the membrane of secretory granules of rat pancreatic β-cells, and overexpression of Rab 3A mutants decreases nutrient-stimulated insulin secretion (55). The expression of the rab-3 GDP/GTP exchange protein, which stimulates the conversion of the inactive form of Rab-3A into the active form (56), is also severely downregulated in cells treated with IL-1β or IL-1β + INF-γ for 24 h (Table 1, item 2.0). This may further aggravate an eventual decrease in insulin secretion mediated by cytokine-induced Rab-3A expression.

Cytokines downregulated expression of mRNAs encoding receptors for the incretins cholecystokinin (CKK)-A, GIP receptor (confirmed by RT-PCR) (Fig. 1), and GLP-1 receptor (Table 1, item 4.0). The roles of GLP-1, GIP, and CKK-A as in vitro and in vivo potentiators of insulin release, via cAMP generation (GIP and GLP-1) and protein kinase C activation (CKK-A), have been confirmed in experimental models, and inhibition of their respective receptors decrease insulin secretion after food intake (57). On the other hand, the fact that cytokines increase expression of the mRNAs for glucagon receptor and downregulate expression of mRNAs for somatostatin, receptor type 2 (Table 1, item 4.0), may to some extent prevent the intracellular decrease in cAMP putatively caused by the downregulation of incretin receptors. The expression of mRNAs encoding receptors for GH and PRL (both confirmed by RT-PCR) (Fig. 1) were also decreased after cytokine treatment. In vivo and in vitro studies have shown that GH and PRL increase mitotic activity in islet cells and stimulate insulin release (58). During pregnancy, upregulation of both PRL and GH receptors contributes to the compensatory increase in β-cell mass and insulin secretion (59). Thus, the observed cytokine-induced downregulation of receptors for incretins and growth factors may hamper both β-cell function in vivo and decrease the ability of these cells to compensate for the progressive immune-mediated β-cell loss.

Several chemokines, cytokines, and cell adhesion molecules were induced by either IL-1β alone or IL-1β + INF-γ (Table 1, items 5.0 and 8.0). Chemokines and cytokines were already highly induced after a 6-h exposure to IL-1β + INF-γ and, with two exceptions, their expression was maintained after a 24-h exposure to IL-1β + INF-γ. IL-1β alone induced expression of four cytokines and chemokines (mob-1 [human IP-10 confirmed by RT-PCR] [Fig. 1], CINC-1, MCP-1, and MIP-3α [confirmed by RT-PCR] [Fig. 1]), while the addition of INF-γ both potentiated the effects of IL-1β and induced expression of five additional chemokines or cytokines, namely fractalkine, osteoprotegerin (both confirmed by RT-PCR) (Fig. 1), macrophage inhibiting cytokine-1, IL-15, and IL-6. The IL-1β–induced expression of CINC-1, CINC-3, and MCP-1 by rat β-cells was previously observed by differential display with RT-PCR (16). MCP-1 attracts mononuclear cells, and recent data indicate that IL-1β also induces MCP-1 mRNA and protein expression in human islets, and that the chemokine is present in pancreatic islets of prediabetic NOD mice (M.-C. Chen, P. Proost, C. Gysemans, C. Mathieu, and D.L.E., manuscript submitted for publication). Besides these previously described chemokines, new cytokine-induced chemokines were observed, including mob-1, fractalkine, and MIP-3α. Mob-1 is a specific chemoattractant for T-helper 1 cells (60) and contributes to autoimmune diseases such as systemic lupus erythematosus (60), autoimmune encephalomyelitis (61), and autoimmune neuritis (62). Fractalkine has adhesive and chemoattractant properties for IL-2–activated NK-cells and CD8+ T-cells (63), whereas MIP-3α has a role in the migration of dendritic cells (64) and was shown to induce adhesion of memory T-cells to ICAM-1 (65) (note that ICAM-1 is also highly induced by cytokines) (Table 1, item 8.0). Among the cytokines expressed in β-cells, IL-15 and IL-6 are of special interest. IL-15 is a potent growth factor for T-, B- and NK-cells, a T-cell chemoattractant, an enhancer of the cytolitic function of effector T- and NK-cells, and a potent inducer of INF-γ production by NK-cells (66,67). The expression of this cytokine was confirmed by RT-PCR (Fig. 1). The expression of IL-6 by β-cells in response to INF-γ and TNF-α has been previously demonstrated (68), and transgenic mice overexpressing IL-6 in the β-cells develop insulitis (69). These results suggest that β-cells exposed to IL-1β and/or INF-γ express several chemokines, cytokines, and adhesion molecules that may potentially contribute to the homing, adhesion, and activation of mononuclear cells in the course of insulitis.

Cytokines also induced several genes related to antigen presentation in β-cells. This was mostly an effect of INF-γ, because IL-1β alone induced only two of these genes, whereas a combination of IL-1β + INF-γ induced 14 genes (Table 1, item 7.0). Previous studies also indicated that INF-γ is the main inducer of MHC class I mRNA and protein in rat and human islet cells (70). We presently observed that IL-1β + INF-γ upregulated several components of the “machinery” for MHC class I antigen presentation (71), including mRNAs for several MHC class I–related components, proteasome subunits, and both MTP-1 and MTP-2 (Table 1, item 7.0). MTP-1 and -2 genes encode proteins that transport peptides (released from the proteasome) from the cytosol to the endoplasmatic reticulum, where they are loaded for MHC class I presentation (71).

It was previously demonstrated that IL-1β induces activation of extracellular signal–related kinase (ERK)-1/2 and p38 mitogen-activated protein kinase (MAPK) in whole islets (72) and in purified β-cells (13). We presently observed that cytokines upregulate both p38 (mean increase 2.9 by IL-1β + INF-γ for 24 h; data not shown) and ERK-3 (Table 1, item 6.0). There were also modifications in the expression of several of mRNAs encoding enzymes, which may affect signal transduction by MAPKs. Thus, there was a decrease in the expression of MAPK-2 and MAPK phosphatase and an increase in CL100 protein tyrosine phosphatase (Table 1, item 6.0).

Cytokines lead to up- and downregulation of several transcription factors and associated proteins. Among them, the expression of the NF-κB inhibitor I-κBα was highly upregulated after a 6-h exposure by IL-1β + INF-γ (Table 1, item 9.0). After 24 h, the level of expression of this mRNA was still clearly above control levels. IL-1β alone also upregulated I-κBα but to a lesser extent. In parallel, the NF-κB–p105 gene, a precursor of both NF-κB–p50 subunit and the repressor I-κBγ (73), was upregulated at both 6 and 24 h (confirmed by RT-PCR) (Figs. 1 and Table 1, item 9.0). The transcription factor NF-κB is formed by homodimers or heterodimers of Rel/NF-κB proteins, most commonly p50/p65 (74). In nonstimulated cells, NF-κB is sequestered in the cytoplasm associated with the inhibitory molecule I-κB (74). β-cell exposure to IL-1β leads to degradation of I-κBα and nuclear translocation of NF-κB (15). Interestingly, both NF-κB–p105 and IκBα genes are responsive to NF-κB stimulation, which may explain the presently observed increase in the expression of these genes after cytokine exposure (75). The increased expression of I-κBα mRNA and consequent translation of the protein probably functions as a negative feedback for NF-κB activation. Indeed, newly synthesized I-κBα can enter the nucleus, remove NF-κB from the DNA, export the complex back to the cytoplasm, and thus restore the original latent state (74). This negative feedback may explain the decrease in iNOS expression after 24 h in spite of the continuous presence of stimulating cytokines (Fig. 1). Besides I-κBα and NF-κB–p105, we observed expression of 19 additional cytokine-modified genes that are putative target genes for NF-κB. These genes are: AS (increased), iNOS (increased), c-myc (increased), mtp-1 (increased), ICAM-1 (increased), MHC class I (increased), IL-15 (increased), IL-6 (increased), mob-1 (increased), MCP-1 (increased), CINC-1/3 (increased), IRF-1 (increased), COX-2 (increased), Osteoprotegerin (increased), MnSOD (increased), HO-1 (increased), and cyclins D1 and D3 (decreased) (41,75). This places NF-κB as a central transcription factor in the process of cytokine-induced β-cell gene expression. In line with this, recent data from our group suggest that blocking NF-κB with an I-κB super-repressor prevents cytokine-induced β-cell apoptosis (H. Heimberg, Y. Heremans, C. Jobin, R.L., M. Darville, D.L.E., manuscript submitted for publication). The transcription factors C/EBPβ and C/EBPδ were also upregulated by cytokines (Table 1, item 9.0) The microarray results for C/EBδ were confirmed by RT-PCR (Fig. 1). C/EBPβ and δ can interact with NF-κB, and both are involved in cytokine-induced MnSOD and Fas expression in pancreatic β-cells (76) (M. Darville and D.L.E., unpublished observations).

The induction of putative β-cell defense/repair genes was more evident after 24-h exposure to IL-1β + INF-γ than after exposure to IL-1β alone (Table 1, item 12.0). This is in line with previous observations suggesting that a combination of IL-1β + INF-γ induces more severe β-cell damage than IL-1β alone (4,5). Besides previously described cytokine-induced genes, such as hsp-70 and MnSOD (17), we observed induction of hsp-27, hsp-40, GADD-153 (confirmed by RT-PCR) (Fig. 1), O-6 methylguanine-DNA methyltransferase (MGMT), gas-5 growth arrest homolog, and methallothionein and MX1 gene (Table 1, item 12.0). Several of these genes are involved in DNA repair and are probably a β-cell response to nitric oxide–induced DNA damage (5). Upregulation of these genes may explain the protective effects of a short-term (24 h) β-cell exposure to low concentrations of IL-1β against a subsequent assault by alloxan, streptozotocin, or NO (37). However, this increased expression of defense/repair genes is not sufficient to prevent β-cell apoptosis after a prolonged (6–9 days) exposure to IL-1β + INF-γ. This may, at least in part, be caused by the fact that cytokines also downregulate important defense/repair genes, such as gas-6 growth arrest (a ligand of receptor tyrosine kinases AXL, Sky, and Mer that have protective effects against apoptosis caused by serum deprivation, myc overexpression, and TNF-α in NIH3T3 cells) (77) and glutathione peroxidase (an antioxidant enzyme) (Table 1, item 12.0).

Only one gene directly related to apoptosis regulation was found modified more than threefold by cytokines in the microarray analysis. Thus, the death protein-5 was increased at 24 h by both exposure to IL-1β alone and IL-1β + INF-γ. Death protein-5 is a gene induced in neuronal apoptosis, and it possesses a BH3 domain that allows interaction with Bcl-2 and Bcl-xl (78). It will be of interest to investigate whether this gene has a similar role in β-cells. The lack of observed cytokine-induced changes in several of the known pro- and antiapoptotic transcripts present in the Affymetrix array (such as Bcl-2, Bcl-x, Bad, and caspases) raises concern whether the time points selected for the present analysis (6 and 24 h) were the most adequate to detect modifications in these genes. Cytokine-induced β-cell death increases mostly after 3–6 days (10,11,12,13,14), and we cannot exclude that an array analysis performed after 36 or 48 h of cytokine exposure would detect modifications in the classic pro- and antiapoptotic genes. An alternative possibility is that β-cell death is not determined by changes in the known pro- and antiapoptotic genes but instead depends on modifications in the expression of several genes related to maintenance of β-cell phenotype and function. Additional experiments are required to clarify this issue.

A model of the effects of cytokines in pancreatic β-cells, based on the present array analysis, is provided in Fig. 2. Cytokines decrease the expression of several genes related to differentiated β-cell function and preservation of β-cell mass, including insulin, GLUT2, glucokinase, and diverse receptors for incretins and growth hormones. This loss of β-cell–specialized functions is probably associated to cytokine-induced decrease in the expression of Isl-1 (present data) and Pdx-1 (37) and may explain the impaired glucose-induced insulin release observed in prediabetic NOD mice (79). On the other hand, there is upregulation of stress-response genes and, surprisingly for such a differentiated cell, expression of genes encoding several chemokines, cytokines, and adhesion molecules, several having the potential to increase mononuclear cell homing and activity during insulitis. Most of these genes are probably upregulated as a consequence of NF-κB activation. Note that NF-κB–responsive genes may also directly contribute to β-cell apoptosis (H. Heimberg, Y. Heremans, S. Jobin, R.L., A.K.C., M. Darville, D.L.E., manuscript submitted for publication).

The present findings open new avenues for research on the mechanisms of immune-mediated β-cell death, and we intend to characterize in detail the function of several of the novel β-cell genes, both at the mRNA and protein levels. The picture that emerges from the present data is that β-cells are not passive bystanders of their own destruction. They respond to immune-mediated damage by triggering complex patterns of gene expression, with some of these genes aggravating β-cell damage, whereas others probably contribute to cell defense/repair (Fig. 2). At some point in this response, the balance is tilted toward β-cell death. A more detailed characterization of the gene patterns described in the present study and of the transcription factors regulating them may allow us to understand what tilts the balance in this direction. Hopefully, this knowledge will point to novel targeted approaches to improve β-cell survival in early type 1 diabetes.

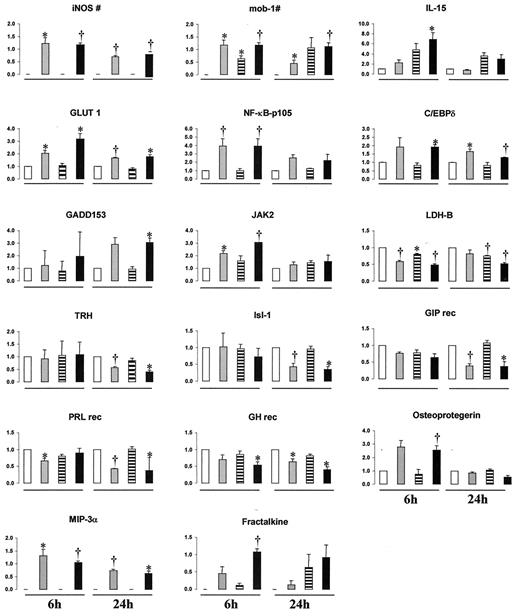

FIG. 1.

Confirmation by RT-PCR of the genes detected by duplicated microarray analysis as modified by cytokines in purified rat β-cells (Table 1). Rat β-cells (105 cells/condition) were exposed for 6 or 24 h to the following conditions: control (no cytokine added) (open bars), IL-1β (50 U/ml) (shaded bars), INF-γ (1,000 U/ml) (striped bars), and IL-1β + INF-γ (filled bars). After these time points, the cells were harvested, mRNA extracted, and RT-PCR performed with the equivalent of 1.5 × 103 cells. PCR band intensities were expressed as OD corrected for GAPDH expression. The data are presented as a percentage of the respective controls, which received an arbitrary value of 1 in each experiment. #When control values were not detectable, the absolute OD values corrected by GAPDH are presented. Data are means ± SE of 3–5 experiments. LDH-B, lactate dehydrogenase B; rec, receptor. *P < 0.05; †P < 0.01 vs. corresponding control groups, paired Student’s t test.

FIG. 1.

Confirmation by RT-PCR of the genes detected by duplicated microarray analysis as modified by cytokines in purified rat β-cells (Table 1). Rat β-cells (105 cells/condition) were exposed for 6 or 24 h to the following conditions: control (no cytokine added) (open bars), IL-1β (50 U/ml) (shaded bars), INF-γ (1,000 U/ml) (striped bars), and IL-1β + INF-γ (filled bars). After these time points, the cells were harvested, mRNA extracted, and RT-PCR performed with the equivalent of 1.5 × 103 cells. PCR band intensities were expressed as OD corrected for GAPDH expression. The data are presented as a percentage of the respective controls, which received an arbitrary value of 1 in each experiment. #When control values were not detectable, the absolute OD values corrected by GAPDH are presented. Data are means ± SE of 3–5 experiments. LDH-B, lactate dehydrogenase B; rec, receptor. *P < 0.05; †P < 0.01 vs. corresponding control groups, paired Student’s t test.

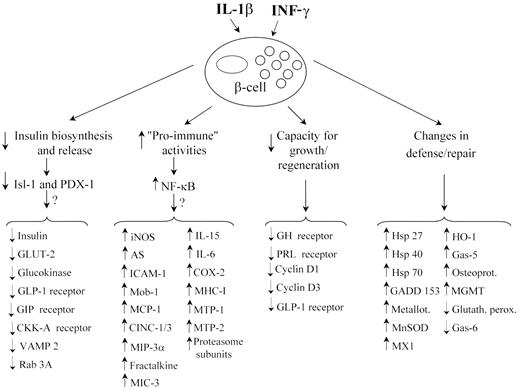

FIG. 2.

Proposed model based on the present microarray findings of the role for cytokines in the process of β-cell dysfunction and death in early type 1 diabetes. It is conceivable that a decrease in Isl-1 and PDX-1 expression and an increase in NF-κB activity contribute, respectively, to modifications in mRNAs related to insulin biosynthesis and release or proimmune activities.

FIG. 2.

Proposed model based on the present microarray findings of the role for cytokines in the process of β-cell dysfunction and death in early type 1 diabetes. It is conceivable that a decrease in Isl-1 and PDX-1 expression and an increase in NF-κB activity contribute, respectively, to modifications in mRNAs related to insulin biosynthesis and release or proimmune activities.

TABLE 1

Modifications in β-cell gene expression after cytokine exposure

Cluster/GANGene nameIL-1β + IFN-γ
IL-1β
6 h
24 h
24 h
H1H2H1H2H1H2
1.0 Metabolism
 1.1 Carbohydrates
  X59737* Creatine kinase-ubiquitous >+3.0 >+10.0 >+3.0 >+3.0 >+3.0 >+3.0
  S68135* GLUT1   +3.6 +3.8 +3.5 +4.3
  L28135 GLUT2   –4.5 –3.7
  X53588 Glucokinase   –4.9 –4.2 –4.7 –3.5
  U07181* Lactate dehydrogenase-B –4.3 –5.9
 1.2 Arginine metabolism and NO formation
  U03699* iNOS >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+3.0
  X12459 Argininosuccinate synthetase >+3.0 >+10.0 >+10.0 >+10.0 >+3.0 >+10.0
  J04792* Ornithine decarboxilase   +3.5 +2.4 +5.4 +5.6
  J02720 Arginase –2.5 –2.5 –2.1 –5.0 –5.3 –2.7
 1.3 Amino acids (other than arginine)
  M72422 GAD65 –6.4 –3.3 –5.8 –4.1 –5.3 –2.3
  U91561 Pyridoxine 5′-phosphate oxidase <–3.0 <–3.0 –3.0 –2.2 –3.1 –2.4
  M96601 Taurine transporter   –3.1 –6.3
  Z15123 S-adenosylmethionine decarboxylase <3.0 –3.3 –2.0 –3.9
  E03229 L-cysteine oxygen oxidoreductase <–3.0 <–3.0 –2.5 <–3.0
  M97662 β-alanine synthase   –3.4 –2.9 –6.0 –4.7
  M84648 L-amino acid decarboxilase   <–3.0 <–10.0 <–3.0 <–10.0
 1.4 Lipids
  S69874 c-FABP  +8.9 +9.5 +10.8 +9.8
  D17309 Δ-4-3-ketosteroid 5-β reductase   +4.6 +5.2 +3.3 +4.8
  AF048687 Lactosylceramide synthase   –3.6 –3.3
  J05035 Steroid 5 α-reductase   <–3.0 –2.4 <–3.0 <–3.0
  L27075 ATP-cytrate lyase   –2.2 –2.3 –3.8 –4.3
  S70011 Trycarboxilate carrier-mithocondrial –4.8 –2.8 –2.3 –2.8
  U44750 15-PGDH –2.7 –3.5 <–3.0 <–3.0 <–3.0 <–3.0
  M73714 Microsomal aldehyde dehydrogenase <–3.0 <–10.0 <–3.0 <–3.0
  J05470 Carnitine palmitoyltransferase II <–10.0 –2.4 <–10.0 –6.4 <–3.0 –2.3
  D00569* 2,4-dyenoyl-CoA reductase –4.3 –5.4 <–3.0 <–10.0 <–3.0 –2.3
 1.5 ATP production and processing
  U78977* ATPase (putative)   –4.5 –3.9 –3.7 –3.1
  D00636* Cytochrome b-5 reductase (NADH) <–10.0 <–3.0 <–10.0 <–10.0 <–3.0 <–10.0
 1.6 Miscellaneous
  J05519 C1-tetrahydrofolate synthase +4.1 +7.3 >+3.0 >+3.0
  D87839 GABA transaminase –4.1 –3.1
  M83143* β-galactoside α-2,6-sialyltransferase –3.0 –3.7 –8.4 –6.8 <–3.0 –2.7
2.0 Protein synthesis, modification, and secretion
 AJ000485 CLIP 115 >+3.0 >+3.0 >+3.0 >+3.0
 X00722 32S pre-rRNA +2.9 +2.7 >+3.0 >+3.0
 J03627 S-100–related protein +4.1 +3.6 +2.9 +3.8
 X77235 ARL 4 +3.0 +4.5 >+3.0 +2.9
 M24105 VAMP2   –2.7 –2.6 –3.1 –2.4
 X06889 Rab 3A <–3.0 <–3.0 <–3.0 –2.6
 M83745 Prohormone convertase-1   –3.8 –3.2
 X53565 TGN 38 –2.3 –3.3 <–3.0 –2.6 <–3.0 –7.2
 M75148 Kinesin light chain-C <–3.0 <–3.0
 U72995 Rab 3 GDP/GTP exchange protein   <–3.0 <–10.0 <–3.0 <–3.0
 M96630 Sec 61 homolog <–3.0 –2.6 –2.8 <–10.0 <–3.0 <–3.0
3.0 Ionic channels and ion transporters
 X96394 Multidrug resistance protein   >+3.0 +2.5 +3.4 +3.9
 AF008439 Nramp2 +4.6 +4.1 +2.9 +2.5 +4.4 +7.8
 M58040 Transferrin receptor   >+3.0 >+3.0
 AF004017 Eletrogenic NA + bicarbonate cotransporter >+3.0 >+3.0
 AF048828* RVDAC 1     –3.4 –3.2
 U08290 Neuronatin α   –2.4 –2.5 –3.9 –3.4
 U50842 Nedd4 ubiquitin ligase   –3.8 –3.7 –2.7 –1.9
 J04024* Ca2+ ATPase type 2 <–3.0 <–3.0 –2.3 <–3.0
4.0 Hormones and growth factors
 M11596 Calcitonin-related peptide, β +7.3 +9.7 +9.6 +11.0 +5.4 +6.1
 X63574 Somatostatin receptor type 3 >+3.0 >+10.0 >+3.0 +3.4 >+3.0 +4.1
 M25804* Rev-ErbA-α   +2.6 +3.7 +3.5 +3.7
 D15069 Adrenomedullin precursor +3.8 +3.7 +2.8 +3.2
 M96674 Glucagon receptor >+3.0 >+3.0 +3.2 +2.1 +4.9 +3.3
 Z83757 GH receptor <–3.0 –7.5 –2.3 <–3.0
 AA818097 Glucagon-like peptide 1 receptor   –3.2 –4.2 –3.4 –2.0
 M25584 Insulin 1   –3.0 –4.3 –3.1 –2.1
 M93273 Somatostatin receptor type 2 <–3.0 <–10.0 –4.2 –4.5 –4.3 –6.7
 L19660 Gastric inhibitory peptide receptor   –4.7 –5.1 –4.1 –3.7
 M74152* Prolactin receptor   –5.5 –4.7 –3.7 –2.7
 M36317* Thyrotropin releasing hormone   –5.3 –5.3 –3.7 –3.7
 D50608* Cholecystokinin-A receptor <–10.0 –8.5 <–10.0 <–10.0 <–10.0 –21.0
5.0 Cytokines, chemokines, and related receptors
 D11445 CINC-1 >+10.0 >+10.0 >+10.0 >+10.0 >+10.0 >+10.0
 U17035 Mob-1 >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+3.0
 X17053* MCP-1 >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+3.0
 AF053312 MIP-3α >+10.0 >+10.0 >+3.0 >+10.0 >+3.0 >+10.0
 AF030358* Fractalkine >+10.0 >+10.0
 U94330 Osteoprotegerin >+10.0 >+10.0
 AJ011969 MIC-1   >+3.0 >+3.0
 U45965 CINC-3 >+10.0 >+10.0 >+3.0 >+3.0
 U69272* IL-15 >+10.0 >+10.0 >+3.0 >+3.0
 M26744 IL-6 >+3.0 >+3.0 >+3.0 >+3.0
6.0 Cytokine processing and signal transduction
 M80367 Guanylate nucleotide binding protein 2 >+10.0 >+10.0 >+10.0 >+10.0
 AJ000557* JAK-2 >+3.0 >+10.0
 AF086624 Pim-3 serine threonine kinase   >+10.0 >+3.0 >+3.0 >+10.0
 D89863 M-Ras >+3.0 +15.2 >+3.0 +7.4
 S81478* 3CH134/CL100 tyrosine phosphatase >+3.0 +3.5 >+3.0 >+3.0
 M64301* ERK3 +3.3 +4.3 +3.2 +1.7 +2.4 +2.4
 M64780* Agrin +5.1 +6.2 +3.3 +2.9
 AA957896 MAPK kinase 2   –3.3 –3.4 –3.1 –2.5
 X85183 Ras-related GTPase (rag A)   –3.8 –3.4 –2.4 –2.5
 X74227 IP3 3-kinase <–3.0 <–3.0
 J05592* Phosphatase inhibitor-1 –4.2 –2.9 –3.6 –4.8 –3.1 –2.4
 U22830 P2Y purinoreceptor   –4.4 –5.0 <–3.0 <–3.0
 M85214 Tyrosine kinase receptor   –6.8 –5.1 –4.8 –3.7
 M62372 α-2-adrenergic receptor (RG 20) <–3.0 <–10.0 <–3.0 <–3.0 <–3.0 <–3.0
 M23601 Monoamine oxidase B   –7.3 –9.0 –5.6 –4.1
 AF013144 MAPK phosphatase (cpg21) –3.3 –3.7 –9.8 –10.8 –3.1 –4.5
7.0 MHC and related genes
 X57523* Mtp1 >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+10.0
 D10729 Proteasome subunit RC1 >+3.0 >+10.0 >+10.0 >+10.0 >+3.0 >+10.0
 X14254 MHC-II–assoc. invariant chain γ >+3.0 >+10.0 >+10.0 >+10.0
 X67504 MHC-I molecules   >+10.0 >+10.0
 M64795 MHC-I RT1-u haplotype >+3.0 >+10.0 >+10.0 +7.9
 AF029240* MHC-1b RT1.S3 >+10.0 >+10.0 +9.6 +16.8
 D10757* Proteasome subunit RING 12 >+10.0 >+10.0 >+3.0 >+10.0
 M31038 MHC-I non-RT1.α chain +6.9 +4.9 +8.4 +8.5
 U16025* MHC-Ib RT1 >+3.0 >+10.0 >+3.0 >+3.0
 M10094 MHC-I truncated cell surface antigen +3.6 +6.7 >+3.0 +3.8
 D30804* Proteasome subunit RC6-1   +4.2 +4.9
 X63854 Mtp2 +8.0 +12.8 +3.2 +4.9
 M15562* MHC-II RT1.u-D-α chain   +4.4 +3.1
 D45250* Proteasome activator rPA28-β +5.8 +3.8 +3.3 +4.1
8.0 Cell adhesion, cytoskeleton, and related genes
 X81449* Keratin 19 >+10.0 >+10.0 +7.7 +7.0 +7.3 +7.7
 U05675 Fibrinogen β +4.9 +5.7 +4.5 +6.9 +6.9 +9.0
 D00913 ICAM-1 >+10.0 >+10.0 >+3.0 >+3.0 >+3.0 >+3.0
 AF017437* CD 47 antigen +3.4 +3.2 +3.8 +4.0 +2.6 +2.4
 M23697 Tissue-type plasminogen activator   +3.2 3.7 +6.6 +5.7
 U49062* Antigen CD-24   –3.5 –3.2 –4.2 –3.3
 X05834* Fibronectin   –7.0 –3.9 –5.2 –4.7
 AA875659* Internexin-α –2.7 <–3.0 <–3.0 <–10.0
 D83348 Long-type PB-cadherin   <–3.0 <–10.0 <–3.0 –3.5
9.0 Transcription factors and related genes
 X63594* I-κB α-chain >+10.0 >+10.0 >+10.0 >+10.0 >+10.0 >+10.0
 AF001417 Zinc finger protein 9 >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+10.0
 Y00396* c-myc   +6.2 +4.1 +7.4 +5.0
 X17163 c-jun >+3.0 >+10.0 >+3.0 >+10.0
 M34253* IRF-1 +8.3 +12.4 +9.4 +12.4 +2.2 +2.2
 S71523 Lim-1     >+3.0 >+10.0
 J03179* D-binding protein   +5.0 +3.0 +6.5 +4.5
 L26267 NF-κB–p105 +6.1 +8.8 +8.3 +4.4 +5.0 +4.9
 AF031657 Zinc finger protein 94     >+3.0 >+3.0
 X62323 Pan-1     >+3.0 >+3.0
 M65149* C/EBPδ +2.6 +3.0 +3.5 +3.7 +4.2 +4.1
 S77528* C/EBPβ +2.5 +2.0 +3.0 +3.4 +2.7 +3.6
 S66024* CREM transcriptional repressor –2.6 –3.1 –5.1 –2.9 –6.5 –6.2
 U08214 URE-B1 DNA binding protein   –3.8 –5.5
 U04835 CREM δ C-G <–3.0 –2.2 <–3.0 –2.9 <–3.0 –2.5
 AA900476* MRG 1 –3.5 –3.5 –2.6 –3.0 –3.4 –2.3
 S69329* Isl-1 –2.5 –2.3 –6.3 –3.5 –3.0 –2.6
 U67080 Zinc finger protein MyT13   –5.0 –11.5 –3.4 –4.5
10.0 RNA synthesis and splicing factors
 AF063447 RNA helicase   >+3.0 +3.6 >+3.0 +4.4
 AF044910 Survival motor neuron     >+3.0 >+3.0
 AF036335* NonO/p54nrb –3.3 –3.3
11.0 Cell cycle
 U75404* SSeCKs 322 +7.6 +6.6
 D14014 Cyclin D1 –3.5 –2.7 –3.1 –2.1 –3.3 –2.2
 D16308 Cyclin D2   –3.1 –3.7 –2.7 –1.8
 AA874802 Histone H1 subtype O   –3.1 –4.7 –5.4 –5.8
 D16309* Cyclin D3 <–3.0 –2.9 <–3.0 <–3.0 <–3.0 –2.9
12.0 Defense/repair
 M85389* Hsp 27   >+10.0 >+10.0
 AA859648 Hsp 40-mouse homolog   +7.6 +6.0 +2.7 +2.5
 Z27118* Hsp 70-gene 1/2   +7.1 +5.3
 U30186 GADD-153   +3.6 +4.3 +4.9 +6.6
 AA875620* Hsp 70-gene 3   +3.7 +3.3 +4.6 +4.1
 M76704 MGMT   >+3.0 +2.5 >+3.0 +2.9
 M11794 Metallothionein   +2.0 +4.8 +2.1 +3.3
 U77829 Gas-5 growth arrest homolog   +3.7 +3.1 +2.1 +3.3
 Y00497 MnSOD +3.1 +3.8 +2.4 +4.1 +2.4 +3.9
 X52711 MX1 >+3.0 >+3.0 >+3.0 >+3.0
 D00680 Glutathione peroxidase   <–3.0 <–3.0 <–3.0 <–3.0
 D42148 Gas-6 growth arrest specific <–3.0 <–3.0 <–3.0 <–10.0 –2.9 <–3.0
13.0 Apoptosis
 E13573 Death protein-5   >+3.0 >+10.0 >+3.0 >+3.0
14.0 Miscellaneous
 Y0704* Best-5 >+10.0 >+10.0 >+10.0 >+10.0
 J02962 IgE binding protein +3.5 +2.8 +8.7 +11.0 +9.6 +10.2
 M29866* Complement component-3 >+3.0 >+10.0 >+3.0 >+10.0 >+3.0 >+10.0
 D88250 Complement C1 homologue >+3.0 >+10.0 >+3.0 >+10.0
 AA875037 Serine protease inhibitor-15   >+3.0 >+3.0
 S45663 Sinaptic glicoprotein-2   +4.7 +4.2 +4.0 +4.1
 S75019* Antiquitin   –3.2 –3.3 –2.6 –2.3
 U10071 CART   –5.1 –4.2 –3.4 –3.8
 D10666 Neural visinin-like protein 1 –2.1 –5.4 –4.7 –5.5 –4.7 –4.7
 AF080468* Glycogen storage disease-1b protein –3.8 –3.2 –5.6 –5.2 –3.7 –2.8
 U64030 Deoxyuridine triphosphatase <–3.0 –4.6 <–3.0 –5.8 –2.3 –2.8
Cluster/GANGene nameIL-1β + IFN-γ
IL-1β
6 h
24 h
24 h
H1H2H1H2H1H2
1.0 Metabolism
 1.1 Carbohydrates
  X59737* Creatine kinase-ubiquitous >+3.0 >+10.0 >+3.0 >+3.0 >+3.0 >+3.0
  S68135* GLUT1   +3.6 +3.8 +3.5 +4.3
  L28135 GLUT2   –4.5 –3.7
  X53588 Glucokinase   –4.9 –4.2 –4.7 –3.5
  U07181* Lactate dehydrogenase-B –4.3 –5.9
 1.2 Arginine metabolism and NO formation
  U03699* iNOS >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+3.0
  X12459 Argininosuccinate synthetase >+3.0 >+10.0 >+10.0 >+10.0 >+3.0 >+10.0
  J04792* Ornithine decarboxilase   +3.5 +2.4 +5.4 +5.6
  J02720 Arginase –2.5 –2.5 –2.1 –5.0 –5.3 –2.7
 1.3 Amino acids (other than arginine)
  M72422 GAD65 –6.4 –3.3 –5.8 –4.1 –5.3 –2.3
  U91561 Pyridoxine 5′-phosphate oxidase <–3.0 <–3.0 –3.0 –2.2 –3.1 –2.4
  M96601 Taurine transporter   –3.1 –6.3
  Z15123 S-adenosylmethionine decarboxylase <3.0 –3.3 –2.0 –3.9
  E03229 L-cysteine oxygen oxidoreductase <–3.0 <–3.0 –2.5 <–3.0
  M97662 β-alanine synthase   –3.4 –2.9 –6.0 –4.7
  M84648 L-amino acid decarboxilase   <–3.0 <–10.0 <–3.0 <–10.0
 1.4 Lipids
  S69874 c-FABP  +8.9 +9.5 +10.8 +9.8
  D17309 Δ-4-3-ketosteroid 5-β reductase   +4.6 +5.2 +3.3 +4.8
  AF048687 Lactosylceramide synthase   –3.6 –3.3
  J05035 Steroid 5 α-reductase   <–3.0 –2.4 <–3.0 <–3.0
  L27075 ATP-cytrate lyase   –2.2 –2.3 –3.8 –4.3
  S70011 Trycarboxilate carrier-mithocondrial –4.8 –2.8 –2.3 –2.8
  U44750 15-PGDH –2.7 –3.5 <–3.0 <–3.0 <–3.0 <–3.0
  M73714 Microsomal aldehyde dehydrogenase <–3.0 <–10.0 <–3.0 <–3.0
  J05470 Carnitine palmitoyltransferase II <–10.0 –2.4 <–10.0 –6.4 <–3.0 –2.3
  D00569* 2,4-dyenoyl-CoA reductase –4.3 –5.4 <–3.0 <–10.0 <–3.0 –2.3
 1.5 ATP production and processing
  U78977* ATPase (putative)   –4.5 –3.9 –3.7 –3.1
  D00636* Cytochrome b-5 reductase (NADH) <–10.0 <–3.0 <–10.0 <–10.0 <–3.0 <–10.0
 1.6 Miscellaneous
  J05519 C1-tetrahydrofolate synthase +4.1 +7.3 >+3.0 >+3.0
  D87839 GABA transaminase –4.1 –3.1
  M83143* β-galactoside α-2,6-sialyltransferase –3.0 –3.7 –8.4 –6.8 <–3.0 –2.7
2.0 Protein synthesis, modification, and secretion
 AJ000485 CLIP 115 >+3.0 >+3.0 >+3.0 >+3.0
 X00722 32S pre-rRNA +2.9 +2.7 >+3.0 >+3.0
 J03627 S-100–related protein +4.1 +3.6 +2.9 +3.8
 X77235 ARL 4 +3.0 +4.5 >+3.0 +2.9
 M24105 VAMP2   –2.7 –2.6 –3.1 –2.4
 X06889 Rab 3A <–3.0 <–3.0 <–3.0 –2.6
 M83745 Prohormone convertase-1   –3.8 –3.2
 X53565 TGN 38 –2.3 –3.3 <–3.0 –2.6 <–3.0 –7.2
 M75148 Kinesin light chain-C <–3.0 <–3.0
 U72995 Rab 3 GDP/GTP exchange protein   <–3.0 <–10.0 <–3.0 <–3.0
 M96630 Sec 61 homolog <–3.0 –2.6 –2.8 <–10.0 <–3.0 <–3.0
3.0 Ionic channels and ion transporters
 X96394 Multidrug resistance protein   >+3.0 +2.5 +3.4 +3.9
 AF008439 Nramp2 +4.6 +4.1 +2.9 +2.5 +4.4 +7.8
 M58040 Transferrin receptor   >+3.0 >+3.0
 AF004017 Eletrogenic NA + bicarbonate cotransporter >+3.0 >+3.0
 AF048828* RVDAC 1     –3.4 –3.2
 U08290 Neuronatin α   –2.4 –2.5 –3.9 –3.4
 U50842 Nedd4 ubiquitin ligase   –3.8 –3.7 –2.7 –1.9
 J04024* Ca2+ ATPase type 2 <–3.0 <–3.0 –2.3 <–3.0
4.0 Hormones and growth factors
 M11596 Calcitonin-related peptide, β +7.3 +9.7 +9.6 +11.0 +5.4 +6.1
 X63574 Somatostatin receptor type 3 >+3.0 >+10.0 >+3.0 +3.4 >+3.0 +4.1
 M25804* Rev-ErbA-α   +2.6 +3.7 +3.5 +3.7
 D15069 Adrenomedullin precursor +3.8 +3.7 +2.8 +3.2
 M96674 Glucagon receptor >+3.0 >+3.0 +3.2 +2.1 +4.9 +3.3
 Z83757 GH receptor <–3.0 –7.5 –2.3 <–3.0
 AA818097 Glucagon-like peptide 1 receptor   –3.2 –4.2 –3.4 –2.0
 M25584 Insulin 1   –3.0 –4.3 –3.1 –2.1
 M93273 Somatostatin receptor type 2 <–3.0 <–10.0 –4.2 –4.5 –4.3 –6.7
 L19660 Gastric inhibitory peptide receptor   –4.7 –5.1 –4.1 –3.7
 M74152* Prolactin receptor   –5.5 –4.7 –3.7 –2.7
 M36317* Thyrotropin releasing hormone   –5.3 –5.3 –3.7 –3.7
 D50608* Cholecystokinin-A receptor <–10.0 –8.5 <–10.0 <–10.0 <–10.0 –21.0
5.0 Cytokines, chemokines, and related receptors
 D11445 CINC-1 >+10.0 >+10.0 >+10.0 >+10.0 >+10.0 >+10.0
 U17035 Mob-1 >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+3.0
 X17053* MCP-1 >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+3.0
 AF053312 MIP-3α >+10.0 >+10.0 >+3.0 >+10.0 >+3.0 >+10.0
 AF030358* Fractalkine >+10.0 >+10.0
 U94330 Osteoprotegerin >+10.0 >+10.0
 AJ011969 MIC-1   >+3.0 >+3.0
 U45965 CINC-3 >+10.0 >+10.0 >+3.0 >+3.0
 U69272* IL-15 >+10.0 >+10.0 >+3.0 >+3.0
 M26744 IL-6 >+3.0 >+3.0 >+3.0 >+3.0
6.0 Cytokine processing and signal transduction
 M80367 Guanylate nucleotide binding protein 2 >+10.0 >+10.0 >+10.0 >+10.0
 AJ000557* JAK-2 >+3.0 >+10.0
 AF086624 Pim-3 serine threonine kinase   >+10.0 >+3.0 >+3.0 >+10.0
 D89863 M-Ras >+3.0 +15.2 >+3.0 +7.4
 S81478* 3CH134/CL100 tyrosine phosphatase >+3.0 +3.5 >+3.0 >+3.0
 M64301* ERK3 +3.3 +4.3 +3.2 +1.7 +2.4 +2.4
 M64780* Agrin +5.1 +6.2 +3.3 +2.9
 AA957896 MAPK kinase 2   –3.3 –3.4 –3.1 –2.5
 X85183 Ras-related GTPase (rag A)   –3.8 –3.4 –2.4 –2.5
 X74227 IP3 3-kinase <–3.0 <–3.0
 J05592* Phosphatase inhibitor-1 –4.2 –2.9 –3.6 –4.8 –3.1 –2.4
 U22830 P2Y purinoreceptor   –4.4 –5.0 <–3.0 <–3.0
 M85214 Tyrosine kinase receptor   –6.8 –5.1 –4.8 –3.7
 M62372 α-2-adrenergic receptor (RG 20) <–3.0 <–10.0 <–3.0 <–3.0 <–3.0 <–3.0
 M23601 Monoamine oxidase B   –7.3 –9.0 –5.6 –4.1
 AF013144 MAPK phosphatase (cpg21) –3.3 –3.7 –9.8 –10.8 –3.1 –4.5
7.0 MHC and related genes
 X57523* Mtp1 >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+10.0
 D10729 Proteasome subunit RC1 >+3.0 >+10.0 >+10.0 >+10.0 >+3.0 >+10.0
 X14254 MHC-II–assoc. invariant chain γ >+3.0 >+10.0 >+10.0 >+10.0
 X67504 MHC-I molecules   >+10.0 >+10.0
 M64795 MHC-I RT1-u haplotype >+3.0 >+10.0 >+10.0 +7.9
 AF029240* MHC-1b RT1.S3 >+10.0 >+10.0 +9.6 +16.8
 D10757* Proteasome subunit RING 12 >+10.0 >+10.0 >+3.0 >+10.0
 M31038 MHC-I non-RT1.α chain +6.9 +4.9 +8.4 +8.5
 U16025* MHC-Ib RT1 >+3.0 >+10.0 >+3.0 >+3.0
 M10094 MHC-I truncated cell surface antigen +3.6 +6.7 >+3.0 +3.8
 D30804* Proteasome subunit RC6-1   +4.2 +4.9
 X63854 Mtp2 +8.0 +12.8 +3.2 +4.9
 M15562* MHC-II RT1.u-D-α chain   +4.4 +3.1
 D45250* Proteasome activator rPA28-β +5.8 +3.8 +3.3 +4.1
8.0 Cell adhesion, cytoskeleton, and related genes
 X81449* Keratin 19 >+10.0 >+10.0 +7.7 +7.0 +7.3 +7.7
 U05675 Fibrinogen β +4.9 +5.7 +4.5 +6.9 +6.9 +9.0
 D00913 ICAM-1 >+10.0 >+10.0 >+3.0 >+3.0 >+3.0 >+3.0
 AF017437* CD 47 antigen +3.4 +3.2 +3.8 +4.0 +2.6 +2.4
 M23697 Tissue-type plasminogen activator   +3.2 3.7 +6.6 +5.7
 U49062* Antigen CD-24   –3.5 –3.2 –4.2 –3.3
 X05834* Fibronectin   –7.0 –3.9 –5.2 –4.7
 AA875659* Internexin-α –2.7 <–3.0 <–3.0 <–10.0
 D83348 Long-type PB-cadherin   <–3.0 <–10.0 <–3.0 –3.5
9.0 Transcription factors and related genes
 X63594* I-κB α-chain >+10.0 >+10.0 >+10.0 >+10.0 >+10.0 >+10.0
 AF001417 Zinc finger protein 9 >+10.0 >+10.0 >+10.0 >+10.0 >+3.0 >+10.0
 Y00396* c-myc   +6.2 +4.1 +7.4 +5.0
 X17163 c-jun >+3.0 >+10.0 >+3.0 >+10.0
 M34253* IRF-1 +8.3 +12.4 +9.4 +12.4 +2.2 +2.2
 S71523 Lim-1     >+3.0 >+10.0
 J03179* D-binding protein   +5.0 +3.0 +6.5 +4.5
 L26267 NF-κB–p105 +6.1 +8.8 +8.3 +4.4 +5.0 +4.9
 AF031657 Zinc finger protein 94     >+3.0 >+3.0
 X62323 Pan-1     >+3.0 >+3.0
 M65149* C/EBPδ +2.6 +3.0 +3.5 +3.7 +4.2 +4.1
 S77528* C/EBPβ +2.5 +2.0 +3.0 +3.4 +2.7 +3.6
 S66024* CREM transcriptional repressor –2.6 –3.1 –5.1 –2.9 –6.5 –6.2
 U08214 URE-B1 DNA binding protein   –3.8 –5.5
 U04835 CREM δ C-G <–3.0 –2.2 <–3.0 –2.9 <–3.0 –2.5
 AA900476* MRG 1 –3.5 –3.5 –2.6 –3.0 –3.4 –2.3
 S69329* Isl-1 –2.5 –2.3 –6.3 –3.5 –3.0 –2.6
 U67080 Zinc finger protein MyT13   –5.0 –11.5 –3.4 –4.5
10.0 RNA synthesis and splicing factors
 AF063447 RNA helicase   >+3.0 +3.6 >+3.0 +4.4
 AF044910 Survival motor neuron     >+3.0 >+3.0
 AF036335* NonO/p54nrb –3.3 –3.3
11.0 Cell cycle
 U75404* SSeCKs 322 +7.6 +6.6
 D14014 Cyclin D1 –3.5 –2.7 –3.1 –2.1 –3.3 –2.2
 D16308 Cyclin D2   –3.1 –3.7 –2.7 –1.8
 AA874802 Histone H1 subtype O   –3.1 –4.7 –5.4 –5.8
 D16309* Cyclin D3 <–3.0 –2.9 <–3.0 <–3.0 <–3.0 –2.9
12.0 Defense/repair
 M85389* Hsp 27   >+10.0 >+10.0
 AA859648 Hsp 40-mouse homolog   +7.6 +6.0 +2.7 +2.5
 Z27118* Hsp 70-gene 1/2   +7.1 +5.3
 U30186 GADD-153   +3.6 +4.3 +4.9 +6.6
 AA875620* Hsp 70-gene 3   +3.7 +3.3 +4.6 +4.1
 M76704 MGMT   >+3.0 +2.5 >+3.0 +2.9
 M11794 Metallothionein   +2.0 +4.8 +2.1 +3.3
 U77829 Gas-5 growth arrest homolog   +3.7 +3.1 +2.1 +3.3
 Y00497 MnSOD +3.1 +3.8 +2.4 +4.1 +2.4 +3.9
 X52711 MX1 >+3.0 >+3.0 >+3.0 >+3.0
 D00680 Glutathione peroxidase   <–3.0 <–3.0 <–3.0 <–3.0
 D42148 Gas-6 growth arrest specific <–3.0 <–3.0 <–3.0 <–10.0 –2.9 <–3.0
13.0 Apoptosis
 E13573 Death protein-5   >+3.0 >+10.0 >+3.0 >+3.0
14.0 Miscellaneous
 Y0704* Best-5 >+10.0 >+10.0 >+10.0 >+10.0
 J02962 IgE binding protein +3.5 +2.8 +8.7 +11.0 +9.6 +10.2
 M29866* Complement component-3 >+3.0 >+10.0 >+3.0 >+10.0 >+3.0 >+10.0
 D88250 Complement C1 homologue >+3.0 >+10.0 >+3.0 >+10.0
 AA875037 Serine protease inhibitor-15   >+3.0 >+3.0
 S45663 Sinaptic glicoprotein-2   +4.7 +4.2 +4.0 +4.1
 S75019* Antiquitin   –3.2 –3.3 –2.6 –2.3
 U10071 CART   –5.1 –4.2 –3.4 –3.8
 D10666 Neural visinin-like protein 1 –2.1 –5.4 –4.7 –5.5 –4.7 –4.7
 AF080468* Glycogen storage disease-1b protein –3.8 –3.2 –5.6 –5.2 –3.7 –2.8
 U64030 Deoxyuridine triphosphatase <–3.0 –4.6 <–3.0 –5.8 –2.3 –2.8

 Data are fold-variation for the gene with the indicated access number. In some cases, the fold-change was arbitrarily estimated by the software due to undetectable expression in one of the groups being studied (see research design and methods). In these cases, when the allocated fold-variation was between 3 and 10, it is indicated as >+3.0 or <–3.0. If the allocated variation was >10, we indicated it as >+10 or <–10. The genes are ordered taking into account the fold-variation in gene expression of the cells exposed for 24 h to IL-1β + INFγ. The data are from individual duplicate hybridizations (H)-1 and H2.

*

Different expression of a gene detected by more than one group of probes. +, increased; –, decreased compared with respective controls (β-cells not exposed to cytokines; 6 or 24 h). ARL4, ADP-ribosylation–like 4; CART, cocaine- and amphetamine-regulated transcript; c-FABP, cutaneous fatty acid binding protein; CREM, cAMP-responsive element modulator; GAN, GenBank accession number; RvDAL, voltage-dependent anion channel; TGN, Trans-Golgi network integral membrane protein.

This work was supported by grants from the Juvenile Diabetes Foundation International, the Fond for Scientific Research Flanders, and the Karen Elisa Jensen Fond.

The assistance of the Diabetes Research Center personnel involved in β-cell purification and that of Meng-Chi Chen and Hanne Steen is gratefully acknowledged.

1.
Kukreja A, Maclaren NK: Autoimmunity and diabetes.
J Clin Endocrinol Metab
84
:
4371
–4378,
1999
2.
Pipeleers D, Ling Z: Pancreatic beta cells in insulin dependent diabetes.
Diab Met Rev
8
:
209
–227,
1992
3.
Kay TWH, Thomas HE, Harrison LC, Allisson J: The beta-cell in autoimmune diabetes: many mechanisms and pathways of loss.
Trends Endocrinol Metab
11
:
11
–15,
2000
4.
Mandrup-Poulsen T: The role of interleukin-1 in the pathogenesis of insulin-dependent diabetes mellitus.
Diabetologia
39
:
1005
–1029,
1996
5.
Eizirik DL, Pavlovic D: Is there a role for nitric oxide in β-cell dysfunction and damage in IDDM?
Diabete Metab Rev
13
:
293
–308,
1997
6.
Rabinovicht A: An update on cytokines in the pathogenesis of insulin-dependent diabetes mellitus.
Diabete Metab Rev
14
:
129
–151,
1998
7.
Mauricio D, Mandrup-Poulsen T: Apoptosis and the pathogenesis of IDDM: a question of life and death.
Diabetes
47
:
1537
–1543,
1998
8.
Stassi G, Maria RD, Trucco G, Rudert W, Testi R, Galluzo A, Giordano C, Trucco M: Nitric oxide primes pancreatic beta cells for Fas-mediated destruction in insulin-dependent diabetes mellitus.
J Exp Med
186
:
1193
–1200,
1997
9.
Moriwaki M, Itoh N, Miyagawa J, Yamamoto K, Imagawa A, Ymagata K, Iwahashi H, Nakajima H, Namba M, Nagata S, Hanafusa T, Matsuaza Y: Fas and fas ligand expression in inflamated islets in pancreas sections of patients with recent-onset type I diabetes mellitus.
Diabetologia
42
:
1332
–1340,
1999
10.
Delaney CA, Pavlovic D, Hoorens A, Pipeleers DG, Eizirik DL: Cytokines induce deoxyribonucleic acid strand breaks and apoptosis in human pancreatic islets.
Endocrinology
138
:
2610
–2614,
1997
11.
Hoorens A, Pipeleers D: Nicotinamide protects human beta cells against chemically induced necrosis, but not against cytokine induced apoptosis.
Diabetologia
42
:
55
–59,
1999
12.
Pavlovic D, Chen M-C, Gysemans CA, Mathieu C, Eizirik DL: The role of interferon regulatory factor-1 in cytokine-induced mRNA expression and cell death in murine pancreatic β-cells.
Eur Cytokine Netw
10
:
403
–411,
1999
13.
Pavlovic D, Andersen NA, Mandrup-Poulsen T, Eizirik DL: Activation of extracellular signal-regulated kinase (ERK) 1/2 contributes to cytokine-induced apoptosis in purified rat pancreatic β-cells.
Eur Cytokine Netw
2
:
267
–274,
2000
14.
Liu D, Pavlovic D, Chen M-C, Flodström M, Sandler S, Eizirik DL: Cytokines induce apoptosis in β-cells isolated from mice lacking the inducible form of nitric oxide synthase (iNOS–/–).
Diabetes
49
:
1116
–1122,
2000
15.
Eizirik DL, Flodström M, Karlsen AE, Welsh N: The harmony of the spheres: inducible nitric oxide synthase and related genes in pancreatic beta cells.
Diabetologia
39
:
875
–890,
1996
16.
Chen M-C, Schuit F, Eizirik DL: Identification of IL-1β–induced messenger RNA in rat pancreatic beta cells by differential display of messenger RNA.
Diabetologia
39
:
875
–890,
1999
17.
Eizirik DL, Darville M: β-cell apoptosis and defense mechanisms: lessons from type 1 diabetes.
Diabetes
50 (Suppl. 1)
:
S64
–S69,
2001
18.
Karlsen AE, Pavlovic D, Nielsen K, Jensen J, Andersen HU, Pociot F, Mandrup-Poulsen T, Eizirik DL, Nerup J: Interferon-γ induces interleukin-1 converting enzyme in pancreatic islets by an interferon regulatory fator-1-dependent mechanism.
J Clin Endocrinol Metab
85
:
830
–836,
2000
19.
Corbett JA, Kwon G, Turk J, McDaniel ML: IL-1β induces the coexpression of both nitric oxide synthase and cyclooxygenase by islets of Langerhans: activation of cyclooxygenase by nitric oxide.
Biochemistry
32
:
13767
–13770,
1993
20.
Borg LAH, Cagliero E, Sandler S, Welsh N, Eizirik DL: Interleukin-1β increases the activity of superoxide dismutase in rat pancreatic islets.
Endocrinology
130
:
2851
–2857,
1992
21.
Helqvist S, Polla BS, Johannesen J, Nerup J: Heat shock protein induction in rat pancreatic islets by recombinant human interleukin 1β.
Diabetologia
34
:
150
–156,
1991
22.
Eizirik DL, Welsh M, Strandell E, Welsh N, Sandler S: Interleukin-1 beta depletes insulin messenger ribonucleic acid and increases the heat shock protein hsp-70 in mouse pancreatic islets without impairing the glucose metabolism.
Endocrinology
127
:
2290
–2297,
1990
23.
Grey ST, Arvelo MB, Hasenkamp W, Bach FH, Ferran C: A20 inhibits cytokine-induced apoptosis and nuclear factor κB-dependent gene activation in islets.
J Exp Med
190
:
1135
–1145,
1999
24.
Lipshutz RJ, Fodor SP, Gingeras TR, Lockhart DJ: High density synthetic oligonucleotide arrays.
Nat Genet
21 (Suppl. 1)
:
20
–24,
1999
25.
Lockhart DJ, Winzeler EA: Genomics, gene expression, and DNA arrays.
Nature
405
:
827
–836,
2000
26.
Celis JE, Kruhøffer M, Gromova I, Frederiksen C, Østergaard M, Thykjaer T, Gromov P, Yu Y, Palsdottir H, Magnusson N, Orntoft TF: Gene expression profiling: monitoring transcription and translation products using DNA microarrays and proteomics.
FEBS Lett
480
:
2
–16,
2000
27.
Ling Z, In’t Veld PA, Pipeleers DG: Interaction of interleukin-1 with islet β-cells: distinction between indirect, aspecific cytotoxicity and direct, specific functional suppression.
Diabetes
42
:
56
–65,
1993
28.
Ling Z, Chen M-C, Smismans A, Pavlovic D, Schuit F, Eizirik DL, Pipeleers DG: Intercellular differences in interleukin 1β-induced suppression of insulin synthesis and stimulation of non-insulin proteins synthesis by rat pancreatic β-cells.
Endocrinology
139
:
1540
–1545,
1998
29.
Pipeleers DG, In’t Veld P, Van de Winkel M, Maes E, Schuit FC, Gepts W: A new in vitro model for the study of pancreatic A and B cells.
Endocrinology
117
:
806
–816,
1985
30.
Ling Z, Hannaert JC, Pipeleers D: Effect of nutrients, hormones and serum on survival of rat islet beta-cells in culture.
Diabetologia
37
:
15
–21,
1994
31.
Green LC, Wagner DA, Goglowski J, Skipper PL, Wishnok JS, Tannenbaum SR: Analysis of nitrate, nitrite, and [15N] nitrate in biological fluids.
Anal Biochem
126
:
131
–138,
1982
32.
Der SD, Zhou A, Williams BRG, Silverman RH: Identification of genes differentially regulated by interferon α, β or γ using oligonucleotide arrays.
Proc Natl Acad Sci U S A
95
:
15623
–15628,
1998
33.
Adams MD, Kerlavage AR, Fleischmann RD, Fuldner RA, Bult CJ, Lee NH, Kirkness EF, Weinstock KG, Gocayne JD, White O: Initial assignment of human gene diversity and expression patterns based upon 83 million nucleotides of cDNA sequence.
Nature
377 (Suppl. 6547)
:
3
–174,
1995
34.
Eizirik DL, Bjorklund A, Cagliero E: Genotoxic agents increase expression of growth arrest and DNA damage-inducible genes GADD 153 and GADD 45 in rat pancreatic islets.
Diabetes
42
:
738
–745,
1993
35.
Darville M, Eizirik DL: Regulation by cytokines of the inducible nitric oxide synthase promoter in insulin-producing cells.
Diabetologia
41
:
1101
–1108,
1998
36.
Webb GC, Akbar MS, Zhao C, Steiner DF: Expression profiling of pancreatic β-cells: glucose regulation of secretory and metabolic pathway genes.
Proc Natl Acad Sci U S A
97
:
5773
–5778,
2000
37.
Ling Z, Van de Casteele M, Eizirik DL, Pipeleers DG: Interleukin-1β–induced alteration in a β-cell phenotype can reduce cellular sensitivity to conditions that cause necrosis but not to cytokine-induced apoptosis.
Diabetes
49
:
340
–345,
2000
38.
Thorens B, Guillam M-T, Beermann F, Burcelin R, Jaquet M: Transgenic re-expression of GLUT1 or GLUT2 in pancreatic β-cells rescues GLUT2-null mice from early death and restores normal glucose-stimulated insulin secretion.
J Biol Chem
275
:
23751
–23758,
2000
39.
Eizirik DL: Interleukin-1 induced impairment in pancreatic islet oxidative metabolism of glucose is potentiated by tumor necrosis factor.
Acta Endocrinol
119
:
321
–325,
1988
40.
Welsh N, Eizirik DL, Bendtzen K, Sandler S: Interleukin-1β–induced nitric oxide production in isolated rat pancreatic islet requires gene transcription and may lead to inhibition of the Krebs cycle enzyme aconitase.
Endocrinology
129
:
3167
–3173,
1991
41.
Flodström M, Niemann A, Bedoya FJ, Morris SM Jr, Eizirik DL: Expression of the citruline-nitric oxide cycle in rodent and human pancreatic β-cells: induction of argininosuccinate synthetase by cytokines.
Endocrinology
136
:
3200
–3206,
1995
42.
Flodström M, Chen M-C, Smismans A, Schuit F, Pipeleers DG, Eizirik DL: Interleukin 1β increases arginine accumulation and activates the citruline-NO cycle in rat pancreatic β-cells.
Cytokine
11
:
400
–407,
1998
43.
Cunningham JM, Mabley JG, Green IC: Interleukin 1β-mediated inhibition of arginase in RINm5F cells.
Cytokine
9
:
570
–576,
1997
44.
Sandler S, Eizirik DL, Svenson C, Strandell E, Welsh M, Welsh N: Biochemical and molecular actions of interleukin-1 on pancreatic β-cells.
Autoimmunity
10
:
241
–253,
1991
45.
Lu M, Seufert J, Habener JF: Pancreatic β-cell-specific repression of insulin gene transcription by CCAAT/enhancer-binding protein β.
J Biol Chem
272
:
28349
–28359,
1997
46.
Edlund H: Transcribing pancreas.
Diabetes
47
:
1817
–1823,
1998
47.
Eizirik DL, Sandler S, Welsh N, Cetkovic-Cvrlje M, Nieman A, Geller DA, Pipeleers DG, Bendtzen K, Hellerström C: Cytokines suppress human islet function irrespective of their effects on nitric oxide generation.
J Clin Invest
93
:
1968
–1974,
1994
48.
Rajan AS, Aguilar-Bryan L: Ion channel signal transduction in pancreatic β-cells. In
Advances in Molecular and Cell Biology
. Vol. 29. Bittar EE, Howel SL, Eds. Greenwich, CT, Jai Press,
1999
, p.
227
–246
49.
Regazzi R: Mechanism of insulin exocytosis. In
Advances in Molecular and Cell Biology
. Bittar EE, Howel SL, Eds. Vol. 29. Greenwich, Connecticut, Jai Press,
1999
, p.
151
–172
50.
Brunger AT: Structural insights into the molecular mechanism of Ca+2-dependent exocytosis.
Curr Opin Neurobiol
10
:
293
–302,
2000
51.
Regazzi R, Sasaki T, Takahashi K, Jonas JC, Volker C, Stock JB, Takai Y, Wollheim CB: Prenylcysteine analogs mimicking the C-terminus of GTP-binding proteins stimulate exocytosis from permeabilized HIT-T15 cells.
Bioch Biophys Acta
1268
:
268
–278,
1995
52.
Regazzi R, Wollheim CB, Lang J, Theler JM, Rosseto O, Montecucco C, Sadoul K, Weller U, Palmer M, Thorens B: VAMP-2 and cellubrevin are expressed in pancreatic β-cells and are essential for Ca2+ but not for GTP-γ S-induced insulin secretion.
EMBO J
14
:
2723
–2730,
1995
53.
Sadoul K, Lang J, Montecucco C, Weller U, Regazzi R, Casticas S, Wollheim CB, Halban PA: SNAP-25 is expressed in islets of Langherhans and is involved in insulin release.
J Cell Biol
128
:
1019
–1028,
1995
54.
Pfeffer SR: Rab GTPases: master regulators of membrane trafficking.
Curr Opin Cell Biol
6
:
522
–526,
1994
55.
Regazzi R, Ravazzola M, Iezzi M, Lang J, Zahraoui A, Anderggen E, Morel P, Takai Y, Wollheim CB: Expression, localization and functional role of small GTPases of the Rab3 family in insulin-secreting cells.
J Cell Sci
109
:
2265
–2273,
1996
56.
Wada M, Nakanishi H, Satoh A, Hirano H, Obaishi H, Matsuura Y, Takai Y: Isolation and characterization of a GDP/GTP exchange protein specific for the rab3 subfamily small G proteins.
J Biol Chem
272
:
3875
–3878,
1997
57.
Ahrén B: Potentiators and inhibitors of insulin secretion. In
Advances in Molecular and Cell Biology
. Bittar EE, Howel SL, Eds. Vol. 29. Greenwich, CT, Jai Press,
1999
, p.
191
–202
58.
Nielsen JH, Svensson C, Galsgaard ED, Møldrup A, Billestrup N: Beta cell proliferation and growth factors.
J Mol Med
77
:
62
–66,
1999
59.
Møldrup A, Petersen ED, Nielsen JH: Effects of sex and pregnancy hormones on growth hormone and prolactin receptor gene expression in insulin-producing cells.
Endocrinology
133
:
1165
–1172,
1993
60.
Narumi S, Takeuchi T, Kobayashi Y, Konishi K: Serum levels of INF-inducible protein-10 relating to the activity of systemic lupus erythematosus.
Cytokine
12
:
1561
–1565,
2000
61.
Fischer FR, Santambrogio L, Luo Y, Berman MA, Hancock WW, Dorf ME: Modulation of experimental autoimmune encephalomyelitis: effect of altered peptide ligand on chemokine and chemokine receptors expression.
J Neuroimmunol
110
:
121
–129,
2000
62.
Kieiser BC, Krivacic K, Jung S, Pischel H, Toyka KV, Ransohoff RM, Hartung H: Sequential expression of chemokines in experimental autoimmune neuritis.
J Neuroimmunol
110
:
121
–129,
2000
63.
Fairchild RL, Kobayashi H, Miura M: Chemokines and the recruitment of inflammatory infiltrates into allografts.
Graft
3
:
524
–531,
2000
64.
Power CA, Church DJ, Meyer A, Alouani S, Proudfoot EI, Clark-Lewis I, Sozzani S, Mantovani A, Wells TNC: Cloning and characterization of a specific receptor for the novel CC chemokine MIP-3α from lung dendritic cells.
J Exp Med
186
:
825
–835,
1997
65.
Campbell JJ, Hedrick J, Zlotnik A, Siani MA, Thompson DA, Butcher EC: Chemokines and the arrest of lymphocytes rolling under flow conditions.
Science
279
:
381
–384,
1998
66.
Agostini C, Trentin L, Sancetta R, Facco M, Tassinari C, Cerutti A, Bortolin M, Milani A, Siviero M, Basso S, Bortolin M, Adami F, Agostini C, Semenzato G: Interleukin-15 triggers activation and growth of the CD8 T-cell pool in extravascular tissues of patients with acquired immunodeficiency syndrome.
Blood
90
:
1115
–1123,
1997
67.
Bulfone-Paus S, Bulanova E, Pohl T, Budagian V, Horst D, Ruckert R, Kunzendorf U, Paus R, Krause H: Death deflected: IL-15 inhibits TNF-α–mediated apoptosis in fibroblasts by TRAF2 recruitment to the IL-15α chain.
FASEB J
13
:
1575
–1585,
1999
68.
Campbell IL, Cutri A, Wilson A, Harrison LC: Evidence for IL-6 production by and effects on pancreatic β-cell.
J Immunol
143
:
1188
–1191,
1989
69.
Campbell IL, Hobbs MV, Dockter J, Oldstone MB, Allison J: Islet inflammation and hyperplasia induced by pancreatic islet-specific overexpression of interleukin-6 in transgenic mice.
Am J Pathol
145
:
157
–166,
1994
70.
Pavlovic D, Van deWinkel M, Van der Auwera B, Chen M-C, Schuit F, Bouens L, Pipeleers D: Effect of interferon-γ and glucose on major histocompatibility complex class I and class II expression by pancreatic β- and non–β-cells.
J Clin Endocrinol Metab
82
:
2329
–2336,
1997
71.
Klein J, Sato A: The HLA system.
N Engl J Med
343
:
702
–709,
2000
72.
Larsen CM, Wadt KA, Juhl LF, Abdersen HU, Su MS, Seedorf K, Shapiro L, Dinarello CA, Mandrup-Poulsen T: Interleukin-1β-induced rat pancreatic islet nitric oxide synthesis requires both the p38 and extracellular signal-regulated kinase 1/2 mitogen-activated protein kinases.
J Biol Chem
273
:
15294
–15300,
1998
73.
Grumont RJ, Gerondakis S: Alternative splicing of RNA transcripts encoded by the murine p105 NFκB gene generates IκB isoforms with different inhibitory activities.
Proc Natl Acad Sci U S A
91
:
4367
–4371,
1994
74.
Gilmore TD: The Rel/NFκB signal transduction pathway: Oncogene 
18
:
6842
–6844,
1999
75.
Pahl HL: Activators and target genes of Rel/NF-κB transcription factors.
Oncogene
18
:
6853
–6866,
1999
76.
Darville M, Ho Y-S, Eizirik DL: NF-κB is required for cytokine-induced manganese superoxide dismutase expression in insulin-producing cells.
Endocrinology
141
:
153
–162,
2000
77.
Bellosta P, Zhang Q, Goff SP, Basilico C: Signaling through the ARK tyrosine kinase receptor protects from apoptosis in the absence of growth stimulation.
Oncogene
15
:
2387
–2397,
1997
78.
Imaizumi K, Morihara T, Mori Y, Katayama T, Tsuda M, Furuyama T, Wanaka A, Takeda M, Tohyama M: The cell death-promoting gene DP5, which interacts with the Bcl 2 family, is induced during neuronal apoptosis following exposure to amyloid protein.
J Biol Chem
274
:
7975
–7981,
1999
79.
Strandell E, Eizirik DL, Sandler S: Reversal of beta-cell suppression in vitro in pancreatic islets isolated from nonobese diabetic mice during the phase preceding insulin-dependent diabetes mellitus.
J Clin Invest
85
:
1944
–1950,
1990

Address correspondence and reprint requests to Décio L. Eizirik, Gene Expression Unit, Diabetes Research Center, Vrije Universiteit Brussel, Laarbeeklaan 103, B-1090, Brussels, Belgium. E-mail: deizirik@mebo.vub.ac.be.

Received for publication 28 November 2000 and accepted in revised form 22 February 2001. Posted on the World Wide Web at www.diabetes.org/diabetes on 11 April 2001.

AS, argininosuccinate synthase; CINC, cytokine-induced neutrophyl chemoattractant; CKK, cholecystokinin; COX, cyclooxygenase; ERK, extracellular signal related kinase; EST, expression sequence tag; FACS, fluorescence-activated cell sorter; GABA, γ-aminobutiric acid; GADD, growth arrest and DNA damage; GAPDH, glyceraldehyde 3-phosphate dehydrogenase; GH, growth hormone; GIP, gastric inhibitory peptide; HO, heme oxygenase; hsp, heat shock protein; ICAM, intracellular adhesion molecule; IL, interleukin; INF, interferon; iNOS, inducible nitric oxide synthase; IRF, interferon regulatory factor; MAPK, mitogen-activated protein kinase; MCP, macrophage chemoattractant protein; MGMT, O-6 methylguanine-DNA methyltransferase; MHC, major histocompatibility complex; MIP, macrophage inflammatory protein; MnSOD, magnanese superoxide dismutase; NF, nuclear factor; Pdx-1, pancreatic duodenal homeobox factor-1; PRL, prolactin; RT-PCR, reverse transcriptase–polymerase chain reaction; TNF, tumor necrosis factor; VAMP, vesicle-associated membrane protein.
