A Genetic Switch in Pancreatic β-Cells: Implications for Differentiation and Haploinsufficiency

Humans with heterozygous HNF-1α and HNF-4α mutations typically develop diabetes during the second to fourth decade of life (1,6,8, 13,15). Diabetes results from abnormal glucose-induced insulin secretion, rather than defective insulin action or hepatic glucose output (6,8,9, 16). The β-cell defect cannot be ascribed solely to reduced cell mass or insulin gene transcription, as it is selective for certain stimuli (17,18).

Studies in mice with homozygous HNF-1α null mutations or expressing a dominant-negative inhibitor of HNF-1 have been conceptually consistent with the human MODY3 findings (19–25). Hnf1α^−/− mice do not exhibit a conspicuous developmental block, and although they have a small pancreas (and hence reduced β-cell mass), it is proportional to their small body weight (21,23). Nonetheless, minor derangements in the organization of pancreatic cells and altered adaptive regenerative capacity of β-cells likely exist (23). Insulin mRNA abundance has been shown to be either unaltered or moderately decreased in the case of the ins1 gene (22–24). Analogous to the MODY3 findings, HNF-1α −deficient islet cells display severely blunted secretory responses to glucose but retain the ability to respond to depolarization induced by KCl (19,23,25). The defective glucose response results in part from a glycolytic block proximal to enolase (19), but no single target gene is likely to be incriminated as a cause, given that numerous genes involved in stimulus secretion-coupling are underexpressed in hnf1α-deficient islet cells (22,24, 26). There is also no secretory response to arginine (20,23), perhaps because of decreased expression of the basic amino acid transporter BAT (24). Dominant-negative inhibition studies have additionally demonstrated effects on mitochondrial function (25). In the aggregate, it appears that a major function of HNF-1α is to ensure that the machinery that is required for β-cells to respond to glucose and other stimuli is in place.

One apparent difference between HNF-1α−null mutant mice and humans is the lack of a clear phenotype in heterozygous mice up to age 16 weeks (23,27). This discrepancy clearly needs to be assessed in greater detail, as there are several potential reasons to account for it. One is that diabetes in heterozygous humans is not present until 10–40 years after birth (13,15), which does not necessarily equate to 6–16 weeks in the life of a mouse. Another factor is the likely existence of epistatic genetic modifiers that could modulate penetrance in diverse genetic backgrounds. In keeping with this notion, heterozygosity at the hnf1α locus in mice was recently shown to have striking effects on insulin secretion in a pdx1^+/− background (27). Interestingly, very late or nonpenetrance has been described in MODY3 mutation carriers, indicating not only inter- but also intraspecies phenotypic variability (8,15).

There is much less information on the role of HNF-4α in β-cells. As occurs with HNF-1α, young hnf4α^+/− mice do not exhibit glucose intolerance (27), whereas germ-line homozygous null mutants do not develop beyond gastrulation (28). Conditional Cre-loxP−based inactivation studies have shown that HNF-4α has critical roles for numerous genes in adult hepatocytes (29), but analogous experiments have yet to be reported in pancreatic cells. However, the β-cell phenotype in MODY1 is extremely similar to that in MODY3 (9,10). Furthermore, dominant-negative inhibition of either HNF-1α or HNF-4α in INS-1 β-cells leads to reduced expression of a remarkably similar set of genes (25, 30). This suggests that HNF-1α and HNF-4α control a common genetic program in β-cells, and it is already quite clear that this program is required for the correct function of differentiated β-cells.

Although homozygous HNF-1α mutations have not been reported in humans, we know that hnf1α^−/− mice exhibit a severe pleiotropic phenotype in addition to diabetes (21,23,24, 31–33). This results from widespread gene expression defects in liver, kidney, and other organs, leading to multiple derangements such as abnormal bile acid and cholesterol metabolism, phenylketonuria, fatty liver, growth impairment, and tubular glycosuria (21,23,24, 31–33). This picture contrasts completely with that seen in heterozygous HNF-1α and HNF-4α humans, who essentially present with β-cell dysfunction and diabetes (6,8–10,16). Isolated target gene defects in other tissues have been identified, such as decreased production of apolipoproteins AII and CII in MODY1 and an altered renal glucose reabsorption threshold in MODY3, but these are comparably subtle (32,34).

The tissue specificity of heterozygous mutations cannot be ascribed to a classical dominant-negative mechanism occurring solely in β-cells. A large number of human HNF-1α and HNF-4α mutations have been carefully analyzed, and although in some instances dominant-negative effects have been identified by overexpressing mutant proteins, there is compelling evidence in many other cases (such as in promoter mutations) that the mutation simply causes loss of function (14,35–37). Furthermore, the phenotype does not appear to be more severe in cases where a dominant-negative effect is observed (15). This suggests that HNF-1α and HNF-4α have β-cell−specific functions that are uniquely vulnerable to decreased gene dosage.

There is now more detailed information on some of the β-cell− specific functions of HNF-1α. Numerous genes, including glut2 and pklr, and several transcriptional regulators exhibit markedly decreased expression in hnf1α^−/− islets, but do not require HNF-1α in other tissues such as liver (22,24,38). For many (though not all) genes, it is clear that the cell-specific requirements are not related to the hyperglycemic environment or other secondary derangements. For example, several such genes are abnormally expressed prenatally or shortly after birth, at a time when there is no significant hyperglycemia (22,24, 38). Furthermore, HNF-1α directly interacts with chromatin of targets such as glut2 and pklr in mouse islets (22). Although some of the mechanisms involved in the activation of direct HNF-1α targets are beginning to be unraveled (22,39,40), it is still unclear why for some genes HNF-1α is required for activation in certain cell types but not in others.

The existence of different HNF-1α-dependent regulatory networks in diverse cell types could be one of several nonexclusive mechanisms that account for the cell-specific roles of HNF-1α. The participation of HNF-1α in transcriptional networks is well documented. The analysis of null mutant embryoid bodies has shown that HNF-3β and HNF-3α exert positive and negative control on HNF-4α, respectively (41). HNF-4α is required for normal transcription of HNF-1α in hepatocytes and endoderm-like cells (37,41–43), whereas HNF-1α controls downstream hepatic transcriptional activators, such as FXR (44). This complex network manages a vast array of targets encoding proteins involved in highly specialized liver functions (21,31,33, 44).

In pancreatic islets, HNF-1α is integrated in a network that has an entirely different architecture. Several mRNAs encoding transcriptional regulators, including HNF-4α, HNF-4γ, or HNF-3γ, are dependent on HNF-1α in pancreatic cells specifically (24,38) but are expressed normally in the liver or kidney of mice lacking HNF-1α (24,38). Interestingly, HNF-1α is also dispensable for the expression of these targets in pancreatic epithelial precursor cells, and only becomes essential shortly after differentiated pancreatic cells arise (38).

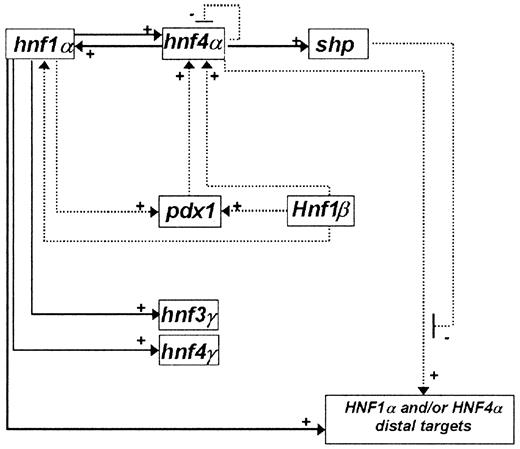

The existing data indicate that the structure of the pancreatic network is complex (Fig. 1) (24,30,38, 45). It is nonlinear, with cross- and autoregulatory interactions (24,27, 38). Some distal targets (such as pklr or shp) are connected with HNF-1α indirectly through subsidiary activators or by both direct and indirect mechanisms (24,38,46). Most likely, any attempts to decipher the logic of this entire network design at this time would be based on a keyhole vision of a much more vast network.

It is striking that despite the complexity of this network, it is already possible to isolate a very simple substructure that exhibits a highly predictable behavior in different model systems. Thus, HNF-1α and HNF-4α have been shown to establish interdependence through direct cross-regulatory interactions in pancreatic cells (24,30, 35,38) (Fig. 1).

Proof for HNF-1α dependence on HNF-4α comes from several HNF-4α-deficient models that have shown that this gene is needed for normal HNF-1α transcription in embryonic visceral endoderm and hepatocytes (37,42,43). This control is exerted through the interaction of HNF-4α with a DR1 direct repeat cis element in the HNF-1α promoter (35, 47). Strongly suggestive evidence that this interaction also takes place in β-cells comes from two sources. First, dominant-negative inhibition of HNF-4α in INS-1 β-cells results in severely decreased formation of HNF-1α DNA-binding complexes and mRNA (30). Second, a loss of function mutation in the HNF-1α promoter DR1 element is linked to MODY in a large pedigree (35). This suggests that HNF-4α control of HNF-1α occurs at some point in pancreatic development, and, importantly, that this interaction is essential for pancreatic β-cell function. Although a direct genetic analysis of the requirement for HNF-4α to express HNF-1α in both precursor and differentiated pancreatic cells is still needed, the available evidence indicates that HNF-4α controls the expression of HNF-1α in multiple cell types, including embryonic endoderm, liver, and pancreatic cells (30,35,37, 41–43,47).

In sharp contrast, studies using hnf1α^{−/ −} mice have shown that HNF-1α control of HNF-4α is clearly restricted to differentiated pancreatic cells (but not precursor cells), and in part to intestinal cells (24,38). Interestingly, HNF-4α transcription in pancreatic cells is driven almost exclusively by an alternate promoter known as P2 (38,45). Chromatin immunoprecipitations have shown that HNF-1α directly interacts with the P2 promoter in islets (38). HNF-1α also transactivates P2 in transient transfection assays (45). Because another promoter (P1) is the predominant transcription initiation site in adult hepatocytes and kidney, HNF-4α mRNA in hnf1α^−/− mice is not grossly deranged in these tissues (24,31, 38). Thus, HNF-1α is dependent on HNF-4α in multiple tissues, but in pancreatic cells, a cross-regulatory loop between these two genes is formed (Fig. 2A).

Once insulin-producing cells arise, mechanisms need to be in place to maintain their phenotypic properties over time and throughout consecutive rounds of cell division. Cross-regulation between HNF-1α and HNF-4α is switched on as pancreatic cells are provided the signals to differentiate (Fig. 2B) (38). Once it is installed, this type of circuit configuration can provide a stable mechanism of gene expression, as physiological perturbations of the activity of one of the two genes can be reset back to the equilibrium state by the opposite gene (48,49). This can serve to self-perpetuate the activity of both genes and their targets in differentiated cells (Fig. 2B). The notion that a transient instructive signal is sufficient to lock a genetic program that maintains differentiated functions makes sense in a cell type that has little plasticity to undergo alternate fates.

Although interdependent activity represents the default stable state of this loop in differentiated pancreatic cells, under extreme conditions it could adopt an alternate equally stable state (Fig. 3A). If the function of one of the two genes is sufficiently perturbed so that the activity of the second gene is severely impaired, this can again inhibit the first gene and so on until the two genes reach a lower activity state. This alternate equilibrium state is defined as the state in which the activity of each gene is that which takes place in the absence of the opposite gene. As discussed earlier, loss of function studies have indicated that for both genes this basal state represents a substantial reduction in gene expression. Intermediate states are unlikely, as insufficiently severe perturbations are reset to the original stable state. As in any switch mechanism, changing between ON and OFF positions requires a transient perturbation that exceeds a threshold level, but once the new position is reached it is stable, even if the triggering effect disappears. This type of bistable behavior has long been recognized as a property of positive cross-regulatory feedback circuits (48–51), although it requires experimental in vivo demonstration in this precise model. Simulated circuits very much like the HNF-1α/HNF-4α loop have been previously shown to exhibit bistability (48,49). Experimental verification of bistability has been attained in a synthetic single-gene, positive autoregulatory loop (52).

A bistable circuit configuration can have important implications for our understanding of the consequences of HNF-4α and HNF-1α haploinsufficiency. The loss of one functional allele can increase the probability that the opposite gene is inhibited sufficiently to trigger the transition to an OFF state (Fig. 3B). The net result of the loss of one allele in such a model is the reduction of activity of all four HNF-1α or HNF-4α alleles in pancreatic cells. Thus, an incomplete primary defect in any one of the two genes can lead to a phenotype that approaches that of a double homozygous null mutant. This concept is consistent with the severity of β-cell dysfunction imparted by the loss of a single allele (9), with the notion that the β-cell phenotype is very similar in MODY1 and -3 (9,10), and that dominant-negative inhibition of either HNF-4α or HNF-1α in β-cells causes reduced expression of the same set of genes (30).

If disruption of the loop is instrumental in the haploinsufficient mechanism, a severe phenotype should occur only in the cells in which the circuit exists (Fig. 2A). In the absence of a loop, the predicted outcome in nonpancreatic cells is that there could be partially decreased concentration of functional HNF-1α in MODY3, or of HNF-4α and perhaps HNF-1α in MODY1, but not a severe phenotype resulting from impaired function of all four HNF-1α and HNF-4α alleles. This prediction closely fits the genetic findings. Hnf1α^−/− mouse studies have clearly shown that this gene is absolutely necessary for a vast array of critical genes in liver, gut, and kidney (21,23, 24,31,32), whereas heterozygosity results in a clinically significant and severe phenotype only in pancreatic islet cells (6,8, 9,16,27). Furthermore, although the heterozygous HNF-1α and HNF-4α phenotypes are very similar in β-cells, the mild liver and kidney defects reported in MODY1 and MODY3 are specific for each gene (32,34).

Although MODY1 and -3 are caused by germ-line mutations, the diabetic phenotype does not appear until 10–40 years after birth (13,15). On the other hand, we know from the hnf1α^−/− mouse studies that interdependence is installed soon after differentiated pancreatic cells appear during embryogenesis (Fig. 2B) (38). If the phenotype is dependent on the loop mechanism, why does it take so many years to develop?

Because HNF-4α is not dependent on HNF-1α in precursor cells (and hence no loop exists), the circuit is expected to be in the default ON state as insulin cells first appear in heterozygous mutation carriers. The question thus becomes, When does circuit inactivation take place? It could occur quickly in most cells soon after interdependence is established in embryonic insulin-producing cells (Fig. 3B). However, the fact that the phenotype does not appear until many years later makes it necessary to consider the alternate possibility that inactivation may be an inefficient process.

Most likely, the loss of a single HNF-1α or HNF-4α allele does not immediately compromise circuit activity in differentiated cells. This is clearly the case in mice, as young hnf1α^{+/ −} animals express HNF-4α mRNA at nearly normal levels in pancreatic cells (S. Boj and J.F., unpublished observations). However, transcription in a single cell is an inherently noisy process (53–56); it undergoes fluctuations that are not solely environmentally determined, but also stochastic (53,57). The existence of 50% of the normal gene product can critically increase the probability that an extreme fluctuation at any moment in the lifetime of a cell surpasses a threshold required to trigger the transition from the ON-to-OFF state (Fig. 3C). Perhaps even more relevant than the average activator concentration is the notion that single- as opposed to two-allele expression is on its own expected to increase this likelihood, as it leaves no backup activity if transient inhibition occurs in the single functional allele. Cook et al. (57) used computer simulations to demonstrate the increased probability that stochastic events lead to transient inactivity of a gene in a single- versus two-allele system, even under conditions in which average gene product concentration is held constant in both systems.

If the HNF-1α/HNF-4α circuit is bistable, a severe but transient inhibition can give rise to a permanent lock in the OFF state. The stability of this state is predicted to be reinforced by decreased gene dosage, as it should compromise circuit reactivation (Fig. 3). As more individual cells undergo the ON-to-OFF transition over the course of years, a threshold of β-cells that possess an inadequate state of terminal differentiation is eventually achieved, giving rise to diabetes (Fig. 4). The average age at diagnosis could thus represent a function of the probability that the circuit is locked in an OFF state in a sufficient number of β-cells.

The notion that time, rather than solely age or biological maturation, is instrumental in enabling low-probability stochastic events to take place could underlie the lack of phenotype in heterozygous mice aged 6–16 weeks (23,27), in contrast to heterozygous humans aged 10–40 years (13, 15). However, other factors aside from time are expected to regulate this process. The fact that penetrance is very rare before age 10 years in MODY3, and then increases progressively (13,15), may be attributable to age-related factors capable of increasing circuit instability, as opposed to an exclusive stochastic mechanism. On the other hand, penetrance variability, both within humans and between species, may result from genetic modifiers of circuit stability.

Interestingly, HNF-4α mRNA levels are compensated in young heterozygous +/− mice, suggesting a negative autoregulatory loop (Fig. 1) (27). This effect is expected to counteract the ON-to-OFF transition. However, once the OFF state is attained, negative autoregulation can also counteract reactivation, and thus consolidate the stability of the inactive state.

The model postulated here is consistent with other parallel or consecutive pathogenic mechanisms. For example, circuit inactivation could take place long before the phenotype appears by limiting an appropriate cell growth or secretory adaptive response to demands imposed later in life, or by allowing gradual accumulation of cellular defects. On the other hand, once metabolic derangements are initiated, these are expected to contribute to the completion of the process of β-cell failure (58). Furthermore, decreased expression of HNF-1α or HNF-4α could conceivably trigger dysregulation of private network targets that are very sensitive to activator concentrations, before the inactivation of the loop.

In addition to HNF-1α and HNF-4α themselves, other regulators are expected to control the activity of these two genes in differentiated pancreatic cells. The bistable circuit model predicts that any circumstance that imparts a severe inhibition of the loop below a threshold level can trigger its extinction, resulting in a similar phenotype as a mutation of either HNF-1α or HNF-4α. Other MODY genes are attractive candidate sites for this type of mechanism. Strong support for such an interaction among MODY genes has been provided by a recent study indicating that IPF-1 (MODY4) may be a critical regulator of HNF-4α (45). Thomas et al. (45) discovered a mutation in the pancreatic HNF-4α promoter that segregates with diabetes in a large kindred, with a logarithm of odds score of 3.25. The mutation disrupts an IPF-1 (PDX-1) high affinity binding site that is essential for HNF-4α promoter activity (45). This suggests that the MODY4 phenotype could be mediated in part by a defective function of the HNF-1α/HNF-4α circuit (45). HNF-1β (MODY5), a paralog of HNF-1α that shares closely related DNA binding and dimerization domains (3,59), could also regulate this circuit. Hnf1β^−/− embryos die before pancreas organogenesis but fail to express HNF-1α in endoderm cells (60). HNF-1β also interacts with the HNF-4α P2 promoter in transient transfections and in vitro binding assays (45). Furthermore, HNF-1β may act indirectly through IPF-1/PDX-1, as zebra fish HNF-1β mutants fail to express PDX-1 in the endodermal segment destined to form the pancreatic bud (61).

An additional level of complexity lies in the observation by Shih et al. (24) of decreased expression of PDX-1 in pancreatic cells of hnf1α^−/− mice. A meaningful reduction of PDX-1 has not been observed in our own studies with embryonic and early postnatal pancreatic tissues from hnf1α^−]− mice (22,38) or in the dominant-negative inhibition cell line experiments (25). However, the PDX-1 5′ flanking region contains an evolutionary conserved HNF-1 site (62,63), and this could conceivably be variably linked to HNF-1α or HNF-1β dependence in diverse genetic or environmental background settings. Thus, PDX-1 could lie both upstream and downstream of the HNF-1α/HNF-4α circuit, forming a separate regulatory loop. This notion is consistent with the existence of epistatic interactions between pdx1 and hnf1α loci in mice (27).

The mechanism of haploinsufficiency in human genetic diseases is greatly overrepresented among transcriptional regulator genes as compared with other functional categories (64–68). Aside from specific settings in which loss of heterozygosity and single allele expression have been described, the mechanism is generally based on the requirement of a critically narrow range of activator concentrations (64,66–68). Decreased gene dosage could lead to altered stoichiometry of multimeric regulatory complexes (68) or failure to establish cooperative interactions with other activators (69). The mechanism postulated here, for the first time to our knowledge, is that the consequences of decreased dosage of a single regulator gene can be greatly amplified in the face of a self-sustaining feedback circuit. Furthermore, it is proposed that in this setting, transient stochastic or extrinsically determined inhibitory events can serve as triggers for permanent network inactivation. Haploinsufficiency is postulated to increase both the likelihood of circuit inactivation and the stability of the inactive state. This notion broadens the implications of a study discussed earlier, whereby simulations were used to show that in the presence of a heterozygous loss of function mutation of any given gene, stochastic deactivation of the functional allele may intermittently mimic the homozygous null state (57). As cross-regulatory circuits between transcriptional regulators are extremely common (70,71), this raises the intriguing possibility that autocatalytic circuit breakdown could be involved in other haploinsufficient defects.

The model that is presented here is testable and requires experimental analysis in a β-cell context. For example, it is necessary to determine that extreme parameter conditions of the circuit, such as a very slow activation/inactivation rate, do not render extinction as the result of a transient event too unlikely. It is also important to know how the interplay with other network components affects the properties of the circuit. Nonetheless, the model rests on two firm premises. First, there is genetic evidence for pancreatic-restricted interdependence of HNF-1α and HNF-4α, which holds true irrespective of other mechanisms regulating these two genes (24,30,35,37, 38,42,43, 45,47). Second, the concept that positive cross-regulatory feedback circuits are capable of exhibiting multistability is well established (48–52). The model that emerges does a reasonably good job in explaining the established clinical features of MODY.

Such a framework to explain the haploinsufficient mechanism in MODY extends previous models that did not accommodate the existence of a feedback circuit, but did postulate that loss of one HNF-1α allele results in insufficient activator concentrations to elicit normal target gene responses specifically in islets (36). Another model that did not incorporate this loop structure already postulated loss of function of both HNF-1α alleles because of somatic loss of the wild-type allele in a subset of cells hypothesized to possess a growth advantage (14).

The obligate task of HNF-1α and HNF-4α in β-cells appears to be largely dependent on their position within a network and not solely on the linear activation of a set of critical distal target genes (24,38,45). Because one of the recognized attributes of complex networks is robustness to inactivation of random components (72), it is remarkable that the HNF-1α/ HNF-4α subcircuit is unusually vulnerable. This vulnerability is characteristic of highly interconnected nodes within scale-free complex networks (72). An implication of such a hub position, together with the proposed bistable properties of the subcircuit, is that inhibition (perhaps even if transient) of HNF-1α or HNF-4α function could result in permanent damage to the differentiated state of β-cells. Critical regulatory mechanisms of this subcircuit may thus represent an attractive site for identifying new pathogenic mechanisms involved in the progression to β-cell dysfunction. Furthermore, an in-depth understanding of the design of this network may allow its manipulation and thus provide keys to build competent artificial insulin-producing cells.
