Genetic Variation Near the Hepatocyte Nuclear Factor-4α Gene Predicts Susceptibility to Type 2 Diabetes

The FUSION linkage analysis sample consisted of 737 Finnish ASP families collected in two phases. The FUSION 1 (F1) set included 495 families with 1,129 affected individuals, and the FUSION 2 (F2) set included 242 families with 580 affected individuals (18,19,24). A single affected individual was chosen from each family for case-control and phenotype association analyses. Also, we included an additional 37 FUSION 1 and 21 FUSION 2 affected individuals from families excluded from linkage analysis because they did not have a genotyped affected sibling in the study. We used a diabetes age-of-onset criteria of >35 years in the recruitment of families to exclude likely cases of type 1 diabetes and MODY. For control subjects, we studied 225 elderly Finnish subjects, who had normal glucose tolerance by oral glucose tolerance test (OGTT) at ages 65 and 70 years. In addition, we used a control group of 189 normoglycemic spouses of FUSION 1 index case subjects or affected siblings (24,25). To evaluate association with diabetes-related traits, we also studied 467 unaffected offspring from 185 FUSION 1 families.

Informed consent was obtained from each study participant, and the study protocol was approved by the ethics committee or institutional review board of each of the participating centers.

We studied two case DNA pools and two control DNA pools, constructed as previously described (21). Our FUSION 1 case pool included one affected individual from each of 499 FUSION 1 families; our FUSION 2 case pool included one affected individual from each of 249 FUSION 2 families. Our spouse control pool included 182 normoglycemic spouses, and our elderly control (EC) pool included 228 elderly, normal glucose-tolerant individuals. The numbers of individuals in each of the pools differ slightly from the number of individuals used for individual typing because of DNA availability and slightly different inclusion criteria.

We identified available SNPs from public databases, mapped them to unique locations within our region of interest using a combination of electronic PCR (26), RepeatMasker (27), and MegaBlast (28) and annotated the SNPs with validation status, allele frequency, and gene structure information. We tested SNPs on a crude pool of ∼400 individuals and selected SNPs exhibiting apparent minor allele frequencies >0.05 to genotype on our four carefully quantitated case and control DNA pools. We typed 146 SNPs on the FUSION 1 case pool and both control pools, and 235 additional SNPs on all four pools. The pooled genotyping using mass spectrometry, allele frequency estimation, quality criteria for acceptance of data, and P values for comparisons of individual case and control pool allele frequencies have been previously described (21). In this study, we also generalized the test of comparisons between individual pools to compare the allele frequencies in the combined case pools (FUSION 1 and 2) to the combined control pools (EC and spouse control). Of 291 successfully typed SNPs, we selected SNPs for follow-up from those that exhibited allele frequency differences between case and control pools >0.05 or pool-specific P values <0.05.

SNPs were typed on individual DNA samples by homogeneous MassExtend reaction using the MassARRAY System (Sequenom, San Diego, CA) as previously described (21). Three of the 62 SNPs genotyped on individual samples were not consistent with Hardy-Weinberg equilibrium: rs878559 (P = 0.045), rs6017309 (P = 0.020), and rs6093978 (P = 0.049); this number of failures is consistent with the number expected by chance, and these SNPs were included in the analysis. On average, 98.6% of attempted genotypes were successful. Among 4,958 blinded duplicate genotype pairs, we observed three discrepancies, for an estimated genotyping reproducibility of 99.97%.

Once the first SNP exhibiting association with diabetes status was identified, additional SNPs were selected for genotyping using five sources. First, 18 SNPs were selected from public databases. Second, 33 SNPs were selected that captured the variability found in haplotype blocks generated from SNPs genotyped by the Sanger Institute in the HNF4A region (see below). Third, six SNPs were selected from among eight variants identified by variant screening of the P2 promoter region (see below); two variants have not yet been genotyped on cases and controls due to repetitive sequence surrounding the SNPs. Fourth, one SNP in intron 4 of HNF4A was selected for typing after showing association in our previous variant screening effort of the HNF4A gene (4). Fifth, four SNPs were genotyped to assess evidence for associations observed independently by Love-Gregory et al. (23).

We obtained genotype data for 979 SNPs in a 10-Mb interval, having a minor allele frequency >0.10, and previously typed in the founders of 12 Centre d’Etude du Polymorphisme Humain families and a U.K. sample (P.D., S.H., G.S., manuscript submitted). Sixty-seven SNPs mapped to the region −145 to 102 kb relative to the translation initiation site (the A of the ATG is defined as +1) in exon 1 of the P2 promoter of HNF4A and were used to identify blocks of SNPs in strong LD. We used the method of Dawson et al. (29), which adds an SNP to a block when it has an LD value D′ ≥0.85 with the current haplotypes, requires that the five most common predicted haplotypes account for ≥75% of all haplotypes, and allows up to five intervening markers to be excluded per block. The 67 SNPs clustered into 19 overlapping blocks of limited haplotype diversity. We selected haplotype-tagging SNPs that were able to predict the most common haplotypes using the method of Johnson et al. (30) as implemented in Stata. Thirty-three SNPs accounted for 95% of the predicted haplotype diversity within the region.

Based on functional studies of the P2 promoter region (10), we attempted to screen for variants in a 2,310-bp region spanning the P2 promoter of HNF4A, from −2,196 to 144 relative to the translation initiation site. We performed denaturing high-performance liquid chromatography using a Wave DNA Fragment Analysis system (Transgenomic, Omaha, NE), followed by direct sequencing of PCR products on 12 individuals with type 2 diabetes from families showing evidence for linkage at 20q13.13 and 11 EC individuals. Due to the presence of repeat sequences, we were able to successfully screen 1,835 of the 2,310 bp for variants: 263 bp between positions −2,196 and −1,934, and 1,572 bp between positions −1,458 and 114.

Disease-marker association and odds ratio (OR) calculations were performed using logistic regression with genotypes coded as none, one, and two copies of the minor allele that corresponds to a multiplicative model on the OR scale. We also tested SNP rs2144908 for association with diabetes-related quantitative traits, which were derived from clinical measures, OGTTs, and frequently sampled intravenous glucose tolerance tests with minimal model analysis (24). Details regarding phenotypes have been previously published (19,24,25). Trait differences among genotypes were determined by ANOVA within case subjects, unaffected spouses, EC subjects, and the unaffected offspring of case subjects. Trait values were transformed to approximate univariate normality and adjusted for age (except for age at diagnosis and duration), sex, and BMI (except for weight-related variables and waist-to-hip ratio). A generalized estimating equations approach was used for the offspring data in order to account for the correlation among related individuals (31). Analyses were performed assuming additive, dominant, recessive, and general (2 degrees of freedom) genetic models. We report the results of the score test. We did not correct the P values for the number of traits examined or tests performed.

We performed permutation tests to assess overall significance when accounting for the number of correlated tests. For each of the four groups tested, we created 10,000 permuted samples by randomly shuffling genotypes (leaving intact the vector of correlated traits, including sex and age). For the unaffected offspring, randomization was performed at the sibship level to preserve family structure. For each permuted sample, we performed the tests of association described above assuming additive, dominant, and recessive models for all traits and compared the number of significant associations in the permuted samples with the number of significant associations originally found. We computed the overall P value for each group as the proportion of permuted samples having at least as many tests with P less than or equal to the largest significant P value in the original set of comparisons. To estimate an overall P value for the four groups combined, we randomly merged the permutations from all four groups and used the same approach.

Haplotype frequencies were estimated for the combined case and control samples using the expectation-maximization algorithm. Haplotype frequencies and counts for the separate case and control samples were estimated based on the multilocus genotypes of each individual and the estimated haplotype frequencies in the combined sample. All n haplotypes were jointly tested for association with disease status using a 2 × n χ² test of independence. Haplotypes with counts ≤10 were pooled. Each individual haplotype was tested for association with disease status using a 2 × 2 χ² test of independence. To account for the variability introduced by the haplotype frequency estimation, significance was assessed by permuting case and control status and recalculating the test statistic 10,000 times.

We performed linkage analysis using the S_pairs statistic as programmed in Genehunter Plus (32). Each family-specific statistic was weighted by the square root of the number of affected individuals minus one. To examine the evidence for linkage in families with the risk allele of an associated SNP, families were divided into two subsets based on the presence or absence of the associated allele in the single genotyped affected family member (492 FUSION 1 and 732 FUSION 1 + 2 genotyped individuals). Linkage analysis was run for each subset and for the combined samples. Evidence for association between identity-by-descent (IBD) sharing and possession of the risk allele was also investigated using the Genotype-IBD Sharing Test (GIST) (33). GIST assigns family-specific weights based on the genotype of the affected family members and the model of interest (dominant, recessive, and additive) and tests for a positive correlation between this weight and the family-based IBD sharing as represented by the nonparametric linkage score.

Pairwise marker LD measure D′ was estimated using the ldmax program of Abecasis and Cookson (34). A pictogram describing pairwise marker LD was created using Matlab (The MathWorks, Natick, MA).

To fine map our chromosome 20q13 type 2 diabetes linkage peak, we selected SNPs between markers D20S96 and D20S196, a region of 12.1 cM and 7.4 Mb, slightly larger than our 1-LOD linkage support interval. We successfully assayed on DNA pools 291 SNPs and tested them for association with disease status in the case and control pools (21). Of 21 SNPs selected for follow-up individual genotyping, rs2144908 exhibited the strongest evidence for association based on individual genotypes, with identical allele frequencies for both FUSION 1 and 2 case subjects (21%), a lower allele frequency in control subjects (16%), and OR 1.33 (P = 0.011, 95% CI 1.06–1.65) for the combined FUSION 1 and 2 sets.

SNP rs2144908 is located within the HNF4A gene, 1.3 kb downstream from the translation initiation site of alternate exon 1 of the P2 promoter (10,12). Given this location, we further evaluated the region for evidence of association with diabetes status. In an ∼390-kb region spanning HNF4A, we genotyped 18 additional SNPs selected from public databases and 33 SNPs selected to represent the common haplotypes detected in haplotype blocks. We also genotyped six of eight variants (online appendix Table 1 [available at http://diabetes.diabetesjournals.org]) identified in a 1,835-bp region surrounding the P2 promoter shown to harbor regulatory elements affecting gene expression (10). SNPs showing the strongest evidence for association with diabetes status are listed in Table 1. Association results for all SNPs studied are shown in Fig. 1. Genotype counts and P values for FUSION 1 and 2 case and control subjects for all SNPs studied are detailed in the online appendix (Table 2 [available at http://diabetes.diabetesjournals.org]).

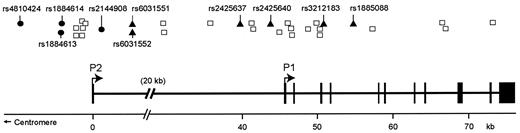

We initially identified seven additional noncoding SNPs significantly associated with diabetes status, spanning a 59-kb region that includes the P2 and P1 promoters and exons 1–3 of HNF4A (Table 1, Fig. 2). The two SNPs that showed strongest association with disease status, rs1884613 (OR 1.34, P = 0.010) and rs2144908 (1.33, P = 0.011), flank the P2 promoter and alternate exon 1 and are in near perfect LD with each other (online appendix Fig. 1 [available at http://diabetes.diabetesjournals.org]). After learning that a sample of Ashkenazi origin also showed evidence for association to diabetes status in the HNF4A region (23), we genotyped four additional SNPs assessed in the Ashkenazi sample, to enable a direct comparison. Our results for rs4810424 and rs1884614 confirmed the Ashkenazi association, and these SNPs were within 6 kb of and in nearly perfect LD with rs1884613 and rs2144908 in our sample, expanding the region harboring associated SNPs to 64 kb (Table 1, Fig. 2, and online appendix Fig. 1 [available at http://diabetes.diabetesjournals.org]). In contrast, SNPs near the P1 promoter and coding exons 1–3 (rs2425637, rs2425640, and rs1885088) were associated in our Finnish sample but not associated in the Ashkenazi sample (23). Likewise, we did not confirm the Ashkenazi evidence for association for rs1800963 (typed in our HNF4A-region fine-mapping step), rs1028583, and rs3818247 (Table 1).

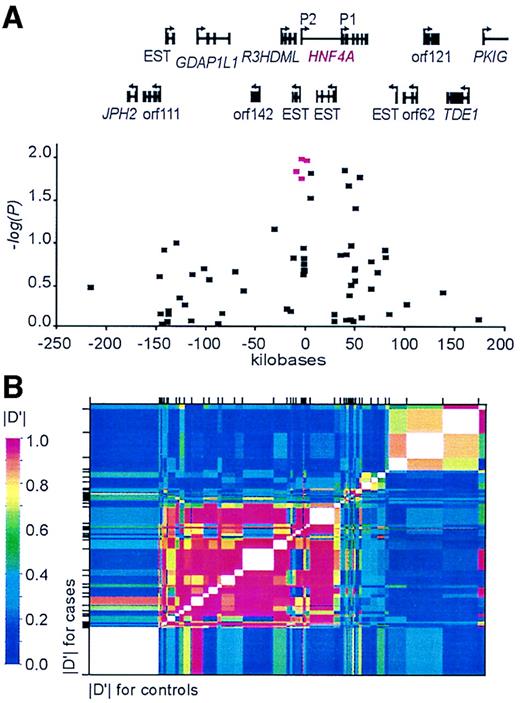

The pattern of LD in the 390-kb region surrounding HNF4A is shown in Fig. 1. The P2 promoter and the most strongly associated SNPs are located within a region exhibiting D′ >0.6 for most marker pairs, which extends from −147 to 30 kb relative to the HNF4A translation initiation site in alternate exon 1. LD extends for more limited distances in the region containing the P1 promoter and most HNF4A exons, from 45 to 75 kb. A region of moderate LD is located telomeric to HNF4A, from 84 to 174 kb.

We tested whether haplotypes were associated with type 2 diabetes (Table 2). We evaluated SNPs representing those individually associated with diabetes status by including only one SNP from any set of associated SNPs with r² >0.95. Using a general 2 × n test for independence, we found significant differences in haplotype frequencies between case and control subjects (P = 0.004) for the 21 haplotypes observed at least 10 times in the combined case and control subjects. All haplotypes containing the rs2144908 risk allele (A) had an estimated OR >1. The haplotype containing all associated alleles (ACTGCA) had the highest OR (2.11) (P = 0.023) but was rare. Strong LD was observed between the first two SNPs (representing the six SNPs closest to the P2 promoter) and the last four SNPs of the haplotype, whereas there was very little LD between the second and third (rs6031552 and rs2425637) SNPs. The frequency of haplotypes containing the associated alleles was consistent with that expected based on random recombination between the second and third SNPs. We also observed a significantly associated haplotype (GCTGCA) (OR 1.51, P = 0.010) containing the risk alleles for all SNPs except rs2144908, a nominally protective haplotype containing the nonrisk alleles for all SNPs (GAGATG), and a haplotype with a significantly protective effect containing all nonrisk alleles except rs6031552 (GCGATG).

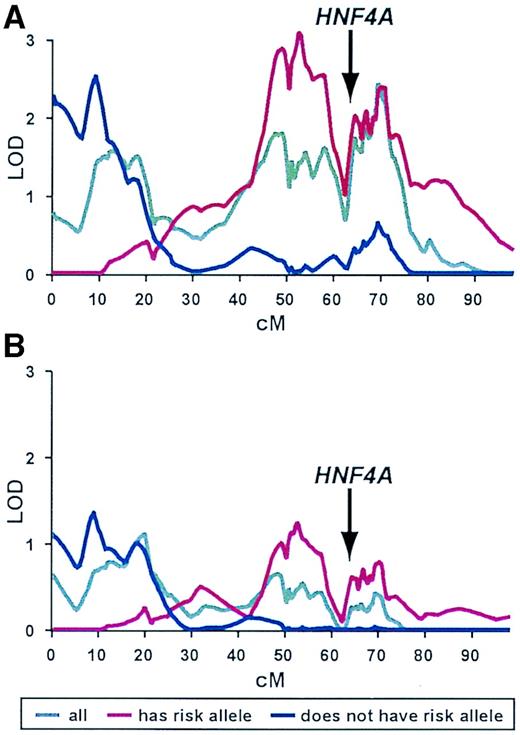

Based on the presence of the “A” risk allele for rs2144908 in the single genotyped affected individual, we identified 186 of the 492 FUSION 1 families and 270 of the 732 combined FUSION 1 and 2 families as at-risk families. Linkage analysis on at-risk, not-at-risk, and all families (Fig. 3) demonstrated that nearly all of the evidence for linkage in FUSION 1 at 64 cM was observed in the at-risk families (MLS 1.86), with little evidence in the not-at-risk families (MLS 0.28). A similar trend was seen in the combined FUSION 1 and 2 samples. Interestingly, the risk allele had an even stronger effect on linkage evidence in the centromeric peak region at 52.5 cM (FUSION 1 sample, at-risk families versus not-at-risk families, MLS 3.07 vs. 0.02, respectively). In contrast, almost all evidence for 20p linkage was observed in the not-at-risk families. Using GIST to test the SNPs showing significant disease-marker association, only those surrounding the P2 promoter and in (near) perfect LD with rs2144908 accounted for a significant fraction of the FUSION 1 linkage evidence. Dominant and additive models showed greater ability to explain the linkage signal (rs2144908, P = 0.04 and 0.05, respectively) than the recessive model (P = 0.41), although none were significant after accounting for the three-way comparison. In the combined FUSION 1 and 2 sample, evidence that these SNPs could account for a portion of the linkage signal did not reach significance (rs2144908, P = 0.09, 0.24, and 0.89 for the dominant, additive, and recessive models, respectively), although the result for the dominant model is still suggestive.

We also examined whether rs2144908 was associated with diabetes-related quantitative traits in unaffected offspring, unaffected spouses, EC subjects, and FUSION 1 and 2 case subjects (Table 3 and online appendix Table 3 [available at http://diabetes.diabetesjournals.org]). Unaffected offspring (34.9 ± 7.4 years of age) showed the strongest phenotype associations (Table 3). The 14 unaffected offspring homozygous for the risk allele exhibited significantly lower BMI and higher fasting insulin, 2-h glucose and insulin, and Δ glucose and insulin (2 h − fasting) from the OGTT (Table 3, recessive model). Under the dominant and additive models, offspring with the risk allele had lower acute insulin response to glucose (AIRg) and disposition index from the frequently sampled intravenous glucose tolerance test. There was no association with insulin resistance, fasting lipids, or blood pressure. Even after accounting for the number of correlated tests performed, we observed more significant associations for unaffected offspring than would be expected by chance (P = 0.007). Fewer associations were detected for other groups (online appendix Table 3 [available at http://diabetes.diabetesjournals.org]), but the number of associations was marginally significant for unaffected spouses (P = 0.062) and EC subjects (P = 0.053), although not for affected case subjects (P = 0.743). For the four groups combined, more significant associations were observed than would be expected by chance (P = 0.003).

Using a DNA pool-based, case-control study approach on chromosome 20, we identified a variant near the P2 promoter of HNF4A that was significantly associated with type 2 diabetes in our Finnish study sample. We further scrutinized this region and initially identified a total of eight SNPs significantly associated (P < 0.05) with diabetes disease status, spanning a 59-kb region that includes the P2 and P1 promoters of HNF4A. Love-Gregory et al. (23) independently identified two SNPs associated with type 2 diabetes near the P2 promoter region in a sample of Ashkenazi Jewish origin. These SNPs are in near perfect LD with the two FUSION SNPs showing strongest evidence for association, rs2144908 and rs1884613. Including these two SNPs, we have observed in our sample a total of 10 associated SNPs in a 64-kb region that spans the P2 and P1 promoters and exons 1–3 of HNF4A. The associations observed for SNPs closer to the P1 promoter and exons 1–3 of the gene were not replicated in the Ashkenazi sample. Together these results suggest that variant(s) near the P2 promoter of HNF4A increase susceptibility to type 2 diabetes.

The four SNPs that showed evidence for association in both Finns and Ashkenazim span >10 kb around the HNF4A P2 promoter. Individually, these SNPs appear to explain a significant portion of the observed evidence for FUSION 1 linkage. One or more of the four associated SNPs described here may directly influence diabetes susceptibility, or these SNPs may be in LD with the true susceptibility variant(s). None of these SNPs are located in confirmed transcription factor binding sites or sequences conserved with mouse and rat (35), suggesting that other, as yet unknown, SNPs may be the causal variant(s). The location of the associated SNPs in a 177-kb region of LD including >140 kb upstream of the P2 promoter and only ∼30 kb within HNF4A (but not including most coding exons) (Fig. 1) suggests that susceptibility SNP(s) could be located anywhere in this large interval; the lack of other associated SNPs outside of the P2 region could be due to low SNP density. The larger region of LD contains several other known and predicted genes and expressed sequence tags (Fig. 1). Although it is possible that the true susceptibility variant(s) may affect these genes or expressed sequence tags, our current (lack of) knowledge of their function makes them much less attractive candidates than HNF4A.

Both the Finns and Ashkenazim show evidence of association with SNPs located near the HNF4A P1 promoter and coding exons. However, unlike the SNPs flanking the P2 promoter region, SNPs near the P1 promoter and coding exons do not show the same patterns of association in the Finnish and Ashekenazi samples, even though their locations overlap. It is thus possible that there is a single shared susceptibility variant, but recombination and/or other factors contributing to disequilibrium, such as genetic drift, population history and structure, and gene conversion (36), have resulted in different patterns of association in the two study populations. Our haplotype analysis and an examination of the LD plots indicate that in the Finnish population there is substantial recombination between the associated SNPs located in the P1 and coding exon regions and the SNPs in the P2 region. Thus, it is also possible that there are actually two (or more) disease-predisposing alleles, and only the one near the P2 promoter is shared in common between the Ashkenazi and Finnish samples. Further SNP identification, genotyping, and study of additional samples and populations will be necessary to delimit the region that could harbor the susceptibility SNP(s). Also, our finding of association between variants near or within the HNF4A gene and type 2 diabetes does not rule out the possibility that other susceptibility genes are present at 20q13.12-13.13.

When testing for association between diabetes-related traits and the risk allele for SNP rs2144908, we found more significant phenotype results than we would have expected by chance in the unaffected offspring and in the four groups combined. We found traits related to insulin secretion to be associated with the risk allele, consistent with the known function of HNF4A and the P2 promoter. Offspring homozygous for the risk allele had higher fasting, 2-h, and Δ insulin concentrations from the OGTT; however, these were in the presence of higher glucose levels. Careful examination of the relationship between Δ glucose and Δ insulin from the OGTT reveals that offspring with the risk allele had a lower plasma insulin response to glucose. Furthermore, offspring with at least one copy of the risk allele had lower acute insulin response to glucose and disposition index, both measures of β-cell function. Because we did not measure fractional hepatic insulin extraction or directly assess hepatic glucose production, we cannot fully dismiss an effect of this putative variant at the level of the liver. However, the lack of difference in insulin sensitivity between genotypes suggests an effect at the level of the β-cell, and not of the liver. More direct clinical investigation of individuals with the at-risk allele is justified. The observed associations with insulin secretion-related traits suggest abnormal insulin secretory response to oral or intravenous glucose and are consistent with our previous observation of strong heritability of such traits in FUSION 1 families (37).

Mutations in HNF4A are well documented to be a cause of the MODY phenotype (8,13). A few previous studies have also identified variants in HNF4A that appeared significantly associated with common type 2 diabetes in small study samples (38) or in single families (39,40). To our knowledge, however, none of these have been confirmed to be associated in additional study samples. Other studies have sought but not identified significant association between HNF4A variants and common type 2 diabetes (41–43), including variants within the P2 promoter and alternate exon 1 (44). We previously screened the P1 promoter region and exons of HNF4A and identified one variant showing borderline significant association with disease status (4). This variant was not significantly associated with disease status when analyzing all of our case and control subjects (SNP rs736824, online appendix Table 2 [available at http://diabetes.diabetesjournals.org]). In our current study, we studied a new set of SNPs, mostly located at the P2 promoter region and within introns.

HNF4A interacts with multiple transcription factors, including HNF-1α (HNF1A) and -1β, and insulin promoter factor 1 (10,12); variants in each cause specific subtypes of MODY (8). It is possible that coding or noncoding variants in other MODY genes could influence type 2 diabetes susceptibility. In fact, a G319S mutation in HNF1A was significantly associated with early-onset type 2 diabetes, which is distinct from MODY (45). Also, evidence for linkage at chromosome 12q24 near the HNF1A gene has been found in a Finnish sample and in several other studies (46). HNF4A also regulates and interacts with several other proteins that have a major role in the maintenance of glucose homeostasis and that have been implicated in type 2 diabetes pathogenesis, such as peroxisome proliferator-activated receptor-γ (47) and peroxisome proliferator-activated receptor coactivator-1α (48–50).

In summary, we found four variants in a >10-kb region that includes the P2 promoter of HNF4A, which are associated with type 2 diabetes and explain, in part, the evidence for linkage in our sample and in an Ashkenazi Jewish sample (23). Additional variant identification and genotyping, study of other populations, and, finally, functional studies will be needed to identify the true type 2 diabetes susceptibility variant(s) at 20q13.

The FUSION study was funded by intramural funds from the National Human Genome Research Institute project OH95-C-N030 and by National Institutes of Health (NIH) Grants HG00376 and DK62370 to M.B. J.T. has been partially supported by the Academy of Finland (38387 and 46558). K.L.M. is the recipient of a Burroughs Wellcome Career Award in the Biomedical Sciences. T.E.F., K.N.C., and A.D.S. have been partially supported by NIH training Grant HG00040. R.N.B. was supported by NIH Grants DK27619 and DK29867. R.M.W. is supported by the American Diabetes Association.

We are indebted to the Finnish individuals who volunteered to participate in our study. We thank Konstantinos Lazaridis, Amy Carver, Lori Bonnycastle, Abby Woodroffe, Peggy White, and Darryl Leja for their technical assistance. We also thank all past and present FUSION investigators for their hard work and enthusiasm. We thank two anonymous reviewers for their helpful suggestions.
