Suppressed Insulin Signaling and Increased Apoptosis in Cd38-Null Islets

Reagents were from Sigma (St. Louis, MO), unless otherwise indicated. Carbachol was from Calbiochem (La Jolla, CA). Stocks were dissolved <1,000-fold. Recombinant human insulin was dissolved directly into solutions. Single-cell Ca²⁺ imaging was performed in Ringer’s solution containing 5.5 mmol/l KCl, 2 mmol/l CaCl₂, 1 mmol/l MgCl₂, 20 mmol/l HEPES, 141 mmol/l NaCl, and 3 mmol/l glucose.

The generation and characterization of Cd38^−/− mice have been previously described (5). Animals used in these experiments were backcrossed for 12 generations to C57BL/6J (3), and littermate controls were used throughout. Mice were genotyped by flow cytometry of blood B-cells using phycoethrin-conjugated monoclonal anti-mouse CD38 (NIMR clone; Southern Biotechnology, Birmingham, AL) and fluorescein isothiocyanate–conjugated anti-mouse CD45R (eBiosciences, San Diego, CA) as described (5). Except where indicated otherwise, male mice were used between 3 and 6 months of age. Intraperitoneal glucose tolerance tests were performed after a 4-h fast, with tail vein blood sampled at 0, 30, 60, and 120 min after injection of dextrose (2 g/kg body wt). Insulin tolerance tests were performed by injection of insulin (0.1 units/kg body wt) after a 12-h fast. Some mice were fed a high-fat diet (TD 88137, total fat content of 6%; Harlan, Madison, WI) from weaning. Both genotypes gained significant weight to a similar extent on high-fat diets. High-fat feeding resulted in insulin resistance in both wild-type and Cd38^−/− mice, as assessed by insulin tolerance test (see below). All procedures were approved by animal studies committees.

The islet isolation technique was a modification of the technique originally described by Lacy and Kostianovsky (36), with a filtration modification described by Salvalaggio et al. (37). Briefly, pancreata were distended by injecting 3 ml collagenase (0.375 mg/ml Sigma Type XI) in Hank’s solution (137 mmol/l NaCl, 5.4 mmol/l KCl, 4.2 mmol/l NaH₂PO₄, 4.1 mmol/l KH₂PO₄, 10 mmol/l HEPES, 1 mmol/l MgCl₂, and 5 mmol/l glucose). The pancreas was removed and incubated in collagenase solution for 13 min in a 37°C water bath. The resulting disrupted pancreas was washed three times with Hank’s solution with 1 mmol/l CaCl₂ followed by centrifugation (2,000g). Islets were resuspended in RPMI-1640 media (Invitrogen/Life Technologies, Carlsbad, Ca) and then poured onto a prewet 70-μm nylon mesh cell strainer (BD Biosciences, San Jose, CA). The captured islets were then rinsed into a dish with complete RPMI-1640 containing 10% fetal bovine serum and hand picked. Using this method, we are able to obtain, on average, 250 islets per mouse. These islets showed reduced apoptosis and improved insulin release compared with islets isolated using Ficoll. Improved islet engraftment has been noted by others using filtration in islet transplantation studies (37).

As described previously (11,38), islets were gently dispersed into single cells, plated on coverslips in RPMI-1640 media (containing 5.5 mmol/l glucose and 100 IU/ml penicillin, 100 μg/ml streptomycin, and 10% FCS; pH 7.4 with NaOH) and maintained at 37°C, 5% CO₂, and saturated humidity. Dispersed islet cell cultures (2–4 days old) containing ∼80 β-cells were imaged using Fura-4F-AM (770 nmol/l Ca²⁺K_d; Molecular Probes, Eugene, OR), as described (11,38). Coverslips, placed in a narrow 32°C chamber (∼300 μl) on the stage of an IX70 microscope (Olympus, Tokyo, Japan), were continuously perifused with preheated solutions to maximize control over the contents of the bath (especially ambient insulin levels). Significant Ca²⁺ responses were defined as having at least one 1-min time period with a mean [Ca²⁺]_c that was >2 SDs over the mean [Ca²⁺]_c of the 5-min pretreatment period. Ca²⁺ responses were quantified as maximal amplitude above baseline and integrated area. Unless indicated otherwise, the number of replicates reported in the figure legends and text represents the total number of islet cells in imaging experiments.

For β-cell mass and islet architecture analysis, pancreata were fixed overnight in Bouin’s solution and embedded in paraffin using standard techniques as previously described (38). For β-cell mass studies, pancreatic tissue sections were stained red with primary insulin antibody/AEC and counterstained with hematoxylin (Zymed, San Francisco, CA). Slides were imaged using a 1.25× objective on an Olympus BX41 microscope and a Nikon Coolpix 995 digital camera. Multiple images were spliced using Adobe Photoshop. Shading defects and nonred background irregularities from images were cancelled by subtracting the red channel from the green channel using MetaMorph software (Universal Imaging, Downingtown, PA). Pancreatic area and β-cell area were estimated using the intensity thresholding function of the integrated morphometry package in MetaMorph. Investigators were blinded to the source of the tissue throughout the morphometric analysis.

BrDU labeling was performed 4 h after intravenous injection of 4-week-old mice with 5 mg/ml BrDU (200 μl volume; Sigma). After 4 h, the mice were killed and the pancreas was frozen in OCT (TissueTek) over liquid nitrogen. The pancreas was sectioned (7 μm), fixed in acetone at 4°C for 10 min, rinsed in dPBS, and then treated with 0.1% NaBH₄ for 15 min to quench autofluorescence. The sections were then washed in dPBS, fixed with 4 mol/l HCl for 30 min, treated with 0.1 mol/l Na₂B₄O₇ for 10 min, and washed in dPBS. The sections were stained with an anti-BrDU antibody coupled to Alexa-Fluor 594 (1/40 dilution; Molecular Probes) for 30 min, washed in dPBS, mounted with Prolong Antifade (Molecular Probes), and viewed on a Zeiss Axioplan 2 microscope (Oberkochen, Germany) under fluorescence using the appropriate band-pass filters. Images were captured using a 40× objective with a Zeiss Axiocam. Islet size was calculated using the Zeiss Axiovision 3.0.6 software. BrDU-positive cells were counted from a random islet area of at least ∼70,000 μm². Experiments were repeated on three 4-week-old mice from each group.

Islet apoptosis was measured using a previously described variation of a PCR-enhanced DNA-laddering protocol modified for use with small numbers of islets (34). To compare data from separate gels, band intensity was normalized to the average of the control groups.

Statistical analyses were performed using Student’s unpaired t test or one-way ANOVA, where appropriate. Differences were considered significant when P < 0.05. Results are presented as means ± SE.

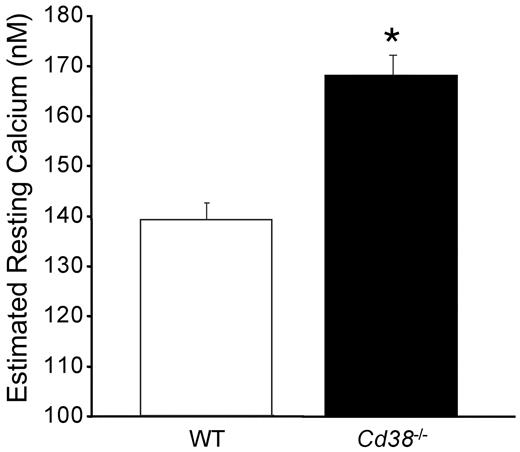

The regulation of intracellular Ca²⁺ is a major function of CD38. First, we examined Ca²⁺ homeostasis in unstimulated cells. Analysis of the resting Ca²⁺ concentration from all experiments indicated that Cd38^−/− islet cells had higher basal cytosolic Ca²⁺ compared with wild-type cells (Fig. 1). This finding suggests that CD38, directly or indirectly, regulates the set point for cytosolic Ca²⁺ in β-cells. Next, we examined the role of CD38 in the mobilization of Ca²⁺ by extracellular signals. The possibility that CD38 played a role in the responsiveness of islet cells to insulin was examined using a wide range of insulin concentrations, from 2 pmol/l to 2 μmol/l, since the concentration dependence of autocrine insulin signaling in primary β-cells is bell shaped (11,15). The majority of dispersed islet cells responded to at least one concentration of insulin. Notably, there were 50% fewer responses to insulin in cells from Cd38^−/− mice (Fig. 2). Among cells responding to insulin, wild-type cells appeared to be more sensitive since they showed maximal responses at 0.2 nmol/l insulin, while Cd38^−/− cells showed maximal responses to 2 nmol/l insulin (Fig. 3A and B). The amplitude of the Ca²⁺ signal induced by insulin was lower in Cd38^−/− cells, although this was not statistically significant (Fig. 3C). The observation that insulin signaling was not completely abolished in Cd38^−/− β-cells suggests that other members of the CD38 family may play a compensatory role. Ca²⁺ signals in response to 5 μmol/l carbachol and 100 μmol/l ATP, both IP₃-generating agonists, did not appear to be reduced (not shown), suggesting that CD38 plays a specific role in insulin responsiveness. Together, these results indicate that CD38 controls the responsiveness of single islet cells to insulin.

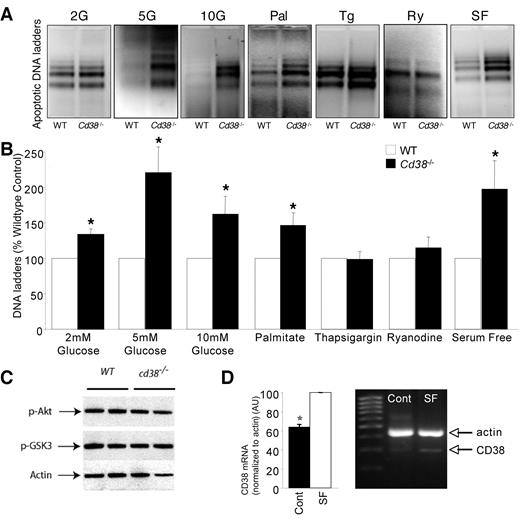

Insulin is a potent islet survival factor (39,40) (J.D.J. et al., manuscript submitted). As such, we directly tested the hypothesis that Cd38^−/− islets, with their reduced sensitivity to insulin, would exhibit increased apoptosis. The effects of Cd38 deficiency on apoptosis induced by a number of treatments were examined using a semiquantitative PCR-enhanced DNA-laddering assay (38). These experiments showed that Cd38^−/− islets are significantly more susceptible to apoptosis at physiological glucose concentrations, in the presence of the free fatty acid palmitate or in the absence of serum (Fig. 4A and B). Interestingly, Cd38^−/− islets were not more susceptible to endoplasmic reticulum stress induced by thapsigargin or cell death induced by ryanodine. This suggests that apoptosis via disruption of Cd38 and intracellular Ca²⁺ stores, potentially downstream of NAADP (11), were not additive. Acutely isolated Cd38^−/− islets did not exhibit changes in the phosphorylation status of Akt or glycogen synthase-kinase 3 (Fig. 4C), suggesting the possible involvement of other antiapoptotic pathways. Interestingly, CD38 mRNA in isolated wild-type islets was upregulated in serum-free conditions (Fig. 4D).

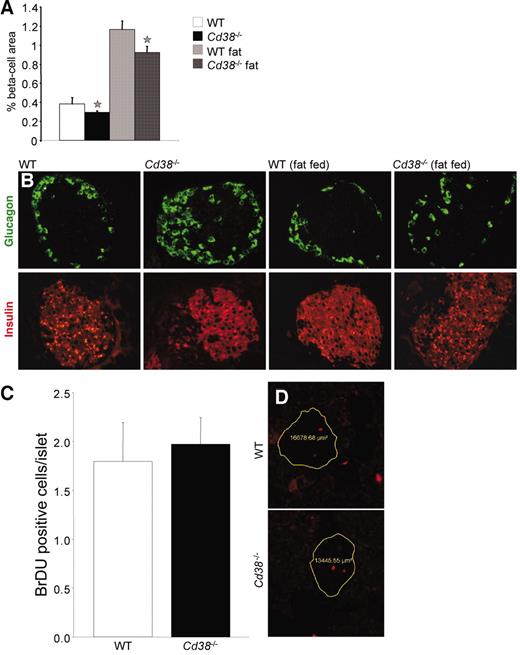

Increased islet apoptosis can result in decreased β-cell mass and disrupted islet architecture (41). Cd38^−/− mice displayed a small but significant decrease in β-cell mass under both normal conditions and under conditions of high-fat feeding (Fig. 5A). No difference was seen in pancreatic weight or whole-body weight. The decreased β-cell mass was paralleled by a disruption in islet architecture (Fig. 5B). Whereas in the normal islet, glucagon-containing α-cells are distributed exclusively in the islet mantle, in Cd38^−/− islets, glucagon staining was distributed more diffusely between the insulin-secreting β-cells in the islet core, as seen in several mouse models of increased islet apoptosis (38,42). No difference in β-cell uptake of BrdU was observed in Cd38^−/− islets either when measuring the total number of proliferating cells per islet (Fig. 5C and D) or when measuring the total number of proliferating cells per unit area in the islet (data not shown). Since β-cell mass reflects the balance between β-cell apoptosis and proliferation (38,43,44), these data suggest that the decrease in β-cell mass seen in Cd38^−/− mice is due to increased apoptosis rather than reduced proliferation.

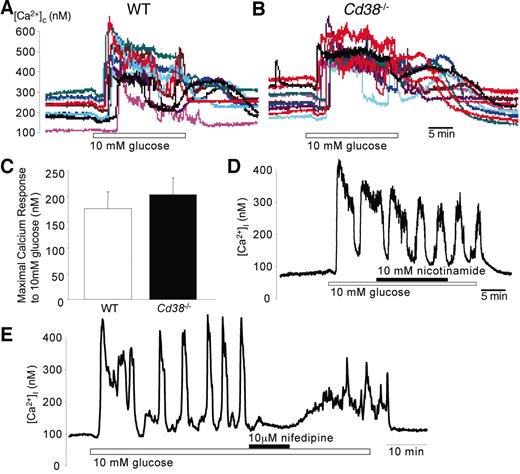

Previous reports (19,20) of a critical role for CD38 in calcium signaling induced by glucose prompted us to examine glucose signaling in our Cd38^−/− mice. An extensive examination of >350 β-cells from C57BL/6 Cd38^−/− mice and their littermate controls showed no significant difference in the Ca²⁺ responses to 10 mmol/l glucose (Fig. 6A–C). Similar results were seen with 6 mmol/l glucose (n = 13 for wild type, n = 13 for Cd38^−/−; not shown) and 20 mmol/l glucose (n = 12 for wild type, n = 15 for Cd38^−/−; not shown). Glucose signaling in wild-type control islet cells was also not reduced by nicotinamide (Fig. 6D), which has been shown to inhibit CD38 enzyme activity (45), but was strongly dependent on the influx of extracellular calcium through voltage-gated Ca²⁺ channels in primary β-cells (Fig. 6E), as established by others (46).

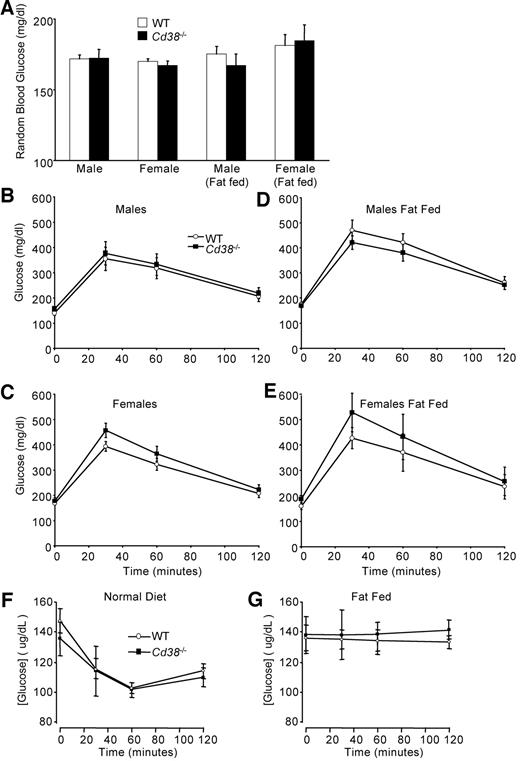

We assessed the role of CD38 in glucose signaling in vivo by comparing wild-type and Cd38^−/− mice on the C57BL/6 genetic background. Random blood glucose was not different between wild-type and Cd38^−/− mice, irrespective of sex or diet (Fig. 7A). Glucose tolerance was not significantly different in Cd38^−/− mice, although there was a trend toward higher 30-min glucose values in female Cd38^−/− mice on both diets (Fig. 7B–E). Insulin tolerance tests were also normal in Cd38^−/− mice on both diets (Fig. 7F and G). Significant insulin resistance was observed in the high-fat diet mice. Together, these results strongly suggest that CD38 is not required for glucose signaling.

In the present study, we used islets from Cd38 knockout mice to address the functional role of CD38 in the endocrine pancreas. Our study has produced two major findings. First, Cd38 deficiency leads to defects in insulin signaling, islet survival, and β-cell mass. Second, CD38 is not required for glucose signaling and is dispensible for normal glucose homeostasis, even under the stress of a high-fat diet.

In a previous study, we demonstrated that insulin mobilizes Ca²⁺ from multiple compartments in β-cells, including a novel class of intracellular Ca²⁺ stores sensitive to the Cd38-derived metabolite NAADP (11). Our findings now provide further evidence that a Cd38/NAADP pathway is present in pancreatic islet cells and confirm that this system plays a role in insulin signaling. Our results show that Cd38 was required for optimum sensitivity of islet cells to insulin, rather than being absolutely necessary. Where it has been examined in other studies, Ca²⁺ signals in response to endogenous agonists are only partially inhibited in Cd38^−/− cells from various tissues (3,47,48), suggesting the possible compensation by other members of the CD38 family (e.g., CD157) or other enzymes capable of generating cADPR or NAADP. Since calcium signals generated by insulin were completely dependent on NAADP (11), our current results suggest that additional NAADP-generating enzymes may be involved in insulin signaling. The involvement of CD38 in β-cell insulin signaling is further evidence of a previously undescribed arm of the insulin signaling pathway. The present study also demonstrates that this pathway plays an important role in controlling the susceptibility to apoptosis. Indeed, an increasing body of evidence points to a critical role for the insulin signaling pathway in the survival of β-cells. Insulin exerts antiapoptotic effects on isolated islets (39,40) (J.D.J. et al., manuscript submitted), and mice lacking β-cell insulin receptors or IRS2 display reduced β-cell mass (16,17). In accordance with this, we found that β-cell mass was reduced and islet architecture disrupted in Cd38^−/− mice. The selective increase in apoptosis seen at physiological glucose levels, but not in the presence of thapsigargin, is reminiscent of the phenotype of mice haploinsufficient for pdx-1, a gene linked to human diabetes (38) and involved in β-cell insulin signaling (J.D.J., K.S.P., unpublished observations).

CD38 may also prevent β-cell apoptosis through the cADPR-mediated activation of RyR2, which may explain why the apoptotic effects of Cd38 knockout and ryanodine were not additive. We have shown that Ca²⁺ release from RyR2 inhibits the expression of calpain-10, a diabetes susceptibility gene and proapoptotic protease in β-cells (34,49). Thus, it is possible that Cd38 and calpain-10 comprise part of a genetic network influencing diabetes risk in humans. Given the link between obesity and type 2 diabetes, this novel β-cell apoptosis pathway may represent an important intersection between acquired risk factors, such as high circulating lipids, and genetic predisposition. Cd38 gene expression and RyR activity are both suppressed in ob/ob mice, a genetic animal model of obesity and diabetes (25). Cd38^−/− islets were also more susceptible to apoptosis induced by palmitate in vitro. Although the fat feeding resulted in a threefold increase in β-cells mass, the effects of CD38 deficiency were not proportionally larger with the high-fat diet. This finding, combined with out BrdU staining, suggests that CD38 is not involved in β-cell proliferation but instead mediates the general maintenance of β-cell mass.

CD38 deficiency leads to an increase in the basal cytosolic Ca²⁺ concentration in β-cells. Prolonged Ca²⁺ elevation could promote apoptosis in pancreatic β-cells, as it would mimic chronic hyperstimulation with glucose (34,38,50–52). We speculate that the chronic increase in basal Ca²⁺ seen in Cd38^−/− β-cells may by related to indirect long-term effects of the RyR2 pathway on gene expression. In preliminary microarray studies, blocking RyR reduced the expression of a number of hyperpolarizing K⁺ channels (J.D.J, K.S.P, unpublished observations). A decrease in K⁺ channel density would be expected to increase membrane excitability and Ca²⁺ influx. Another possible explanation for this increased Ca²⁺ involves the ability of insulin to decrease membrane excitability by opening ATP-sensitive K⁺ channels in β-cells (53).

Our study suggests that islet apoptosis is a primary alteration in Cd38^−/− mice since it can be observed in the absence of changes in glucose signaling. This idea is consistent with studies in other cell types. For example, CD38-derived cyclic ADP-ribose has been shown to improve the survival and engraftment of hematopoietic stem cells (54). In T-cells, inactivation of CD38 by ADP-ribosylation results in increased apoptosis (55), whereas stimulation of CD38 with cross-linking antibodies leads to activation of the Akt and Erk prosurvival pathways (35). The possibility that Akt is downstream of CD38 is interesting, since Akt has been implicated in insulin signaling and glucose homeostasis (56,57). Although we did not observe changes in the phosphorylation status of the total pool of Akt in Cd38^−/− islets, it remains possible that the localization or activity of Akt in a subpopulation of CD38-positive β-cells could mediate the effects of altered insulin signaling.

Our finding of normoglycemia in Cd38^−/− mice is in contrast to the model proposed by Okamoto et al. (18) based in part on studies of transgenic mice overexpressing Cd38 and Cd38^−/− mice on the ICR genetic background (19,20). We and others did not observe a significant defect in glucose tolerance in Cd38^−/− mice on the C57BL/6 genetic background (58). It is possible that genetics could account for the differences in whole-body glucose metabolism. However, the previous studies (19,20) also reported a robust impairment in insulin release in response to 20–30 mmol/l glucose in vitro and reduced Ca²⁺ response to glucose in islets isolated from ICR-Cd38^−/− mice. Comparing our findings with the results of Okamoto and colleagues (20) illustrates the potentially critical role of genetic background in the susceptibility to diabetes in Cd38 knockout mice. Indeed, the CD38 mutation seen in Japanese patients (23) was not observed in a European cohort (24). We await reports from large-scale human genetic studies to clarify the role of variation in the CD38 gene in type 1 and type 2 diabetes.

In our study of β-cells from Cd38^−/− mice on the C57BL/6 genetic background, a direct role for CD38 in glucose signaling was not found. It would be surprising if the fundamental mechanisms of glucose signaling differed between mouse strains. One possibility would be that islet apoptosis was more severe in the ICR-Cd38^−/− mice and that this led to a secondary defect in glucose signaling. Since an analysis of islet apoptosis has not been reported for the ICR-Cd38^−/− mice, it is difficult to know the exact reason for these discordant findings. At least, our data suggest that the model proposed by Okamoto et al. (18) cannot be generally applied to β-cell function in mice from different genetic backgrounds. Importantly, our previous studies (21,22) of human islet cells, as well as studies on rodent islets, argue against a major role for cADPR or RyR in glucose-stimulated insulin release. Although the CD38/RyR2 pathway may be an accessory pathway modulating insulin release, especially in cell lines, the bulk of the evidence supports a model whereby localized Ca²⁺ influx through voltage-gated Ca²⁺ channels subsequent to the closure of ATP-sensitive K⁺ channels is the primary trigger of glucose-stimulated insulin release (46,59–62).

Although we did not note significant defects in glucose homeostasis in the Cd38^−/− mice under the conditions tested, it remains possible that additional β-cell stress could provoke β-cell failure and diabetes, especially in female Cd38^−/− mice, which showed a trend toward glucose intolerance in our study. One potential example is type 1 diabetes, where the increased islet apoptosis demonstrated in the present study may have significant ramifications during autoimmune attack. In this respect, it is notable that diabetes occurs predominantly in female NOD mice (63) and that CD38 expression is controlled by estrogen in other tissues (64). Interestingly, cytokines responsible for β-cell apoptosis in type 1 diabetes, namely tumor necrosis factor α, interleukin-1β, and interferon γ, have all been shown to alter CD38 expression in other cells types (65,66). While this report was in revision, Leiter et al. (58) reported that CD38 deficiency significantly accelerated diabetes in NOD mice. While the CD38^−/−:NOD study focused largely on the roles of CD38 in the immune system, their results also pointed to effects in nonhematopoietic cells (58). In summary, the results of the present study clarify the molecular role of CD38 in autocrine insulin signaling, Ca²⁺ homeostais, and β-cell apoptosis, while arguing against a primary role in glucose-dependent Ca²⁺ signaling.

This study was supported by National Institutes of Health (NIH) Grant DK-31842 (to K.S.P.), the Kovler Foundation, NIH Grant AI-057996 (to F.E.L.), and the Trudeau Institute (T.D.R.). J.D.J. was supported by scholarships and operating grants from the Canadian Institutes of Health Research (MOP-69012), the Michael Smith Foundation for Health Research (CI-SCH-01403-1), and the Juvenile Diabetes Research Foundation (2-2005-926).
