Failure of Transplanted Bone Marrow Cells to Adopt a Pancreatic β-Cell Fate

Two mouse strains on a C57BL/6 background, transgenic for green fluorescence protein (GFP) and driven by mouse insulin I gene promoter (MIP/GFP; kindly provided by Dr. Manami Hara, University of Chicago, Chicago, IL) (36) or the β-actin promoter (β/GFP; kindly provided by Dr. M. Okabe, Osaka University, Suita, Japan) (37), were used as donors of bone marrow cells. Both of these strains express the CD45.2 isoform of the panhematopoietic cell surface antigen CD45. As recipient mice, we used wild-type C57BL/6 mice expressing CD45.1. All mice were given sterile food and autoclaved acidified water and housed under pathogen-free conditions. All procedures were performed with consent from the local ethical committee at Lund University.

Whole bone marrow cells were collected from femurs and tibias of 10- to 14-week-old CD45.2 MIP/GFP or β/GFP donor mice. Femurs and tibias were gently crushed in a mortar, and the cell suspension was filtered through a 70-μm mesh filter (Becton Dickinson Falcon, Erembodegem, Belgium). The fraction of dead cells in the suspension was determined with Trypan blue (Sigma-Aldrich, St. Louis, MO), and the volume used for transplantation was adjusted accordingly. MIP/GFP or β/GFP (both CD45.2) bone marrow cells were transplanted into lethally irradiated (975 cGy of γ irradiator from a Cs137 source) wild-type C57BL/6 (CD45.1) recipient mice. Hematopoietic chimerism and blood lineage distribution was evaluated in peripheral blood of recipient mice 4–6 weeks after transplantation by flow cytometry (FACSCalibur; Becton Dickinson, San Jose, CA) as previously described (12). Data were analyzed using FlowJo software (TreeStar, San Carlos, CA).

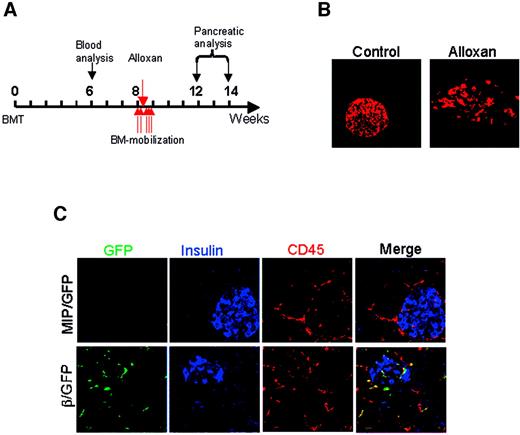

Wild-type mice with high levels of GFP⁺ multilineage hematopoietic reconstitution underwent cytokine mobilization and alloxan treatment (Sigma) 8 weeks after bone marrow transplantation (Fig. 4A). Starting 2 days before alloxan injection, bone marrow cells were, as previously described (12), mobilized to peripheral blood by five daily injections (5 μg · mouse⁻¹ · day⁻¹) with recombinant human fms-like tyrosine kinase-3 ligand and recombinant murine granulocyte macrophage colony–stimulating factor (kind gifts of Amgen, Thousand Oaks, CA). Diabetes was induced by a single intravenous injection of alloxan monohydrate at 80 mg/kg body wt as previously described (38,39). Blood insulin and glucose levels were evaluated 5 days later, and 4–6 weeks after alloxan administration, mice were killed and pancreata harvested and fixed for immunohistochemistry.

Six weeks after MIP/GFP bone marrow transplantation, mice were treated with 10 daily intraperitoneal injections of exendin-4, an analog of glucagon-like peptide-1 (24 nmol/kg) (Sigma-Aldrich). Mice were killed for immunohistochemical analysis 4 weeks after the last injection of exendin-4 treatment.

The following primary antibodies were used: rabbit anti–GST-STF1 (Pdx-1), rabbit anti–GST-Nkx6.1 (both from Hagedorn Research Institute, Copenhagen, Denmark), guinea-pig anti-insulin/proinsulin (B65-1) (Euro-Diagnostica, Malmö, Sweden), chicken anti-GFP (Chemicon, Temecula, CA), rat anti-mouse CD45 (NeoMarkers, Fermont, CA), and rat anti-mouse CD4 (145–2C11), CD8 (53-6.7), B220 (RA3-6B2), Mac-1 (M1/70), Gr-1 (RB6-8C5), CD45.2 (104), and CD45.1 (A20) antibodies (all from PharMingen, San Diego, CA). Secondary antibodies included fluorescein isothiocyanate–and Texas red–conjugated donkey anti-chicken IgG, Cy5-conjugated donkey anti-rat IgG, Texas red–conjugated donkey anti–guinea pig IgG (all from Jackson Immuno Research Laboratories, West Grove, PA), and Alexa Fluor 555 conjugated with goat anti-rat IgG or goat anti-rabbit IgG (Molecular Probes, Eugene, OR).

Dissected pancreata as well as livers were fixed with Stefanini fixative solution overnight at 4°C followed by equilibration overnight in 20% sucrose at 4°C, embedded in Tissue-Tek O.C.T. (Sakura Finetek Europe B.V., Zoeterwoude, the Netherlands), cryosectioned (8–12 μm), and stored at −80°C until examination. For immunohistochemistry, the sections were permeabilized with 0.25% Triton X100 (Sigma) for 10 min, washed three times with PBS, and blocked with 5% donkey or goat serum (Sigma) for 1 h at room temperature. Primary antibodies were diluted with 5% donkey or goat serum and incubated overnight at 4°C. After washing with PBS three times, appropriate secondary antibodies were incubated for 45 min at room temperature. Finally, to visualize the cell nuclei, sections were washed and incubated with Hoechst 33342 for nuclear staining (Sigma). Staining with control antibodies, as well as staining of negative and positive control tissues, was always performed to control the specificity of the antibodies. β-Cell–specific antibodies were titrated on sections of viable pancreatic islets from wild-type and β/GFP transgenic mice. Hematopoietic marker-specific antibodies were titrated on samples from bone marrow and spleen. Immunoreactivity was visualized and images taken using conventional fluorescence (Olympus, London, U.K.) or confocal (LSM 510 Meta; Zeiss, Jena, Germany) microscopy. In nondiabetic mice, an average of 60 pancreatic sections as well as 30 liver sections were analyzed per mouse, and in alloxan-treated mice an average of 30–40 pancreatic sections were examined per mouse, equally distributed between the pancreatic head and the tail. For all experimental groups, a minimum of 14 mice (except for the exendin-treated cohort, in which only 5 mice were used) were examined, for a total of 420–840 pancreatic sections representing 3 × 10⁴ to 7.5 × 10⁵ β-cells. All datasets were independently confirmed by at least two investigators in two different laboratories involved in the studies.

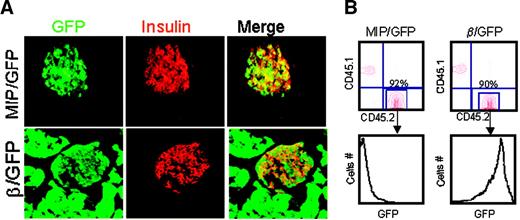

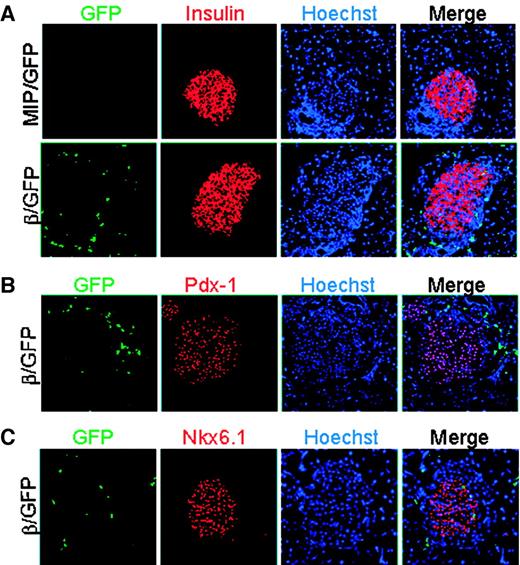

We first used the same experimental strategy as Ianus et al. (25), in which bone marrow cells were reported to acquire a β-cell fate in vivo upon transplantation into nondiabetic mice. Lethally irradiated wild-type mice were first transplanted intravenously with a high number (1 × 10⁷) of unfractionated bone marrow cells from mice in which GFP is expressed under control of the mouse insulin promoter (MIP/GFP) (36). As expected, GFP expression in MIP/GFP mice was restricted to pancreatic β-cells (Fig. 1A), and no peripheral blood cells derived from MIP/GFP bone marrow cells expressed GFP (Fig. 1B). Transplanted mice were killed, as in the studies of Ianus et al. (25), 4–6 weeks posttransplantation, at which time transplanted bone marrow cells contributed to >80% of peripheral blood cells (Fig. 1B, Table 1). Examination by direct fluorescence microscopy of as much as 800 pancreatic islet sections (representing ∼7.5 × 10⁵ β-cells) from 14 MIP/GFP bone marrow–transplanted mice failed to reveal pancreatic engraftment of any GFP⁺ cells even when using an anti-GFP antibody to enhance sensitivity (Fig. 2A, Table 1). We also failed to detect any GFP expression in the liver of transplanted mice (420 liver sections from 14 transplanted mice analyzed). The same negative picture was obtained when the pancreata were analyzed 3 months posttransplantation (J.T., S.E.W.J., unpublished observation). Although the use of MIP/GFP bone marrow cells allows specific and high-resolution tracking of bone marrow–derived cells expressing insulin, such cells cannot be used to determine their level of pancreatic engraftment and fate determination. Thus, we next performed the same experimental bone marrow transplantation protocol in nondiabetic mice, using bone marrow cells in which GFP was instead expressed under the ubiquitously expressed β-actin promoter (β/GFP) (37) (Fig. 1A and B). In contrast to MIP/GFP bone marrow–transplanted mice, high levels of engrafted GFP⁺ cells were observed in the pancreas of all mice transplanted with β/GFP bone marrow cells (Fig. 2, Table 1). However, in 420 sections (containing 4.0 × 10⁵ β-cells), we found no cells coexpressing GFP and insulin (Fig. 2A, Table 1). Furthermore, no bone marrow–derived GFP⁺ cells coexpressed the β-cell transcription factors Pdx-1 or Nkx6.1 (Fig. 2B and C, Table 1). By contrast, virtually every GFP⁺ cell engrafted into the pancreas expressed the panhematopoietic marker CD45 (>99.9%; Fig. 3A, Table 1) as well as myeloid antigens Mac-1/Gr-1, whereas they were negative for T-cell (CD4, CD8) and B-cell (B220) markers (Fig. 3B, Table 1). Thus, transplanted bone marrow cells have the capacity to engraft into the pancreas of nondiabetic recipients but then exclusively adopt a hematopoietic rather than a β-cell fate.

A number of studies (12,15,17,18) have suggested that the ability of bone marrow–derived cells to adapt nonhematopoietic fates in vivo, primarily through cell fusion, is dependent on or enhanced by organ-specific insults. In addition, it has been suggested that cytokine-induced mobilization of bone marrow cells to peripheral blood can promote their migration to nonhematopoietic tissues and nonhematopoietic fate conversion (12,40). Thus, we next explored the possibility that mobilized bone marrow cells might adapt a β-cell fate in mice rendered diabetic following treatment with the β-cell–specific toxin alloxan (38,39). Wild-type mice reconstituted with MIP/GFP or β/GFP bone marrow cells were cytokine mobilized before and after alloxan treatment (Fig. 4A). To verify the extent of alloxan-induced β-cell injury, blood insulin and glucose levels were measured 5 days later. Alloxan-treated mice had reduced blood insulin levels (4 ± 2 μU/ml) compared with untreated controls (25 ± 7 μU/ml), and blood glucose was elevated 2.5-fold from 6 ± 2 mmol/l in untreated mice to 15 ± 4 mmol/l. Furthermore, immunohistochemical analysis of pancreatic islets from alloxan-treated mice revealed extensive pancreatic islets damage (Fig. 4B). However, in accordance with the data from nondiabetic mice, no GFP⁺ cells were observed in the pancreata of alloxan-treated mice reconstituted with MIP/GFP bone marrow cells (Fig. 4C, Table 2). In total, we investigated sections representing ∼50,000 pancreatic β-cells in 21 mice. Alloxan-treated mice reconstituted with β/GFP cells consistently exhibited pancreatic engraftment with GFP⁺ bone marrow–derived cells (Fig. 4C, Table 2). However, investigation of sections representing >30,000 pancreatic β-cells demonstrated that >99% of the bone marrow–derived GFP⁺ cells coexpressed the hematopoietic markers CD45 and Mac-1/Gr-1, whereas not a single GFP⁺ cell was found to express insulin, Pdx-1, or Nkx6.1 (Fig. 4C, Table 2).

Finally, mice reconstituted with MIP/GFP bone marrow cells were treated with exendin-4, a glucagon-like peptide-1 analog that, in addition to its insulin-releasing action, stimulates pancreatic β-cell growth with resultant increase in pancreatic β-cell mass (41,42). However, exendin-4 had no detectable effect when this cohort (alloxan-treated mice) was analyzed 4 weeks after exendin-4 treatment and no GFP⁺ cells were observed in investigated pancreatic or liver sections (not shown).

The recent report (25) of bone marrow cells giving rise to up to 3% insulin-expressing cells when transplanted in vivo has raised the exciting possibility that bone marrow cells could be used for cellular replacement therapy in diabetes (28,31). Because they are so readily accessible and can be delivered by autologous transplantation, bone marrow cells would represent a particularly attractive source of β-cells for cell replacement therapy. However, before embarking on a route for clinical development, it is essential to first unequivocally establish that bone marrow–derived β-cell transdifferentiation does indeed occur reproducibly. Many claims of bone marrow transdifferentiation have proven to be difficult to reproduce (10,12,14,32,43). Therefore, it has been proposed that a key criterion for demonstration of transdifferentation of bone marrow cells is that the finding should be independently reproduced in more than one laboratory (26,44). Unfortunately, several recent studies have partially (32) or fully (34) failed to reproduce the initial findings of bone marrow–derived β-cell generation (25). However, because alternative procedures were used for tracing transplanted bone marrow cells and/or conditioning the recipients, it remains possible that bone marrow transdifferentiation to insulin-expressing cells only occurs under certain conditions. Furthermore, the cellular fate(s) of a large fraction of bone marrow–derived cells engrafted in the pancreas was not established in these studies, leaving open the possibility that they might represent bone marrow cells that have partially embarked on a differentiation path toward β-cells (32,34). Here, we systematically compared multiple approaches to promote and investigate the β-cell potential of the transplanted bone marrow cells. One of these was the same as that used by Ianus et al. (25) and involved analysis of pancreatic sections for presence of GFP⁺ cells 4–6 weeks after bone marrow transplantation into lethally irradiated mice of the same background as in the original study. To enhance resolution, we used bone marrow cells in which GFP was under the control of an insulin-specific promoter. This was essential to allow potentially very low levels of transdifferentiation to be detected. Although the levels of hematopoietic reconstitution obtained with bone marrow transplantation were high, we failed to detect any GFP⁺ cells among the high number of transplanted mice and β-cells investigated. Importantly, if the levels of transdifferentiation had been similar to Ianus et al. (25) (1.7–3%), we would have expected to find at least 1 × 10⁴ GFP⁺ cells in the investigated sections. Performing similar experiments with bone marrow cells in which GFP was instead under the control of the ubiquitous β-actin promoter, we were able to demonstrate considerable GFP⁺ engraftment in the pancreas of bone marrow–transplanted mice. However, none of the engrafted cells expressed insulin or the transcription factors Pdx-1 and Nkx6.1 (45,46). Most importantly, in contrast to Choi et al. (34) and Lechner et al. (32), who used a different anti-CD45 antibody than us, we were able to demonstrate that >99.9% of the bone marrow–derived GFP⁺ cells expressed the panhematopoietic marker CD45 as well as the myeloid antigen Mac-1 (12). Thus, our data clearly demonstrate that β/GFP bone marrow–derived cells engraft efficiently in the pancreas but adopt almost exclusively a hematopoietic cell fate. As we failed to detect any bone marrow–derived β-cells in steady state, we also investigated the ability of MIP/GFP as well as β/GFP bone marrow cells to generate β-cells in mice rendered diabetic by alloxan treatment. However, not a single bone marrow–derived cell was found to express insulin, Pdx-1, or Nkx6.1, whereas close to 100% of them expressed the blood cell antigens CD45 and Mac-1/Gr-1. It is unclear why we were unable to confirm the observations of Ianus et al. If this is attributable to subtle differences in the experimental protocols, the implication is that the phenomenon of in vivo bone marrow–derived β-cell differentiation is not robust. Consequently, the requisite conditions must be much better defined before even considering any clinical applications. However, as already emphasized by others (44), it is also necessary to reinvestigate the experimental approaches, as cells can show considerable autofluorescence and unspecific binding of antibodies. Although our studies provided no support of the hypothesis that fresh bone marrow cells can transdifferentiate into β-cells upon in vivo transplantation, they do not exclude that cells with such potential might be derived from cultured bone marrow cells as recently described (47,48). Furthermore, recent studies have suggested that bone marrow transplantation might promote endogenous pancreatic β-cell regeneration (35,49).

This work was supported by the Juvenile Diabetes Research Foundation, the Swedish Diabetes Foundation, the Swedish Research Council and ALF (Government Public Health Grant). The Lund Stem Cell Center is supported by a center of excellence grant from the Swedish Foundation for Strategic Research.

We thank L. Wittman for technical assistance.
