OBJECTIVE—Research has focused on insulin receptor substrate (IRS)-1 as a locus for insulin resistance. Tyrosine phosphorylation of IRS-1 initiates insulin signaling, whereas serine/threonine phosphorylation alters the ability of IRS-1 to transduce the insulin signal. Of 1,242 amino acids in IRS-1, 242 are serine/threonine. Serine/threonine phosphorylation of IRS-1 is affected by many factors, including insulin. The purpose of this study was to perform global assessment of phosphorylation of serine/threonine residues in IRS-1 in vivo in humans.
RESEARCH DESIGN AND METHODS—In this study, we describe our use of capillary high-performance liquid chromotography electrospray tandem mass spectrometry to identify/quantify site-specific phosphorylation of IRS-1 in human vastus lateralis muscle obtained by needle biopsy basally and after insulin infusion in four healthy volunteers.
RESULTS—Twenty-two serine/threonine phosphorylation sites were identified; 15 were quantified. Three sites had not been previously identified (Thr495, Ser527, and S1005). Insulin increased the phosphorylation of Ser312, Ser616, Ser636, Ser892, Ser1101, and Ser1223 (2.6 ± 0.4, 2.9 ± 0.8, 2.1 ± 0.3, 1.6 ± 0.1, 1.3 ± 0.1, and 1.3 ± 0.1–fold, respectively, compared with basal; P < 0.05); phosphorylation of Ser348, Thr446, Thr495, and Ser1005 decreased (0.4 ± 0.1, 0.2 ± 0.1, 0.1 ± 0.1, and 0.3 ± 0.2–fold, respectively; P < 0.05).
CONCLUSIONS—These results provide an assessment of IRS-1 phosphorylation in vivo and show that insulin has profound effects on IRS-1 serine/threonine phosphorylation in healthy humans.
Through the efforts of a large number of investigators, many of the details of insulin signaling have been defined on a molecular level (1). Despite this, the changes in insulin signaling that produce insulin resistance in vivo in tissues such as skeletal muscle, adipose, or liver remain, for the most part, unknown. Numerous defects have been identified in skeletal muscle from insulin-resistant obese or type 2 diabetic patients, including decreased insulin activation of the insulin receptor β-subunit, reduced tyrosine phosphorylation of insulin receptor substrate (IRS)-1, and dampened binding of the p85 regulatory subunit of phosphatidylinositol (PI) 3′-kinase and association of PI 3′-kinase activity with IRS-1 (2,3).
Due to the central and multifaceted role of IRS-1 in insulin signaling, recent research has focused on IRS-1 as a locus for insulin resistance. Human IRS (hIRS)-1 is a 1,242–amino acid protein of predicted molecular weight of 132 kDa that migrates in electrophoretic gels at an apparent size of 185 kDa, due to extensive phosphorylation (4). IRS-1 is phosphorylated by the insulin receptor tyrosine kinase at a number of tyrosine residues that serve as recognition sites for Src homology-2 domain-containing proteins, such as the p85 regulatory subunit of PI 3′-kinase, that transmit the insulin signal. In addition, of the 1,242 amino acids that compose IRS-1, 182 are serine residues and 60 are threonine residues. Many of these are in known consensus kinase motifs, and, even under basal nonstimulated conditions, IRS-1 is heavily phosphorylated. A number of serine/threonine phosphorylation sites have been identified, and a few of these have been characterized for function (5–19). Some sites, such as Ser1223, appear to be positive modulators of IRS-1 function (13), whereas others, such as Ser312 and Ser636, have been identified to primarily have a dampening effect (5,15). Some sites, such as Ser323 (Ser318 in rodents) can have both a positive and a negative function (20).
Ser312 (Ser307 in the mouse IRS-1 sequence) has drawn attention because phosphorylation at this site interferes with association of the adjacent phosphotyrosine-binding (PTB) domain of IRS-1 with the tyrosine-phosphorylated insulin receptor (5). Ser312 can be phosphorylated by kinases, such as c-jun NH2-terminal kinase and inhibitor of κB kinase, that are activated by inflammatory stimuli, including tumor necrosis factor-α (5,7,9,12). Increased phosphorylation of Ser312 has been implicated in inflammation and lipid-induced insulin resistance as well as insulin resistance associated with polycystic ovary disease (21,22).
Although there is strong evidence that Ser312 is likely to be involved in insulin resistance, the existence of a large number of other serine and threonine residues that are phosphorylated suggests that IRS-1 function is modulated in a complex manner by phosphorylation that can cause positive or negative effects. The net result of serine/threonine phosphorylation may depend on the pattern and time course of phosphorylation of combinations of residues. Although several specific antibodies to IRS-1 phosphorylation sites are available, to date there have been no published methods to globally assess the level and pattern of serine/threonine phosphorylation of this protein in human tissues.
The insulin-induced mobility shift on SDS-PAGE gels observed with IRS-1 immunoprecipitated from homogenates of human muscle biopsies suggests that insulin itself alters IRS-1 serine/threonine phosphorylation (2), and this insulin-induced phosphorylation of IRS-1 could conceivably affect its subsequent function. Phosphorylation of some sites, such as Ser1223, is increased in response to insulin, and this is reported to have positive regulatory effects on IRS-1 function (13). Such phosphorylation events could have a positive or “feed-forward” effect that enhances insulin signaling. Phosphorylation of other sites, such as Ser312, if increased in vivo in humans in response to insulin, could have a negative feedback function and desensitize insulin signaling. In adipocytes, insulin-stimulated phosphorylation of IRS-1 targets it for ubiquitination and degradation by proteasomes, contributing to downregulation of insulin signaling (23). Therefore, increased knowledge of the regulation of IRS-1 serine/threonine phosphorylation in vivo in humans could lead to a better understanding of insulin signaling and insulin resistance.
We previously developed and validated (19) a hypothesis-driven mass spectrometry–based approach for quantifying relative changes in phosphorylation of IRS-1 at many sites at the same time in the same biological sample. We now report on our adaptation of this method for relative quantification of serine/threonine phosphorylation of endogenous IRS-1 immunoprecipitated from small, percutaneous biopsies of human vastus lateralis muscle. We used this method to quantify relative changes in a large number of serine/threonine residues phosphorylated in vivo in response to an insulin infusion (euglycemic and hyperinsulinemic clamp) in healthy volunteers. It is reasonable to anticipate that this method can be applied to relative quantification of phosphorylation sites on any protein that can be immunopurified from small tissue samples.
RESEARCH DESIGN AND METHODS
Five lean, healthy individuals without a family history of type 2 diabetes took part in the study. None of the subjects had any significant medical problems, and their weight was stable for at least 3 months before the study. No subject was taking any medications known to affect glucose metabolism. None of the subjects participated in any heavy exercise, and they were instructed not to engage in vigorous exercise for at least 3 days before the study. The purpose, nature, and potential risks of the study were explained to all subjects, and written consent was obtained before their participation. The protocol was approved by the institutional review board of Arizona State University. All subjects received a 75-g oral glucose tolerance test on a separate day to confirm normal glucose tolerance.
Oral glucose tolerance test.
Baseline blood samples for determination of plasma glucose, free fatty acid, and insulin concentrations were drawn at −30, −15, and 0 min. At time 0, subjects ingested 75 g glucose in 300 ml orange-flavored water. Plasma glucose, free fatty acid, and insulin concentrations were measured at 15-min intervals for 2 h.
Euglycemic clamp with muscle biopsies.
A euglycemic-hyperinsulinemic clamp was used to assess insulin sensitivity and expose skeletal muscle to insulin in vivo, as previously described (2,24). On the day of study, at 0700 h (−120 min), a catheter was placed in an antecubital vein and maintained throughout the study for infusions of insulin and glucose. A second catheter was placed in a retrograde manner into a vein on the back of the hand, which was then placed in a heated box (60°C). Baseline arterialized venous blood samples for determination of plasma glucose and insulin concentrations were drawn at −30, −20, −10, −5, and 0 min. At 0800 h (time −60 min), after resting for 60 min, a percutaneous needle biopsy of the vastus lateralis muscle was performed under local anesthesia (2). At 0900 h (0 min), a primed continuous infusion of human regular insulin (Novolin; Novo Nordisk Pharmaceuticals, Princeton, NJ) was started at a rate of 80 mU/min per m−2 body surface area and continued for 120 min. Arterialized blood samples were collected every 5 min for plasma glucose determination, and a 20% glucose infusion was adjusted to maintain the plasma glucose concentration at each subject's fasting plasma glucose level. Throughout the insulin clamp, blood samples for determination of plasma glucose concentration were drawn every 5 min, and blood samples for determination of plasma insulin were collected every 10–15 min. At time 1100 h (+120 min after the start of insulin infusion), a second percutaneous muscle biopsy was obtained from the contralateral vastus lateralis muscle. Visible fat and/or connective tissue were removed, and the samples (100–150 mg each) were frozen in liquid nitrogen for subsequent analyses.
Analytical determinations.
Plasma glucose was measured by the glucose oxidase method (Beckman Instruments, Fullerton, CA). Plasma insulin concentration was measured by radioimmunoassay (Diagnostic Products, Los Angeles, CA).
Muscle biopsy processing.
Immunoprecipitation, gel electrophoresis, and immunoblotting.
IRS-1 was immunoprecipitated from muscle lysates as described (2). For mass spectrometry analysis, 1–5 mg total protein was immunoprecipitated, whereas for immunoblot analysis, 0.3 mg was used for IRS-1 protein blots and 1.0 mg was used for each antiphosphoserine blot. Immunoprecipitated proteins were resolved on 7.5% SDS polyacrylamide gels. For mass spectrometry analysis, gels were stained with Coomassie blue for protein visualization, and the gel area corresponding to the position of IRS-1 was excised and processed as described below. No IRS-1 band was visible with either Coomassie blue or the more sensitive SYPRO Ruby stain because of the low abundance of IRS-1 in human muscle samples. For immunoblot analysis, proteins were transferred electrophoretically from the gel to nitrocellulose membranes. Anti–IRS-1, antiphospho–IRS-1Ser312 (Upstate Biotechnology, Lake Placid, NY), antiphospho–IRS-1Ser636/639 (Cellular Signaling Technologies, Danvers, MA), and antiphosphotyrosine (PY99; Santa Cruz Biotechnology, Santa Cruz, CA) antibodies were commercially obtained.
In-gel digestion.
The gel portions containing IRS-1 were excised, placed in a 0.6-ml polypropylene tube, washed with 400 μl of 40 mmol/l NH4HCO3, destained twice with 300 μl of 50% acetonitrile in 40 mmol/l NH4HCO3, and dehydrated with 100% acetonitrile for 15 min. After removal of acetonitrileby aspiration, the gel pieces were dried in a vacuum centrifuge at 60°C for 20 min. Trypsin (250 ng; Sigma Chemical, St. Louis, MO) in 20 μl of 40 mmol/l NH4HCO3 was added, and the samples were maintained at 4°C for 15 min before the addition of 50 μl of 40 mmol/l NH4HCO3 containing 10 fmol/μl angiotensin II (Ang II) (internal peptide reference). Digestion was allowed to proceed at 37°C overnight and was terminated by the addition of 10 μl of 5% formic acid. After further incubation at 37°C for 30 min and centrifugation for 1 min, each supernatant was transferred to a clean polypropylene tube. The extraction procedure was repeated using 40 μl of 5% formic acid, and the two extracts were combined. The resulting peptide mixtures were purified by solid-phase extraction (C18 ZipTip; Millipore, Billerica, MA) after sample loading in 0.05% heptafluorobutyric acid:5% formic acid (vol/vol) and elution with 50% acetonitrile:1% formic acid (vol/vol). The samples were dried by vacuum centrifugation, and 4 μl 0.1% formic acid:2% acetonitrile (vol/vol) was added.
Mass spectrometry.
High-performance liquid chromatography (HPLC) electrospray ionization mass spectrometry was performed on a hybrid linear ion trap Fourier transform ion cyclotron resonance (FTICR) mass spectrometer (LTQ FT; Thermo Fisher, San Jose, CA) fitted with a PicoView nanospray source (New Objective, Woburn, MA). The mass spectrometer was calibrated weekly according to manufacturer's instructions, achieving mass accuracies of the calibrants within 2 ppm. For HPLC electrospray ionization mass spectrometry analyses of tryptic digests of hIRS-1, the mass values of the added Ang II internal standard were routinely within 3 ppm of theoretical. Online capillary HPLC was performed using a Michrom BioResources Paradigm MS4 micro HPLC (Alburn, CA) with a PicoFrit column (New Objective) (75 μmol/l i.d.; packed with ProteoPep II C18 material, 300 Å), mobile phase linear gradient of 2–27% acetonitrile in 0.1% formic acid in 45 min, a hold of 5 min at 27% acetonitrile followed by a step to 50% acetonitrile, a hold of 5 min, and then a step to 80% (flow rate, 250 nl/min).
A “top 10” data-dependent tandem mass spectrometry approach was utilized to identify IRS-1 peptides and to obtain their HPLC retention times. In a top 10 scan protocol, a full scan spectrum (survey scan) is acquired followed by collision-induced dissociation (CID) mass spectra of the 10 most abundant ions in the survey scan. Use of this type of scan strategy results in acquisition of CID spectra of the ten most abundant ions appearing at any given time in an HPLC run. Thus, a large number of tandem mass spectra are acquired during the course of each analysis. For the experiments used in the current report, the survey scan was acquired using the FTICR mass analyzer to obtain high mass accuracy data. From this initial analysis, a list of potential phosphorylated peptides was generated based on detected serine/threonine-containing peptides of IRS-1. For localization of sites of phosphorylation, a scan protocol of one survey scan (FTICR) was followed by seven targeted mass spectrometry/mass spectrometry scans (CID spectra of specified m/z values that were acquired using the LTQ mass analyzer). For quantification, the following multisegment strategy was used: one survey scan, followed by one parent-list CID scan and five targeted CID scans. Ions in the parent list are only fragmented if they are detected above a specified minimum intensity; targeted ions are fragmented in each scan segment. Included in the parent list were the 1+ or 2+ charge states of six representative IRS-1 peptides selected from the prominent ions reproducibly observed in the top 10 data-dependent tandem mass spectrometry analysis (19,26). These peptides were used as internal standards for assessment of total unphosphorylated IRS-1 protein content (see below) and for relative quantification of phosphopeptides. The 2+ or 3+ ions of the phosphopeptides of interest were placed on the target list (19). To assess the relative quantities of a large number of phosphopeptides in each experiment and yet still maintain acceptable mass analysis cycle times, the targeted m/z values were grouped into segments based on their expected HPLC retention times. All uninterpreted tandem mass spectrometry data were searched against the human Swiss-Prot database using Mascot (Matrix Science, London, U.K.). Cross-correlation of Mascot search results with X! Tandem was accomplished with Scaffold (Proteome Software, Portland, OR). Assignments of the phosphopeptides were confirmed by manual comparison of the tandem mass spectra with the predicted fragmentation generated in silico by the MS-Product component of ProteinProspector (http://prospector.ucsf.edu).
Peak areas for each peptide were obtained by integration of the appropriate reconstructed ion chromatograms (generated with a 5-ppm mass tolerance) for precursor ion masses acquired using the FTICR mass analyzer. The trace generated in a reconstructed ion chromatogram displays the intensity (abundance) of a specified ion relative to HPLC retention time in a format that is analogous to an ultraviolet (UV) absorbance trace for an HPLC/UV run. The peak areas for phosphopeptides were then normalized against the average peak area for six representative IRS-1 peptides (endogenous standards). Relative quantification of each phosphopeptide was obtained by comparing normalized peak-area ratios obtained from IRS-1 isolated from muscle samples taken during basal and insulin-stimulated conditions (19). To determine variability, three equal (5-mg protein) aliquots of a homogenate of human muscle were separately immunoprecipitated. Immunoprecipitated proteins were resolved on gels, and the portion of the gel corresponding to IRS-1 was excised and digested with trypsin. The resulting peptides were subjected to HPLC mass spectrometry analysis as described. The coefficient of variation for the average of the six unphosphorylated IRS-1 peptides was found to be 12%. For the phosphopeptides observed and quantified in these preliminary experiments, coefficients of variation for Ser330, Ser348, Thr446, Ser1100, Ser1101, and Ser1223 were 30, 9, 27, 5, 9, and 25%, respectively.
Statistical analysis.
Statistical significance was assessed by comparing basal and insulin-stimulated phosphopeptide intensities (normalized to IRS-1 peptides as described above) using two-tailed paired t tests.
RESULTS
Subject characteristics and insulin-stimulated glucose metabolism.
The characteristics of the subjects are shown in Table 1. Subjects were lean (BMI 24 ± 1.4 kg/m2), aged 27 ± 4 years, and without a family history of type 2 diabetes. The rate of infusion of glucose required to maintain the subjects at euglycemia was 9.0 ± 0.9 mg · kg fat-free mass−1 · min−1 at an insulin infusion rate of 80 mU/min per m2 body surface area, which produced plasma insulin concentrations of 506 ± 46 pmol/l. At these insulin concentrations, endogenous glucose production in insulin-sensitive volunteers is completely suppressed, so the rate of glucose infusion can be taken as a measure of glucose disposal (27).
Identification of phosphorylation of IRS-1.

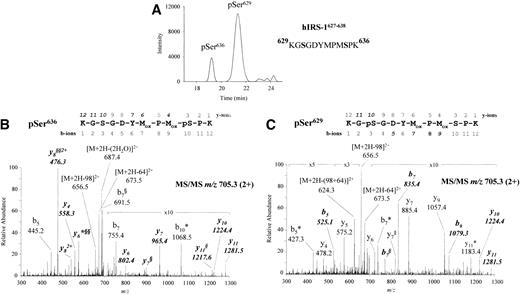

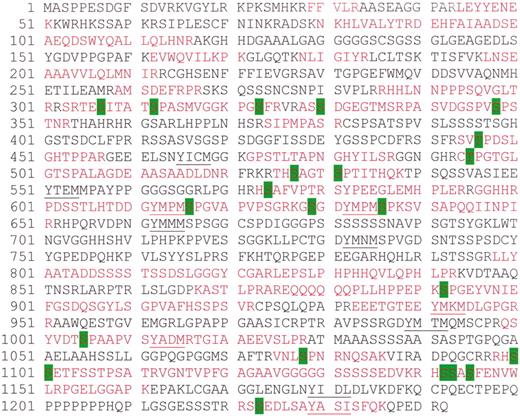

Data-dependent capillary HPLC electrospray ionization tandem mass spectrometry analysis of tryptic digests of proteins immunoprecipitated with an anti–IRS-1 antibody from skeletal muscle biopsies confirmed the presence of IRS-1. The sequence coverage of IRS-1 tryptic peptides detected in a representative data-dependent tandem mass spectrometry analysis is shown in Fig. 1. Due to the complexity of the tryptic digest of IRS-1 and the low abundance of IRS-1 in human muscle, no phosphopeptides were detected in a data-dependent analysis that did not include targeted or parent ion list scans (see below). However, many IRS-1 peptides containing serine and/or threonine were detected. Because any peptide with serine or threonine has the potential to exist in a phosphorylated state, we predicted that low abundance phosphopeptides might be detected using a “targeted” mass spectrometry scan strategy based on addition of 80 Da (H3PO4 − H2O) to the mass of each detected IRS-1 peptide that contained serine or threonine. We constructed a hypothesis-driven strategy with various potential phosphopeptide m/z values in a target list, greatly improving efficiency for identifying phosphorylation. This approach enabled us to detect 22 distinct phosphorylation sites in 15 IRS-1 tryptic peptides. From a Scaffold analysis of the database search results, 21 of the 22 phosphopeptides were identified at the 95% CI level. The tandem mass spectrum of the peptide that did not generate a high confidence identification in the Scaffold analysis (IRS-1627–638 with phosphorylation on Ser636 and oxidation on Met633 and Met635) matched that of a synthetic peptide that was identically phosphorylated and oxidized (not shown). Tandem mass spectra illustrating localization of the sites of phosphorylation for all phosphopeptides are given in Online Appendix 1 (available at http://dx.doi.org/10.2337/db06-1355). In three cases, a particular peptide was found to exist in more than one phosphorylated form. That is, multiple serines and/or threonines were present in the sequence and were found to be alternatively phosphorylated in individual monophosphorylated peptides (Table 2). In some cases, monophosphorylated peptide isoforms could not be resolved chromatographically, but there were clear fragmentation data showing the presence of two or more monophosphorylated peptides in a chromatographic peak (Ser307/Ser323, Ser527/Ser531, and Ser1142/Ser1143/Ser1145). In other cases, chromatographic separation of the monophosphorylated peptide isoform pairs was possible (the peptides containing Ser629, Ser636, Ser330, Ser348, and the peptide containing Ser312 that was chromatographically distinct from the coeluting monophosphorylated peptides containing Ser307/Ser323). The identified phosphopeptides contain a total of 70 serines and threonines, representing 29% of all serines and threonines in hIRS-1.
In our analyses of hIRS-1 from muscle biopsy tissue, we identified three new phosphorylation sites: Thr495, Ser527, and Ser1,005. We also detected a number of other phosphorylation sites (Ser307, Ser312, Ser323, Ser330, Ser348, Thr446, Ser531, Ser574, Ser616, Ser629, Ser636, Ser892, Ser1078, Ser1100, Ser1101, Ser1142, Ser1143, Ser1145, and Ser1223) that have been previously reported by us and by other investigators using a variety of techniques, including site-directed mutagenesis, immunoblot analysis with site-specific phosphoantibodies, and mass spectrometry (5,6,8,11,12,15–18,22).
Effect of insulin on IRS-1 phosphorylation.

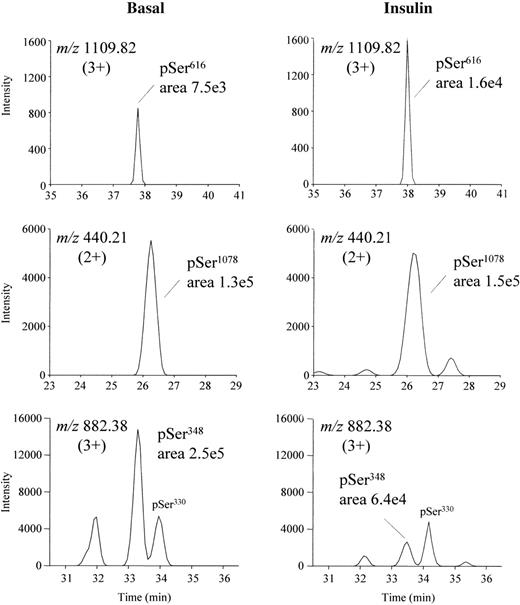

The effect of 2 h of insulin infusion on the extent of phosphorylation of 15 distinct phosphorylation sites was quantified by our analytical strategy (Table 2). Three additional peptides (Table 2) that contained multiple serine and threonine residues were found to exist in two or more individually phosphorylated forms (Ser307/Ser323, Ser527/Ser531, and Ser1142/Ser1143/Ser1145; see above), preventing individual quantification of these sites by mass spectrometry. The ion intensity for the added Ang II standard did not differ for basal or insulin-stimulated samples, indicating similar recoveries. Insulin infusion also had no statistically significant effect on the average ion intensity for the six unphosphorylated peptides used as internal IRS-1 standards, although there was an apparent tendency for a decrease of 29 ± 18% (P = 0.34) in the level of IRS-1 after insulin treatment. Reconstructed ion chromatograms for the six unphosphorylated IRS-1 peptides from basal and insulin-stimulated muscle biopsies are shown in Online Appendix 2.
The infusion conditions used for our study produced plasma insulin levels that were within the high physiological range. After 2 h of insulin infusion, we found that relative phosphorylation of IRS-1 was increased at some sites and decreased at others when expressed relative to total IRS-1 protein as assessed by the six unphosphorylated IRS-1 peptides (Table 2). Phosphorylation of Ser312, Ser616, and Ser636 increased more than twofold in response to insulin (P < 0.05), whereas phosphorylation of Ser348, Ser1005, Thr446, and Thr495 decreased significantly (Table 2). Phosphorylation was also found to be increased significantly at other sites by insulin, but to a lesser degree. For example, in the COOH-terminal portion of IRS-1, Ser1101 and Ser1223 both increased 1.3 ± 0.1–fold during the 2-h insulin infusion (both P < 0.05). Representative reconstructed ion chromatograms for selected phosphopeptides that exhibited increased abundance (pSer616), did not change (pSer1078), or decreased (pSer348) are shown in Fig. 2 (top, middle, and bottom panels, respectively). Figure 3 shows the chromatographic separation of 627KGpSGDYMPMSPK638 (pSer629) and 627KGSGDYMPMpSPK638 (pSer636) along with the corresponding tandem mass spectra, identifying the specific sites of phosphorylation. Shown in Online Appendix 3 are reconstructed reaction chromatograms that validate the chromatographic separation of IRS-1326–353 monophosphohorylated peptides containing pSer348 and pSer330.

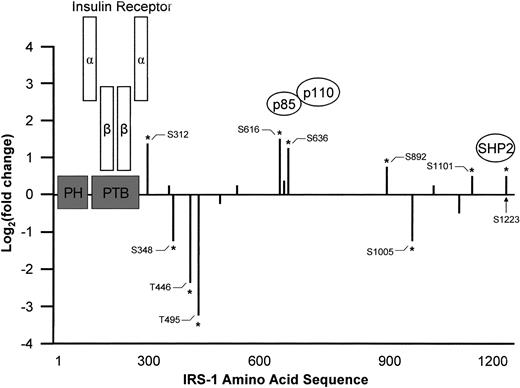

Figure 4 provides a visual representation of the overall relative changes in phosphorylation of IRS-1; the regions where IRS-1 associates with the insulin receptor, the p85 regulatory subunit of PI 3′-kinase, and the tyrosine phosphatase SHP2 are also shown. Fold changes are expressed as log2 (fold change); therefore, in Fig. 4, a fold increase of 2.0 (100% increase) equates to +1.0, and 0.5 of basal (50% decrease) corresponds to −1.0.

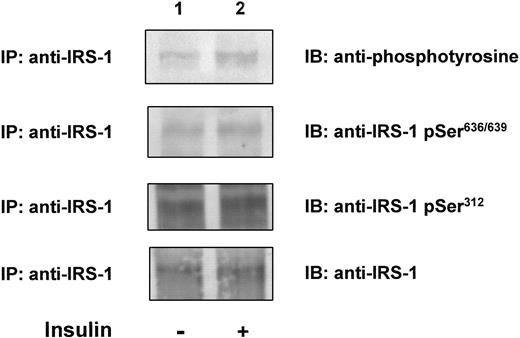

Insulin-induced changes in phosphorylation of Ser312 and Ser636, determined by mass spectrometry analysis, were compared with immunoblot analysis using site-specific antiphosphoantibodies directed against phospho-Ser312 and phospho-Ser636/639 (Fig. 5). As a positive control, we used an antiphosphotyrosine antibody to detect insulin stimulation of tyrosine phosphorylation of IRS-1 (Fig. 5). Using mass spectrometry analysis, a 2.6 ± 0.4–fold (P < 0.05) insulin-induced increase was found for phosphorylation at Ser312 and a 2.1 ± 0.3–fold (P < 0.05) increase at Ser636 (Table 2). Immunoblot analyses showed fold changes of 1.6 ± 0.5 and 1.3 ± 0.3 for Ser312 and Ser636/639, respectively (not statistically significant).
Several other phosphorylation sites were found to be decreased following 2 h of insulin infusion (see Fig. 4). Except for Ser1005, these sites all were within a 150–amino acid region of IRS-1 (residues 328–520) that lies proximal and COOH-terminal to the PTB domain (residues 161–264) that is responsible for association of IRS-1 with the insulin receptor. Phosphorylation at these sites (Ser348, Thr446, and Thr495) decreased dramatically to 0.4 ± 0.1, 0.2 ± 0.1, and 0.1 ± 0.1 of basal values (all P < 0.05).
DISCUSSION
The availability of genomic approaches for assessment of differences in global gene expression and proteomic techniques for determination of relative changes in abundance for a large number of proteins has made it possible to gain insight into highly complicated biological processes. Regulation of protein function by covalent modification(s) adds further complexity to these multidimensional systems. Development of methods for global assessment of posttranslational modifications of proteins has lagged behind other proteomics techniques. Quantification of posttranslational modifications of specific proteins isolated from small samples of human tissue is particularly challenging due to the extremely limited amount of protein available for analysis. The importance of modification of protein function/activity by phosphorylation has been known for decades. Phosphorylation of serine and threonine residues was recognized first as regulatory for protein activity, and later, tyrosine phosphorylation was established as playing a major role in the function of many proteins involved in cell signaling (28). Antibodies that recognize phosphorylated amino acids in specific amino acid sequence motifs have been developed as a way to use immunoblot analysis to obtain relative quantification of site-specific phosphorylation in proteins obtained from biological samples. Although these antibodies can be used very effectively for studies of selected regulatory sites (for example, Thr308 and Ser473 of Akt), they are much less useful for proteins such as IRS-1 in which there are a large number of known phosphorylation sites as well as numerous potential sites that may regulate the functions of this protein. In many cases, either the appropriate antibodies have not been generated or the available antibodies lack the requisite specificity. In addition, in our experience, antibodies that provide excellent results with lysates of cultured cells where proteins of interest often are overexpressed frequently do not work as well in homogenates derived from biopsy specimens of human tissue. Moreover, even if site-specific antibodies were available for all phosphorylation sites identified here (which they are not), the immunoblot analyses would require more protein than would be obtainable from a single biopsy.
The results of the present study show that it is possible to assess relative changes in phosphorylation of many serine and threonine sites in IRS-1 immunoprecipitated from small (100 mg or less), percutaneous needle biopsies of human vastus lateralis muscle. Through coupling with the euglycemic-hyperinsulinemic clamp technique, we were able to study the in vivo regulation of 22 IRS-1 serine and threonine phosphorylation sites by insulin. To our knowledge, this is the first report of such an accomplishment. Of the 22 hIRS-1 phosphorylation sites reported here, 3 are new and previously unidentified in either in vitro or in vivo studies (Thr495, Ser527, and Ser1105) and 20 are, for the first time, being reported and confirmed as phosphorylation sites in vivo (the two exceptions being Ser312 and Ser636, both of which have been previously reported [29,30] as phosphorylation sites in vivo). Numerous published reports have used in vitro kinase assays to identify potential kinases involved in IRS-1 phosphorylation as well as their respective sites, although data regarding whether these sites undergo phosphorylation in either cells or in vivo are lacking. Here, we confirm that, in fact, sites such as Ser307 and Ser330 (shown to be phosphorylated in vitro by protein kinase C [PKC]δ/PKCθ/Akt and Akt, respectively [31,32]), Ser574 (an in vitro substrate of PKCδ, PKCζ, and cAMP-dependent protein kinase [31]), and Ser1100, Ser1142, and Ser1143 (phosphorylated in vitro by cAMP-dependent protein kinase [26]) are genuine in vivo IRS-1 phosphorylation sites. Our results validate the use of in vitro approaches for characterizing cell signaling as a preliminary step for further studies in vivo.
Our global phosphorylation analysis revealed several regions of interest in the IRS-1 sequence. First, inflammation-mediated hyperphosphorylation at Ser312 has been shown to decrease insulin signaling by interfering with association of the PTB domain (residues 160–263) of IRS-1 with the insulin receptor (5,22). Elevated phosphorylation at Ser616 and Ser636 may interfere with the association of the p85 regulatory subunit of PI 3′-kinase with phospho-YXXM motifs of IRS-1 in this same region (5,15). This may be due to steric factors if the phosphorylated serine residues block access to critical regulatory regions of IRS-1 containing phosphotyrosine residues. Our results indicate that a relatively acute (2-h) stimulation with insulin increases phosphorylation at Ser312, Ser616, and Ser636. This could imply that, like Ser323, these sites might not only have negative regulatory roles, but also could play an unknown positive role in the acute, stimulatory phase of insulin action. On the other hand, since chronic high insulin concentrations downregulate IRS-1 protein in vitro (23) and induce insulin resistance in vivo (33), it is possible that our observations after 2 h of insulin infusion reflect the initiation of insulin resistance. Time course studies will be needed to address these questions.
With respect to phosphorylation of Ser616 by insulin, a recent study (34) using immunoblot analysis with a site-specific antibody directed against IRS-1 phosphorylated at Ser616 found no effect of insulin on the level of phosphorylation of this site in healthy humans. These results contrast with the present mass spectrometry analysis that showed a 2.9 ± 0.8–fold insulin-induced increase in phosphorylation of Ser616 (34). This dissimilarity of the results from the different methods was in keeping, however, with our own results for Ser312 and Ser636/639, in which we showed greater increases in phosphorylation in response to insulin when assessed by mass spectrometry versus immunoblot analyses. These differences in results from the two methods may result from inherent difficulties in quantification of immunoblots, in particular due to their limited dynamic range.
Phosphorylation at Ser1223 interferes with association of the tyrosine phosphatase src-homology phosphatase-2 with IRS-1 and enhances insulin signaling by increasing tyrosine phosphorylation of IRS-1 in response to insulin (13). Therefore, insulin-induced phosphorylation at Ser1223 could serve as a mechanism to increase insulin action. Increased phosphorylation at Ser1101, in the same general region, also potentially could influence association of src-homology phosphatase-2 with IRS-1. One particularly interesting region of IRS-1 revealed by our analyses (amino acids 328–520) contains three phosphorylation sites that are significantly and markedly decreased in response to insulin (Ser348, Thr446, and Thr495). Of note is Thr495, the phosphorylation of which decreases to an almost undetectable level after 2 h of physiological hyperinsulinemia. The function of these phosphorylation sites is unknown, but such dramatic changes are unlikely to be without effect.
The potential contribution of insulin-induced downregulation of IRS-1 protein to these results should be considered in light of other reports indicating that chronic insulin exposure can lead to a decrease in IRS-1 protein via phosphorylation, followed by ubiquitination and proteasomal degradation (23). Although the period of exposure to insulin in the present study was more acute than chronic, a modest (30%), albeit not statistically significant, decrease in total IRS-1 protein was observed. Such a small decrease would not substantially affect the estimation of insulin-induced increases or decreases in phosphorylation of particular sites using our mass spectrometry–based approach. However, it remains possible that large decreases in phosphorylation of certain sites, such as those observed at Ser348, Thr446, and Thr495, could be due to selective degradation of populations of IRS-1 that are phosphorylated at those sites. On extrapolation, this implies that phosphorylation of this region of IRS-1 might target it for ubiquitination and degradation. However, additional experiments are required to elucidate the function of phosphorylation of sites in this region of IRS-1.
Our mass spectrometry–based strategy to quantify site-specific protein phosphorylation presents several advantages over other approaches. First, our method has the ability to detect unknown sites of phosphorylation, such as Thr495. Second, this mass spectrometry–based technique has the capability of quantifying a large number of phosphorylation sites in IRS-1 from a single biological sample. Third, this approach can be used to study in vivo regulation of IRS-1 phosphorylation not only in healthy subjects but also in populations with specific diseases. For example, it will be important to use this technique to determine whether dysregulation of IRS-1 phosphorylation is involved in insulin resistance. Finally, the method described here not only represents a powerful means to understand the physiological and pathophysiologic relevance of serine and threonine phosphorylation of IRS-1, but also provides a new tool for quantification of changes in posttranslational modifications of many proteins from small samples of human tissue.
Sex (F/M) | 3/2 |
Age (years) | 27 ± 4 |
Weight (kg) | 70 ± 6 |
BMI (kg/m2) | 24 ± 1.4 |
Fasting plasma glucose (mmol/l) | 5.0 ± 0.2 |
Euglycemic clamp plasma glucose (mmol/l) | 4.9 ± 0.3 |
Fasting plasma insulin (pmol/l) | 84 ± 8 |
Euglycemic clamp plasma insulin (pmol/l) | 506 ± 46 |
Insulin-stimulated glucose disposal (mg · kg FFM−1 · min−1) | 9.0 ± 0.9 |
Sex (F/M) | 3/2 |
Age (years) | 27 ± 4 |
Weight (kg) | 70 ± 6 |
BMI (kg/m2) | 24 ± 1.4 |
Fasting plasma glucose (mmol/l) | 5.0 ± 0.2 |
Euglycemic clamp plasma glucose (mmol/l) | 4.9 ± 0.3 |
Fasting plasma insulin (pmol/l) | 84 ± 8 |
Euglycemic clamp plasma insulin (pmol/l) | 506 ± 46 |
Insulin-stimulated glucose disposal (mg · kg FFM−1 · min−1) | 9.0 ± 0.9 |
Data are means ± SE. FFM, fat-free mass.
Residues . | Sequence . | Site(s) . | Fold change due to insulin . |
---|---|---|---|
303–325 | (R)SRTESITATpSPASMoxVGGKPGSFR | Ser312 | 2.6 ± 0.4* |
328–353 | (R)ASpSDGEGTMoxSRPASVDGSPVSPSTNR | Ser330 | 1.1 ± 0.2 |
328–353 | (R)ASSDGEGTMoxSRPASVDGSPVpSPSTNR | Ser348 | 0.4 ± 0.1* |
444–457 | (R)SVpTPDSLGHTPPAR | Thr446 | 0.2 ± 0.1* |
494–520 | (R)CpTPGTGLGTSPALAGDEAASAADLDNR | Thr495 | 0.1 ± 0.1* |
573–580 | (R)HpSAFVPTR | Ser574 | 1.1 ± 0.1 |
596–626 | (R)GGHHRPDSSTLHTDDGYMoxPMoxpSPGVAPVPSGR | Ser616 | 2.9 ± 0.8* |
627–638 | (R)KGpSGDYMoxPMoxSPK | Ser629 | 1.2 ± 0.1 |
627–638 | (R)KGSGDYMoxPMoxpSPK | Ser636 | 2.1 ± 0.3* |
892–922 | (PK)pSPGEYVNIEFGSDQSGYLSGPVAFHSSPSVR | Ser892 | 1.6 ± 0.1* |
999–1016 | (R)QSYVDTpSPAAPVSYADMoxR | Ser1005 | 0.3 ± 0.2* |
1075–1081 | (R)VNLpSPNR | Ser1078 | 1.1 ± 0.1 |
1098–1112 | (R)RHpSSETFSSTPSATR | Ser1100 | 0.8 ± 0.2 |
1099–1112 | (R)HSpSETFSSTPSATR | Ser1101 | 1.3 ± 0.1* |
1221–1236 | (R)RSpSEDLSAYASISFQK | Ser1223 | 1.3 ± 0.1* |
303–325 | (R)SRTEpSITATSPASMoxVGGKPGpSFR | Ser307 | NA† |
303–325 | (R)SRTESITATSPASMoxVGGKPGpSFR | Ser323 | NA† |
525–538 | (R)THpSAGTSPTITHQK | Ser527 | NA† |
525–538 | (R)THSAGTpSPTITHQK | Ser531 | NA† |
1141–1161 | (R)HpSSASFENVWLRPGELGGAPK | Ser1142 | NA† |
1141–1161 | (R)HSpSASFENVWLRPGELGGAPK | Ser1143 | NA† |
1141–1161 | (R)HSSApSFENVWLRPGELGGAPK | Ser1145 | NA† |
Residues . | Sequence . | Site(s) . | Fold change due to insulin . |
---|---|---|---|
303–325 | (R)SRTESITATpSPASMoxVGGKPGSFR | Ser312 | 2.6 ± 0.4* |
328–353 | (R)ASpSDGEGTMoxSRPASVDGSPVSPSTNR | Ser330 | 1.1 ± 0.2 |
328–353 | (R)ASSDGEGTMoxSRPASVDGSPVpSPSTNR | Ser348 | 0.4 ± 0.1* |
444–457 | (R)SVpTPDSLGHTPPAR | Thr446 | 0.2 ± 0.1* |
494–520 | (R)CpTPGTGLGTSPALAGDEAASAADLDNR | Thr495 | 0.1 ± 0.1* |
573–580 | (R)HpSAFVPTR | Ser574 | 1.1 ± 0.1 |
596–626 | (R)GGHHRPDSSTLHTDDGYMoxPMoxpSPGVAPVPSGR | Ser616 | 2.9 ± 0.8* |
627–638 | (R)KGpSGDYMoxPMoxSPK | Ser629 | 1.2 ± 0.1 |
627–638 | (R)KGSGDYMoxPMoxpSPK | Ser636 | 2.1 ± 0.3* |
892–922 | (PK)pSPGEYVNIEFGSDQSGYLSGPVAFHSSPSVR | Ser892 | 1.6 ± 0.1* |
999–1016 | (R)QSYVDTpSPAAPVSYADMoxR | Ser1005 | 0.3 ± 0.2* |
1075–1081 | (R)VNLpSPNR | Ser1078 | 1.1 ± 0.1 |
1098–1112 | (R)RHpSSETFSSTPSATR | Ser1100 | 0.8 ± 0.2 |
1099–1112 | (R)HSpSETFSSTPSATR | Ser1101 | 1.3 ± 0.1* |
1221–1236 | (R)RSpSEDLSAYASISFQK | Ser1223 | 1.3 ± 0.1* |
303–325 | (R)SRTEpSITATSPASMoxVGGKPGpSFR | Ser307 | NA† |
303–325 | (R)SRTESITATSPASMoxVGGKPGpSFR | Ser323 | NA† |
525–538 | (R)THpSAGTSPTITHQK | Ser527 | NA† |
525–538 | (R)THSAGTpSPTITHQK | Ser531 | NA† |
1141–1161 | (R)HpSSASFENVWLRPGELGGAPK | Ser1142 | NA† |
1141–1161 | (R)HSpSASFENVWLRPGELGGAPK | Ser1143 | NA† |
1141–1161 | (R)HSSApSFENVWLRPGELGGAPK | Ser1145 | NA† |
Data are shown as fold change compared with basal (before insulin infusion values; see text for calculations) and are presented as means ± SEM of four independent experiments. Each experiment represents the average of two replicates from the same muscle homogenate.
P < 0.05 by paired t test (basal vs. insulin, comparing normalized ion intensities).
Monophosphorylated peptides were not sufficiently separated by HPLC to permit individual quantification (see text). Evidence for the existence of modification at each site was obtained by tandem mass spectrometry. Mox, oxidized methionine; pS, phosphoserine; pT, phosphothreonine.
