Decreased Lipoprotein Clearance Is Responsible for Increased Cholesterol in LDL Receptor Knockout Mice With Streptozotocin-Induced Diabetes

Ldlr^−/− mice on the C57BL/6 background (B6.129S7-LDlr^tm1Her, stock no. 002207) were purchased from The Jackson Laboratory. PCR genotyping for loss of the Ldlr was as described (13). Mice were maintained in a temperature-controlled (25°C) facility with a 12-h light/dark cycle and given free access to food and water, except when fasting blood specimens were obtained. Mice were fed either laboratory rodent diet (PMI Nutrition International), semisynthetic modified AIN76 diet containing 0.15 or 0.075% cholesterol (14) (high-cholesterol diet), or a diet containing cholesterol and cholic acid (15). The institutional animal care and use committee of Columbia University approved all animal protocols. Mice were made diabetic by administering 50 mg/kg body wt STZ intraperitoneally for 5 days. Only male mice were used for these studies. Four weeks after STZ administration, diabetic and nondiabetic mice with LDL receptor deficiency were kept on diets for 4 weeks.

Plasma samples were obtained from 6-h–fasted mice. Glucose was measured directly from the tail tip with a glucometer; total cholesterol and triglycerides were measured enzymatically using commercial kits (Wako Chemicals).

Lipoproteins (VLDL [density < 1.006 g/ml], intermediate-density lipoprotein plus LDL [density = 1.006–1.063 g/ml], and HDL [density = 1.063–1.21 g/ml]), were separated by sequential density ultracentrifugation of plasma in a TLA100 rotor (12). Sixty-microliter sample volumes were utilized.

Pooled plasma (from between 3 and 5 animals, 200 μl total volume) was chromatographed using two Superose 6 columns in series (16). Fifty 0.5-ml fractions were collected. Cholesterol and triglyceride levels of fast-performance liquid chromatography fractions were measured using enzymatic reagents (as in plasma analysis) in colorimetric assays and measured on the SpectraMax 250.

When the mice were killed, hearts were perfused with 10 ml cold PBS. Adequacy of the perfusion was evident from blanching of the livers. Tissues were removed and immediately frozen in liquid nitrogen.

Total RNA (10 μg) was isolated from livers using Trizol reagent. Quantitative real-time PCR was performed with SYBR green PCR core reagents. Incorporation of the SYBR green dye into the PCR products was monitored in real time with an Mx3000 sequence detection system. Primer pairs were designed and used to assess mRNA levels of LRP, scavenger receptor B-I (SR-BI), and heparan sulfate N-deacetylase/N-sulfotrasferase-1 (Ndst1). Samples were normalized against β-actin.

SDS-PAGE was performed on a 12% acrylamide gel using a NOVEX XCell II electrophoresis apparatus. Proteins were stained with Coomassie blue. For immunoblot, after electrophoresis proteins were transferred onto a nitrocellulose membrane in Tris-glycine buffer, pH 8.3, containing 20% (vol/vol) methanol at 25 mV for 90 min. Nonspecific binding of the membrane was blocked with 5% nonfat dry milk. The membrane was incubated in PBS containing polyclonal antibodies against SR-BI and LRP at 4°C overnight and then further incubated in PBS containing anti-goat IgG coupled with horseradish peroxidase. The blots were developed with enhanced chemiluminescence reagent, exposed to film, and scanned using a Molecular Dynamics 300A laser densitometer.

VLDL and LDL were isolated by ultracentrifugation, as described previously (17). For apoE, recovered lipoproteins from equal volumes of plasma were analyzed on 4–20% gradient gels. The apoE bands were identified by molecular weight. Lipoproteins obtained from apoE knockout mice were used as a negative control. For apoB, samples from four control Ldlr^−/− and five STZ-induced diabetic Ldlr^−/− mice were separated on self-made 4% SDS-PAGE.

The relative amounts of apoB100 and apoB48 were determined by SDS-PAGE, followed by Western blot analysis. After apoB isoforms were resolved, they were transferred to nitrocellulose membranes, incubated with an anti-apoB antibody and secondary antibody, and developed as described above.

Mice were fasted for 6 h and then received 50 μl of a cocktail containing 1 μCi [³H]retinol via nasogastric gavage (18). Blood was obtained from retroorbital bleeds at 3, 6, and 10 h. Plasma triglyceride and ³H counts were measured. To determine the retinyl label within chylomicrons, and not that associated with retinol-binding protein, lipoproteins with a density <1.006 mg/dl were isolated. Plasma and tissue ³H counts were measured using 3.5 ml of Hydroflor liquid scintillation cocktail.

ApoB production was determined in fasted and fed mice with two different protocols. To measure hepatic apoB production, mice were fasted for 4 h and then injected with a mixture of [³⁵S]Promix (0.2 mCi/mouse) and Triton WR-1339 (500 mg/kg) to block lipolysis as described (17). Blood was taken preinjection and at 60 and 120 min postinjection. Plasma was isolated, and radioactivity of newly synthesized apoB100 and apoB48 was assessed by SDS-PAGE. Counts for apoB48 and apoB100 were normalized to total trichloroacetic acid–precipitable counts in plasma.

To more preferentially assess intestinal lipoprotein production, mice received an intraperitoneal injection of the total lipase inhibitor P-407 (1 g/kg body wt) ∼2 h before the experiment began. Two hours later, the mice were gavaged with 200 μl peanut oil and 200 μCi of [³⁵S]Promix. Four hours after the P-407, blood and tissue were obtained. VLDL were isolated from plasma by ultracentrifugation, apoB proteins were separated by SDS-PAGE, and radioactivity of apoB100 and apoB48 were counted and normalized to total trichloroacetic acid–precipitable counts in plasma.

LDL (density = 1.019–1.063 g/ml) and VLDL (density <1.006 g/ml) from control and STZ-induced diabetic mice were isolated. Lipoproteins from the STZ-induced diabetic mice were labeled with ¹²⁵I, and those from control Ldlr^−/− mice were labeled with ¹³¹I using the lactoperoxidase method (19). After a 6-h fast, control and STZ-induced diabetic mice received labeled lipoproteins (∼0.5 μCi of ¹²⁵I and 0.005 μCi of ¹³¹I) by tail vein injection. Blood was taken at 30 s and used to recalculate injected dose by estimating total plasma as 4% of body weight. Ten minutes after injection, blood was obtained, the animals were perfused with 10 ml of 4°C saline, and organs were harvested and weighed. The radioactivity was determined using a dual isotope counter and spillover corrected.

McArdle rat hepatoma cells were seeded on plates coated with collagen I and grown in Dulbecco's modified Eagle's medium with 10% fetal bovine serum and 10% horse serum. To examine the effects of glucose, cells were plated in six-well plates. After overnight incubation, cells were switched to medium with 5 or 25 mmol/l glucose for 24 h. Cells were harvested and mRNA analyzed for Ndst1 gene expression.

Statistical analyses were done by unpaired t test or ANOVA. All data are expressed as means ± SD, with a statistically significant difference defined as a value of P < 0.05.

Mice were made diabetic with STZ, and the animals were fed a high-cholesterol diet (0.15%) with no added fat. Fat was omitted from the diet because it causes insulin resistance in these mice and might have obscured diabetes effects from insulin deficiency. Approximately 80% of the mice became diabetic, defined as having fasting glucose >250 mg/dl. These animals had average glucose levels of 524 ± 108 mg/dl, whereas nondiabetic controls had an average glucose level of 151 ± 15 mg/dl (Table 1). After 4 weeks on the high-cholesterol diet, fasting plasma cholesterol in Ldlr^−/− mice was twice that of their nondiabetic littermates (1,696 ± 478 vs. 884 ± 134 mg/dl). Plasma triglyceride levels were not significantly increased. A similar increase in plasma cholesterol levels was also noted in a group of STZ-induced diabetic mice fed a cholesterol/cholic acid diet (Table 1).

The importance of the lack of LDL receptor in this response to the diet was assessed by placing a group of heterozygous male LDL receptor–deficient mice (Ldlr^+/−) on the 0.15% cholesterol diet. Despite a lower level of glucose in this group, the diabetic Ldlr^+/− mice also had increased plasma cholesterol levels with STZ treatment. In contrast, it should be noted that STZ treatment leads to minimal differences in cholesterol levels in wild-type mice (20).

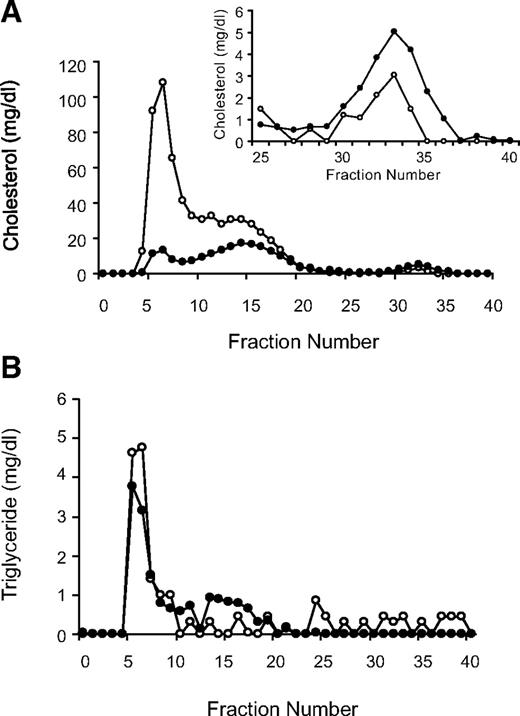

Plasma lipoprotein profiles from the control and STZ-induced Ldlr^−/− mice were obtained after 4 weeks on the 0.15% cholesterol diet. Isolation of particles by ultracentrifugation showed that high-cholesterol diet–fed STZ-induced Ldlr^−/− mice had a marked increase in both VLDL and LDL cholesterol, but the changes in triglycerides were not significant. This change in the lipoprotein profile was also found by fast-performance liquid chromatography analysis (Fig. 1); VLDL and LDL cholesterol, but not triglyceride levels, were increased. In addition, both the VLDL and LDL eluted at a large size, suggesting that the greater cholesterol content was due to the presence of more lipid-rich lipoproteins. HDL were reduced in both the centrifugation and FPLC profiles (Fig. 1A, inset).

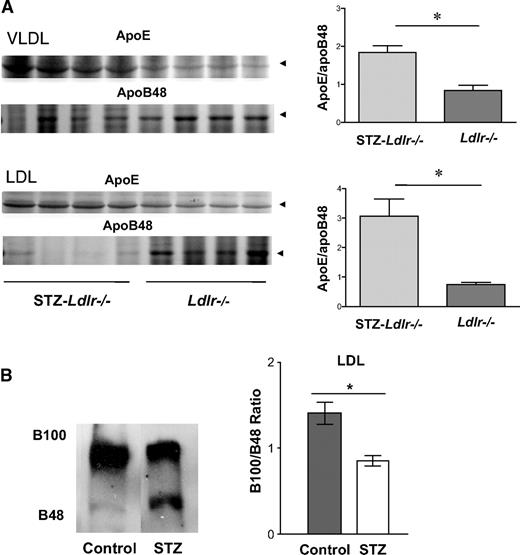

To determine whether STZ treatment led to marked changes in lipoprotein apoprotein composition, isolated VLDL and LDL from control and STZ-induced diabetic mice fed the cholesterol-containing diet for 4 weeks were studied. Triglyceride-rich lipoproteins and LDL contain either apoB100 or apoB48 as their major protein. ApoE content of these VLDL and LDL was determined by PAGE using lipoproteins isolated by ultracentrifugation. ApoE normally mediates liver uptake of apoB48 lipoproteins. ApoE in both VLDL and LDL increased in proportion to apoB48 (Fig. 2A). This was consistent with there being either a defect in lipoprotein plasma clearance or increased lipoprotein production.

To determine which type of lipoproteins were increased, VLDL and LDL from control and STZ-induced diabetic mice were analyzed for apoB size by gel electrophoresis followed by Western blot analysis. In nondiabetic mice, the LDL was composed primarily of apoB100-containing particles with some apoB48 (Fig. 2B). However, in STZ-induced diabetic mice, the distribution was altered; much of the apoB was now apoB48 (Fig. 2B). Although the B100-to-B48 ratio tended to also decrease in VLDL after STZ treatment, this change in apoB distribution was not significant.

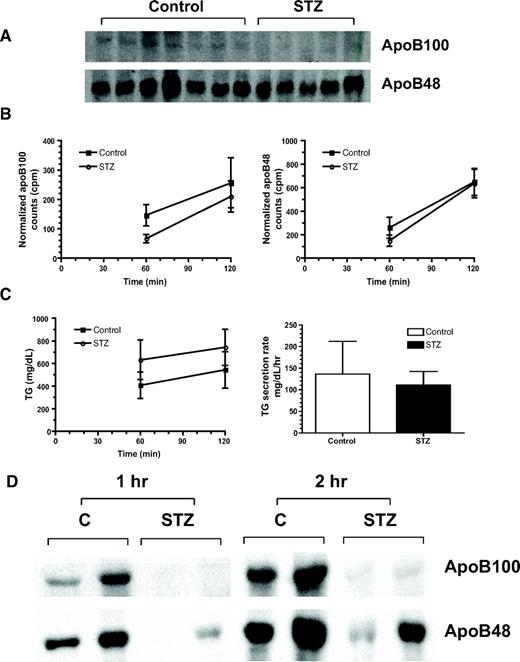

In humans, apoB48 is synthesized in the intestines, whereas mice also secrete apoB48 from the liver. To determine whether liver production of lipoproteins was responsible for the plasma hyperlipidemia in the STZ-induced diabetic mice, we determined whether STZ treatment altered apoB production in fasting control and diabetic mice fed the cholesterol-containing diet for 4 weeks. As shown (Fig. 3A–C), the STZ-induced diabetic mice showed no increase in liver production of apoB or triglycerides; actually, production of both apoB100 and apoB48 were similar in STZ-induced diabetic and control mice. Thus, the increase in apoB48 lipoproteins was either due to reduced clearance or increased postprandial lipoprotein production; the latter could relate to changes in dietary input. Similarly, we assessed apoB production with P-407–treated mice that received a gavage of corn oil containing [³⁵S]methionine. Again, STZ-induced diabetic mice showed no evidence of increased apoB production and, in fact, appeared to have reduced production of apoB (Fig. 3D).

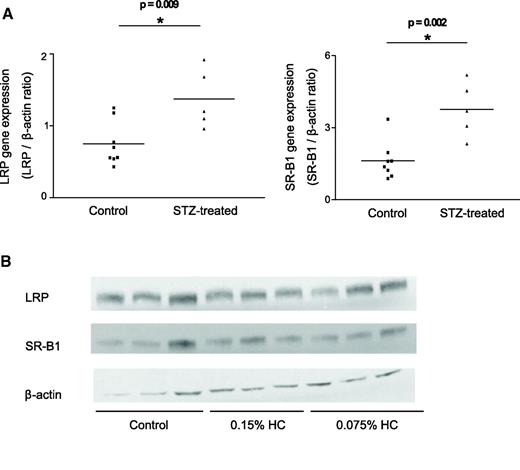

In Ldlr^−/− mice, reduced levels of LRP and/or SR-BI might have decreased plasma clearance of lipoproteins. However, liver LRP and SR-BI mRNA expression was surprisingly increased in the STZ-induced diabetic mice (Fig. 4A). When these proteins were assessed by Western blot analysis (Fig. 4B), there appeared to be no difference in liver content of the two receptors. Thus, reduced lipoprotein clearance via these receptors is unlikely to have led to the hypercholesterolemia in the STZ-induced diabetic mice.

We determined whether absorption of fats and chylomicron metabolism were altered in the STZ-induced diabetic mice using radioabeled [³H]retinyl ester. By 3 h, plasma triglyceride levels increased in both groups of mice from 167 ± 23 to 237 ± 25 mg/dl in the control and 133 ± 24 to 225 ± 45 mg/dl in the STZ-induced diabetic group. There was also no difference in the peak or clearance of radio-labeled retinyl ester within the density of <1.006 particles (i.e., chylomicrons and chylomicron remnants) (not shown).

Since lipoprotein production under standard conditions was not increased, we assessed whether the greater amount of apoB was associated with greater intake of cholesterol. Food intake in the STZ-induced diabetic animals was 5.5 g/mouse per day, while in control mice it was 3.0 g/mouse per day; this is a 1.8-fold increase. To determine how much of the diabetes-induced hyperlipidemia was due to diet, STZ-induced diabetic mice were given 0.15 and 0.075% cholesterol diets. After 4 weeks, STZ-induced diabetic mice on the 0.15% cholesterol diet had plasma cholesterol levels of 2,007 ± 844 mg/dl, which were significantly different from those of the nondiabetic mice (767 ± 270 mg/dl) (Table 2). Diabetic mice on the 0.075% cholesterol diet had plasma cholesterol levels of 1,697 ± 629 mg/dl, which is not significantly different from those in the diabetic mice consuming the 0.15% cholesterol diet. Therefore, compensation for the increased dietary cholesterol did not correct the excess hyperlipidemia in the STZ-induced diabetic mice.

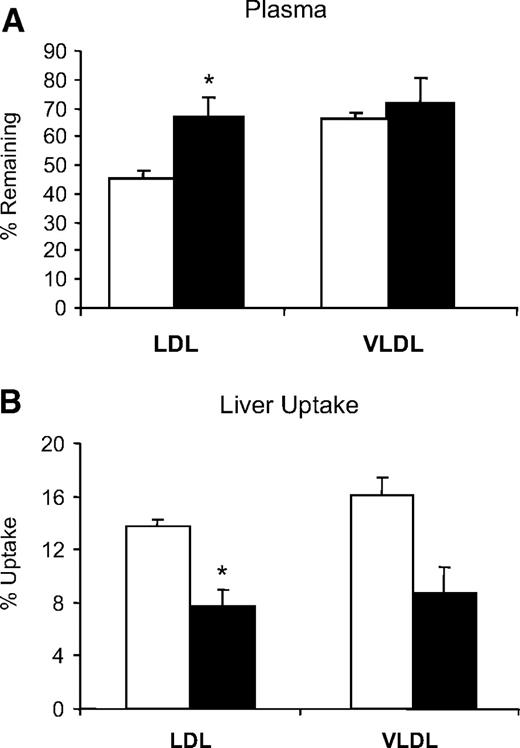

To determine the fate of plasma lipoproteins, we assessed whether there was a defect in initial trapping of lipoproteins. To do this, 10-min plasma decay and liver uptake of LDL and VLDL isolated from control and STZ-induced diabetic mice were assessed in control and STZ-induced diabetic Ldlr^−/− mice. As shown in Fig. 5A and B, plasma decay and liver uptake of ¹²⁵I-STZ-LDL was greater in control than STZ-induced diabetic mice. Uptake of LDL into other tissues was not significantly altered; there were no significant differences in the percent uptake of either tracer into heart, skeletal muscle, adipose, kidney, or spleen (data not shown). Thus, livers from control mice cleared LDL from the diabetic mice more rapidly. This suggested that STZ-LDL had a greater affinity for liver proteoglycans in control compared with STZ-induced diabetic mice.

When labeled STZ-induced diabetic mouse–derived VLDL was injected, a similar trend was noted (i.e., reduced liver trapping and increased plasma tracer in diabetic mice), but there was greater variability between mice and the differences did not reach significance (P = 0.12) (Fig. 5A and B). In contrast, LDL and VLDL isolated from control animals were cleared at the same rate by the STZ-induced diabetic and control mice (not shown). Therefore, a subgroup of particles accumulated in the STZ-induced diabetic mice that were rapidly cleared by the livers of nondiabetic animals.

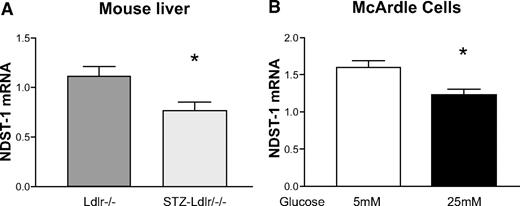

We had previously shown that sulfation of heparan sulfate proteoglycans was defective in STZ-induced diabetic mice. As had been reported by others (21), we noted that Ndst1 mRNA levels were reduced in livers from STZ-induced diabetic mice (Fig. 6A). To determine the mechanism for this, we assessed the effects of glucose concentration on expression on Ndst1 in cultured hepatocytes. Growing the cells for 24 h in 25 mmol/l glucose reduced Ndst1 mRNA levels (Fig. 6B).

Studies in STZ-induced diabetic mice have shown either increased or no change in atherosclerosis (22). Increased atherosclerosis has been associated with, and perhaps caused by, greater hyperlipidemia in studies with Apoe^−/− (6,23,24), human apoB transgenic (16), and Ldlr^−/− mice (9,10). In other studies (12,25–27), when minor or no change in circulating lipids was found, atherosclerosis was unaltered despite the development of either insulin resistance or diabetes. Unlike Apoe^−/− mice, which lack the ligand to allow remnant lipoproteins to interact with both the LDL receptor and LRP, Ldlr^−/− mice have circulating VLDL remnants and even LDL (28) that contain apoE. In part for this reason, these two models differ in their lipoprotein response to diet-induced insulin resistance (29). Another diabetic model, leptin deficiency, is associated with marked hyperlipidemia when crossed onto the Ldlr^−/− background (30). However, leptin deficiency itself alters lipid metabolism; it raises HDL levels and reduces SR-BI expression (31).

In this study, we sought to define the pathophysiologic process leading to hyperlipidemia in STZ-induced diabetic Ldlr^−/− mice. This process has complicated studies of atherosclerosis that have used this model, since in general STZ-induced diabetic mice have much greater hyperlipidemia than do controls (22). By using these animals, we hoped to gain insights into pathways for lipoprotein catabolism that are exclusive to the LDL receptor and that might lead to altered lipoprotein metabolism in humans. ApoB-containing lipoprotein clearance from the circulation occurs by at least three pathways: LDL receptor uptake, uptake via other receptors such as LRP (32), and clearance via association with and perhaps uptake by cell surface proteoglycans (33). This latter pathway leads to lipoprotein trapping, a rapid plasma clearance within minutes rather than hours of lipoprotein particles via their electrostatic binding within the space of Disse in the liver. Recently, liver-specific deletion of Ndst1, which is responsible for proteoglycan sulfation, led to hyperlipidemia, a process that was augmented when LDL receptors were deficient (34). This experiment confirmed the importance of the proteoglycan clearance pathway in lipoprotein metabolism.

Others have been able to illuminate the role of the LRP-mediated pathway in remnant lipoprotein clearance using Ldlr^−/− mice (35). We assessed the effects of diet, rates of apoB synthesis, expression of lipoprotein receptors, and acute LDL removal in control and STZ-induced diabetic mice. Our data show the following: 1) Loss of LDL receptors is associated with elevated fasting cholesterol levels after STZ treatment. 2) This is associated with an increase in the size and lipid content of VLDL and LDL as well as the proportion of apoB48 in LDL. 3) Diabetic Ldlr^−/− mice do not have an increase in liver production of apoB during fasting or postprandially. 4) Diabetic mice have a marked increase in food intake; however, the increase in cholesterol consumed is not the major cause of hypercholesterolemia in these mice. 5) LDL from STZ-induced diabetic mice have reduced plasma clearance, and this is associated with decreased liver “trapping” of the particles, increased circulating levels of apoE, and decreased expression of Ndst1.

We sought to determine why, in many studies, diabetes elevated cholesterol in Ldlr^−/− mice. Because elevated cholesterol occurred on the Ldlr^−/− background, this suggested that reduced uptake occurred with lack of the normal LDL receptor pathway. Mice overexpressing human apoB do not show a similar hyperlipidemia with STZ treatment (12). First, we characterized the lipoproteins and showed that apoB lipoproteins were larger in the STZ-induced diabetic mice. Second, we confirmed that despite greater food intake, STZ-induced diabetic Ldlr^−/− mice did not have increased liver production of lipoproteins. This was done by assessing radioactive methionine incorporation into apoB in mice in which lipolysis and removal of secreted lipoproteins were blocked by injection of detergent. Other receptors have been implicated in hepatic lipoprotein uptake in Ldlr^−/− mice (36,37). Neither receptor (LRP or SR-BI) was reduced.

Unlike humans that only produce apoB48 in the intestine, both the liver and intestine produce apoB48 in the rodent. We did not find an increase in apoB48 production in the fasting mice or in the postprandial period when intestinal production would be most robust. As a second means to assess intestinal lipoprotein production, we performed studies of intestinal absorption of retinyl ester in a triglyceride emulsion. Neither the amount of label nor the peak triglyceride found in the plasma differed between the control and STZ-induced diabetic mice.

STZ-induced diabetic mice consumed a greater amount of cholesterol, as their food intake increased ∼60%. For this reason, we tested whether altering cholesterol intake and reducing the dietary drive to produce intestinal lipoproteins would correct the hyperlipidemia. Using half of the concentration of cholesterol in the diet to correct for the greater intake in the STZ-induced diabetic mice did not reduce plasma cholesterol levels to those found in the nondiabetic mice.

The reasons for the increase in apoB-containing lipoproteins became apparent when we performed kinetic studies using labeled lipoproteins from control and STZ-induced diabetic mice. Lipoproteins from the STZ-induced diabetic mice were rapidly removed from the plasma of control mice and found within the liver of control mice. Such rapid loss of lipoproteins, in 10 min, is most compatible with trapping and not receptor-mediated uptake. This process is thought to be a non-receptor–mediated association in which the basic residues of apoE on the surface of lipoproteins have an ionic interaction with sulfated proteoglycans. Livers from STZ-induced diabetic rodents have a defect in proteoglycans (38,39), perhaps due to reduced expression of Ndst1 (21). We confirmed reduced Ndst1 expression in the STZ-induced diabetic Ldlr^−/− mouse livers and showed that hepatocytes cultured under hyperglycemic conditions also have reduced Ndst1 expression. Recently, studies of a hepatocyte specific knockout of Ndst1 confirmed the role of proteoglycan trapping in normal catabolism of apoB-containing lipoproteins (34).

Our current studies in the Ldlr^−/− mouse should be contrasted with those exploring the reasons for diabetes-induced hyperlipidemia in wild-type mice and mice expressing only apoB48 or apoB100 (7). In these models with intact LDL receptors, the apoB48-expressing, but not apoB100-expressing, mice had increased fasting lipids with diabetes. Presumably any increase in apoB100 lipoproteins was handled by the LDL receptor. In contrast, there was an increase in apoB48 lipoproteins in the STZ-induced diabetic wild-type and only-apoB48–expressing mice. In this study, there was also a decrease in liver proteoglycans; liver proteoglycans are thought to capture circulating lipoproteins within the hepatic sinusoids (33). In our study, trapping of the LDL from STZ-induced diabetic mice was increased when these particles were injected into control, but not STZ-induced diabetic, mice. Thus, it appears that the STZ-induced diabetic animals accumulated a subclass of lipoproteins that contained apoE and that were normally rapidly cleared from the bloodstream.

Humans with type 1 and type 2 diabetes do not usually show a marked elevation of plasma lipid levels (40,41). Whether the increased postprandial lipemia found in type 2 patients is due to defective proteoglycan clearance of plasma lipoproteins (as found in this type 1 diabetes model), altered apoB production in the liver due to increased fatty acid return and decreased apoB degradation, or reduced lipoprotein lipase activity is not clear. However, our animal model might mimic the hyperlipidemia found in some type 1 diabetic patients with poorly controlled diabetes. In this situation, LDL receptors may be reduced due to lack of insulin actions (42). In addition, intestinal overproduction of lipoproteins, which occurs in some STZ-induced diabetic animal models (43), might lead to a greater flux of remnant lipoproteins that require an initial trapping in the liver. Thus, a reduction in lipoprotein receptors, the high-cholesterol diet fed to our animals but representative of the diet typically eaten by humans in Western society, and reduction of liver trapping of lipoproteins may all contribute to the postprandial lipidemia found in human diabetes (44).

These studies were supported by National Institutes of Health grants HL87945 and HL54591 (to I.J.G.) and HL62583 (to L.-S.H.). H.-L.N. was supported by a mentored postdoctoral grant from the American Diabetes Association.
