Liver-Specific Deletion of Protein-Tyrosine Phosphatase 1B (PTP1B) Improves Metabolic Syndrome and Attenuates Diet-Induced Endoplasmic Reticulum Stress

PTP1B floxed mice were generated previously (18). Alb-Cre mice on a 129Sv/C57Bl6 hybrid background were obtained from C. Ronald Kahn (Joslin Diabetes Center). All mice studied were age-matched littermate males on the mixed 129Sv/C57Bl6 background. Mice were maintained in a temperature-controlled barrier facility on a 12-h light/dark cycle with free access to water and food (19). Genotyping for the PTP1B floxed allele and the presence of Cre was performed by PCR (18).

Mice were placed on standard lab chow or HFD at weaning (21 days old), and weights were monitored weekly. Length was measured from nose to rump (cm). Fat pads were dissected from mice fed an HFD for 18 weeks and weighed individually (19).

Glucose in tail blood was assayed using a glucometer (Lifescan). Fed measurements were taken between 8:00 and 10:00 a.m. and, where indicated, from mice fasted for 12 h. Serum insulin and leptin were determined by ELISA (CrystalChem), and free fatty acids were quantified by enzymatic assay (Wako). Insulin tolerance tests (ITTs) and glucose tolerance tests (GTTs) were performed as described (18,19). A 2-h hyperinsulinemic-euglycemic clamp was conducted in awake Alb-Cre-PTP1B^−/− mice (n = 15) and fl/fl littermates (n = 13) at a continuous insulin infusion rate of 2.5 mU · kg⁻¹ · min⁻¹, as described previously (19 and in the supplemental information, found in an online-only appendix at http://diabetes.diabetesjournals.org/cgi/content/full/db08-0913/DC1).

For insulin signaling experiments, animals were fasted for 12 h, saline or insulin (10 mU/g) was injected intraperitoneally, and livers were removed 10 min later. Mouse tissues were dissected and frozen in liquid N₂. Tissue lysates were prepared by extraction in radioimmunoprecipitation assay (RIPA) buffer at 4°C, followed by clarification at 14,000g (19,20). For immunoblots, proteins were resolved by SDS-PAGE and transferred to PVDF. Immunoblots were performed with polyclonal antibodies against pIR1162/1163 (Invitrogen), IRβ (Santa Cruz), IRS-1/IRS-2 (Millipore), p85 (Millipore), phospho-GS-Ser641 (Cell Signaling), glycogen synthase chicken antibody (gift from the late Dr. John Lawrence, UVA), or PTP1B (Millipore). For ER stress experiments, the following antibodies, all from Cell Signaling, were used: p-p38, p38, pJNK, pPERK, peIF2a (Ser 51), and eIF2α. Proteins were visualized using enhanced chemiluminescence and quantified by scanning densitometry (Image J software). Phosphorylated IRS-1 in livers (2 μg protein) was detected by enzyme-linked immunosorbent assay (ELISA) (PathScan Phospho-IRS-1, Cell Signaling). For immunoprecipitation studies, IRS-1 or IRS-2 was immunoprecipitated from liver lysates (1 mg) with IRS-1 (Millipore) or IRS-2 antibody (Santa Cruz) and protein A Sepharose. Immunoprecipitates were washed four times with lysis buffer, subjected to SDS-PAGE, transferred to PVDF membranes, and immunoblotted with anti-phosphotyrosine antibody (Santa Cruz) or p85 antibody (Millipore). No differences in total IRS-1 or IRS-2 levels were detected.

Liver RNA was isolated using Trizol (Invitrogen) and purified with the RNeasy kit (Qiagen). A total of 1 μg RNA was reverse-transcribed in 20 μl reaction volume with the Advantage RT-for-PCR kit (Clontech). Then 1–2 μl cDNA was used to amplify the target genes in the real-time RT-PCR (20 μl) using SYBR Green PCR Master Mix (ABI) followed by analysis using the Eppendorf Mastercycler ep Realplex. Relative gene expression was calculated using the comparative Ct (2^−δδCt) method. The relative copy number of GAPDH and 18S was used for normalization (SABiosciences RT² qPCR Primer Assays). PCRs were followed by melting curve (60–95°C) and agarose gel analysis to ensure specificity (for primer sequences and PCR conditions, see the supplemental information).

Serum and liver triglycerides and cholesterol were measured at the Vanderbilt MMPC Lipid Core facility. Lipids were extracted using the method of Folch et al. (21), and individual lipid classes were separated by thin-layer chromatography and visualized by rhodamine 6G. Triglycerides were quantified as described (22). Cholesterol measurements were performed by gas chromatography as described (23).

Mice with liver-specific PTP1B deletion were generated by crossing PTP1Bfl/fl mice to mice expressing Cre recombinase under the control of the albumin promoter (Alb-Cre). The resultant Alb-Cre PTP1B +/fl mice were crossed to PTP1Bfl/fl mice, yielding Alb-Cre PTP1Bfl/fl mice (hereafter termed Alb-Cre-PTP1B^−/− mice), Alb-Cre PTP1B +/fl mice, and PTP1Bfl/fl controls (18). PCR for the deleted PTP1B allele confirmed that deletion occurred only in the liver (Fig. 1A, top panel). As expected, Alb-Cre-PTP1B^−/− mice exhibited ∼80% reduction in PTP1B protein in the liver (1), consistent with hepatocyte-specific deletion. Other insulin-responsive tissues had normal levels of PTP1B protein (Fig. 1A, bottom panel).

Alb-Cre-PTP1B^−/− and control mice were weaned onto either HFD (55% kcal from fat) or normal chow (4.5% fat). The absence of PTP1B in hepatocytes had no effect on body weight on either diet (Fig. 1B), as expected from previous studies (18). Adiposity, as assessed by fat pad weights (Fig. 1C) and leptin levels (Fig. 1D), and length (Fig. 1E), were unaffected by PTP1B deficiency. Hematoxylin and eosin staining of liver sections revealed no overt histological differences between Alb-Cre-PTP1B^−/− and fl/fl control littermates (data not shown).

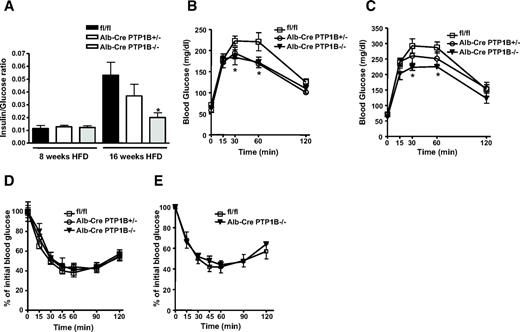

Compared with littermate controls, Alb-Cre-PTP1B^−/− mice fed an HFD exhibited lower fed glucose levels at 8 weeks of age and lower fasted glucose, serum insulin levels, and insulin-to-glucose ratios at ∼16 weeks of age, indicating an overall improvement in glucose homeostasis (Table 1; Fig. 2A). Alb-Cre-PTP1B^−/− mice also exhibited an enhanced ability to clear glucose from the peripheral circulation during intraperitoneal GTTs on either chow (8 weeks of age) or HFD (11 weeks of age) compared with controls (Fig. 2B and C). Insulin secretion during the GTTs was similar in Alb-Cre-PTP1B^−/− and fl/fl controls (Table 1). In contrast to their improved GTTs, ITTs were normal in Alb-Cre-PTP1B^−/− mice (Fig. 2D and E; see discussion).

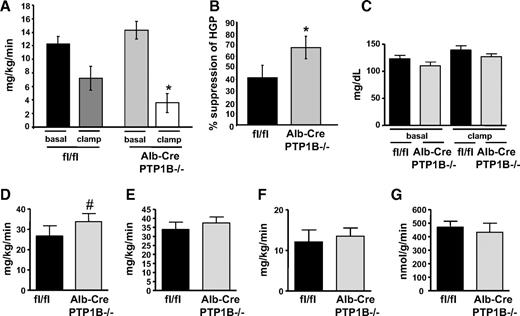

To assess whether improved glucose tolerance was due to autonomous effects of PTP1B deficiency in the liver, we performed hyperinsulinemic-euglycemic clamps in male Alb-Cre-PTP1B^−/− and fl/fl control mice fed a chow diet. Hepatic glucose production during the insulin-stimulated state (clamp) was significantly lower in Alb-Cre-PTP1B^−/− mice (Fig. 3A), resulting in ∼30% higher insulin-mediated suppression of hepatic glucose production in Alb-Cre-PTP1B^−/− mice (Fig. 3B). Basal blood glucose levels in Alb-Cre-PTP1B^−/− mice were similar to those in control littermates and were maintained at levels comparable to those of controls during the clamp (Fig. 3C). The glucose infusion rate required to maintain euglycemia during clamps trended higher in Alb-Cre-PTP1B^−/− mice (P = 0.052), indicating an overall improvement in insulin sensitivity (Fig. 3D). Insulin-stimulated whole-body glucose turnover and glucose metabolism in skeletal muscle were similar between the two groups (Fig. 3E–G). These data suggest that improvement in whole-body glucose homeostasis, as measured by GTT in Alb-Cre-PTP1B^−/− mice, is mostly due to increased insulin sensitivity in liver.

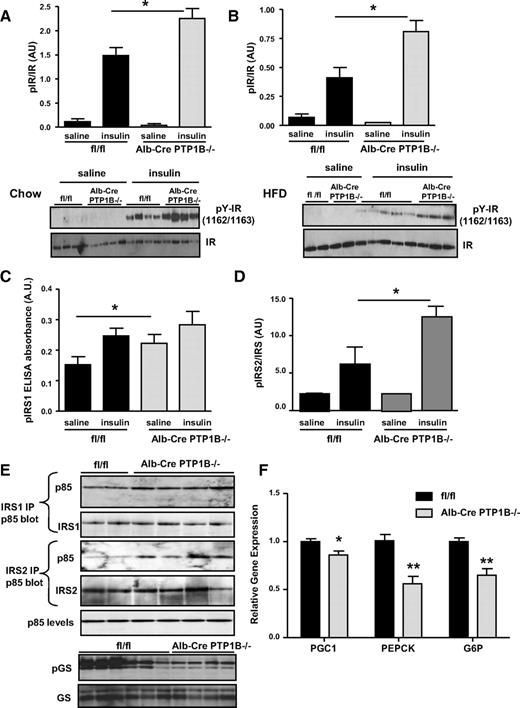

To investigate the molecular mechanism of improved hepatic insulin sensitivity in Alb-Cre-PTP1B^−/− mice, we injected fasted, male Alb-Cre-PTP1B^−/−, or fl/fl littermate control mice with insulin or saline (control) and examined insulin signaling in liver. We analyzed phosphorylation of Y1162/Y1163 on the insulin receptor because these sites are reported to be preferentially dephosphorylated by PTP1B (24,25). Insulin-stimulated IR phosphorylation was higher in Alb-Cre-PTP1B^−/− mice on a chow diet compared with controls (Fig. 4A). High-fat feeding blunted hepatic insulin signaling in fl/fl mice, resulting in a less robust increase in insulin-induced IR phosphorylation. However, insulin-induced IR phosphorylation in Alb-Cre-PTP1B^−/− liver was greater than in control mice (Fig. 4B). Basal IRS-1 tyrosine phosphorylation was increased in HFD-fed Alb-Cre-PTP1B^−/− mice (Fig. 4C). Insulin-stimulated IRS-1 phosphorylation tended to be higher in Alb-Cre-PTP1B^−/− mice, although this did not reach statistical significance. In contrast, basal tyrosine phosphorylation of IRS-2 was similar between the two groups, but insulin-stimulated IRS-2 phosphorylation was elevated in HFD-fed Alb-Cre-PTP1B^−/− mice (Fig. 4D). Improved hepatic insulin signaling was also evident downstream, since Alb-Cre-PTP1B^−/− mice exhibited higher insulin-stimulated IRS-1 and IRS-2 p85 association than controls, as well as reduced phosphorylation of glycogen synthase (Fig. 4E). These biochemical data suggest that the improved hepatic insulin action in Alb-Cre-PTP1B^−/− mice is the direct result of increased IR signaling.

Insulin regulates hepatic glucose metabolism in part by altering gene expression (8). Consistent with their improved glucose homeostasis, the levels of peroxisome proliferator–activated receptor-γ coactivator-1α (PGC-1α), phosphoenolpyruvate carboxykinase (PEPCK), and glucose-6-phosphatase (G-6-Pase) mRNA were significantly lower in Alb-Cre-PTP1B^−/− mice fed an HFD for 18 weeks compared with controls (Fig. 4F).

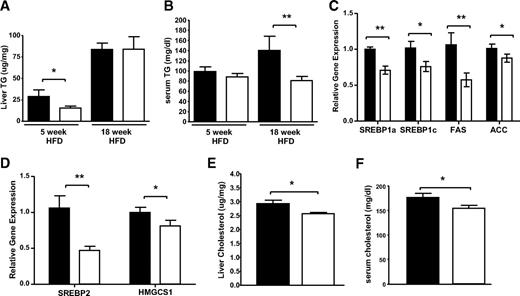

Because the liver plays a major role in lipid metabolism, we assessed several parameters of whole-body lipid homeostasis in Alb-Cre-PTP1B^−/− and control mice. Serum free fatty acids were unchanged between the two groups of mice (Table 1). However, liver triglyceride levels were significantly lower in Alb-Cre-PTP1B^−/− mice after 5 weeks of high-fat feeding (Fig. 5A), whereas this difference was not detectable at 18 weeks of HFD, probably due to very high levels of triglyceride at this time. Serum triglyceride levels were also lower in Alb-Cre-PTP1B^−/− mice fed an HFD (Fig. 5B).

Lipid homeostasis in vertebrate cells is regulated by a small family of membrane-bound transcription factors, designated sterol regulatory element–binding proteins (SREBPs), which directly activate the expression of >30 genes dedicated to the synthesis and uptake of cholesterol, fatty acids, triglycerides, and phospholipids (26). Analysis of the hepatic lipogenic genes SREBP1a and SREBP1c, and their target genes fatty acid synthase (FAS) and acetyl-CoA carboxylase (ACC), revealed a decrease in their mRNA levels in HFD-fed Alb-Cre-PTP1B^−/− mice (Fig. 5C). Expression of genes involved in cholesterol synthesis, such as SREBP2 and its target gene 3-hydroxy-3-methylglutaryl-coenzyme A synthase 1 (HMGCS1), also were significantly decreased in HFD-fed Alb-Cre-PTP1B^−/− mice (Fig. 5D). Consistent with their reduced SREBP2 and HMGCS1 expression, liver cholesterol levels were significantly lower in HFD-fed Alb-Cre-PTP1B^−/− mice compared with controls (Fig. 5E). In fact, cholesterol levels in Alb-Cre-PTP1B^−/− mice fed an HFD were similar to those measured in chow-fed mice (data not shown), suggesting that liver-specific PTP1B deletion protects against cholesterol accumulation caused by prolonged HFD feeding. Serum cholesterol levels in HFD-fed Alb-Cre-PTP1B^−/− mice also were lower than in control littermates (Fig. 5F).

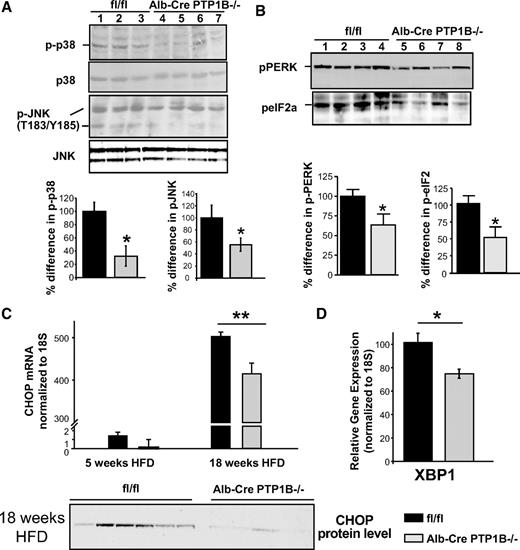

Genetic and dietary obesity in mice induce the ER stress response, which is associated with insulin resistance and intracellular lipid accumulation (9). To investigate whether deficiency of PTP1B in liver protects against HFD-induced ER stress, we analyzed components of the ER stress response in livers of 18-week HFD-fed Alb-Cre-PTP1B^−/− and control mice. PTP1B^−/− fibroblasts reportedly have decreased phosphorylation of stress-activated p38 MAPK (16). Likewise, Alb-Cre-PTP1B^−/− mice had decreased levels of p38 MAPK in their livers, but in addition, JNK, pPERK, and eIF2α phosphorylation was also reduced. Together, these data suggest that Alb-Cre-PTP1B^−/− mice are more resistant to HFD-induced ER stress than controls (Fig. 6A and B). Consistent with this notion, expression of the pro-apoptotic transcription factor C/EBP homologous protein (CHOP), while substantially induced by prolonged high-fat feeding in control and Alb-Cre-PTP1B^−/− mice, was significantly lower at the mRNA and protein level in PTP1B-deficient livers (Fig. 6C). As expected from in vitro studies (16), expression of XBP1s (a key factor in ER stress) was also reduced (Fig. 6D). Thus, mice lacking PTP1B in the liver are more resistant to obesity-induced ER stress, providing an additional potential mechanism by which glucose and lipid homeostasis after prolonged high-fat feeding is improved in these mice.

Metabolic syndrome, which is associated with hyperinsulinemia, hyperglycemia, and lipid abnormalities, often leads to diabetes and cardiovascular disease (27–29). Insulin resistance plays a key role in the pathophysiology of metabolic syndrome, resulting in decreased glucose metabolism, insulin action, and alterations in hepatic lipid metabolism. Whole-body knockout studies of mice showed that PTP1B is a major regulator of insulin sensitivity and body weight (14,15) and suggested that PTP1B might be a useful target for the therapy of diabetes and obesity. Here we found that mice lacking PTP1B selectively in the liver have improved glucose homeostasis and reduced levels of triglycerides and cholesterol, independent of changes in body weight or adiposity. These studies show that PTP1B has autonomous effects on both glucose and lipid metabolism in the liver and extend the potential utility of PTP1B inhibitors to the treatment of metabolic syndrome.

The metabolic importance of hepatic insulin signaling was validated by mice with liver-specific deletion of the IR (LIRKO), which exhibit dramatic insulin resistance, severe glucose intolerance, and dysregulated hepatic gene expression (1). Alb-Cre-PTP1B^−/− mice exhibit increased insulin-stimulated IR phosphorylation, as well as basal IRS-1 and insulin-stimulated IRS-2 tyrosine phosphorylation. Increased insulin-stimulated IR phosphorylation in these mice is in line with the known role of PTP1B as a negative regulator of IR signaling (14,15), whereas the elevation of basal IRS-1 tyrosine phosphorylation in Alb-Cre-PTP1B^−/− mice in the absence of increased basal IR phosphorylation is consistent with previous studies showing that PTP1B also can dephosphorylate IRS-1 directly in vitro (30).

Insulin signaling suppresses gluconeogenic gene expression. Notably, IRS-1 and IRS-2 have complementary roles in the liver, with IRS-1 more closely linked to glucose homeostasis and IRS-2 more important for lipid metabolism (31). Knockdown of IRS-1 in the livers of wild-type mice results in upregulation of G-6-Pase and PEPCK. Consistent with increased IR and IRS-1 tyrosine phosphorylation, we observe decreased expression of G-6-Pase and PEPCK in livers of Alb-Cre-PTP1B^−/− mice. The PGC-1α promoter is activated by FoxO1 (32). Insulin suppresses PGC-1α gene expression by promoting Akt phosphorylation and subsequent phosphorylation and nuclear exclusion of FoxO1 (33). PGC-1α expression is elevated in livers of insulin-resistant ob/ob and LIRKO mice, confirming a key role for insulin as a suppressor of PGC-1 in vivo (34,35). As would be expected in a mouse model with enhanced hepatic insulin sensitivity, we observe decreased expression levels of PGC-1α in livers of Alb-Cre-PTP1B^−/− mice.

Alb-Cre-PTP1B^−/− mice show enhanced ability of insulin to suppress hepatic glucose production and increased hepatic insulin signaling. Alb-Cre-PTP1B^−/− mice also exhibit enhanced ability to clear glucose from the peripheral circulation during GTTs; however, ITTs are similar between Alb-Cre-PTP1B^−/− and control mice. Muscle and liver have different “set-points” for insulin action, with higher doses required to stimulate glucose uptake into muscle than to suppress hepatic glucose production. The comparable ITTs in Alb-Cre-PTP1B^−/− and control animals are probably due to the relatively high insulin doses used for ITTs, which results in complete suppression of hepatic glucose production.

In addition to its effects on glucose homeostasis, insulin regulates hepatic lipid metabolism by altering lipogenic gene transcription. High insulin levels persistently activate SREBP1c transcription and cleavage, even after patients become “insulin resistant” at the level of gluconeogenesis (26). This leads to increased lipogenic gene expression and accelerated triglyceride accumulation in the liver (36–38). Confirming the importance of the insulin receptor in mediating these effects, LIRKO mice have low serum triglyceride levels and decreased SREBP1c gene expression (29). LIRKO mice, however, also have 10-fold higher circulating leptin levels (39), and leptin has been suggested to play a role in regulation of glucose homeostasis (40) and plasma triglycerides (41). Surprisingly, SREBP1c and SREBP1a gene expression levels are significantly lower in Alb-Cre-PTP1B^−/− mice than in controls. This is opposite to what would be expected from the LIRKO phenotype and the enhanced insulin sensitivity seen in Alb-Cre-PTP1B^−/− mice. Consistent with their decreased SREBP1 expression, expression of the SREBP target genes FAS and acetyl-CoA carboxylase and serum triglyceride levels are reduced in Alb-Cre-PTP1B^−/− mice. Treatment of ob/ob mice with PTP1B oligonucleotides resulted in a similar decrease in lipogenic gene expression, including SREBP1 (38). Furthermore, a study in which high-fructose feeding was used to induce insulin resistance in rats reported a direct association between increased hepatic expression of SREBP1c and PTP1B and suggested a novel mechanism by which PTP1B regulates SREBP1c expression levels by enhancing PP2A activity (43). We therefore suspect that PTP1B may affect SREBP1 gene expression via a pathway distinct from the insulin signaling; however, further work is required to clarify the precise mechanism.

Reduced expression of lipogenic genes in livers of Alb-Cre-PTP1B^−/− mice, as well as lower triglyceride, is most likely the direct result of decreased levels of SREBP. Although recent studies of LIRKO mice emphasize the importance of insulin in regulating hepatic lipid balance, for the reasons discussed above, the effects of hepatic PTP1B deficiency on lipid homeostasis cannot be directly attributed to improved insulin action. Previous studies indicate that PTP1B also regulates growth hormone (GH) signaling (44), and GH has been shown to normalize serum triglyceride and cholesterol levels in aged rats (45). We cannot exclude the possibility that hepatic GH signaling may be altered in Alb-Cre-PTP1B^−/− mice, although we did not observe differences in linear growth between Alb-Cre-PTP1B^−/− and control mice.

Insulin resistance can lead to hepatic fat accumulation, even in the absence of obesity, as evidenced by the prevalence of nonalcoholic fatty liver disease in normal-weight humans. Recent studies have shown that hepatic cholesterol, rather than hepatic triglyceride, may play an important role in the pathogenesis of nonalcoholic fatty liver disease (46). Free cholesterol (but not free fatty acids or triglyceride) accumulation in hepatocytes sensitizes mice to TNF- or Fas-induced fatty liver (47). LIRKO mice fed a high-fat “Western” diet (40% fat) develop marked hypercholesterolemia, whereas consumption of an atherogenic diet (15% fat, 1% cholesterol, 0.5% cholic acid) produces hypercholesterolemia and severe atherosclerosis. Alb-Cre-PTP1B^−/− mice have lower expression of genes involved in cholesterol synthesis, including SREBP2 and HMGCS1, as well as decreased serum and liver cholesterol levels on a high-fat diet. High-fat feeding increases PTP1B expression in the liver (48), raising the intriguing possibility that PTP1B deficiency/inhibition in the liver may protect against the progression of fatty liver disease. How liver-specific deficiency of PTP1B results in decreased SREBP2 expression awaits further studies.

Recent studies demonstrated that HFD-feeding and genetic obesity (ob/ob) in mice induces the ER stress response (9), leading to cell death, inflammation, insulin resistance, and intracellular lipid accumulation. PERK is an ER transmembrane protein kinase that phosphorylates the α-subunit of eukaryotic translation initiation factor 2 (eIF2α) in response to ER stress, and the phosphorylation status of PERK and eIF2α is therefore a key indicator of ER stress. Examination of downstream markers for ER stress, such as CHOP (13), a b-ZIP transcription factor that potentiates apoptosis (11), or spliced XPB1, which plays a key role in the ER stress response by regulating the transcription of an array of genes, provides an additional readout of these ER stress pathways. Furthermore, ER stress-evoked signaling downstream of IRE1 leads to activation of p38 MAPK and c-Jun NH₂-terminal kinase (JNK) (9).

Studies performed on PTP1B^−/− primary and immortalized fibroblasts revealed that the absence of PTP1B protects against ER stress response (16). We found that Alb-Cre-PTP1B^−/− livers are more resistant to HFD-induced ER stress response. Phosphorylation of p38 was significantly lower in livers from Alb-Cre-PTP1B^−/− mice compared with controls, as was phosphorylation of JNK, PERK, and eIF2α, suggesting that liver PTP1B deficiency causes impaired ER stress–induced IRE1 signaling. CHOP and XBP1s levels also were decreased in HFD-fed Alb-Cre-PTP1B^−/− mice, consistent with impaired ER stress-induced PERK signaling. These in vivo studies demonstrate for the first time that PTP1B deficiency affects multiple “arms” of the ER stress response.

Overall, our findings demonstrate that PTP1B plays a critical role in hepatic glucose and lipid metabolism. Selective enhancement of insulin signaling in the liver would normally be expected to suppress gluconeogenesis, while enhancing lipogenesis and fat accumulation in the liver. Alb-Cre-PTP1B^−/− mice represent a model of “selective” insulin hypersensitivity, whereby gluconeogenic gene expression is suppressed and glucose homeostasis is improved, whereas triglyceride and cholesterol levels are improved as well. Our previous studies showed that inhibiting neuronal PTP1B is critical for conferring the beneficial effects of PTP1B deficiency on body mass/adiposity (18). Because of technical limitations in designing specific, bioavailable PTP1B inhibitors, the brain may be particularly difficult to target for therapy (49). The current results, combined with our previous studies of muscle-specific PTP1B^−/− mice (19), indicate that inhibiting PTP1B in the periphery should result in improved insulin sensitivity. Furthermore, inhibition of PTP1B in liver would have a beneficial lipid-lowering effect. Thus, PTP1B inhibitors may be an attractive therapy for use in the treatment of metabolic syndrome and cardiovascular risk, in addition to insulin resistance and diabetes.
