Congenic Mesenchymal Stem Cell Therapy Reverses Hyperglycemia in Experimental Type 1 Diabetes

NOR/LtJ, NOD/LtJ, and NOD.Cg-Tg(TcraBDC2.5)1DoiTg(TcrbBDC2.5)2Doi/DoiJ (BDC2.5) were purchased from the Jackson Laboratories (Bar Harbor, ME). All procedures used in animal experiments were in accordance with the standards set forth in the Guidelines for the Care and Use of Laboratory Animals at Harvard University.

To generate NOR MSCs, bone marrow mononuclear cells were isolated from the femurs and tibiae of NOR/LtJ mice. Cells were seeded in tissue culture flasks at a concentration of 1 × 10⁶/cm² as previously described (13) and were trypsinized at 80% confluence and consolidated 2:1 until passage 4 (P4); from P4 to P6, cells were used for injection, characterization, or in vitro assays. 7.5 × 10⁵ MSCs/well were cultured for 48 h in 6-well plates with 0.05, 0.5, or 5 ng/ml recombinant murine IFN-γ (Peprotech, Rocky Hill, NJ). MSC differentiation to mesodermal tissues was performed as previously described (13).

MSCs were analyzed for surface expression of a battery of markers at P4. Anti-mouse antibodies purchased from BD Biosciences (San Jose, CA) included CD45, Ly-6A/E/Sca-1, CD44, CD90.2, and CD73. Antibodies purchased from eBioscience (San Diego, CA) were CD105, CD29, CD106/VCAM-1, PD-1, B7-H1/PD-L1, and B7-H2/PD-L2. For ex vivo studies, the spleen and pancreatic lymph nodes (PLNs) were harvested and subjected to analysis for CD4 effectors, CD8 effectors, and Tregs as previously described (13). Splenocytes or DC cultures were also stained with CD11c, CD11b, F4/80, CD45R/B220, CD40, CD80, CD86, and Ly-6c (BD Biosciences). The biotinylated lineage panel was purchased from Miltenyi Biotec (Auburn, CA), and cells were secondarily stained with streptavidin (BD Biosciences).

Adherent NOR MSCs were fixed on slides and stained with hematoxylin–eosin for morphological evaluation, as previously described (13). Immunohistochemistry was also performed as previously described (13).

NOD CD4⁺ T-cells were isolated by magnetic bead separation using CD4 microbeads (Miltenyi Biotec). 1 × 10⁵ CD4⁺ T-cells were stimulated with 1 μg/ml anti-mouse CD3 and anti-mouse CD28 (BD Biosciences) alone or in combination with 1 × 10⁴, 2 × 10⁴, or 4 × 10⁴ control or IFN-γ-challenged (0.05, 0.5, or 5 ng/ml for 48 h) NOR MSCs or NOR splenocytes in 96-well plates for 48 h, followed by pulsing with 1 μCi tritiated thymidine (Perkin Elmer, Waltham, MA) for 16 h. Tritium uptake was assessed using a MicroBeta FilterMate-96 Harvester and a 1,450 MicroBeta TriLux (both from Perkin Elmer).

BDC2.5 CD4⁺ cells were extracted from isolated splenocytes using magnetic bead separation (Miltenyi Biotec, Auburn, CA), and the BDC2.5 autoreactive T-cell assay was performed as previously described (13). In experiments with siRNA knockdown, PD-L1 or nontargeting pool siRNA were added to MSCs using the Accell platform (Dharmacon, Lafayette, CO) for 3 days prior to culturing with BDC2.5 T-cells, NOD DCs, and BDC2.5 islet peptide, followed by pulsing with 1 μCi tritiated thymidine as above.

The autoreactive T-cell assay was performed as above using NOR MSCs in an ELISPOT assay as previously described (16). ELISPOT kits (BD Biosciences) to assess IFN-γ and IL-6 production were used according to the manufacturer's instructions.

To assess cytokine production of murine serum and culture supernatant samples, a 21-plex cytokine kit (Millipore, St. Charles, MO) was used according to the manufacturer's instructions and as previously described (16). To assess production of IFN-α, M-CSF, and Flt3L, murine ELISA kits (R&D Systems, Minneapolis, MN) were used according to the manufacturer's instructions.

Bone marrow-derived NOD DCs were generated as previously described (16). In DC and MSC coculture, 1 × 10⁵ NOR MSCs were plated at day 0 of NOD DC culture. For blocking studies, 10 μg/ml anti-IL-6 (eBioscience) was added at day 0 and replaced on days 3 and 6 at the same time as media additions or changes.

Cytospins of DC cultures at day 8 were stained with Giemsa stain (Sigma-Aldrich, St. Louis, MO) according to the manufacturer's instructions, and images were obtained using a Nikon TE300 system.

Female NOD mice were monitored beginning at 10 weeks of age, and on day 2 of hyperglycemia (>240 mg/dl), a sustained-release insulin pellet (LinBit, LinShin Canada, Inc., Ontario, Canada) was placed subcutaneously into the dorsum. The initial MSC injection (1 × 10⁶ cells i.v.) was injected within 24 h of pellet placement, and 1 × 10⁶ NOR MSCs were injected intravenously twice per week thereafter for 4 weeks. Normoglycemia was maintained as needed during the last two weeks of treatment by 250 ng/dl insulin (Lantus, Sanofi-Aventis, Bridgewater, NJ). Mice were monitored daily by measuring blood glucose until the time of sacrifice, and measurements were performed by tail bleeding according to National Institutes of Health guidelines.

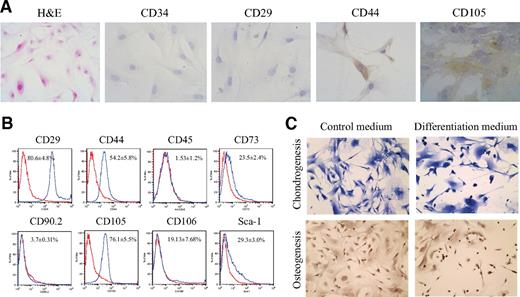

NOR MSCs were evaluated by immunohistochemical and flow cytometric analysis for their expression of classical MSC markers as well as costimulatory molecules. Cultured cells were shown to be positive for the MSC markers CD29, CD105, and CD44 but were negative for the hematopoietic lineage-restricted marker CD34 after immunohistochemical staining (Fig. 1,A). Surface staining revealed substantial expression of CD29, CD44, and CD105, with moderate expression of CD73 and Sca-1, and MSCs were found to be negative for the leukocyte antigen CD45 (Fig. 1,B). Our NOR MSCs were additionally found to be capable of differentiating into cells of mesodermal lineage (Fig. 1 C). These data confirm that our cultured NOR MSCs are phenotypically and lineally mesenchymal as well as functionally multipotent.

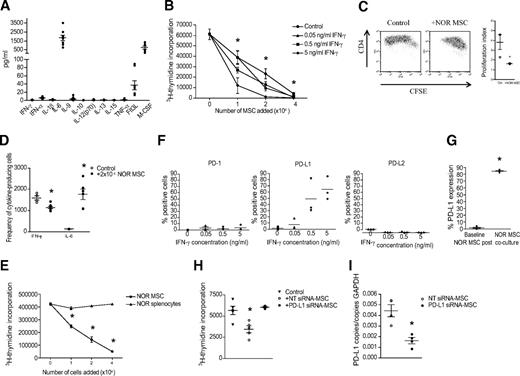

To further characterize NOR MSCs, we performed cytokine studies of NOR MSC cultures, which demonstrated the presence of various cytokines, with IL-6 most notable in its production (n = 4, Fig. 2,A). As MSCs are defined by their immunomodulatory ability as well as their surface marker profile and multipotent potential, we added increasing numbers of NOR MSCs previously challenged with increasing concentrations of IFN-γ to an anti-CD3-/anti-CD28-stimulated proliferative assay using NOD CD4⁺ T-cells to assess the capacity of NOR MSCs to suppress T-cell proliferation. NOR MSCs potently inhibited T-cell receptor (TCR)-stimulated proliferation in a dose-dependent manner (Fig. 2,B, n = 5, P < 0.027 for indicated conditions), and pretreatment with IFN-γ enhanced suppression of proliferation dose-dependently. To examine whether NOR MSCs are able to specifically suppress autoreactive T-cells, MSCs were added to an autoreactive T-cell assay, in which isolated BDC2.5 CD4⁺ T-cells, or H2^g7-restricted diabetogenic T-cells, are cocultured with NOD DCs and BDC2.5 islet peptide. As shown in Fig. 2,C, NOR MSCs significantly suppressed autoreactive T-cell proliferation, as assessed by carboxyfluorescein succinimidyl ester (CFSE) dilution and calculation of proliferation index (n = 5, P = 0.047). Addition of NOR MSCs was also able to suppress production of IFN-γ by BDC2.5 T-cells, which has been described previously as a characteristic of proinflammatory autoreactive T-cells (17), and the production of IL-6 was shown to be enhanced in the presence of NOR MSCs (Fig. 2,D, n = 6, P = 0.0024 for IFN-γ, P = 0.0005 for IL-6). These data demonstrate that not only are NOR MSCs capable of suppressing T-cell proliferation stimulated through the TCR via anti-CD3/-CD28 stimulation but that, in the specific context of diabetogenic T-cells, NOR MSCs have a potent immunomodulatory effect on autoreactive T-cell proliferation and production of IFN-γ. NOR splenocytes were also tested for their suppressive ability in all of the assays above to assess the effects of congenicity, and no effects on anti-CD3/-CD28-stimulated T-cell proliferation, autoreactive T-cell proliferation, or autoreactive T-cell IFN-γ production were observed (Fig. 2 E [n = 4, P < 0.0001 for NOR MSCs, not significant for NOR splenocytes], and data not shown, respectively).

Recent studies have highlighted the central role of the negative costimulatory PD-1 pathway ligand PD-L1 in suppressing the proliferation of autoreactive T-cells and in consequently halting the progression of type 1 diabetes in NOD mice (18,,–21). Given these data, we hypothesized that inhibition by PD-L1 serves as a mechanism by which NOR MSCs exert their immunomodulatory effects on diabetogenic T-cells. We thus examined the expression of PD-L1 on resting NOR MSCs and after activation with IFN-γ to evaluate expression of components of the PD-1 pathway in the context of inflammation. Although NOR MSCs expressed PD-L1 at insubstantial levels at baseline, stimulation with increasing doses of recombinant murine IFN-γ resulted in prodigious upregulation of PD-L1 expression in a dose-dependent manner, while PD-1 and PD-L2 expression underwent modest changes after IFN-γ challenge (Fig. 2,F, n = 3, P = 0.0002 for PD-L1 expression of baseline compared with 5 ng/ml IFN-γ). We also investigated whether addition of unstimulated NOR MSCs to the BDC2.5 autoreactive assay would result in upregulation of PD-L1, as substantial IFN-γ was detected in the autoreactive T-cell experiments (Fig. 2,D); indeed, coculture of NOR MSCs with autoreactive T-cell assay components resulted in considerable NOR MSC expression of PD-L1 (Fig. 2,G, n = 5, P < 0.0001), indicating that an autoreactive inflammatory milieu induces marked upregulation of PD-L1 on MSCs. To determine the functionality of PD-L1 expression in the suppression of autoreactive T-cell proliferation by NOR MSCs, we treated NOR MSCs with PD-L1 siRNA prior to adding MSCs to our autoreactive T-cell assay. Indeed, treatment of NOR MSCs with PD-L1 siRNA abrogated the suppressive effect of MSCs on BDC2.5 T-cell proliferation (Fig. 2,H, n = 6; P = 0.0034 for control versus nontargeting siRNA, not significant for control versus PD-L1 siRNA for representative experiment shown). Addition of greater numbers of PD-L1 siRNA-treated NOR MSCs (4 and 8 × 10⁴; n = 4) to the autoreactive T-cell assay did not result in restoration of the suppressive effect of NOR MSCs (data not shown), perhaps due to the fact that MSCs have been shown to exert their immunomodulatory effects through cell contact. To confirm that our siRNA treatment resulted in efficient knockdown of PD-L1 expression, siRNA-treated MSCs were examined for PD-L1 copy number by real-time PCR. As shown in Fig. 2 G, PD-L1 transcripts were significantly decreased by PD-L1 siRNA treatment of MSCs (n = 4, P = 0.016), demonstrating effective suppression of PD-L1. These data indicate that PD-L1 plays a significant role in the specific context of MSC-mediated suppression of diabetogenic T-cells.

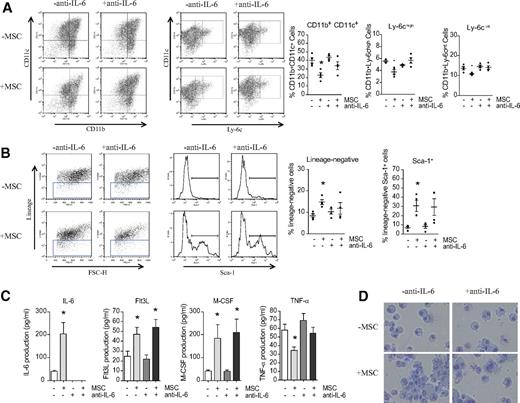

Aberrant DC development and imbalance in antigen-presenting cell (APC) subsets have been reported to be responsible for the lack of tolerance mechanisms in NOD mice (22,23). To examine the effect of NOR MSCs on DC generation, we performed in vitro studies of NOR MSCs and NOD DCs using an established method of DC culture (16,24). Because of the substantial production of IL-6 in our NOR MSC cultures (Fig. 2,A) as well as the fact that IL-6 has been demonstrated to both suppress and alter DC differentiation (2,7,25,26), we performed IL-6 blocking studies in conjunction with coculture of MSCs and DCs. The presence of MSCs strikingly reduced CD11c and CD11b expression of DCs, so that the predominant population induced by MSCs was CD11c^lowCD11b^low (Fig. 3,A, CD11c⁺CD11b⁺ cells = 40.7 ± 2.6% and 22.1 ± 2.4% for control and NOR MSC-treated, respectively, n = 5, P = 0.0007). Addition of anti-IL-6 somewhat abrogated the change in phenotype observed in DC coculture with NOR MSCs (Fig. 3,A, n = 4, not significant in comparison to control [−/−] and in comparison to MSCs alone [−/+]). Of note, costimulatory molecule expression in the CD11c⁺ population was not found to be significantly different in the presence or absence of MSCs (data not shown). The CD11b⁺ population was also evaluated with respect to Ly-6c expression, as both CD11b⁺Ly-6c^high and CD11b⁺Ly-6c^int cells have been demonstrated to be inflammatory monocytes recruited to sites of inflammation (22,27). Coculture with NOR MSCs resulted in downregulation of both the CD11b⁺Ly-6c^high and CD11b⁺Ly-6c^int populations (Fig. 3,A, n = 4, P = 0.0053 and P = 0.02, respectively), and this difference was again abrogated by blockade of IL-6. We then assessed the number of lineage-negative cells as a function of progenitor frequency or lack of differentiation, and NOR MSC treatment was shown to increase lineage-negative cells as well as increase the expression of Sca-1 within the lineage-negative population (Fig. 3,B, n = 4, P = 0.004 and P = 0.0085, respectively). Treatment with anti-IL-6 was somewhat efficacious in abrogating the suppression of differentiation observed in response to MSC coculture, suggesting that other factors may be involved in the effect of MSCs on DC differentiation. We therefore examined the supernatants of DC and MSC cocultures at day 8 for cytokine production. As shown in Fig. 3,C, coculture with MSCs significantly enhanced IL-6 levels (n = 4, P = 0.0074), and addition of IL-6 blocking antibody efficiently suppressed IL-6 production. Moreover, Flt3L and M-CSF production was increased in response to MSCs (n = 4, P = 0.03 and P = 0.04, respectively), and IL-6 blockade had no effect on increased levels of these cytokines (P = 0.013 and P = 0.018, respectively, in comparison to DCs alone, Fig. 3,C). Conversely, production of TNF-α, a growth factor involved in the maturation of DCs as well as a cytokine secreted by mature DCs (16,28), was reduced in the presence of MSCs (Fig. 3,C, n = 4, P = 0.0056), and blocking of IL-6 resulted in abrogation of this effect. To examine the morphology of DCs in response to MSCs, we performed Giemsa staining of day 8 DC cultures and found that the nuclear-to-cytoplasmic ratio appeared to decrease after coculture with MSCs, a feature commonly associated with earlier stages of differentiation (29), and IL-6 blockade appeared to partially reverse this effect (Fig. 3 D). Examination of side scatter of DCs by flow cytometric analysis revealed that coculture with MSCs resulted in a dramatic reduction in the degree of granularity (data not shown), again demonstrating a lack of differentiation in response to MSCs (30). Addition of MSCs to plasmacytoid DC (pDC) cultures resulted in enhanced pDC frequency, and this effect was fully reversed by IL-6 blockade (supplementary Fig. 1 in the online appendix available at http://diabetes.diabetesjournals.org/cgi/content/full/db10-0542/DC1), as IL-6 has been previously demonstrated to be important for pDC generation (31). Taken together, these data demonstrate a marked effect of NOR MSCs on DC phenotype, differentiation, and cytokine production, which is in large part mediated by IL-6.

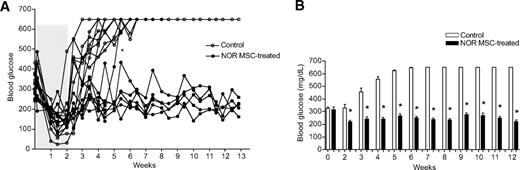

Given our previous data in which congenic NOR MSCs were found to be most effective in preventing onset of diabetes in the NOD mouse model in comparison to autologous or allogeneic MSC treatment (13), we sought to determine the efficacy of NOR MSCs in reversing recent-onset hyperglycemia in NOD mice. Our previous work demonstrated that reversal of hyperglycemia in response to BALB/c MSC therapy, although effective, was only temporary, perhaps due to eventual rejection of the allogeneic cells (13). Using a treatment protocol identical to that of our previous study, we observed reversal of recent-onset hyperglycemia in eight of nine NOD mice treated with NOR MSCs at the 5-week point of post-treatment observation (Fig. 4,A). Of note, only one mouse in the NOR MSC-treated group exhibited blood glucose levels > 600 mg/dl (* in Fig. 4,A) at ∼5 weeks into treatment. Whereas two NOD mice treated with NOR MSCs succumbed to unexplained deaths with no evidence of remission break, the other mouse was killed. Although several weeks of observation suffices for most reversal studies, the remaining five mice were observed for an extended period to ensure that their reversal was maintained (i.e., with no return to hyperglycemia). At 12 weeks after treatment, their average blood glucose measurement was 222 ± 13.4 mg/dl. All NOD mice (both NOR MSC-treated and controls) were provided a slow-release insulin pellet to allow for a limited period of metabolic recovery, yet in contrast to NOR MSC-treated mice, all control NOD mice (n = 9) redisplayed hyperglycemia almost immediately after dissolution of the insulin pellet. Weekly mean blood glucose measurements of treated mice were significantly reduced compared with controls from 2 to 12 weeks; notably, eight of nine hyperglycemic untreated mice died within 6 weeks after the onset of diabetes (Fig. 4,B, P < 0.001 for all time points, one surviving control is shown beyond week 6.5). No treatment bias was present, as glucose measurements at the initiation of treatment did not differ between groups (Fig. 4 B, P = not significant). These data demonstrate efficient and long-term reversal of recent-onset hyperglycemia in response to NOR MSC therapy.

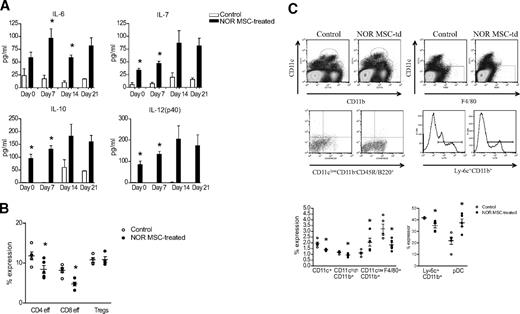

To elucidate the mechanisms by which reversal of recent-onset hyperglycemia occurred in response to NOR MSC therapy, we performed serum cytokine studies after the completion of MSC administration at days 0, 7, 14, and 21. As shown in Fig. 5,A, NOR MSC treatment resulted in increased circulating levels of IL-6, IL-7, IL-10, and IL-12(p40) (n = 3–5 samples, P < 0.00065 where indicated). Of note, IL-12(p70) levels were decreased in serum of NOR MSC-treated mice, but the difference did not reach statistical significance (data not shown). Flow cytometric analysis of the spleen and PLNs of treated and control mice at 2 weeks after the initiation of treatment demonstrated a reduction in the populations of CD4⁺CD44^highCD62L^low and CD8⁺CD44^highCD62L^low effector T-cells (Fig. 5,B, n = 5, P = 0.041 and P = 0.0022 for CD4 and CD8 effectors, respectively), while no effect on Tregs was detected. In studies in which NOD mice were treated for 2 weeks with NOR MSCs and in which the proliferative capacity of isolated CD4 and CD8 T-cells in response to concanavalin A and anti-CD3/-CD28 stimulation was examined, no differential results were observed in proliferation of CD4 or CD8 T-cells isolated from splenocytes of NOR MSC-treated or control mice (data not shown). In light of our in vitro DC data, we analyzed the splenic APC populations in control and NOR MSC-treated mice. CD11c single-positive and CD11c^highCD11b⁺ cells were found to be reduced in frequency in response to treatment with NOR MSCs (Fig. 5,C, n = 5, P = 0.004 and P = 0.015, respectively). Fewer macrophages, identified as F4/80⁺CD11c⁻, were also found in NOR MSC-treated mice (Fig. 5,C, n = 5, P = 0.015). Conversely, the CD11c^lowCD11b⁺ population was increased after NOR MSC therapy (Fig. 5,C, n = 5, P = 0.029). The CD11b⁺ population also showed reduced expression of Ly-6c after treatment with NOR MSCs (Fig. 5,C, n = 3–5, P = 0.042). Further analysis of the CD11c single-positive DC population revealed a dramatic increase in B220 expression in this subset in response to NOR MSC treatment (Fig. 5 C, n = 5, P = 0.0094), and pDCs of this phenotype have been shown to promote tolerance and to delay the onset of diabetes (32).

The incidence of type 1 diabetes is steadily rising at a global level (33,–35), and the most common form of intervention seeking to reverse the disease in recently diagnosed patients has been that of immunosuppression through use of agents such as anti-CD3. However, as immunosuppressive regimens are commonly associated with acute morbidity, novel treatments to reduce the burden of immunosuppression are in dire need of development. MSC therapy is one such treatment modality that, because of the considerable immunomodulatory effects of these cells, has shown promising results in treating autoimmune diseases and has the potential to serve as a component of combination therapy to reduce immunosuppressive regimen morbidity (9,,–12). Whereas MSCs are capable of differentiating into a number of mesenchymal cell lineages, hematopoietic stem cells are multipotent stem cells that give rise to all cells in the blood and that have been shown to have immunomodulatory roles as well; indeed, hematopoietic stem cell transplantation in patients with newly diagnosed type 1 diabetes has resulted in improved β-cell function (36). Clinical trials examining the effects of MSC therapy have also been initiated for a multitude of disorders, including type 1 diabetes. However, type 1 diabetes trials have been initiated with a paucity of preclinical data, which are necessary to determine the type and course of MSC therapy as well as to elucidate the mechanisms by which MSCs exert their immunomodulatory effects. We and others have previously demonstrated the benefit of MSC therapy in the specific setting of type 1 diabetes (13,14,37,38). Importantly, our previous work demonstrated no therapeutic benefit of autologous MSCs in vivo using a NOD mouse model (13). Conversely, allogeneic BALB/c MSC treatment was efficient in the treatment of type 1 diabetes, but reversal was short-lived, perhaps due to the eventual rejection of the allogeneic cells. Our previous work also indicated that the most significant preventative effect on experimental type 1 diabetes occurred with congenic NOR MSC treatment. Given these data, we sought to examine the effect of NOR MSCs on reversal of hyperglycemia as well as to elucidate the mechanisms responsible for NOR MSC immunomodulation.

In this report, we first demonstrate that NOR MSCs are functionally and lineally mesenchymal as well as confirm their immunomodulatory function in suppressing nonspecific TCR-stimulated proliferation. We next examined their immunosuppressive ability in the specific context of autoreactive T-cell proliferation through use of the BDC2.5 autoreactive T-cell assay; NOR MSCs were shown to potently suppress diabetogenic T-cell proliferation and IFN-γ production. Although NOR MSCs expressed PD-L1 at low levels at baseline, treatment with recombinant IFN-γ resulted in abundant PD-L1 expression. Similarly, previous reports have demonstrated IFN-γ to be important for MSC-mediated immunosuppression or PD-L1-mediated MSC immunoregulation (6,39,40). In our model, IFN-γ production by autoreactive T-cells may upregulate PD-L1 expression on MSCs and thereby augment their immunomodulatory capability. Indeed, we show that addition of NOR MSCs to the BDC2.5 autoreactive assay results in prodigious upregulation of PD-L1 expression on NOR MSCs; we postulate that a similar upregulation occurs after in vivo administration of MSCs to diabetic mice. With regard to functionality, the immunosuppressive effect of NOR MSCs was shown to be mediated in part via PD-L1 through siRNA knockdown of MSC PD-L1 expression and consequent abrogation of the suppressive effect on autoreactive T-cell proliferation. Given these results, further exploration of the effects of administering PD-L1-positive MSCs and the consequent potential for reducing the MSC number injected to diabetic NOD mice is certainly of merit. We also investigated the role of MSCs in regulating the phenotype of DCs. Primary diabetic insult is identified by peri-insulitis of the pancreas after DC and macrophage infiltration, and MSCs have been shown to both suppress and alter DC differentiation in other models (2,7). Herein, we show that the presence of MSCs reduces CD11c and CD11b expression, decreases inflammatory Ly-6c expression in the CD11b⁺ population, and suppresses differentiation as shown by increased frequency of lineage-negative and Sca-1⁺ cells. TNF-α production, a growth factor involved in DC maturation and produced by mature DCs, was suppressed in MSC cocultures, and DC morphology was similarly altered in the presence of MSCs. Moreover, we demonstrate that these effects are in large part mediated by IL-6 through the use of a blocking IL-6 antibody and the consequent reversal of this effect, although other factors such as Flt3L and M-CSF may be involved due to incomplete abrogation of all phenotypic alterations.

Our reversal studies in the NOD mouse show a marked incidence in reversal of recent-onset hyperglycemia in eight of nine mice in response to NOR MSC treatment, with prolonged reversal of 83% of mice treated with NOR MSCs (i.e., in five of six long-term survivors), whereas control mice reverted to hyperglycemia soon after cessation of insulin replacement. Serum cytokine studies of reversal mice showed changes in the cytokine profile with respect to IL-6, IL-7, IL-10, and IL-12(p40). IL-6 is a pleiotropic cytokine purported to have both anti- and proinflammatory roles; in type 1 diabetes, reports of its effects are conflicting, but it has been shown to protect β-cells from apoptosis and impaired function as well as delay the onset of overt diabetes in NOD mice (41,–43). Our in vitro data also demonstrate the central role of IL-6 in NOR MSC suppression of DC generation. IL-7, although important for effector memory T-cell survival, has also recently been demonstrated to be necessary for common lymphoid progenitor development, from which plasmacytoid DCs arise (44). IL-10 is an established immunoregulatory cytokine, whereas the homodimer IL-12(p40) inhibits action of the bioactive heterodimer IL-12(p70) (45,46). Taken together, changes in cytokines appear to skew the inflammatory diabetogenic environment toward a more regulatory profile in response to NOR MSC treatment. Consistent with our in vitro data, we demonstrate altered DC phenotype in response to NOR MSC treatment, manifested by diverting the CD11c⁺ subset toward a more regulatory cell as well as possibly preventing myeloid APC differentiation, as demonstrated by reduced expression of CD11c and F4/80 after MSC injection in vivo. Interestingly, the CD11c⁺CD11b⁺ subset has been shown to prime autoreactive T-cells, resulting in physiological β-cell death (47), and our treatment, particularly given our in vitro data, appears to retard development of this cell subset. Moreover, plasmacytoid DC frequency was found to be markedly increased in response to NOR MSC treatment, and DCs of this lineage have been shown to prevent acceleration of insulitis in NOD mice, as well as to suppress myeloid DC activation of effector cells (48,49), which is consistent with the decreased frequency of CD4 and CD8 effectors that we observed in response to NOR MSC treatment. As it has also been shown that type 1 diabetic patients have a reduced pDC compartment (50), increased frequency of pDC after NOR MSC treatment may thus contribute to the reversal of hyperglycemia that we observed.

Taken together, NOR MSC treatment resulted in efficient reversal of hyperglycemia, suppressed autoreactive T-cell proliferation via PD-L1, and increased production of regulatory cytokines and frequency of plasmacytoid DCs. This work is the first to demonstrate the distinct benefit of congenic MSCs in reversing hyperglycemia and ameliorating diabetes pathogenesis. Further exploration to optimize and to confirm the safety and efficacy of MSC therapy is the subject of our future studies. These data should serve to shape future type 1 diabetes clinical trials with regard to optimal MSC source and therapeutic regimen.

This work is supported by Juvenile Diabetes Research Foundation (JDRF) Grant 4-2007-1065, JDRF R&D Grant 1-2007-713. R.A. is the recipient of a JDRF Regular Grant. No potential conflicts of interest relevant to this article were reported.

M.J. researched data, contributed to discussion, and wrote the manuscript. S.Y., R.M., and J.A. researched data. A.A. and J.G. researched data and contributed to discussion. P.F. contributed to discussion. M.A. reviewed and edited the manuscript. M.H.S. contributed to discussion and reviewed and edited the manuscript. R.A. contributed to discussion and wrote the manuscript.

We thank Drs. Carlo Capelli and Stefano La Rosa for their contributions to immunohistochemistry studies.
