Superoxide Production by Macrophages and T Cells Is Critical for the Induction of Autoreactivity and Type 1 Diabetes

NOD/ShiLtJ, NOD.B6-Ncf1^m1J/m1J (NOD-Ncf1^m1J, generated as previously described) (19) mice were bred and housed in the University of Florida or the Children’s Hospital of Pittsburgh facility under specific pathogen-free conditions. NOD.CB17-Prkdc^scid/J (NOD-Scid), C57BL/6-Ncf1^m1J (B6-Ncf1), and C57BL/6.NOD-(D17Mit21-D17Mit10)/LtJ (B6-H2^g7) mice were purchased from the Jackson Laboratory (Bar Harbor, ME). NOD.129S7 (B6)-Rag1^tm1Mom/J (NOD.Rag), NOD.Cg-Rag1^tm1MomTg (TcraAI4)1Dvs/DvsJ (NOD-AI4a), and NOD.Cg-Rag1^tm1MomTg (TcrbAI4)1Dvs/DvsJ (NOD-AI4b) mice were purchased from The Jackson Laboratory and bred in our mouse facility. F1 hybrid progeny from matings of NOD-AI4a with NOD-AI4b (NOD-AI4a/b) developed diabetes between 3 and 5 weeks of age. All mice were housed in specific pathogen-free facilities and approved by the institution animal care and use committee at the University of Florida or the Children’s Hospital of Pittsburgh.

Depleting antibodies anti-Gr-1 (RB6–8C5) and anti-Ly6G (1A8) purchased from Bio X Cell (West Lebanon, NH) are both Rat IgG2 antibodies. Fluorescently labeled antibodies, Pacific blue–labeled anti-CD11b (M1/70), allophycocyanin (APC)-labeled anti-F4/80 (BM8), and phycoerythrin (PE)-labeled anti-CD8 (53–6.7) were purchased from eBioscience (San Diego, CA). PE-labeled anti-Ly6G (1A8), APC-labeled anti-CD11b (M1/70), and fluorescein isothiocyanate–labeled anti-CD11c (HL3) were purchased from BD Pharmingen (San Jose, CA). Pacific blue–labeled anti-CD4 (GK1.5) and APC/Cy7-labeled anti-B220 (RA3–6B2) were purchased from Biolegend (San Diego, CA).

Bone marrow was collected from age-matched NOD and NOD-Ncf1^m1J female mice, and erythrocytes were removed on a Histopaque-1119 gradient as previously described (20). In Hanks’ balanced salt solution (HBSS) containing 145 μmol/L cytochrome c, 1 × 10⁵ cells were stimulated with phorbol myristic acid (PMA; 98 nmol/L) at 37°C. Reduction of cytochrome c was measured at 550 nm at 1-min intervals for 45 min. The maximal rate of reduction was calculated by linear regression analysis. Purified superoxide dismutase 1 (0.5 units/mL) was used to confirm specificity of superoxide production.

Bone marrow was collected from age-matched NOD and NOD-Ncf1^m1J female mice, and erythrocytes were removed on a Histopaque-1119 gradient as previously described (20). After calibration, 2 × 10⁷ cells were loaded into chamber of Oxygraph-2 K (Oroboros Instruments, Innsbruck, Austria) at 37°C. Samples were stimulated with 1 μmol/L PMA and oxygen concentration and rate of consumption monitored for 30 min.

At 8 weeks of age, NOD and NOD-Ncf1^m1J female mice were enrolled and monitored for diabetes onset with weekly urinalysis using Diastix (Bayer, Elkhart, IN). Mice positive for glucosuria were monitored daily thereafter for hyperglycemia using One Touch Ultra 2 glucometers (LifeScan, Inc., Milpitas, CA). Any mouse with measured blood glucose levels on consecutive days >250 mg/dL was diagnosed with type 1 diabetes.

Pancreatic islets from age-matched female NOD.Rag and NOD-Ncf1^m1J mice were isolated (21) and cultured with IFN-γ, IL-1β, and TNF-α as previously described (22). Islet NO production was measured and cell viability was assessed via MTT assay as previously reported (23).

F1 progeny of NOD-AI4a crossed with NOD-AI4b (NOD-AI4a/b) were killed, and splenocytes were harvested. After the erythrocytes were lysed with Gey’s solution (24), live cells were counted and diluted to a concentration of 10⁸ cells per milliliter. A total of 2 × 10⁷ cells in sterile PBS were injected via the tail vein into sublethally irradiated 8-week-old NOD and NOD-Ncf1^m1J female mice (dose of 7.5 Gy delivered using X-RAD 320 [Precision X-ray, North Branford, CT]) as previously described (25). Mice were monitored every other day for the onset of diabetes as described above.

Cultures of BDC-2.5 T cells were collected and expanded in vitro as previously described for adoptive transfer experiments (26). NOD and NOD-Ncf1^m1J mice were injected intraperitoneally with 10⁷ BDC-2.5 T cells between 3 and 7 days of age. Mice were monitored daily by urinalysis, using Diastix, for the onset of diabetes.

Diabetic (20 weeks old) or prediabetic (8 weeks old) NOD and NOD-Ncf1^m1J donors were used for adoptive transfer experiments. Splenocytes were harvested, and erythrocytes were lysed using Gey’s solution. Splenocytes, 2 × 10⁷ cells in PBS, were transferred intraperitoneally to 8-week-old NOD-Scid recipients. In addition, CD4⁺ and CD8⁺ T cells were purified by negative selection with magnetic beads according to the manufacturer’s protocol using a CD4⁺ T-cell isolation kit or a CD8⁺ T-cell isolation kit (Miltenyi Biotec, Auburn, CA), respectively. Purity, >96%, was confirmed by flow-cytometric analysis. CD4⁺ and CD8⁺ T cells were mixed at a ratio of 3:1, and 10⁷ cells were transferred intraperitoneally to 8-week-old NOD-Scid recipients. Transfers were divided into four groups receiving 1) NOD CD4⁺ + NOD CD8⁺, 2) NOD-Ncf1^m1J CD4⁺ + NOD-Ncf1^m1J CD8⁺, 3) NOD-Ncf1^m1J CD4⁺ + NOD CD8⁺, or 4) NOD CD4⁺ + NOD-Ncf1^m1J CD8⁺. Mice were monitored weekly for diabetes onset as described above. Engraftment of cells was confirmed by flow cytometry.

Depletion studies were initiated at 4 weeks of age and were carried out until the onset of type 1 diabetes, as described above, or until 35 weeks of age. Female NOD mice were treated intraperitoneally with antibody diluted in sterile PBS three times per week. The dose for either the anti-Gr-1 (RB6–8C5) or anti-Ly6G (1A8) depleting antibodies was 500 µg on Monday and Wednesday as well as 750 µg on Friday of each week. The volume of all injections was 100 µL. Depletion of macrophages and neutrophils in peripheral blood was confirmed monthly by flow cytometry. Bone marrow, splenocytes, and peripheral blood were analyzed via flow cytometry after killing.

Splenic CD8⁺ T cells from age-matched NOD and NOD-Ncf1^m1J mice were purified by negative selection with magnetic beads according to the manufacturer’s protocol with the CD8⁺ T-cell isolation kit (Miltenyi Biotec). Purity, >90%, was confirmed by flow cytometric analysis. A total of 5 × 10⁴ cells or 5 × 10⁵ cells were used for proliferation or intracellular cytokine staining, respectively. Purified cells were stimulated with plate-bound anti-CD3ε (0.1 μg/mL) and anti-CD28 (1 μg/mL) for 72 h (27). Proliferation was measured by [³H]TdR incorporation (27). ROS production by CD8⁺ T cell was performed as previously described (19).

After 72 h of polyclonal stimulation, CD8⁺ T cells were further stimulated with 50 ng/mL PMA and 50 ng/mL ionomycin, followed by treatment with GolgiStop for 6 h at 37°C in a 5% CO₂, humid air incubator. Cells were surface stained with allophycocyanin-labeled anti-CD8, fixed in BD Cytofix/Cytoperm buffer, washed in BD Perm/Wash buffer, and then stained with fluorescein isothiocyanate–labeled rat anti–IFN-γ (XMG1.2; BD Biosciences, San Jose, CA) and PE-labeled rat anti–granzyme B (16G6; eBioscience) or isotype controls, according to the manufacturers’ protocol. Fluorescence was measured on an LSR Fortessa (BD Biosciences), and results were analyzed with FACSDiva 6.0 software (BD Biosciences).

Peripheral blood samples were lysed with Gey’s solution twice and resuspended in 100 µl HBSS for staining. Gey’s treated splenocytes, Ficoll-separated bone marrow suspensions, or purified T cells were counted and resuspended in HBSS at 2 × 10⁷ cells per milliliter. Approximately 10⁶ cells were labeled with antibodies at the proper dilution. Fluorescence was measured using LSR Fortessa and analyzed using FACSDiva 6.0 software.

GraphPad Prism (GraphPad Software, Inc., La Jolla, CA) was used for calculating statistical differences. Significance between mean values was determined using the Student t test, with P < 0.05 considered significant. Kaplan-Meier survival analysis was used to evaluate diabetes onset.

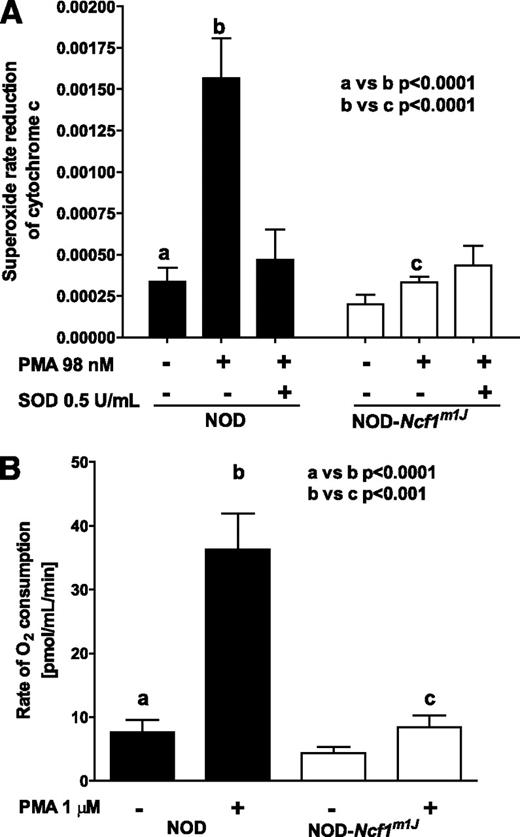

To study the role of ROS in the pathogenesis of type 1 diabetes, we generated NOD mice with genetic ablation of NOX superoxide production, as previously described (19), by congenic introduction of a mutant p47^phox subunit (Ncf1) of NOX (28). PMA stimulation of NOD bone marrow cells exhibited elevated superoxide production (P < 0.0001); however, there was no increase in superoxide production after PMA stimulation of cells isolated from NOD-Ncf1^m1J mice (Fig. 1A), confirming ablation of NOX function. Oxygen consumption by NOD-Ncf1^m1J bone marrow cells after the addition of PMA was not elevated; however, bone marrow cells from NOD consumed significant amounts of oxygen (P < 0.001) (Fig. 1B).

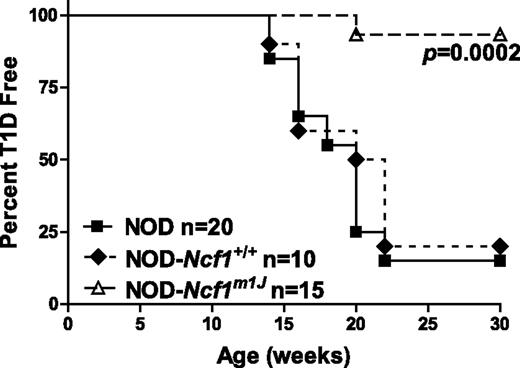

Development of spontaneous diabetes was assessed by following cohorts of female NOD-Ncf1^m1J and NOD-Ncf1^+/+ littermate controls for the development of glucosuria. By 30 weeks of age, 93% of NOD-Ncf1^m1J mice were diabetes-free compared with 20% of NOD-Ncf1^+/+ littermate controls and 15% of NOD (Fig. 2 ), demonstrating significant protection (P = 0.0002).

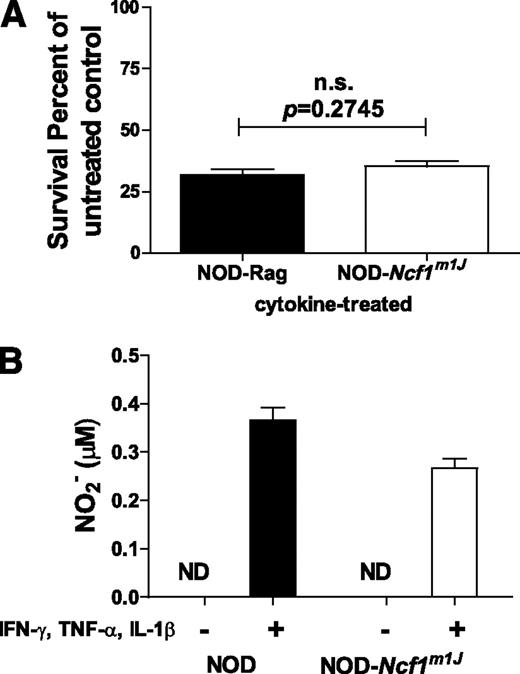

To determine whether the enhanced diabetes resistance in NOD-Ncf1^m1J mice was attributed to the inherent inability of islets to generate ROS and maintain β-cell integrity, islets from NOD.Rag and NOD-Ncf1^m1J mice were isolated and treated with cytokines to evaluate cell viability and NO production. Treatment with proinflammatory cytokines significantly reduced cell viability of NOD.Rag- and NOD-Ncf1^m1J–cultured islets (Fig. 3A). NOX-deficient islets produced NO after treatment with cytokines (Fig. 3B), demonstrating no change in the synthesis of reactive nitrogen species.

Intracellular production of ROS within islet cells contributes to β-cell killing (29–31), but whether the synthesis of ROS also functions as accessory molecules to facilitate T-cell autoreactivity within the islet has not been well studied. β-Cells express a NOX complex that can produce superoxide upon stimulation (29,31). To determine whether genetic ablation of NOX at the β-cell level would prevent diabetes induction with diabetogenic CD8⁺ T cells, we transferred highly pathogenic splenocytes from NOX-intact NOD-AI4 transgenic donors to sublethally irradiated NOD and NOD-Ncf1^m1J female mice. There was no significant difference in the rate or overall incidence of diabetes (Fig. 4A) as 75% of NOD and NOD-Ncf1^m1J mice developed hyperglycemia by 15 days after transfer.

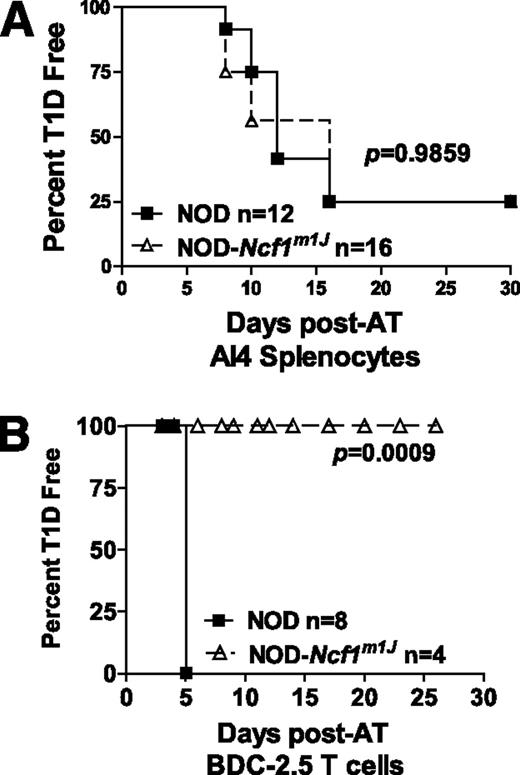

In addition to their function in perpetuating cytotoxic responses, macrophages also serve as vital APCs. Depletion or inactivation of phagocytes and macrophages has prevented diabetes progression in mouse and rat models (32–35), and recent reports suggest that endogenous macrophages are essential for T-cell autoreactivity in the BDC-2.5 transfer models (36–38). To determine whether the absence of phagocyte ROS production is essential for mediating type 1 diabetes resistance in the NOD-Ncf1^m1J mouse, we transferred BDC-2.5 T cells to NOX-deficient NOD-Ncf1^m1J mice. CD4⁺ T cells from BDC-2.5 transgenic mice were transferred into age-matched NOD and NOD-Ncf1^m1J female recipients. All NOD recipients developed diabetes 5 days after transfer; however, after 30 days, NOD-Ncf1^m1J mice had still not developed diabetes (Fig. 4B).

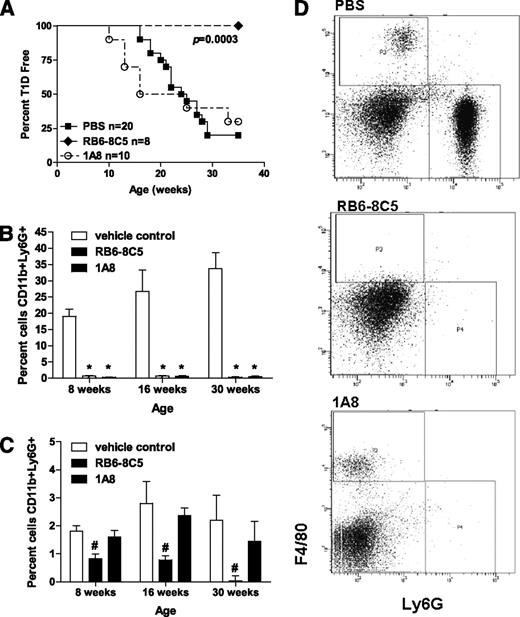

NOX respiratory burst is well described in neutrophils and macrophages and is an important mechanism by which these innate immune cells mediate killing (5,7). Macrophages have previously been reported as critical to the development of spontaneous type 1 diabetes; however, direct assessment of neutrophils has not been investigated. To elucidate the involvement of neutrophils in type 1 diabetes pathogenesis, the use of Gr-1–specific monoclonal antibodies RB6–8C5 and 1A8 were used for depletion studies. RB6–8C5 clone binds to Ly6G and Ly6C, whereas 1A8 is Ly6G specific (39). NOD female mice were treated with either RB6–8C5 antibodies to deplete macrophages and neutrophils or 1A8 antibodies to deplete only neutrophils. Depletion with RB6–8C5 provided 100% protection from diabetes development, whereas treatment with 1A8 provided no protection from type 1 diabetes after 35 weeks as compared with control-treated animals (Fig. 5A). Weekly systemic administration of the antibodies began at 4 weeks of age, prior to advancing insulitis, and continued throughout the course of the study to maintain reduction of the target cell types. Peripheral blood samples were collected monthly and monitored via flow cytometry to determine depletion of macrophages (CD11b⁺F4/80⁺) and neutrophils (CD11b⁺Ly6G⁺). During the course of the study, RB6–8C5 substantially depleted both macrophage and neutrophil populations (Fig. 5B–D), whereas 1A8 only depleted neutrophils with no significant affect on macrophage numbers (Fig. 5B–D). CD11b⁺ cells were gated and analyzed for F4/80 and Ly6G expression. Representative samples from 16-week-old mice are shown in Fig. 5D. There were no changes in dendritic cell or lymphocyte populations from either treatment (data not shown).

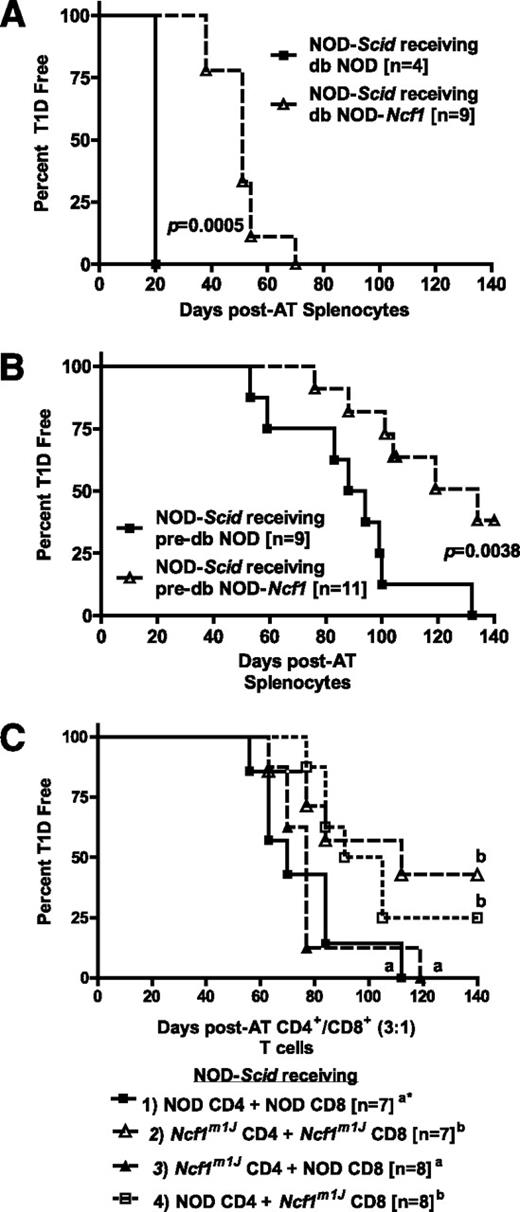

To assess internal defects in the diabetogenicity of APC and T cells lacking intracellular superoxide production, whole splenocytes or purified T cells collected from diabetic and prediabetic female NOD and NOD-Ncf1^m1J donors were adoptively transferred into NOD-Scid recipients. Splenocytes from diabetic (Fig. 6A) and prediabetic (Fig. 6B) NOD-Ncf1^m1J mice exhibited delayed diabetes onset compared with NOD cells. As the phagocyte NOX is expressed in T cells and activated after T-cell receptor stimulation (17,40), we also sought to determine whether NOX-deficient T cells would lack the ability to transfer disease. To study potential defects specifically in NOX-deficient T cells, CD4⁺ and CD8⁺ T cells from donor animals were purified and adoptively transferred into NOX-intact NOD-Scid recipients. There were a total of four groups (Fig. 6C): group 1) NOD CD4⁺ + NOD CD8⁺ cells and group 2) NOD-Ncf1^m1J CD4⁺ + NOD-Ncf1^m1J CD8⁺ cells, as well as the cotransfer groups receiving either group 3) NOD-Ncf1^m1J CD4⁺ and NOD CD8⁺ cells or group 4) NOD CD4⁺ and NOD-Ncf1^m1J CD8⁺ cells. These experiments allowed us to determine whether the defect was present in all NOX-deficient T cells or specific to NOX-deficient CD4⁺ or CD8⁺ T cells. A significantly delayed transfer of disease (P < 0.05) was observed in hosts receiving group 2 NOD-Ncf1^m1J CD4⁺ and NOD-Ncf1^m1J CD8⁺ in addition to group 4 NOD CD4⁺ and NOD-Ncf1^m1J CD8⁺ cells compared with the other two recipient groups. The common cell type in the groups with delayed transfer was the NOD-Ncf1^m1J CD8⁺ cells, indicating that in this model, NOX-deficient CD8⁺ T cells were less efficient in inducing type 1 diabetes.

As adoptive transfer kinetics were dependent on the NOX status of cytotoxic T cells during transfer, we further examined the effector function of purified CD8⁺ T cells. Anti-CD3 stimulation of CD8⁺ T cells confirmed the inability of NOD-Ncf1^m1J cytotoxic T cells to produce ROS (Supplementary Fig. 1). Proliferation and intracellular cytokine synthesis was then evaluated using polyclonal and PMA/ionomycin-stimulated CD8⁺ T cells from NOD and NOD-Ncf1^m1J mice. NOX-deficient cytotoxic T cells had significantly decreased production of IFN-γ and granzyme B compared with NOD cytotoxic T cells (Table 1), indicating a defect in effector function.

Free radical generation, either exogenous or endogenous to the β-cell, is thought to contribute to β-cell demise and diabetes (3,22,23,26,41). Oxidative stress and the generation of free radicals are directly toxic to β-cells, but they also have a dual role as potent signaling molecules to induce proinflammatory cytokine synthesis that can also directly affect β-cell destruction (4,13,14). Genetic analyses investigating diabetes resistance in the alloxan-resistant mouse linked increased free radical dissipation and decreased ROS production with type 1 diabetes protection (3,20,41,42). NOD-Ncf1^m1J mice were generated to evaluate the role of superoxide production in the pathogenesis of type 1 diabetes in the diabetes-prone NOD mouse model. Genetic ablation of NOX-mediated superoxide production (Fig. 1) was significantly protective when congenically introgressed into the NOD genetic background (Fig. 2); therefore, ROS production is critical in the induction of type 1 diabetes. Recent work suggests NOX complex subunits are expressed in β-cells and produce superoxide upon stimulation (29–31). In the absence of β-cell–specific ROS synthesis, NOD-Ncf1^m1J cultured islets were still susceptible to cytokine-mediated cell death (Fig. 3A) and capable of producing NO in response to cytokines (Fig. 3B), demonstrating no defect in the production of reactive nitrogen species. NOD-Ncf1^m1J mice were equally susceptible as NOD mice to diabetes induction upon adoptive transfer of AI4 splenocytes (Fig. 4A), a highly diabetogenic CD8⁺ T cell. Preactivated AI4 CD8⁺ T cells are efficient effectors capable of inducing type 1 diabetes without leukocyte help (43,44). These results demonstrate that NOX-deficient β-cells are susceptible to immune-mediated destruction.

Macrophage and neutrophil production of superoxide via NOX is an important mechanism used during immune responses and is a significant source of ROS during inflammation. Macrophages have been shown to be important in the pathogenesis of type 1 diabetes (32–37); however, neutrophils have not been as extensively studied. The contributions of ROS-producing innate immune cells to type 1 diabetes pathogenesis were investigated with depleting antibodies specific for macrophages and neutrophils (RB6–8C5) or neutrophils alone (1A8). When both macrophage and neutrophil populations were depleted, 100% of the animals were free of type 1 diabetes out to 35 weeks; however, neutrophil depletion alone did not alter the course of type 1 diabetes development (Fig. 5). Although neutrophils may be involved in β-cell killing and autoreactivity, effector contributions are not essential and may be redundant in the process of β-cell damage. Both neutrophils and macrophages exhibit important phagocytic and direct cytotoxic effector function, but macrophages are also involved in antigen presentation and stimulation of T cells. The protection afforded by NOX inhibition may partially be explained at the macrophage level as observed with the adoptive transfer studies with BDC-2.5 CD4⁺ T cells into NOD-Ncf1^m1J recipients (Fig. 4B). Reports by Calderon and colleagues show that macrophages are essential for effector function and diabetes induction in BDC-2.5 transfer models (36,38). Our data suggest that NOX-deficient macrophages are unable to mediate pancreatic β-cell destruction after adoptive transfer with BDC-2.5 T cells. Taken together, not only are macrophages required but NOX-dependent ROS production by macrophages also is likely essential for CD4⁺ T-cell effector function and autoreactivity.

Diabetogenic defects resulting from NOX ablation were assessed by adoptive transfer of whole splenocytes or purified T cells collected from diabetic and prediabetic female NOD and NOD-Ncf1^m1J donors. Adoptive transfer experiments demonstrated delayed transfer kinetics to NOX-intact hosts (Fig. 6), suggesting a defect intrinsic to the NOX-deficient T cell. This delay occurred with the transfer of whole splenocytes and with purified CD4⁺ and CD8⁺ T cells, where antigen presentation would be in the context of a NOX-intact host APC. Transfer with splenocytes harvested from diabetic donors, where the islet-reactive population would be expanded and activated, was still delayed compared with control NOD donor cells. This indicates a fundamental defect in the ability of NOX-deficient leukocytes to respond and execute sufficient effector function. It also demonstrates that ROS production by T-cell subsets is important for initiating islet-directed autoimmunity. Redox status and redox molecules contribute to transcriptional and posttranscriptional regulation of transcription factors and cytokine synthesis (45–47). We have previously shown that redox balance and superoxide production are critical in the initiation of a pathogenic cytokine response (16), with NOD-Ncf1^m1J macrophages and CD4⁺ T cells skewed toward a Th₁₇ profile (19). When adoptive transfer experiments were performed into NOD-Scid mice with a NOX-intact environment, NOD-Ncf1^m1J splenocytes gained effector function and induced type 1 diabetes (Fig. 6A–C). This observation highlights the ability of NOX-intact APCs to initiate Th₁ effector function, as we previously demonstrated (19). This was highlighted by the cotransfer system where NOX-deficient CD4⁺ T cells gained full effector function in the presence of NOX-intact APC and CD8⁺ T cells. In contrast, the NOX-deficient CD8⁺ T cells exhibited defective reactivity even when cotransferred with NOX-intact CD4⁺, suggesting the defect was intrinsic in cytotoxic T cells (Fig. 6C). Earlier reports highlight an essential role for NOX and ROS generation in CD8⁺ T-cell expansion, survival, and activation (18,40,48,49), with altered cytokine production from gp91^phox- or p47^phox-deficient CD8⁺ T cells (40). Here, we show that CD8⁺ T cells exhibit reduced effector function when NOX activity is ablated, in that diabetes transfer is delayed when cytotoxic T cells are from NOD-Ncf1^m1J donors (Fig. 6C). This delay was associated with a significant decrease in the production of IFN-γ and granzyme B (Table 1) after stimulation of purified CD8⁺ T cells, suggesting NOX deficiency was reducing cytotoxic capability of cytotoxic T cells. Proinflammatory mechanisms are not globally dysfunctional in NOX-deficient animals. Ncf1 mutations have previously been associated with increased severity of experimental allergic encephalomyelitis and collagen-induced arthritis (9–12). In fact, NOD-Ncf1^m1J mice demonstrated severe and relapsing paralysis after challenge with myelin oligodendrocyte glycoprotein peptide sequence 35–55 (MOG_35–55) (19). Therefore, we propose that type 1 diabetes is reduced and delayed by the Ncf1^m1J mutation as a result of a combination of altered Th₁ T-cell activation by APCs (19) and diminished cytotoxic T-cell functions that are critical for β-cell killing (Fig. 6C and Table 1).

Our data describe a role for ROS produced by macrophages and T cells in the initiation of autoimmune diabetes. Macrophage ROS-mediated effector function is essential for CD4⁺ T-cell autoreactivity and type 1 diabetes pathogenesis. In addition, intracellular ROS produced by T cells is important for executing efficient islet reactivity. The loss of ROS synthesis provided by the Ncf1 mutation significantly alters effector function of macrophages and T-cell subsets. This demonstrates the importance of ROS-dependent mechanisms in controlling activation of autoimmune effectors and in turn mediating aberrant reactivity toward β-cells.

M.D. has received a T32 training grant in burns and trauma (T32 GM-008721-13) awarded by the National Institutes of Health. L.E.P. was supported by a training grant (T32 AI-007051) awarded by the National Institutes of Health. H.M.T. has received a grant from the American Diabetes Association. J.D.P. has received a grant from the American Diabetes Association. L.L.M. has received grants from the National Institutes of Health (GM-40586-22 and GM-81923-03). C.E.M. has received grants from the Juvenile Diabetes Foundation and from the National Institutes of Health (AI-056374 and DK-074656). This study was also supported by the Sebastian Family Endowment for Diabetes Research.

No potential conflicts of interest relevant to this article were reported.

T.C.T. and M.D. designed the research plan, performed experiments, analyzed data, and wrote the manuscript. C.L. assisted in design and performed the coadoptive transfer experiments as well as the studies into cytotoxic T-cell effector function. J.C. assisted in AI4 transfers. L.E.P. assayed cytotoxic T-cell ROS production. H.M.T. assayed cytotoxic T-cell ROS production, designed and performed the BDC-2.5 adoptive transfers, and edited the manuscript. M.A. performed experiments of islet exposure to proinflammatory cytokines. J.D.P. designed and performed the BDC-2.5 adoptive transfers and edited the manuscript. L.L.M. participated in the experimental design and edited the manuscript. C.E.M. designed the research plan, performed experiments, analyzed data, and wrote the manuscript.

Parts of this study were presented in abstract form at the 70th Scientific Sessions of the American Diabetes Association, Orlando, Florida, 25–29 June 2010, and were published in abstract form in Diabetes 2010;59(Suppl. 1):A361.
