Disruption of Growth Factor Receptor–Binding Protein 10 in the Pancreas Enhances β-Cell Proliferation and Protects Mice From Streptozotocin-Induced β-Cell Apoptosis

A 100-kb region of the Grb10 gene was isolated from a mouse bacterial artificial chromosome library (Invitrogen/Life Technologies, Grand Island, NY) and the targeting vector, in which exon 3 of the Grb10 gene is flanked by loxP sites (Grb10loxP), was constructed by using standard molecular biology techniques. The targeting vector was linearized with Kpn1 and electroporated into the 129/SVEV embryonic stem cell line. Positive clones were selected by G418 (300 μg/mL) and ganciclovir (2 μmol/L) double resistance and verified by Southern blot. Clones of Grb10^loxP/+ embryonic stem cells that undergo homologous recombination and possessed a single integration event were used to microinject C57BL/6 blastocysts. Chimeric mice were mated with C57BL/6 mice, and germline transmission of the floxed Grb10 allele was confirmed by Southern blot and PCR genotyping. The Neo cassette was removed by crossing the floxed mice carrying the targeting vector with FLP mice (The Jackson Laboratory) expressing FRT in their germline. Grb10 is an imprinted gene and is paternally expressed in the brain and maternally expressed in all other tissues (16). Thus, female homozygous Grb10 floxed mice were used to breed with male heterozygous PDX-Cre mice, which led to the generation of pancreas-specific Grb10 knockout mice, hereafter referred to as pGrb10KO mice, and the Grb10 flox^+/− wild-type (WT) littermates. Because Grb10 expression in the brain is paternally imprinted, our breeding strategy does not affect Grb10 expression in the brain. All animals were housed in specific pathogen-free facilities, maintained on a 12-h light/dark cycle, and fed standard rodent chow at the Department of Laboratory Animal Resources in the University of Texas Health Science Center at San Antonio and the Animal Care Center in the Second Xiangya Hospital of Central South University. All protocols for animal use were approved by the University of Texas Health Science Center at San Antonio Animal Care and Use Committee and the Second Xiangya Hospital Animal Care and Use Committee of Central South University.

Mice were fed a normal diet (19% protein; 5% fat; 5% fiber; 7912-012809M; Irradiated, Madison, WI) or an HFD (60% fat, 20% carbohydrate, 20% protein; D12492; Research Diets, New Brunswick, NJ) for 16 weeks. Mouse body weight and food intake were monitored at the same time on a weekly basis from 4 weeks onward. To check body composition, mice were i.p. injected with Avertin (250 mg/kg animal body weight). Fat and lean tissue masses and bone mineral content were determined using dual-energy X-ray absorptiometry (Lunar PIXImus 2; GE Medical Systems, Madison, WI). Glucose tolerance tests (GTT) were performed by injection of glucose (2 g/kg body weight i.p.) into overnight fasted mice. Blood was withdrawn from the tail vein at 0, 15, 30, 60, and 120 min after glucose administration. Insulin tolerance tests were performed by injection of insulin (0.75 g/kg body weight i.p.) into nonfasted mice. Blood was withdrawn from the tail vein at 0, 15, 30, and 60 min after insulin administration. Serum glucose levels were determined using a glucometer (One Touch; Bionime Corp.). Serum insulin levels were determined by insulin ultrasensitive enzyme immunoassay (Alpco Diagnostics, Slemm, NH).

Hyperglycemic clamps were performed in conscious male pGrb10KO mice and control WT littermates at 3 months of age (n = 4 to 5/group). In brief, mice were fasted overnight and anesthetized by an intraperitoneal injection of ketamine (100 mg/kg body weight) and xylazine (10 mg/kg body weight). An indwelling catheter was inserted in the right internal jugular vein 4 to 5 days before clamp experiments. Mice were housed in individual cages and monitored for postoperative recovery and weight gain. Following overnight fast, a 2-h hyperglycemic clamp was conducted in conscious mice with a variable infusion of 20% glucose to raise and maintain plasma glucose concentration at ∼300 mg/dL. Blood samples (40 μL) were collected at 5–10-min intervals for the measurement of plasma glucose and insulin levels.

Mouse islets were isolated by collagenase digestion of the pancreas according to the procedures described (17–19). In brief, overnight-fasted male pGrb10KO mice and WT littermates (2–6 months old) were anesthetized by intraperitoneal injection of avertin (1 mL/40 g body weight). Mouse pancreas was inflated by injection of 3 mL of a collagenase P solution (Sigma Chemical, St. Louis, MO; 1 mg/mL in Hank’s buffered salt solution). Pancreases were removed and incubated at 37°C for about 12 min to allow complete digestion. Digestion was stopped by the addition of 30 mL of Hank’s buffered salt solution, followed by washing the pancreases with 20 mL RPMI-1640 medium three times. Isolated islets were selected with the aid of a pipette under a stereoscopic microscope from the medium and maintained in RPMI-1640 with or without 10% FBS or HEPES-balanced Krebs-Ringer bicarbonate buffer (119 mmol/L NaCl, 4.74 mmol/L KCl, 2.54 mmol/L CaCl₂, 1.19 mmol/L MgCl₂, 1.19 mmol/L KHPO, 25 mmol/L NaHCO₃, and 10 mmol/L HEPES [pH 7.4]) containing 0.5% BSA at 37°C.

For insulin and IGF-1 signaling studies, the freshly isolated islets (30 islets/experiments) were serum-starved for 2 h and then treated with or without 100 nmol/L insulin for 30 min or 100 nmol/L IGF-1 for 30 min. For mammalian target of rapamycin (mTOR) signaling studies, freshly isolated islets (50 islets/experiment) were serum-starved for 2 h and then treated with 100 nmol/L insulin with or without 100 nmol/L wortmannin for 30 min. Islets were lysed, and insulin-stimulated phosphorylation of Akt at Thr³⁰⁸ and Ser⁴⁷³, extracellular signal–regulated, mitogen-activated protein kinase 1 and 2 (ERK1/2) at Thr²⁰²/Tyr²⁰⁴, p70S6K at Thr³⁸⁹, and 4E-BP1 at Thr^37/46, as well as the protein levels of these insulin/IGF-1 or mTOR signaling molecules, were determined by Western blot using specific antibodies. Antibodies and phosphoantibodies to Akt, ERK1/2, S6K, and 4E-BP1 were purchased from Cell Signaling Technology or Millipore (for ERK1/2). The antibody to Grb10 was described previously (8). Wortmannin was purchased from Sigma Chemical.

For insulin granule counting, islets were isolated, fixed with 1% glutaraldehyde, and then embedded in epon. Blocks of tissue (0.1–1.5 mm³) were osmicated in 0.1 mol/L sodium cacodylate buffer (pH 7.4) containing 1% OsO₄ for 1 h at room temperature, rinsed in cacodylate buffer, and then rinsed in distilled water before they were stained in 2% uranyl acetate double-distilled water for 1 h. Sections were dehydrated in graded alcohol and placed in 100% propylene oxide. The blocks were incubated in epon–propylene-oxide (1:1) overnight at room temperature and then changed to 100% epon and polymerized overnight. Sections (90 nm) were cut on a Reichert-Jung Ultracut E microtome, collected on slot grids, and stained with 2% uranyl acetate and lead citrate. The pictures were captured by Jeol1230 Transmitted Electronic Microscope (JEOL, Peabody, MA).

Male mice (2 months old; n = 3 to 4/genotype) were injected intraperitoneally with 100 mg/kg of 5-bromo-2′ deoxyuridine (BrdU; Roche Molecular Biochemicals, Indianapolis, IN) and killed 16 h after injection. Pancreases were isolated, fixed, and sectioned. Pancreas slices were analyzed by double staining with anti-BrdU (Millipore) and anti-insulin (Santa Cruz Biotechnology) antibodies. Insulin-positive β-cells (>2,500 β-cells/pancreas) were counted, and the percentage of BrdU- and insulin-double positive nuclei to total insulin-positive nuclei was determined for both pGrb10KO mice and their WT control mice. Quantification of total BrdU-positive cell numbers was done by using an unbiased stereological method to ensure that the same BrdU-labeled cell is not counted twice on adjacent sections and that the area of the pancreatic sections counted for each animal are consistent.

The immunohistochemistry experiments were carried out as previously described (20), with some modifications. In brief, pancreases obtained from 16-week-old male pGrb10 KO mice and their Grb10 WT littermates, cleared of fat and spleen, weighted, and fixed in ice-cold 4% paraformaldehyde (Electron Microscopy Sciences, Fort Washington, PA). The fixed tissues were embedded in Optimal Cutting Temperature Compound (Ted Pella, Inc.) and cut into 10-µm sections using a cryostat or a microtome. The slices were rehydrated, permeabilized, and stained with specific antibodies (Grb10 [homemade], 1:400; Insulin [Santa Cruz Biotechnology], 1:100; or E-cadherin [BD Biosciences], 1:50). The cell nuclei were determined by 4′,6-diamidino-2-phenylindole staining.

Male mouse pancreases were cut into 10-µm sections systematically through pancreatic head-to-tail axis, and sections were selected between every 200 μm. Eight sections per mouse were picked. Mouse pancreatic slices were stained with an anti-insulin antibody. Images of pancreas slices were viewed by an Olympus inverted microscope (IX7) and captured with a Sport II digital camera (Olympus, Japan). All insulin-positive β-cell clusters (islets) were loosely traced, and the insulin-immunoreactive areas were determined by use of the threshold option (21). Total tissue areas were quantified with the threshold option to select the stained areas but not unstained areas (white space). The islet area (in square micrometers) and the area of each section were determined with Image J software (National Institutes of Health). Four to eight sections of each pancreas were covered by accumulating images from eight nonoverlapping fields of 1.5 × 10⁶ μm². Analyses of β-cell area and size were performed using Image J software (National Institutes of Health) or the Image-Pro Plus software (Version 5.0; Media Cybernetics, Inc). β-Cell mass was calculated by insulin-positive area/total pancreas area times pancreas weight (17,22,23).

Male WT and pGrb10KO mice (2 months old) were injected once per day with freshly prepared STZ solution (0.8% in 0.1 mol/L sodium citrate [pH 4.5]) for 5 days (75 mg/kg i.p.). Blood glucose levels and body weight were examined every 3 days at the same time (12 p.m. every day). Twenty-two days later, mice were killed, and serum insulin levels, islet mass, and pancreas weight of the mice were determined. For acute STZ treatment experiments, male mice were injected with STZ twice daily (at 0 and 24 h) and killed 16 h later. Dewaxed paraffin sections of the pancreas were labeled with an in situ cell death detection kit (Roche) and insulin antibody, and STZ-induced apoptosis was determined by immunofluorescence using a Nikon TE2000 microscope (Nikon). Four mice per group were used for transferase-mediated dUTP nick-end labeling (TUNEL) assays, and at least five islets (500–1,000 β-cells) were counted for each mouse.

Quantification of the relative increase in insulin-stimulated protein phosphorylation was performed by analyzing Western blots using Scion Image software and was normalized with the amount of protein expression in each experiment. Statistical analysis of the data was performed by using unpaired Student t test or ANOVA (one-way repeated-measure ANOVA or two-way ANOVA with post hoc Bonferroni test). Statistical significance was set at P values of <0.05, <0.01, and <0.001.

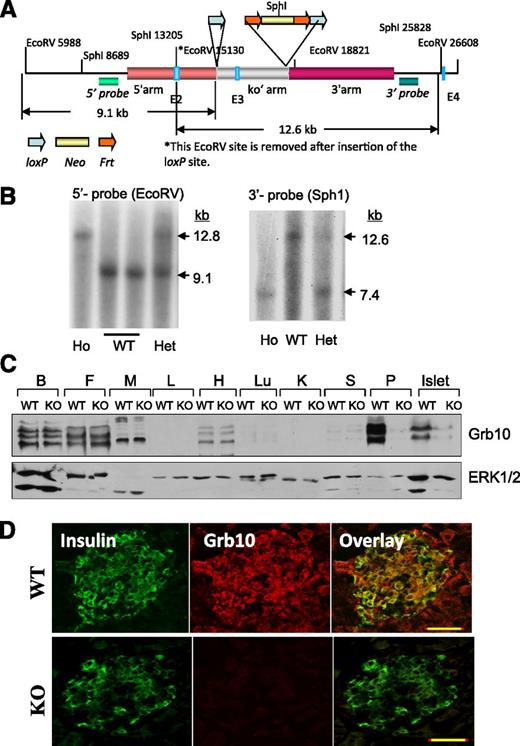

Grb10 floxed construct was generated by insertion of loxP sites at both ends of exon 3 of the Grb10 gene (Fig. 1A). Exon/intron boundary analysis revealed that deletion of this exon causes a frame shift and thus a null mutant of Grb10. The floxed Grb10 allele was confirmed by Southern blot (Fig. 1B) and PCR genotyping (data not shown). The Neo cassette was removed by crossing the floxed mice with the FLP mice expressing FRT in their germline (The Jackson Laboratory). Grb10 is an imprinted gene and is maternally expressed in peripheral tissues (6). Thus, we bred female homozygous Grb10 floxed mice with male heterozygous PDX-Cre^+/− mice, which led to Cre-mediated deletion of the Grb10 gene specifically in the pancreas but not other tissues including the brain (pGrb10KO; Fig. 1C and Supplementary Fig. 1B and C). Western blot analysis also revealed that Grb10 is highly expressed in mouse pancreas and islets (Fig. 1C and Supplementary Fig. 1A). By immunohistochemistry studies, we found that Grb10 protein is expressed in islets and neighboring cells in the pancreas, and its signal is highly colocalized with insulin-staining cells (Fig. 1D, top panel). This further confirms that Grb10 is expressed in pancreatic β-cells. No Grb10 signal was detected in the pancreatic section of the pGrb10KO mice (Fig. 1D, bottom panel), demonstrating the successful deletion of the Grb10 gene in the pancreas of the knockout mice. Consistent with the finding of Smith et al. (10), our breeding strategy had no effect on Grb10 expression in the hypothalamus (Supplementary Fig. 1B and C).

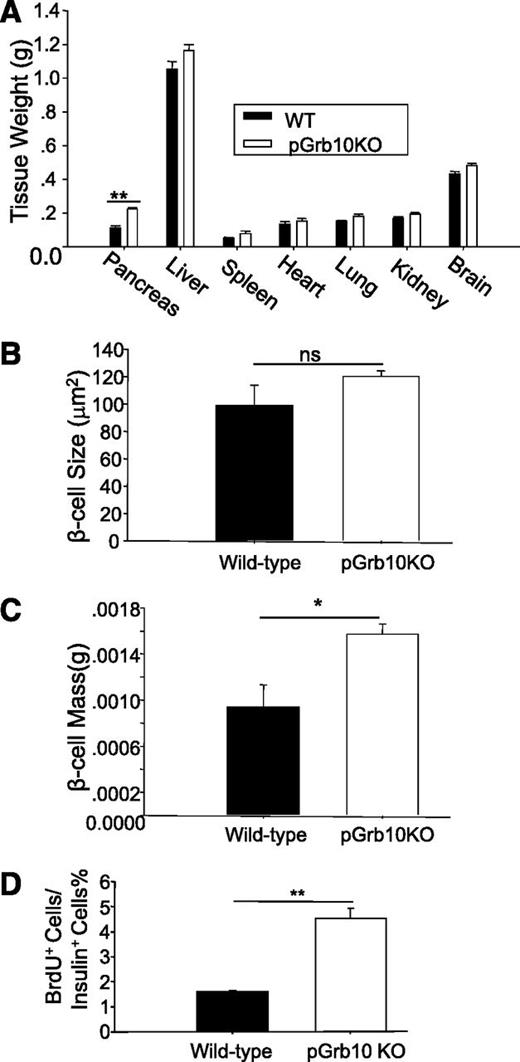

Pancreas-specific knockout of Grb10 had little effect on mouse body composition, food intake, and body weight compared with WT littermates (Supplementary Figs. 2 and 3), but significantly increased pancreas tissue weight (Fig. 2A). Whereas the β-cell size did not differ between these two strains fed with normal chow diet, the male pGrb10KO mice displayed more β-cell mass than WT mice (Fig. 2B and C). By 4′,6-diamidino-2-phenylindole/insulin/BrdU triple staining of pancreatic sections, we found that the rate of BrdU incorporation into β-cell cells was quite slow in WT control mice, ∼2,500 insulin-positive cells per individual animal (Fig. 2D). BrdU-positive cells were significantly increased in the pancreatic sections of the pGrb10KO mice (Fig. 2D). Taken together, these results suggest that endogenous Grb10 negatively regulates β-cell proliferation.

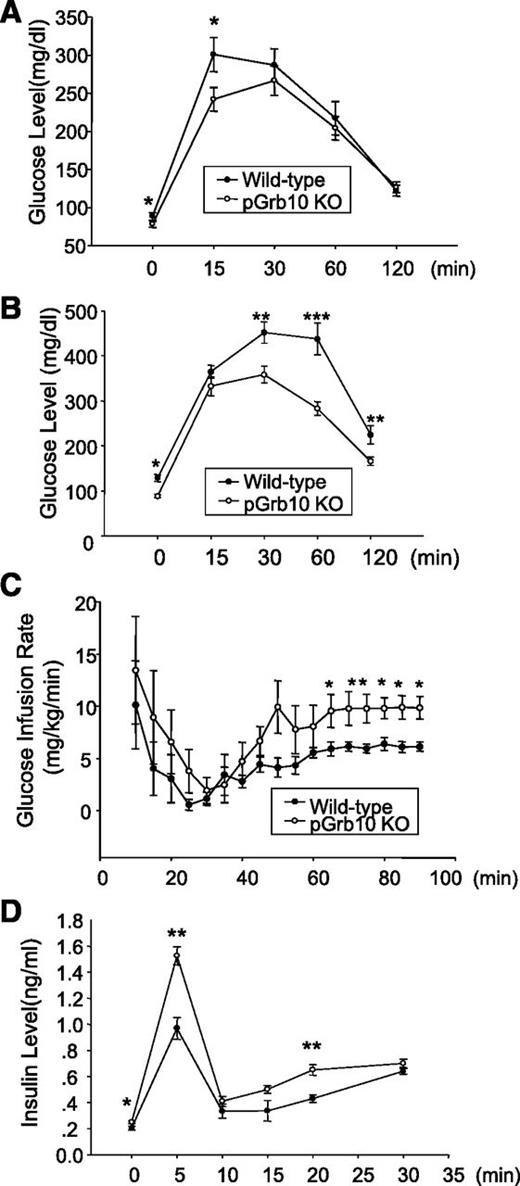

Under normal chow-feeding conditions, the pGrb10KO mice showed a slightly lower fasting blood glucose levels and displayed better glucose tolerance compared with the WT littermates (Fig. 3A). However, there was no overall significant difference in insulin tolerance between pGrb10KO and WT littermates. On an HFD, the pGrb10 KO mice and their WT littermates showed similar body weight, food intake, and body composition (Supplementary Fig. 3). Although insulin tolerance tests showed similar insulin tolerance between the two strains (data not shown), the pGrb10KO mice displayed significantly better glucose tolerance compared with WT littermates (Fig. 3B), suggesting improved insulin secretion in the pGrb10KO mice. Under normal diet, both WT and pGrb10KO mice exhibited relatively normal glucose levels. Although pGrb10KO mice showed slightly lower glucose levels, they were not hypoglycemic (Fig. 3A). After challenged with 60% HFD for 16 weeks, WT mice showed high glucose levels, but pGrb10KO mice still maintain comparably lower serum glucose (Fig. 3B). Consistent with these findings, hyperglycemic clamp studies revealed that pGrb10KO mice exhibited higher glucose infusion rate (GIR) compared to wild-type littermates (Fig. 3C). The insulin secretion rate of the pGrb10KO mice was also higher than that of the wild-type control mice during the hyperglycemic clamp studies (Fig. 3D).

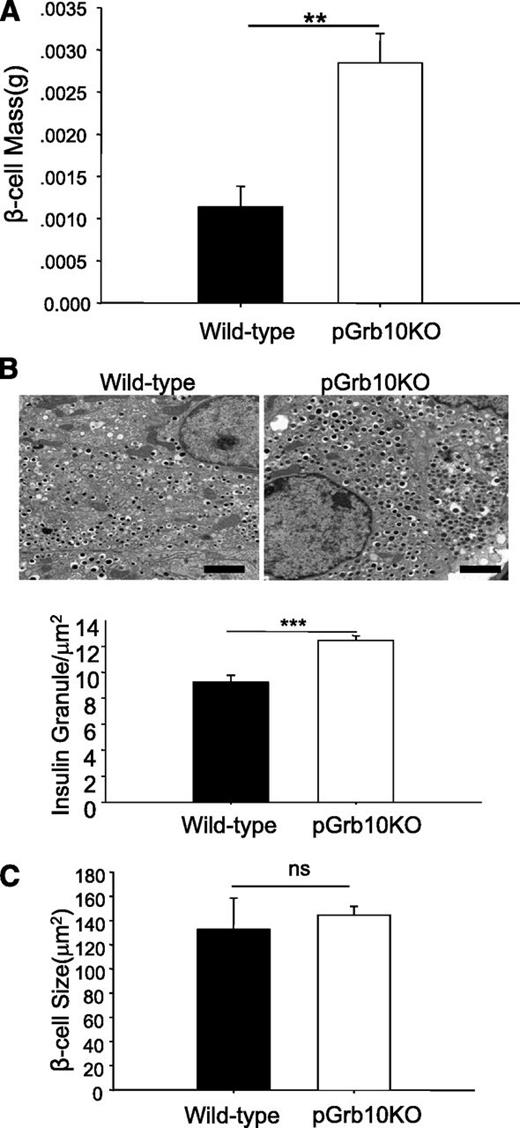

To elucidate the mechanism by which disruption of Grb10 expression leads to increased insulin secretion in mice, we examined total β-cell mass and individual β-cell size. The male pGrb10KO mice displayed higher β-cell mass than that of the WT littermates (∼0.003 vs. 0.001–0.0015 g/mouse) (Fig. 4A). Consistent with these results, transmission electron microscopy studies showed increased insulin granules in β-cells of the pGrb10KO mice compared with WT littermates (Fig. 4B; 12.47 ± 0.34/μm² vs. 9.25 ± 0.52/μm²; P < 0.001). However, the sizes of individual β-cells are similar between these two strains (Fig. 4C), suggesting that the increased β-cell mass is mainly due to enhanced cell proliferation in the pGrb10KO mice. This finding is also consistent with the results from the BrdU staining experiments (Fig. 2D). By Western blot, we found that insulin and IGF-1 had a greater effect on the phosphorylation of Akt Thr³⁰⁸ and ERK1/2 Thr²⁰²/Tyr²⁰⁴ in islets isolated from HFD-fed pGrb10KO mice compared with their WT littermates (Fig. 4D). Insulin-stimulated phosphorylation of Akt Thr³⁰⁸ and Ser⁴⁷³, ERK1/2 Thr²⁰²/Tyr²⁰⁴, p70S6K Thr³⁸⁹, and 4E-BP1 Thr^37/46 was enhanced in pGrb10KO mice compared with WT mice and could have been blocked by wortmannin (Fig. 4E). Similar results were also observed in mice fed with normal diet (data not shown).

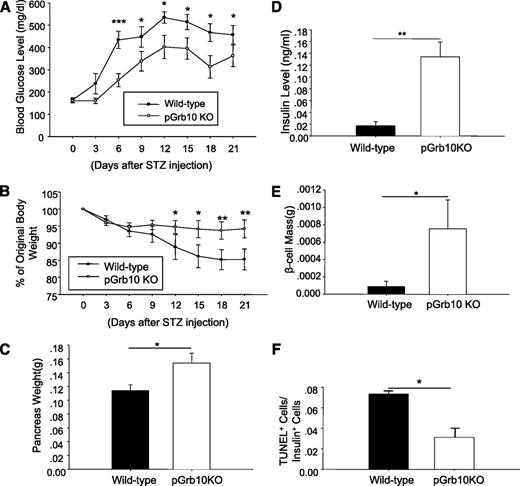

To determine whether pancreas-specific deletion of the Grb10 gene has a beneficial effect on diabetes, we investigated the effect of low-dose STZ treatment on β-cell damage in 2-month-old pGrb10 KO mice and WT littermates. STZ treatment greatly increased serum glucose levels in WT mice, and the STZ-induced hyperglycemic effect was significantly reduced in the pGrb10KO mice (Fig. 5A). Pancreas-specific knockout of Grb10 also significantly protected mice from STZ-induced body weight loss (Fig. 5B), which is a typical characteristic of diabetes. Furthermore, the male pGrb10KO mice showed more pancreas weight than that of the WT littermates (Fig. 5C). In addition, the male pGrb10KO mice displayed relatively higher plasma insulin levels in response to STZ treatment (Fig. 5D) and were protected from STZ-induced loss of β-cells (Fig. 5E). Consistent with these findings, TUNEL assays showed that the pGrb10KO mice had lower STZ-induced β-cell apoptosis compared with WT littermates (Fig. 5F).

Increasing β-cell mass is one of the mechanisms by which glucose homeostasis is maintained in vivo in response to physiological (i.e., growth and gestation) and pathophysiological (i.e., obesity and insulin resistance) stimuli. Unlike other terminally differentiated cell types, pancreatic β-cells retain their ability to proliferate under both physiological and pathophysiological conditions (3). In the progression of diabetes, insulin secretion is increased, and a large amount of the increase in the first stage of this compensation process is due to increased β-cell mass, which is mainly achieved through an increase in β-cell number (24).

The gene encoding for Grb10 is imprinted in mammalian cells, and its expression is defined by its parental origins (25). The maternal allele determines Grb10 expression in all tissues except the brain, and the paternal allele determines Grb10 expression in the brain. Grb10 is expressed in insulin target tissues such as fat and muscle in vivo. The unique structure of the SH2 domain of Grb10 confers its binding specificity to either the insulin or the IGF1R (13) and thus its negative role in insulin or IGF-1 signaling. Ablation of Grb10 in the brain engenders increased social activities of mice (15). Maternal Grb10-deficient animals show enlarged body size and organ size, which enhances insulin signaling and sensitivity (11). In contrast, overexpression of Grb10 in mice led to postnatal growth retardation and insulin resistance (26) or glucose intolerance (27). Dual ablation of Grb10 and Grb14 has no additive effects on insulin signaling and body composition (28).

In the current study, we have used a tissue-specific knockout strategy to demonstrate for the first time that Grb10 plays an important autonomous role in the negative regulation of pancreas mass and β-cell proliferation (Fig. 2A and C). The pancreas contains multiple cell types including the exocrine (acinar) cells and endocrine cells that included insulin-secreted β-cells. We found that Grb10 disruption, specifically in the pancreas, results in an enlarged pancreas (Fig. 2A), which is consistent with previous findings that Grb10 negatively regulates tissue growth (26,29). Our results also showed pancreas-specific knockout of Grb10 increased β-cell mass (Fig. 2C). However, because β-cells make up <2% of the pancreas, it is likely that the increased β-cell mass cannot account for the doubling of pancreas mass, suggesting that Grb10 also plays a role in regulating the mass of other cells in the pancreas. It remains to be established whether the enhanced islet mass and β-cell function is due to altered communication between β-cells and neighboring cells. However, some early studies showed that enhanced acinar mass is negatively correlated with insulin secretion and islet mass (30,31). In contrast, we have demonstrated that pancreas-specific deletion of the Grb10 gene protects mice from STZ-induced β-cell apoptosis (Fig. 5). Because Grb10 is a negative regulator of insulin and IGF-1 signaling, it is most likely that the increased β-cell proliferation and enhanced resistance to STZ-induced apoptosis are due to increased insulin/IGF-1 signaling or its mediated downstream signaling events. Consistent with this, we found that insulin- and IGF-1–stimulated phosphorylation of Akt and ERK1/2 was increased in β-cells isolated from pGrb10KO mice compared with that in the WT littermates (Fig. 4D). However, it has been shown that β-cell–specific disruption of the genes encoding components in the insulin signaling pathway, including the IR (32), the IGF1R (33,34), phosphoinositide-dependent kinase-1 (34), and Akt (36,37), had little effect on β-cell proliferation. Thus, it is possible that Grb10 negatively regulates other signaling pathways in addition to the insulin/IGF-1 signaling pathways that regulate β-cell proliferation. Consistent with this view, we found that the mTOR signaling pathway is increased in islets of the Grb10 knockout mice compared with WT littermates (Fig. 4E). There is some evidence showing that the mTOR signaling pathway plays a key role in the regulation of β-cell mass, survival, and insulin production (40–42). Thus, the increased mTOR signaling may contribute to the enhanced β-cell proliferation and mass. However, how knocking out of Grb10 increases mTOR signaling remains unknown. Grb10 has recently been identified as a direct substrate of mTOR, and the phosphorylation plays a feedback role in the negative regulation of the phosphatidylinositol 3-kinase (PI3K) and ERK1/2 pathways (38,39). Because mTOR functions downstream of the PI3K/Akt signaling pathway, it is possible that reducing the negative regulation of Grb10 on PI3K/Akt signaling leads to enhanced mTOR signaling. However, it is also possible that Grb10 may have a direct effect on mTOR. We are currently investigating these possibilities.

It is well-established that β-cells have low antioxidant protection capability and are prone to apoptosis induced by oxidative stress and inflammation (43,44). In fact, pancreatic β-cell apoptosis has been recognized as a key event in type 1 diabetes (45). Our results show that pancreas-specific disruption of Grb10 protects mice from STZ-induced apoptosis (Fig. 5F). Because Grb10 is highly expressed in pancreas (11) and islets (Fig. 1C and D), and this protein negatively regulates insulin/IGF-1 signaling in cells (7–9) and in vivo (10,11), which are known to exert an antiapoptotic function, it is possible that the high expression level of Grb10 in β-cells plays a causative role in the low antioxidant protection capability. Thus, reducing Grb10 expression in β-cells would provide an approach to reduce the rate of oxidative stress-induced apoptosis.

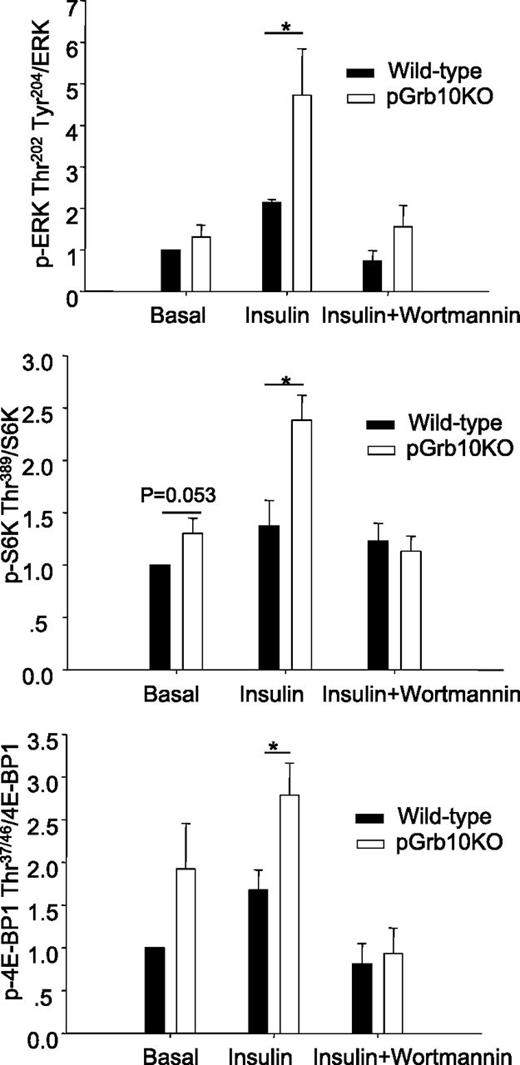

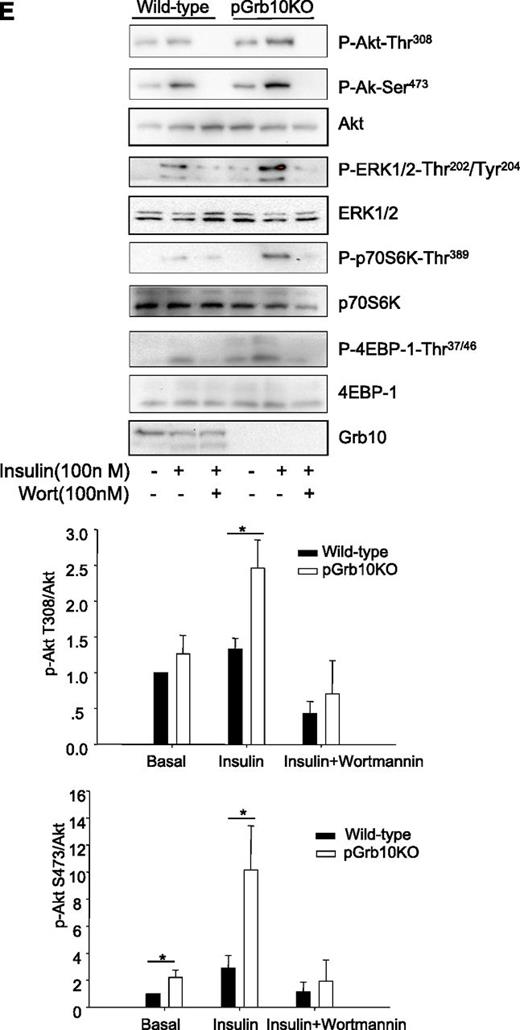

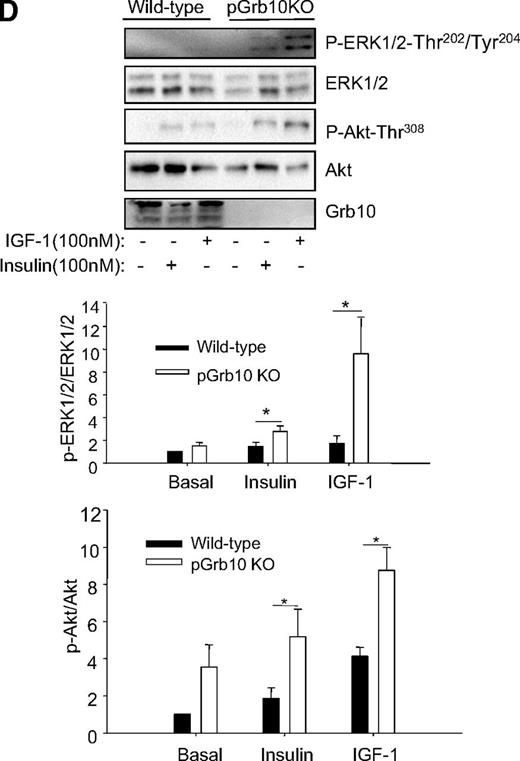

Our results show that knockout of Grb10 enhances insulin signaling in isolated islets and protects mice against STZ-induced apoptosis (Figs. 4D and 5F), suggesting that Grb10 has an autonomous effect on β-cell function and survival. However, the finding that Grb10 is expressed not only in insulin positive β-cells but also in other cells of the islets (Fig. 1D) suggests that Grb10 may have an additional function. It is well-established that the pancreas contains multiple cell types including the exocrine (acinar) cells and endocrine cells such as the glucagon-producing α-cells, the insulin-producing β-cells, the somatostatin-producing δ cells, and the pancreatic polypeptide- and ghrelin-producing ε cells (46). A number of studies have demonstrated that hormones and other paracrine factors from neighboring cells play critical roles in regulating insulin release from β-cells (47–49). Although it remains to be established whether Grb10 is expressed in all of these cells and is involved in the communication between β-cells and neighboring pancreatic cells, it is possible that in addition to an autonomous mechanism, Grb10 may regulate β-cell function and survival by a nonautonomous mechanism in vivo. Further studies will be needed to test this possibility.

In summary, our study has identified Grb10 as a key negative regulator of β-cell proliferation, function, and survival. β-Cell failure, which is largely due to impairment in cell proliferation and increased cell death, is a key component in the pathogenesis of both type 1 and type 2 diabetes. Therefore, increasing β-cell mass from endogenous sources represents highly significant research area for developing specific therapeutic treatment for human diabetes. Approaches to suppress Grb10 function in β-cells may thus be an effective strategy for treating type 1 and type 2 diabetes.
