Antidiabetic Actions of an Estrogen Receptor β Selective Agonist

Adult male C57BL/6 mice aged 3–4 months were used. C57BL/6 (a globally standardized model) and db/db mice were obtained from Harlan Laboratories (Barcelona, Spain). ERβ knockout (BERKO) mice were generated as described in Krege et al. (15) and supplied by Dr. Gustafsson’s laboratory. Streptozotocin-nicotinamide (STZ-NA) diabetic mice were used, which is a model of moderate hyperglycemia combined with the loss of early phase insulin secretion (16,17). WAY200070 (Tocris Cookson Ltd, Bristol, U.K.) was injected intraperitoneally in a volume of 100 μL saline solution.

Pancreatic islets of Langerhans were isolated by collagenase (Sigma, Madrid, Spain) digestion as previously described (18). Freshly isolated islets were used for calcium and insulin secretion measurements after a 2-h recovery. For experiments using isolated β-cells, islets were dispersed into single cells with trypsin as previously described (19).

Freshly isolated pancreatic islets of Langerhans were loaded with 5 μmol/L Fura-2 acetoxymethyl ester (Molecular Probes, Invitrogen, Barcelona, Spain) for at least 1 h at room temperature. Calcium recordings were obtained as previously described (20).

Groups of five mouse islets were transferred to 400 μL of a buffer solution containing 140 mmol/L NaCl, 4.5 mmol/L KCl, 2.5 mmol/L CaCl₂, 1 mmol/L MgCl₂, 20 mmol/L HEPES, and the corresponding glucose concentration with final pH of 7.4. Afterward, 100 μL corresponding buffer solution with 5% BSA was added and cooled down for 15 min on ice. The medium was then collected, and insulin was measured in duplicate samples by radioimmunoassay with a Coat-A-Count kit (Siemens, Los Angeles, CA). Protein concentration was measured by the Bradford dye method (21).

Isolated human pancreatic islets from a nondiabetic male were provided by the Nordic Network for Clinical Islet Transplantation (Prof. Olle Korsgren, Uppsala University, Uppsala, Sweden). All procedures were approved by the ethical committees at Uppsala and Lund Universities. The islets were cultured as previously described (22). The secreted insulin was measured with a radioimmunoassay kit (Millipore).

K_ATP channel activity was recorded using standard patch clamp recording procedures from isolated pancreatic β-cells as previously described (22).

For intraperitoneal glucose tolerance tests (IGTTs), animals were fasted overnight for 12 h, and blood samples were taken from the tail vein. Animals were then injected intraperitoneally with 2 g/kg glucose, and blood samples were taken at the indicated intervals. In STZ-NA and db/db mice, the glucose load was 1.5 g/kg.

For intraperitoneal insulin tolerance tests, fed animals were used. Animals were injected intraperitoneally with 0.75 IU/kg soluble insulin. The db/db mice were fasted for 6 h and injected with 1.25 IU/kg soluble insulin. Blood glucose was measured in each sample using an Accu-Chek compact glucometer (Roche, Madrid, Spain).

Pancreas samples were removed and fixed overnight in 4% paraformaldehyde. Subsequently, pancreatic tissue was embedded in paraffin, and sections were prepared. After dehydration, the sections were heated to 100°C in the presence of 10 mmol/L citrate buffer (pH 6.0) for 20 min. Endogenous peroxidase was blocked by incubation for 30 min with a solution of 3% hydrogen peroxidase in 50% methanol. To block nonspecific binding, the sections were incubated in 3% BSA in PBS for 1 h at room temperature. Tissue sections were then stained for β-cells with a rabbit anti-human insulin antibody (1:100) (Santa Cruz Biotechnology, Inc., Santa Cruz, CA) overnight at 4°C. The sections were incubated with the secondary antibody biotinylated anti-rabbit IgG (H+L) (Vector Laboratories, Burlingame, CA). The Vectastain ABC kit (Vector Laboratories) was used for the avidin-biotin complex method. Peroxidase activity was visualized with 3,3′-diaminobenzidine (Dako, Barcelona, Spain). The sections were lightly counterstained with hematoxylin. The islet cross-sectional area and the total pancreatic area were measured using MetaMorph Software. At least two sections, separated by 200 μm, were measured per animal.

Mice were injected intraperitoneally with 100 µg/g BrdU 6 h before being killed. Pancreatic tissue was collected, fixed, and processed as just described. Samples were then incubated with antibodies for insulin (1:100 rabbit polyclonal; Santa Cruz Biotechnology, Madrid, Spain) and BrdU (1:100 monoclonal; Dako) overnight at 4°C. After incubation with secondary antibodies, sections were mounted using ProLong Gold Antifade Reagent (Invitrogen).

Single islets cells were cultured for 48 h in the presence of 10 μmol/L BrdU (Sigma) and the vehicle or WAY200070. They were then fixed for 5 min with 4% paraformaldehyde, washed with PBS, and made permeable with 1% Triton X-100. Nonspecific interactions were blocked with PBS plus 5% normal goat serum for 1 h. Cells were then incubated with the primary antibody rabbit anti-human insulin antibody (1:100) (Santa Cruz Biotechnology, Inc.) overnight at 4°C. As a secondary antibody, goat anti-rabbit Alexa Fluor 546 was used at 1/500 for 1 h at room temperature. After this, cells were fixed again and washed with PBS. The cells were then treated with 2 mol/L HCl for 20 min at 37°C and washed with 0.1 mol/L Na₂B₄O₇ (pH 8.5). To detect BrdU, the mouse anti-BrdU antibody (M0744; Dako) at 1/100 was used overnight at 4°C along with goat anti-mouse Alexa Fluor 488. The nuclei were stained with 1 μmol/L DAPI for 15 min at room temperature.

Insulin was measured by ELISA (Mercodia, Uppsala, Sweden, and Crystal Chem, Downers Grove, IL) and leptin was measured by ELISA (Crystal Chem, Downers Grove, IL). Triglyceride and glycerol levels were measured with the GTO-Trinder Triglycerides assay (Sigma).

Data are expressed as mean ± SEM. Statistical analysis was performed using Student t test or one-way ANOVA, as indicated (SigmaStat 3.1 software; Systat Software, Inc., Chicago, IL). P < 0.05 was considered significant.

All animal experiments were performed in accordance with national and institutional guidelines for animal care. The ethical committee of Miguel Hernandez University of Elche (Comisión de Ética en la Investigación Experimental) reviewed and approved the method used (Approval ID Number IB-ARL-002-12).

In vitro experiments performed with isolated pancreatic β-cells from mice showed that WAY200070 (100 pmol/L) decreased K_ATP channel activity (Fig. 1A). In whole mouse islets of Langerhans, the agonist promoted both a greater global intracellular Ca²⁺ entry (Fig. 1B) and an increase of insulin secretion in response to glucose stimulation (8 mmol/L glucose) (Fig. 1C). WAY200070 at 100 pmol/L enhanced GSIS in the presence of 8 and 16 mmol/L glucose but, of interest, it did not have any effect when applied in the presence of low glucose concentrations (3 mmol/L) (Fig. 1D). The effect of WAY200070 on GSIS of human islets was also analyzed. Insulin release was enhanced in a dose-dependent manner, with a maximal effect at a dose of 100 nmol/L (Fig. 1E).

We next studied the in vivo effect of WAY200070. For this purpose, we used male C57BL/6 mice aged 3 months. Fasted animals were injected intraperitoneally with 2 g/kg glucose followed by the intraperitoneal administration of a vehicle or WAY200070 at different concentrations (3, 10, or 30 mg/kg). As shown in Figure 2A, glucose sensitivity was improved in those animals that received the agonist WAY200070, especially at a concentration of 10 mg/kg (W10) and 30 mg/kg (W30), although the effects were not statistically significant at the latter dose. When plasma insulin levels were measured at 30 min, a higher glucose-stimulated insulin release was observed at W10 compared with the vehicle-treated group (Fig. 2B). Under fasting conditions, no changes of glycemia were observed in animals treated with the ERβ agonist at any concentration assayed (Fig. 2C).

To unequivocally demonstrate that the in vivo insulinotropic effect of WAY200070 is an ERβ-mediated effect, we compared its action in wild type (WT) and ERβ knockout (BERKO) mice. A single administration of W10 in WT mice resulted in a lower rise of glycemia levels in response to a glucose challenge, indicating that these mice tolerated glucose better than WT vehicle-treated mice (Fig. 2D). However, when the same experiment was performed in BERKO mice, no differences were observed between vehicle and ERβ agonist-treated animals (Fig. 2E). When we measured plasma insulin levels 30 min after a glucose load, we observed a higher glucose-stimulated insulin release in the WT mice that had received a single dose of W10 (Fig. 2F) but no changes in the BERKO mice (Fig. 2F).

We studied the extent to which an ERβ agonist can be a positive modulator of energy balance and glucose homeostasis under healthy conditions. For this purpose, we analyzed glucose and insulin sensitivity in C57BL/6 male mice treated with W10 for 14 days. The treatment with the agonist was found to improve glucose tolerance (Fig. 3A) and increase the glucose-stimulated in vivo insulin release 30 min after the glucose load (1.41 ± 0.19-fold increase over basal insulin levels in vehicle-treated mice versus 2.01 ± 0.16-fold increase in W10-treated mice) (Fig. 3B), suggesting that the pancreatic β-cells were working more vigorously. A slightly better insulin sensitivity was also observed in these animals compared with the controls (Supplementary Fig. 1A). In addition to this, β-cell mass and islet size were higher in W10-treated mice compared with the vehicle-treated mice (Fig. 3C and D). We studied whether the augmented β-cell mass was a result of an increased β-cell proliferation. We performed coimmunostaining for insulin and BrdU and found that animals treated with the ERβ agonist exhibited a larger number of proliferating β-cells (Fig. 3E). Dispersed islet cells were treated with a range of doses of this compound for 2 days, and β-cell proliferation was quantified by using BrdU incorporation over the same period. We observed a significant increase in pancreatic β-cell proliferation in the ERβ agonist–treated cultures, which suggests that the activation of ERβ signaling directly affects pancreatic β-cell replication (Fig. 3F).

We also observed clear hyperinsulinemia in the fed state (Fig. 4A) but no differences in leptin (Fig. 4B) or triglyceride (Fig. 4C) levels, although glycerol levels were decreased in the ERβ agonist-treated group (Fig. 4D). Mild diabetes was induced by administering a single dose of STZ 150 mg/kg and NA 1,000 mg/kg. As shown in Figure 5A, 10 days after the STZ-NA treatment, these animals exhibited moderate fasting hyperglycemia (vehicle-treated control mice 90 ± 4.31 mg/dL, STZ-NA diabetic mice 126 ± 5.3 mg/dL, P < 0.05). An IGTT showed that STZ-NA mice presented consistent glucose intolerance as indicated by the bigger area under the curve (AUC) (Fig. 5A). At this point, we divided STZ-NA mice into two groups: One received an intraperitoneal injection of W10 for 7 days, and the other received a vehicle injection for the same period. The 1-week treatment provoked a decrease in fasting glycemia levels in the diabetic mice treated with the ERβ agonist (control mice 108 ± 2.36 mg/dL, diabetic mice treated with WAY200070 109 ± 4.03 mg/dL, diabetic mice 140 ± 9.16 mg/dL, P < 0.05). We also observed from the IGTT that glucose tolerance was significantly improved in the diabetic group treated with WAY200070, with similar levels of glycemia as the control group (Fig. 5B). This improvement in glucose sensitivity was accompanied by a restoration of plasma insulin levels (Fig. 5C). Remarkably, we found that pancreatic β-cell mass in diabetic mice exhibited a clear decrease compared with that of controls, whereas diabetic mice treated with the agonist presented not only similar levels to the control mice (Fig. 5D), but also similar islet size (Fig. 5E). The restoration of β-cell mass is related to an increase of β-cell replication (Fig. 5F). No differences in the plasma leptin or triglyceride levels were found between groups (Supplementary Fig. 1B and C). A marked tendency for glycerol levels to decrease was observed in the diabetic group treated with the ERβ agonist, although it was not statistically significant (Supplementary Fig. 1D).

At ∼14 weeks of age, db/db mice presented hyperglycemia, glucose intolerance, and decreased in vivo insulin secretion in response to a glucose load (Supplementary Fig. 2A and B). At this moment, the animals were treated with W10 for 14 days or with the vehicle.

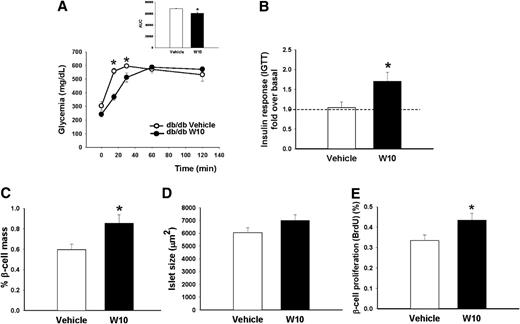

Glucose levels after overnight fasting were slightly reduced in W10 db/db mice (241 ± 18.5 mg/dL) compared with the vehicle db/db mice (303 ± 31.5 mg/dL), although differences were not significant (P = 0.1). To explore differences in glucose homeostasis, we performed an IGTT. At 15 and 30 min, blood glucose levels were lower in treated diabetic mice than in untreated mice. We also observed a smaller AUC, suggesting a better glucose tolerance at least after short periods (Fig. 6A). We measured the plasma insulin of mice in a fasted state and 30 min after a glucose load (Fig. 6B). Of interest, we found that in vivo GSIS was practically absent in vehicle db/db mice, showing a 1.04 ± 0.14-fold increase over basal insulin levels, whereas in db/db animals treated with the ERβ agonist, insulin secretion showed a 1.70 ± 0.22-fold increase over basal insulin. No differences were observed in the significance of insulin sensitivity between groups (Supplementary Fig. 2C).

In addition to the ERβ-agonist effect on pancreatic β-cell function, ERβ activation also increased pancreatic β-cell mass (Fig. 6C). We observed an increase in the size of the islets, although differences between groups were not significant (P = 0.1) (Fig. 6D). We found a higher rate of β-cell proliferation in the treated db/db mice (Fig. 6E).

In the fed state, no differences in plasma insulin or leptin levels were found (Fig. 7A and B); however, a clear decrease of triglyceride and glycerol plasma levels was detected in the W10 db/db mice (Fig. 7C and D), which was in consonance with the weight loss observed in these animals throughout the treatment from mainly day 8 to the end (Fig. 7E). No changes in food intake were observed (Supplementary Fig. 2D).

In the current study, we demonstrate the potential use of the ERβ ligand WAY200070 as an effective modulator of insulin release and pancreatic β-cell mass, with a significant improvement in glucose homeostasis. It is clear now that both ERα and ERβ play a pivotal role in the regulation of lipid and glucose metabolism and that a correct balance of the ERα/ERβ ratio is crucial for that (23,24). However, most studies have focused on the role of both receptors in the central nervous system, adipose tissue, liver, and skeletal muscle. It has been described that the anorectic effect of E2 seems to be mediated mainly by ERα (25,26), although the involvement of ERβ cannot be disregarded (27). In the liver, ERα is the main regulator of hepatic insulin sensitivity (28,29). In skeletal muscle, ERβ is suggested to play a repressive role on GLUT4 expression because the ERβ agonist DPN severely downregulates its expression in ArKO (aromatase-deficient) mice (30). Finally, in adipose tissue, as is described later, ERβ could have antiobesity effects (31).

Glucose homeostasis requires a tight communication between peripheral tissues and the pancreas, but ultimately, hyperglycemia only develops when pancreatic β-cell function fails. In previous studies, we demonstrated that ERβ regulates stimulus-secretion coupling in pancreatic β-cells, as does E2 (11). In the present study, we confirm these results, showing that the selective ERβ agonist WAY200070 rapidly decreased K_ATP channel activity and increased glucose-stimulated calcium signaling and GSIS. Remarkably, in human islets, WAY200070 also enhanced insulin release, with a maximal effect at a dose of 100 nmol/L. In mice, we observed that a single injection of WAY200070 in parallel with a glucose load rapidly enhances insulin secretion. Under fasting conditions, the selective ERβ agonist does not have an effect on glycemia, suggesting that the action of this compound depends on the actual glucose concentration and provides the possibility of glucose normalization without the risk of hypoglycemia.

This phenomenon is mediated at least partially by ERβ, as judged from experiments performed in WT and BERKO mice, in a process that mimics the effect of low physiological concentrations of E2 (100 pmol/L–1 nmol/L), a natural ligand of ERβ. However, we cannot rule out the possibility that other estrogen receptors can provoke similar effects. A recent report described that the activation of G protein-coupled receptor 30 enhanced GSIS and decreased glucagon and somatostatin release in female human and mouse islets, although this effect is only visible when E2 is applied at supraphysiological concentrations of ≥ 100 nmol/L (32–34). ERα has been proposed to play a significant role in the regulation of insulin synthesis by E2 but with no effects on pancreatic β-cell mass (10). Its role in cytoprotection has also been suggested (35).

Insulin deficiency is the common denominator for both type I diabetes and T2D. In the current study, we evaluated the insulinotropic effect of an ERβ agonist by using STZ-NA diabetic mice. This model has been reported to be useful for the assay of insulin secretagogues (17,36,37). We observed that the ERβ agonist modulates insulin secretion capacity and restores plasma insulin levels, but beyond this regulatory role of insulin secretion, we demonstrate that a selective ERβ agonist enhances β-cell proliferation in pancreatic islets, and thus, it could act as a regulator of β-cell growth. When pancreatic β-cell mass was quantified in STZ-NA diabetic mice, a clear decrease was observed compared with controls. However, in the diabetic animals that were treated with the agonist, there was a marked increase that resulted in the recovery of β-cell mass. Of interest, in vitro studies suggested that the ERβ agonist directly stimulates β-cell division, although the molecular basis mediating this phenomenon still needs further clarification. Mechanistically, E2 promotes islet regeneration in different animal models of diabetes through increased β-cell proliferation (38–41). Choi et al. (41) proposed that the E2 proliferative effect could be mediated by the activation of the cAMP-responsive element–binding protein, which in turn leads to an increased level of insulin receptor substrate 2 and pancreatic duodenal homeobox-1 levels and most probably leads to the activation of an IGF-I signaling cascade. In addition, genistein, another natural estrogenic compound, has been shown to improve islet β-cell proliferation, survival, and mass in diabetic mice in a process mediated by the activation of the protein kinase A and the subsequent phosphorylation of extracellular signal–related kinase 1/2 in β-cells (42). The authors speculated about the possibility that this signaling cascade is connected with an upregulation of cyclin D1 and, thus, with the regulation of the cell cycle machinery. Whether the ERβ agonist used in this study works through any of the presently proposed mechanisms remains unknown. In any case, we propose that ERβ selective agonists are considered as newcomers in the field of β-cell regeneration that potentially act alone or in synergy with other known factors, such as the hepatocyte growth factor, the glucose-dependent insulinotropic polypeptide, the transcription factors Pax 4, and the orphan nuclear liver receptor homolog-1 (43).

In addition to the STZ-NA model, we studied the possible benefits of ERβ-agonist treatment in a different model of diabetes, db/db mice. The administration of this drug led to an improvement of fasting glucose levels and glucose homeostasis, although the latter seemed to be a short-term effect. Importantly, while no insulin release in response to a rapid glucose stimulus was detected in the group of db/db vehicle-treated mice, the ERβ-agonist–treated group exhibited a clear release of insulin, indicating that this compound is able to restore the blunted first phase of insulin secretion. This phase is almost absent in individuals with T2D (44,45). Moreover, it has been shown that there is a delay of the first-phase insulin secretion in BERKO mice (46), reinforcing the importance of ERβ in the maintenance of postprandial glucose homeostasis.

When looking at the effects of WAY200070 in STZ-NA diabetic mice compared with db/db mice, we found that the recovery of pancreatic β-cell function and glucose homeostasis in the first model was much more effective than in the second model. We hypothesized that this recovery is a result of the animals exhibiting a less severe degree of diabetes in the first case than in the second case. Similarly, the hypoglycemic effect of E2 depends on the severity of the diabetic condition, with no positive effects when hyperglycemia exceeds 500 mg/dL and islet damage is too severe (38). For these reasons, we believe that treatment at an earlier stage of the disease would be more effective for the db/db mice.

We also observed that the ERβ-agonist treatment has other extrapancreatic effects. It significantly decreased triglyceride and glycerol plasma levels in db/db mice, which were accompanied by a reduction of body weight. However, more information in terms of energy expenditure would largely contribute to the understanding of the role of WAY200070 from an energetic point of view. One report indicated that the administration of selective ERβ ligands prevented body weight gain in animals fed with a high-fat diet as well as in ovariectomized mice because of the reduction in fat mass and the increase in lean mass (31). In contrast, a diabetogenic role for ERβ has been proposed because BERKO mice exposed to a high-fat diet had improved whole-body insulin sensitivity and glucose tolerance (47). In any case, the activation of ERβ demonstrates antilipogenic actions in pancreatic β-cells (40). Its role in cytoprotection has also been suggested (35).

In summary, we propose that an ERβ agonist could act as a regulator of pancreatic β-cell growth and that it promotes an increase of β-cell mass under pathological conditions. In addition, by using different experimental animal models of diabetes, we demonstrate the capacity of this agonist to normalize fasting glucose levels, to enhance endogenous insulin secretion, and to improve glucose homeostasis. Therefore, ERβ agonists may be useful new drugs for the treatment of T2D.
