MicroRNAs (miRNAs) have emerged as biomarkers of metabolic status, etiological factors in complex disease, and promising drug targets. Recent reports suggest that miRNAs are critical regulators of pathways underlying the pathophysiology of type 2 diabetes. In this study, we demonstrate by deep sequencing and real-time quantitative PCR that hepatic levels of Foxa2 mRNA and miR-29 are elevated in a mouse model of diet-induced insulin resistance. We also show that Foxa2 and miR-29 are significantly upregulated in the livers of Zucker diabetic fatty (fa/fa) rats and that the levels of both returned to normal upon treatment with the insulin-sensitizing agent pioglitazone. We present evidence that miR-29 expression in human hepatoma cells is controlled in part by FOXA2, which is known to play a critical role in hepatic energy homeostasis. Moreover, we demonstrate that miR-29 fine-tunes FOXA2-mediated activation of key lipid metabolism genes, including PPARGC1A, HMGCS2, and ABHD5. These results suggest that miR-29 is an important regulatory factor in normal metabolism and may represent a novel therapeutic target in type 2 diabetes and related metabolic syndromes.
Type 2 diabetes is characterized in part by resistance to insulin action in the liver and other metabolic tissues (1). MicroRNAs (miRNAs) are widely recognized as important regulators of a diverse array of biological processes (2), including metabolism (3). Recently, miRNAs have also emerged as stable plasma biomarkers of physiologic and metabolic status (4,5), etiological factors in complex disease (6), and promising therapeutic targets (7,8). miRNA-mediated gene regulation occurs principally at the posttranscriptional level and has been the subject of intense research over the past decade. Several miRNAs have been implicated in the pathobiology of a variety of metabolic disorders, including type 2 diabetes (9), cardiovascular disease (10), and obesity (11). Recently, we reported that miR-27b is a posttranscriptional regulatory hub in liver lipid metabolism and is altered in dyslipidemia (12). Another group of studies demonstrated that miR-33 modulates lipoprotein metabolism in mice (13–17) and nonhuman primates (18), as well as insulin signaling in cultured human hepatocytes (19). And, most recently, both miR-103/107 and miR-802 (20) were shown to regulate insulin sensitivity and glucose tolerance in mice (20,21). These findings strongly support the notion that miRNAs are critical players in pathways that underlie metabolic disease etiology, thus raising the possibility that miRNA-based therapy could be relevant for type 2 diabetes and related metabolic syndromes.
miR-29 has been demonstrated to be an important regulator of numerous biological processes, including neuronal maturation (22), fibrosis (23), hematopoiesis (24), replicative senescence (25), and immune response (26). Our recent in silico work identified miR-29 as the strongest candidate miRNA regulatory hub in the type 2 diabetes gene network (27). Other groups have shown that miR-29 is highly responsive to glucose and may regulate β-cell proliferation and insulin secretion (28,29). We sought to investigate miR-29 in the liver, which is a metabolic tissue of critical relevance to type 2 diabetes etiology.
In this study, we demonstrate that 1) hepatic miR-29 and Foxa2 mRNA are significantly upregulated in two different animal models of insulin resistance, 2) the insulin-sensitizing drug pioglitazone corrects hepatic miR-29 and Foxa2 levels in the Zucker diabetic fatty (ZDF) rat model of diabetes, 3) miR-29 levels in hepatocytes are controlled in part by the insulin-regulated transcription factor (TF) FOXA2, and 4) miR-29 fine-tunes FOXA2-mediated regulation of key lipid metabolism genes. Taken together, our findings implicate miR-29 as an important regulatory factor for lipid homeostasis and motivate future studies to investigate the utility of miR-29 as a tissue biomarker of type 2 diabetes drug efficacy, as well as a potential therapeutic target in metabolic syndromes.
Research Design and Methods
Female C57BL/6J mice were from a University of North Carolina (UNC) at Chapel Hill colony and started at 4 weeks of age on high-fat diet (HFD) (D01060502, 45% kcal from fat) or matched low-fat diet (LFD) (D01060501, 10% kcal from fat) (Research Diets, New Brunswick, NJ). Livers were isolated after 16 weeks of diet and RNA was isolated using the Norgen Total RNA Purification Kit (Thorold, Ontario, Canada). Male ZDF rats (Charles Rivers Laboratories) were acclimated for 2 weeks and had access to a standard chow diet (LabDiet, St. Louis, MO). Four weeks of pioglitazone treatment (30 mg/kg/day) was started at 8 weeks of age. Blood was collected once a week during treatment to measure glucose levels. Livers were isolated at 12 weeks of age, and RNA was isolated using TRIzol.
Huh7 cells (human hepatoma) were obtained from Dr. Stanley Lemon’s laboratory at UNC at Chapel Hill. Huh7 cells were maintained in 5 mmol/L glucose Dulbecco’s modified Eagle’s medium (Sigma-Aldrich, St. Louis, MO) supplemented with 10% FBS, 2 mmol/L L-glutamine, 1 mmol/L Na-pyruvate, and 1× NEAA (Invitrogen, Grand Island, NY), in 100 mm of collagen 1–coated cell culture dishes (Becton Dickinson, Bedford, MA). For transfections, cells were split into 6-well collagen 1–coated plates (Becton Dickinson) to approximately 70–80% confluency, and allowed 24 h to adhere. All cells were cultured in a humidified incubator at 37°C and 5% CO2.
Huh7 cells were plated on collagen 1–coated 6-well plates (Becton Dickinson) 1 day before transfection. At ∼70–80% confluency, the cells were transfected with either 10 nmol/L miRIDIAN hsa-miR-29a mimic (Thermo Scientific, Waltham, MA), 10 nmol/L mmu-miR-29a-3p LNA inhibitor (Exiqon, Woburn, MA), or 100 nmol/L ON-TARGETplus human siRNA against FOXA2 (Thermo Scientific) using either DharmaFECT 4 (Thermo Scientific) or Lipofectamine 2000 (Life Technologies, Grand Island, NY) transfection reagent. A human FOXA2 open reading frame (ORF) expression vector containing FOXA2 transcript variant 1 in the pCMV6-XL5 plasmid (OriGene, Rockville, MD) was transfected (1 μg) using DharmaFECT Duo transfection reagent (Thermo Scientific). Forty-eight hours after transfection, total RNA was isolated from the cells using the Total RNA Purification Kit from Norgen.
Small RNA Sequencing Analysis
Total RNA was extracted from mouse liver tissue using the Norgen Total RNA Purification Kit. RNA quality was assessed by Agilent 2100 Bioanalyzer, and only very high-quality samples with a RNA Integrity Number (RIN) above 8.0 were considered further. Small RNA libraries (n = 2 for each of HFD-fed and LFD-fed mice) were generated using the Illumina TruSeq Small RNA library preparation kit. These libraries were then sequenced on the Illumina HiSeq 2000 platform (50 bp reads). miRNA and isomiR identification and quantitation were performed as described previously (27).
Gene Expression (RNA) Analysis
Total RNA was isolated from cultured Huh7 cells or mouse liver tissue using the Total RNA Purification Kit and subjected to DNase treatment using the TURBO DNA-free Kit (Applied Biosystems, Grand Island, NY). Complementary DNA was synthesized using either the TaqMan MicroRNA Reverse Transcription Kit (Applied Biosystems) or the High-Capacity RNA-to-cDNA Kit (Applied Biosystems), according to the manufacturer’s instructions. Real-time PCR amplification was performed using TaqMan miRNA or gene expression assays in TaqMan Universal PCR Master Mix (miRNA qPCR) or TaqMan Gene Expression Master Mix (gene expression qPCR) on a Bio-Rad CFX96 Touch Real-Time PCR Detection System (Bio-Rad Laboratories, Richmond, CA). Reactions were performed in triplicate using either U6 (miRNA expression) or RPS9 (gene expression) as the internal control. miRNA and mRNA levels were expressed as relative quantitative values (RQVs). All TaqMan assays used in this study were purchased from Applied Biosystems and include miR-29a (4427975, 002112), miR-29b (4427975, 000412), miR-29c (444087, 000587), miR-15a (4427975, 000389), U6 (4427975–001973), RPS9 (human—4331182, Hs02339424_g1; mouse—4331182, Mm00850060_s1), ABHD5 (4331182, Hs01104373_m1), HMGCS2 (4331182, Hs00985427_m1), G6PC (human—4331182, Hs00609178_m1; mouse—4331182, Mm00839363_m1), PPARGC1A (4331182, Hs01016719_m1), and FOXA2 (human—4331182, Hs00232764_m1; mouse—4331182, Mm01976556_s1; rat—4331182, Rn0145600_m1).
Protein was isolated 48 to 72 h after transfection. RIPA Buffer (Sigma-Aldrich), supplemented with complete protease inhibitor (Roche, Indianapolis, IN), phosphatase inhibitor (Thermo Scientific), 100 mmol/L PMSF in 100% isopropanol, 0.1% β-mercaptoethanol (VWR International, Radnor, PA), and 1 mol/L DTT (Fisher Scientific, Pittsburgh, PA), was used to passively lyse adhered cells. The lysate was collected and flash frozen before clarification by centrifugation. Protein concentration was calculated using the Pierce Microplate BCA Protein Assay Kit—Reducing Agent Compatible (Thermo Scientific) and run on an Any kD Mini-PROTEAN TGX Precast Gel (Bio-Rad). Transfer was conducted using Bio-Rad Midi Transfer Packs on the Bio-Rad Trans-Blot Turbo Blotting System. The membranes were blocked in 5% nonfat dry milk (Sigma-Aldrich) in TBST and probed with 1:800 anti-ABHD5 antibody (Abnova, Cat. # H00051099-M01, Taiwan) in 4% BSA (Applied Biosystems, Cat. # AM2616) in TBST. Goat anti-rabbit secondary antibody (Abcam, Cat. # ab131366) was diluted 1:3,000 in 1% milk/TBST. β-Actin peroxidase (Sigma-Aldrich Cat. # A3854) or GAPDH (Cell Signaling Technology; Danvers, MA; Cat. # 8884s) diluted 1:40,000 in 1% milk/TBST were used as control subjects. Signal was detected using the Amersham ECL Prime Western Blotting Detection Reagent (GE Healthcare Life Sciences, Piscataway, NJ) following manufacturer instructions, and was exposed using the LI-COR C-DiGit Blot Scanner (LI-COR Biosciences, Lincoln, NE). Signal intensity was determined by densitometry using LI-COR Biosciences Image Studio Software.
Reporter Gene (Luciferase) Assays
Human embryonic kidney 293T (HEK293T) cells were plated at 1 × 105 cells/mL for 24 h prior to transient transfection using DharmaFECT 4 and 500 ng/mL MT01 Firefly/Renilla luciferase reporter with the entire 3′ UTR of HMGCS2 cloned immediately downstream of Firefly luciferase (GeneCopoeia). Cells were dual transfected with 10 nmol/L of miR-29a mimic for 48 h prior to cell lysis and dual luciferase assays (GeneCopoeia). Site-directed mutagenesis was completed using QuikChange II XL kits (Stratagene) and the following primers: Reverse 5′-agccgttgcaccgtcaggcacaggg-3′ and Forward 5′-ccctgtgcctgacggtgcaacggct-3′. A 3 base deletion was created in the middle of the predicted “seed” target site for miR-29 (…tgcctgacggtggtgcaacggctgatgga…).
Chromatin immunoprecipitation sequencing (ChIP-seq) data for Foxa2 in mouse liver and islet were published previously (30). Chromatin occupancy sites based on these ChIP-seq data were obtained directly from the lead author of the study (Brad Hoffman, University of British Columbia). Candidate Foxa2 target genes in mouse liver and islet were assembled by cross-referencing the chromosomal locations of Foxa2 occupancy sites with gene promoter regions (defined as windows 5 kb upstream of transcription start sites as annotated in the RefSeq database). The miR-29ab promoter region was identified as recently described (31). Target site prediction for miR-29 was performed with TargetScan 6.2 (downloaded from http://www.targetscan.org). Statistical enrichment of predicted miR-29 target sites among Foxa2 target genes in the mouse liver and islet was assessed according to our recently published method, mirHub (27), using the “non-network” mode and requiring a predicted target site to be conserved among at least three mammalian species including mouse.
Hepatic miR-29 Is Upregulated in Animal Models of Insulin Resistance and Is Corrected by Treatment With the Insulin-Sensitizing Drug Pioglitazone

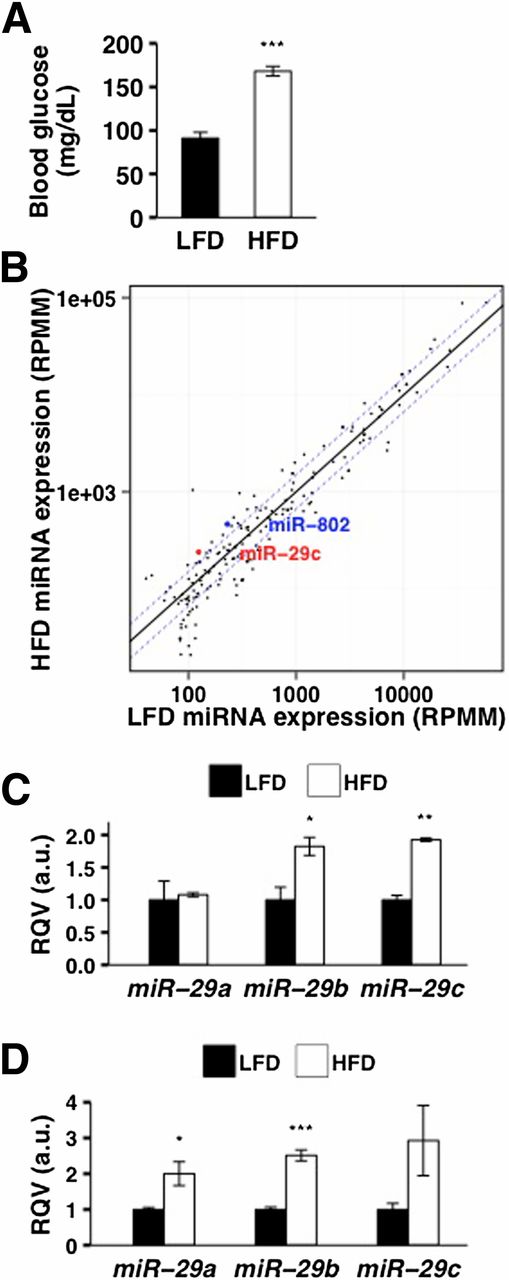

To determine if hepatic miR-29 levels are altered in the insulin-resistant state, we investigated two different animal models of metabolic dysfunction. First, we studied female C57BL/6J mice placed on a 16-week HFD (45% kcal from fat), which resulted in significantly elevated (∼1.8-fold, P < 0.001) fasting blood glucose levels relative to age-, sex-, and strain-matched mice on LFD (10% kcal from fat) (Fig. 1A). We performed deep sequencing of liver small RNAs and found that miR-29b (∼1.8-fold, P < 0.05) and miR-29c (∼1.9-fold, P < 0.001) were significantly elevated in HFD-fed mice (Fig. 1B and C, Supplementary Table 1), matching the fold increase in miR-802 (Fig. 1B, Supplementary Table 1), which was previously identified as a critical mediator of obesity-induced glucose intolerance (20). To validate this finding, we performed real-time quantitative PCR (RT-qPCR) and confirmed that hepatic levels of miR-29 were significantly increased in HFD-fed mice (Fig. 1D).
Next, we examined the ZDF fa/fa rat model, which closely mimics human adult-onset diabetes (32). We showed that, as expected, fasting blood glucose levels were significantly elevated (∼2.5-fold, P < 0.005) in 12-week-old male obese fa/fa rats compared with age- and sex-matched lean healthy littermates (Fig. 2A). We then demonstrated by RT-qPCR that hepatic miR-29a and miR-29c levels were significantly (P < 0.05) higher for the fa/fa rats compared with the lean littermate control subjects (Fig. 2B). Strikingly, we also observed that treatment with the insulin-sensitizing drug pioglitazone for 4 weeks, which markedly improved glycemia (Fig. 2A), reduced hepatic miR-29 expression to levels comparable to those of the lean control subjects (Fig. 2B).
Hepatic miR-29 Expression Is Controlled in Part by the Insulin-Regulated TF FOXA2
To investigate the molecular mechanism(s) that mediates the upregulation of miR-29 in insulin resistance, we sought to identify hepatic TFs regulated by insulin signaling that could be involved in the control of miR-29 expression. First, we identified the transcription start sites (TSS) of miR-29a/b-1 (chromosome 7) and miR-29b-2/c (chromosome 1) in human hepatoma cells (HepG2) by analyzing chromatin data from ENCODE, using our previously described bioinformatic pipeline (31). This strategy revealed that the most proximal active TSS for miR-29a/b-1 is ∼36.5 kb upstream of the mature miR-29a sequence; for miR-29b-2/c, it is ∼20 kb upstream of the mature miR-29c sequence. We scanned these regions for areas of open chromatin and TF occupancy in HepG2 cells, as determined by ENCODE, and found >10 binding sites for FOXA2 at the miR-29a/b-1 locus and 4 binding sites at the miR-29b-2/c locus (Fig. 3A). FOXA2 is negatively regulated by insulin (33,34) and opposes insulin action (35) by promoting hepatic lipid catabolism and fatty acid oxidation (36). To further support the finding in HepG2 cells, we mined a recently published TF ChIP-seq data set from adult mouse liver (30) and detected Foxa2 chromatin occupancy at the mouse miR-29 promoter regions (data not shown).
We next performed RT-qPCR and observed that hepatic Foxa2 mRNA levels were increased in both HFD-fed mice (Fig. 3B) and diabetic fa/fa rats (P < 0.05) (Fig. 3C). Moreover, as with miR-29 (Fig. 3D), hepatic Foxa2 expression in the fa/fa rats returned to that of the lean control subjects upon treatment with pioglitazone (Fig. 3C). To more directly evaluate the potential for FOXA2 to regulate hepatic miR-29 levels, we performed small interfering RNA (siRNA)–mediated knockdown of FOXA2 in Huh7 cells. After 48 h of siRNA treatment, FOXA2 mRNA was significantly reduced (P < 10−12) (Fig. 3D). Under these conditions, we observed an almost twofold downregulation of miR-29a (P < 0.001), miR-29b (P < 0.05), and miR-29c (P < 0.01) (Fig. 3D). We also transiently transfected Huh7 cells with a FOXA2 expression vector (1 μg), which led to an ∼172-fold upregulation in FOXA2 mRNA levels (P < 0.05) and a concomitant more than twofold increase in miR-29a (P < 0.05), miR-29b (P = 0.06), and miR-29c (P < 0.05). Collectively, these data suggest that the insulin-regulated FOXA2 is a transcriptional activator of miR-29.
miR-29 Fine-tunes FOXA2-Mediated Regulation of Key Hepatic Lipid Metabolism Genes

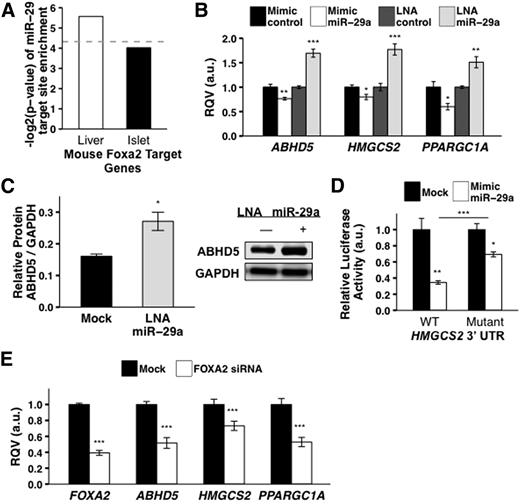

Recent studies of gene regulatory networks indicate that coordinated regulation by TFs and miRNAs confers robustness against environmental fluctuation (37). We assessed the extent to which miR-29 is predicted to regulate Foxa2 gene targets in the liver. First, we assembled a list of high-confidence hepatic target genes for Foxa2 from a published ChIP-seq study in mouse liver (Research Design and Methods). We then determined, using our previously published method mirHub (27), that the Foxa2 mouse liver target gene set was significantly enriched for predicted miR-29 target sites (Fig. 4A). Notably, we did not observe this enrichment among Foxa2 target genes in the mouse pancreatic islet, in which the Foxa2 regulatory network is rewired relative to the liver (30) (Fig. 4A). To evaluate further the predicted FOXA2–miR-29 feed-forward circuit, we experimentally tested three specific instances of the circuit with the genes HMGCS2, ABHD5, and PPARGC1A, which encode proteins that activate the enzymatic breakdown of fat in the liver (38,39). The mRNA levels of all three genes in Huh7 cells were significantly (P < 0.01) increased by the miR-29a locked nucleic acid (LNA) inhibitor and significantly (P < 0.05) reduced by the miR-29a mimic (Fig. 4B). Consistent with this observation, the protein levels of ABHD5 were also significantly (P < 0.05) upregulated by the miR-29a LNA inhibitor after 48 h (Fig. 4C). Also, to determine if miR-29 regulation of HMGCS2 is mediated through the 3′ UTR, we performed a reporter gene assay (Research Design and Methods). Overexpression of the miR-29a mimic (100 nmol/L) in HEK293T cells significantly reduced (P < 0.01, ∼65% loss) relative Firefly luciferase activity when the HMGCS2 3′ UTR was inserted downstream of the Firefly reporter gene (Fig. 4D). Moreover, targeted deletion (3 bp) of the predicted miR-29 target site in the HMGCS2 3′ UTR substantially mitigated the repressive effect of miR-29 on Firefly activity (Fig. 4D). Finally, siRNA-mediated knockdown of FOXA2 led to a significant (P < 0.01) decrease in the expression of HMGCS2, ABHD5, and PPARGC1A (Fig. 4E). The latter observation suggests that FOXA2 is the primary driver of the expression levels of its target genes, whereas miR-29 serves as a feed-forward negative modulator (Fig. 5).
This study leveraged in vivo, in vitro, and in silico analyses to uncover a role for miR-29 as a potentially critical regulator of hepatic metabolic pathways. A prior study suggested that miR-29 is significantly elevated in the livers of the diabetic mouse model db/db (40); however, to our knowledge, this result had not been validated in other models. We showed in this study that liver miR-29 levels are elevated in two different animal models of metabolic dysfunction and, notably, are returned to normal levels upon treatment with an insulin sensitizer, pioglitazone, in the ZDF fa/fa rat. This finding signals the possibility that miRNAs could serve as tissue biomarkers of drug efficacy in type 2 diabetes.
Two recent miRNA profiling studies reported that type 2 diabetes might be associated with reduced levels of plasma miR-29 (41,42). We observe in this study that miR-29 is elevated in the liver of animals with insulin resistance and diabetes. The apparent inverse correlation between plasma and liver miR-29 levels in type 2 diabetes is intriguing. It is now widely appreciated that miRNAs are stably present in circulation and are transported by a variety of different types of extracellular vehicles (EVs), including exosomes and high-density lipoproteins (43–47). Several studies have shown that numerous cell types secrete miRNAs, which can then be loaded onto EVs and delivered to recipient cells with functional integrity (48–50). However, the mechanisms that regulate intercellular miRNA transfer remain poorly characterized and represent a nascent but promising topic of research. Progress in this area will be critical for understanding why liver miR-29 is elevated but plasma miR-29 is reduced in type 2 diabetes. miR-29 is highly expressed in numerous metabolic tissues, including the pancreatic islet (27,51), and the relative contribution of each of these tissues to circulating miR-29 remains to be determined and merits further investigation.
We also demonstrated in this study that hepatic miR-29 expression is likely controlled at least in part by the insulin-regulated TF, FOXA2, which contains >10 ChIP-seq–derived binding sites in human hepatoma cells at the miR-29ab genomic locus on chromosome 7 and four binding sites at the miR-29bc genomic locus on chromosome 1. The evaluation of the combinatorial effect of these binding sites on miR-29 transcription is not trivial; however, it certainly warrants further investigation to more definitively establish direct FOXA2-mediated regulation of miR-29. Moreover, future studies in vivo should establish the extent to which FOXA2 controls miR-29 during hepatic insulin resistance.

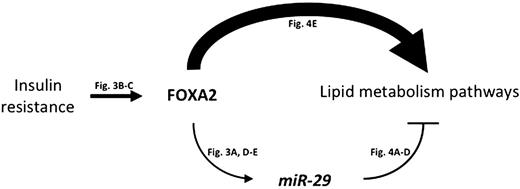

Finally, we showed that miR-29 serves as a dampener of FOXA2-mediated activation of key lipid metabolism genes. For example, FOXA2 transcriptionally activates HMGCS2, which in turn is directly repressed by miR-29. It has been postulated that such TF:miRNA regulatory circuits, termed incoherent feed-forward loops, are likely important for noise buffering of gene expression (37,52,53). Further detailed studies in vivo may help elucidate the physiological importance of the FOXA2:miR-29 regulatory circuit in lipid homeostasis.
Overall, this study strongly suggests that miR-29 merits further investigation as a candidate biomarker of metabolic status and drug efficacy, an etiological factor in type 2 diabetes, and a potentially important therapeutic target for a range of metabolic disorders.
C.L.K. and B.C.E.P. contributed equally to this work.
Acknowledgments. The authors would like to thank Michael Erdos of the National Institutes of Health (NIH), Samir Kelada and Jeanette Baran-Gale of UNC at Chapel Hill, and Jonathan Haldeman of Duke University for their helpful suggestions regarding the study and the manuscript; Stanley Lemon of UNC at Chapel Hill for generously sharing Huh7 cells; and Brad Hoffman of the University of British Columbia for sharing the chromatin occupancy sites for FOXA2 in mouse liver and islet based on a previously published study.
Funding. This work was supported in part by an R00 grant (DK-091318-02) from the National Institute of Diabetes and Digestive and Kidney Diseases (NIDDK)/NIH (awarded to P.S.); a pilot and feasibility grant (NIDDK/NIH P30-DK-056350) from the UNC Nutrition Obesity Research Center (awarded to P.S.); a UNC Genetics and Molecular Biology T32 training grant (GM-007092-39) from the National Institute of General Medical Sciences (NIGMS)/NIH and UNC IMSD Fellowship through the Education Program grant (R25-GM-055336-13) from the NIGMS/NIH (awarded to B.C.E.P.); an R01 grant (RHL-109650) from the National Heart, Lung, and Blood Institute(NHLBI)/NIH (awarded to S.B.B.); a K99 grant (DK-100539) from NIDDK/NIH (awarded to J.M.); a K22 grant (K22-HL-113039) from NHLBI/NIH (awarded to K.C.V.); and a grant from the German Federal Ministry of Education and Research awarded to the German Center for Diabetes Research (P.S.).
Duality of Interest. No potential conflicts of interest relevant to this article were reported.
Author Contributions. C.L.K. and B.C.E.P. researched data and edited the manuscript. E.E.F., C.B., J.M., S.R.L., S.D., V.T., S.T., and S.B.B. researched data. P.K.L. contributed to discussion. K.C.V. researched data and contributed to the discussion. P.S. researched data, contributed to discussion, and wrote the manuscript. P.S. is the guarantor of this work and, as such, had full access to all the data in the study and takes responsibility for the integrity of the data and the accuracy of the data analysis.
