Insulin Resistance and Vulnerability to Cardiac Ischemia

Insulin resistance (IR) and type 2 diabetes mellitus (T2DM) along with higher lipid availability associate with two- to fourfold greater cardiovascular mortality and myocardial vulnerability to ischemia-induced injury due to altered metabolism in noninfarcted regions (1).

Nonalcoholic fatty liver disease (NAFLD) independently relates to excessive cardiac mortality (2). Insulin-resistant humans feature hepatic mitochondrial adaptation with higher respiration but also reactive oxygen species (ROS) emission, which drives progression to nonalcoholic steatohepatitis (3,4). Whether such mechanisms are also operative within infarcted and/or remote myocardium after acute myocardial infarction (AMI), thereby contributing to higher heart vulnerability, is yet unclear. IR-related ischemic heart vulnerability may result from myocardial triglyceride and lipotoxin accumulation (5) or increased fatty acid utilization with impaired mitochondrial efficiency at the expense of higher oxygen demand (6,7).

We tested the hypotheses that NAFLD affects cardiac function post-AMI and induces lipid-associated myocardial IR with increased cardiac respiration and ROS emission but lower mitochondrial efficiency. We studied nonobese, nondiabetic mice with NAFLD and IR (8,9) and compared with age- and sex-matched controls. Second, we analyzed the mitochondrial function in the ventricular myocardium of humans with IR.

All studies were approved and performed according to guidelines in female 36-week-old mice with adipose tissue–specific overexpression of the SREBP-1c (NAFLD-IR) and C57Bl6 controls (CON). Mice had ad libitum access to standard diet and water.

Left anterior descending coronary artery was ligated and reperfused after 50 min of ischemia in anesthetized mice (10). Animals were analyzed before and 1, 2, 7, 14, 21, and 28 days post-AMI by cardiac MRI and spectroscopy (MRS).

Data were recorded in a Bruker Avance III 9.4 Tesla Wide-Bore magnet (10). Respiration of anesthetized mice (1.5% isoflurane, 37°C) was monitored with a pneumatic pillow, and vital functions with the M1025 system (SA Instruments, Stony Brook, NY). Lipid content was quantified with a 1 × 2 × 3 mm³ voxel within the septum (Fig. 1F) and normalized to the water signal.

A silicon catheter was placed into the right-side jugular vein under anesthesia. Mice recovered for 4–5 days and were fasted for 6 h (3:00–9:00 a.m.). The clamp was performed with a primed (40 mU/kg) continuous infusion (4 mU/kg/min) (Huminsulin; Lilly, Giessen, Germany) for 180 min (8). Whole-body insulin sensitivity is expressed as glucose infusion rates (mg/kg/min).

O₂ fluxes were measured in isolated mitochondria and saponin-permeabilized left ventricle (LV) from mouse heart and permeabilized interventricular septum biopsies from human heart using Oxygraph-2k (Oroboros Instruments, Innsbruck, Austria) (11,12). H₂O₂ emission was monitored with the Amplex Red and Oxygraph-2k Fluorescence Module (8). Citrate synthase activity was assessed spectrophotometrically (Citrate Synthase Assay Kit; Sigma-Aldrich, St. Louis, MO) and proteins with fluorescamine.

Serum thiobarbituric acid reactive substances (TBARS) were measured fluorometrically (BioTek, Bad Friedrichshall, Germany), catalase activity colorimetrically (Cayman Chemical Company), and static oxidation-reduction potential (sORP) and antioxidant capacity with RedoxSYS (Luoxis Diagnostics, Inc., Englewood, CO) (8).

Total protein was extracted from whole-heart homogenates. Differential centrifugation was used for membrane/cytosol separation (11). Specific antibodies were protein kinase Cε (PKCε), GLUT4, phospholamban (PLN), CHOP, and total protein kinase B (Akt) (Cell Signaling Technology, Danvers, MA).

Cardiac diacylglycerol content and fatty acid composition were measured in the heart membrane/cytosol fractions with liquid chromatography—tandem mass spectrometry (13).

Hearts from anesthetized mice, washed in phosphate buffer and embedded in Tissue-Tek (O.C.T. Compound), were immediately frozen (−40°C) and stored (−80°C) until sectioning (14).

Capillaries expressing CD31 were counted in two LV regions, measuring 250 × 400 µm and obtained at 20-fold magnification (http://imagej.nih.gov/ij; ImageJ software).

Tail blood glucose was measured with a glucometer (Precision Xtra Plus; Abbott, Wiesbaden, Germany), serum insulin with ELISA (Mercodia, Uppsala, Sweden), and serum triglyceride, cholesterol (Roche Diagnostics, Mannheim, Germany), and free fatty acid (Wako Chemicals, Neuss, Germany) photometrically.

We enrolled 35 heart transplant recipients (Supplementary Table 2) with normal heart function, undergoing endomyocardial biopsy during posttransplantation allograft rejection monitoring. Intraventricular septum endomyocardial biopsies were taken catheter assisted (15). Exclusion criteria were allograft rejection, self-reported T2DM, diabetes-specific treatment, and/or fasting blood glucose >100 mg/dL and HbA_1c >6.5%. The HOMA-IR was calculated as previously described (16). The study was registered at clinicaltrials.gov (NCT03386864) and approved by the local ethics board.

Data are presented as means ± SD in tables and text and as means ± SEM in figures. Groups were compared using unpaired two-tailed Student t test or two-way ANOVA with Holm-Sidak correction. The statistical significance threshold was P < 0.05.

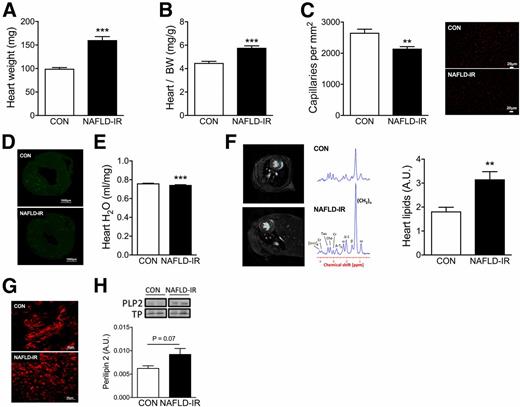

Metabolic characteristics of 6 h–fasted mice are shown in Supplementary Table 1. NAFLD-IR mice had 21% (Supplementary Table 1) and 61% higher body weight and heart weight (Fig. 1A) than CON. The heart-to-body weight ratio was higher (Fig. 1B) and heart capillary density was 19% lower (Fig. 1C), indicating cardiac hypertrophy. Arterial and LV blood pressure were comparable (Supplementary Fig. 1). Histology revealed intact cardiac tissue (Fig. 1D). Heart water content was 2% lower (Fig. 1E), whereas lipid content was 73% higher (Fig. 1F) in NAFLD-IR mice. Perilipin 2 staining showed irregularly distributed lipid droplets in NAFLD-IR hearts (Fig. 1G). Perilipin 2 protein content tended to be higher (Fig. 1H).

Whole-body insulin sensitivity was decreased in NAFLD-IR mice (Fig. 2A), due to reduced skeletal muscle and hepatic insulin sensitivity (8). Total cardiac AKT protein (Fig. 2B), membrane GLUT4 protein (Fig. 2C), and Pdk4 mRNA (Fig. 2D) were downregulated.

Total cardiac diacylglycerols were increased in membrane (Fig. 2E) and unchanged in cytosolic (Fig. 2H) fractions. Exclusively C18:1/C18:1-diacylglycerols increased in both fractions (Fig. 2F and I). PKCε increased in the membrane (Fig. 2G) and tended to decrease in the cytosol (P = 0.063) (Fig. 2J), yielding a doubled membrane-to-cytosolic PKCε ratio (0.52 ± 0.09 vs. CON 0.20 ± 0.01, P < 0.0001), indicating PKCε activation.

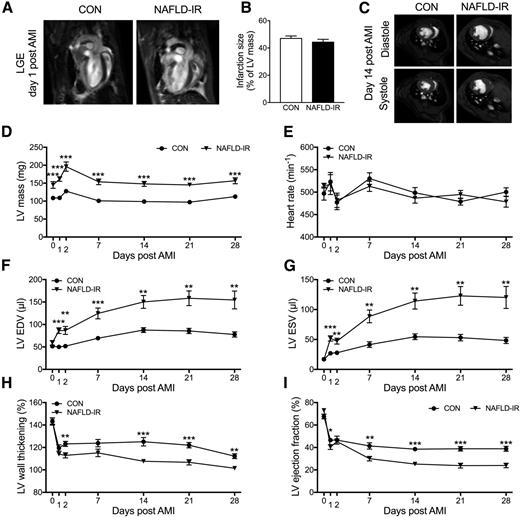

Infarct size was unchanged 1 day post-AMI (Fig. 3A and B), whereas cardiac function progressively declined in NAFLD-IR (Fig. 3C). LV mass was higher at baseline and remained higher post-AMI (Fig. 3D). Heart rate was comparable (Fig. 3E). LV end-diastolic and end-systolic volumes were comparable at baseline but increased more markedly in NAFLD-IR mice post-AMI (Fig. 3F and G). Systolic LV wall thickening was comparable at baseline but decreased more markedly in NAFLD-IR post-AMI (Fig. 3H). LV ejection fraction was comparable at baseline and impaired in both groups 2 days post-AMI (Fig. 3I). Impairment of ejection fraction was more severe in NAFLD-IR mice from day 7 on post-AMI.

At baseline, mitochondrial state 3 respiration was higher in NAFLD-IR with substrates providing electrons to complex I (pyruvate) and β-oxidation–linked electron-transferring flavoprotein complex (CETF; octanoyl-carnitine) (Fig. 4A). H₂O₂ emission from complex III was 76% higher (Fig. 4B). Phosphate-to-oxygen ratios, indicating mitochondrial efficiency, decreased by 19% during β-oxidation–linked respiration (Fig. 4C).

On day 28 post-AMI, respiration decreased (Fig. 4D) and H₂O₂ emission increased (Fig. 4E) in the infarcted LV similarly in CON and NAFLD-IR. Serum sORP was elevated, whereas antioxidant capacity tended to be lower in NAFLD-IR post-AMI (Fig. 4F). Despite unchanged catalase activity (Fig. 4G), lipid peroxidation, assessed from TBARS, was increased in the serum of NAFLD-IR mice (Fig. 4H). Systemic inflammatory markers were comparable (8).

The cardiac protein of sarco/endoplasmic reticulum Ca²⁺-ATPase (SERCA2a) was comparable (Supplementary Fig. 2A), whereas its negative regulator PLN was higher (Supplementary Fig. 2B) in NAFLD-IR. Thus, the SERCA2a-to-PLN ratio, regulating calcium handling and fiber contractility, was decreased (Supplementary Fig. 2C). The CHOP protein, an indicator of endoplasmic reticulum stress and apoptosis, was comparable (Supplementary Fig. 2D).

We tested the association between insulin sensitivity, myocardial integrity, and energy metabolism in 35 humans (Supplementary Table 2). LV ejection fraction by MRI or transthoracic echocardiography was 67.2 ± 1.5%. Whole-body IR (HOMA-IR) was 2.02 ± 0.20 and positively related to serum troponin T levels, a marker of reduced myocardial integrity (r = 0.40; P = 0.04; n = 26, Spearman test). HOMA-IR correlated negatively with respiratory control ratio linked to β-oxidation (CETF; octanoyl-carnitine) as well as to substrates of complex I and II and positively with the leak control ratio (Supplementary Fig. 3). Thus, lower insulin sensitivity associates with lower ventricular mitochondrial coupling and efficiency. Also serum troponin T correlated with respiratory control ratio and leak control ratio (Supplementary Fig. 3), suggesting that impaired myocardial integrity relates to lower mitochondrial efficiency.

This study shows that IR, NAFLD, and cardiac steatosis, even in the absence of overt T2DM, associate with greater impairment of cardiac function post-AMI. The underlying mechanisms comprised the accumulation of 18:1 fatty acid–containing diacylglycerols, PKCε-mediated IR, and lipid-induced upregulation of mitochondrial respiration and ROS emission, but lower mitochondrial coupling and efficiency. In humans, coupling and efficiency of the mitochondria from the ventricular myocardium also declined with IR and associated with impaired myocardial integrity.

NAFLD-IR mice featured severe AMI-induced myocardial dysfunction with LV reshaping and higher end-diastolic and end-systolic volumes. Capillary density was lower, probably reflecting cardiomyocyte hypertrophy and/or failure of compensatory angiogenesis (17). Arterial pressure and heart rate were unaffected. Cardiac hypertrophy was not accompanied by fibrosis or edema. Cardiac lipids increased probably due to similar mechanisms as in the liver and muscle (8), i.e., by unsuppressed fat lipolysis and increased lipid uptake. These findings are in line with observations in patients with T2DM (18–20) and patients without diabetes with NAFLD (21).

Cardiac steatosis in NAFLD-IR was paralleled by higher diacylglycerol and membrane PKCε concentrations. Diacylglycerols activate novel PKCs, PKCε and θ, which impair hepatic and muscle insulin signaling and may also affect cardiac remodeling and a variety of cardiac diseases (22). The current study identified accumulation of oleic acid (C18:1/C18:1)–containing diacylglycerols, being in line with the concept that unsaturated diacylglycerols are more potent activators of novel PKCs (23). Mice with cardiac-specific PKCε overexpression develop impaired cardiac function (24). Thus, the diacylglycerol/PKCε pathway could contribute to LV dysfunction of NAFLD-IR mice post-AMI.

In IR and NAFLD, mitochondrial respiration increases in the livers of humans (3) and mice (8) as an adaptation to higher substrate availability, leading to lower mitochondrial ATP production (3,4,25). We found higher mitochondrial respiration and ROS emission in the hearts of NAFLD-IR. Increased ROS can alter calcium handling in heart failure via SERCA2a inhibition (26). Indeed, the cardiac SERCA2a-to-PLN ratio decreased in NAFLD-IR. Furthermore, oxidative damage can induce intracellular damage, leading to apoptosis. Accordingly, mitochondrial efficiency was lower in the heart of NAFLD-IR mice. This could contribute to the effects of IR, i.e., preferential fatty acid oxidation, which is energetically less efficient (27), in turn leading to impaired cardiac function during higher energy demands and lower oxygen supply, such as after AMI.

In humans, myocardial ventricular mitochondrial efficiency negatively associated with IR. Previously, controversial results have been obtained in the atrial myocardium of obese humans and patients with T2DM (28). In this study, human ventricular myocardium featured a similar mitochondrial phenotype as myocardium of NAFLD-IR mice. In particular, decreased coupling and efficiency of the mitochondria from the human ventricular myocardium paralleled decreasing insulin sensitivity. Moreover, serum troponin T levels associated negatively with myocardial mitochondrial efficiency. Circulating troponin is not only a common marker of myocardial ischemia but also a prognostic factor of myocardial damage even in the absence of myocardial infarction (29). Similar to the lower AMI tolerance in NAFLD-IR mice, the lower mitochondrial efficiency could contribute to higher myocardial damage in insulin-resistant humans.

In conclusion, mice with IR and NAFLD due to ectopic lipid accumulation show myocardial steatosis, lipid-induced changes of cardiac metabolism, and induction of the C18:1/C18:1-diacylglycerol-PKCε pathway, leading to severe myocardial dysfunction post-AMI and impaired insulin signaling. Cardiac mitochondria adapt to lipid accumulation by increased respiration, which associates with increased ROS emission and less efficient energy production, as supported by the human data. Collectively, these mechanisms operative in lipid-induced IR contribute to the impaired LV compensation post-AMI.
