The causes of the increased risk of severe coronavirus disease 2019 (COVID-19) in people with diabetes are unclear. It has been speculated that renin-angiotensin system (RAS) blockers may promote COVID-19 by increasing ACE2, which severe acute respiratory syndrome coronavirus 2 uses to enter host cells, along with the host protease TMPRSS2. Taking a reverse translational approach and by combining in situ hybridization, primary cell isolation, immunoblotting, quantitative RT-PCR, and liquid chromatography–tandem mass spectrometry, we studied lung and kidney ACE2 and TMPRSS2 in diabetic mice mimicking host factors linked to severe COVID-19. In healthy young mice, neither the ACE inhibitor ramipril nor the AT1 receptor blocker telmisartan affected lung or kidney ACE2 or TMPRSS2, except for a small increase in kidney ACE2 protein with ramipril. In contrast, mice with comorbid diabetes (aging, high-fat diet, and streptozotocin-induced diabetes) had heightened lung ACE2 and TMPRSS2 protein levels and increased lung ACE2 activity. None of these parameters were affected by RAS blockade. ACE2 was similarly upregulated in the kidneys of mice with comorbid diabetes compared with aged controls, whereas TMPRSS2 (primarily distal nephron) was highest in telmisartan-treated animals. Upregulation of lung ACE2 activity in comorbid diabetes may contribute to an increased risk of severe COVID-19. This upregulation is driven by comorbidity and not by RAS blockade.

When severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) emerged in December 2019, early reports suggested that people with diabetes were at an increased risk of adverse outcomes, including admission to the intensive care unit, mechanical ventilation, and death (13). These initial insights have subsequently been confirmed by larger epidemiological surveys. For instance, in a whole-population study from England that included data from 61,414,470 individuals and 23,698 in-hospital coronavirus disease 2019 (COVID-19)–related deaths, the odds ratio (95% CI) for death as a result of COVID-19 was 3.51 (3.16–3.90) for people with type 1 diabetes and 2.03 (1.97–2.09) for people with type 2 diabetes (4). The cause of this increase in risk for people with diabetes remains, however, unclear.

SARS-CoV-2 enters host cells by binding to its receptor ACE2 (58), a type I transmembrane carboxypeptidase. Ordinarily, ACE2 plays a counterbalancing role within the renin-angiotensin system (RAS) by hydrolyzing angiotensin II (Ang II) to form Ang 1–7 (9) and by cleaving Ang I to form Ang 1–9, which itself can subsequently be hydrolyzed by ACE to form Ang 1–7 (10). The actions of ACE2 have been generally well characterized in the kidneys, which, like the lungs, are susceptible to direct viral infection by SARS-CoV-2 (11). In the kidneys of diabetic mice, ACE2 protein (but not mRNA) is upregulated in renal tubules (12,13), although not in glomeruli (14). In contrast, comparatively little is known about the effect of diabetes on lung ACE2, although it is noteworthy that under normal circumstances, ACE2 expression and activity are substantially lower in the lungs than they are in the kidneys (15). It has also been postulated that use of ACE inhibitors or Ang II type 1 receptor blockers (ARBs) could increase the risk of COVID-19 in diabetes by causing a compensatory upregulation in ACE2 either by blocking the conversion of Ang I to Ang II or by preventing the binding of Ang II to Ang II type 1 receptor, respectively, thus facilitating viral entry (16). Yet, contrary to this hypothesis, a recent study found no increase in lung or kidney ACE2 when RAS blocker therapy was administered to healthy mice (17). Presence and abundance of a cognate receptor are not, however, the sole host factors that influence coronavirus cellular and tissue tropism. Following receptor engagement by the viral surface spike glycoprotein (S protein), entry into the cell is facilitated by cleavage of the viral S protein by host cell surface proteases, allowing fusion of the viral and host cell membranes (18). Several different host proteases can perform this function, but the best characterized for SARS-CoV-2 is the type 2 transmembrane serine protease transmembrane protease serine 2 (TMPRSS2) (18).

In the current study, we reasoned that a reverse translational approach was well suited to better understanding how host factors related to SARS-CoV-2 infection may be affected by comorbidities or treatments that have been linked to adverse COVID-19 outcomes. Recognizing that aged people with diabetes, who are commonly prescribed RAS blockers, are at increased risk of adverse COVID-19 outcomes, we studied the expression patterns of ACE2 and TMPRSS2 in a mouse model that mimics this endophenotype (19).

Study 1

Male C57BL/6N mice (C57BL/6NCrl; Charles River Laboratories, Senneville, Quebec, Canada) aged 7–8 weeks were randomly allocated to receive standard drinking water or drinking water supplemented with either the ACE inhibitor ramipril (10 mg/kg/day) (#15558; Cayman Chemical, Ann Arbor, MI) or the ARB telmisartan (3 mg/kg/day) (#11615; Cayman Chemical) in 0.1% DMSO (20,21). After 1 week, systolic blood pressure (SBP) was recorded using a CODA noninvasive blood pressure system (Kent Scientific, Torrington, CT) (22), and tissues were harvested.

Study 2

In a separate substudy, male C57BL/6N mice (Charles River Laboratories) aged 7–8 weeks were randomly allocated to treatment with ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) in drinking water or drinking water alone for 1 week. Primary type II pneumocytes were isolated from lungs by combining mechanical and enzymatic digestion using digestion mix containing 2 mg/mL collagenase II (Worthington Biochemical Corp., Lakewood, NJ), 1.2 units/mL Dispase I (MilliporeSigma, Oakville, Ontario, Canada), and 5 units/mL DNase 1 (MilliporeSigma) at 37°C with gentle shaking for 45–60 min. Cells were filtered using a 40-μm filter and washed with PBS before incubating with epithelial cell adhesion molecule (#130-117-751; Miltenyi Biotec, Somerville, MA) and surfactant protein C (#bs-10378R-Biotin; Bioss Antibodies Inc., Woburn, MA) colabeled CELLection Dynabeads (#11533D; Thermo Fisher Scientific, Waltham, MA).

To confirm enrichment of lung primary cells for type II pneumocytes, we compared expression levels of the type II pneumocyte marker Sftpc (encoding surfactant protein C) between primary cells isolated from mouse lungs and a control primary cell population not expected to express Sftpc (i.e., primary kidney fibroblasts). To isolate primary kidney fibroblasts, male C57BL/6N mice (Charles River Laboratories) aged 8–10 weeks underwent unilateral ureteral obstruction surgery. In brief, under 2% isoflurane anesthesia, an incision was made in the left flank, and two 5-0 silk sutures were used to occlude the left ureter just distal to its origin. After 7 days, kidneys were harvested and fibroblasts isolated on the basis of a method adapted from that performed previously in mouse hearts (23), using digestion mix containing 2 mg/mL collagenase II (Worthington Biochemical) and 5 units/mL DNase 1 (MilliporeSigma) at 37°C with gentle shaking for 60–90 min. Cells were serially filtered using 70-μm and 40-μm filters and washed with PBS before plating for 1 h at 37°C and 5% CO2 in DMEM containing 10% FBS, L-glutamine, and 1% penicillin/streptomycin. Adherent cells were washed thoroughly with PBS before RNA isolation.

Study 3

Male C57BL/6N mice (Charles River Laboratories) aged 7–8 weeks were fed a high-fat diet (HFD) (45% kcal fat, 35% kcal carbohydrate, and 0.05% w/w cholesterol; Research Diets Inc., New Brunswick, NJ). After 15 weeks, mice received a single intraperitoneal injection of streptozotocin (STZ) (90 mg/kg in 0.1 mol/L sodium citrate, pH 4.5) following a 4-h fast. Diabetes (blood glucose ≥12 mmol/L) was confirmed 2 weeks after STZ injection by blood glucose testing (OneTouch UltraMini; LifeScan Canada Ltd., Burnaby, British Columbia, Canada). Mice were maintained on an HFD for a further 21 weeks. After 19 weeks, mice were treated with either ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) in drinking water or drinking water alone for the final 2 weeks of the study. Male age-matched controls were fed standard chow throughout the study period. Urine albumin excretion was determined using Albuwell M ELISA (Ethos Biosciences, Newtown Square, PA) after 24-h metabolic caging. Plasma cholesterol was measured using Cholesterol Quantitation Kit (MAK043; MilliporeSigma), and plasma triglycerides were measured using Triglyceride Colorimetric Assay Kit (#10010303; Cayman Chemical). For invasive blood pressure monitoring, mice were anesthetized, intubated, and artificially ventilated (1–2% isoflurane, tidal volume 300–350 μL, O2 flow rate 2 L/min, 180–200 breaths/min). A pressure-volume catheter (Millar Mikro-Tip, 1.4F; AD Instruments, Colorado Springs, CO) was inserted and advanced into the ascending aorta for monitoring of aortic pressure (24). Data were acquired and analyzed using LabChart Pro software (AD Instruments). All experimental procedures adhered to the guidelines of the Canadian Council of Animal Care and were approved by the St. Michael’s Hospital Animal Care Committee.

In Situ Hybridization

In situ hybridization for Ace2 and Tmprss2 was performed with RNAscope (Advanced Cell Diagnostics, Hayward, CA) according to the manufacturer’s instructions and using custom software as previously described (25), with probesets specific for Ace2 (#417081) and Tmprss2 (#496721); custom-designed sense probes for Ace2 (#894471) and Tmprss2 (#894481); and positive control probeset specific for Polr2a (#312471) and negative control probeset for DapB (#310043). Hybridization signals were detected using Fast Red, and RNA staining was identified as red puncta on light microscopy.

Immunoblotting

Immunoblotting of mouse lung and kidney homogenates was performed with the following antibodies: ACE2 1:1,000 (ab15348; Abcam, Cambridge, MA), TMPRSS2 1:1,000 (EPR3861, ab92323; Abcam), GAPDH 1:1,000 (#2118; Cell Signaling Technology, Danvers, MA), and β-actin 1:10,000 (A1978; MilliporeSigma). Densitometry was performed using ImageJ version 1.39 software (National Institutes of Health, Bethesda, MD). To determine the specificity of the ACE2 antibody, two nitrocellulose membranes loaded with identical samples were probed simultaneously. One membrane was incubated with 1:1,000 ab15348 anti-ACE2 antibody (10 μg in 10 mL 5% BSA prepared in Tris-buffered saline with Tween), and the other was probed with the same antibody at the same dilution preincubated with a 10-fold excess of the ACE2 immunizing peptide (CKGENNPGFQNTDDVQTSF; Bio Basic Inc., Markham, Ontario, Canada) for 5 h at 4°C and 2 h at 37°C.

Real-time Quantitative RT-PCR

RNA was isolated from snap frozen lung or kidney tissue or from isolated type II pneumocytes or kidney fibroblasts using TRIzol Reagent (Thermo Fisher Scientific), and RNA was reverse transcribed using a high-capacity cDNA reverse transcription kit (Thermo Fisher Scientific). Primer sequences (Integrated DNA Technologies, Coralville, IA) were as follows: Ace2 forward 5′-TGATGAATCAGGGCTGGGATG-3′, reverse 5′-ATTCTGAAGTCTCCGTGTCCC-3′; Tmprss2 forward 5′-GAGAACCGTTGTGTTCGTCTC-3′, reverse 5′-GCTCTGGTCTGGTATCCCTTG-3′; Rpl13a forward 5′-GCTCTCAAGGTTGTTCGGCTGA-3′, reverse 5′-AGATCTGCTTCTTCTTCCGATA-3′; Sftpc forward 5′-CGTTGTCGTGGTGATTG-3, reverse 5′-GTCATACACAACGATGCC-3′; and Gapdh forward 5′-AGACGGCCGCATCTTCTT-3′, reverse 5′-TTCACACCGACCTTCACCAT-3′. SYBR green–based quantitative RT-PCR (qRT-PCR) was performed on a QuantStudio 7 Flex Real-Time PCR System (Thermo Fisher Scientific). Data analysis was performed using Applied Biosystems Comparative CT method.

Glomerulosclerosis Index

Glomerulosclerosis was semiquantitatively evaluated from ∼50 glomeruli on periodic acid Schiff–stained kidney sections from each mouse, as previously described (26).

Measurement of Endogenous Angiotensin Metabolites and ACE2 Activity in Mouse Lung Tissue

Angiotensin metabolites [Ang I (1–10), Ang II, Ang III (2–8), Ang IV (3–8), Ang 1–7, Ang 1–5] and ACE2 activity were quantified in mouse lung tissue using liquid chromatography–tandem mass spectrometry (LC-MS/MS) (Attoquant Diagnostics, Vienna, Austria) (Supplementary Material).

Statistics

Data are expressed as mean ± SD. Statistical significance was determined by one-way ANOVA with a Fisher least significant difference posttest, Kruskal-Wallis test with Dunn posttest, or two-tailed Student t test, as indicated. Statistical analyses were performed using GraphPad Prism 8 for macOS (GraphPad Software Inc., San Diego, CA). P < 0.05 was considered statistically significant.

Data and Resource Availability

The data sets generated and/or analyzed during the current study are available from the corresponding author upon reasonable request.

Site-Specific Expression Patterns of Ace2 and Tmprss2 Differ From Each Other in Mouse Lungs and Kidneys

We began by comparing the expression patterns of Ace2 and Tmprss2 in the lungs and kidneys of normal male mice (C57BL/6N mice aged ∼10 weeks fed standard chow and drinking water). Using RNAscope in situ hybridization, we observed a predominant bronchiolar pattern of expression of Ace2 in mouse lungs, with occasional staining for RNA transcript in scattered alveolar cells (Fig. 1A). In contrast, Tmprss2 was more diffuse in its distribution, being equally present in both the bronchioles and the alveoli (Fig. 1A). In the kidney cortex, Ace2 transcript was observed primarily within the kidney tubules, with greater probe labeling in the proximal tubules than in the distal tubules and cortical collecting ducts and only occasional transcripts present in glomerular cells (Fig. 1B). Tmprss2 was also present in both the proximal tubules and the distal tubules and cortical collecting ducts of the kidney cortex but was expressed primarily within the cells of the distal nephron, with, again, sparse transcripts present within the glomeruli (Fig. 1B). Notably, Tmprss2 riboprobe binding was especially prominent within the transitional epithelium lining the renal papilla (Fig. 1B). Because acute myocardial injury may also occur in severe COVID-19 (27), we also took the opportunity to probe for Ace2 and Tmprss2 in mouse hearts. However, both transcripts were barely detectable in mouse cardiac tissue in contrast to either the lungs or the kidneys (Fig. 1C and D).

Figure 1

Site-specific localization of Ace2 and Tmprss2 in mouse lungs, kidneys, and heart using RNAscope in situ hybridization. A: Ace2 or Tmprss2 in mouse lung (left magnification ×100 [scale bars = 100 μm], right magnification ×400 [scale bars = 50 μm]). B: Ace2 or Tmprss2 in mouse kidney (left magnification ×100 [scale bars = 100 μm], right magnification ×400 [scale bars = 50 μm]). In the kidney sections, Ace2 transcripts are predominantly seen within the proximal tubule cells of the kidney cortex, which can be recognized by their taller appearance, eosinophilic cytoplasm, and brush border. Tmprss2 transcripts are most abundant in the distal convoluted tubules (flatter, paler cells) and cortical collecting ducts as well as in the transitional epithelium lining the renal papilla (evident in the top right-hand corner of the ×100 magnification image). C: Ace2 or Tmprss2 in mouse heart (left magnification ×100 [scale bars = 100 μm], right magnification ×400 [scale bars = 50 μm]). D: Sense probes for Ace2 and Tmprss2 and positive (Polr2a) and negative (bacterial transcript DapB) controls in mouse lung (magnification ×400 [scale bars = 50 μm]).

Figure 1

Site-specific localization of Ace2 and Tmprss2 in mouse lungs, kidneys, and heart using RNAscope in situ hybridization. A: Ace2 or Tmprss2 in mouse lung (left magnification ×100 [scale bars = 100 μm], right magnification ×400 [scale bars = 50 μm]). B: Ace2 or Tmprss2 in mouse kidney (left magnification ×100 [scale bars = 100 μm], right magnification ×400 [scale bars = 50 μm]). In the kidney sections, Ace2 transcripts are predominantly seen within the proximal tubule cells of the kidney cortex, which can be recognized by their taller appearance, eosinophilic cytoplasm, and brush border. Tmprss2 transcripts are most abundant in the distal convoluted tubules (flatter, paler cells) and cortical collecting ducts as well as in the transitional epithelium lining the renal papilla (evident in the top right-hand corner of the ×100 magnification image). C: Ace2 or Tmprss2 in mouse heart (left magnification ×100 [scale bars = 100 μm], right magnification ×400 [scale bars = 50 μm]). D: Sense probes for Ace2 and Tmprss2 and positive (Polr2a) and negative (bacterial transcript DapB) controls in mouse lung (magnification ×400 [scale bars = 50 μm]).

Neither ACE Inhibition nor AT1 Receptor Blockade Affect ACE2 or TMPRSS2 Expression in the Lungs of Young, Otherwise Healthy Mice

We examined ACE2 protein levels in mouse lungs and kidneys using a rabbit polyclonal ACE2 antibody (ab15348). To test the specificity of the ACE2 antibody, we preincubated the antibody with chemically synthesized immunizing peptide, affirming previous observations (15) that ACE2 protein levels are notably higher in the kidneys than the lungs (Fig. 2). We treated male C57BL/6N mice with standard drinking water or drinking water containing the ACE inhibitor ramipril or the ARB telmisartan. Body weight did not differ between treatment groups (Fig. 3A). Either ramipril or telmisartan significantly lowered SBP, with the magnitude of SBP lowering being higher with the 10 mg/kg/day dose of ramipril than the 3 mg/kg/day dose of telmisartan (Fig. 3B). By immunoblotting (Fig. 3C and D) and qRT-PCR (Fig. 3E and F), we observed that neither ramipril nor telmisartan treatment affected either lung ACE2 or TMPRSS2 expression. In mouse kidneys, we observed a small, but statistically significant increase in ACE2 protein levels following ramipril treatment (Fig. 3G), without change in TMPRSS2 (Fig. 3H). Transcript levels for either Ace2 or Tmprss2 did not differ between the treatment groups (Fig. 3I and J). Of note, ACE2 protein appeared as a doublet upon immunoblotting of mouse lung homogenates but not mouse kidney homogenates, as has been reported previously under some other experimental conditions (2830).

Figure 2

Specificity of the ACE2 antibody (ab15348). Western blotting of kidney and lung samples from male C57BL/6N mice (aged ∼9 weeks) and lung samples from aged, DM-HFD mice (male C57BL/6 mice fed an HFD for a total of 36 weeks and receiving an intraperitoneal injection of STZ after 15 weeks of HFD). Shown are Western blotting with the polyclonal ACE2 antibody alone (left) and Western blotting of the same samples with the polyclonal ACE2 antibody preincubated with immunizing peptide (CKGENNPGFQNTDDVQTSF) (right).

Figure 2

Specificity of the ACE2 antibody (ab15348). Western blotting of kidney and lung samples from male C57BL/6N mice (aged ∼9 weeks) and lung samples from aged, DM-HFD mice (male C57BL/6 mice fed an HFD for a total of 36 weeks and receiving an intraperitoneal injection of STZ after 15 weeks of HFD). Shown are Western blotting with the polyclonal ACE2 antibody alone (left) and Western blotting of the same samples with the polyclonal ACE2 antibody preincubated with immunizing peptide (CKGENNPGFQNTDDVQTSF) (right).

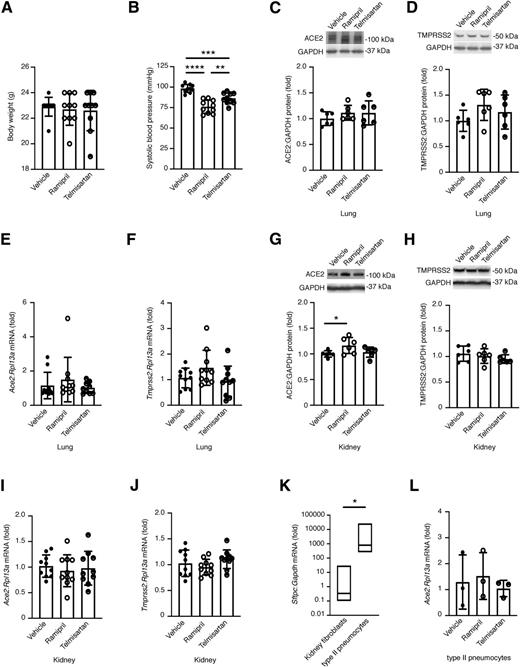

Figure 3

RAS blockade has minimal effect on lung and kidney ACE2 and TMPRSS2 in young otherwise healthy mice. Male C57BL/6N mice aged 7–8 weeks were randomly allocated to receive standard drinking water or the ACE inhibitor ramipril (10 mg/kg/day) or the AT1 receptor blocker (ARB) telmisartan (3 mg/kg/day) for 1 week. A: Body weight (n = 10/group). B: SBP (n = 10/group). C and D: Immunoblotting for ACE2 and TMPRSS2 in mouse lungs (n = 6/group). E and F: qRT-PCR for Ace2 and Tmprss2 in mouse lungs (n = 10/group, except Ace2 in C57BL/6N + telmisartan where n = 9). G and H: Immunoblotting for ACE2 and TMPRSS2 in mouse kidneys (n = 6/group). I and J: qRT-PCR for Ace2 and Tmprss2 in mouse kidneys (n = 10/group). K: qRT-PCR for the type II pneumocyte marker Sftpc in primary mouse lung type II pneumocytes compared with a control cell not expected to express Sftpc (kidney fibroblasts) (n = 3/group). L: qRT-PCR for Ace2 in primary type II pneumocytes (n = 3/group). Data are mean ± SD, except in panel K, which shows median, maximum, and minimum. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001 by one-way ANOVA followed by Fisher least significant difference post hoc test for more than two groups or two-tailed Student t test for two-group comparison.

Figure 3

RAS blockade has minimal effect on lung and kidney ACE2 and TMPRSS2 in young otherwise healthy mice. Male C57BL/6N mice aged 7–8 weeks were randomly allocated to receive standard drinking water or the ACE inhibitor ramipril (10 mg/kg/day) or the AT1 receptor blocker (ARB) telmisartan (3 mg/kg/day) for 1 week. A: Body weight (n = 10/group). B: SBP (n = 10/group). C and D: Immunoblotting for ACE2 and TMPRSS2 in mouse lungs (n = 6/group). E and F: qRT-PCR for Ace2 and Tmprss2 in mouse lungs (n = 10/group, except Ace2 in C57BL/6N + telmisartan where n = 9). G and H: Immunoblotting for ACE2 and TMPRSS2 in mouse kidneys (n = 6/group). I and J: qRT-PCR for Ace2 and Tmprss2 in mouse kidneys (n = 10/group). K: qRT-PCR for the type II pneumocyte marker Sftpc in primary mouse lung type II pneumocytes compared with a control cell not expected to express Sftpc (kidney fibroblasts) (n = 3/group). L: qRT-PCR for Ace2 in primary type II pneumocytes (n = 3/group). Data are mean ± SD, except in panel K, which shows median, maximum, and minimum. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001 by one-way ANOVA followed by Fisher least significant difference post hoc test for more than two groups or two-tailed Student t test for two-group comparison.

Given that Ace2 is primarily expressed in the bronchioles of mouse lungs, we next explored the possibility that Ace2 expression could be changed by RAS blockade specifically in alveolar cells without affecting overall transcript levels in lung homogenates. We chose to study type II pneumocytes because these cells have been shown to contain SARS-CoV-2 virus particles in infected humans (31), and we isolated primary type II pneumocytes using Dynabeads colabeled with antibodies directed against epithelial cell adhesion molecule and surfactant protein C. Confirming enrichment for isolated type II pneumocytes, we observed an ∼1,000-fold enrichment for the gene encoding surfactant protein C (Sftpc) in the primary cells compared with unrelated control cells (primary cultured kidney fibroblasts) (Fig. 3K). As we had seen in whole-lung tissue, there was no change in Ace2 mRNA levels in type II pneumocytes of mice treated with either ramipril or telmisartan (Fig. 3L).

Generation of RAS Blocker–Treated, Aged, Diabetic HFD-Fed Mice

Next, we queried whether either ACE2 or TMPRSS2 mRNA or protein levels are affected by diabetic comorbidity either alone or with RAS blockade. We did this by studying ramipril- or telmisartan-treated, aged, diabetic HFD-fed (DM-HFD) mice, along with age-matched controls (Fig. 4A). Among the DM-HFD mice, body weight declined after STZ administration (mean ± SD: before STZ 42.2 ± 3.2 g, 19 weeks after STZ 34.5 ± 9.6 g [n = 20], P < 0.01 by Student t test) such that there was no overall difference in body weight between age-matched controls and DM-HFD mice at the end of the study period (Fig. 4B). As expected, blood glucose (Fig. 4C and D) and plasma cholesterol (Fig. 4E) were higher in DM-HFD mice than in age-matched controls, whereas plasma triglycerides did not differ between groups (Fig. 4F). SBP was reduced equivalently with ramipril and telmisartan in DM-HFD mice after 2 weeks of treatment (Fig. 4G), and consistent with the short duration of treatment, whereas urine albumin excretion (Fig. 4H) and glomerulosclerosis index (Fig. 4I) were increased in DM-HFD mice, they were unaffected by either ramipril or telmisartan (Fig. 4H and I).

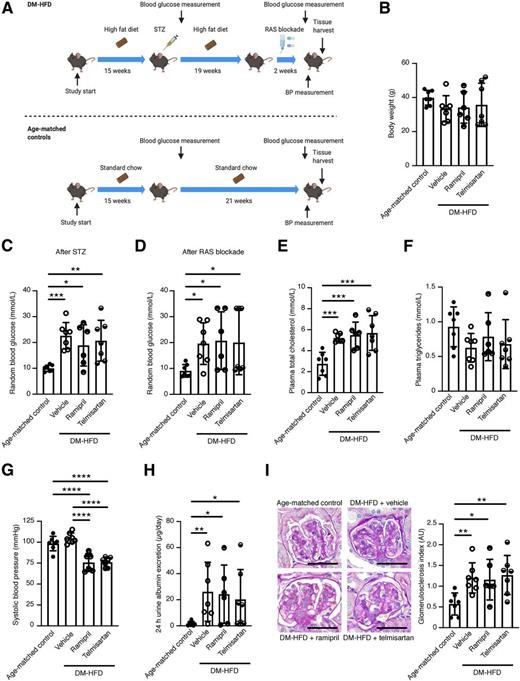

Figure 4

Phenotypic characterization of male aged, DM-HFD mice. A: Timeline for DM-HFD mouse generation. Mice were fed an HFD for 15 weeks, received an intraperitoneal injection of STZ (90 mg/kg), and were maintained on an HFD for a further 19 weeks before receiving ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) in drinking water or drinking water alone for 2 further weeks. Male age-matched controls were given standard chow and standard drinking water throughout the study period and did not receive STZ. Age-matched controls, n = 7; DM-HFD + vehicle, n = 7; DM-HFD + ramipril, n = 6; and DM-HFD + telmisartan, n = 7. B: Body weight. C: Blood glucose 2 weeks after STZ administration. D: Blood glucose 2 weeks after RAS blockade. EH: Plasma cholesterol, plasma triglycerides, SBP, and urine albumin excretion at the end of the study period. I: Representative periodic acid Schiff–stained kidney sections (magnification ×400 [scale bars = 50 μm]) and semiquantitative glomerulosclerosis index. Data are mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001 by one-way ANOVA followed by Fisher least significant difference post hoc test (C, E, G, and I) or Kruskal-Wallis test with Dunn posttest (D and H). AU, arbitrary unit; BP, blood pressure.

Figure 4

Phenotypic characterization of male aged, DM-HFD mice. A: Timeline for DM-HFD mouse generation. Mice were fed an HFD for 15 weeks, received an intraperitoneal injection of STZ (90 mg/kg), and were maintained on an HFD for a further 19 weeks before receiving ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) in drinking water or drinking water alone for 2 further weeks. Male age-matched controls were given standard chow and standard drinking water throughout the study period and did not receive STZ. Age-matched controls, n = 7; DM-HFD + vehicle, n = 7; DM-HFD + ramipril, n = 6; and DM-HFD + telmisartan, n = 7. B: Body weight. C: Blood glucose 2 weeks after STZ administration. D: Blood glucose 2 weeks after RAS blockade. EH: Plasma cholesterol, plasma triglycerides, SBP, and urine albumin excretion at the end of the study period. I: Representative periodic acid Schiff–stained kidney sections (magnification ×400 [scale bars = 50 μm]) and semiquantitative glomerulosclerosis index. Data are mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001 by one-way ANOVA followed by Fisher least significant difference post hoc test (C, E, G, and I) or Kruskal-Wallis test with Dunn posttest (D and H). AU, arbitrary unit; BP, blood pressure.

Lung ACE2 and TMPRSS2 Protein Levels Are Increased in DM-HFD Mice and Unaffected by RAS Blockade, and TMPRSS2 Is Upregulated in the Kidneys of Telmisartan-Treated DM-HFD Mice

By immunoblotting, we observed that both ACE2 and TMPRSS2 protein levels were higher in the lungs of DM-HFD mice than in age-matched controls (Fig. 5A and B), whereas mRNA levels were unaltered across the four treatment groups (Fig. 5C and D). As we had observed in young C57BL/6N mice, neither ramipril nor telmisartan affected ACE2 or TMPRSS2 expression in the lungs of DM-HFD mice (Fig. 5A–D). In the kidneys, ACE2 protein levels (but not mRNA levels) were similarly higher in DM-HFD mice than age-matched controls (Fig. 5E and G). In contrast, TMPRSS2 protein (Fig. 5F) and mRNA (Fig. 5H) levels tended to be higher in RAS blocker–treated DM-HFD mice and were significantly increased with telmisartan treatment, without change in transcript distribution as determined by in situ hybridization (Fig. 6). On review of Tmprss2 in situ hybridization, however, we also noted that distal nephron RNAscope puncta appeared sparser in age-matched controls (Fig. 6) than we had earlier seen in young healthy male mice (Fig. 1). This prompted us to quantitatively compare qRT-PCR–derived mRNA levels between young male C57BL/6N mice and nondiabetic aged controls, and in doing so, we observed a significant diminution in both Ace2 and Tmprss2 in the kidneys but not in the lungs of aged mice (Supplementary Fig. 1).

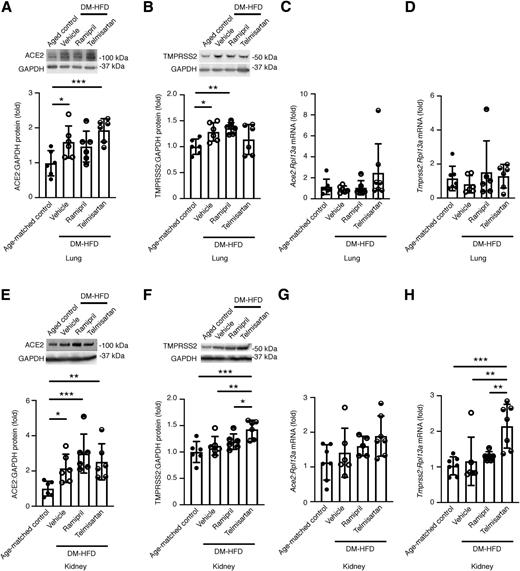

Figure 5

Lung and kidney ACE2 are upregulated in male aged, DM-HFD mice, and kidney TMPRSS2 expression is increased in telmisartan-treated DM-HFD mice. Ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) were dosed to aged, DM-HFD mice for 2 weeks. A and B: Immunoblotting for ACE2 and TMPRSS2 in mouse lungs (n = 6/group). C: qRT-PCR for Ace2 in mouse lungs. Age-matched controls, n = 7; DM-HFD + vehicle, n = 6; DM-HFD + ramipril, n = 6; and DM-HFD + telmisartan, n = 7. D: qRT-PCR for Tmprss2 in mouse lungs. Age-matched controls, n = 7; DM-HFD + vehicle, n = 6; DM-HFD + ramipril, n = 6; DM-HFD + telmisartan, n = 6. E and F: Immunoblotting for ACE2 and TMPRSS2 in mouse kidneys (n = 6/group). G: qRT-PCR for Ace2 in mouse kidneys. Age-matched controls, n = 7; DM-HFD + vehicle, n = 6; DM-HFD + ramipril, n = 5; and DM-HFD + telmisartan, n = 7. H: qRT-PCR for Tmprss2 in mouse kidneys. Age-matched controls, n = 7; DM-HFD + vehicle, n = 6; DM-HFD + ramipril, n = 6; and DM-HFD + telmisartan, n = 7. Data are mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001 by one-way ANOVA followed by Fisher least significant difference post hoc test.

Figure 5

Lung and kidney ACE2 are upregulated in male aged, DM-HFD mice, and kidney TMPRSS2 expression is increased in telmisartan-treated DM-HFD mice. Ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) were dosed to aged, DM-HFD mice for 2 weeks. A and B: Immunoblotting for ACE2 and TMPRSS2 in mouse lungs (n = 6/group). C: qRT-PCR for Ace2 in mouse lungs. Age-matched controls, n = 7; DM-HFD + vehicle, n = 6; DM-HFD + ramipril, n = 6; and DM-HFD + telmisartan, n = 7. D: qRT-PCR for Tmprss2 in mouse lungs. Age-matched controls, n = 7; DM-HFD + vehicle, n = 6; DM-HFD + ramipril, n = 6; DM-HFD + telmisartan, n = 6. E and F: Immunoblotting for ACE2 and TMPRSS2 in mouse kidneys (n = 6/group). G: qRT-PCR for Ace2 in mouse kidneys. Age-matched controls, n = 7; DM-HFD + vehicle, n = 6; DM-HFD + ramipril, n = 5; and DM-HFD + telmisartan, n = 7. H: qRT-PCR for Tmprss2 in mouse kidneys. Age-matched controls, n = 7; DM-HFD + vehicle, n = 6; DM-HFD + ramipril, n = 6; and DM-HFD + telmisartan, n = 7. Data are mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001 by one-way ANOVA followed by Fisher least significant difference post hoc test.

Figure 6

Predominant expression of Tmprss2 in distal nephron segments in the kidney cortices of RAS blocker–treated, aged, DM-HFD mice. Ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) were dosed to aged DM-HFD mice for 2 weeks. RNAscope in situ hybridization for Tmprss2 (top magnification ×100 [scale bars = 100 μm], bottom magnification ×400 [scale bars = 50 μm]). The arrows label some of the kidney tubules in each section that contain red RNAscope puncta in the lower magnification (×100) images. The zoomed-in images are enlargements of the boxed areas in the higher magnification (×400) images.

Figure 6

Predominant expression of Tmprss2 in distal nephron segments in the kidney cortices of RAS blocker–treated, aged, DM-HFD mice. Ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) were dosed to aged DM-HFD mice for 2 weeks. RNAscope in situ hybridization for Tmprss2 (top magnification ×100 [scale bars = 100 μm], bottom magnification ×400 [scale bars = 50 μm]). The arrows label some of the kidney tubules in each section that contain red RNAscope puncta in the lower magnification (×100) images. The zoomed-in images are enlargements of the boxed areas in the higher magnification (×400) images.

Lung ACE2 Activity Is Increased With Age and Diabetic Comorbidity but Not With RAS Blockade

Finally, given that the lungs are the primary sites of SARS-CoV-2 infection and given that we had observed an increase in ACE2 protein in the lungs of DM-HFD mice that was unaffected by RAS blockade, we decided to use LC-MS/MS to further explore the possibility that lung ACE2 activity is upregulated in the setting of diabetic comorbidity. Because adverse COVID-19 outcomes are more common in males than females (32), in aged individuals (3), and in people with diabetes (33), we elected to perform the analysis across six mouse groups chosen to mimic these clinical scenarios: young (9 weeks of age) male C57BL/6N mice, young female C57BL/6N mice, aged mice (44 weeks of age), aged DM-HFD mice, and aged DM-HFD mice treated with ramipril or telmisartan. Table 1 shows the levels of six RAS metabolites [Ang II (1–8), Ang 1–7, Ang I (1–10), Ang III (2–8), Ang 1–5, and Ang IV (3–8)] reported individually for each mouse in the study. Ang II was the predominant angiotensin in mouse lungs, with quantifiable levels of Ang III (2–8) in most samples that closely correlated with Ang II levels (r2 = 0.93, P < 0.0001 by simple linear regression).

Table 1

RAS metabolites in the lungs of young (9 weeks of age) male and female C57BL/6N mice, aged mice (44 weeks of age), and male aged, DM-HFD mice treated with vehicle or ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) for 2 weeks

Ang II (1–8) (fmol/g)Ang 1–7 (fmol/g)Ang I (1–10) (fmol/g)Ang III (2–8) (fmol/g)Ang 1–5 (fmol/g)Ang IV (3–8) (fmol/g)
Male C57BL/6N
 Mouse 1 32.1 <8 9.6 7.9 <3 <2
 Mouse 2 24.2 <8 <4 5.5 <3 <2
 Mouse 3 30.4 <8 <4 4.7 <3 2.4
 Mouse 4 16.4 <8 <4 5.4 3.2 <2
 Mouse 5 25.2 <8 <4 7.9 <3 <2
 Mean ± SD 25.7 ± 6.7 – – – – –
Female C57BL/6N
 Mouse 6 13.3 <8 <4 <4 <3 <2
 Mouse 7 27.9 <8 <4 12.7 4.2 2.7
 Mouse 8 28.9 <8 <4 12.1 <3 <2
 Mouse 9 17.8 <8 <4 7.4 <3 <2
 Mouse 10 18.4 <8 <4 4.4 <3 <2
 Mean ± SD 21.3 ± 6.8 – – – – –
Aged control
 Mouse 11 73.5 <8 <4 21.4 <3 3.3
 Mouse 12 62.8 <8 <4 18.3 <3 <2
 Mouse 13 142.6 <8 7.9 40.3 7.1 6.4
 Mouse 14 31.9 <8 <4 13.5 <3 <2
 Mouse 15 64.6 <8 <4 17.2 <3 <2
 Mean ± SD 75.1 ± 40.9a,b – – – – –
DM-HFD + vehicle
 Mouse 16 162.5 <8 10.5 42.9 13.3 9.2
 Mouse 17 22.5 <8 <4 6.3 <3 2.1
 Mouse 18 73.1 <8 4.5 20.9 6.3 <2
 Mouse 19 77.5 <8 9.9 15.4 8.5 2.3
 Mouse 20 17.8 <8 <4 <4 3.8 <2
 Mean ± SD 70.7 ± 58.3a,b – – – – –
DM-HFD + ramipril
 Mouse 21 23.9 <8 26.7 5.5 11.1 <2
 Mouse 22 12.3 <8 16.7 <4 <3 <2
 Mouse 23 25.7 <8 45.3 <4 <3 <2
 Mouse 24 2.2 <8 <4 <4 <3 <2
 Mouse 25 14.3 <8 <4 <4 <3 <2
 Mean ± SD 15.7 ± 9.6c,d – – – – –
DM-HFD + telmisartan
 Mouse 26 8.4 <8 <4 <4 <3 <2
 Mouse 27 5.7 <8 <4 <4 <3 <2
 Mouse 28 36.6 <8 <4 <4 <3 4.0
 Mouse 29 24.6 <8 <4 <4 <3 2.2
 Mouse 30 103.1 18.6 30.9 23.5 15.8 8.0
 Mean ± SD 35.7 ± 39.7 – – – – –
Ang II (1–8) (fmol/g)Ang 1–7 (fmol/g)Ang I (1–10) (fmol/g)Ang III (2–8) (fmol/g)Ang 1–5 (fmol/g)Ang IV (3–8) (fmol/g)
Male C57BL/6N
 Mouse 1 32.1 <8 9.6 7.9 <3 <2
 Mouse 2 24.2 <8 <4 5.5 <3 <2
 Mouse 3 30.4 <8 <4 4.7 <3 2.4
 Mouse 4 16.4 <8 <4 5.4 3.2 <2
 Mouse 5 25.2 <8 <4 7.9 <3 <2
 Mean ± SD 25.7 ± 6.7 – – – – –
Female C57BL/6N
 Mouse 6 13.3 <8 <4 <4 <3 <2
 Mouse 7 27.9 <8 <4 12.7 4.2 2.7
 Mouse 8 28.9 <8 <4 12.1 <3 <2
 Mouse 9 17.8 <8 <4 7.4 <3 <2
 Mouse 10 18.4 <8 <4 4.4 <3 <2
 Mean ± SD 21.3 ± 6.8 – – – – –
Aged control
 Mouse 11 73.5 <8 <4 21.4 <3 3.3
 Mouse 12 62.8 <8 <4 18.3 <3 <2
 Mouse 13 142.6 <8 7.9 40.3 7.1 6.4
 Mouse 14 31.9 <8 <4 13.5 <3 <2
 Mouse 15 64.6 <8 <4 17.2 <3 <2
 Mean ± SD 75.1 ± 40.9a,b – – – – –
DM-HFD + vehicle
 Mouse 16 162.5 <8 10.5 42.9 13.3 9.2
 Mouse 17 22.5 <8 <4 6.3 <3 2.1
 Mouse 18 73.1 <8 4.5 20.9 6.3 <2
 Mouse 19 77.5 <8 9.9 15.4 8.5 2.3
 Mouse 20 17.8 <8 <4 <4 3.8 <2
 Mean ± SD 70.7 ± 58.3a,b – – – – –
DM-HFD + ramipril
 Mouse 21 23.9 <8 26.7 5.5 11.1 <2
 Mouse 22 12.3 <8 16.7 <4 <3 <2
 Mouse 23 25.7 <8 45.3 <4 <3 <2
 Mouse 24 2.2 <8 <4 <4 <3 <2
 Mouse 25 14.3 <8 <4 <4 <3 <2
 Mean ± SD 15.7 ± 9.6c,d – – – – –
DM-HFD + telmisartan
 Mouse 26 8.4 <8 <4 <4 <3 <2
 Mouse 27 5.7 <8 <4 <4 <3 <2
 Mouse 28 36.6 <8 <4 <4 <3 4.0
 Mouse 29 24.6 <8 <4 <4 <3 2.2
 Mouse 30 103.1 18.6 30.9 23.5 15.8 8.0
 Mean ± SD 35.7 ± 39.7 – – – – –
a

P < 0.05 vs. male C57BL/6N.

b

P < 0.05 vs. female C57BL/6N.

c

P < 0.05 vs. aged control.

d

P < 0.05 vs. DM-HFD + vehicle by one-way ANOVA followed by Fisher least significant difference post hoc test.

To measure ACE2 activity in mouse lungs, samples of homogenized tissue were spiked with Ang II before measurement of Ang 1–7 levels in the presence and absence of the ACE2 inhibitor MLN-4760, with the difference between the two samples being considered specific for ACE2 activity (Fig. 7A). There was no difference in lung ACE2 activity between male and female mice. In contrast, there was a stepwise increase in lung ACE2 activity in aged control mice and aged DM-HFD mice (DM-HFD vs. aged control, P = 0.0632), with lung ACE2 activity being significantly higher in DM-HFD mice than young controls (Fig. 7B). Neither ramipril nor telmisartan affected lung ACE2 activity in DM-HFD mice (Fig. 7B).

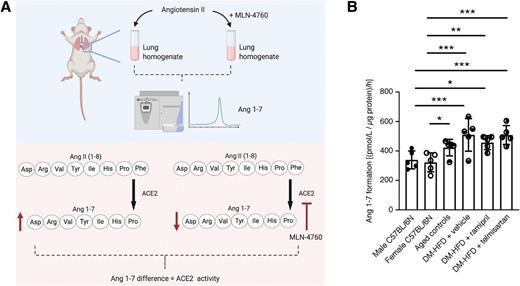

Figure 7

Lung ACE2 activity is increased in aged, DM-HFD mice and is unaffected by RAS blockade. Mice were fed an HFD for 15 weeks, received an intraperitoneal injection of STZ (90 mg/kg), and were maintained on an HFD for a further 19 weeks before receiving ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) in drinking water or drinking water alone for 2 further weeks. Male age-matched controls were given standard chow and standard drinking water throughout the study period and did not receive STZ. Male C57BL/6N and female C57BL/6N mice were 9 weeks of age and had received standard chow and standard drinking water. A: Schematic illustrating the method for determination of lung ACE2 activity by LC-MS/MS. B: Lung ACE2 activity (n = 5/group). Data are mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001 by one-way ANOVA followed by Fisher least significant difference post hoc test.

Figure 7

Lung ACE2 activity is increased in aged, DM-HFD mice and is unaffected by RAS blockade. Mice were fed an HFD for 15 weeks, received an intraperitoneal injection of STZ (90 mg/kg), and were maintained on an HFD for a further 19 weeks before receiving ramipril (10 mg/kg/day) or telmisartan (3 mg/kg/day) in drinking water or drinking water alone for 2 further weeks. Male age-matched controls were given standard chow and standard drinking water throughout the study period and did not receive STZ. Male C57BL/6N and female C57BL/6N mice were 9 weeks of age and had received standard chow and standard drinking water. A: Schematic illustrating the method for determination of lung ACE2 activity by LC-MS/MS. B: Lung ACE2 activity (n = 5/group). Data are mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001 by one-way ANOVA followed by Fisher least significant difference post hoc test.

Herein, we report the results of a reverse translational survey examining some of the risk factors associated with adverse outcomes from COVID-19. Among the observations, two stand out as being of immediate translational importance. First, levels of two host proteins important for viral entry (i.e., ACE2, TMPRSS2) are upregulated in the lungs of diabetic mice that mimic host factors linked to severe COVID-19. Second, despite using multiple different experimental modalities, we were unable to detect any effect of RAS blockade on the levels of lung ACE2 or TMPRSS2 in mice with comorbid diabetes. The findings provide biological insights into the causes of increased risk of severe COVID-19, and they provide biological reassurance for the continued use of RAS blockers in people with diabetes who remain at the same increased risk of noninfectious complications during the pandemic as they did before.

To address the question of whether lung or kidney ACE2 or TMPRSS2 may be altered in comorbid diabetes, we focused our experiments on the study of aged, HFD-fed mice with STZ-induced diabetes. We selected this model because questions have been raised over the ability of monogenic models of diabetes to mimic the complex multifactorial and progressive natural history of diabetes in humans (34). Furthermore, we initiated RAS blockade in aged, DM-HFD mice after a prolonged period of follow-up (42 weeks of age) to mimic the circumstances in which treatment may be initiated in patients with established comorbid diabetes. However, despite our efforts to mimic the human diabetes phenotype, it should be acknowledged that STZ is not a physiological means of diabetes induction. The findings should thus be considered alongside observations made in other mouse models, for instance, the recent description that RAS blockade does not affect lung or kidney ACE2 in healthy mice (17) or that kidney ACE2 protein levels are upregulated in db/db mice and in otherwise healthy mice 7 weeks after STZ administration (12). In the opinion of the authors, the most salient finding in the current study is the comparison of lung ACE2 activity derived by LC-MS/MS in the aged, DM-HFD mouse model. This experiment enabled several intrinsic comparisons: no difference in lung ACE2 activity between healthy young male and female mice, a stepwise increase with aging and diabetic comorbidity, no influence on this increase by either an ACE inhibitor (ramipril) or ARB (telmisartan), and no difference in lung ACE2 activity between ramipril and telmisartan.

The increase in lung ACE2 activity in aged, DM-HFD mice, without change in mRNA levels, is aligned with earlier assertions made in mouse kidneys (12) and recent observations made in lung tissue of humans with type 2 diabetes (35) that increased ACE2 protein or activity in diabetes is regulated at the posttranscriptional level. Indeed, a recent best research practices review article similarly emphasized the importance of the posttranscriptional regulation of ACE2 in determining its protein abundance (36). A number of factors influence the expression level of a protein beyond transcript abundance, including translation rates, translation rate modulation, modulation of protein half-life (including the ubiquitin-proteasome system or autophagy), protein synthesis delay and protein transport (37), and, in the case of ACE2, potentially microRNAs (38) and protein shedding (39).

In mouse lungs, ACE2 and TMPRSS2 expression patterns mirrored each other (being upregulated at the protein level with comorbid diabetes and being unaffected by RAS blockade), although their site-specific patterns of expression differed. We observed that Ace2 transcripts were primarily (albeit not exclusively) present in the bronchioles, whereas Tmprss2 expression was more diffuse. In the kidneys, we similarly observed a difference in Ace2 and Tmprss2 transcript distribution, Ace2 being primarily expressed in the proximal tubules and Tmprss2 being predominantly localized to the distal nephron. Single-cell RNA sequencing data of human kidney tissue have also revealed this disparity in the localization of ACE2 (predominantly proximal tubule) and TMPRSS2 (predominantly distal nephron) (40). These differences underscore that although ACE2 and TMPRSS2 are often considered together in the context of COVID-19 (18) and the two proteins have previously been reported to interact (30), they likely do not have a major teleological relationship. Indeed, knockout of Tmprss2 yields no discernible phenotype (41), and outside of virology, TMPRSS2 has primarily been linked to prostate cancer (42).

The significance of the transcriptional upregulation of TMPRSS2 in the kidneys of DM-HFD mice treated with RAS blockade, particularly telmisartan, is currently unclear. This is especially the case given the age-related decline in both Ace2 and Tmprss2 we observed in the kidneys of nondiabetic mice. On the one hand, Tmprss2 is primarily (although not exclusively) localized to the distal nephron (and transitional epithelium), and coronavirus-like particles have been detected in distal tubule cells from postmortem tissue of patients with COVID-19 (11). On the other hand, viral S protein cleavage may be achieved by several different host proteases other than TMPRSS2 (e.g., furin, trypsin, cathepsins, TMPRSS4, and human airway trypsin-like protease [43]). TMPRSS2 upregulation may represent a physiological response to local ion transport changes at the level of the distal tubule and cortical collecting duct induced by RAS blockade, and it may or may not influence SARS-CoV-2 viral entry and kidney outcomes in patients with COVID-19. Alternatively, the serine protease inhibitor camostat, which inhibits TMPRSS2 and is undergoing clinical trial as a treatment for COVID-19 (44), has historically shown itself to attenuate proteinuria in patients with diabetic kidney disease (45). In sum, we present these findings to inform knowledge given the urgency of the pandemic but counsel caution in their interpretation at the present time.

Our study has limitations. First, the patterns and changes in expression of ACE2 or TMPRSS2 may differ between mice and humans. In this regard, we identified prominent expression of both Ace2 and Tmprss2 in mouse bronchioles, whereas comparable in situ hybridization of human lungs has shown TMPRSS2 transcript in the bronchiolar epithelium with low (albeit detectable) levels of ACE2 in the bronchioles (46). In contrast, single-cell analyses in human lung tissue have produced variable results, describing ACE2 primarily in bronchial transitory secretory cells (47), bronchiolar basal cells, club cells and ciliated cells and type II pneumocytes (48), and type II pneumocytes and ciliated cells (49). Second, although we studied the effects of both an ACE inhibitor (ramipril) and an ARB (telmisartan), dosing of the two agents was based on previous publications that reported a significant reduction in SBP in mice (20,21) and was not designed to necessarily achieve equivalence. Third, we used LC-MS/MS to compare ACE2 activity between study groups, unearthing an increase in ACE2 activity in the lungs of aged, DM-HFD mice that was unaffected by RAS blockade. However, the relative contribution of ACE2 to lung Ang II metabolism in general may not be substantial. For instance, ACE2 activity in the current study was determined on the basis of Ang 1–7 formation in mouse lung tissue spiked with exogenous Ang II. Recently, it was reported that the major carboxypeptidase responsible for the formation of Ang 1–7 in mouse lungs is prolyl oligopeptidase, not ACE2 (15). However, this was accounted for in the assay we used by the inclusion of the prolyl oligopeptidase inhibitor Z-pro-prolinal. Along the same lines, when we measured RAS metabolites in mouse lungs by LC-MS/MS, we observed generally higher levels of Ang III (2–8) than Ang 1–7, suggesting an important role for aminopeptidase A in mouse lung Ang II metabolism, which cleaves Ang II to form Ang III (2–8). It also warrants reemphasis that, at least in mice, ACE2 protein is at best lowly expressed in lung tissue, certainly compared with the kidneys. Finally, some epidemiological studies have not found an association between RAS blockade and increased risk from COVID-19 (50). However, long-term RAS blockade has also been linked to increased risk of acute kidney injury among patients with severe COVID-19 (51). The present findings add biological context to these observations and extend them farther. We observed no difference in the effect on ACE2 expression or activity between an ACE inhibitor and an ARB despite the theoretically different mechanisms that this may occur and despite an upregulation in ACE2 that occurs with comorbid diabetes.

In summary, lung and kidney ACE2 is upregulated in diabetic mice that mimic some of the host factors associated with adverse COVID-19 outcomes. This upregulation is due to intrinsic characteristics associated with diabetic comorbidity and is not due to RAS blocker therapy.

S.N.B., H.K., and V.G.Y. contributed equally to this work.

This article contains supplementary material online at https://doi.org/10.2337/figshare.13342160.

This article is part of a special article collection available at https://diabetes.diabetesjournals.org/collection/diabetes-and-COVID19-articles.

Acknowledgments. The graphical abstract (in Supplementary Material) and Figs. 4A and 7A were created with BioRender.com.

Funding. H.K. is a recipient of a Kidney Foundation of Canada KRESCENT postdoctoral fellowship. V.G.Y. is a recipient of a Diabetes Canada postdoctoral fellowship. A.A. is a recipient of a Diabetes Canada Diabetes Investigator Award and holds the Keenan Chair in Medicine at St. Michael’s Hospital and University of Toronto. These studies were supported, in part, by grants from the Heart and Stroke Foundation of Canada (G-17-0018231), the Canadian Institutes of Health Research (PJT153284 and PJT166083), and the RDV Foundation.

Duality of Interest. These studies were supported, in part, by a grant from Boehringer Ingelheim. T.K. is an employee of Boehringer Ingelheim. T.K. and A.A. are named as inventors on a patent by Boehringer Ingelheim for the use of dipeptidyl peptidase 4 inhibition in the treatment of heart failure. A.A. has received research support from Boehringer Ingelheim and AstraZeneca; has participated in advisory boards for Abbott, Dexcom, Boehringer Ingelheim/Eli Lilly, and Novo Nordisk; and has received an unrestricted educational grant from Eli Lilly. No other potential conflicts of interest relevant to this article were reported.

Author Contributions. S.N.B., H.K., and V.G.Y. designed and performed the experiments, analyzed the data, and revised and edited the manuscript. S.L.A. performed histological experiments. M.G.K. performed hemodynamic assessments and analyzed the data. Y.L. performed RNA isolations and analyzed the data. T.K. coordinated the mass spectrometry experiments. A.A. designed the experiments, analyzed the data, supervised the study, and wrote the manuscript. A.A. is guarantor of this work and, as such, had full access to all the data in the study and takes responsibility for the integrity of the data and the accuracy of the data analysis.
