The current understanding of the molecular pathogenesis of diabetic retinopathy does not provide a mechanistic link between early molecular changes and the subsequent progression of the disease. In this study, we found that human diabetic retinas overexpressed TRIB3 and investigated the role of TRIB3 in diabetic retinal pathobiology in mice. We discovered that TRIB3 controlled major molecular events in early diabetic retinas via HIF1α-mediated regulation of retinal glucose flux, reprogramming cellular metabolism, and governing of inflammatory gene expression. These early molecular events further defined the development of neurovascular deficit observed in mice with diabetic retinopathy. TRIB3 ablation in the streptozotocin-induced mouse model led to significant retinal ganglion cell survival and functional restoration accompanied by a dramatic reduction in pericyte loss and acellular capillary formation. Under hypoxic conditions, TRIB3 contributed to advanced proliferative stages by significant upregulation of GFAP and VEGF expression, thus controlling gliosis and aberrant vascularization in oxygen-induced retinopathy mouse retinas. Overall, our data reveal that TRIB3 is a master regulator of diabetic retinal pathophysiology that may accelerate the onset and progression of diabetic retinopathy to proliferative stages in humans and present TRIB3 as a potentially novel therapeutic target for diabetic retinopathy.
The pathological retinal lesions of diabetic retinopathy (DR) in humans include an early asymptomatic phase, nonproliferative phase (NPDR), and late phase known as proliferative DR (PDR). Treatments of severe NPDR with intraretinal hemorrhages and PDR are often focused on vascular abnormalities presented as microaneurysm, vascular leakage, capillary blockade and dropouts, acellular capillaries, and aberrant angiogenesis. Mild and moderate forms of NPDR in patients are controlled by monitoring blood glucose level (BGL) and blood pressure. Although clinical evidence clearly demonstrates that the management of BGL implemented early in the course of diabetes may reduce the development and progression of NPDR (1), a breakthrough treatment that interferes with early DR stages, thus preserving retinal integrity against subsequent damage and preventing progression of DR, remains an unmet critical need.
The tribbles homolog 3 (TRIB3) protein has been proposed as a regulator of insulin signaling in diabetes. TRIB3 is a metabolic stress indicator and is a critical “stress-adjusting switcher,” endorsing cell homeostasis shift to metabolic dysfunction. It functions by regulating AKT and AKT/mTOR phosphorylation through pseudokinase activity and controlling autophagy flux and protein degradation (2). TRIB3 overexpression has been linked to aberrant angiogenesis. In a study that used human umbilical vein endothelial cells treated with oxidized phospholipids, the induction of vascular endothelial growth factor (VEGF) strongly correlated with the highest level of TRIB3 (3). Mechanistically, TRIB3 reportedly regulates the nuclear factor-κB (NF-κB) pathway (4), promotes activation of transforming growth factor-β1 signaling (5), controls cytokine expression (6), and governs macrophage health (7).
Recent studies conducted in patients with type 2 diabetes revealed that the expression of single nucleotide polymorphism Q84R in TRIB3 can increase the risk of diabetes and the likelihood of carotid atherosclerosis in part through the effects of abdominal obesity, hypertriglyceridemia, and insulin resistance in the body (8). These studies have also emphasized that the variant with arginine at position 84 manifests a gain-of-function effect due to TRIB3’s superior pseudokinase activity in binding AKT and inhibiting insulin-stimulated AKT phosphorylation (Thr308, Ser473) (9–11). TRIB3 mRNA and protein are significantly elevated in human type 2 diabetes islets, and a substantial reduction of C-peptide has been observed in the plasma of Q84R allele carriers (12). Q84R polymorphism frequently manifests not only as aberrant insulin signaling but also with vascular dysfunction and metabolic abnormalities (13). All of these events occur in the diabetic retina as well.
Furthermore, clinical research conducted with human fibrovascular membranes excised from patients with PDR showed elevated levels of TRIB3 (14). However, the exact mechanistic link between TRIB3 overexpression and disease development and progression in DR has not been established. In this study, we explored the effects of abrogated TRIB3 expression in the survival of retinal ganglion cells (RGCs), endothelial cells, and pericytes in diabetic mice. Our data reveal a distinct underlying mechanism that involves reduced hypoxia-regulated GLUT1 and EGFR signaling, which contributes to diminishing neovascularization (NV) in DR. Using mouse models of pharmacologically induced diabetes and hypoxia-driven proliferative retinopathies, we demonstrate for the first time that TRIB3 is a potentially novel therapeutic target that may accelerate the onset and progression of DR to proliferative stages in humans.
Research Design and Methods
Detailed information is provided in Supplementary Table 1.
Mice were housed in a 12-h light-dark cycle condition with unlimited access to food and water at a University of Alabama (UAB) animal facility according to institutional animal care and use committee UAB-IACUC protocol no. 09793 and the Association for Research in Vision and Ophthalmology guidelines on the use of animals in ophthalmic and vision research. TRIB3 knockout (KO) mice generated as previously described (15) were crossed with C57BL/6J mice at least eight times. C57BL/6J mice were purchased from The Jackson laboratory. We intraperitoneally injected 8-week-old males with either five consecutive doses of 50 mg/kg streptozotocin (STZ) to induce diabetes or vehicle (0.1 mol/L citrate buffer, pH 4.5) and assessed 32 weeks later. To observe early metabolic and proinflammation retinal changes, we used a proposed mouse model with a single injection of 150 mg/kg STZ or vehicle and performed the analysis at 4 or 6 weeks postinjection. Blood was collected via a tail vein, and fasting BGLs and HbA1c were measured using a glucometer and HbA1c kit, respectively (Supplementary Table 2). Hyperglycemia was confirmed as fasting BGL >250 mg/dL and >6.5% HbA1c. The animals did not require insulin injections. We also measured retinal glucose levels (RGLs) using a calorimetric assay kit. To mimic proliferative retinopathy, we used a previously described mouse model of oxygen-induced retinopathy (OIR), exposing mice to 75% oxygen levels from postnatal day 7 (P7) and placing them in room air with 21% oxygen at P12 (16). TRIB3 KO and C57BL/6J pups demonstrated no differences in weight gain during normal development. Additionally, we observed no differences among strains after exposing the pups to oxygen.
Quantitative Real-time PCR and Western Blot Analysis
Four weeks post–STZ injection, mouse retinas were isolated, and RNA was extracted using TRIzol. cDNA was synthesized using the iScript Reverse Transcription Supermix Kit (Bio-Rad Laboratories). A QuantStudio 3 machine (Thermo Fisher Scientific) was used to perform quantitative real-time PCR using TaqMan primers (Thermo Fisher Scientific) (Supplementary Table 1). Results were normalized to housekeeping genes Gusb and Gapdh and expressed as ratios of mRNA fold changes obtained in diabetic retinas normalized to own nondiabetic controls. For protein analysis, retinal protein extracts were isolated from the OIR and control pups at P13 and separated by PAGE. Detection of proteins was performed using anti-VEGF, antiglia fibrillary acidic protein (GFAP), and anti–b-actin antibodies detecting 21-, 50-, and 42-kDa bands, respectively. Horseradish peroxidase (HRP) goat anti-mouse and infrared goat anti-mouse antibodies were used as secondary antibodies (Supplementary Table 1). Immunoblots were imaged and analyzed using the LI-COR imager system. Differences in VEGF and GFAP levels in diabetic retinas are presented as ratios of band intensities normalized to nondiabetic controls.
Histological and Immunohistochemical Analyses
Human retinas from five patients with diabetes and five control individuals were subjected to immunohistochemical (IHC) analysis with anti-TRIB3 antibody. The group with diabetes included the retinas of 62-, 62-, 82-, 84-, and 92-year-old patients, while the control group included the retinas of 66-, 77-, 77-, 78-, and 82-year-old individuals. Retinal tissues were obtained from the National Disease Research Interchange. In addition, the representative tissues were processed for IHC analysis using anti-CD31 antibody. Before the IHC procedure, sections were deparaffinized and rehydrated by immersing the slides in xylene and alcohol of descending concentrations.
Diabetic and OIR mice were subjected to enucleation at 32 weeks post–STZ injection and at P17, respectively. The eyes were fixed for 3.5 h in 4% paraformaldehyde and stored in 30% sucrose before cryopreservation in optimal cutting temperature (OCT) compound. Retinal sections (12 μm) were stained with hematoxylin-eosin. An investigator blinded to the results counted the number of RGCs and the thicknesses of the inner nuclear layer (INL), outer plexiform layer (OPL), and inner plexiform layer (IPL). For evaluation of the pericyte loss and formation of acellular capillaries, fixed eyes were washed in 1× PBS, and the retina cups were excised. After digestion, separated retinal vascular tissues were placed on a slide, dried out at room air temperature, and stained with periodic acid Schiff reagent. IHC analysis was performed on retinal sections using anti-TRIB3, anti-GFAP, BRN3A, CD31/PECAM-1, and vimentin antibodies (Supplementary Table 1). Colocalization of individual TRIB3 and CD31/PECAM-1, TRIB3 and BRN3A, or GFAP and vimentin proteins in the retinal sections were detected using fluorescent confocal microscopy. Florescence intensity was measured using ImageJ software. Absorption control was performed using the recombinant human TRIB3 protein. To count ionized calcium-binding adaptor molecule 1 (IBA1)–positive microglial cells at P30, mice were injected intraperitoneally with 10 µL/g (stock solution of 1 mg/mL) of lipopolysaccharide (LPS). The eyes were enucleated 24 h after the injection, cryosectioned, and subjected to immunostaining with anti-IBA1 antibody. Investigators blinded to the results counted the number of IBA1 positive cells in the retinal sections.
For detection of NV, the eyes of the OIR pups were enucleated at P17, fixed for 1.5 h, and incubated with isolectin 1B-4 diluted in 1× PBS overnight. After washing with PBS + 0.02% Triton, the retinal cups were dissected to obtain flat mounts. The flat mount images were used to run a computer program developed by Xiao et al. (17) to analyze areas of NV and vaso-obliteration (VO). The retinal NV and VO were expressed as ratios of the area with NV or VO to the whole mouse retina.
At 32 weeks post–STZ injection, the mice were anesthetized to perform electroretinography using a UTAS BigShot LKC machine to measure RGC function. Mice were exposed to 15 sweeps (1 s apart) of white flash of 2.5 candela/m2 with a white background of 25 candela/m2 intensity to measure the photopic negative response (PhNR) amplitude. The waveforms were measured using LKC EM software.
In Seahorse analysis, the extracellular acidification rate (ECAR) and oxygen consumption rate (OCR) were measured at baseline and post–glucose injection and post–oligomycin injection. The eyes were collected 4 weeks post–STZ injection in cold 1× PBS. The retinal cup without retinal pigment epithelium was dissected in Seahorse XF DMEM containing 5 mmol/L HEPES and 2 mmol/L glutamine with no glucose. Retinas were placed with RGC layer facing down (Supplementary Fig. 1) and secured by the capture screen using an insert tool in each well of a Seahorse XF24 Islet Capture microplate containing 50 µL of Seahorse XF DMEM. After securing retinas in the microplate, 400 µL of the same dissecting medium were added to each well for a final volume of 450 µL. The microplate was placed in the incubator at 37°C for a 1-h non-CO2 incubation before starting the stress test assay to achieve an even CO2 distribution. The ports of the Seahorse XF24 Sensor Cartridge were loaded for a final well concentration of 10 mmol/L glucose and 3.0 μmol/L oligomycin for measuring pH and O2. Seahorse Wave Desktop Software was used to analyze the data.
Cell Culture Experiments
MIO-M1 cells (immortalized human Müller glia cell line developed by Limb et al. in 2002 ) were cultured at 37°C in Dulbecco’s modified Eagle’s medium supplemented with high glucose (25 mmol/L glucose), 10% FBS and 1% antibiotic solution. Cells were exposed to hypoxia or treated with advanced glycosylation end products (AGE) and BSA at a dose of 500 mmol/L for 48–72 h. Protein was extracted using radioimmunoprecipitation lysis buffer. Western blot analysis was performed using the anti-TRIB3 antibody and HRP-conjugated goat anti-mouse secondary antibody.
Experiments were also performed with MIO-M1 cells overexpressing mouse TRIB3-DDK for 72 h. The cells were harvested, lysed in the immunoprecipitation buffer, and subjected to incubation with TRIB3 antibody for immunoprecipitation using agarose G-Plus beads. After verifying expression of TRIB3 by Western blot (Supplementary Fig. 2), the pulldown samples were submitted to the UAB Comprehensive Cancer Center Mass Spectrometry and Proteomics Shared Facility for protein mass spectrometry and to identify the binding protein partners of TRIB3. To perform cell toxicity assay, the MIO-M1 TRIB3-overexpressing cells were incubated in 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT) solution (0.5 mg/mL/well) for 4 h at 5% CO2. Following MTT incubation, the cells were incubated with DMSO solution for 15 min. Cell survival was measured by estimating optical density at 570 nm using a microplate reader.
To generate hypoxic conditions, 24 h after transfection, MIO-M1 TRIB3-overexpressing cells were transferred to AnaeroGen W-Zip Compact bags for 48 h to maintain hypoxic conditions as previously reported, which generated 1% oxygenation, thus inducing hypoxia. Proteins were extracted using radioimmunoprecipitation buffer, and TRIB3 (45 kDa), hypoxia-inducible factor-1α (HIF1α) (120 kDa), EGFR1 (170 kDa), GLUT1 (60 kDa), GFAP (50 kDa), and VEGF (21 kDa) were detected, with band-normalized intensities to actin (42 kDa). Secondary HRP goat anti-mouse and anti-rabbit antibodies and infrared goat anti-mouse and anti-rabbit antibodies were used for detection. Immunoblots were imaged and analyzed using the LI-COR imager system. Experiments with downregulation of HIF1α and EGFR in MIO-M1 hypoxic cells were conducted using respective siRNAs at a concentration of 100 nmol/L.
Glucose uptake assay was performed in MIO-M1cells transfected with siRNA Hif1α and exposed to hypoxia 24 h later. At 72 h post-transfection, the cells were taken out of the hypoxia bags and treated with florescent 2-deoxy-2-[(7-nitro-2,1,3-benzoxadiazol-4-yl) amino]-d-glucose (2-NBDG) for 30 min, as recommended by the manufacturer. Then, cells were washed with 1× analysis buffer, treated with trypsin, and resuspended in 400 µL of 1× analysis buffer. The glucose uptake was measured by flow cytometry using an LSRFortessa flow cytometer at the UAB Comprehensive Flow Cytometry Core. Confocal microscopy was used to obtain florescent images of cellular glucose uptake at 488 nm, and florescent signal was quantified using ImageJ software.
Data were analyzed using either two-tailed unpaired Student t test or one-way or two-way ANOVA. Statistical significance was set at P < 0.05. The results were plotted in scatter plots to show individual data points and mean ± SEM as summary statistics using GraphPad Prism 8 software.
Data and Resource Availability
All data generated or analyzed during this study are included in the published article and its supplementary material.
In this study, we investigated the role of TRIB3 in the development and progression of human DR and leveraged STZ-injected and hypoxia-driven mouse models mimicking early molecular and advanced neurovascular pathophysiological complications of DR, respectively (19,20). First, we assessed the TRIB3 level in human diabetic retinas.
Human Diabetic Retinas Overexpress TRIB3 Protein
Recent studies conducted with diabetic animal models have clearly demonstrated associations between TRIB3 and numerous diabetes-associated complications, such as hyperhomocysteinemia (10,21) nonalcoholic fatty liver disease (22), diabetic nephropathy, and visceral obesity (23,24). Therefore, we tested the hypothesis that TRIB3 expression is also altered in hyperglycemic retinas. To this end, we analyzed and quantitated TRIB3 immunoreactivity in different human control (n = 5) and diabetic (n = 5) retinas. Overall, TRIB3 expression in analyzed diabetic retinas was more than threefold higher than control retinas (Supplementary Fig. 3). A representative diabetic retina of an 84-year-old man is shown in Fig. 1A. A strong signal for TRIB3 immunoreactivity was observed in retinal endothelial, ganglion, and photoreceptor cells compared with the control retina of an 82-year-old man without diabetes. Increased TRIB3 staining was observed. IHC analysis with antibody against CD31, a known endothelial cell marker, revealed the colocalization (in yellow) of TRIB3 (in red) and CD31 (in green) signals, suggesting expression of TRIB3 in endothelial cells of human diabetic retina. The hypertrophic blood vessel visualized by colocalization of TRIB3 and CD31 in human diabetic retinas is shown in Fig. 1A.
STZ-Induced Mouse Diabetic Retina and Hypoxic Müller Cells Demonstrate TRIB3 Overexpression
To proceed further, we took advantage of the TRIB3 KO mice and used both a pharmacological approach to induce hyperglycemia based on injection with STZ and a hypoxia-induced vascularization approach using an OIR model to mimic NPDR and proliferative retinopathy, respectively. RNA analysis of the retinas from mice at 4 weeks after STZ injection demonstrated an approximately fourfold upregulation of Trib3 mRNA, suggesting that TRIB3 overexpression occurs early in the course of disease (Fig. 1B). TRIB3 expression level was also significantly upregulated in the hypoxic Müller MIO-M1 cells compared with normoxia on the basis of Western blot analysis (Fig. 1C), suggesting that hypoxia in human DR could upregulate TRIB3 expression level.
The results of the RNA and protein analyses were confirmed in mouse hyperglycemic and hypoxic retinas, which showed a strong immunoreactivity for TRIB3 in IHC (Fig. 1D and E). To verify that hyperglycemic RGCs overexpress TRIB3, we further performed an IHC analysis with antibody recognizing the RGC marker BRN3A and TRIB3 in control and STZ-treated retinas at 32 weeks (Fig. 1F). A colocalization shown in yellow was detected from TRIB3 (in red) and BRN3A (in green) signals, suggesting TRIB3 expression in hyperglycemic RGC. Given that TRIB3 reportedly controls insulin signaling and resistance in cells in general (25), we next tested the hypothesis that TRIB3 regulates glucose uptake and alters metabolic equilibrium in hyperglycemic retinas.
Hyperglycemic C57BL/6 Retinas Demonstrate Raised RGL, Whereas Hyperglycemic TRIB3 KO Retinas Manifest a Diminished Level of Glucose
Previously, it was reported that conventional TRIB3 KO in mice does not cause a significant difference in the BGL as a response to STZ injection compared with C57BL/6 mice (26). We confirmed this by detecting similar BGLs in both normal and diabetic C57BL/6 and TRIB3 KO mouse groups (Supplementary Table 2). On the basis of this, we asked whether hyperglycemia also increased RGL. Using a calorimetric assay, we determined that 4-week hyperglycemic mice have a higher RGL than their nondiabetic controls. Interestingly, TRIB3-ablated hyperglycemic retinas demonstrated a significant reduction in RGL, despite the well-matched BGL (Fig. 2A). In agreement with the results of RGL analysis, hyperglycemic TRIB3 KO retinas also manifested significantly reduced Glut1 mRNA expression (Fig. 2B). Given that the retina is extremely sensitive to glucose and that an excess of glucose in the retina may modify cellular metabolism, we analyzed early metabolic changes in hyperglycemic retinas.
Hyperglycemic TRIB3 KO Retinas Show Altered Metabolic Responses
TRIB3 is a known metabolic switcher responsible for moving cells from the homeostatic stage to metabolic dysfunction. Therefore, we analyzed the energy metabolism in 4-week diabetic retinas of mice mimicking early diabetic changes (19,20,27). We monitored both the cellular OCRs and the ECARs in a real-time experiment to measure the mitochondrial respiration and glycolysis rate in the retina using a Seahorse Extracellular Flux Analyzer (Fig. 2C–I). Extracellular acidification is derived from both lactate, produced by anaerobic glycolysis, and CO2, produced in the citric acid cycle during respiration. However, a previous study revealed that retinas, manifesting the Warburg effect, convert 80–96% of glucose into lactate rather than fully oxidizing it to CO2 in their mitochondria (28). Here, we found that the ECAR baseline was significantly higher in C57BL/6 diabetic retinas, whereas TRIB3 KO hyperglycemic retinas showed no differences compared with both controls (Fig. 2C). These results indicate a dramatic difference in acidification rate between C57BL/6 and TRIB3 KO diabetic retinas. In fact, the ECAR in the TRIB3 KO diabetic retinas dropped significantly as early as the first 10 min of the real-time experiment, and this decline continued over time. However, when we treated the retinal tissue with glucose, dramatic changes were observed in the ECAR of TRIB3 KO diabetic retinas. Although both C57BL/6 and TRIB3 KO diabetic retinas responded immediately to glucose, the TRIB3 KO hyperglycemic retinas demonstrated a more robust ECAR response at 45 min compared with ECAR at 40 min (approximately fivefold TRIB3 KO vs. twofold in C57BL/5, P < 0.01) (Fig. 2D). Further analysis of the postglycolysis ECAR in C57BL/6 and TRIB3 KO diabetic retinas revealed that these tissues manifested a similar glycolysis rate (Fig. 2E). We next added oligomycin, a known inhibitor of mitochondrial ATP synthase and respiration, to the retinal preparations; this caused the overall glycolytic capacity to drop in a time-dependent manner in both C57BL/6 and TRIB3 KO diabetic groups (Fig. 2F). Although vehicle- and STZ-injected retinas responded similarly within a single mouse strain, a significant difference was observed between C57BL/6 and TRIB3 KO diabetic retinas: The glycolytic capacity in diabetic TRIB3 KO retinas was lower (P < 0.01).
The mitochondrial respiratory rate in the mice was measured with a mitochondrial stress test, and the OCR was recorded (Fig. 2G). The basal OCR was significantly lower in TRIB3 KO diabetic retinas than in C57BL/6 (P < 0.0001), suggesting that under hyperglycemic conditions, a basal mitochondrial respiration in hyperglycemic retinas could be controlled by TRIB3. In retinal samples stimulated by adding glucose, we observed a dramatic increase of OCR in TRIB3 KO (∼1.5-fold in TRIB3 KO vs. 1.0-fold in C56BL/6, P < 0.001) (Fig. 2H). Time-dependent examination of the retinal tissue responses to glucose demonstrated that hyperglycemic TRIB3 KO retinas uniquely manifested significantly low OCR (P < 0.05) (Fig. 2I). Thus, our data demonstrate that TRIB3 ablation in the diabetic retinas manifests altered metabolic responses, which prompts a further exploration of whether other retinal cellular signaling systems are affected at early stages of DR development by TRIB3.
TRIB3 Ablation Reduces Inflammation in Diabetic Retinas
There is a growing literature suggesting that TRIB3 controls inflammatory response in cells (29). To verify the ability of TRIB3 to control the inflammatory response in the retina, mice injected with LPS were sacrificed after 24 h to analyze IBA1, a microglia/macrophage marker (Fig. 3A). IHC analysis demonstrated a dramatically reduced number of IBA1-positive cells in the retinas of LPS-injected TRIB3 KO mice, suggesting that TRIB3 ablation could be responsible for the modified proinflammatory response in the retina.
Given the early metabolic changes in diabetic retinas at 4 weeks, we analyzed the expression profile of the genes known to associate with DR, including Hif1α, Aif1, Cox2, Icam1, Nf-kb, Rc3h1 (Roquin), Zc3h12a (Regnase or Mcp-1–induced protein-1), and Vegf. We found that TRIB3 ablation in diabetic retinas tremendously diminished expression levels of these genes. For example, expression of the intracellular adhesion molecule Icam1, responsible for communication between retinal endothelial cells and leukocytes in the diabetic eye, and COX2, a critical player in RGC survival (30), were dramatically reduced in TRIB3 KO diabetic retinas (Fig. 3B). These data indicate that TRIB3 ablation results in an altered inflammatory response in early diabetic retinas in addition to energy metabolism.
TRIB3 KO Prevents RGC, Endothelial Cell, and Pericyte Loss
RGC loss in the diabetic retina has been reported in the literature (31,32). At 32 weeks of hyperglycemia, we assessed the RGC function and viability in the retinas and found that although the C57BL/6 diabetic retinas demonstrated significant loss of RGC, TRIB3 ablation protected hyperglycemic retinas from RGC death. The number of RGCs calculated within 100-µm distance in the retinas of TRIB3 KO diabetic mice were comparable to those found in control C57BL/6 mice (Fig. 4A and B). Therefore, we next recorded the PhNR amplitudes to measure the RGC function known to detect early neuronal damage in human and mouse retinas (32,33). Interestingly, the RGC loss in C57BL/6 hyperglycemic retinas correlated with dramatic functional loss as measured by PhNR recording, whereas decline in PhNR was remarkably prevented in TRIB3 diabetic retinas (Fig. 4C and D).
The RGC layer in the eye is traversed by the retinal capillary beds at varying levels that provide nourishment for both the RGCs and the RGC axons (34). Therefore, given that DR is a vascular disease, we next assessed the role of TRIB3 in retinal endothelial cell health in diabetes. In the hyperglycemic retinas, we observed a dramatic cytoprotective effect of TRIB3 ablation. The pericyte loss observed in C57BL/6 retinas was reversed, and the increase in acellular capillaries was averted in TRIB3 KO diabetic retinas (Fig. 4E–G). Cumulatively, these results indicate that TRIB3 ablation not only has a neuroprotective effect on RGC but also maintains retinal vascular homeostasis in diabetic mice.
TRIB3 Ablation Manifests Reduced Vascular Dysfunction, Gliosis, and Overall Retinal Integrity Loss in Hypoxic Retinas
Previously, we reported that ATF4 downregulation is a therapeutic for hypoxic retinas and leads to dramatic reduction in NV and increase in the acellular area of OIR mice (35). TRIB3 is a downstream target of ATF4, the expression of which is upregulated during endoplasmic reticulum stress (36). It has also been suggested that hypoxic conditions upregulate Trib3 expression in retinal Müller cells (37). Thus, we explored hypoxic TRIB3-ablated retinas using the OIR model.

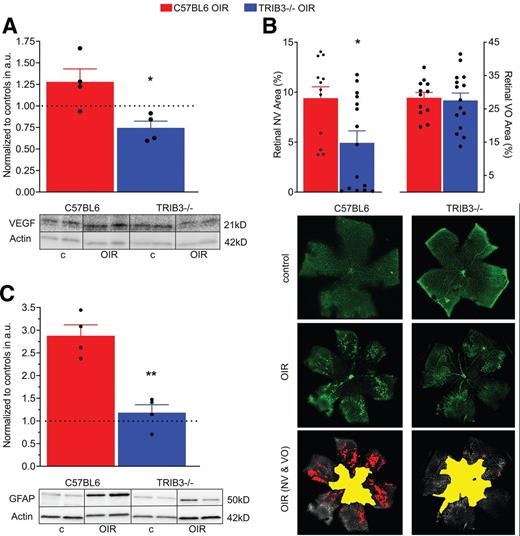

At P13, 1 day after the removal of pups from the oxygen chamber, VEGF expression was high in the C57BL/6 retinas, as expected. Surprisingly, however, TRIB3 ablation in hypoxic retinas resulted in a reduced VEGF level (Fig. 5A). For example, C57BL/6 hypoxic retinas normalized to the control demonstrated a 1.3-fold increase in VEGF, whereas normalized TRIB3 KO OIR showed a substantial decline in VEGF expression. Therefore, learning about TRIB3-mediated control of VEGF in the wild-type retina, we further analyzed VEGF-induced NV in OIR mice.
Analyses of the areas of NV and VO in the OIR retinas demonstrated that TRIB3 ablation significantly reduced formation of neovascular tufts (Fig. 5B, left graph and bottom images with the area specified in red). Hypoxic TRIB3 KO retinas manifested levels of VO similar to those found in C57BL/6 hypoxic tissues (Fig. 5B, right graph and bottom images with the area specified in yellow). This difference in NV prompted the question of whether TRIB3-mediated vascularization causes the compromise of retinal integrity and morphology observed in C57BL/6 OIR retinas.
Interestingly, TRIB3 KO in hypoxic retinas preserved overall retinal integrity. Although the C57BL/6 OIR retinas demonstrated reduced INL, IPL, and OPL thicknesses, TRIB3 KO dramatically reversed these structural changes; no differences were observed between TRIB3 KO OIR and normoxic C57BL/6 or TRIB3 retinas (Fig. 6A).
Müller cells are known to play a pivotal role in the development of DR and respond promptly to hyperglycemia and hypoxia (38). Therefore, we examined Müller cells in hypoxic retinas by detecting the colocalization of GFAP and vimentin, known glial cell markers. We found that the TRIB3 KO hypoxic mice demonstrated a significantly lower Müller cell immunoreactivity compared with C57BL/6 OIR retinas (Fig. 6B). Moreover, detection of the GFAP level in TRIB3 KO OIR mice by Western blot also indicated a dramatic reduction in the overall expression, supporting the observation of diminished gliosis in hypoxic TRIB3 KO retinas (Fig. 5C). Together, these results show that TRIB3 not only is involved in early metabolic and inflammatory changes but also may contribute to the progression of DR.
TRIB3 Controls Glucose Signaling and VEGF Expression, Overall Affecting Retinal Cell Viability
We next investigated the mechanism of TRIB3-mediated control of the development and progression of DR in vitro. Given that Müller cells demonstrated high immunoreactivity in OIR C57BL/6 retinas and could be the sources of VEGF and proinflammatory cytokine expression, we further performed tissue culture experiments with MIO-M1 cells.
The molecular mechanisms of DR are complex and multifactorial. Early molecular changes in diabetic retinas have been reported to occur through a compromised AGE pathway. Therefore, using Müller cells, we asked whether the treatment of MIO-M1 cells with 500 mmol/L AGE induces TRIB3 overexpression. The results demonstrated significant upregulation of TRIB3 in 48 h (Fig. 7A). These data concord with the results obtained in STZ-induced hyperglycemic mice and the hypoxia-treated MIO-M1 cells, indicating that in diabetic hypoxic retina, TRIB3 could be overexpressed earlier in the course of disease. Besides overexpression of TRIB3 in hypoxic MIO-M1 cells, we also identified occurrence of overexpression of HIF1α and EGFR (Fig. 7B). The choice of the validated proteins was determined by the literature, and the results obtained in hyperglycemic mouse retina and MIO-M1 cells overexpressing TRIB3 (Supplementary Fig. 2). Thus, similar to hyperglycemic retinas, hypoxia in MIO-M1 cells induced both TRIB3 and HIF1α.
Interestingly, TRIB3 by itself can compromise MIO-M1 cell viability (Fig. 7C); more prominent cell death was found in MIO-M1 transfected with TRIB3-DDK plasmid than in control cells. These results are comparable with the RGC loss observed in hypoxic diabetic retinas overexpressing TRIB3. Given that HIF1α and EGFR along with TRIB3 were overexpressed in cultured Müller cells, we investigated whether TRIB3 is an upstream mediator of these proteins by using TRIB3 overexpression. In hypoxic Müller cells overexpressing TRIB3-DDK cDNA, HIF1α and EGFR were upregulated along with increased GFAP, VEGF, and GLUT1 proteins, indicating that TRIB3 controls these protein expressions as well (Fig. 7D). In hypoxic MIO-M1 cells treated with siRNA targeting HIF1α, we found that the levels of EGFR, GLUT1, and VEGF were significantly lower, whereas GFAP was unresponsive to the knockdown of HIF1α. This suggests that GFAP may be directly regulated by TRIB3, and its expression is not HIF1α dependent (Fig. 7E).
Given that TRIB3 expression is hypoxia induced and TRIB3, in turn, regulates HIF1α expression leading to changes in GLUT1 (Fig. 7E and Supplementary Fig. 4), we asked whether Hif1α detected in C57BL/6 hyperglycemic retinas (Fig. 3B) could be responsible for the glucose uptake in Müller cells. Particularly, the observation of higher RGL in hyperglycemic C57BL/6 retinas overexpressing Hif1α mRNA was worth further investigation. Therefore, we treated hypoxic Müller cells transfected with control or HIF1α siRNAs with a fluorescent glucose analog, 2-NBDG, known to inhibit glycolysis via its action on hexokinase and analyzed levels of fluorescence using flow cytometry and confocal microscopy (Fig. 8A and B, respectively). We observed a significant reduction in glucose uptake that occurred in HIF1α-dependent manner. Given that TRIB3 overexpression leads to an increase in HIF1α protein level and Hif1α knockdown diminishes glucose uptake in hypoxic Müller cells, we next wondered whether downregulation of Trib3 by itself can compromise the level of glucose uptake in hypoxic cells. Thus, in hypoxic Müller cells cotransfected with TRIB3-DDK cDNA and antisense oligos targeting Trib3, we found that a 60% reduction in TRIB3 protein results in a 21% reduction in 2-NBDG uptake (Supplementary Fig. 5). These results suggest that the glucose uptake in these cells and the metabolic changes in hyperglycemic retinas could be regulated through a TRIB3→HIF1α axis. Altogether, these findings indicate that TRIB3 is upstream of HIF1α, EGFR, and GFAP, which allows this molecule to control glucose metabolism, cytokine expression, angiogenesis, and gliosis in retinal cells.
Overall, the molecular mechanisms of DR are complex and multifactorial. Hyperglycemic conditions affect the intracellular glucose level, leading to the retinal endothelial and neuronal cells failing to properly regulate cellular metabolism. Early molecular changes in diabetic retinas have been reported to occur through a compromised polyol pathway, protein kinase C pathway, AGE pathway, and hexosamine biosynthetic pathway in retinal cells (39). Besides the dysregulation of these cellular pathways, hypoxia-induced HIF1α and VEGF overexpression plays key roles in the progression of NDPR to PDR (1,40). In contrast, little is known about how early molecular changes occurring in diabetic retinas lead to the subsequent progression of the disease. Here, we present evidence confirming the critical role of TRIB3 overexpression during the development and progression of DR. First, we found that TRIB3 was overexpressed in human diabetic retinas and retinas of mice mimicking NPDR and proliferative retinopathy in patients, which provided a rationale to further investigate the role of TRIB3 in diabetic retinas. We discovered that TRIB3 overexpression induced HIF1α-mediated changes in GLUT1 level, glucose uptake, and VEGF expression. In addition, we observed that TRIB3 controlled EGFR expression. Finally, we determined that TRIB3 ablation in hyperglycemic and hypoxic retinas dramatically prevented retinal neuronal cell functional deficit and loss as well as VEGF-induced NV.
Retinal vascular homeostasis becomes compromised with the disease progression. PDR is characterized by uncontrolled growth of fragile blood vessels that can protrude and leak into the vitreous, causing blurry vision. This phenomenon is triggered by hypoxia in the retina, one of the known molecular inducers of NV. One of the interesting findings of our study is that both hypoxia and AGE conditions found in patients with diabetes caused the upregulation of TRIB3, which in turn controlled glucose metabolism, vascular function, and gliosis. Thus, our in vitro study indicated that HIF1α upregulation in diabetic retinas occurs in a TRIB3-dependant manner (Figs. 3 and 7). A previous study demonstrated that HIF1α induced TRIB3 overexpression (41). In fact, the HIF1α-TRIB3 relationship could be more delicate, and the regulation of their expressions may be interactive. For example, one such regulation is mediated through ATF4 transcriptional factor, which reportedly cooperates with both proteins by inducing TRIB3 expression (36) and binding to HIF1α (42). The results of our in vivo study are in agreement with those obtained with HIF1α knockdown in hypoxic Müller cells. Although the HIF1α knockdown was not dramatic in this study, it seems sufficient to provide downstream cellular alterations, such as GLUT1 and glucose uptake, in cells during hypoxia. One of the plausible explanations for this phenomenon is that hypoxia and oxidative stress elevate HIF1α mRNA levels transcriptionally, likely through the NF-κB and Egr1 transcription factors at work. Under normoxic conditions, the half-life of HIF1α protein is very short (i.e., ∼5 min), and HIF1α rapidly degrades by hydroxylation at conserved prolyl and asparagine residues targeting it for degradation. During hypoxia, these hydroxylases are quickly inhibited, leading to the rapid and robust stabilization of HIF1α and, therefore, an altered half-life for the protein (43,44).
Recently conducted studies in cultured L6 myocytes (25,45) indicated that TRIB3 overexpression is induced in a glucose-dependent manner, resulting in reduced mitochondrial glucose oxidation and the maximal uncoupled OCR. Hence, it noteworthy to find that TRIB3 can regulate glucose uptake in diabetic retina and that this regulation occurs via HIF1α-mediated GLUT1 expression. Indeed, in the whole-retina samples, we found that TRIB3 ablation may modify glucose flux and Glut1 expression and define glycolytic capacity of diabetic retina. C57BL/6 diabetic retinas presented higher RGL, confirming a previous study that reported an increase in glucose uptake in diabetic rat retinas (46). Changes in glucose flux and in RGL between C57BL/6 and TRIB3 KO diabetic retinas suggest a plausible explanation: reduction in glucose transporter GLUT1, detected in TRIB3 KO diabetic retinas, could be one reason.
TRIB3 KO in diabetic retinas may cause a metabolic shift that allows this retina to function under a “safe operating mode.” Previously, it has been demonstrated that diabetic retinas may have higher lactate-pyruvate ratios, suggesting that elevated glucose level mimics the effects of hypoxia on glycolysis and cytosolic-free NADH/NAD+ (47,48). These results were very similar to those observed in this study. C57BL/6 diabetic retinas had a higher baseline ECAR derived from lactate produced by anaerobic glycolysis. Although overall glycolytic capacity in the TRIB3 KO diabetic retinas was lower, the response of the retinas to glucose treatment was significantly higher in these mice. Interestingly, the TRIB3 KO diabetic retinas also displayed a lower OCR at baseline and revealed a higher sensitivity of the mitochondrial respiration rate in response to glucose treatment. Altogether, these results imply that TRIB3 KO hyperglycemic retinas might respond to glucose elevation similarly to C57BL/6 hyperglycemic retinas but operate at limited metabolic mode by reducing glucose flux instead.
EGFR reportedly promotes angiogenesis, cell proliferation, metastasis, and apoptosis in DR, and the inhibition of EGFR signaling protects diabetic retina from insulin-induced vascular leakage (49,50). Although we did not asses the level of EGFR in diabetic retinas, we found that TRIB3 overexpression observed in hypoxic MIO-M1 cells induces EGFR, suggesting that C57BL/6 diabetic retinas may also manifest EGFR increase. Moreover, the TRIB3-mediated EGFR increase could occur through HIF1α. Published reports indicated that the relationship between HIF1α and EGFR is reciprocal and that they can induce expression of each other in hypoxic conditions (51). Therefore, future experiments that investigate the TRIB3→EGFR→VEGF operating arm in diabetic retinas should be conducted to overcome limitations of the current study (Fig. 8C). Given the fact that diminished HIF1α level resulted in reduced VEGF, our data indicate that in hyperglycemic and hypoxic retinas, the observed correlation between TRIB3 and VEGF is promoted mostly through TRIB3→HIF1α signaling. Future experiments that investigate the TRIB3→EGFR→VEGF operating arm in diabetic retinas should be conducted.
Another example of how TRIB3 could control vascular health is through the regulation of an intravascular leukocyte cell adhesion (52). Although our study did not assess leukostasis in the retinas, we did find that similar to patients with diabetes with microalbuminuria and DR (53), Icam1, a cell surface glycoprotein expressing on endothelial cells and leukocytes, was significantly upregulated in C57BL/6 mouse diabetic retinas. TRIB3 ablation led to a dramatic reduction of Icam1 expression. In addition to Icam1, we found that TRIB3 controlled the endothelial cell death in diabetic retina and that ablation of TRIB3 significantly preserved the formation of acellular capillaries and subsequent pericyte loss. These data provide evidence that TRIB3 plays a substantial role in endothelial cell homeostasis in DR.
Inflammation is one of the major factors induced during diabetes and leads to macular edema, ischemia, and NV (54). In TRIB3 KO diabetic retinas, the proinflammatory gene expression profile was altered. Moreover, the increase in retinal microglia and VEGF cytokine production was TRIB3 mediated. TRIB3 could directly or indirectly affect expression of NF-κB and other cytokines, thus modifying early inflammatory response to hyperglycemia. In support of this hypothesis, TRIB3 ablation prevented both neuronal and vascular dysfunction, which serve as hallmarks of DR in humans. Therefore, it is of particular importance that TRIB3 controls RGC death. In hyperglycemic TRIB3 KO mouse retinas, RGC preservation correlated with a significant improvement of the recorded PhNR amplitudes, which are known to be diminished in patients with diabetes (55). Moreover, in concordance with these results, we revealed that in hypoxic retinas, TRIB3 controls retinal integrity too. This latest observation is also supported by the fact that Müller cells overexpressing TRIB3 manifested reduced cell viability.
The limitations of the current study are that we did not access a cell-specific role of TRIB3 in diabetic retinas due to unviability of the mouse model or in primary retinal culture of ganglion, photoreceptor, and endothelial cells. Therefore, future experiments should identify sources of TRIB3-induced cellular damage, “signaling” neurovascular degeneration in diabetic retinas. Nevertheless, regardless of the sources, we found that hypoxic TRIB3 KO retina manifested less gliotic activity of Müller cells as determined by colocalization of vimentin and GFAP. TRIB3-mediated control of GFAP in vivo was confirmed in cultured Müller cells, indicating that TRIB3-mediated GFAP upregulation is independent of HIF1α protein regulation. This finding pinpoints TRIB3 as a novel potential regulator of GFAP biogenesis during diabetes.
Overall, our study indicates that TRIB3 mediates the expression of major sets of hypoxia-induced genes, including HIF1α, EGFR, VEGF, GLUT1, and GFAP—effects that were observed both in vitro and in vivo. Our data align with previous studies conducted in human cancer cells in which TRIB3 was proposed as a molecular regulator of angiogenesis mediated via HIF1α and VEGF upregulation (56). In addition to angiogenesis, our investigation indicated that TRIB3 is a master regulator of early metabolic and inflammatory events in diabetic retinas, which affect the overall development and progression of disease to proliferative stages. Given the limitations and side effects of current treatments for DR and the continuing efforts to understand its complex molecular mechanisms, our findings revealed that TRIB3 is a major game player of diabetic ocular pathophysiology and a novel therapeutic target, the potential of which should be further evaluated in the clinic.
This article contains supplementary material online at https://doi.org/10.2337/figshare.14541915.
Funding. This work was supported by National Eye Institute grants R01-EY-027763 and R21-EY-031103. The authors also acknowledge support of National Institutes of Health grant P30-DK-079626 to the leukocytosis UAB Diabetes Research Center and Bio-Analytical Redox Biology core facility and National Institute of Diabetes and Digestive and Kidney Diseases grant DK-056336 to the Nutrition Obesity Research Center, UAB Center for Exercise Medicine, UAB Comprehensive Diabetes Center, Center for Free Radical Biology, and UAB Comprehensive Neuroscience Center.
Duality of Interest. No potential conflicts of interest relevant to this article were reported.
Author Contributions. P.M.P., I.V.S., and M.S.G. designed, performed, and analyzed the experiments. P.M.P. and M.S.G. wrote the manuscript. Y.A.-A. helped with the quantitative analysis of retinal cells and analysis of the retinal images. S.L.C. helped with the OIR mouse model and the preparation of retinal flat mounts. T.S. and S.A. developed the mouse model used in the study. O.G. helped with the images and prepared the figures. M.E.B. provided human diabetic retinas. M.E.B., W.T.G., M.A., and M.B.G. helped with the analysis of experimental results. M.T.P. helped to analyze the results of the PhNR recording in diabetic retinas. All authors reviewed and/or edited the manuscript. M.S.G. is the guarantor of this work and, as such, had full access to all the data in the study and takes responsibility for the integrity of the data and the accuracy of the data analysis.
