Multiple pathways contribute to the pathophysiological development of type 1 diabetes (T1D); however, the exact mechanisms involved are unclear. We performed differential gene expression analysis in pancreatic islets of NOD mice versus age-matched congenic NOD.B10 controls to identify genes that may contribute to disease pathogenesis. Novel genes related to extracellular matrix development and glucagon and insulin signaling/secretion were changed in NOD mice during early inflammation. During “respective” insulitis, the expression of genes encoding multiple chemosensory olfactory receptors were upregulated, and during “destructive” insulitis, the expression of genes involved in antimicrobial defense and iron homeostasis were downregulated. Islet inflammation reduced the expression of Hamp that encodes hepcidin. Hepcidin is expressed in β-cells and serves as the key regulator of iron homeostasis. We showed that Hamp and hepcidin levels were lower, while iron levels were higher in the pancreas of 12-week-old NOD versus NOD.B10 mice, suggesting that a loss of iron homeostasis may occur in the islets during the onset of “destructive” insulitis. Interestingly, we showed that the severity of NOD disease correlates with dietary iron intake. NOD mice maintained on low-iron diets had a lower incidence of hyperglycemia, while those maintained on high-iron diets had an earlier onset and higher incidence of disease, suggesting that high iron exposure combined with a loss of pancreatic iron homeostasis may exacerbate NOD disease. This mechanism may explain the link seen between high iron exposure and the increased risk for T1D in humans.

Type 1 diabetes (T1D) results from the gradual autoimmune destruction of pancreatic β-cells. The etiology of this disease is complex and involves a strong genetic component and a number of possible environmental triggers. While multiple pathways have been implicated in disease pathogenesis, the exact mechanisms and timing of their involvement are poorly understood due, in part, to the difficulty in obtaining relevant samples from subjects with pre-T1D.

Researchers have used the well-established NOD mouse model to study T1D. NOD mice express a number of susceptibility genes that contribute to their permissive genetic background, including the H2g7 MHC that is similar to DQ8, a major T1D disease–associated HLA allele. The non–disease-prone congenic NOD.B10 express the H2b MHC haplotype and are otherwise isogenic to NOD mice outside of the MHC complex. As they do not develop disease, they are suitable controls for translating our findings to human T1D, in which HLA alleles are the strongest genetic/serologic predictor of disease risk. Using NOD versus NOD.B10 mice and differential gene expression analysis, we have previously identified several genes and pathways that are relevant to the pathogenesis of T1D (13).

Female NOD mice develop autoimmune diabetes in a spontaneous and highly penetrant manner with a predictable course: T-cell initiation in the pancreatic lymph node can be seen as early as 10 days of age, peri-insulitis is seen starting at 4 weeks of age, and the onset of destructive insulitis occurs at ∼12 weeks of age, followed by β-cell destruction and resultant hyperglycemia (36). These distinct phases of disease are reflected in flow cytometric, transcriptomic, and proteomic analysis of NOD tissues over time (79).

We propose that similar pathways as those seen in NOD disease may be involved in the development of T1D. Degradation of the islet extracellular matrix (ECM), enhanced glucagon and insulin secretion, and hyperactivity of β-cells have been observed in the islets of patients with prediabetes as well as in NOD mice (1016). In this study, we have identified genes that may contribute to pathophysiologically relevant pathways over the course of T1D development. Downregulation of genes involved in ECM formation was seen as early as embryonic day 17 (E17) in the pancreata of embryonic NOD mice. In our current study, we identified a significant number of genes involved in ECM development, as well as glucagon and insulin signaling, that were changed as peri-insulitic lesions developed. These include an upregulation of chemosensory olfactory receptor genes. Later, during the period of destructive insulitis, we observed downregulation of genes involved in antimicrobial defense as well as iron homeostasis.

A loss of pancreatic iron homeostasis may be significant in the pathogenesis of T1D, as a number of epidemiological studies have shown an association between high iron exposure and the development of T1D. Use of iron supplements during prenatal development, feeding with iron-fortified formula during infancy, and high red meat consumption during childhood have all been shown to significantly increase the risk of developing T1D (1720). The mechanisms involved are unclear. Our data suggest that increased iron exposure combined with a loss in pancreatic iron homeostasis may lead to the accumulation of iron in β-cells and resultant oxidative stress. This pathway, along with compromised ECM development, β-cell hyperactivity, and a loss of antimicrobial defense mechanisms, likely contribute to the autoimmune destruction of β-cells. It is possible that these pathways could be targeted at different stages of disease development to prevent or delay the onset of hyperglycemia in T1D.

Animals

Female NOD/LtJ (NOD), NOD.B10Sn-H2b/J (NOD.B10), NOD.CB17-Prkdcscid/J (NOD.SCID), and NOD.Cg-Tg(TcraBDC2.5)1DoiTg(TcrbBDC2.5)Doi/DoiJ (NOD.BDC2.5) mice were purchased from The Jackson Laboratory (Bar Harbor, ME) and bred at the Stanford School of Medicine animal facility according to institutional guidelines under approved protocols. Based on phenotyping data from The Jackson Laboratory, 80% of NOD mice are expected to develop hyperglycemia by 25 weeks of age. Animals were fed Prolab RMH-5P04 (LabDiet, St. Louis, MO), unless otherwise specified.

Dietary Iron and Deferiprone Treatment on NOD Disease

NOD mice were fed standard diets, Prolab RMH-5P04 (Standard 5P04; LabDiet) or Teklad 2018 SX (Standard 2018; Envigo, Indianapolis, IN), or custom diets formulated using Teklad 2018 SX, supplemented with an additional 200 ppm (2018 + 200) or 850 ppm (2018 + 850) of iron sulfate. Blood glucose and weights were monitored weekly, and mice were considered hyperglycemic if blood glucose exceeded 250 mg/dL over 2 consecutive weeks. The iron content of each diet was measured by Minnesota Valley Testing Laboratories (New Ulm, MN): Standard 5P04, 369 ppm; Standard 2018, 176 ppm; Custom 2018 + 200, 378 ppm; and Custom 2018 + 850, 1,013 ppm. Mice can maintain normal growth on diets containing as little as 50 ppm iron (i.e., AIN-93G standard mouse chow) (21). Thus, the 2018, 2018 + 200 ppm, and 2018 + 850 ppm diets contain ∼3.5-fold, 7.5-fold, and 20-fold the level of iron required for normal growth, respectively. To examine the effect of iron chelation, equal numbers of NOD mice, maintained on the Standard 5P04 diet, were given either free access to water or water containing 0.2 mg/mL of the iron chelator deferiprone (ApoPharma, Rockville, MD) and monitored for hyperglycemia. Based on daily drinking volumes of 5 mL/25 g mouse, the dose of deferiprone was ∼40 mg/kg/day, well below the toxic dose for non–iron-overloaded mice (22).

Mouse Tissues

Pancreas tissues were extracted from NOD and NOD.B10 mice at various ages. For embryonic samples, matings were established and plugs were checked every morning. Pregnant mice were sacrificed 17 days postconception. Pancreas tissues were collected. RNA was extracted, and samples from females were selected by genotyping using primers for Sex determining region of Chr Y (Sry) (Supplementary Table 2). Islets were isolated from 10-day-, 4-week-, and 12-week-old female NOD and NOD.B10 mice as previously described (1) and used for microarray or quantitative PCR (QPCR) analysis as described below. Islets collected from 4- and 12-week-old NOD mice contain various infiltrating immune cells, as previously described (7,23,24).

Human Islets

Islets were obtained from the University of Alberta Diabetes Institute’s IsletCore through the Stanford Diabetes Research Center (Supplementary Table 1). Islets were cultured overnight in low-glucose DMEM containing 10% FBS at 37°C prior to RNA extraction.

Microarray and Pathway Analysis

Two-color microarrays were performed in the islets of individual NOD mice against a pool of age-matched NOD.B10 mice (n = 6/group, 10-day-, 4-week-, and 12-week-old mice) using the Whole Mouse Genome Microarray Kit, 4 × 44K two-color arrays (Agilent Technologies, Santa Clara, CA) as previously described (2). Data were analyzed using GeneSpring (version 12.6.1; Agilent Technologies). Samples were filtered for entities with annotated gene symbols and entities detected in at least 4 of 18 NOD islet preparations (n = 6/age). The resultant 26,823 entities representing 16,822 genes were analyzed (data available from the Gene Expression Omnibus, accession number GSE149086). t tests and Benjamini-Hochberg multiple testing correction were performed to identify genes for which expression changed by twofold or more (corrected P < 0.01). Pathway analysis was performed using Advaita Bio’s iPathwayGuide (https://www.advaitabio.com/ipathwayguide). P values shown in Table 1 were determined by assessing the accumulated perturbation of a pathway and overrepresentation of genes in a pathway. Genes belonging to each pathway were curated by the Kyoto Encyclopedia of Genes and Genomes (KEGG; https://www.genome.jp/kegg/). Gene ontology (GO) analysis was performed on genes up- or downregulated by threefold or more using the Gene Ontology enRIchment anaLysis and visuaLizAtion tool [GOrilla] at http://cbl-gorilla.cs.technion.ac.il/). Separate analyses were performed on up- and downregulated genes to identify pathways more relevant to phenotypic differences (Table 1) (25). A total of 15,592 genes in the islets were associated with a GO term.

Table 1

Pathway and GO term analysis of differentially expressed genes at each stage of disease

Top biologically relevant pathways associated with DE genes
AgeKEGG pathwayKEGG identification numberP value
10 days Glucagon signaling pathway 4922 5.17E-04
 ECM–receptor interaction 4512 2.39E-03
4 weeks Olfactory transduction 4740 1.12E-08
 Antigen processing and presentation 4612 2.36E-05
 Type 1 diabetes mellitus 4940 1.32E-03
12 weeks Hematopoietic cell lineage 4640 1.09E-10
 Phagosome 4145 2.24E-09
 Cytokine-cytokine receptor interaction 4060 1.12E-08
 Th17 cell differentiation 4659 1.12E-08
 Natural killer cell–mediated cytotoxicity 4650 1.12E-08
 Chemokine signaling pathway 4062 1.01E-07
 T cell receptor signaling pathway 4660 7.38E-07
Top biologically relevant pathways associated with DE genes
AgeKEGG pathwayKEGG identification numberP value
10 days Glucagon signaling pathway 4922 5.17E-04
 ECM–receptor interaction 4512 2.39E-03
4 weeks Olfactory transduction 4740 1.12E-08
 Antigen processing and presentation 4612 2.36E-05
 Type 1 diabetes mellitus 4940 1.32E-03
12 weeks Hematopoietic cell lineage 4640 1.09E-10
 Phagosome 4145 2.24E-09
 Cytokine-cytokine receptor interaction 4060 1.12E-08
 Th17 cell differentiation 4659 1.12E-08
 Natural killer cell–mediated cytotoxicity 4650 1.12E-08
 Chemokine signaling pathway 4062 1.01E-07
 T cell receptor signaling pathway 4660 7.38E-07
GO terms associated with DE genes
GO identification numberGO termP value*FDR q value**Enrichment score***Genes in GO termDE in GO term
10-day-old NOD vs. NOD.B10 islets
 Threefold upregulated genes (393 genes)
  32024 Positive regulation of insulin secretion 5.65E-06 1.71E-02 5.39 81 11
 Threefold downregulated genes (220 genes)
  31012 Extracellular matrix 2.78E-29 5.39E-26 8.03 415 47
  62023 Collagen-containing extracellular matrix 2.34E-26 2.26E-23 8.75 324 40
  5201 Extracellular matrix structural constituent 5.22E-22 2.30E-18 14.17 125 25
  9653 Anatomical structure morphogenesis 8.80E-20 1.33E-15 3.52 1,288 64
  30198 Extracellular matrix organization 1.15E-13 2.17E-10 7.68 203 22
4-week-old NOD vs. NOD.B10 islets
 Threefold upregulated genes (191 genes)
  4984 Olfactory receptor activity 8.14E-10 3.59E-06 5.44 300 20
  7600 Sensory perception 2.05E-09 7.73E-06 3.7 617 28
  7608 Sensory perception of smell 2.78E-09 8.40E-06 5.07 322 20
12-week-old NOD vs. NOD.B10 islets
 Threefold upregulated genes (794 genes)
  2376 Immune system process 2.36E-75 3.56E-71 3.76 1,185 227
  2682 Regulation of immune system process 2.98E-52 2.26E-48 3.31 1,114 188
  6955 Immune response 2.81E-46 1.42E-42 4.08 635 132
  2684 Positive regulation of immune system process 7.80E-46 2.95E-42 3.81 726 141
  45321 Leukocyte activation 1.41E-44 4.27E-41 5.02 403 103
  2250 Adaptive immune response 2.22E-41 5.59E-38 7.38 181 68
  50776 Regulation of immune response 2.91E-41 6.28E-38 3.93 614 123
 Threefold downregulated genes (388 genes)
  43207 Response to external biotic stimulus 4.40E-12 6.65E-08 3.02 653 49
  9607 Response to biotic stimulus 4.42E-12 3.34E-08 2.97 676 50
  51707 Response to other organism 5.36E-12 2.70E-08 3.36 502 42
  9617 Response to bacterium 1.38E-11 5.22E-08 4.21 296 31
  9605 Response to external stimulus 5.88E-11 1.78E-07 2.36 1,106 65
  19730 Antimicrobial humoral response 1.04E-09 2.63E-06 9.17 57 13
  6955 Immune response 2.44E-09 5.27E-06 2.72 635 43
  61844 Antimicrobial humoral immune–antimicrobial peptide 9.34E-09 1.77E-05 9.82 45 11
  6952 Defense response 1.79E-08 3.00E-05 2.42 781 47
GO terms associated with DE genes
GO identification numberGO termP value*FDR q value**Enrichment score***Genes in GO termDE in GO term
10-day-old NOD vs. NOD.B10 islets
 Threefold upregulated genes (393 genes)
  32024 Positive regulation of insulin secretion 5.65E-06 1.71E-02 5.39 81 11
 Threefold downregulated genes (220 genes)
  31012 Extracellular matrix 2.78E-29 5.39E-26 8.03 415 47
  62023 Collagen-containing extracellular matrix 2.34E-26 2.26E-23 8.75 324 40
  5201 Extracellular matrix structural constituent 5.22E-22 2.30E-18 14.17 125 25
  9653 Anatomical structure morphogenesis 8.80E-20 1.33E-15 3.52 1,288 64
  30198 Extracellular matrix organization 1.15E-13 2.17E-10 7.68 203 22
4-week-old NOD vs. NOD.B10 islets
 Threefold upregulated genes (191 genes)
  4984 Olfactory receptor activity 8.14E-10 3.59E-06 5.44 300 20
  7600 Sensory perception 2.05E-09 7.73E-06 3.7 617 28
  7608 Sensory perception of smell 2.78E-09 8.40E-06 5.07 322 20
12-week-old NOD vs. NOD.B10 islets
 Threefold upregulated genes (794 genes)
  2376 Immune system process 2.36E-75 3.56E-71 3.76 1,185 227
  2682 Regulation of immune system process 2.98E-52 2.26E-48 3.31 1,114 188
  6955 Immune response 2.81E-46 1.42E-42 4.08 635 132
  2684 Positive regulation of immune system process 7.80E-46 2.95E-42 3.81 726 141
  45321 Leukocyte activation 1.41E-44 4.27E-41 5.02 403 103
  2250 Adaptive immune response 2.22E-41 5.59E-38 7.38 181 68
  50776 Regulation of immune response 2.91E-41 6.28E-38 3.93 614 123
 Threefold downregulated genes (388 genes)
  43207 Response to external biotic stimulus 4.40E-12 6.65E-08 3.02 653 49
  9607 Response to biotic stimulus 4.42E-12 3.34E-08 2.97 676 50
  51707 Response to other organism 5.36E-12 2.70E-08 3.36 502 42
  9617 Response to bacterium 1.38E-11 5.22E-08 4.21 296 31
  9605 Response to external stimulus 5.88E-11 1.78E-07 2.36 1,106 65
  19730 Antimicrobial humoral response 1.04E-09 2.63E-06 9.17 57 13
  6955 Immune response 2.44E-09 5.27E-06 2.72 635 43
  61844 Antimicrobial humoral immune–antimicrobial peptide 9.34E-09 1.77E-05 9.82 45 11
  6952 Defense response 1.79E-08 3.00E-05 2.42 781 47

DE, differentially expressed; FDR, false discovery rate.

*

Enrichment P value computed according to the minimal hypergeometric or hypergeometric model.

**

Corrected P value for multiple testing of 15,113 GO terms using Benjamini-Hochberg correction.

***

Enrichment: (DE genes in GO term/DE genes in islet)/(GO term genes expressed in islets/all genes expressed in islets).

RNA Extraction, cDNA Synthesis, RT-PCR, and QPCR

Total RNA was extracted from islets and pancreas tissues using TRIzol reagent (Invitrogen, Carlsbad, CA) and the Qiagen RNeasy Micro Kit (for islets) and Mini Kit (for pancreas; Qiagen, Germantown, MD) as previously described (1,26). RNA quality was assessed using the Agilent 2100 Bioanalyzer and the RNA 6000 Pico or Nano Reagent Kit (Agilent Technologies). All samples used had an RNA integrity number >8.0. cDNA was synthesized using Superscript III (Invitrogen). RT-PCR for various olfactory receptors was performed using primers listed on Supplementary Table 2. cDNA was preamplified using the TaqMan PreAmp Master Mix (Applied Biosystems, Foster City, CA) prior to QPCR if threshold cycle (Ct) values were >29. QPCR was performed using assays purchased from Applied Biosystems, the 7900HT Fast Real Time PCR System and the TaqMan Gene Expression Master Mix. Gene expression was calculated using the comparative Ct method for relative quantification (ΔΔCt).

Splenocyte Activation and Adoptive Transfer of Activated Splenocytes

Splenocytes from 12-week-old female NOD.BDC2.5 were activated in anti-CD3/anti-CD28–coated plates (2 μg/mL), in the presence of LPS (1 μg/mL; Sigma-Aldrich, St. Louis, MO) and IFN-α (200 U/mL; Sigma-Aldrich) for 24 h, as previously described (1). Splenocytes (5 × 106) were i.p. injected into female 12-week-old NOD.SCID mice (n = 7), and control mice were injected with an equal volume of PBS (200 μL; n = 4). The pancreata were harvested 48 h later. RNA was extracted, and QPCR was performed as described above. BDC.2.5 transgene primers were purchased from The Jackson Laboratory.

Pancreatic Iron, Hepcidin, and Ferritin Measurements

Due to the sensitivity of the assays used, iron, hepcidin, and ferritin measurements were performed in the pancreas rather than the islets of individual NOD and NOD.B10 mice. Pancreas tissue from 12-week-old NOD and NOD.B10 mice were homogenized on ice in T-PER Tissue Protein Extraction reagent containing 1× Halt EDTA-free protease inhibitor (Thermo Fisher Scientific, Waltham, MA), and protein concentrations were determined using the Pierce Rapid Gold BCA assay kit (Sigma-Aldrich). Ferrous, ferric, and total iron levels were measured using an Iron Assay kit (ab83366; Abcam, Cambridge, MA). Hepcidin-1 and ferritin levels were measured using the Hepcidin Murine-Compete ELISA Kit (Intrinsic LifeSciences, La Jolla, CA) and the Ferritin Mouse ELISA kit (ab157713; Abcam), respectively. Prussian blue staining for iron was performed in tissue sections of 12-week-old NOD mice using the Abcam iron staining kit (ab150674), according to the manufacturer’s instructions.

Statistical Analysis

Data were analyzed for normal Gaussian distribution using the Kolmogorov-Smirnov test. Based on the outcome, statistical analyses were performed using either the parametric two-tailed unpaired Student t test or the nonparametric Mann-Whitney test (Prism 5; GraphPad Software, San Diego, CA). For diet studies, the incidence of hyperglycemia in each group was compared using the log-rank (Mantel-Cox) test (Prism 5). A P value of ≤0.05 was considered significant.

Data and Resource Availability

Microarray data sets are available at the Gene Expression Omnibus under accession number GSE149086. All other data generated are included in the published article. No applicable resources were generated by the current study.

Microarray Analysis of Islet Gene Expression

Principal component analysis and hierarchical clustering of normalized NOD versus NOD.B10 islet gene expression data show clustering of samples by age (Fig. 1A and B). The number of differentially expressed entities changed by twofold or more, threefold, and fivefold in the islets of 10-day-, 4-week-, and 12-week-old NOD versus NOD.B10 mice, respectively, are shown in Fig. 1C (P < 0.01), and entities changed by fivefold or more are listed in Supplementary Table 3.

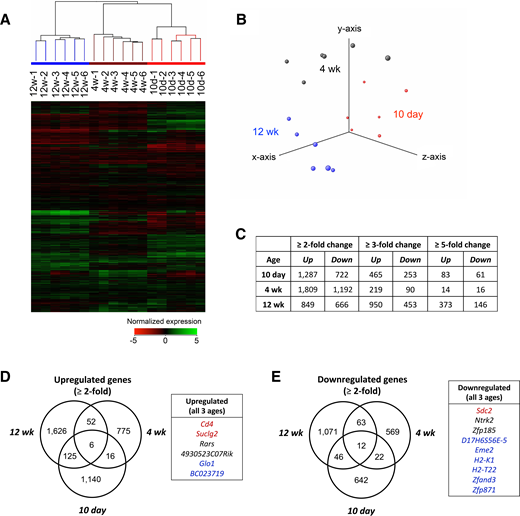

Figure 1

Gene expression in isolated islets of 10-day-, 4-week-, and 12-week-old NOD compared with age-matched NOD.B10 mice. A: Hierarchical clustering data shown as a heat map of normalized gene expression (Log2[Raw intensity in NOD/age-matched NOD.B10]). B: Principal component analysis showing normalized gene expression in NOD vs. NOD.B10 islets cluster based on age. C: The number of entities that are differentially expressed by at least twofold, threefold, and fivefold (P < 0.01) in the islets of NOD vs. age-matched NOD.B10 mice. Venn diagrams showing the overlap of significantly upregulated (D) and downregulated (E) entities in the islets of NOD vs. NOD.B10 mice at different ages. Genes that are changed in all three ages are shown. Biologically relevant genes are highlighted in red, and genes that reside in chromosome 17 between chr17:25025623 and 36253239 are highlighted in blue. This represents the “H2b haplotype” region transferred from C57BL/10SnJ to NOD/Lt to create the NOD.B10Sn-H2b/J strain.

Figure 1

Gene expression in isolated islets of 10-day-, 4-week-, and 12-week-old NOD compared with age-matched NOD.B10 mice. A: Hierarchical clustering data shown as a heat map of normalized gene expression (Log2[Raw intensity in NOD/age-matched NOD.B10]). B: Principal component analysis showing normalized gene expression in NOD vs. NOD.B10 islets cluster based on age. C: The number of entities that are differentially expressed by at least twofold, threefold, and fivefold (P < 0.01) in the islets of NOD vs. age-matched NOD.B10 mice. Venn diagrams showing the overlap of significantly upregulated (D) and downregulated (E) entities in the islets of NOD vs. NOD.B10 mice at different ages. Genes that are changed in all three ages are shown. Biologically relevant genes are highlighted in red, and genes that reside in chromosome 17 between chr17:25025623 and 36253239 are highlighted in blue. This represents the “H2b haplotype” region transferred from C57BL/10SnJ to NOD/Lt to create the NOD.B10Sn-H2b/J strain.

Close modal

Only 6 genes (Cd4, Suclg2, Glo1, 4930523C07Rik, Rars, and BC023719) were upregulated and 9 genes (represented by 12 entities: Ntrk2, Sdc2, D17H6S56E-5, Eme2, H2-K1, H2-T22, Zfand3, Zfp185, and Zfp871) were downregulated in the islets of NOD versus NOD.B10 mice across all 3 ages (Fig. 1D and E). More than half of these genes reside in chromosome 17 between chr17:25025623 and 36253239, in the “H2b haplotype” region transferred from C57BL/10SnJ to NOD/Lt to create the NOD.B10Sn-H2b/J strain. Of the genes outside chromosome 17, Cd4, Suclg2, and Sdc2 may be relevant to T1D. CD4 is a marker of T helper cells. Sdc2 encodes syndecan 2, a heparan sulfate proteoglycan (HSPG) in the ECM, and Suclg2 encodes the β subunit of succinyl-CoA ligase, an enzyme in the tricarboxylic acid cycle that converts succinyl-CoA to succinate. Succinate stimulates insulin synthesis and secretion (27) and can enhance inflammation by activating macrophages and dendritic cells (28).

We performed QPCR analysis using islets from a separate cohort of mice to validate the microarray data for Cd4, Suclg2, and Sdc2, along with interferon-γ (Ifng, a marker of islet inflammation) and insulin 2 (Ins2) (Fig. 2A–E). As expected, Ins2 expression was unchanged, while Ifng expression was increased at 12 weeks of age, coincident with the onset of destructive insulitis. The upregulation of Cd4 and Suclg2 was also confirmed at 4 and 12 weeks, while Sdc2 was significantly downregulated in the NOD islets at all ages examined. The same genes were also measured in the pancreas prior to birth at E17 and at 10 days, 4 weeks, and 12 weeks of age. Similar patterns of Ins2, Ifng, Cd4, and Sdc2 gene expression were observed in the pancreas and islets, with no change in Ins2 expression, an upregulation of Ifng (at 4 and 12 weeks), Cd4 (at 4 and 12 weeks), and Suclg2 (at 10 days and 12 weeks), and a downregulation of Sdc2 (all ages studied) (Fig. 2F–J). The gradual upregulation of Cd4 and Ifng from 4 to 12 weeks in NOD islets is consistent with previous studies showing that ∼10% and ∼80% of NOD islets contain CD4+ T cells at 4 and 12 weeks of age, respectively (7).

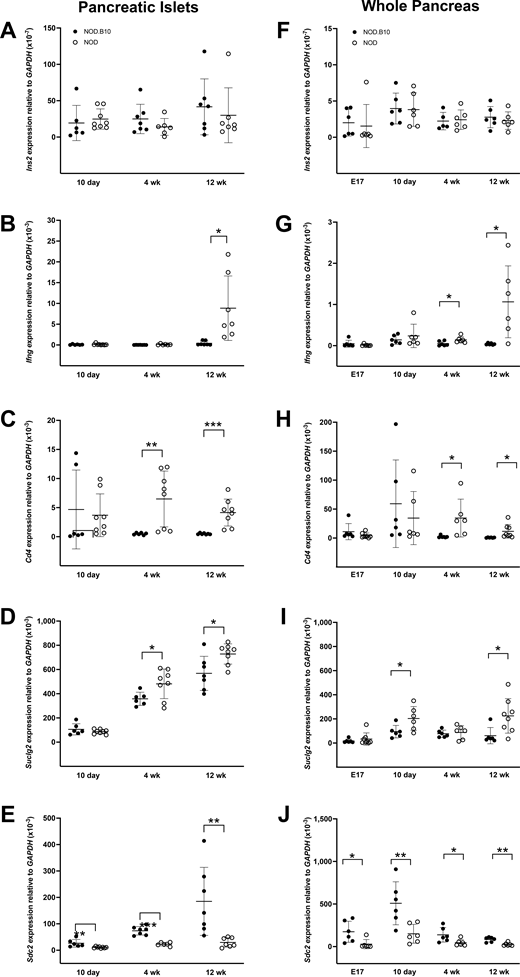

Figure 2

Expression of disease-relevant genes in isolated islets and pancreata of NOD and NOD.B10 mice. QPCR analysis was performed to measure Ins2 (A and F), Ifng (B and G), Cd4 (C and H), Sucgl2 (D and I), and Sdc2 (E and J) in isolated islets and whole pancreata samples of NOD and NOD.B10 mice at 10 days, 4 weeks, and 12 weeks of age and in the fetal pancreas at E17. Note that islet samples used for these studies do not overlap with those used for microarray studies. The mean ± SEM are shown, and statistical analysis was performed using the two-tailed Student unpaired t test or the Mann-Whitney test (Supplementary Table 6). *P < 0.05; **P < 0.01; ***P < 0.001.

Figure 2

Expression of disease-relevant genes in isolated islets and pancreata of NOD and NOD.B10 mice. QPCR analysis was performed to measure Ins2 (A and F), Ifng (B and G), Cd4 (C and H), Sucgl2 (D and I), and Sdc2 (E and J) in isolated islets and whole pancreata samples of NOD and NOD.B10 mice at 10 days, 4 weeks, and 12 weeks of age and in the fetal pancreas at E17. Note that islet samples used for these studies do not overlap with those used for microarray studies. The mean ± SEM are shown, and statistical analysis was performed using the two-tailed Student unpaired t test or the Mann-Whitney test (Supplementary Table 6). *P < 0.05; **P < 0.01; ***P < 0.001.

Close modal

Dysregulated Genes and Pathways During T-Cell Initiation (10 Days of Age)

Pathway and GO analysis were performed on differentially expressed genes at each age. Significantly impacted pathways are listed in Supplementary Table 4, and the most affected pathways related to disease progression are shown in Table 1. GO terms significantly associated with upregulated and downregulated genes at each age are shown in Supplementary Table 5, and the top biologically relevant GO terms are shown in Table 1.

At 10 days, we observed changes consistent with activation of glucagon signaling (KEGG pathway 04922) (Fig. 3A and Table 1) and positive regulation of insulin secretion (GO term 32024). Affected genes belonging to this pathway and GO term are shown in Fig. 3A–C. Using a separate cohort of 10-day-old NOD and NOD.B10 mice, we confirmed the upregulation of two genes in this pathway, glucagon receptor (Gcgr) and gastric inhibitory polypeptide receptor (Gipr), by QPCR (Fig. 3D and E).

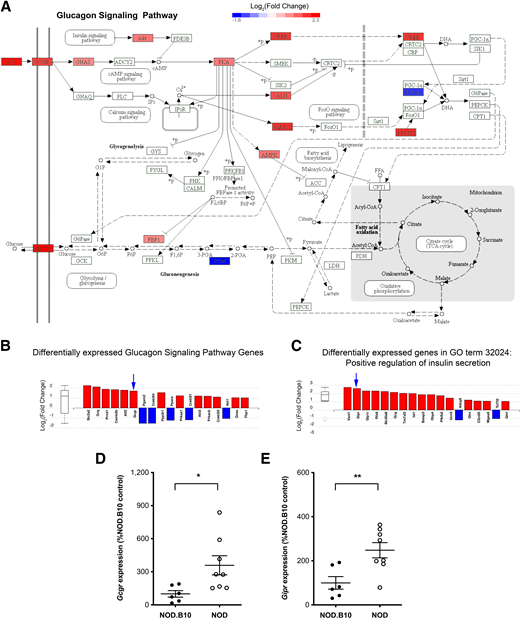

Figure 3

Genes involved in glucagon signaling are affected during the earliest stage of disease. A significant number of genes belonging to the glucagon signaling pathway (KEGG: 04922) and GO term 32024: Positive regulation of insulin secretion were found to be altered in the islets of 10-day-old NOD vs. age-matched NOD.B10 mice (AC). QPCR analysis was performed to confirm the upregulation of glucagon receptor (Gcgr) and glucose-dependent insulinotropic polypeptide receptor (Gipr; blue arrows) in a separate cohort of 10-day old NOD and NOD.B10 mice (D and E). The mean ± SEM are shown, and statistical analysis was performed using the two-tailed Student unpaired t test. *P < 0.05; **P < 0.01. Panels AC were generated using iPathwayGuide. FFA, free fatty acid; FDH and LDH are proteins; TCA, tricarboxylic acid.

Figure 3

Genes involved in glucagon signaling are affected during the earliest stage of disease. A significant number of genes belonging to the glucagon signaling pathway (KEGG: 04922) and GO term 32024: Positive regulation of insulin secretion were found to be altered in the islets of 10-day-old NOD vs. age-matched NOD.B10 mice (AC). QPCR analysis was performed to confirm the upregulation of glucagon receptor (Gcgr) and glucose-dependent insulinotropic polypeptide receptor (Gipr; blue arrows) in a separate cohort of 10-day old NOD and NOD.B10 mice (D and E). The mean ± SEM are shown, and statistical analysis was performed using the two-tailed Student unpaired t test. *P < 0.05; **P < 0.01. Panels AC were generated using iPathwayGuide. FFA, free fatty acid; FDH and LDH are proteins; TCA, tricarboxylic acid.

Close modal

Downregulated genes at 10 days of age associated with a loss of ECM receptor interaction (KEGG pathway 04512) (Table 1 and Fig. 4) and with GO terms associated with the ECM. A total of 124 genes belonging to the GO term “ECM structural constituent” (GO identification number 0005201) are expressed in the islets. A total of 34 of these genes are significantly changed by twofold or more at 10 days of age (Fig. 4B).

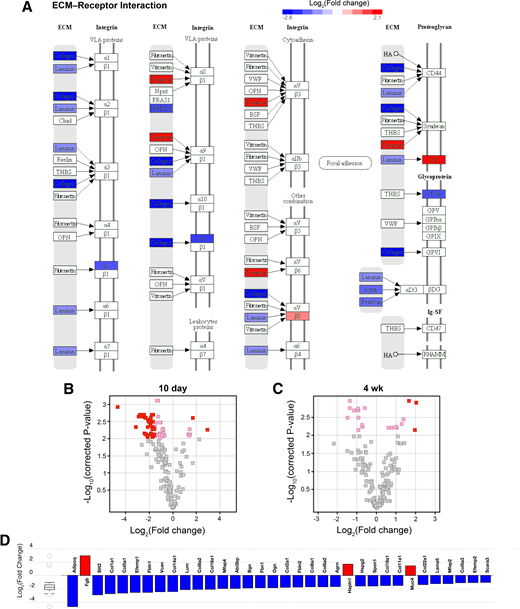

Figure 4

Downregulation of ECM genes in the islets of 10-day-old NOD vs. NOD.B10 mice. A: Pathway analysis showed that a significant number of genes belonging to the ECM–receptor interaction pathway (KEGG 04512) were downregulated in the islets of 10-day-old NOD vs. age-matched NOD.B10 mice. B and C: Volcano plots showing entities that represent the 124 genes expressed in islets belonging to GO term 5201: ECM structural constituent. A significant association with this GO term was observed at 10 days of age when 34 out of the 124 genes were changed by twofold or more (pink) or threefold or more (red) in NOD vs. NOD.B10 mice (P < 5.9 × 10−8). Changes in gene expression were no longer associated with this GO term by 4 weeks of age. D: The 34 genes in GO term 5201 that were significantly changed in 10-day-old NOD vs. NOD.B10 islets. Panels A and D were generated using iPathwayGuide.

Figure 4

Downregulation of ECM genes in the islets of 10-day-old NOD vs. NOD.B10 mice. A: Pathway analysis showed that a significant number of genes belonging to the ECM–receptor interaction pathway (KEGG 04512) were downregulated in the islets of 10-day-old NOD vs. age-matched NOD.B10 mice. B and C: Volcano plots showing entities that represent the 124 genes expressed in islets belonging to GO term 5201: ECM structural constituent. A significant association with this GO term was observed at 10 days of age when 34 out of the 124 genes were changed by twofold or more (pink) or threefold or more (red) in NOD vs. NOD.B10 mice (P < 5.9 × 10−8). Changes in gene expression were no longer associated with this GO term by 4 weeks of age. D: The 34 genes in GO term 5201 that were significantly changed in 10-day-old NOD vs. NOD.B10 islets. Panels A and D were generated using iPathwayGuide.

Close modal

Dysregulated Genes and Pathways During Respective Insulitis (4 Weeks of Age)

At 4 weeks, a significant upregulation of genes related to olfactory transduction (KEGG 4740) and olfactory receptor pathways in the islets of NOD mice was observed (Table 1 and Supplementary Fig. 1). A total of 300 genes belonging to the GO term “Olfactory receptor activity” (GO identification number 0004984) are expressed in the islets. A total of 66 were upregulated in NOD islets at 4 weeks, while few were changed at 10 days or 12 weeks of age (Fig. 5A–C). Among the 20 most highly expressed olfactory receptor genes in the islets of 4-week-old NOD mice, 13 were upregulated by twofold or more and 7 were upregulated by threefold or more (P < 0.01) (Fig. 5D). Olfactory receptor Olfr544 has been shown to regulate glucagon (29), while Olfr821 and Olfr15 may regulate insulin secretion (30). We observed an increase in Olfr544 but no change in Olfr821 and Olfr15 at 4 weeks of age (Fig. 5E). Olfr1428 and Olfr410 are homologs of human ORD4D6 and OR3A2, respectively, and are significantly upregulated in the islets of 4-week-old NOD mice (Fig. 5D). Using a second cohort of 4-week-old NOD and NOD.B10 islets, we confirmed by QPCR that both genes are indeed upregulated, while Olfr15 was unchanged in NOD versus NOD.B10 islets. By RT-PCR, we showed that OR3A2, OR51S1, OR4D6, OR5B2, OR674, and OR2C1, the human equivalents of Olfr410, Olfr571, Olfr1428, Olfr1444, Olfr821, and Olfr15, were all detected in human islets (Fig. 5G and Supplementary Fig. 1C).

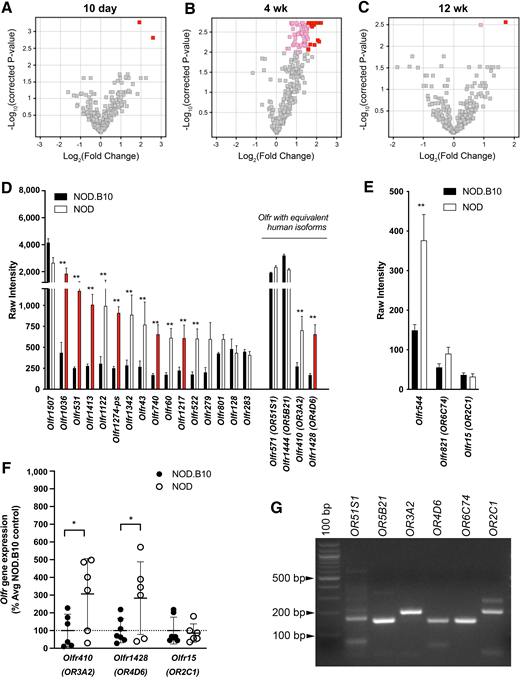

Figure 5

Upregulation of Olfr genes in the islets from 4-week-old NOD vs. NOD.B10 mice. AC: Volcano plots showing entities that represent the 300 genes expressed in islets belonging to GO term 4984: Olfactory receptor activity. A significant association with this GO term was observed at 4 weeks of age when 66 out of the 300 genes were changed by twofold or more (pink) or threefold or more (red) in NOD vs. NOD.B10 mice (P < 5.9 × 10−8). No association was observed at 10 days or 12 weeks of age. D: The 20 most abundantly expressed Olfr genes measured in the islets of 4-week-old NOD and NOD.B10 mice are shown. Fourteen were significantly upregulated by twofold or more in NOD vs. NOD.B10 islets (**corrected P < 0.01), with seven changed by more than threefold (red bars). Four Olfr genes have human orthologs (human gene symbol shown in parentheses). E: The expression of previously studied Olfr receptors in the islets of 4-week-old NOD and NOD.B10 mice. F: QPCR analysis was performed to confirm the upregulation of Olfr410 and Olfr1428 in the islets of a separate cohort of 4-week-old NOD and NOD.B10 mice. The mean ± SEM are shown, and statistical analysis was performed using the two-tailed Student unpaired t test or the Mann-Whitney test (Supplementary Table 6). *P < 0.05. G: Representative RT-PCR data showing the expression of all six human olfactory receptor genes in the islets. Data shown were generated using islet cDNA from subject 2 (Supplementary Table 1). Data were similar for all samples (Supplementary Fig. 1C). Avg, average.

Figure 5

Upregulation of Olfr genes in the islets from 4-week-old NOD vs. NOD.B10 mice. AC: Volcano plots showing entities that represent the 300 genes expressed in islets belonging to GO term 4984: Olfactory receptor activity. A significant association with this GO term was observed at 4 weeks of age when 66 out of the 300 genes were changed by twofold or more (pink) or threefold or more (red) in NOD vs. NOD.B10 mice (P < 5.9 × 10−8). No association was observed at 10 days or 12 weeks of age. D: The 20 most abundantly expressed Olfr genes measured in the islets of 4-week-old NOD and NOD.B10 mice are shown. Fourteen were significantly upregulated by twofold or more in NOD vs. NOD.B10 islets (**corrected P < 0.01), with seven changed by more than threefold (red bars). Four Olfr genes have human orthologs (human gene symbol shown in parentheses). E: The expression of previously studied Olfr receptors in the islets of 4-week-old NOD and NOD.B10 mice. F: QPCR analysis was performed to confirm the upregulation of Olfr410 and Olfr1428 in the islets of a separate cohort of 4-week-old NOD and NOD.B10 mice. The mean ± SEM are shown, and statistical analysis was performed using the two-tailed Student unpaired t test or the Mann-Whitney test (Supplementary Table 6). *P < 0.05. G: Representative RT-PCR data showing the expression of all six human olfactory receptor genes in the islets. Data shown were generated using islet cDNA from subject 2 (Supplementary Table 1). Data were similar for all samples (Supplementary Fig. 1C). Avg, average.

Close modal

Dysregulated Genes and Pathways at the Onset of Destructive Insulitis (12 Weeks of Age)

At 12 weeks of age, the islets of NOD mice are infiltrated and highly inflamed (7). As expected, we saw significant upregulation of Ifng and Cd4 (Fig. 2B and C) and other genes and pathways associated with immune activation (Supplementary Tables 4 and 5 and Table 1), including Th17 cell differentiation (KEGG 4659), natural killer–mediated cytotoxicity (KEGG 4650), and T-cell receptor signaling (KEGG 4660) (Fig. 6A–C and Supplementary Fig. 2).

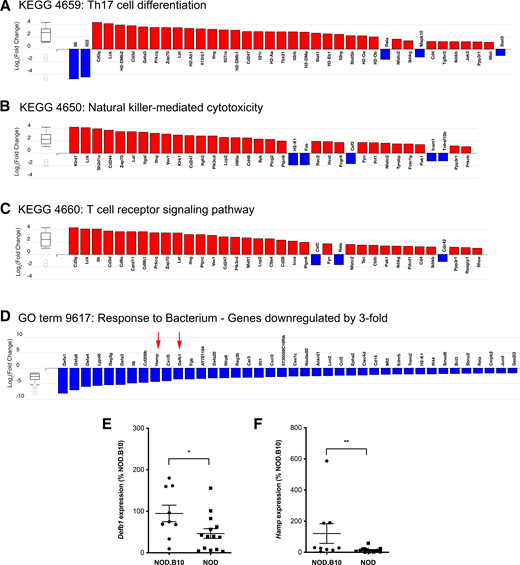

Figure 6

Upregulation of immune pathway genes and downregulation of antimicrobial response genes in the islets of 12-week-old NOD vs. NOD.B10 mice. Differentially expressed genes belonging to the Th17 cell differentiation (A, KEGG 4659), Natural killer-mediated cytotoxicity (B, KEGG 4650), or T cell receptor signaling (C, KEGG 4660) pathways that are significantly changed in the islets of 12-week-old NOD vs. NOD.B10 mice. D: Highly downregulated genes in the islets of 12-week-old NOD vs. NOD.B10 mice that belong to GO term 9617: Response to Bacterium. E and F: QPCR was performed to confirm the reduced expression of Defb1 and Hamp expression using a separate cohort of 12-week-old NOD and NOD.B10 mice. The mean ± SEM are shown, and statistical analysis was performed using the two-tailed Student unpaired t test or the Mann-Whitney test (Supplementary Table 6). *P < 0.05; **P < 0.01. Panels AD were generated using iPathwayGuide.

Figure 6

Upregulation of immune pathway genes and downregulation of antimicrobial response genes in the islets of 12-week-old NOD vs. NOD.B10 mice. Differentially expressed genes belonging to the Th17 cell differentiation (A, KEGG 4659), Natural killer-mediated cytotoxicity (B, KEGG 4650), or T cell receptor signaling (C, KEGG 4660) pathways that are significantly changed in the islets of 12-week-old NOD vs. NOD.B10 mice. D: Highly downregulated genes in the islets of 12-week-old NOD vs. NOD.B10 mice that belong to GO term 9617: Response to Bacterium. E and F: QPCR was performed to confirm the reduced expression of Defb1 and Hamp expression using a separate cohort of 12-week-old NOD and NOD.B10 mice. The mean ± SEM are shown, and statistical analysis was performed using the two-tailed Student unpaired t test or the Mann-Whitney test (Supplementary Table 6). *P < 0.05; **P < 0.01. Panels AD were generated using iPathwayGuide.

Close modal

The most downregulated genes at 12 weeks of age were associated with antimicrobial responses (Supplementary Table 3). GO terms include response to biotic stimulus, response to bacterium, antimicrobial humoral response, and defense response (Table 1). Highly downregulated genes include members of the defensin family (Defa1, Defa3, Defa4, Defa6, Defa20, and Defb1) and the hepcidin antimicrobial peptide gene (Hamp), encoding proteins that mediate their antimicrobial functions through distinct mechanisms (Fig. 6D). Using another cohort of 12-week-old mice, we confirmed by QPCR that the expression of Defb1 and Hamp are downregulated in the islets of NOD versus NOD.B10 mice (Fig. 6E and F). To examine if the loss of Hamp and Defb1 expression is due to islet inflammation, we injected NOD.SCID mice with activated splenocytes of NOD.BDC2.5 mice to induce islet inflammation in vivo. We had previously shown that the islet isolation procedure can induce changes in gene expression (1). To avoid this, we measured Hamp and Defb1 expression in whole pancreas samples, with the knowledge that Hamp is expressed in the islets of the pancreas, while Defb1 is expressed in both the endocrine and exocrine regions (3134). Successful transfer and homing of splenocytes was confirmed by expression of BDC2.5 (Fig. 7A), and inflammation was confirmed by upregulation of Ifng (Fig. 7B). Ins2 and Gcg were not changed (Fig. 7C and D), while Defb1 and Hamp were significantly downregulated (Fig. 7E and F).

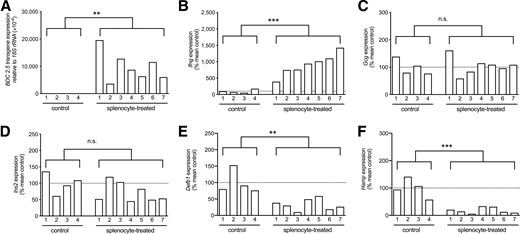

Figure 7

Effect of in vivo and in vitro islet inflammation on gene expression. Activated splenocytes of NOD.BDC.2.5 mice were injected i.p. into NOD.SCID mice to induce islet inflammation. QPCR results confirm the presence of the BDC2.5 transgene (A) and upregulation of Ifng (B) in the pancreata of NOD.SCID mice 48 h after injection. Gcg (C) and Ins2 (D) expression were not changed, while Defb1 (E) and Hamp (F) were significantly reduced in the pancreata of splenocyte-treated mice compared with PBS-treated controls. Each bar represents an individual mouse, and statistical analysis was performed using the Student unpaired t test to compare the means between the two groups (splenocyte-treated vs. PBS-treated). **P < 0.01; ***P < 0.001.

Figure 7

Effect of in vivo and in vitro islet inflammation on gene expression. Activated splenocytes of NOD.BDC.2.5 mice were injected i.p. into NOD.SCID mice to induce islet inflammation. QPCR results confirm the presence of the BDC2.5 transgene (A) and upregulation of Ifng (B) in the pancreata of NOD.SCID mice 48 h after injection. Gcg (C) and Ins2 (D) expression were not changed, while Defb1 (E) and Hamp (F) were significantly reduced in the pancreata of splenocyte-treated mice compared with PBS-treated controls. Each bar represents an individual mouse, and statistical analysis was performed using the Student unpaired t test to compare the means between the two groups (splenocyte-treated vs. PBS-treated). **P < 0.01; ***P < 0.001.

Close modal

Pancreatic Hamp, Hepcidin-1, Ferritin, and Iron Levels in NOD Versus NOD.B10 Mice

To examine if NOD mice exhibit a defect in pancreatic iron metabolism, we compared Hamp, hepcidin-1, ferritin, and iron levels in the pancreas of 12-week-old NOD and NOD.B10 mice. Similar to its expression in the islets, Hamp was significantly lower in the pancreas of NOD mice (Fig. 8A). Pancreatic hepcidin protein levels were also significantly lower, with hepcidin detected in only one of nine NOD samples, but eight of nine NOD.B10 samples (Fig. 8B). Ferrous iron (Fe2+) levels were higher in the NOD pancreas. Interestingly, the only NOD sample with detectable hepcidin expression had the lowest Fe2+ levels, while the only NOD.B10 pancreas with undetectable hepcidin expression had the highest Fe2+ levels (Fig. 8C). The levels of ferric iron (Fe3+) and ferritin, which binds Fe3+, did not differ between NOD and NOD.B10 mice (Fig. 8C and D). By histology, the highest concentration of iron was found in iron-rich cells in the peri-insulitic lesions surrounding the islets of NOD mice. These are likely macrophages; however, due to the incompatibility of staining procedures, we were not able to confirm this by immunohistochemistry. Macrophages are present in the peri-insulitic lesion (24,35,36) and are the only “immune cells” that store large amounts of iron (37). Iron was not detected in β-cells. However, β-cells exhibit low antioxidative capacity (38) and may perish before iron levels are high enough to be detected by Prussian blue staining (39). Studies in iron-overloaded rats have shown that ferritin deposits could be detected at the ultrastructural level in the plasmalemma and the cytoplasmic surface of secretory granule membranes of β-cells where elevated iron levels could not be detected by Prussian blue staining (39). Changes in the mRNA expression of various iron-responsive genes, including Tfrc (transferrin receptor 1), may also serve as useful surrogates to assess intracellular iron levels in β-cells (40) (Supplementary Fig. 3).

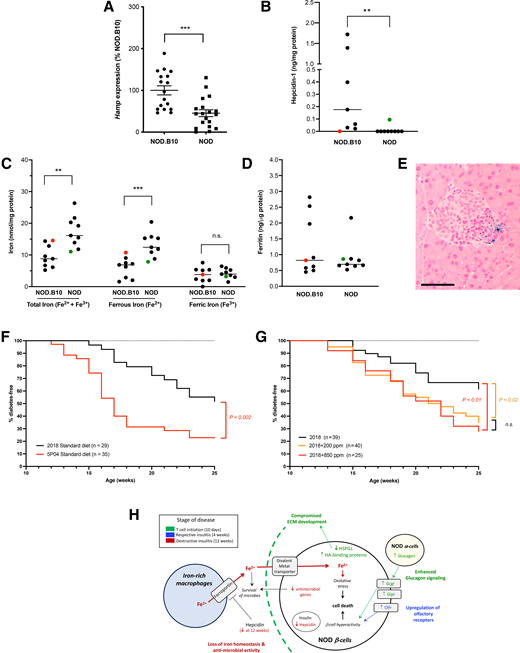

Figure 8

Regulation of iron homeostasis and role of dietary iron on disease progression in NOD mice. Hamp (A) and hepcidin-1 (B) levels were significantly lower, while ferrous iron (Fe2+) levels (C) were significantly higher in the pancreata of 12-week-old NOD vs. NOD.B10 mice. The single NOD.B10 mouse with undetectable pancreatic hepcidin-1 levels (indicated in red) had the highest Fe2+ levels among the group, while the single NOD mouse with detectable pancreatic hepcidin levels (indicated in green) had the lowest Fe2+ levels among the group. Ferric iron (Fe3+; C) and ferritin levels (D) did not differ between NOD and NOD.B10 mice. E: Representative image showing iron-rich cells (macrophages) in the peri-insulitic lesion surrounding an islet of a 12-week-old NOD mouse. Scale bar = 100 μm. Statistical analysis was performed using the Student unpaired t test or the Mann-Whitney test (Supplementary Table 6). **P < 0.01; ***P < 0.001. The effect of dietary iron on the progression of NOD disease was examined by measuring blood glucose levels in NOD mice maintained on two standard diets, Prolab RMH-5P04 (5P04; 369 ppm iron) or Teklad 2018 SX (2018; 176 ppm iron; F), maintained on custom diets of reprocessed and repelleted 2018 containing no additional iron sulfate (2018), or supplemented with an additional 200 ppm (2018 + 200) or 850 ppm (2018 + 850) of iron sulfate (G). In both studies, higher dietary iron levels resulted in an earlier onset and higher incidence of disease. H: Distinct pathways that are dysregulated at different stages of disease progression may act in combination to create an environment that is detrimental to the survival of β-cells. Genes/pathways altered in the islets during T-cell initiation at 10 days of age (green), respective insulitis at 4 weeks of age (blue), and destructive insulitis at 12 weeks of age (red) are shown. HA, hyaluronan.

Figure 8

Regulation of iron homeostasis and role of dietary iron on disease progression in NOD mice. Hamp (A) and hepcidin-1 (B) levels were significantly lower, while ferrous iron (Fe2+) levels (C) were significantly higher in the pancreata of 12-week-old NOD vs. NOD.B10 mice. The single NOD.B10 mouse with undetectable pancreatic hepcidin-1 levels (indicated in red) had the highest Fe2+ levels among the group, while the single NOD mouse with detectable pancreatic hepcidin levels (indicated in green) had the lowest Fe2+ levels among the group. Ferric iron (Fe3+; C) and ferritin levels (D) did not differ between NOD and NOD.B10 mice. E: Representative image showing iron-rich cells (macrophages) in the peri-insulitic lesion surrounding an islet of a 12-week-old NOD mouse. Scale bar = 100 μm. Statistical analysis was performed using the Student unpaired t test or the Mann-Whitney test (Supplementary Table 6). **P < 0.01; ***P < 0.001. The effect of dietary iron on the progression of NOD disease was examined by measuring blood glucose levels in NOD mice maintained on two standard diets, Prolab RMH-5P04 (5P04; 369 ppm iron) or Teklad 2018 SX (2018; 176 ppm iron; F), maintained on custom diets of reprocessed and repelleted 2018 containing no additional iron sulfate (2018), or supplemented with an additional 200 ppm (2018 + 200) or 850 ppm (2018 + 850) of iron sulfate (G). In both studies, higher dietary iron levels resulted in an earlier onset and higher incidence of disease. H: Distinct pathways that are dysregulated at different stages of disease progression may act in combination to create an environment that is detrimental to the survival of β-cells. Genes/pathways altered in the islets during T-cell initiation at 10 days of age (green), respective insulitis at 4 weeks of age (blue), and destructive insulitis at 12 weeks of age (red) are shown. HA, hyaluronan.

Close modal

Dietary Iron in NOD Disease

To examine the role of dietary iron on disease progression, we first tested two standard diets routinely used by the Stanford School of Medicine animal facility: Prolab RMH-5P04 (5P04; 369 ppm iron) and Teklad 2018 SX (2018; 176 ppm iron). The 5P04 diet is comparable to the 5K52 diet (containing 360 ppm iron; LabDiet) used by The Jackson Laboratory, where 80% of female NOD mice developed hyperglycemia by 25 weeks of age. We showed that 80% of NOD mice maintained on 5P04 also developed hyperglycemia by 25 weeks (Fig. 8F). Remarkably, disease incidence fell to 38% and 48% in two cohorts of NOD mice maintained on the low-iron 2018 diet (Fig. 8F and G), suggesting that reduced dietary iron may protect against disease development. To test this hypothesis, we maintained mice on custom diets formulated using 2018SX supplemented with iron. The addition of 200 ppm and 850 ppm iron significantly increased the incidence of hyperglycemia to 65% and 72%, respectively (Fig. 8G). No significant difference in disease incidence was observed among the 5P04, 2018SX+200, or 2018 + 850 diets. Since elevated iron exposure exacerbates NOD disease, we also asked if iron chelation could reduce disease. Treatment with the iron chelator, deferiprone, had no significant effect on disease progression (Supplementary Fig. 4).

The NOD mouse model is an invaluable tool for studying the pathogenesis of T1D. We identified novel genes and pathways that are dysregulated in the islets of NOD mice during distinct stages of disease progression and hypothesize that these pathways may act together to create an environment that promotes β-cell death (Fig. 8H). The earliest defect affects the ECM of NOD islets. The ECM consists of a basement membrane that encases and protects the islets and an interstitial matrix that regulates islet survival, differentiation, and proliferation (41,42). In NOD mice and patients with T1D, degradation of the basement membrane occurs, with a significant loss of heparan sulfate and HSPGs (1013,42). Heparan sulfate is crucial for β-cell survival and protects against oxidative stress (12,13). Reduced expression of Sdc2 and other HSPG genes may contribute to the loss of heparan sulfate in NOD islets. Sdc2 encodes syndecan-2, a cell surface core binding protein for heparan sulfate (43). Sdc2 was reduced in the pancreata and islets of NOD compared with NOD.B10 mice at all ages studied, including prior to birth at E17 (Figs. 1 and 2).

Genes controlling the expression of other HSPGs, including perlecan (Hspg2), laminin subunit α5 (Lama5), collagen type XVIII α 1 (Col18a1), and agrin (Agrn), were also downregulated at 10 days of age, while three ECM genes were upregulated: fibrinogen (Fgb), mucin 4 (Muc4), and hyaluronan and proteoglycan link protein 1 (Hapln1). The proteins encoded by these three genes interact with hyaluronan (4446), a component of the basement membrane that accumulates in the islets of 4-week-old NOD mice and patients with established T1D (42,47,48). Under inflammatory conditions, hyaluronan is degraded to form proinflammatory fragments that enhance myeloid and lymphoid cell accumulation and promote T-cell adhesion (4850). A shift in ECM composition, with increased hyaluronan-binding and reduced heparan sulfate–binding proteins in the islets of NOD versus NOD.B10 mice, may contribute to the formation of the peri-insulitic lesion observed at ∼4 weeks of age (Fig. 8H).

Hypersecretion of glucagon has been observed in NOD mice and patients with T1D (1,15,16,5153). We showed that the changes associated with enhanced glucagon signaling occur prior to islet inflammation (Fig. 3), with an upregulation of glucagon gene (Gcg) expression that is consistent with hyperactive α cells (1), and an upregulation of genes encoding glucagon receptors (Gcgr), glucagon-like peptide 1 receptors (Glp1r), and glucose-dependent insulinotropic polypeptide receptors (Gipr). These receptors are expressed on β-cells and mediate insulin secretion (54,55). Thus, their overexpression may result in β-cell hyperactivity and contribute to β-cell death (14) (Fig. 8H).

Increased olfactory receptor expression may also enhance glucagon and insulin secretion. Olfactory receptors are expressed in α and β-cells of mice, where they can act as chemosensors for food derivatives (29,30,56). Activation of OLFR544 on α cells by azelaic acid (dicarboxylic acid in grains) stimulates glucagon secretion (29), while activation of OLFR15 on β-cells by octanoic acid (carbon fatty acid in milk) potentiates glucose-stimulated insulin secretion (30,56). Olfr544 was among the 66 Olfr genes significantly changed in 4-week-old NOD islets, but Olfr15 was unchanged (Fig. 5E). We showed that human islets express OR3A2 and OR4D6, the orthologs of Olfr410 and Olfr1428 that were significantly upregulated in the islets of 4-week-old NOD mice. It is possible that OR3A2 and OR4D6 may be similarly changed in the islets during the progression of T1D.

During destructive insulitis, multiple antimicrobial defense genes, including Defb1 and Hamp genes, were downregulated in the NOD islets (Fig. 6A–C). Defensins block viral fusion, can form multimeric pores in the cell membrane of pathogens (57,58), and can serve as chemoattractants for immature DCs and T cells (58).

Variations in the DEFB1 gene are associated with autoimmune diseases and conditions, including T1D (5962), and studies have shown that DEFB1 is regulated by inflammation, insulin, and glucose (59,63). In the NOD pancreas, inflammation reduces Defb1 expression. Reduced levels of this secreted peptide in either the endocrine or exocrine pancreas may lead to a loss of antimicrobial defense against bacteria and viruses that may infect the pancreas (64,65).

Hepcidin regulates iron homeostasis and elicits its antimicrobial function by limiting the availability of iron that is required for the survival of invading pathogens (66). In the pancreas, hepcidin is expressed exclusively in β-cells and is stored and coreleased with insulin (34,67). Once released, hepcidin binds to ferroportin receptors expressed on iron-rich cells such as macrophages to limit the export of ferrous iron (Fe2+) (Fig. 8H). Studies show that tissue-resident macrophages are detected in pancreatic islets of NOD mice at birth and in the first week of life (24,36,68,69). They undergo a stepwise activation program in response to inflammation (24) and are crucially involved in the initiation of disease in NOD mice (70). Monocyte-derived macrophages migrate to the islets at later stages of insulitis (24,35,36). We propose that β-cells normally release hepcidin along with insulin as a protective mechanism to maintain low iron levels near the islets. However, in NOD mice, we show that inflammation significantly reduces hepcidin gene and protein expression (Figs. 6F, 7F, 8A, and 8B), without drastically altering the expression of other iron regulatory genes (Supplementary Fig. 3). The loss of hepcidin leads to the uninhibited release of Fe2+ from macrophages and supports the survival of microbes and pathogens that require host iron. Extracellular Fe2+ is transported through divalent metal transporters expressed on the surface of β-cells. Once inside the β-cell, Fe2+ can drive the production of hydroxyl radicals and reactive oxygen species that contribute to oxidative stress and β-cell death (7173) (Fig. 8H). Studies have shown that the iron chelator, desferrioxamine, can significantly improve islet allograft survival in NOD mice when administered with nicotinamide, an anti-inflammatory agent (74). Thus, reduced iron levels are beneficial to islet survival, and restoration of pancreatic iron homeostasis could prevent or delay β-cell destruction in NOD mice.

Elevated iron levels have been associated with the development of T1D, type 2 diabetes, and gestational diabetes (7577), suggesting that the pancreas is particularly sensitive to high iron levels. Individuals suffering from systemic iron overload, such as patients with hereditary hemochromatosis, have been shown to accumulate iron in the pancreas (78,79). The deposition of iron in β-cells has been suggested to mediate iron-induced oxidative stress and β-cell death, leading to the development of diabetes in 30–60% of patients with hemochromatosis (8082). A number of epidemiological studies have also linked the early exposure of high iron levels to the development of T1D in children. Use of iron supplements during prenatal development increases the incidence of T1D in children before the age of 17, while use of iron-fortified formula during the first 4 months of infancy significantly increases the risk of developing T1D before age 6 (19,20). High iron levels in neonatal blood have also been linked to an increased risk for T1D in children under age 16 (77), while high consumption of red meat is associated with the development of T1D in young children (17,18). Increased dietary iron elevates the iron content in macrophages (83) and thus may amplify the damage mediated by reduced hepcidin expression in the islets (Fig. 8H). We showed that the development of NOD disease also correlates with iron exposure. Mice maintained on low-iron diets had the lowest incidence of hyperglycemia, while those maintained on higher-iron diets had an earlier onset and higher incidence of disease.

Our studies provide insight into the pathogenesis of T1D by identifying novel genes/pathways that are altered during distinct stages of disease and by showing how changes in the islets may integrate with environmental factors, such as diet, to trigger the onset of T1D. Our findings present a plausible mechanism to explain the association between high iron exposure and the increased risk of T1D and suggest that iron supplementation should generally be avoided by at-risk children and pregnant mothers of at-risk individuals.

This article contains supplementary material online at https://doi.org/10.2337/figshare.19607322.

Acknowledgments. The authors thank Drs. M. Bogdani (Benaroya Research Institute) and E. Korpos (University of Münster) for useful discussion related to the role of ECM proteins in T1D.

Funding. Funding was provided by JDRF (grant 1-SRA-2019-807-S-B) and the Myra Reinhard Foundation. This research was performed with the support of the Stanford Diabetes Research Center Islet Research Core, supported by National Institutes of Health grant P30DK116074.

Duality of Interest. No potential conflicts of interest relevant to this article were reported.

Author Contributions. L.Y. performed the microarray and data analysis, BDC2.5-activated splenocyte experiments, iron diet and iron chelation studies, RT-PCR, QPCR, biological assays, and histology experiments, prepared the manuscript, and composed the figures and tables. R.A. performed RNA extraction, QPCR experiments, and blood glucose measurements. C.T. maintained the NOD and NOD.B10 mice and isolated pancreatic islets. R.F. performed RNA extraction, bioanalyzer, and QPCR analysis. L.Y. and C.G.F. were involved in the planning and direction of this work. All authors reviewed and edited the manuscript. L.Y. and C.G.F. are the guarantors of this work and, as such, had full access to all of the data in the study and take responsibility for the integrity of the data and the accuracy of the data analysis.

1.
Yip
L
,
Taylor
C
,
Whiting
CC
,
Fathman
CG
.
Diminished adenosine A1 receptor expression in pancreatic α-cells may contribute to the pathology of type 1 diabetes
.
Diabetes
2013
;
62
:
4208
4219
2.
Yip
L
,
Su
L
,
Sheng
D
, et al
.
Deaf1 isoforms control the expression of genes encoding peripheral tissue antigens in the pancreatic lymph nodes during type 1 diabetes
.
Nat Immunol
2009
;
10
:
1026
1033
3.
Yip
L
,
Fathman
CG
.
Type 1 diabetes in mice and men: gene expression profiling to investigate disease pathogenesis
.
Immunol Res
2014
;
58
:
340
350
4.
Gagnerault
MC
,
Luan
JJ
,
Lotton
C
,
Lepault
F
.
Pancreatic lymph nodes are required for priming of beta cell reactive T cells in NOD mice
.
J Exp Med
2002
;
196
:
369
377
5.
Höglund
P
,
Mintern
J
,
Waltzinger
C
,
Heath
W
,
Benoist
C
,
Mathis
D
.
Initiation of autoimmune diabetes by developmentally regulated presentation of islet cell antigens in the pancreatic lymph nodes
.
J Exp Med
1999
;
189
:
331
339
6.
Turley
S
,
Poirot
L
,
Hattori
M
,
Benoist
C
,
Mathis
D
.
Physiological beta cell death triggers priming of self-reactive T cells by dendritic cells in a type-1 diabetes model
.
J Exp Med
2003
;
198
:
1527
1537
7.
Carrero
JA
,
Calderon
B
,
Towfic
F
,
Artyomov
MN
,
Unanue
ER
.
Defining the transcriptional and cellular landscape of type 1 diabetes in the NOD mouse
.
PLoS One
2013
;
8
:
e59701
8.
Crèvecoeur
I
,
Gudmundsdottir
V
,
Vig
S
, et al
.
Early differences in islets from prediabetic NOD mice: combined microarray and proteomic analysis
.
Diabetologia
2017
;
60
:
475
489
9.
Kodama
K
,
Butte
AJ
,
Creusot
RJ
, et al
.
Tissue- and age-specific changes in gene expression during disease induction and progression in NOD mice
.
Clin Immunol
2008
;
129
:
195
201
10.
Bogdani
M
,
Korpos
E
,
Simeonovic
CJ
,
Parish
CR
,
Sorokin
L
,
Wight
TN
.
Extracellular matrix components in the pathogenesis of type 1 diabetes
.
Curr Diab Rep
2014
;
14
:
552
11.
Korpos
É
,
Kadri
N
,
Kappelhoff
R
, et al
.
The peri-islet basement membrane, a barrier to infiltrating leukocytes in type 1 diabetes in mouse and human
.
Diabetes
2013
;
62
:
531
542
12.
Simeonovic
CJ
,
Popp
SK
,
Starrs
LM
, et al
.
Loss of intra-islet heparan sulfate is a highly sensitive marker of type 1 diabetes progression in humans
.
PLoS One
2018
;
13
:
e0191360
13.
Ziolkowski
AF
,
Popp
SK
,
Freeman
C
,
Parish
CR
,
Simeonovic
CJ
.
Heparan sulfate and heparanase play key roles in mouse β cell survival and autoimmune diabetes
.
J Clin Invest
2012
;
122
:
132
141
14.
Buschard
K
.
The functional state of the beta cells in the pathogenesis of insulin-dependent diabetes mellitus
.
Autoimmunity
1991
;
10
:
65
69
15.
Unger
RH
,
Cherrington
AD
.
Glucagonocentric restructuring of diabetes: a pathophysiologic and therapeutic makeover
.
J Clin Invest
2012
;
122
:
4
12
16.
Yosten
GLC
.
Alpha cell dysfunction in type 1 diabetes
.
Peptides
2018
;
100
:
54
60
17.
Muntoni
S
,
Mereu
R
,
Atzori
L
, et al
.
High meat consumption is associated with type 1 diabetes mellitus in a Sardinian case-control study
.
Acta Diabetol
2013
;
50
:
713
719
18.
Muntoni
S
,
Muntoni
S
.
Epidemiological association between some dietary habits and the increasing incidence of type 1 diabetes worldwide
.
Ann Nutr Metab
2006
;
50
:
11
19
19.
Størdal
K
,
McArdle
HJ
,
Hayes
H
, et al
.
Prenatal iron exposure and childhood type 1 diabetes
.
Sci Rep
2018
;
8
:
9067
20.
Ashraf
AP
,
Eason
NB
,
Kabagambe
EK
,
Haritha
J
,
Meleth
S
,
McCormick
KL
.
Dietary iron intake in the first 4 months of infancy and the development of type 1 diabetes: a pilot study
.
Diabetol Metab Syndr
2010
;
2
:
58
21.
Reeves
PG
,
Nielsen
FH
,
Fahey
GC
Jr
.
AIN-93 purified diets for laboratory rodents: final report of the American Institute of Nutrition ad hoc writing committee on the reformulation of the AIN-76A rodent diet
.
J Nutr
1993
;
123
:
1939
1951
22.
Ibrahim
AS
,
Edwards
JE
Jr
,
Fu
Y
,
Spellberg
B
.
Deferiprone iron chelation as a novel therapy for experimental mucormycosis
.
J Antimicrob Chemother
2006
;
58
:
1070
1073
23.
Jansen
A
,
Homo-Delarche
F
,
Hooijkaas
H
,
Leenen
PJ
,
Dardenne
M
,
Drexhage
HA
.
Immunohistochemical characterization of monocytes-macrophages and dendritic cells involved in the initiation of the insulitis and beta-cell destruction in NOD mice
.
Diabetes
1994
;
43
:
667
675
24.
Zakharov
PN
,
Hu
H
,
Wan
X
,
Unanue
ER
.
Single-cell RNA sequencing of murine islets shows high cellular complexity at all stages of autoimmune diabetes
.
J Exp Med
2020
;
217
:
e20192362
25.
Hong
G
,
Zhang
W
,
Li
H
,
Shen
X
,
Guo
Z
.
Separate enrichment analysis of pathways for up- and downregulated genes
.
J R Soc Interface
2013
;
11
:
20130950
26.
Yip
L
,
Fuhlbrigge
R
,
Alkhataybeh
R
,
Fathman
CG
.
Gene expression analysis of the pre-diabetic pancreas to identify pathogenic mechanisms and biomarkers of type 1 diabetes
.
Front Endocrinol (Lausanne)
2020
;
11
:
609271
27.
Attali
V
,
Parnes
M
,
Ariav
Y
,
Cerasi
E
,
Kaiser
N
,
Leibowitz
G
.
Regulation of insulin secretion and proinsulin biosynthesis by succinate
.
Endocrinology
2006
;
147
:
5110
5118
28.
Diehl
J
,
Gries
B
,
Pfeil
U
, et al
.
Expression and localization of GPR91 and GPR99 in murine organs
.
Cell Tissue Res
2016
;
364
:
245
262
29.
Kang
N
,
Bahk
YY
,
Lee
N
, et al
.
Olfactory receptor Olfr544 responding to azelaic acid regulates glucagon secretion in α-cells of mouse pancreatic islets
.
Biochem Biophys Res Commun
2015
;
460
:
616
621
30.
Munakata
Y
,
Yamada
T
,
Imai
J
, et al
.
Olfactory receptors are expressed in pancreatic β-cells and promote glucose-stimulated insulin secretion
.
Sci Rep
2018
;
8
:
1499
31.
Li
B
,
Bi
CL
,
Lang
N
, et al
.
RNA-seq methods for identifying differentially expressed gene in human pancreatic islet cells treated with pro-inflammatory cytokines
.
Mol Biol Rep
2014
;
41
:
1917
1925
32.
Schnapp
D
,
Reid
CJ
,
Harris
A
.
Localization of expression of human beta defensin-1 in the pancreas and kidney
.
J Pathol
1998
;
186
:
99
103
33.
Stenwall
A
,
Ingvast
S
,
Skog
O
,
Korsgren
O
.
Characterization of host defense molecules in the human pancreas
.
Islets
2019
;
11
:
89
101
34.
Kulaksiz
H
,
Fein
E
,
Redecker
P
,
Stremmel
W
,
Adler
G
,
Cetin
Y
.
Pancreatic beta-cells express hepcidin, an iron-uptake regulatory peptide
.
J Endocrinol
2008
;
197
:
241
249
35.
Dahlén
E
,
Dawe
K
,
Ohlsson
L
,
Hedlund
G
.
Dendritic cells and macrophages are the first and major producers of TNF-alpha in pancreatic islets in the nonobese diabetic mouse
.
J Immunol
1998
;
160
:
3585
3593
36.
Calderon
B
,
Carrero
JA
,
Ferris
ST
, et al
.
The pancreas anatomy conditions the origin and properties of resident macrophages
.
J Exp Med
2015
;
212
:
1497
1512
37.
Ganz
T
,
Nemeth
E
.
Iron homeostasis in host defence and inflammation
.
Nat Rev Immunol
2015
;
15
:
500
510
38.
Eguchi
N
,
Vaziri
ND
,
Dafoe
DC
,
Ichii
H
.
The role of oxidative stress in pancreatic β cell dysfunction in diabetes
.
Int J Mol Sci
2021
;
22
:
1509
39.
May
ME
,
Parmley
RT
,
Spicer
SS
,
Ravenel
DP
,
May
EE
,
Buse
MG
.
Iron nitrilotriacetate--induced experimental diabetes in rats
.
J Lab Clin Med
1980
;
95
:
525
535
40.
Wang
J
,
Pantopoulos
K
.
Regulation of cellular iron metabolism
.
Biochem J
2011
;
434
:
365
381
41.
Wang
RN
,
Rosenberg
L
.
Maintenance of beta-cell function and survival following islet isolation requires re-establishment of the islet-matrix relationship
.
J Endocrinol
1999
;
163
:
181
190
42.
Medina
CO
,
Nagy
N
,
Bollyky
PL
.
Extracellular matrix and the maintenance and loss of peripheral immune tolerance in autoimmune insulitis
.
Curr Opin Immunol
2018
;
55
:
22
30
43.
Takahashi
I
,
Noguchi
N
,
Nata
K
, et al
.
Important role of heparan sulfate in postnatal islet growth and insulin secretion
.
Biochem Biophys Res Commun
2009
;
383
:
113
118
44.
LeBoeuf
RD
,
Raja
RH
,
Fuller
GM
,
Weigel
PH
.
Human fibrinogen specifically binds hyaluronic acid
.
J Biol Chem
1986
;
261
:
12586
12592
45.
Long
KR
,
Newland
B
,
Florio
M
, et al
.
Extracellular matrix components HAPLN1, lumican, and collagen I cause hyaluronic acid-dependent folding of the developing human neocortex
.
Neuron
2018
;
99
:
702
719.e6
46.
Saso
L
,
Bonanni
G
,
Grippa
E
,
Gatto
MT
,
Leone
MG
,
Silvestrini
B
.
Interaction of hyaluronic acid with mucin, evaluated by gel permeation chromatography
.
Res Commun Mol Pathol Pharmacol
1999
;
104
:
277
284
47.
Bogdani
M
,
Johnson
PY
,
Potter-Perigo
S
, et al
.
Hyaluronan and hyaluronan-binding proteins accumulate in both human type 1 diabetic islets and lymphoid tissues and associate with inflammatory cells in insulitis
.
Diabetes
2014
;
63
:
2727
2743
48.
Hull
RL
,
Bogdani
M
,
Nagy
N
,
Johnson
PY
,
Wight
TN
.
Hyaluronan: a mediator of islet dysfunction and destruction in diabetes?
J Histochem Cytochem
2015
;
63
:
592
603
49.
Bollyky
PL
,
Bogdani
M
,
Bollyky
JB
,
Hull
RL
,
Wight
TN
.
The role of hyaluronan and the extracellular matrix in islet inflammation and immune regulation
.
Curr Diab Rep
2012
;
12
:
471
480
50.
Evanko
SP
,
Potter-Perigo
S
,
Bollyky
PL
,
Nepom
GT
,
Wight
TN
.
Hyaluronan and versican in the control of human T-lymphocyte adhesion and migration
.
Matrix Biol
2012
;
31
:
90
100
51.
Ohneda
A
,
Kobayashi
T
,
Nihei
J
,
Tochino
Y
,
Kanaya
H
,
Makino
S
.
Secretion of glucagon in spontaneously diabetic NOD mice
.
Tonyobyo J Japan Diabet Soc
1981
;
24
:
202
52.
Greenbaum
CJ
,
Prigeon
RL
,
D’Alessio
DA
.
Impaired beta-cell function, incretin effect, and glucagon suppression in patients with type 1 diabetes who have normal fasting glucose
.
Diabetes
2002
;
51
:
951
957
53.
Dinneen
S
,
Alzaid
A
,
Turk
D
,
Rizza
R
.
Failure of glucagon suppression contributes to postprandial hyperglycaemia in IDDM
.
Diabetologia
1995
;
38
:
337
343
54.
Svendsen
B
,
Larsen
O
,
Gabe
MBN
, et al
.
Insulin secretion depends on intra-islet glucagon signaling
.
Cell Rep
2018
;
25
:
1127
1134.e2
55.
Yabe
D
,
Seino
Y
.
Two incretin hormones GLP-1 and GIP: comparison of their actions in insulin secretion and β cell preservation
.
Prog Biophys Mol Biol
2011
;
107
:
248
256
56.
Leem
J
,
Shim
HM
,
Cho
H
,
Park
JH
.
Octanoic acid potentiates glucose-stimulated insulin secretion and expression of glucokinase through the olfactory receptor in pancreatic β-cells
.
Biochem Biophys Res Commun
2018
;
503
:
278
284
57.
Holly
MK
,
Diaz
K
,
Smith
JG
.
Defensins in viral infection and pathogenesis
.
Annu Rev Virol
2017
;
4
:
369
391
58.
Yang
D
,
Liu
ZH
,
Tewary
P
,
Chen
Q
,
de la Rosa
G
,
Oppenheim
JJ
.
Defensin participation in innate and adaptive immunity
.
Curr Pharm Des
2007
;
13
:
3131
3139
59.
Corleis
B
,
Lisanti
AC
,
Körner
C
, et al
.
Early type I Interferon response induces upregulation of human β-defensin 1 during acute HIV-1 infection
.
PLoS One
2017
;
12
:
e0173161
60.
Levy
H
,
Raby
BA
,
Lake
S
, et al
.
Association of defensin beta-1 gene polymorphisms with asthma
.
J Allergy Clin Immunol
2005
;
115
:
252
258
61.
Németh
BC
,
Várkonyi
T
,
Somogyvári
F
, et al
.
Relevance of α-defensins (HNP1-3) and defensin β-1 in diabetes
.
World J Gastroenterol
2014
;
20
:
9128
9137
62.
Sandrin-Garcia
P
,
Brandão
LA
,
Guimarães
RL
, et al
.
Functional single-nucleotide polymorphisms in the DEFB1 gene are associated with systemic lupus erythematosus in Southern Brazilians
.
Lupus
2012
;
21
:
625
631
63.
Barnea
M
,
Madar
Z
,
Froy
O
.
Glucose and insulin are needed for optimal defensin expression in human cell lines
.
Biochem Biophys Res Commun
2008
;
367
:
452
456
64.
Bosi
E
,
Molteni
L
,
Radaelli
MG
, et al
.
Increased intestinal permeability precedes clinical onset of type 1 diabetes
.
Diabetologia
2006
;
49
:
2824
2827
65.
Korsgren
S
,
Molin
Y
,
Salmela
K
,
Lundgren
T
,
Melhus
A
,
Korsgren
O
.
On the etiology of type 1 diabetes: a new animal model signifying a decisive role for bacteria eliciting an adverse innate immunity response
.
Am J Pathol
2012
;
181
:
1735
1748
66.
Cassat
JE
,
Skaar
EP
.
Iron in infection and immunity
.
Cell Host Microbe
2013
;
13
:
509
519
67.
Schwarz
P
,
Strnad
P
,
Singer
N
, et al
.
Identification, sequencing, and cellular localization of hepcidin in guinea pig (Cavia porcellus)
.
J Endocrinol
2009
;
202
:
389
396
68.
Perdiguero
EG
,
Geissmann
F
.
The development and maintenance of resident macrophages
.
Nat Immunol
2016
;
17
:
2
8
69.
Banaei-Bouchareb
L
,
Gouon-Evans
V
,
Samara-Boustani
D
, et al
.
Insulin cell mass is altered in Csf1op/Csf1op macrophage-deficient mice
.
J Leukoc Biol
2004
;
76
:
359
367
70.
Carrero
JA
,
McCarthy
DP
,
Ferris
ST
, et al
.
Resident macrophages of pancreatic islets have a seminal role in the initiation of autoimmune diabetes of NOD mice
.
Proc Natl Acad Sci USA
2017
;
114
:
E10418
E10427
71.
Hansen
JB
,
Tonnesen
MF
,
Madsen
AN
, et al
.
Divalent metal transporter 1 regulates iron-mediated ROS and pancreatic β cell fate in response to cytokines
.
Cell Metab
2012
;
16
:
449
461
72.
Lenzen
S
.
Oxidative stress: the vulnerable beta-cell
.
Biochem Soc Trans
2008
;
36
:
343
347
73.
Thomas
C
,
Mackey
MM
,
Diaz
AA
,
Cox
DP
.
Hydroxyl radical is produced via the Fenton reaction in submitochondrial particles under oxidative stress: implications for diseases associated with iron accumulation
.
Redox Rep
2009
;
14
:
102
108
74.
Nomikos
IN
,
Prowse
SJ
,
Carotenuto
P
,
Lafferty
KJ
.
Combined treatment with nicotinamide and desferrioxamine prevents islet allograft destruction in NOD mice
.
Diabetes
1986
;
35
:
1302
1304
75.
Altamura
S
,
Kopf
S
,
Schmidt
J
, et al
.
Uncoupled iron homeostasis in type 2 diabetes mellitus
.
J Mol Med (Berl)
2017
;
95
:
1387
1398
76.
Bowers
KA
,
Olsen
SF
,
Bao
W
,
Halldorsson
TI
,
Strøm
M
,
Zhang
C
.
Plasma concentrations of ferritin in early pregnancy are associated with risk of gestational diabetes mellitus in women in the Danish national birth cohort
.
J Nutr
2016
;
146
:
1756
1761
77.
Kyvsgaard
JN
,
Overgaard
AJ
,
Thorsen
SU
, et al
.
High neonatal blood iron content is associated with the risk of childhood type 1 diabetes mellitus
.
Nutrients
2017
;
9
:
1221
78.
Finch
SC
,
Finch
CA
.
Idiopathic hemochromatosis, an iron storage disease. A. Iron metabolism in hemochromatosis
.
Medicine (Baltimore)
1955
;
34
:
381
430
79.
Sheldon
JH
.
Haemochromatosis
.
London
,
Oxford University Press
,
1935
80.
Hartroft
WS
.
Islet pathology in diabetes
.
Diabetes
1956
;
5
:
98
104
81.
Rahier
J
,
Loozen
S
,
Goebbels
RM
,
Abrahem
M
.
The haemochromatotic human pancreas: a quantitative immunohistochemical and ultrastructural study
.
Diabetologia
1987
;
30
:
5
12
82.
Hatunic
M
,
Finucane
FM
,
Brennan
AM
,
Norris
S
,
Pacini
G
,
Nolan
JJ
.
Effect of iron overload on glucose metabolism in patients with hereditary hemochromatosis
.
Metabolism
2010
;
59
:
380
384
83.
Nairz
M
,
Theurl
I
,
Swirski
FK
,
Weiss
G
.
“Pumping iron”-how macrophages handle iron at the systemic, microenvironmental, and cellular levels
.
Pflugers Arch
2017
;
469
:
397
418
Readers may use this article as long as the work is properly cited, the use is educational and not for profit, and the work is not altered. More information is available at https://www.diabetesjournals.org/journals/pages/license.
