Antibody-Mediated Targeting of a Hybrid Insulin Peptide Toward Neonatal Thymic Langerin-Positive Cells Enhances T-Cell Central Tolerance and Delays Autoimmune Diabetes

Type 1 diabetes (T1D) is an autoimmune disease resulting from T cell–mediated destruction of pancreatic β-cells (1). Early studies on the variable number tandem repeat sequence in the insulin gene promoter suggested an association between β-cell antigen expression in the thymus and risk of developing T1D (2,3). This observation led to the hypothesis that decreased thymic presentation of β-cell antigens weakens T-cell central tolerance of the diabetogenic T-cell population, increasing risk for T1D. Hybrid peptides are a novel class of diabetogenic autoantigens (4,5). The search for self-antigens targeted by blood dendritic cell (BDC) diabetogenic T-cell clones in a NOD mouse model of T1D led to the identification of highly stimulatory hybrid peptides formed by peptide fusion within β-cell granules (6). These hybrid epitopes have since been identified in both mice and humans (6,7). Importantly, T cells reactive to hybrid peptides are indicative of disease activity in the NOD model (4,8). Owing to the nature of hybrid peptide generation, it is unlikely that the source peptide fragments from two different β-cell proteins are available in sufficient quantity in the thymus for the reaction to proceed. Therefore, it is hypothesized that hybrid peptide-reactive thymocytes are more likely to escape thymic selection and contribute significantly to T1D progression.

To elucidate the contribution of altered thymic tolerance to hybrid peptides in autoimmune diabetes, we devised a strategy to enhance the thymic presentation of the hybrid insulin peptide (HIP) 2.5HIP at an early neonatal stage of NOD mouse development, before significant thymic egress of αβ T cells. 2.5HIP (LQTLALWSRMD) is identified as the target antigen for the diabetogenic T-cell clone BDC2.5 (6). The epitope is formed through the fusion of peptide fragments from proinsulin and chromogranin-A (ChgA), two β-cell autoantigens critical for diabetes development in the NOD mouse (9,10). However, the contribution of their hybrid, 2.5HIP, to diabetes progression is unclear. Here, we conjugated 2.5HIP to an anti-Langerin antibody, which can then target the peptide to the Langerin-expressing thymic resident dendritic cells (DCs) for presentation to thymocytes. Ectopic expression of an autoimmune regulator (AIRE)-dependent β-cell antigen in thymic antigen-presenting cells (APCs) was shown to enhance T-cell central tolerance of the responsive thymocytes, resulting in protection from T1D (11). Additionally, a previous study targeting peptides to peripheral Langerin-positive DCs induced a robust increase in antigen-specific Foxp3⁺ cells, suggesting potentially similar role for Langerin-positive DCs in thymic regulatory T cell (tTreg) development (12). We hypothesized that anti-Langerin antibody-mediated delivery of 2.5HIP to neonatal thymic Langerin-positive DCs can enhance T-cell central tolerance of 2.5HIP-reactive thymocytes, resulting in delayed diabetes onset. In the NOD.BDC2.5 model, our results indicate peptide delivery into the neonatal thymus can enhance negative selection and Foxp3⁺ tTreg development. Similarly, in the wild-type polyclonal setting, we observed a consistent enhancement in the negative selection of cognate thymocytes associated with partial protection against diabetes development.

NOD/ShiLtJ (NOD), NOD.BDC2.5, B6.Rag2GFP, NOD.scid, and NOD.CD45.2 mice were purchased from The Jackson Laboratory and maintained at the Baylor College of Medicine and University of Utah animal facility under specific pathogen-free conditions. All experimental protocols were approved by The University of Utah’s Institutional Animal Care and Use Committee.

The anti-Langerin antibody (clone 4C7) containing the dockerin domain (Ab-dockerin) and cohesin-CG-thiopyridine were provided by the Zurawski laboratory (Baylor Institute for Immunology Research). The addition of the dockerin domain to an antibody and modifications to abrogate Fc receptor interactions were described previously (13). The 2.5HIP peptide, LQTLALWSRMD, with a C-terminal cysteine (2.5HIP-cysteine) was purchased from GenScript. To generate the complete anti–Langerin-dockerin:cohesin-2.5HIP conjugate (Ab-2.5HIP), the cohesin-2.5HIP conjugate was first made by incubating the 2.5HIP-cysteine peptide with cohesin-CG-thiopyridine overnight at room temperature. Ab-dockerin was then added to the cohesin-2.5HIP conjugate mixture and incubated for 30 min at room temperature in the presence of calcium-containing 1× Dulbecco’s PBS (DPBS). After 30 min, the mixture was flowed through a 40-kD–MWCO Zeba Spin column (Thermo Fisher Scientific) to remove the unconjugated components. In all experiments, 2.5 µg of Ab-2.5HIP in 30 µL of 1× DPBS was injected intraperitoneally into 1- to 2-day-old neonates. The control (CTRL) groups were injected with DPBS, anti-Langerin antibody without the peptide (Ab-alone), or conjugated to OVA 323-339 peptide (Ab-OVA).

Urine glucose level was evaluated by Diastix (Ascensia Diabetes Care). Hyperglycemia was confirmed by blood glucose level using a FreeStyle Lite glucometer (Abbott). Blood glucose level of >400 mg/dL or >300 mg/dL over 2 consecutive days was considered diabetic. Female mice were used for all NOD wild-type diabetes-monitoring experiments.

NOD.BDC2.5 and B6.Rag2GFP mice were crossed, and neonatal male and female F2 NOD/B6.BDC2.5.RagGFP hybrids homozygous for I-Ag7 were used for the experiment.

Single-cell suspensions of tissue samples were prepared by mechanically dissociating the organs between microscope slides and being resuspended in staining buffer (PBS, 3% v/v FCS, 0.05% w/v sodium azide). Single-cell suspension of pancreatic islets was prepared by enzymatic digestion of the pancreas. Briefly, the pancreas was perfused with 3 mL of a 600 units/mL collagenase IV (Worthington Biochemical) solution via the pancreatic duct. The pancreas was then extracted and placed into 3 mL of a 600 units/mL collagenase IV solution and incubated for 30 min at 37°C. Individual islets were picked under a microscope and further dissociated using the enzyme-free cell dissociation buffer (Gibco). Ghost V510 (TONBO) and FcBlock (BioLegend) were used to exclude dead cells and block nonspecific staining, respectively. Flow cytometry data were acquired on a BD LSRFortessa (Becton Dickinson) flow cytometer and analyzed using the FlowJo 10 software (FlowJo LLC). The following antibodies were used in this study: CD4 (GK1.5), CD8α (53-6.7), T-cell receptor (TCR) vβ (H57-597), CD3ε (145-2C11), cleaved caspase 3 (D3E9), Foxp3 (FJK-16s), CD73 (TY/11.8), CD25 (PC61), CD11c (N418), Langerin (4C7), and MHCII molecule I-Ag7 (39-10-8). 2.5HIP/I-Ag7 tetramer was supplied by the National Institutes of Health Tetramer Core Facility.

NOD.scid and NOD.CD45.2 were bred to generate the NOD.scid.CD45.2 female recipients for the experiment. Female NOD.BDC2.5 neonates were used as donors. Two-day-old NOD.BDC2.5 neonates were injected intraperitoneally with Ab-alone or Ab-2.5HIP. The thymus was extracted the next day and immediately transplanted under the kidney capsule, as previously described (14). Briefly, the recipient mouse was anesthetized, and the incision site was disinfected with topical antiseptics. An incision was made on the left flank to expose the kidney. Once the kidney was exposed, an incision was made in the kidney capsule, and half of a lobe of the thymus was inserted below the capsule. The incision openings were closed with an absorbable suture and wound clips for the peritoneum and skin, respectively. The mice were given analgesics and antibiotics postsurgery to minimize pain and infection.

Pancreas was harvested from mice and immediately placed in 4% paraformaldehyde (Santa Cruz Biotechnology) for 36–48 h at 4°C. The tissues were then transferred into 70% ethanol and sent to the histology core for processing, embedding, and sectioning into 6-µm sections. For insulitis scoring, three tissue sections, separated by 150 µm between each section, were taken from each pancreas. The paraffin was dissolved by xylene and the tissue hydrated through graded ethanol solutions. The sections were then stained with Harris Hematoxylin (Poly Scientific R&D) and counterstained with eosin (Poly Scientific R&D) before dehydrating, clearing, and mounting the slides with Permount (Fisher Scientific). Microscopy images were acquired with the Axio Scan.Z1 Slide Scanner (Zeiss). Each pancreas sample was assigned randomized identification numbers prior to scoring and unmasked for the final aggregate analysis between treatment groups. Scoring criteria: 0 = no infiltrates, 1 = peri-islet infiltrates, 2 = intraislet infiltrates to ≤50%, and 3 = intraislet infiltrates to ≥50%.

Three-day-old NOD.BDC2.5 neonates were treated with Ab-alone or Ab-2.5HIP. CD4SP and CD4⁺CD8⁻ intermediate thymocytes were sorted 72 h later for single-cell RNA sequencing (scRNAseq) analysis. Sequences from the chromium platform were demultiplexed and aligned using Cell Ranger 3.1 software (10x Genomics) with default parameters to mouse genome mm10 from Ensembl GRCm38. Clustering, filtering, variable gene selection, and dimensionality reduction were performed using Seurat 4.0.2 (15), according to the following workflow:

1. Cells with <200 and >4,000 detected genes were excluded from further analysis.

2. Cells with <10% unique molecular identifiers mapping to mitochondrial genes were retained for downstream analysis.

3. The unique molecular identifier counts per 10,000 were log-normalized for each cell using the natural logarithm.

4. Variable genes (2,000 features) were selected using the function FindVariableFeatures.

5. Common anchors between the treatment and CTRL condition were identified using the FindIntegrationAnchors function that was further used to integrate these sets.

6. The expression level of genes in the integrated set was scaled along each gene, and linear dimensional reduction was performed. The number of principle component analyses was decided through the assessment of statistical plots (JackStrawPlot and ElbowPlot).

7. Cells were clustered using a shared nearest neighbor modularity optimization-based clustering algorithm and visualized using two-dimensional uniform manifold approximation and projection.

Differential gene expression analysis between the treatment and CTRL clusters was performed using FindMarkers. Genes with adjusted P values of <0.05 and avg_log2FC >0.2 and <−0.2 were marked red on scatter plots.

Pseudotime trajectory analysis of scRNAseq was performed using Monocle3 v0.2.1 to determine the developmental relationship between the cell clusters based on known thymocyte maturation markers identified in each cluster (16). Treatment and CTRL sets were filtered, integrated, and clustered using Seurat. Clusters containing the most immature (cluster 6) and the most mature thymocytes (cluster 1) were identified based on differentially expressed genes. Setting cluster 6 (Seurat; integrated set) as the root_group, the pseudotime algorithm generated the developmental pathway from the most immature cells to the most mature cells and overlayed the path onto the uniform manifold approximation and projection plot. Cells were plotted using plot_cells function using color_cells_by = pseudotime.

GraphPad Prism 8 was used for all statistical analyses of experiments except the scRNAseq data set. Data are represented as mean ± SD. Unless otherwise specified in the figure legend, P values were calculated using the Mann-Whitney U test for comparisons between two groups or Kruskal-Wallis and Dunn test for comparisons of more than two groups. Diabetes incidence was compared using the Gehan-Breslow-Wilcoxon test. A P value of <0.05 is considered significant.

The data sets generated during and/or analyzed during the current study are available from the corresponding author upon reasonable request.

Langerin is expressed by ∼50% of the MHCII⁺CD11c⁺ thymic population in young NOD neonates but is not expressed on thymic epithelial cells (Fig. 1A and Supplementary Fig. 1). To examine the feasibility of antibody-mediated peptide targeting toward thymic Langerin-positive DCs, we injected 3 μg of anti-Langerin antibody conjugated to the fluorophore allophycocyanin (Langerin-AlloPC) intraperitoneally into 2-day-old NOD mice. Thymi were harvested at the indicated time points and costained with the anti-Langerin antibody conjugated to the fluorophore phycoerythrin (Langerin-PE). The percentage of Langerin-positive DCs targeted by the injected antibody (Langerin-AlloPC⁺) was calculated as a percentage of the total Langerin-positive DCs (Langerin-PE⁺). The results suggest that the antibody can target nearly all of the thymic Langerin-positive DCs within 24–72 h (Fig. 1B). To evaluate the duration of peptide presentation, we treated 1- to 2-day old NOD mice with 2.5 µg of Ab-2.5HIP, Ab-alone, or DPBS. At 1, 5, and 10 days posttreatment, we isolated thymic CD11c⁺ DCs and cocultured with BDC2.5 T cells for 48 h. Assessing T-cell activation as an indication of peptide presentation, the data indicate minimal peptide presentation 5 days postinjection (Supplementary Fig. 2A). While peripheral Langerin-positive DCs were also targeted by the antibody (Supplementary Fig. 2B), the low number of peripheral T cells at the time of treatment (Supplementary Fig. 2C) and the rarity of antigen-specific T-cell clones suggest that it is unlikely that any observed tolerogenic effects result from enhanced peripheral tolerance, although it cannot be completely ruled out.

To evaluate thymocyte development, we treated 2-day-old NOD.BDC2.5 neonates with 2.5 μg of Ab-2.5HIP, Ab-alone, or DPBS and assessed thymocyte response 72 h later. Compared with CTRL, the Ab-2.5HIP group showed reduced thymic cellularity (Fig. 2A). A decrease in frequency and total number of CD4⁺CD8⁺ double-positive (DP) thymocytes as well as an increase in CD69 expression at this stage were observed (Fig. 2B and Supplementary Fig. 3A), suggesting enhanced negative selection at the DP stage. The increase in the percentage of CD4 single-positive (CD4SP) thymocytes is likely due to the decrease in the DP cells and not to an increase in the cellularity of the CD4SP population (Fig. 2B, top right). We also assessed T-cell central tolerance by quantifying Foxp3 (tTreg development) and cleaved caspase 3 (cCasp3; negative selection) expression in CD4SP thymocytes. We observed an antigen-specific increase of both the Foxp3⁺ (Fig. 2C and Supplementary Fig. 4A) and cCasp3⁺ cells (Fig. 2D and Supplementary Fig. 4B) within the CD4SP thymocytes after Ab-2.5HIP treatment. Overall, these data suggest that delivery of antigen, in this targeted manner can enhance T-cell central tolerance of the responsive thymocytes.

It has been reported that T cells from the periphery can recirculate back into the thymus (17). Therefore, we evaluated whether Ab-2.5HIP–induced Tregs were derived from thymocytes or from recirculating T cells by CD73 expression, where CD73⁻ indicates thymocytes (18). The results indicate that ∼95% of the Ab-2.5HIP–induced tTregs are CD73⁻ (Fig. 3A), indicating a thymocyte origin.

tTregs arise from two progenitor populations, one expressing the α-chain of the high-affinity interleukin 2 (IL-2) receptor (CD25) but not Foxp3, and the other expressing Foxp3 but not CD25 (18). Interestingly, Ab-2.5HIP induced tTregs that lacked CD25 expression, suggesting Foxp3⁺CD25⁻ developmental lineage (Fig. 3B). The accumulation of Foxp3⁺CD25⁻ thymocytes was perplexing, given that tTreg precursors depend on the common γ-chain–mediated cytokine signaling for survival (19). To determine whether the Ab-2.5HIP–induced tTregs are prone to apoptosis, we evaluated the frequency of cCasp3⁺ cells within the Treg population. Although lacking CD25 expression, we did not detect an increased frequency of apoptotic cells within the Ab-2.5HIP group (Fig. 3C), suggesting Ab-2.5HIP–induced tTregs can survive and exit the thymus. It is possible that higher expression of the IL-2 receptor β-chain (CD122) may compensate and support the survival of tTregs in the absence of CD25. However, Ab-2.5HIP–induced CD25⁻ tTregs did not express elevated levels of CD122 (Supplementary Fig. 5), suggesting an alternate survival mechanism.

Using scRNAseq, we examined the Ab-2.5HIP–induced tTregs within the CD4SP thymocytes for possible mechanisms of survival (Supplementary Fig. 6A). Assessment of Foxp3 expression indicated that the majority of Ab-2.5HIP–induced Foxp3⁺ cells are localized in clusters 1 and 5 (Supplementary Fig. 6B and C). To understand the developmental relationship among the clusters, we performed a pseudotime analysis (Supplementary Fig. 6D). The most immature cells (expression of Cd8b1 and Rag2) were identified in cluster 6. The most mature cells were localized in cluster 1 (expression of Sell and S1pr). The data suggest the generation of Ab-2.5HIP–induced tTregs in cluster 5, followed by maturation within cluster 1. Among the differentially expressed genes in cluster 5 of the treatment group is Tnfrsf4 (OX40) (Supplementary Fig. 6E), which has been reported to promote the survival and expansion of Tregs (20,21). Costimulation by OX40L in tTreg progenitors was shown to enhance their sensitivity to IL-2 signaling (22). Therefore, Ab-2.5HIP–induced tTregs may be more sensitive to IL-2 despite low levels of CD25 expression.

To verify Ab-2.5HIP–induced tTregs survive and egress from the thymus, we assessed Treg frequency within BDC2.5 recent thymic emigrants (RTEs) in the spleen 6 days after Ab-2.5HIP treatment, as they are the least likely to be influenced by the peripheral environment at this early time point. To assess RTEs, we crossed the B6.Rag2EGFP transgenic mouse with the NOD.BDC2.5 strain. Gating on green fluorescent protein (GFP)-positive RTEs, we detected an increase in Foxp3⁺ cells in response to Ab-2.5HIP treatment (Fig. 3D), further indicating that Ab-2.5HIP–induced tTregs can survive and exit the thymus. While Ab-2.5HIP–induced tTregs in the thymus were CD25⁻, we observed an increase in both the Foxp3⁺CD25⁺ and Foxp3⁺CD25⁻ Tregs within the RTE population (Supplementary Fig. 7A). It is possible that Ab-2.5HIP–induced tTregs upregulate CD25 upon thymic egress or that CD25⁺ Tregs selectively expand in the periphery. Similar to the RTEs, an increase in Foxp3⁺ cells was also detected in the non-RTEs within the spleen (Supplementary Fig. 7C), suggesting potential induction of Tregs by peripheral Langerin-positive DCs, although we cannot exclude the loss of GFP through proliferation and GFP degradation.

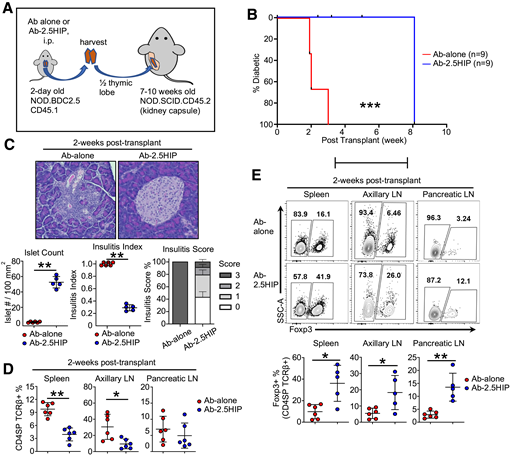

To address whether Ab-2.5HIP–induced thymic changes have any effect on diabetes incidence, we adapted an accelerated diabetes induction model, mediated by BDC2.5 T-cell transfer into NOD.scid recipients (23). In our modified protocol, we transplanted NOD.BDC2.5 thymi from 3-day-old neonates that were treated with Ab-2.5HIP or Ab-alone (Fig. 4A). We observed a delay in diabetes onset of ∼5–6 weeks within the Ab-2.5HIP group, indicating delayed destruction of β-cells (Fig. 4B). This delay was consistent with the observed higher islet counts and reduced insulitis severity in the Ab-2.5HIP group 2 weeks posttransplant (Fig. 4C). To account for the delayed destruction of β-cells, we assessed changes in donor T-cell phenotype in the periphery posttransplant. At 2 weeks posttransplant, we observed a decrease in the donor T-cell frequency in the spleens and the axillary lymph nodes (aLNs) in the Ab-2.5HIP group (Fig. 4D), indicating delayed accumulation of donor T cells due to enhanced thymic deletion and/or delayed thymic emigration. However, Ab-2.5HIP did not upregulate CD69 in CD4SP thymocytes (Supplementary Fig. 3B), suggesting Ab-2.5HIP did not impede thymocyte migration via the S1PR1-CD69 interaction (24,25). In contrast, no difference in donor T-cell frequency was observed in the pancreatic lymph node (pLN), likely due to the presence of antigen in all groups driving T-cell accumulation.

Analysis of donor Tregs showed higher Treg frequencies across all organs within the Ab-2.5HIP group (Fig. 4E). However, an increase in Treg numbers was observed only in the pLN (Supplementary Fig. 8A, bottom). While the Treg numbers do appear to increase at 6 weeks posttransplant (Supplementary Fig. 8B), the Treg frequency is mostly unchanged except for a nonsignificant decrease in the spleen (Supplementary Fig. 8C). Therefore, the eventual onset of diabetes in this model is not due to a lack of persistence of Ab-2.5HIP Tregs but is perhaps due to the increased activation of BDC2.5 Teff (CD62L⁻ CD44⁺) by 6 weeks posttransplant (Supplementary Fig. 8D). Low CD25 expression on Tregs was not correlated with eventual disease development, as CD25 was upregulated by 6 weeks (Supplementary Fig. 8E). While the relative contribution of Ab-2.5HIP–enhanced thymic deletion and tTreg generation cannot be distinguished in this transplant model, both processes likely contributed to the delayed disease onset through reduced donor T-cell accumulation and activation in the periphery.

To assess the impact of Ab-2.5HIP treatment on the development of polyclonal T cells, we treated 1-day-old NOD wild-type mice with Ab-2.5HIP. Thymocyte response was assessed 3 days later by 2.5HIP tetramers. Compared with the CTRL group, we observed a significant decrease in the number of 2.5HIP-specific CD4SP thymocytes in the Ab-2.5HIP group (Fig. 5A), indicating enhanced negative selection. In contrast to thymocyte response in the NOD.BDC2.5 mouse, we did not detect a consistent increase in the Foxp3⁺ frequency within the tetramer-positive population, possibly due to the overall low tetramer-positive cell number (Fig. 5B).

We next evaluated the long-term cumulative tolerogenic effect of Ab-2.5HIP treatment in neonates and its impact on diabetes development. To observe diabetes incidence, we injected Ab-2.5HIP into 1-day-old NOD wild-type females and monitored diabetes for 30 weeks. The single Ab-2.5HIP injection imparted an overall 20% reduction in diabetes incidence, which was associated with a delay in diabetes onset of ∼5 weeks (Fig. 5C). To address the mechanism of protection, we examined 2.5HIP tetramer-positive cells in the periphery of NOD wild-type mice 10 weeks after treatment with Ab-2.5HIP. There was not a significant difference in the frequency of tetramer-positive cells among the groups in the pLN, but there was a slight decrease in the total number of tetramer-positive cells after treatment (Fig. 5D). Importantly, we detected a significant increase in the frequency of Foxp3⁺ cells within the tetramer-positive population in the pLNs of Ab-2.5HIP–treated mice, suggesting a change in cellular composition of tetramer-positive population rather than reduction of cell numbers (Fig. 5E). Within the pancreatic islets, we observed a significant decrease in the frequency of CD4⁺CD3⁺ T cells in the Ab-2.5HIP group (Fig. 5F, left), which is associated with a decrease in total number of 2.5HIP tetramer-positive cells in the islets (Fig. 5F, right). However, only a few mice showed an increase in 2.5HIP tetramer-positive Foxp3⁺ cell frequency in the islets (Fig. 5G, left). These results suggest enhanced immunosuppression due to increased 2.5HIP tetramer-positive Foxp3⁺ cell frequency within the pLN led to a decrease in CD4 T-cell infiltration into the pancreatic islets.

We sought to determine whether enhanced thymic presentation of a single neoantigen can alter autoimmunity later in life. We enhanced thymic presentation of 2.5HIP in NOD neonates through an anti-Langerin Ab-mediated targeting of 2.5HIP to thymic Langerin-positive DCs. After a single dose of Ab-2.5HIP, we observed a reduction of 2.5HIP-reactive thymocytes, which correlated with an increase in 2.5HIP-reactive Treg frequency in the periphery at 10 weeks of age and a 5-week delay in the age of diabetes onset (Fig. 5). Considering the difference in disease protection between our results and in the ChgA-knockout mouse, 2.5HIP reactivity may not fully explain the nearly complete protection from diabetes seen in the ChgA-knockout mouse. Indeed, while 2.5HIP is the only ChgA-derived HIP identified in vivo thus far, other ChgA-derived hybrid peptides were also shown to stimulate diabetogenic T-cell clones in vitro (26). Further, prior work revealed a role for ChgA in granule formation within endocrine cells (27,28). In β-cells, ChgA were shown to affect insulin secretion (29,30). A reduction in insulin-derived peptide presentation was also reported in the ChgA-knockout mouse, potentially affecting T-cell response against other β-cell autoantigens (31). Therefore, it is not unexpected to observe a difference in disease protection between our study and what was seen in the ChgA-knockout mouse. On the other hand, it is possible that we did not capture the full contribution of 2.5HIP reactivity to diabetes progression given the short treatment duration. Nevertheless, significant protection due to a single injection in neonates adds support to the idea of a critical neonatal window for establishing tolerance (32). Longer treatment duration may enhance the tolerogenic effect. However, how T cells response to 2.5HIP targeted to peripheral Langerin-positive DCs will need to be assessed. Mutating the 2.5HIP peptide to prevent its presentation may be necessary to determine the full contribution of 2.5HIP reactivity to disease progression.

In this study we targeted 2.5HIP toward Langerin-positive thymic DCs. Targeting peptides to other thymic APCs, such as the migratory DCs (Sirpα⁺ and plasmacytoid DC antigen-1–positive [PDCA-1⁺] DCs), may lead to different thymocyte fates. The thymocyte response is likely to be influenced by a variety of factors: differential expression of endocytic receptors between thymic DC subsets, relative proportion of thymic DC subsets, localization of the DC subsets within the thymus, and the DC subsets’ propensity to promote negative selection versus tTreg development. Differential expression of endocytic receptors will influence the choice of antibody targets and may affect the efficiency of antigen presentation (33). Thymic DC subset frequencies change with age (34), which may affect the amount and duration of peptide presentation. Unlike the resident and PDCA-1⁺ DC subsets, the Sirpα⁺ subset can also be found in the thymic cortex (35). Targeting peptides to the Sirpα⁺ subset may preferentially result in the deletion of antigen-specific thymocytes at the DP stage. In vivo studies suggest that both the Sirpα⁺ and PDCA-1⁺ subsets were capable of inducing negative selection, but only the Sirpα⁺ subset of DCs has been reported to participate in tTreg generation (36,37). These and other factors may be helpful in guiding the design of antibody-mediated peptide-targeting approaches to achieve a desired thymocyte response for therapeutic aims.
