Carboxypeptidase E (CPE) facilitates the conversion of prohormones into mature hormones and is highly expressed in multiple neuroendocrine tissues. Carriers of CPE mutations have elevated plasma proinsulin and develop severe obesity and hyperglycemia. We aimed to determine whether loss of Cpe in pancreatic β-cells disrupts proinsulin processing and accelerates development of diabetes and obesity in mice. Pancreatic β-cell–specific Cpe knockout mice (βCpeKO; Cpefl/fl x Ins1Cre/+) lack mature insulin granules and have elevated proinsulin in plasma; however, glucose-and KCl-stimulated insulin secretion in βCpeKO islets remained intact. High-fat diet–fed βCpeKO mice showed weight gain and glucose tolerance comparable with those of Wt littermates. Notably, β-cell area was increased in chow-fed βCpeKO mice and β-cell replication was elevated in βCpeKO islets. Transcriptomic analysis of βCpeKO β-cells revealed elevated glycolysis and Hif1α-target gene expression. On high glucose challenge, β-cells from βCpeKO mice showed reduced mitochondrial membrane potential, increased reactive oxygen species, reduced MafA, and elevated Aldh1a3 transcript levels. Following multiple low-dose streptozotocin injections, βCpeKO mice had accelerated development of hyperglycemia with reduced β-cell insulin and Glut2 expression. These findings suggest that Cpe and proper proinsulin processing are critical in maintaining β-cell function during the development of hyperglycemia.
Carboxypeptidase E (Cpe) is an enzyme that removes the carboxy-terminal arginine and lysine residues from peptide precursors.
Mutations in CPE lead to obesity and type 2 diabetes in humans, and whole-body Cpe knockout or mutant mice are obese and hyperglycemic and fail to convert proinsulin to insulin.
We show that β-cell–specific Cpe deletion in mice (βCpeKO) does not lead to the development of obesity or hyperglycemia, even after prolonged high-fat diet treatment. However, β-cell proliferation rate and β-cell area are increased, and the development of hyperglycemia induced by multiple low-dose streptozotocin injections is accelerated in βCpeKO mice.
Introduction
Proinsulin is processed into mature insulin and C-peptide by prohormone convertase (PC)1/3 and PC2 and carboxypeptidase E (CPE) (1–3) prior to secretion from pancreatic β-cells. Failure of this process leads to insufficient mature insulin release and onset of hyperglycemia (4–6) and has been observed in diabetes pathogenesis (7,8).
Prohormone processing enzymes are highly expressed in neuroendocrine cells, and subjects with mutations in these genes often display cognitive impairments and obesity. A CPE truncating mutation (c.76_98del) causes morbid obesity and severe hyperglycemia (9), a CPE nonconservative missense mutation (c.847C>T) reduces enzymatic activity associated with early-onset type 2 diabetes (10), and homozygous nonsense CPE mutations (c.405C>A) cause obesity and hypogonadotropic hypogonadism (11). Similarly, Cpe whole-body knockout mice develop spontaneous obesity and behavioral abnormalities (12), and Cpe mutant mice (Cpefat/fat) are obese and infertile (13).
To understand the role of Cpe in β-cell function and glucose homeostasis, we generated pancreatic β-cell–specific Cpe knockout mice. We performed biochemical and top-down proteomic analysis to evaluate hormone processing patterns in β-cells. We also analyzed β-cell transcriptomic profiles and performed live-cell imaging analysis to understand whether deficiency of Cpe, and the increased compensatory production of proinsulin, leads to islet dysfunction and dysglycemia. Finally, we tested whether the lack of Cpe in β-cells increases susceptibility to diet- or secretory stress–induced hyperglycemia in mice. Our model provides a useful tool to understand the role of reduced prohormone processing efficiency and increased (pro)insulin translation in β-cells during diabetes development and sheds light on whether impaired prohormone processing in β-cells is a cause of diabetes and obesity in subjects with CPE mutations.
Research Design and Methods
Human Pancreas Tissue
Paraffin-embedded pancreatic tissue sections were obtained from the Network for Pancreatic Organ donors with Diabetes (nPOD) and Alberta Diabetes Institute IsletCore (Supplementary Table 1).
Mouse Studies
β-Cell–specific Cpe knockout (βCpeKO) and inducible β-cell–specific Cpe knockout (iβCpeKO) mice were generated through crossing the offspring of C57BL/6N-Cpetm1a(EUCOMM)Hmgu/Ieg mice and Tg(CAG-flpo)1Afst mice with B6(Cg)-Ins1tm1.1(cre)Thor/J or Tg(Pdx1-cre/Esr1) mice. In addition, Gt(ROSA)26Sortm4(ACTB-tdTomato,-EGFP)Luo reporter mice were bred with βCpeKO mice for β-cell sorting and RNA sequencing. The control mice used for biochemical, imaging, and metabolic experiments are as follows: Ins1Cre/+;Cpefl/+ (βCpeHet) as well as Ins1+/+;Cpefl/fl or Ins1+/+;Cpefl/+ (Wt). For diet studies, 8-week-old mice received either a low-fat diet (LFD) (10% fat), or a high-fat diet (HFD) (45% fat; Research Diets). For secretory stress studies, 10-week-old male mice received saline or streptozotocin (STZ): multiple injections of low-dose STZ (MLD-STZ) (35 mg/kg body wt i.p. daily for 5 days; Sigma-Aldrich). Metabolic assays (such as intraperitoneal glucose tolerance test (IPGTT), insulin tolerance test (ITT), and body mass composition analysis) were performed in a blinded fashion and have previously been described (14). For in vivo β-cell proliferation studies, after tamoxifen-induced Cpe deletion, a 60% fat diet (Research Diets) was given for 48 h (15) in combination with 5-ethynyl-2′-deoxyuridine (40 mg/kg body wt i.p. injection twice daily, EdU; Toronto Research Chemicals) (16). All studies were approved by the Animal Care and Use Committee at the University of British Columbia.
Islet Studies
Mouse islets were isolated and cultured as previously described (14). For electron micrograph studies, freshly isolated islets were fixed in 2% glutaraldehyde (pH 7.4) at room temperature, shipped, processed, and imaged by the Electron Microscopy Facility at McMaster University Health Science Centre. PC1/3 and PC2 enzyme activity assays were performed as previously described (17) with a SpectraMax M3 plate reader (Molecular Devices). For respirometry studies, mouse islets were dispersed and analyzed by Seahorse XFe96 Analyzer (Agilent Technologies). For analysis of insulin secretion dynamics, islets were incubated in a perifusion system (Biorep Technologies) with 1.67 mmol/L glucose, 1.67 mmol/L glucose, and 16.7 mmol/L glucose plus 30 mmol/L KCl Krebs-Ringer buffer sequentially. Insulin concentrations in perifusates were analyzed with rodent insulin (ALPCO) and proinsulin (Mercodia) ELISAs. For measurement of glucose uptake, islets were precultured in glucose-free media, dispersed with Accutase (Innovative Cell Technologies), and treated with 2-NBDG (2-deoxy-2-[(7-nitro-2,1,3-benzoxadiazol-4-yl)amino]-d-glucose; Invitrogen) for 5 min, prior to flow cytometry analysis.
For exocytosis studies, dispersed islet β-cells were patch clamped in whole-cell voltage-clamp configuration with use of a HEKA EPC 10 amplifier and PATCHMASTER software (HEKA Electronik, Lambrecht, Germany) as previously described (18). Exocytosis was monitored as increases in cell capacitance, elicited by either a series of 500-ms membrane depolarizations from −70 to 0 mV or increase in the duration of membrane depolarizations. For FACS-sorted β-cell bulk-RNA sequencing experiments, freshly isolated islets were dispersed and GFP+ live cells were collected with BD FACSAria Cell Sorter for RNA isolation via an RNeasy Plus Micro Kit (QIAGEN). After quality control analysis with an Agilent 2100 Bioanalyzer, an RNA library was prepared with use of the NeoPrep Library Prep system with TruSeq Stranded mRNA kit (Illumina); RNA sequencing was performed with Illumina NextSeq 500; reads were aligned with TopHat to the reference genome of UCSC Genome Browser mm10, assembled by Cufflinks; and a list of differentially expressed genes was generated via DESeq2. Gene set enrichment analysis, network visualization, and volcano plot were generated via Gene Set Enrichment Analysis (GSEA v4.2.3), Cytoscape (v3.9.1), and EnhancedVolcano (v1.14.0) in RStudio (v1.4.1717).
Top-down Proteomic Analysis
Islet pellets were homogenized in 8 mol/L urea lysis buffer, reduced, alkylated, quenched, and clarified with tris(2-carboxyethyl)phosphine, iodoacetamide, and dithiothreitol, before 3 kDa molecular weight cutoff filtration. Samples were analyzed with a Waters nanoACQUITY UPLC system with mobile phases consisting of 0.2% formic acid in H2O and 0.2% formic acid in acetonitrile. For tandem mass spectrometry analysis of proteins, the nanoACQUITY UPLC system was coupled to a Thermo Scientific Orbitrap Fusion Lumos mass spectrometer equipped with the FAIMS Pro interface (19). Proteoform identification was performed with TopPIC (v1.4). Downstream data analysis and quantification were performed with use of MSstats (v4.0.1) and TopPICR (v0.0.3) R packages.
Immunoblot Studies
Mouse islets were lysed in an NP-40–based buffer and analyzed through reducing or nonreducing Tricine–urea–SDS-PAGE (20), and blotted with use of antibodies listed in Supplementary Table 2, on a LI-COR Biosciences Odyssey Imaging System. For analysis of insulin biosynthesis, islets were preincubated in methionine-free RPMI medium for 90 min and then treated with l-azidohomoalaine (Invitrogen) and 5 or 25 mmol/L glucose Krebs-Ringer buffer for 90 min. Islets were lysed, click labeled with biotin-alkyne (Invitrogen), and immunoprecipitated and the eluted proteins were analyzed on a Tricine–urea–SDS-PAGE system.
Immunostaining and Image Analysis
Dispersed mouse islet cells were seeded on chamber slides (ibidi or Thermo Fisher Scientific) overnight and cultured in 5 or 25 mmol/L glucose RPMI media for the indicated times. For cell proliferation experiments, EdU was added during the last 24 h of treatment, followed by click labeling and staining (Invitrogen). TUNEL staining was performed according to the manufacturer’s manual (Roche). For live-cell imaging experiments, cells were labeled with CellROX, MitoSOX, tetramethylrhodamine methyl ester (TMRM) (Thermo Fisher Scientific), and MitoTracker Green (MTG) (New England Biolabs) and imaged with use of an SP5II laser scanning confocal microscope (Leica Microsystems). Cpd and proinsulin costained β-cells were imaged on an SP8 X STED (STimulated Emission Depletion) white light laser confocal imaging system. β-Cell area was analyzed with immunohistochemistry staining against insulin with a BX61 microscope (Olympus). All antibodies used are listed in Supplementary Table 2. Image analyses were performed with ImageJ (21), QuPath, ilastik, and CellProfiler pipelines.
Quantitative RT-PCR Experiments
Islet mRNA and DNA were isolated with PureLink RNA Micro (Invitrogen) and QIAamp DNA Micro (QIAGEN) kits, and cDNA was synthesized with a SuperScript VILO kit (Invitrogen). mRNA and DNA levels were analyzed with SYBR Green–based quantitative real-time PCR (ViiA 7 Real-Time PCR System; Applied Biosystems). Primer sequences are listed in Supplementary Table 2.
Statistical Analysis
Statistical analyses were performed through GraphPad Prism 9 or R. After normality tests, data sets with normal distribution or with small sample numbers were analyzed using Student t test or ANOVA followed by post hoc analysis. Data with nonnormal distribution were analyzed with the Wilcoxon rank sum test. Statistical significance is indicated in the figures as follows: *P < 0.05. All data are presented as mean ± SEM.
Data and Resource Availability
Data and reagents generated in the current study are available from the corresponding author on reasonable request.
Results
Loss of Mature Insulin Granules and Elevated Plasma Proinsulin in βCpeKO Mice
CPE is highly expressed in human and mouse islet endocrine cells (Fig. 1A and B). To study the roles of Cpe in β-cells, we generated βCpeKO mice by crossing Ins1Cre/+ and Cpefl/fl mice (Fig. 1C–E). The deletion of Cpe in β-cells leads to near-total loss of mature insulin granules (Fig. 1F) and significantly elevated fasting plasma proinsulin-like immunoreactivity (Fig. 1G and H). As most immunoassays likely cross-react with target peptide with various C- and N-terminal extensions, we decided to analyze the propeptide repertoire with biochemical and proteomic approaches.

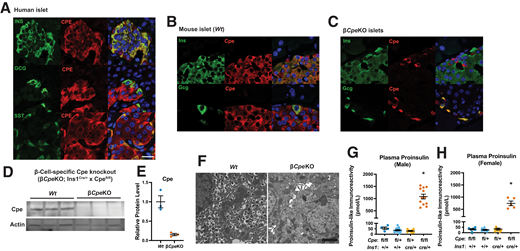

Elevated proinsulin levels in βCpeKO mice. A–C: Expression of CPE in human and mouse pancreatic islet cells was analyzed via immunostaining with antibodies against CPE, insulin (INS), glucagon (GCG), and somatostatin (SST). D and E: Cpe expression in βCpeKO mice was analyzed through immunoblotting (n = 3 and 3) with an antibody against Cpe. F: Representative electron micrographs of β-cells from Wt and βCpeKO mice. Scale bar = 2 μm (n = 3 and 3). G and H: 4-h fasting plasma proinsulin levels in βCpeKO and littermate male and female mice (n > 4 per genotype group per sex).
Elevated proinsulin levels in βCpeKO mice. A–C: Expression of CPE in human and mouse pancreatic islet cells was analyzed via immunostaining with antibodies against CPE, insulin (INS), glucagon (GCG), and somatostatin (SST). D and E: Cpe expression in βCpeKO mice was analyzed through immunoblotting (n = 3 and 3) with an antibody against Cpe. F: Representative electron micrographs of β-cells from Wt and βCpeKO mice. Scale bar = 2 μm (n = 3 and 3). G and H: 4-h fasting plasma proinsulin levels in βCpeKO and littermate male and female mice (n > 4 per genotype group per sex).
Permissive Peptide Processing in βCpeKO Islets
Proinsulin is first processed by PC1/3 to form split-32,33 proinsulin with overhanging basic residues. Cpe then removes these basic residues to yield the des-31,32 proinsulin intermediate, which is cleaved by PC2 (or PC1/3) to produce mature insulin following trimming of the remaining basic residues by Cpe (1–3). To study the impact of β-cell Cpe deficiency on proinsulin processing, we analyzed proinsulin forms using a nonreducing SDS-PAGE system. We found that higher-molecular-weight proinsulin forms were increased in βCpeKO islets. The lower bands are likely the combination of mature insulin and insulin with basic residue extensions, as their molecular weights are similar and may not be separated by electrophoresis. (Fig. 2A). Similar to proinsulin, islet amyloid polypeptide (IAPP) is also synthesized as a larger precursor, proIAPP, and is processed by PC1/3, PC2, Cpe, and Pam to form amidated IAPP (14,22–24). Nonamidated IAPP and intermediate proIAPP (proIAPP1–48) forms are increased in βCpeKO islets, although amidated IAPP levels appear comparable between Wt and βCpeKO islets (Fig. 2B). Proteomic assessment confirmed that intact proinsulin levels are increased in βCpeKO islets, while levels of the mature insulin are reduced (Fig. 2C and D). Full-length proIAPP levels are also increased, while levels of amidated mature IAPP level are not reduced, in βCpeKO islets (Fig. 2E and F).

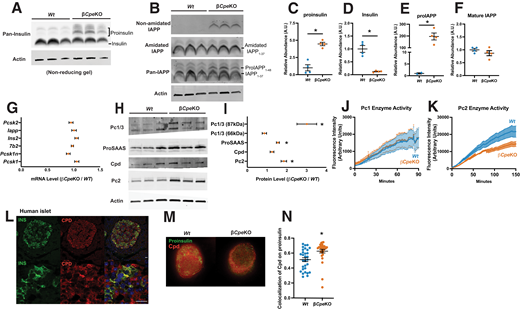

Impaired prohormone processing in βCpeKO islets. A: We analyzed islet (pro)insulin levels by nonreducing SDS-PAGE and immunoblotting using an antibody against insulin. B: Islet (pro)IAPP levels were analyzed through immunoblotting with use of antibodies against nonamidated IAPP, amidated IAPP, and IAPP. C–F: Quantification of full-length proinsulin, mature insulin B-chain fragment, full-length proIAPP, and amidated mature IAPP with a top-down proteomics assay by mass spectrometry (n = 4 and 4). G: mRNA levels of Pcsk2, Iapp, Ins2, 7b2, Pcsk1n, and Pcsk1 in βCpeKO were analyzed with quantitative RT-PCR and are presented as folds over Wt (n = 6 and 6). H and I: Protein levels of proPC1/3 (87kDa), PC1/3 (66 kDa), full-length proSAAS, Cpd, and PC2 were analyzed through immunoblotting with use of antibodies against PC1/3, proSAAS, Cpd, and PC2 (n = 3 and 3). J and K: We measured islet PC1/3 and PC2 enzyme activities by cleavage of synthetic fluorogenic enzyme substrates (n = 3 and 3). L: Expression of CPD in human islets β-cells was analyzed with immunostaining with use of antibodies against Cpd and insulin. Scale bar = 25 μm. M and N: Immunofluorescence staining of proinsulin and Cpd in Wt and βCpeKO β-cells was captured by STED microscope (10 consecutive z stack images per cell were taken from mice with different genotypes, three cells were analyzed per genotype), and colocalization of proinsulin and Cpd was analyzed with the Manders method. A.U., arbitrary units.
Impaired prohormone processing in βCpeKO islets. A: We analyzed islet (pro)insulin levels by nonreducing SDS-PAGE and immunoblotting using an antibody against insulin. B: Islet (pro)IAPP levels were analyzed through immunoblotting with use of antibodies against nonamidated IAPP, amidated IAPP, and IAPP. C–F: Quantification of full-length proinsulin, mature insulin B-chain fragment, full-length proIAPP, and amidated mature IAPP with a top-down proteomics assay by mass spectrometry (n = 4 and 4). G: mRNA levels of Pcsk2, Iapp, Ins2, 7b2, Pcsk1n, and Pcsk1 in βCpeKO were analyzed with quantitative RT-PCR and are presented as folds over Wt (n = 6 and 6). H and I: Protein levels of proPC1/3 (87kDa), PC1/3 (66 kDa), full-length proSAAS, Cpd, and PC2 were analyzed through immunoblotting with use of antibodies against PC1/3, proSAAS, Cpd, and PC2 (n = 3 and 3). J and K: We measured islet PC1/3 and PC2 enzyme activities by cleavage of synthetic fluorogenic enzyme substrates (n = 3 and 3). L: Expression of CPD in human islets β-cells was analyzed with immunostaining with use of antibodies against Cpd and insulin. Scale bar = 25 μm. M and N: Immunofluorescence staining of proinsulin and Cpd in Wt and βCpeKO β-cells was captured by STED microscope (10 consecutive z stack images per cell were taken from mice with different genotypes, three cells were analyzed per genotype), and colocalization of proinsulin and Cpd was analyzed with the Manders method. A.U., arbitrary units.
To determine whether Cpe deletion creates feedback inhibition of peptide hormone maturation, we analyzed prohormone processing enzyme transcript and protein levels. Expression of insulin, IAPP, and processing enzyme transcripts are comparable between βCpeKO and Wt islets (Fig. 2G). ProPC1/3 protein (87 kDa) levels are elevated, as are PC2 and proSAAS (Fig. 2H and I); however, total islet PC1/3-specific activity is not changed (Fig. 2J). PC2-specific activity is reduced in βCpeKO mice (Fig. 2K), which may occur through increased 7B2-mediated inhibition of PC2 activity (25). We also found that Cpe is not the only carboxypeptidase capable of processing peptide hormones in β-cells. Despite near-complete recombination and deletion of Cpe (Fig. 1C–E), mature insulin remains detectable, and mature IAPP is expressed at levels similar to those of Wt islets (Fig. 2B). Carboxypeptidase D (CPD) has been detected in the Golgi network of rodent β-cells (26) and may not be removed from immature insulin granules in conditions such as cargo protein CCDC186 deficiency (27). CPD is expressed in human islet β-cells (Fig. 2L). Increased presence of Cpd in proinsulin-containing organelles such as the Golgi network or immature insulin granules may aid the processing of prohormones in the absence of Cpe, as the colocalization of Cpd and proinsulin is significantly higher in Cpe-deficient β-cells (Fig. 2M and N).
βCpeKO Mice Do Not Develop Diet-Induced Obesity and Diabetes
Unlike Cpe whole-body knockout mice or Cpe mutant mice (12,13), 8 week-old βCpeKO mice do not develop early-onset obesity and diabetes (males [Fig. 3A–C] and females [Fig. 3D–F]). Islets from βCpeKO mice displayed insulin secretion dynamics comparable with those of Wt islets (Fig. 3G), speaking against a role for Cpe as a granule-sorting receptor in β-cells. Interestingly, proinsulin was released upon high glucose and KCl stimulation (Fig. 3H), suggesting that the proinsulin-containing granules are likely equipped with appropriate granule contents that allow for efficient granule release. Rates of exocytosis were also comparable between Wt and Cpe-deficient β-cells (Fig. 3I), although exocytosis events proximal to the plasma membrane, measured by a time-train depolarization experiment, were slightly reduced in β-cells from βCpeKO mice (Fig. 3J).

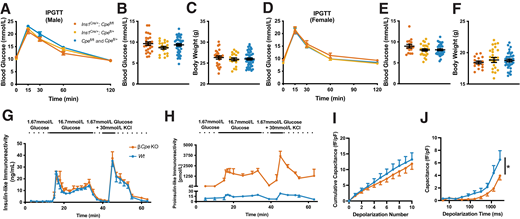

Glucose tolerance and insulin secretion of βCpeKO mice. A: IPGTT was performed on 8-week-old chow-fed βCpeKO and littermate males (n ≥ 5 per genotype). B and C: 4-h fasting blood glucose levels and body weight of 8-week-old chow-fed βCpeKO and littermate males (n ≥ 5 per genotype). D: IPGTT was performed on 8-week-old chow-fed βCpeKO and littermate females (n ≥ 6 per genotype). E and F: 4-h fasting blood glucose and body weight of 8-week-old chow-fed βCpeKO and littermate females (n ≥ 6 per genotype). G and H: Insulin-like immunoreactivity and proinsulin-like immunoreactivity during perifusion of 1.67 mmol/L glucose, 16.7 mmol/L glucose, and 1.67 mmol/L glucose plus 30 mmol/L KCl (n = 5 and 5). I and J: Exocytosis, and exocytosis during a train of depolarization pulses with increased duration, of β-cells from islets of βCpeKO and Wt mice (>10 cells per mouse, three mice per genotype).
Glucose tolerance and insulin secretion of βCpeKO mice. A: IPGTT was performed on 8-week-old chow-fed βCpeKO and littermate males (n ≥ 5 per genotype). B and C: 4-h fasting blood glucose levels and body weight of 8-week-old chow-fed βCpeKO and littermate males (n ≥ 5 per genotype). D: IPGTT was performed on 8-week-old chow-fed βCpeKO and littermate females (n ≥ 6 per genotype). E and F: 4-h fasting blood glucose and body weight of 8-week-old chow-fed βCpeKO and littermate females (n ≥ 6 per genotype). G and H: Insulin-like immunoreactivity and proinsulin-like immunoreactivity during perifusion of 1.67 mmol/L glucose, 16.7 mmol/L glucose, and 1.67 mmol/L glucose plus 30 mmol/L KCl (n = 5 and 5). I and J: Exocytosis, and exocytosis during a train of depolarization pulses with increased duration, of β-cells from islets of βCpeKO and Wt mice (>10 cells per mouse, three mice per genotype).
To promote the development of obesity and insulin resistance, we placed 8-week-old βCpeKO mice on a control LFD (10% fat) or HFD (45% fat) for a duration of 6 months. In the LFD-treated group, weight gain of βCpeKO mice was similar to that of their Wt littermates (males [Fig. 4A] and females [Fig. 4F]), suggesting that the lack of Cpe in β-cells does not lead to spontaneous development of obesity. At 20 weeks post-LFD, male βCpeKO mice displayed modestly increased fasting blood glucose levels (Fig. 4B); however, their glucose tolerance, insulin tolerance, and percent fat mass, measured at 16 weeks and 20 weeks post-LFD, remained comparable with those of Wt littermates (Fig. 4C–E). Female βCpeKO mice have slightly elevated fasting blood glucose levels at 4 and 22 weeks post-LFD, yet displayed glucose tolerance, insulin tolerance, and body fat mass similar to those of littermates (Fig. 4G–J). Inappropriate proinsulin processing associated with β-cell Cpe deficiency does not contribute to accelerated development of HFD-induced obesity (males [Fig. 4K] and females [Fig. 4P]). Male and female βCpeKO mice showed fasting blood glucose levels, glucose tolerance, insulin tolerance, and percent fat mass similar to those of their littermates (Fig. 4L–O and Q–T).

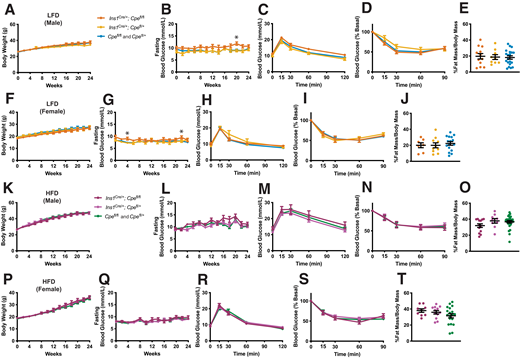

Comparable glucose tolerance and weight gain in HFD-fed βCpeKO and littermate mice. Body weight and 4-h fasting blood glucose were monitored every 2 weeks for 24 weeks for LFD-fed βCpeKO and their littermate male (A and B) and female (F and G) mice. IPGTT was performed after 16 weeks of LFD treatment on male (C) and female (H) mice. ITT and body mass composition analysis were performed after 20 weeks of LFD treatment on male (D and E) and female (I and J) mice (n ≥ 8 per group). Body weight and 4-h fasting blood glucose were monitored every 2 weeks for 24 weeks, on HFD-fed βCpeKO and their littermate male (K and L) and female (P and Q) mice. IPGTT was performed after 16 weeks of HFD treatment on male (M) and female (R) mice. ITT and body mass composition analysis were performed after 20 weeks of HFD treatment on male (N and O) and female (S and T) mice (n ≥ 8 per group).
Comparable glucose tolerance and weight gain in HFD-fed βCpeKO and littermate mice. Body weight and 4-h fasting blood glucose were monitored every 2 weeks for 24 weeks for LFD-fed βCpeKO and their littermate male (A and B) and female (F and G) mice. IPGTT was performed after 16 weeks of LFD treatment on male (C) and female (H) mice. ITT and body mass composition analysis were performed after 20 weeks of LFD treatment on male (D and E) and female (I and J) mice (n ≥ 8 per group). Body weight and 4-h fasting blood glucose were monitored every 2 weeks for 24 weeks, on HFD-fed βCpeKO and their littermate male (K and L) and female (P and Q) mice. IPGTT was performed after 16 weeks of HFD treatment on male (M) and female (R) mice. ITT and body mass composition analysis were performed after 20 weeks of HFD treatment on male (N and O) and female (S and T) mice (n ≥ 8 per group).
Increased β-Cell Proliferation in Cpe-Deficient Mice
Despite comparable glucose tolerance, β-cell area in LFD-treated βCpeKO male and female mice was elevated (Fig. 5A and B). Although HFD promoted compensatory β-cell expansion in Wt mice, βCpeKO mice did not have an increase in β-cell area (Fig. 5C and D). To study the cause of increased β-cell area in βCpeKO mice on LFD, we first examined the β-cell proliferation rate by analyzing the frequency of Ki67+ β-cells. However, the number of proliferating β-cells in mice fed LFD for 6 months was too low to allow for appropriate comparison between βCpeKO and Wt mice (data not shown). We therefore isolated islets from 10-week-old mice, cultured them in 5 or 20 mmol/L glucose media for 72 h, and analyzed EdU incorporation in insulin+ β-cells. β-Cell proliferation was significantly elevated in islets from βCpeKO mice (Fig. 5E). We also generated iβCpeKO mice by crossing Pdx1-CreER mice with Cpeflox/flox mice (Fig. 5F). Shortly after oral tamoxifen administration, male, but not female, iβCpeKO mice become mildly glucose intolerant (Fig. 5G and H). To induce β-cell proliferation, we treated iβCpeKO and their Wt littermates with a 60% fat diet for 2 days and analyzed EdU incorporation in the mouse pancreas. We found that the β-cell proliferation rate was significantly elevated in iβCpeKO female mice (Fig. 5I [males] and Fig. 5J [females]).

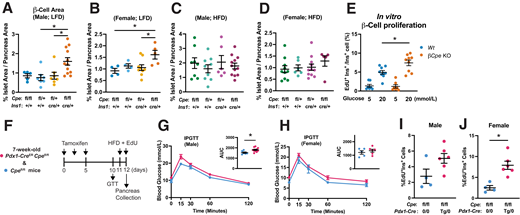

βCpeKO mice have increased β-cell area and β-cell replication. A–D: β-Cell area was analyzed with insulin immunostaining of pancreatic sections from male or female βCpeKO and littermate mice after 24 weeks of LFD or HFD (n ≥ 4 per group). E: We analyzed β-cell replication rate by calculating EdU+ and insulin+ cells in dispersed βCpeKO and Wt islets treated with 5 mmol/L glucose or 20 mmol/L glucose for 72 h (n ≥ 7 per group). F: Timeline of in vivo β-cell replication experiment. G and H: IPGTT was performed in inducible β-cell–specific Cpe knockout mice 5 days after last tamoxifen gavage (n ≥ 5 per group). I and J: β-Cell replication rate was analyzed by calculating EdU+ and insulin+ cells in pancreatic sections from βCpeKO and Wt male or female mice treated with 60% HFD for 48 h (n ≥ 4 per group). AUC, area under the curve; GTT, glucose tolerance test; wk, week.
βCpeKO mice have increased β-cell area and β-cell replication. A–D: β-Cell area was analyzed with insulin immunostaining of pancreatic sections from male or female βCpeKO and littermate mice after 24 weeks of LFD or HFD (n ≥ 4 per group). E: We analyzed β-cell replication rate by calculating EdU+ and insulin+ cells in dispersed βCpeKO and Wt islets treated with 5 mmol/L glucose or 20 mmol/L glucose for 72 h (n ≥ 7 per group). F: Timeline of in vivo β-cell replication experiment. G and H: IPGTT was performed in inducible β-cell–specific Cpe knockout mice 5 days after last tamoxifen gavage (n ≥ 5 per group). I and J: β-Cell replication rate was analyzed by calculating EdU+ and insulin+ cells in pancreatic sections from βCpeKO and Wt male or female mice treated with 60% HFD for 48 h (n ≥ 4 per group). AUC, area under the curve; GTT, glucose tolerance test; wk, week.
Altered Glycolytic Gene Expression and Increased (Pro)insulin Biosynthesis in Cpe-Deficient β-Cells
To identify the underlying molecular mechanisms contributing to increased β-cell proliferation in βCpeKO mice, we performed transcriptomic analysis in sorted β-cells from Wt and βCpeKO mice (Fig. 6A). As expected, Cpe was drastically reduced in β-cells from βCpeKO mice. Expression of many Hif1α-regulated genes (including Ldha, Hmox1, P4ha1, Pgk1, Mif, Ak4, Bnip3, Pfkp, P4ha2, Slc2a1, and Pfkfb3) was increased. Gene ontology analysis showed that expression of genes related to glycolysis and hypoxia are enriched, while hallmarks of pancreatic β-cells are reduced, in Cpe-deficient mouse β-cells (Fig. 6B). We found that the rate of glucose uptake into islet cells is comparable in βCpeKO and Wt mice (Fig. 6C), and glycolytic flux analysis showed that βCpeKO islet cells have an oxygen consumption rate similar to that of Wt islet cells (Fig. 6D). Interestingly, despite elevated (pro)insulin production (Fig. 6E) and increased accumulation of proinsulin oligomers (28) (Fig. 6F), (pro)insulin protein stability was not significantly reduced in islets from βCpeKO mice (Supplementary Fig. 1), and canonical unfolded protein response elements were not elevated in freshly isolated βCpeKO islets (Supplementary Fig. 2A–E).

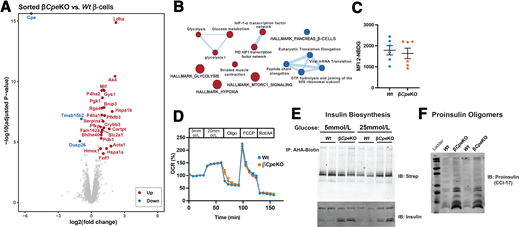

Altered glycolytic transcripts and increased proinsulin biosynthesis in βCpeKO islets. A: Transcriptomic analysis of islet β-cells from 16-week-old chow-fed βCpeKO and Wt mice (n = 3 and 3). Data are presented as a volcano plot with significantly up- or downregulated genes annotated. B: Results from GSEA are presented as EnrichmentMap. Red, upregulated gene sets; blue, downregulated gene sets. C: Glucose uptake was analyzed by quantifying 2-NBDG fluorescence intensity of dispersed live islet cells from βCpeKO and Wt mice via flow cytometer (n = 6 and 6). D: Baseline-normalized oxygen consumption rate of dispersed islet cells from βCpeKO and Wt mice was analyzed (technical triplicate per sample, three samples per genotype). E: Freshly isolated islets were equilibrated in methionine-free media and pulsed with 5 mmol/L or 25 mmol/L l-azidohomoalaine (AHA)-containing media for 90 min. Islet protein pellets were click conjugated with biotin alkyne, immunoprecipitated (IP) with avidin, and analyzed with immunoblotting (IB) with use of streptavidin (Strep) and an anti-insulin antibody. F: Proinsulin oligomers were analyzed with immunoblotting with an antibody against proinsulin oligomers (monoclonal antibody CCI-17). Down, downregulated; FCCP, carbonyl cyanide 4-(trifluoromethoxy)phenylhydrazone; MFI, mean fluorescence intensity; Oligo, oligomycin; Rot/AA, rotenone and antimycin A; Up, upregulated.
Altered glycolytic transcripts and increased proinsulin biosynthesis in βCpeKO islets. A: Transcriptomic analysis of islet β-cells from 16-week-old chow-fed βCpeKO and Wt mice (n = 3 and 3). Data are presented as a volcano plot with significantly up- or downregulated genes annotated. B: Results from GSEA are presented as EnrichmentMap. Red, upregulated gene sets; blue, downregulated gene sets. C: Glucose uptake was analyzed by quantifying 2-NBDG fluorescence intensity of dispersed live islet cells from βCpeKO and Wt mice via flow cytometer (n = 6 and 6). D: Baseline-normalized oxygen consumption rate of dispersed islet cells from βCpeKO and Wt mice was analyzed (technical triplicate per sample, three samples per genotype). E: Freshly isolated islets were equilibrated in methionine-free media and pulsed with 5 mmol/L or 25 mmol/L l-azidohomoalaine (AHA)-containing media for 90 min. Islet protein pellets were click conjugated with biotin alkyne, immunoprecipitated (IP) with avidin, and analyzed with immunoblotting (IB) with use of streptavidin (Strep) and an anti-insulin antibody. F: Proinsulin oligomers were analyzed with immunoblotting with an antibody against proinsulin oligomers (monoclonal antibody CCI-17). Down, downregulated; FCCP, carbonyl cyanide 4-(trifluoromethoxy)phenylhydrazone; MFI, mean fluorescence intensity; Oligo, oligomycin; Rot/AA, rotenone and antimycin A; Up, upregulated.
Dysregulated Mitochondrial Dynamics and Loss of β-Cell Identity in Glucose-Challenged βCpeKO Islets
Because (pro)insulin production is elevated in βCpeKO islets, we asked whether the morphology or function of the fuel-providing mitochondria is altered in Cpe-deficient β-cells. Electron micrograph analysis of mitochondrial images showed that βCpeKO β-cells have similar area, yet reduced size (Fig. 7A–C). Additional confocal image analysis showed mitochondrial number, area, perimeter, and branch number were all reduced in βCpeKO β-cells (Fig. 7D–H), while mtDNA content was not reduced (Fig. 7I). This suggests that mitochondria in Cpe-deficient β-cells work to accommodate an increased demand for (pro)insulin synthesis. Nevertheless, after prolonged glucose treatment, β-cells from βCpeKO mice had reduced mitochondrial membrane potential upon high glucose stimulation (Fig. 7J) and displayed elevated levels of mitochondrial and cellular reactive oxygen species (ROS) (Fig. 7K and L). β-Cells from βCpeKO mice have no increase in mitochondria biogenesis upon high glucose culture, as Pgc1a transcript levels are not significantly elevated (Fig. 7M). Islets from βCpeKO mice failed to display elevated MafA transcript level upon high glucose treatment (Fig. 7N). Rather, Aldh1a3 transcript levels were significantly elevated, suggesting loss of β-cell identity in βCpeKO islets (Fig. 7O). Glucose metabolism was likely altered, as transcript levels of Pfkp were significantly increased in βCpeKO islets (Fig. 7P). Of note, treatment of islets with high glucose led to increased expression of endoplasmic reticulum (ER) stress markers such as spliced Xbp1 (Xbp1s), but βCpeKO islets showed no increase in Xbp1s (Fig. 7Q), inferring that elevated proinsulin biosynthesis does not contribute to increased ER stress in Cpe-deficient β-cells.

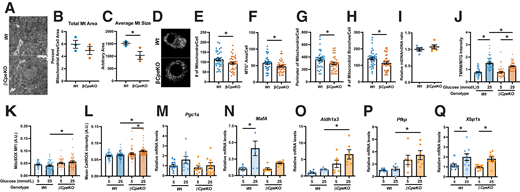

Mitochondrial morphology and function were disturbed in islet cells from βCpeKO mice. A: Representative electron micrographs of mitochondria in β-cells from βCpeKO and Wt mice. B and C: Total mitochondria (Mt) area and average mitochondrial size in β-cells were quantified. Each dot represents the average of two to six images from one mouse (>400 mitochondria were analyzed per mouse) (n = 3 per genotype). D: Representative immunofluorescence staining of mitochondria with MTG in islet cells from βCpeKO and Wt mice. E–H: Mitochondria numbers, area, perimeter, and branch number were quantified. Each dot represents one cell, 10–15 cells per mouse, n ≥ 3 per genotype. I: mtDNA content of islets from βCpeKO and Wt mice was analyzed with quantitative RT-PCR with ND1 (mtDNA) and 16S (nuclear DNA [nDNA]) primer probes, presented as mtDNA-to-nDNA ratio (n = 5 per genotype). J–L: Mitochondrial membrane potential, mitochondrial ROS levels, and cellular ROS levels were analyzed via live cell imaging in 5 mmol/L or 25 mmol/L glucose–treated dispersed islet cells with use of TMRM, MTG, MitoSOX, and CellROX dyes. Each dot represents one cell, 10–15 cells per mouse, n ≥ 3 per genotype. M–Q: Quantitative RT-PCR analysis of Pgc1α, MafA, Aldh1a3, Pfkp, and Xbp1s in βCpeKO and Wt mouse islets treated with 5 mmol/L or 25 mmol/L glucose for 48 h (n = 6 per group). A.U., arbitrary units; MFI, mean fluorescence intensity.
Mitochondrial morphology and function were disturbed in islet cells from βCpeKO mice. A: Representative electron micrographs of mitochondria in β-cells from βCpeKO and Wt mice. B and C: Total mitochondria (Mt) area and average mitochondrial size in β-cells were quantified. Each dot represents the average of two to six images from one mouse (>400 mitochondria were analyzed per mouse) (n = 3 per genotype). D: Representative immunofluorescence staining of mitochondria with MTG in islet cells from βCpeKO and Wt mice. E–H: Mitochondria numbers, area, perimeter, and branch number were quantified. Each dot represents one cell, 10–15 cells per mouse, n ≥ 3 per genotype. I: mtDNA content of islets from βCpeKO and Wt mice was analyzed with quantitative RT-PCR with ND1 (mtDNA) and 16S (nuclear DNA [nDNA]) primer probes, presented as mtDNA-to-nDNA ratio (n = 5 per genotype). J–L: Mitochondrial membrane potential, mitochondrial ROS levels, and cellular ROS levels were analyzed via live cell imaging in 5 mmol/L or 25 mmol/L glucose–treated dispersed islet cells with use of TMRM, MTG, MitoSOX, and CellROX dyes. Each dot represents one cell, 10–15 cells per mouse, n ≥ 3 per genotype. M–Q: Quantitative RT-PCR analysis of Pgc1α, MafA, Aldh1a3, Pfkp, and Xbp1s in βCpeKO and Wt mouse islets treated with 5 mmol/L or 25 mmol/L glucose for 48 h (n = 6 per group). A.U., arbitrary units; MFI, mean fluorescence intensity.
βCpeKO Mice Have Accelerated Development of STZ-Induced Hyperglycemia
We administered βCpeKO and littermate mice with MLD-STZ to induce cell dysfunction in a small portion of β-cells and to create secretory stress in the remaining cells (Fig. 8A). βCpeKO mice showed higher blood glucose levels at 10 days after the last STZ treatment, compared with Cpe heterozygous (βCpeHet) or Wt mice (Fig. 8B–D). βCpeKO mice did not display increased STZ-induced β-cell death: β-cell area (analyzed at 10 days post-STZ) and number of TUNEL+ β-cells (analyzed at 3 days post-STZ) were similar in βCpeKO and Wt mice (Fig. 8E and F). Building on our finding of increased β-cell area in βCpeKO mice (Fig. 5A), we found that buffer-treated βCpeKO mice had a higher percentage of β-cells in their islets (Fig. 8G). Although MLD-STZ led to a modest increase in the percentage of β-cells in Wt islets, it reduced the percentage of β-cells in βCpeKO islets (Fig. 8G). In agreement with previous reports, we showed that the portion of Glut2+ β-cells was reduced after MLD-STZ (Fig. 8H); however, the number of Glut2+ β-cells remained comparable in Wt and βCpeKO mice. We also found an increased percentage of Aldh1a3+ β-cells and increased ER stress markers in the islet cells upon MLD-STZ treatment (Fig. 8I and Supplementary Fig. 2F). However, the deficiency of Cpe in β-cells did not cause further elevation of ER stress, as immunofluorescence intensity of phosphorylated eIF2α, Atf4, and Bip was comparable between MLD-STZ Wt and βCpeKO mice (Supplementary Fig. 2). As the insulin antibody used for immunostaining recognizes both proinsulin and mature insulin, the increased mean fluorescence intensity observed in β-cells from buffer-treated βCpeKO versus Wt mice likely reflects the significantly elevated proinsulin protein expression in βCpeKO islets (Fig. 8J). Upon STZ treatment, insulin and Glut2 expression levels were significantly reduced in βCpeKO, but not Wt, mice (Fig. 8J and K), suggesting that β-cells in βCpeKO are more susceptible to secretory stress–induced degranulation and dysfunction. β-Cell maturity remained comparable, as islet Aldh1a3 expression levels were not further increased in STZ-treated βCpeKO mice (Fig. 8L).

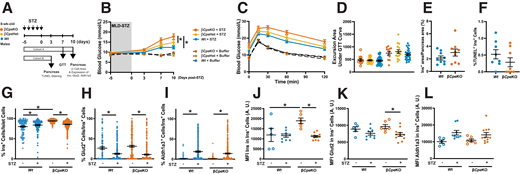

βCpeKO mice have accelerated development of MLD-STZ–induced hyperglycemia. A: Timeline of MLD-STZ experiment. B: Fasting blood glucose levels of βCpeKO and littermate mice administered with a buffer (empty circle with dotted line) or MLD-STZ (filled circle with solid line). C and D: IPGTT was performed 7 days after the last STZ injection, and excursion area under the glucose tolerance test curve was analyzed (n ≥ 10 per group). E: β-Cell area of MLD-STZ–treated βCpeKO and Wt mice (n = 9 and 9). F: β-Cell death was analyzed with use of pancreatic sections of MLD-STZ–treated βCpeKO and Wt mice with TUNEL and insulin staining (n = 8 and 8). G–L: Frequency and staining intensity of insulin+, Glut2+, and Aldh1a3+ cells in pancreatic sections of MLD-STZ βCpeKO and Wt mice were analyzed. (G–I: Each dot represents one islet. J–L: Each dot represents average fluorescent intensity of islets from one pancreatic section of one mouse; n ≥ 5 per group.) AUC, area under the curve; A.U., arbitrary units; GTT, glucose tolerance test; MFI, mean fluorescence intensity.
βCpeKO mice have accelerated development of MLD-STZ–induced hyperglycemia. A: Timeline of MLD-STZ experiment. B: Fasting blood glucose levels of βCpeKO and littermate mice administered with a buffer (empty circle with dotted line) or MLD-STZ (filled circle with solid line). C and D: IPGTT was performed 7 days after the last STZ injection, and excursion area under the glucose tolerance test curve was analyzed (n ≥ 10 per group). E: β-Cell area of MLD-STZ–treated βCpeKO and Wt mice (n = 9 and 9). F: β-Cell death was analyzed with use of pancreatic sections of MLD-STZ–treated βCpeKO and Wt mice with TUNEL and insulin staining (n = 8 and 8). G–L: Frequency and staining intensity of insulin+, Glut2+, and Aldh1a3+ cells in pancreatic sections of MLD-STZ βCpeKO and Wt mice were analyzed. (G–I: Each dot represents one islet. J–L: Each dot represents average fluorescent intensity of islets from one pancreatic section of one mouse; n ≥ 5 per group.) AUC, area under the curve; A.U., arbitrary units; GTT, glucose tolerance test; MFI, mean fluorescence intensity.
Discussion
Cpe mutations in mice and humans lead to obesity and hyperglycemia; however, the underlying cellular and physiological mechanisms remain unknown. We hypothesized that lack of Cpe in pancreatic β-cells is the main contributor to such clinical phenotypes because 1) Cpe is required for proper proinsulin processing (3), 2) reduced expression of Cpe is associated with β-cell dysfunction in multiple experimental models of diabetes (29–31), and 3) Cpe may play a protective role in preventing β-cell death (32). To address this hypothesis, we generated β-cell–specific Cpe knockout mice. Our data indicate that while Cpe is important in normal proinsulin processing, Cpe deficiency alone does not contribute to obesity or cause marked dysglycemia.
Islets from βCpeKO mice contain markedly more proinsulin peptides, yet have detectable mature insulin peptide, suggesting that another carboxypeptidase, likely Cpd, is compensating. In agreement with an in vitro study suggesting that Cpe is essential for PC2-mediated peptide processing (25), we showed that loss of Cpe results in reduced PC2 enzyme activity and increased N-terminally extended proIAPP (which is normally processed by PC2 into mature IAPP [23]). Although total islet PC1/3 enzyme activity was not changed in βCpeKO mice, PC1/3 protein levels were elevated, suggesting that on a per-enzyme basis, PC1/3 activity is likely reduced in βCpeKO β-cells. To our surprise, even with markedly impaired proinsulin processing and diminished output of mature insulin, βCpeKO mice failed to develop obesity and hyperglycemia spontaneously or when challenged with an HFD, contrary to a recent report that Pdx-CreERT-mediated Pcsk1 deletion and elevated proinsulin promote the development of obesity in mice (33). It is plausible that elevated proinsulin, possessing 5% activity compared with insulin (34,35), is sufficient to maintain glucose homeostasis. Another possibility is that obesity and overt hyperglycemia observed in Cpe mutations are driven by insufficient Cpe and defective neuropeptide processing in other tissues, such as in the hypothalamus, although mice with Cpe deletion in proopiomelanocortin (POMC)-expressing neurons do not become obese (36). Whether Cpe controls body weight and metabolic homeostasis in non-POMC-expressing neuroendocrine cells remains to be tested.
β-Cells are able to adapt to increased insulin demand by increasing production, secretion, and mass prior to hyperglycemia onset (37–39). βCpeKO mice have increased proinsulin production and elevated β-cell area but remain normoglycemic. Because protein overproduction may change intrinsic metabolic pathways and alter β-cell fate (40), it is plausible that increased demand caused by increased insulin production (41) contributes to metabolic pathway rewiring and concomitant β-cell proliferation in βCpeKO mice. In a recent large-scale small molecule screen a compound was identified that promotes protein synthesis and β-cell regeneration. The authors showed that the increased β-cell regeneration is associated with hypo-translation of mRNAs that are integral to mitochondrial-related processes (42). In support of this idea, we observed altered glycolytic gene signatures and changes in mitochondrial morphology and membrane potential in βCpeKO β-cells. Oxygen consumption rate was not reduced in islets from βCpeKO mice, hinting that additional pathological stimuli are likely needed to disrupt oxidative phosphorylation. Alternatively, metabolic flux analysis may offer more quantitative insights into carbon metabolism and energy flow in islets with inherently elevated proinsulin biosynthesis. It is also possible that the increased proinsulin oxidative folding burden may create ER redox imbalances (43), leading to increased mitochondrial and cellular ROS levels. Future live-cell imaging experiments with ROS biosensors could illuminate the cellular sequence of events. Both mild ER stress and ROS have been reported to facilitate β-cell proliferation (16,44). Despite an accumulation of proinsulin oligomers (28), we failed to detect significant changes in transcripts encoding ER chaperons or unfolded protein response proteins. Of note, β-cell de-differentiation markers Serpina7 (45) and Ldha (46) are reduced in sorted β-cells from normoglycemic βCpeKO mice, suggesting that the slight loss of β-cell identity may occur during early-stage β-cell compensation prior to the development of hyperglycemia. Whether insulin biosynthesis impacts insulin granule secretion requires further investigation. We speculated that increased proinsulin biosynthesis burden and altered glucose metabolism or redox handling capacity may contribute to defects in coupling or translocation of granules to the site of Ca2+ channels, which results in reduced exocytotic response of βCpeKO β-cells to a train of membrane depolarizations. Alternatively, increased insulin production may affect the composition of the secretory granule membrane (47), which alters its interaction with plasma membrane Ca2+ channels or the fusion with plasma membrane (48). It is also worth mentioning that we have not analyzed possible changes in paracrine signaling in βCpeKO islets.
βCpeKO mice adapted to chronic dietary stress weight gain and glucose tolerance similar to those of their littermates. We administered βCpeKO mice and their littermates with MLD-STZ to induce acute insulin secretory stress without extensive β-cell death or loss of β-cell mass. MLD-STZ led to loss of β-cell identity in both Wt and βCpeKO mice, evidenced by an increased percentage of Aldh1a3+ cells and reduced Glut2+ cells in islets. After MLD-STZ, βCpeKO mice also had accelerated development of hyperglycemia and displayed reduced (pro)insulin and Glut2 expression levels in β-cells. These findings were mirrored in vitro, as we observed no induction of MafA, and increased Aldh1a3, in high glucose–treated βCpeKO islets. We speculate that suboptimal mitochondrial function, or altered cellular redox homeostasis, resulting from the combination of secretory stress and Cpe deficiency, contributes to β-cell dysfunction in MLD-STZ Cpe-deficient islets (49–51). It has been reported that islets from Cpe mutant mice are more susceptible to palmitic acid–induced β-cell apoptosis (32). We were unable to observe detectable differences in TUNEL+ β-cells in MLD-STZ–treated βCpeKO 3 days after the last STZ injection, when β-cell apoptosis rates are at their highest (52). Instead, β-cells from βCpeKO mice have reduced Glut2 expression, which may present an adaptive mechanism to attenuate glucose uptake and metabolic stress–induced β-cell death (53).
In summary, we demonstrated that loss of Cpe in pancreatic β-cells does not contribute to spontaneous development of obesity and hyperglycemia in mice. However, elevated proinsulin output likely reshapes β-cell glucose metabolism and increases its susceptibility to secretory stress–induced dysfunction and diabetes. Our model may shed light on β-cell translational adaptation, which likely occurs early during the development of diabetes. Additional studies in other prediabetes models and human islets are needed for a better understanding of these early adaptive events and will aid discovery of new therapeutic targets to preserve β-cell function prior to the onset of diabetes.
